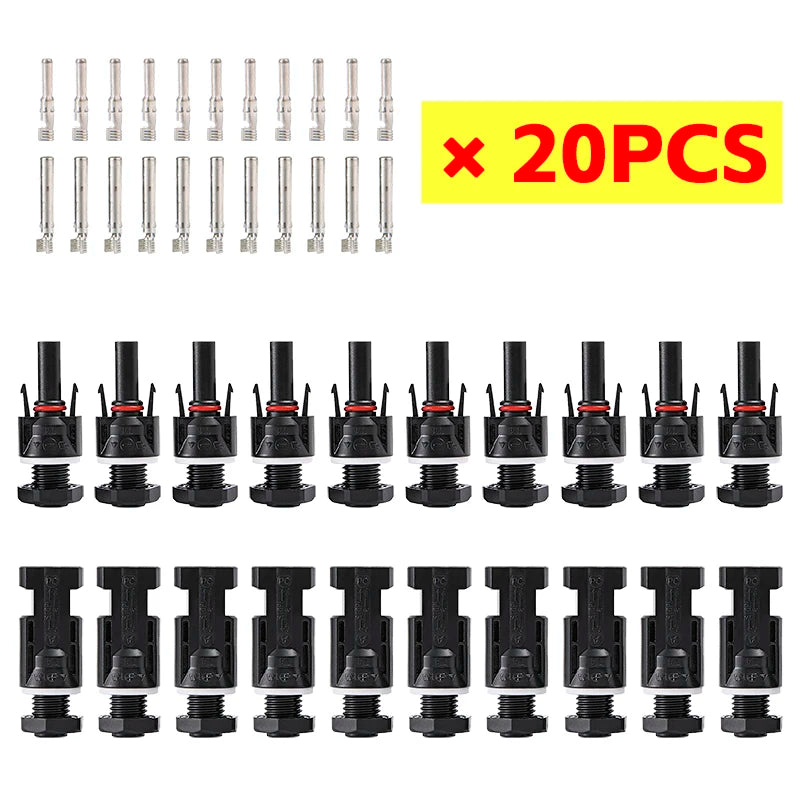

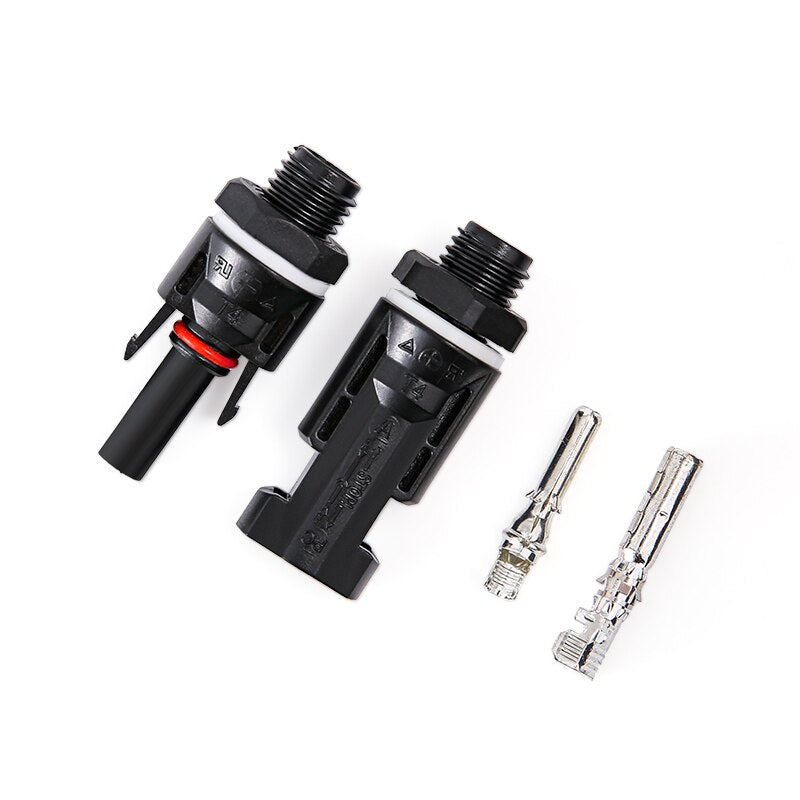

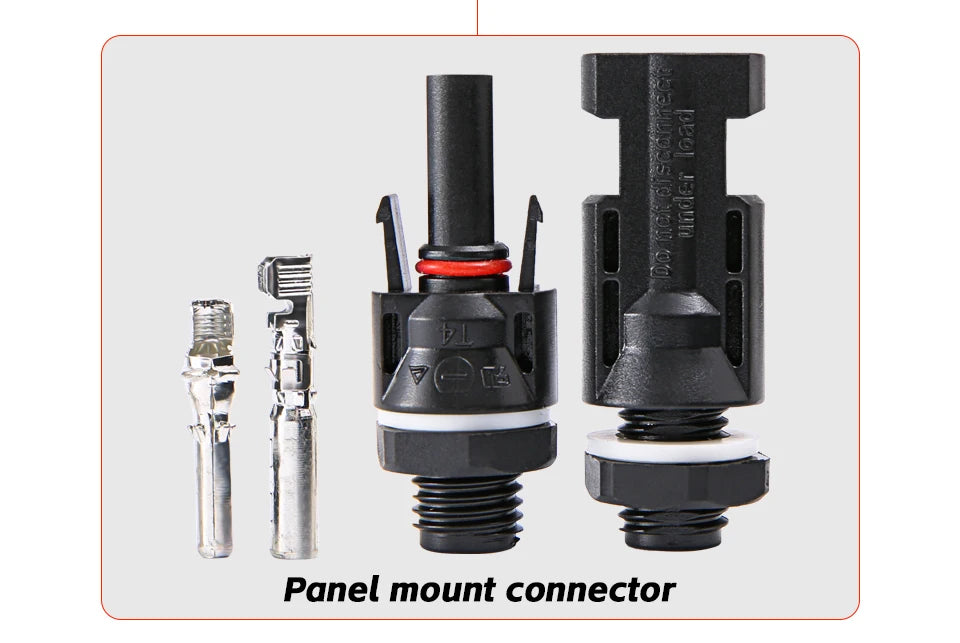

- 10/20/40/100PCS Solar PV Connectors - for Solar Panel Mount and Inverter Panel Solar connector solar coupler IP67 DC1000V

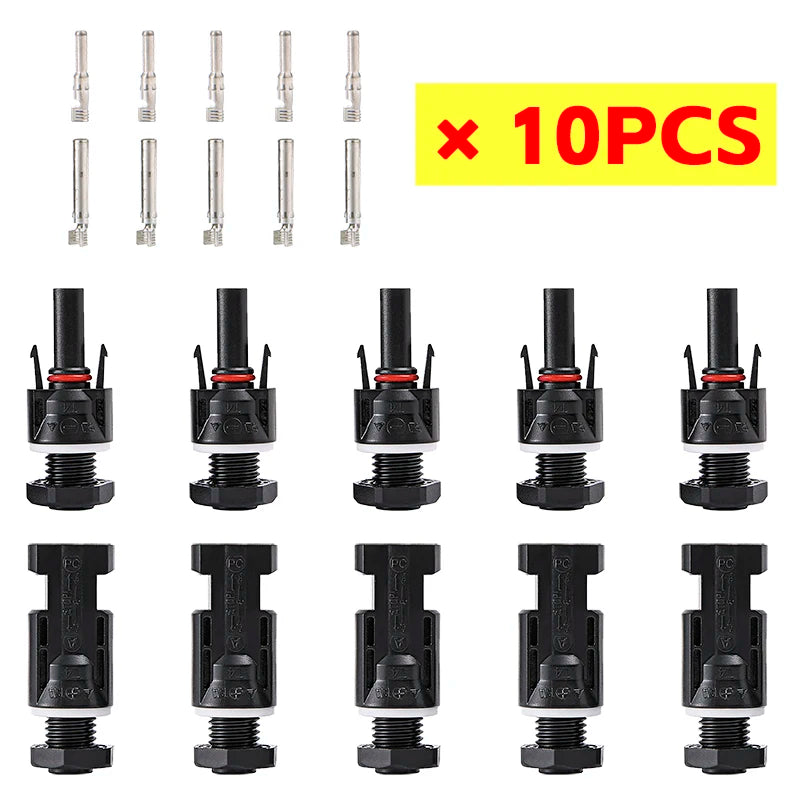

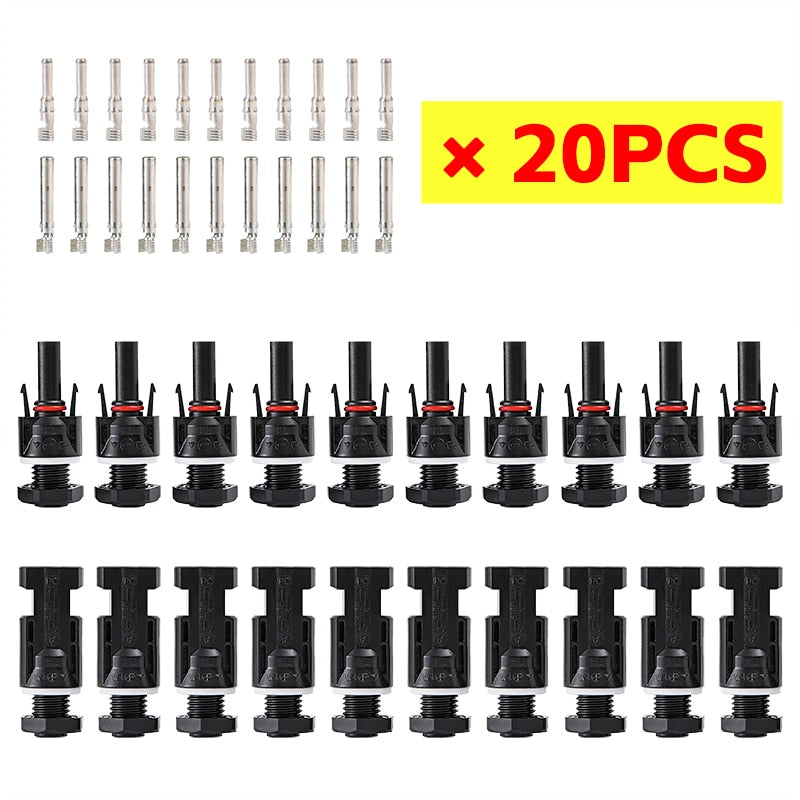

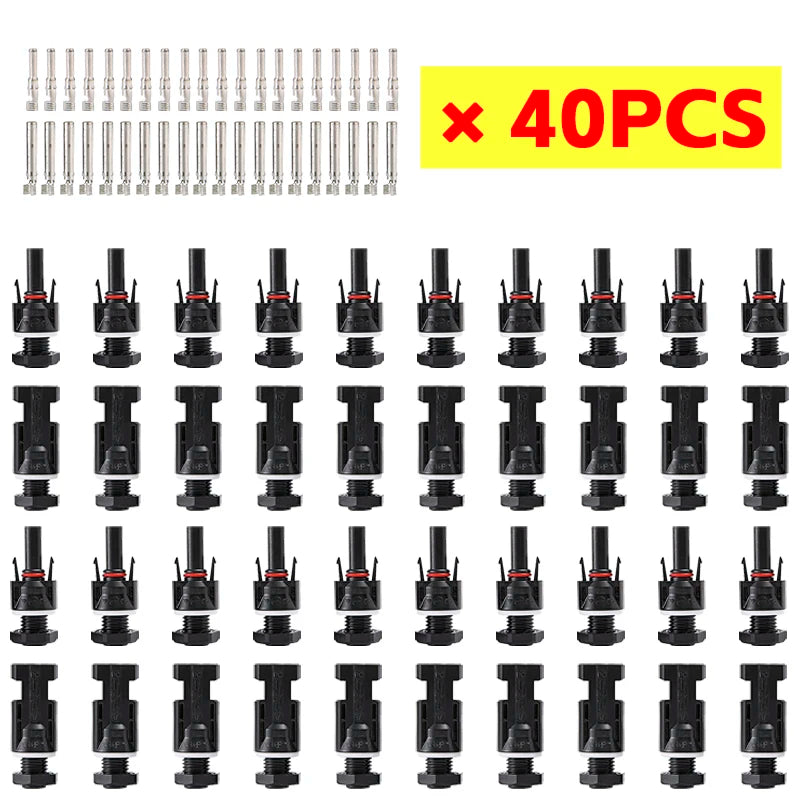

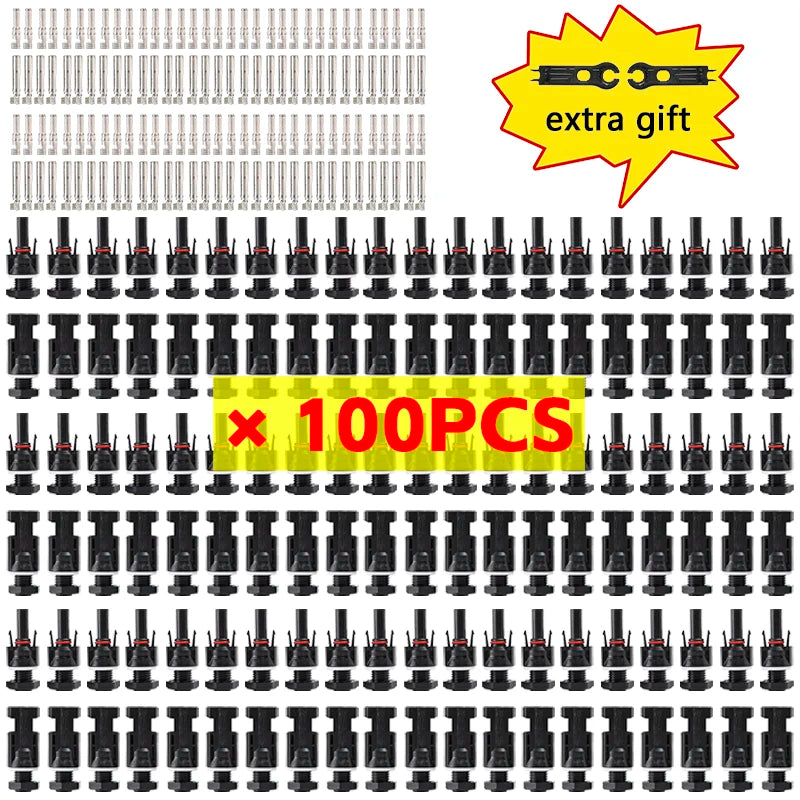

10/20/40/100PCS Solar PV Connectors - for Solar Panel Mount and Inverter Panel Solar connector solar coupler IP67 DC1000V
10/20/40/100PCS Solar PV Connectors - for Solar Panel Mount and Inverter Panel Solar connector solar coupler IP67 DC1000V
178 orders in last 30 days
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping:Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
10/20/40/100PCS Solar PV Connectors SPECIFICATIONS
Safety:: Class II
Rated voltage:: 1000V DC
Rated current:: 30A
Origin: Mainland China
Model Number: connector-BD
Flammability rating:: UL94-V0
Degree of waterproof:: IP67
Brand Name: PVMC
Specifications
* Rated current: 30A (2.5m㎡--6m㎡)
* Rated voltage: 1000V DC
* Connector contact resistance:≤0.5mΩ
* Degree of waterproof: IP67
* Flammability rating: UL94-V0
* Safety: Class II
* Suitable cable: 2.5m㎡--6m㎡( include AWG13,AWG12, AWG11,AWG10 )
* Adapter Wire: OD 5mm-7mm
* Connector conductor material: copper, Tin
* Connector Insulation material: PPO/PPE
* Insertion force: less or equal to 50N
* Withdrawal force: over or equal to 50N
* Operating temperature range: -40℃~ +85℃
* Connection: Clamp
