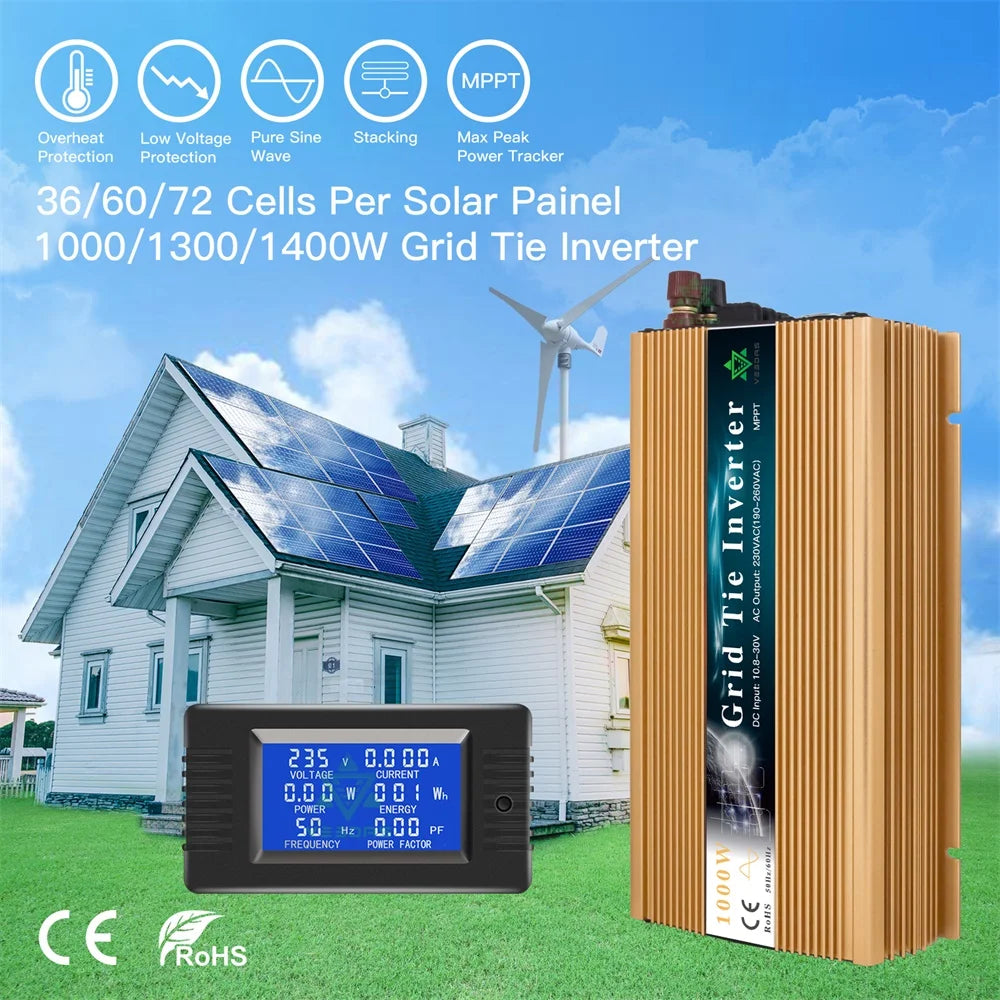

1000W 1300W 1400W MPPT Home On Grid Tie Inverter 10.8-30VDC or 22-50 VDC Solar Inverter Pure Sine Wave Converter 110V 220V AC
1000W 1300W 1400W MPPT Home On Grid Tie Inverter 10.8-30VDC or 22-50 VDC Solar Inverter Pure Sine Wave Converter 110V 220V AC
246 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Weight: 2.85kg
Suggestion Solar panel voltage: 18,24V,30V,36V
Suggestion Solar panel power: 200W,250W,300W,350W

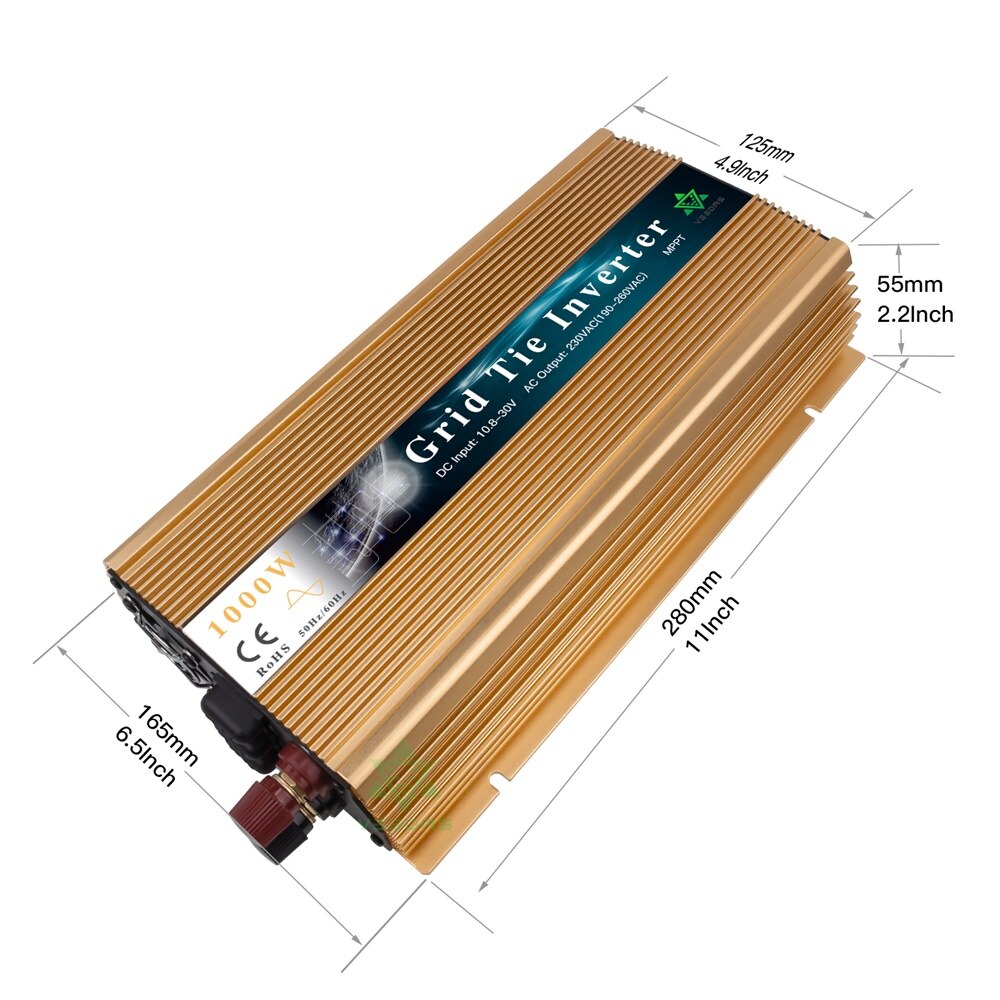

Size: 42x23x14cm
Output Type: single
Output Power: >1000KW
Output Frequency: 50HZ 60HZ
Origin: Mainland China
Model Number: GTI1000,GTI1300,GTI1400
Model: Solar Inverter
Is Smart Device: No
Certification: CE,FCC,RoHS
1.Working principle

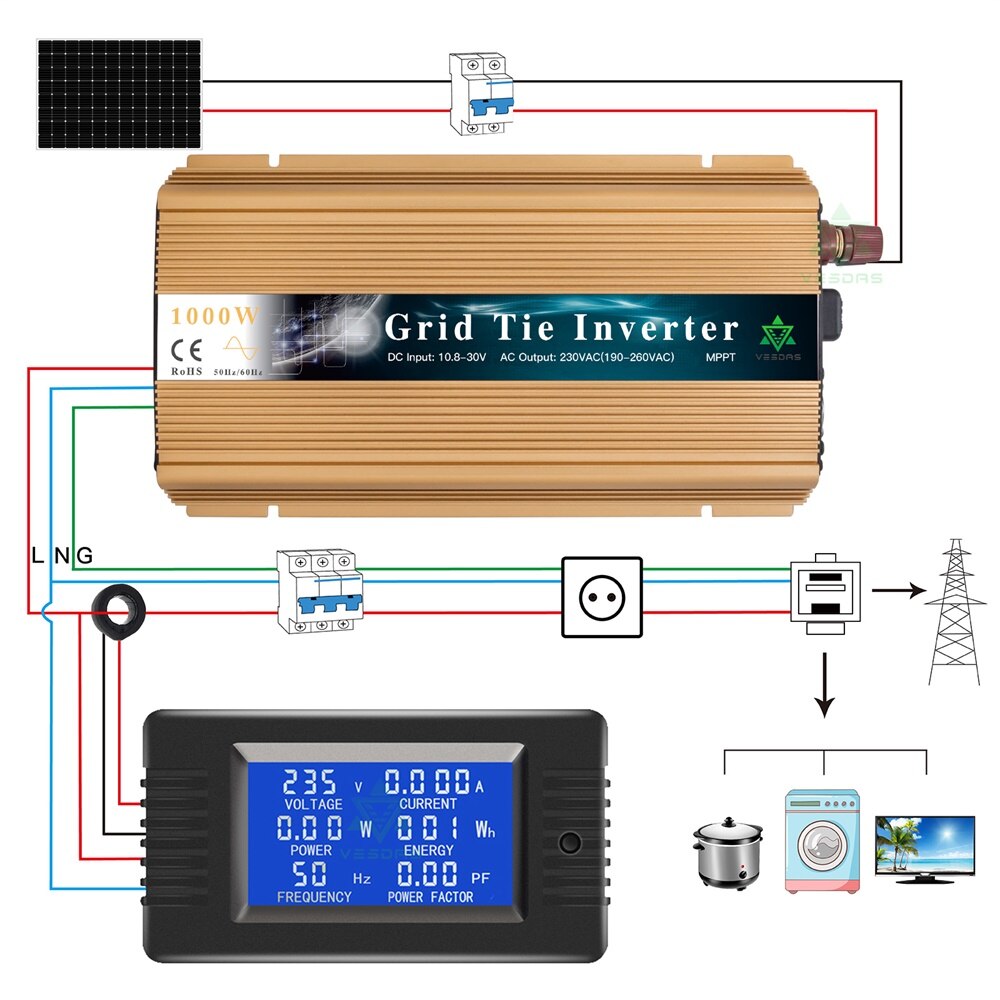

Smart grid tie inverter is a compact unit, which directly converts direct current into alternating current for powering appliances and office equipments and connecting to utility grid. The AC output from Smart micro inverter is synchronized and in-phase with the utility grid. It is a key device of power generation systems such as PV power generation system, wind turbine power generation system.
2.Matching solar panels
Smart micro inverter specially optimized design to work with modulari- za-tion of DC power supplies which includesthe mainstream solar modules, 18V (36 cells), 24V (60 cells) and 36V (72 cells) monocrystal and/or Polycrystalline solar panels,wind turbines and batteries. Smart micro inverters are stabilization, reliable and high conversion efficiency items. It is the best choice for PV power generation systems.
3. MPPT technology
Smart micro inverter can be easily placed and attached to the rack underneath of PV module. No need spaces for independent installation and low voltage DC wire connects from the PV module to Smart micro inverter can eliminate the risk of high DO voltage. Distributed modularization design philosophy for Smart micro inverter insures the productiveness of the whole system and will not affect by a single point of failure. Each Smart micro inverter is individually connected to each PV module in the array. This unique configuration means that an individual Maximum Peak Power Point Tracker (MPPT) controls each PV modules and insures that the maximum power available from each PV module is exported to the utility grid regardless of the performance of the other PV modules in the array which may be affected by shading, soiling, orientation or mismatch, etc. Smart micro inverter insures top performance for maximizing energy production from the whole PV system and gets return on investment in less time
4. Advantages of Smart Micro inverter
(1) Unique circuit design, choice of import industrial electronic components, higher efficiency, more stable performance.
(2) Creative MPPT technology, efficiency more than 99%, faster and more sensitive reaction, more reliable.
(3) Parallel type design for DC input and modularization design for intion,flexible for combination, strong expansibility of system.
(4) Adopting high-frequency isolation transformer type, high efficiency, and high security.
(5) Perfect electrical protection function.
(6) Aluminum alloy housing, not rust, heat-resisting and cold-resistant as well as anti-corrosion.
(7) Getting electronic circuit design, appearance design and other core technology patents.
Power |
1000W,1300W,1400w |
|
Solar panels |
≥1000W |
|
DC MAX input |
1200W,1500W,1600W |
|
The Voltage of Matched solar panel |
Vmp: 18-21V, Voc: 20-24V |
Vmp: 26-39V, Voc: 34-45V |
DC input range |
10.8-30V |
20-45 |
MPPT Voltage |
15-23VDC |
24-36VDC |
DC MAX current |
80A |
50A |
AC MAX output |
1100W |
|
AC output range |
120VAC(90-140VAC) or 230VAC(190-260VAC) |
|
Frequency range |
50Hz/60Hz |
|
Power Factor |
>97.5% |
|
THD |
<5% |
|
Phase Shift |
<1% |
|
Peak Efficiency/110V |
82% |
87% |
Stable Efficiency /110V |
79% |
84% |
Peak Efficiency/220V |
82% |
87% |
Stable Efficiency/220V |
80% |
85% |
Protection |
Islanding; Short-circuit; converse connection; Low Voltage; Over Voltage; Over temperature Protection |
|
Work Temperature |
‘-25°C-80°C |
|
Work Humidity |
0%~90%RH non-condensing |
|
Grade of Waterproof |
Indoor design |
|
Show |
1 Red and 1 Green |
|

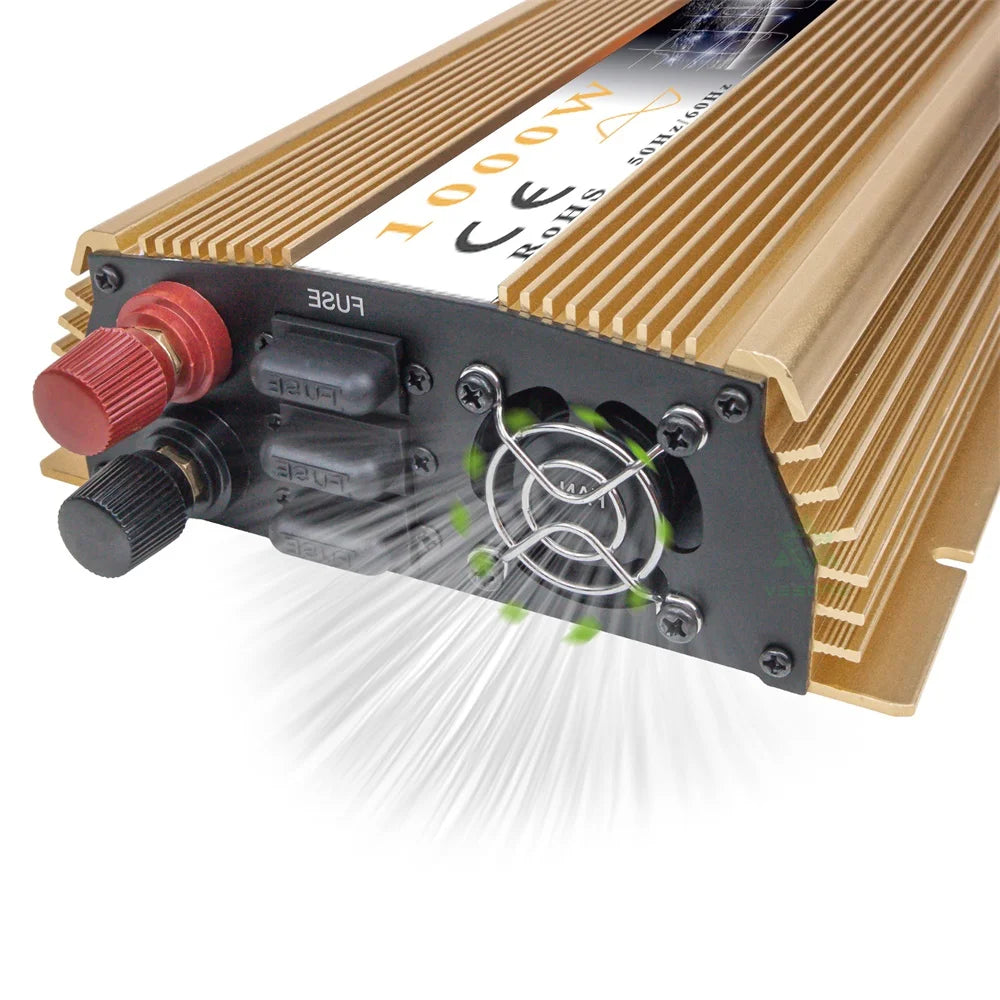

Cooling |
Fan |
|
Stand-by Power |
2-3W |
|
EMC |
EN61000-6-3:2007 EN61000-6-1:2007 |
|
Grid Disturbance |
EN 50178+EN 62109-1+VDE0126-1-12 |
|
Grid Detection |
DIN VDE 1026 UL1741 |
|
Certificate |
CE |
|
Net Weigtht |
2.0kgs/pc |
|
Gross Weight |
2.7kgs/pc |
|
Inner Box (LxWxH) |
31x16.5x5.3cm |
|
Carton (LxWxH) |
42x40.5x24.2cm |
|
This solar inverter supports MPPT (Maximum Power Point Tracking) technology, providing pure sine wave output with overheat and low voltage protection. It's suitable for grid-tied systems and can handle up to 1400W power output. The inverter is compatible with 10.8-30VDC or 22-50VDC solar panels and produces a clean AC output of 110V or 220V.
1000W to 1400W MPPT grid tie inverter converts DC input (10.8-30V) to AC output (230VAC, 190-260VAC). It features pure sine wave technology and supports 110V/220V AC output. The inverter also has a built-in maximum power point tracking (MPPT) function for efficient solar charging.
The product features a MPPT home on-grid tie inverter with pure sine wave conversion, suitable for solar panels within 10.8-30VDC or 22-50 VDC, and outputs 110V or 220V AC.
High-quality MPPT inverter with pure sine wave conversion. Features 1000W-1400W power output, 10.8-30VDC input, and 110V/220V AC tie-in grid connection. CE and RoHS compliant.
