SPECIFICATIONS

Origin: Mainland China

Certification: CE

Features:

1. Industrial-grade master chip, 16 AD sampling accuracy, temperature, charging current,

discharge current accurate real-time display, power generation at a glance.

2. Automatic focusing MPPT tracking charging, high charging efficiency, non-stop detection

during charging, bidirectional focusing tracking.

3. Large-screen LCD display, adjustable charging and discharging parameters. UItra-wide charge

and discharge adjustable, as long as you understand the characteristics of the battery set its

corresponding charging parameters, you can charge a battery. When the output is off, the time

can be adjusted, which is more convenient. (on the market, there is no point adjustment)

4. Acomplete three-phase charge management, effectively protect the battery, the battery is more

durable.

5. Built-in overheating, overcurrent short circuit, open circuit protection, reverse connection

protection,when the fault is eliminated, the controller automatically recovers, does not damage

the device.

6. Bidirectional MoS tube anti-backflow circuit, high-power charging mode, ultra-low heat.

7. R5. 0 solar charging DC plug, R5. 0 DC lamp output DC plug, convenient connection.

Specifications

1. Rated voltage: 12/24V

2. Rated current: 10/20/30/40/50/60/100A

3. Max. PV voltage: 50V

4. Max. PV input power: 750W(12V) / 1500W(24V)

Function:

1. Always keep the battery on fill voltage condition.

2. Prevent the battery from over-charging.

3. Prevent the battery from over-discharging.

4. Prevent the battery from reverse charging to solar panels during

nights.

5. Reverse Polarity Protection for Battery

6. Reverse Polarity Protection for Solar Panels

7. When the battery voltage is low, the controller will

automatically cut off the load from the system. If the voltage of

battery is back to normal and the load will restart working.

8. Thunder protection

9. According to the battery voltage grade, the controller can

automatically set charge-off voltage, the load-off voltage, the

load- restore voltage. (The parameter is default under 25℃

condition, locked by the CPU procedure, cannot adjust.)

10. The controller will automatically compensate the temperature of

the charging voltage according to the changes of ambient temperature.

Package Includes:

1 x Solar Panels Battery Charge Controller

1 x User Manual

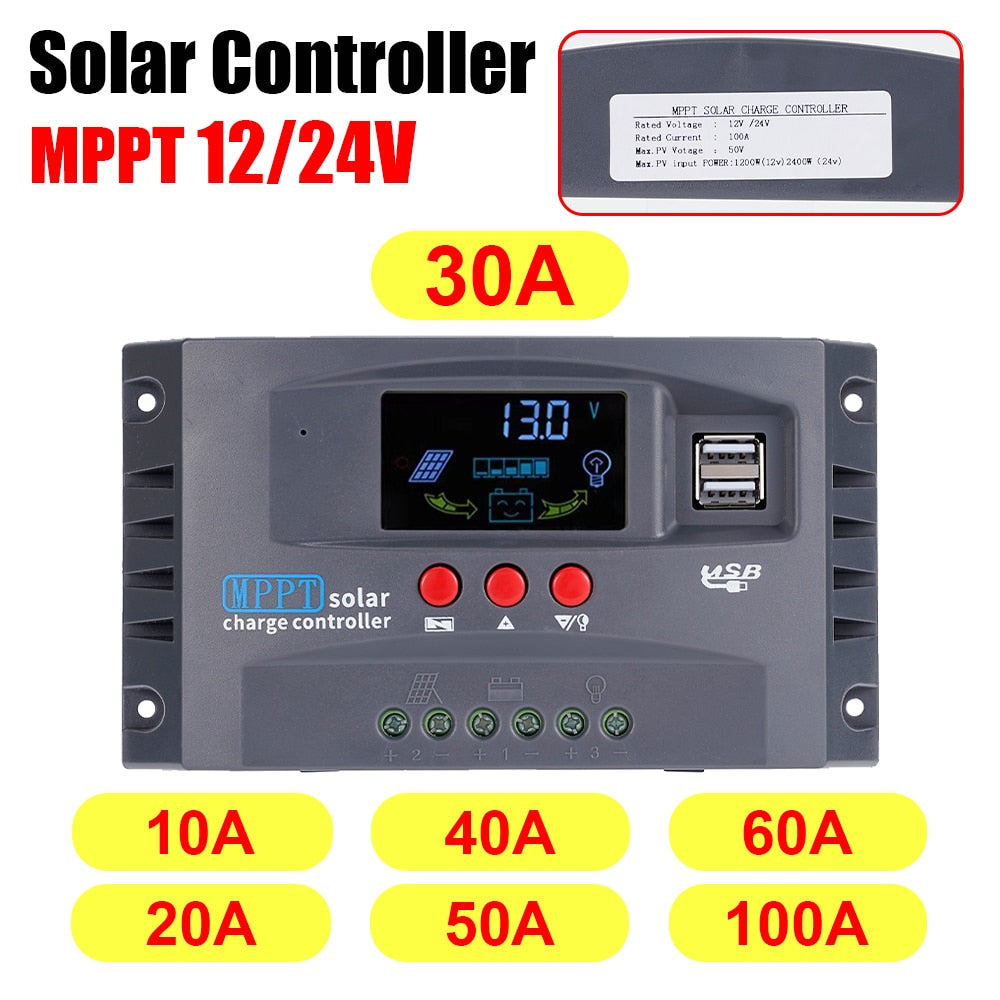

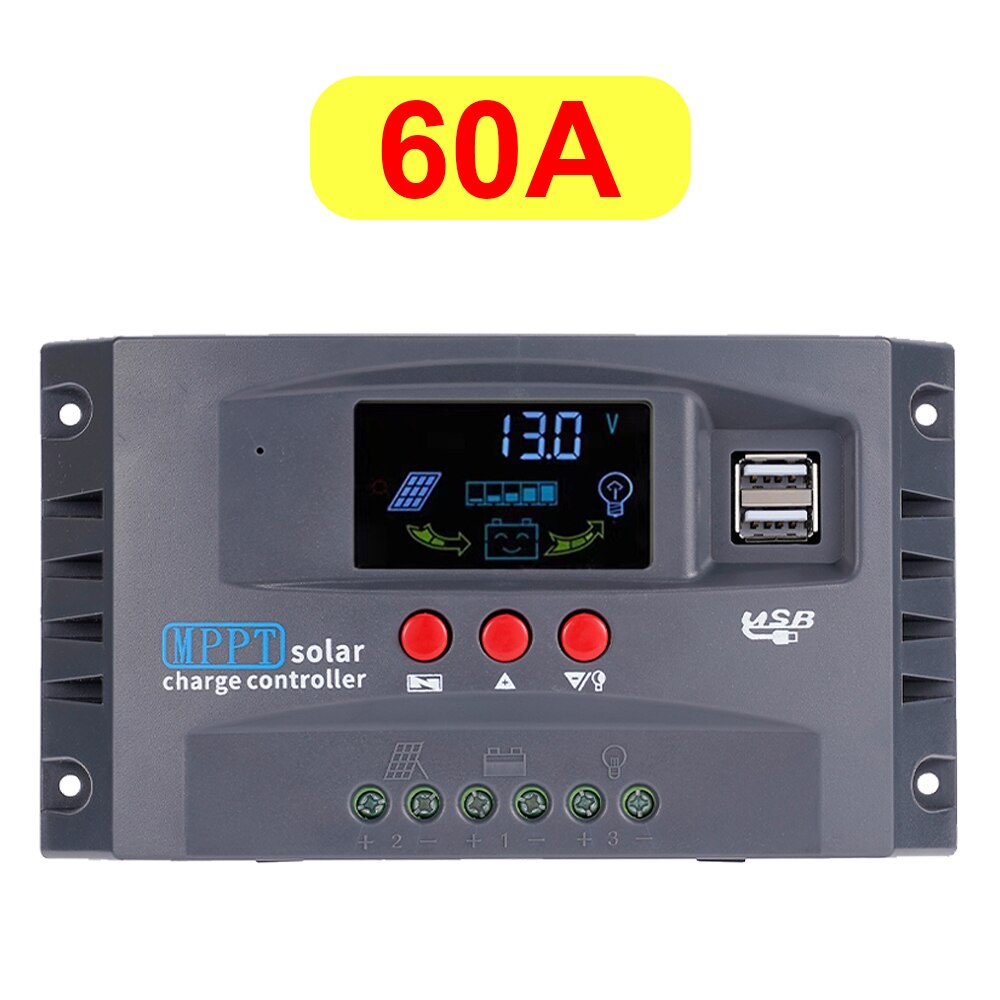

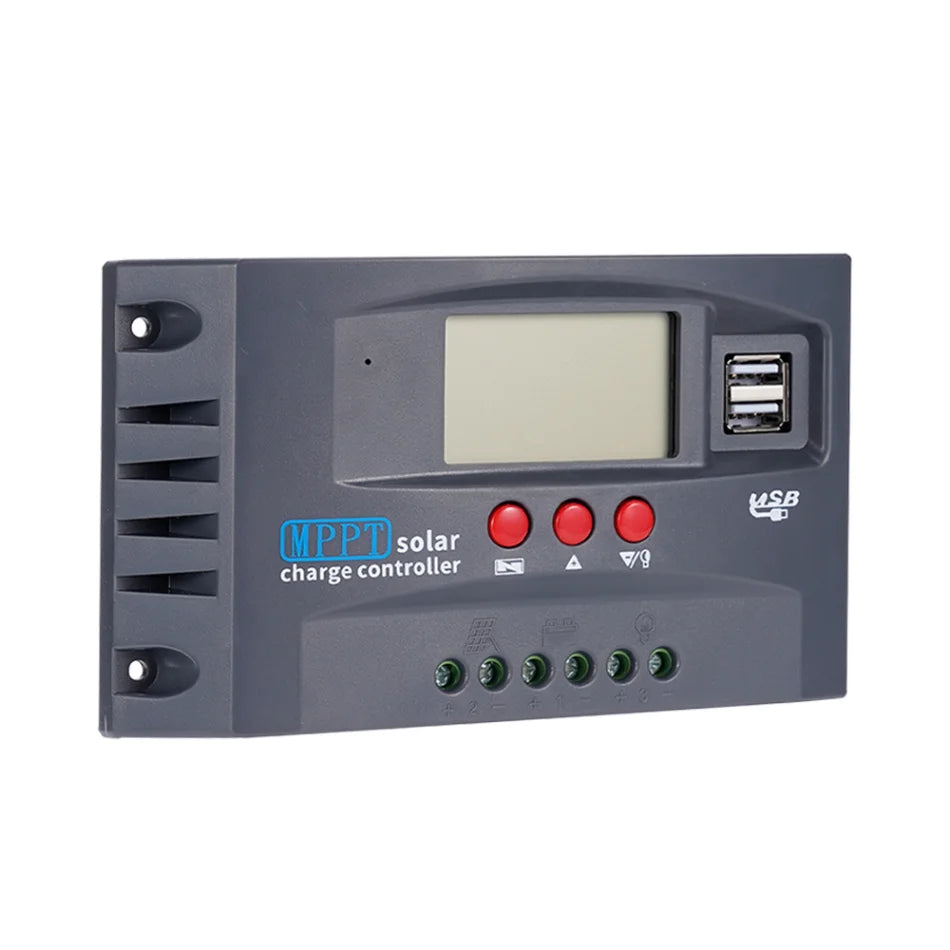

10A-100A MPPT Solar Charge Controller: A 12V/24V regulator for solar panels, featuring a colorful screen and compatible with lithium-ion, lifePO4, gel, and lead-acid batteries. This controller has adjustable current settings from 10A to 100A, making it suitable for a wide range of applications.

RoHS-compliant solar charge controller with maximum power point tracking (MPPT) and colorful screen for Lithium, LifePO4, GEL, and Lead-Acid batteries.

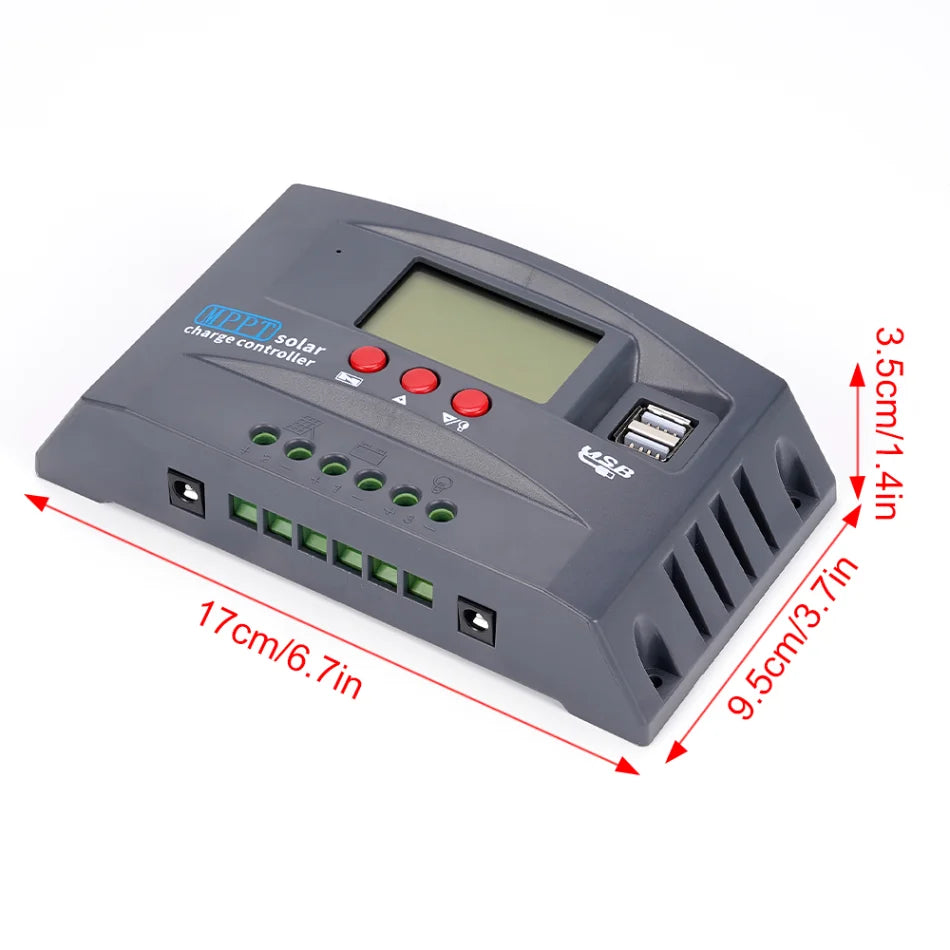

Compact 10A-100A solar charger controller with colorful screen for lithium, LiFePO4, GEL, and lead acid batteries, measuring 17cm (6.7in)

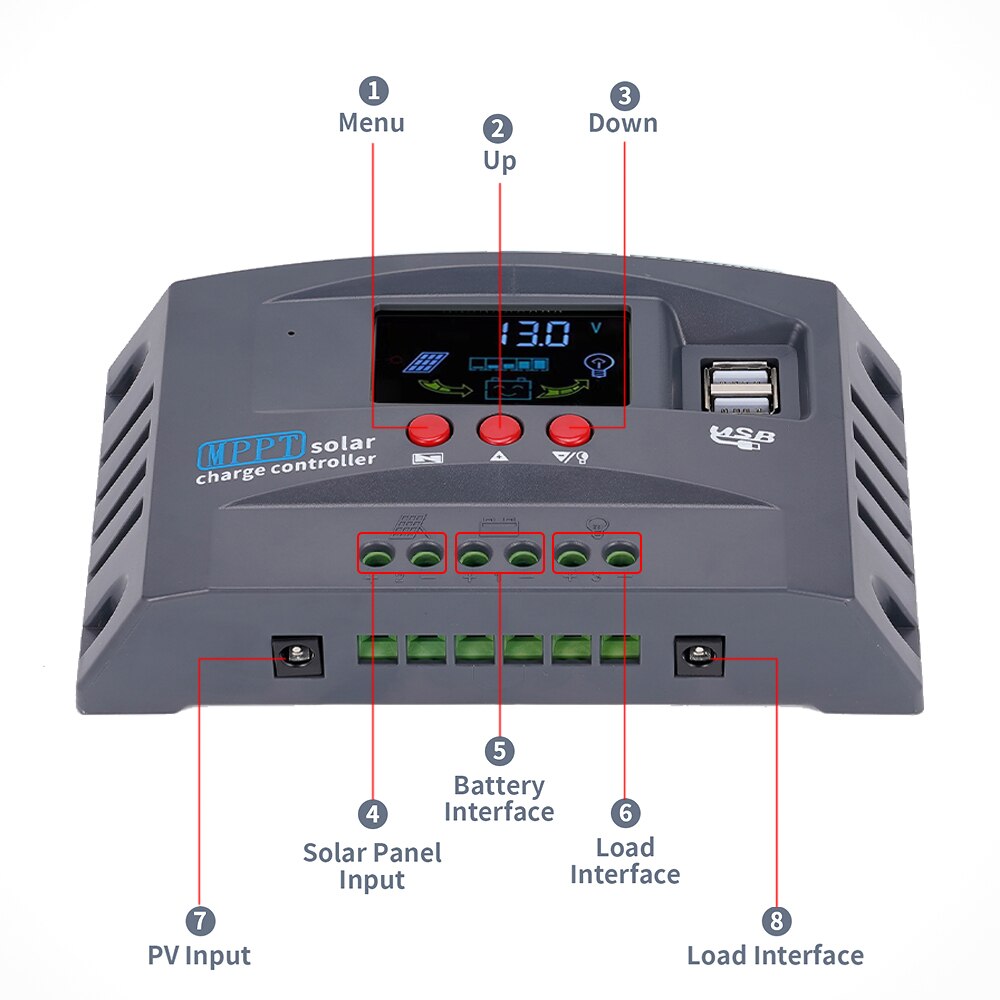

Control panel features down/up menu for battery interface, solar panel input, and load output interfaces, with MPP tracking charge control.

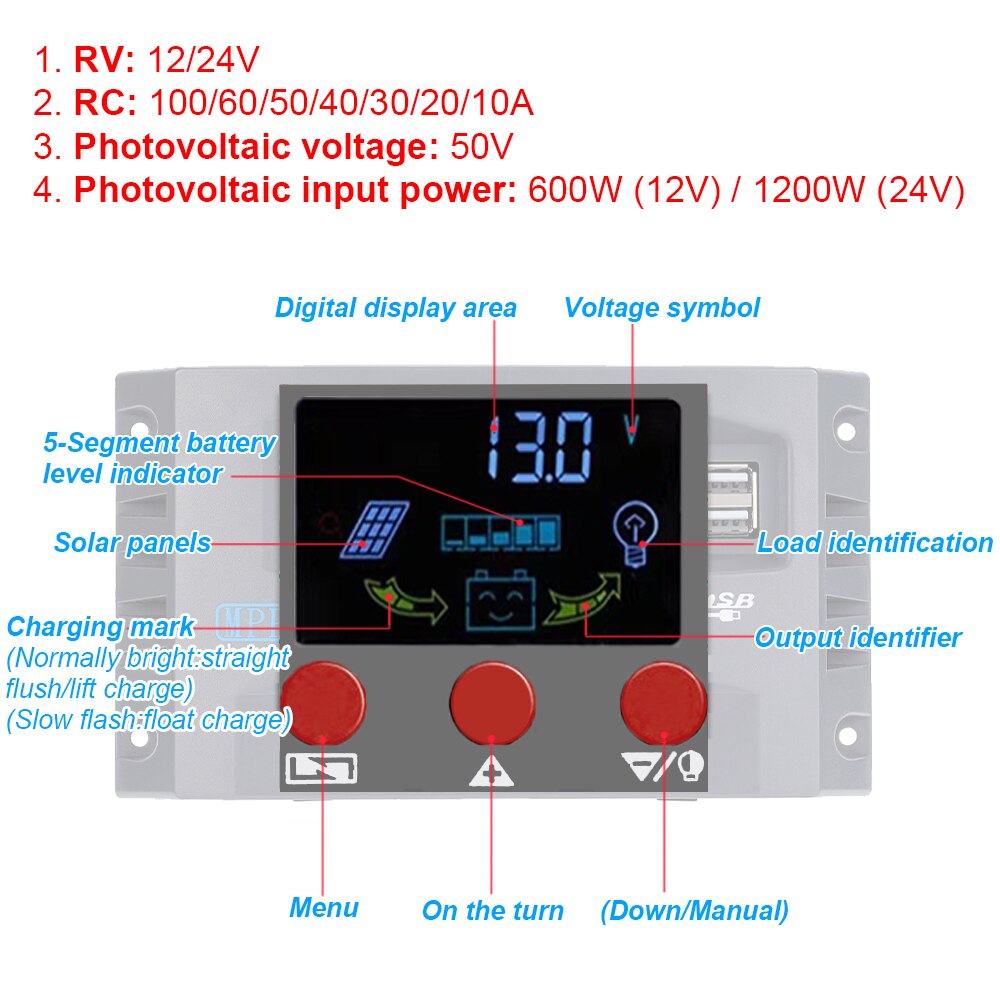

This solar charge controller features: * Input voltage: 12V or 24V * Maximum charging current: 100A (adjustable) * Photovoltaic input power: up to 600W (12V) or 1200W (24V) * Digital display shows voltage and battery level * Solar panel load identification and output status indicator * Menu navigation allows for easy configuration The controller also features a charging mark symbol, indicating normal charge mode () or slow float charge mode ().

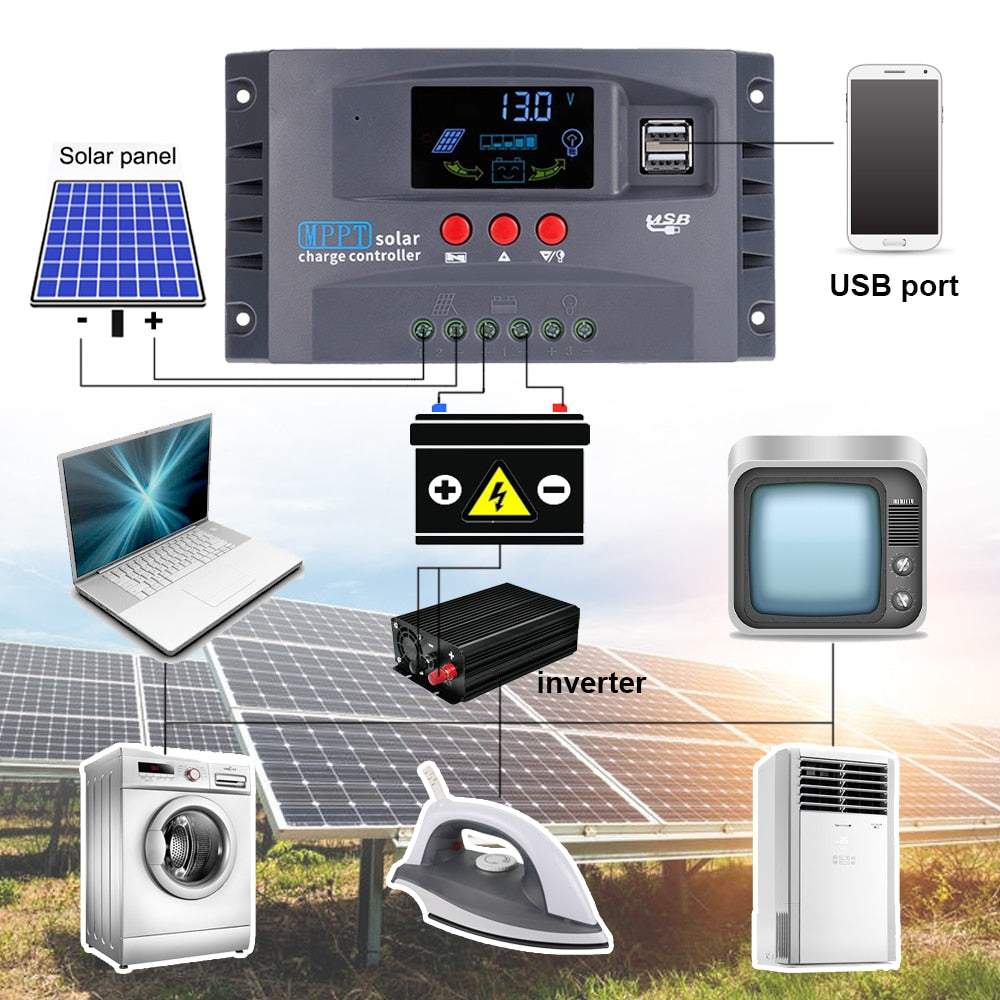

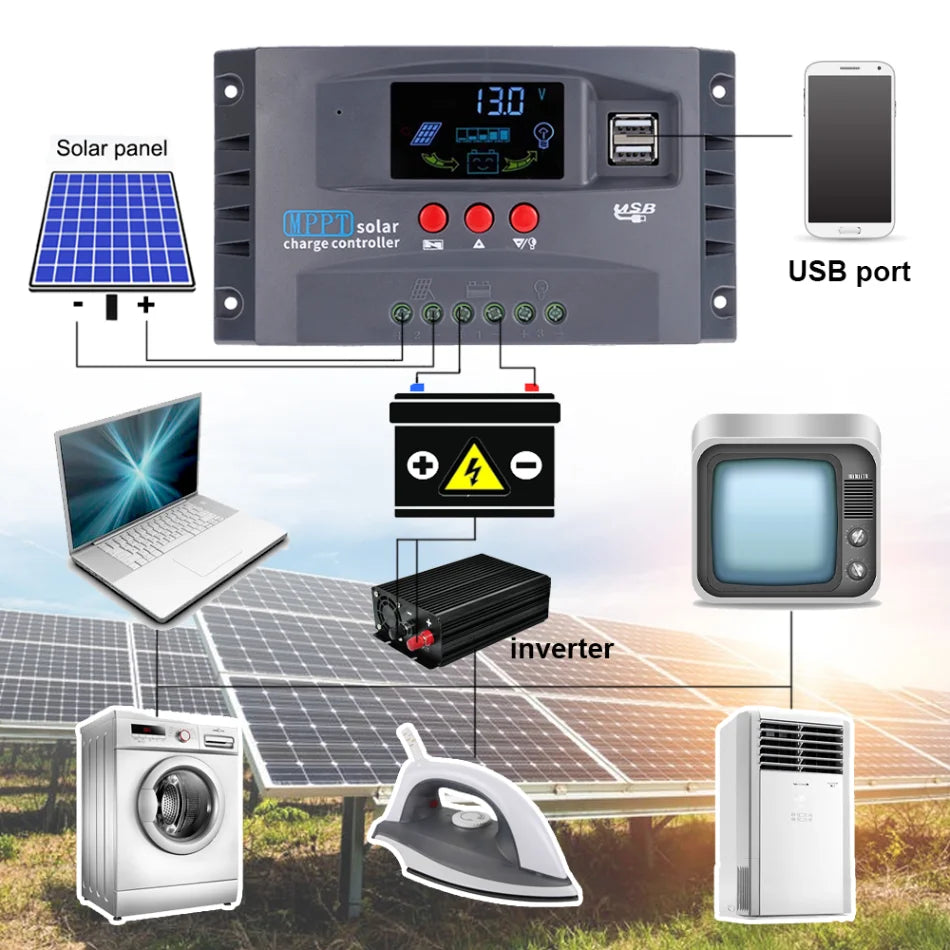

Solar panel compatible MPPT charge controller with USB port and inverter functionality.

Suitable for camping, RVs, boats, outdoor, and home use. Supports up to 30 series/parallel connections.

Suitable for various applications, including villas, outdoor RV systems, yachts, solar billboards, and street lamps, this controller offers convenience and flexibility.

10A-100A 12V/24V MPPT Solar Charge Controller 50VDC PV Regulator Solar Panel Colorful Screen For Lithium Lifepo4 GEL Lead Acid
