10A-100A MPPT Solar Controller PWM Battery Charger 12V 24V Auto LCD Display Dual USB 5V Output Solar Panel Battery Regulator
10A-100A MPPT Solar Controller PWM Battery Charger 12V 24V Auto LCD Display Dual USB 5V Output Solar Panel Battery Regulator
164 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
Origin: Mainland China
Certification: CE,RoHS
|
|
|
|
|

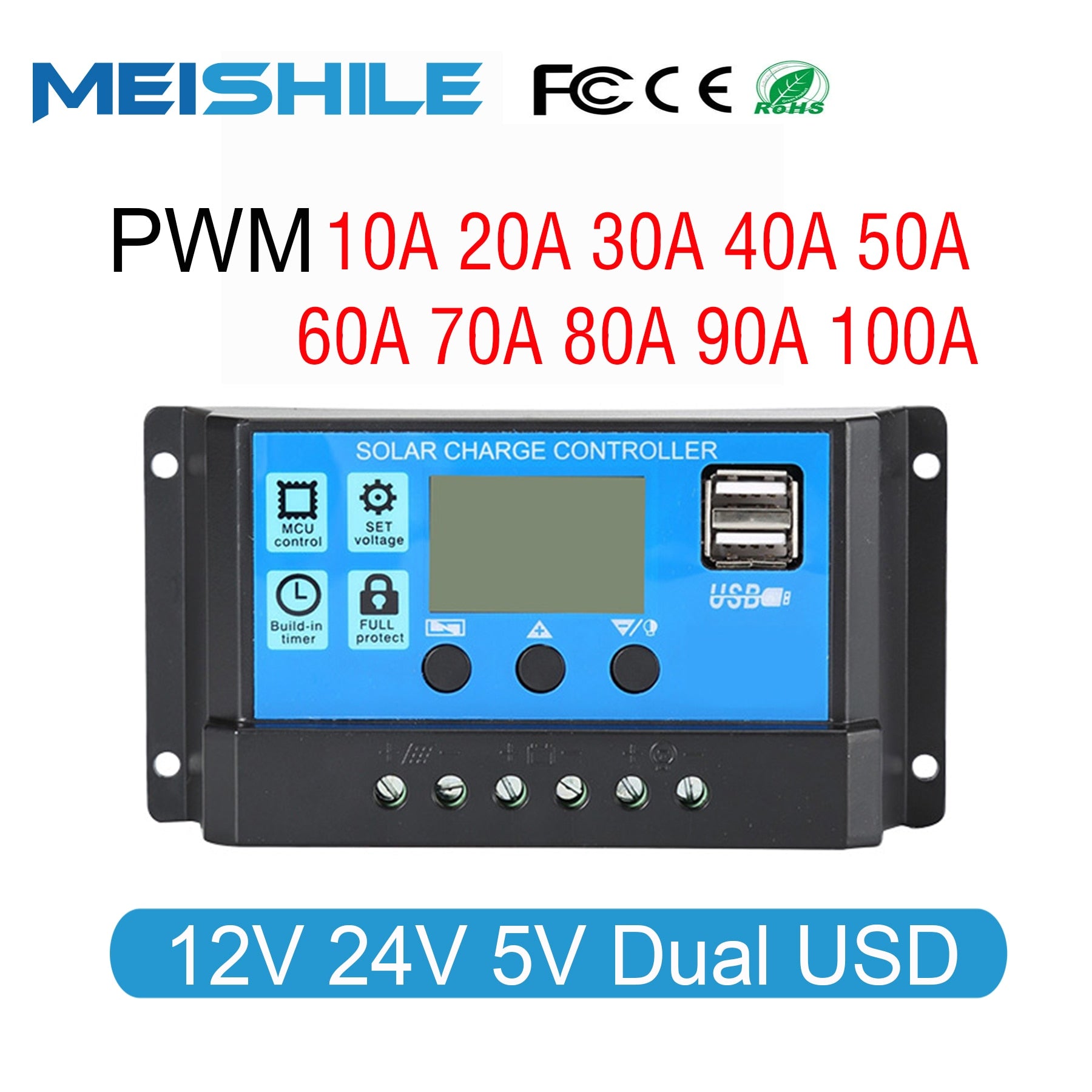

Meishile 10A-100A MPPT Solar Controller: PWM Battery Charger with LCD Display, Dual USB Output (5V), suitable for solar panels and batteries up to 24V. |
|
Meishile 10A-100A MPPT Solar Controller: PWM Battery Charger for 12V or 24V Systems with LCD Display, Dual USB Outputs, and Solar Panel Regulator. Buy Now! |
>>Safety instructions
1. Before the first installation, please make sure the battery has enough voltage to enable the controller to recognize the battery type.
2. Battery cables should be as short as possible to minimize losses.
3. The regulator is only suitable for lead-acid batteries: OPEN, AGM, GEL
It does not apply to NiMH, Li-ion or other batteries.
4. The charge regulator is only suitable for regulating solar modules. Do not connect other charging sources to the charge regulator.
This is the new solar controller which fully meets the requirements of your home PV system (including home lighting system). It can recongize 12V and 24V lead-acid colloidal batteries automatically

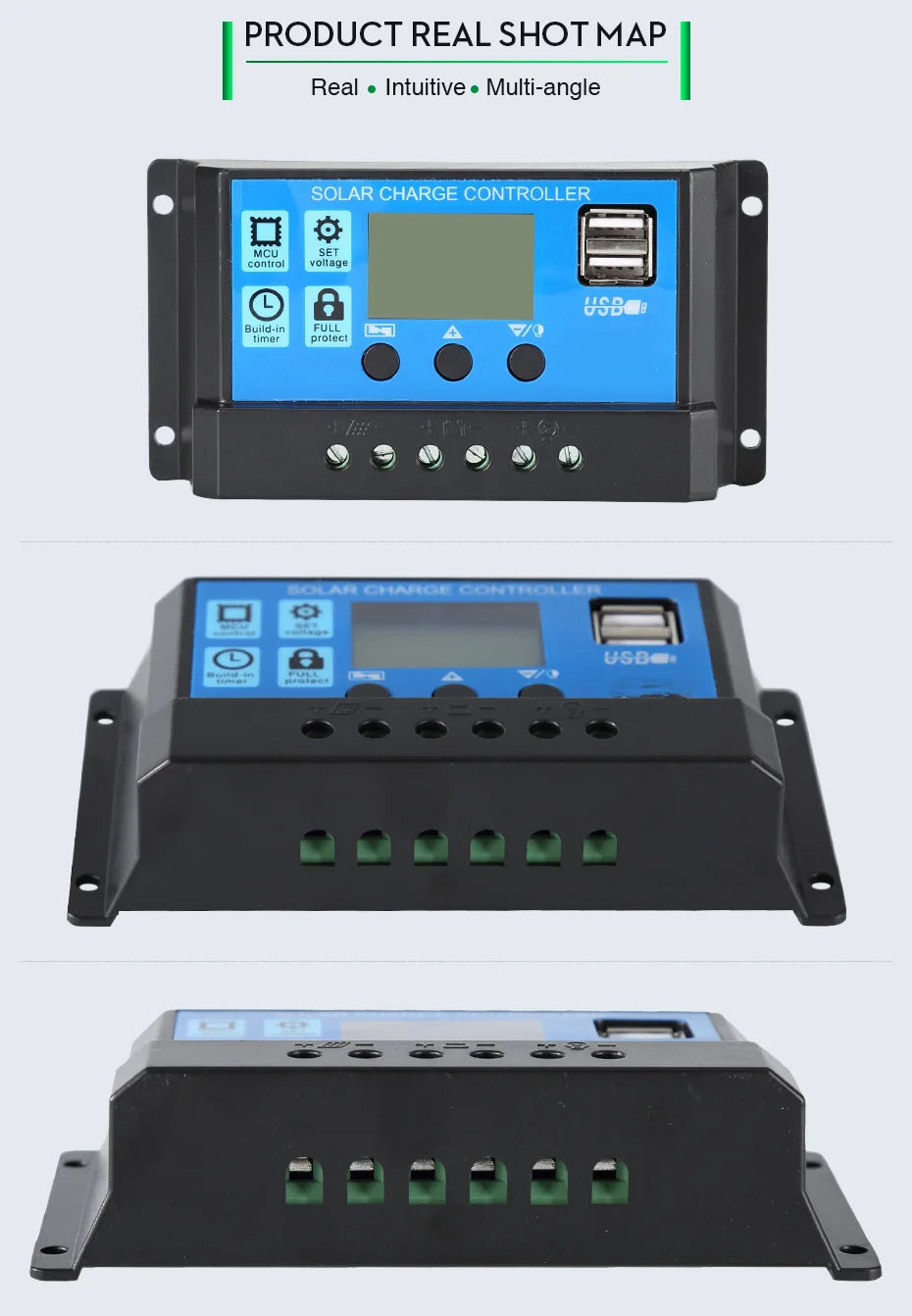

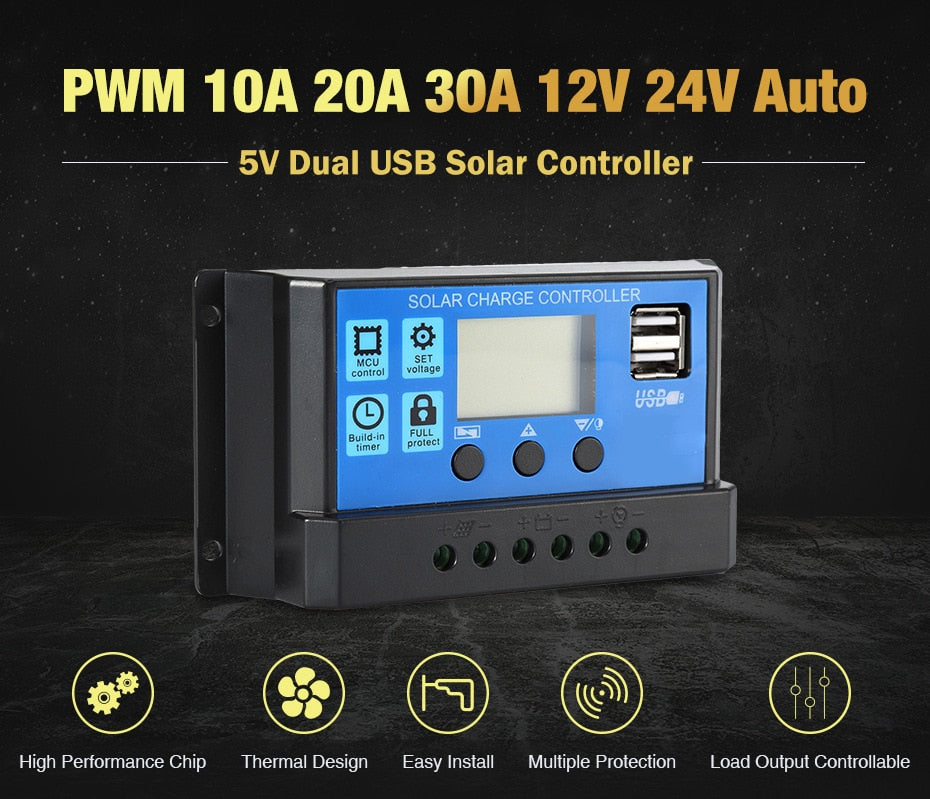

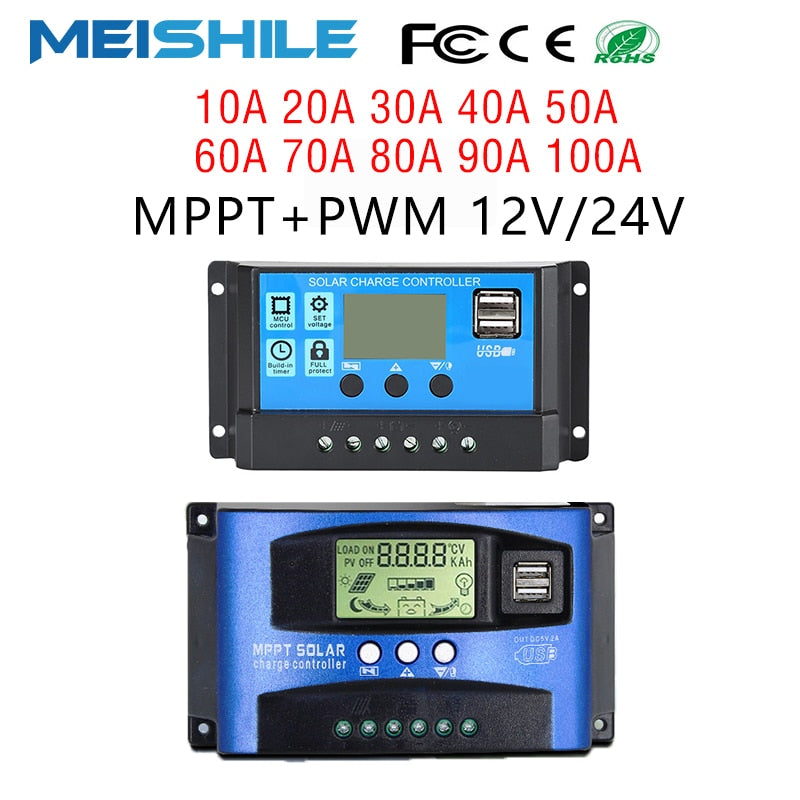

10A-100A MPPT solar controller with PWM technology, 12V/24V auto range, LCD display, and dual USB 5V output. Features MCU control, built-in memory protection, high-performance chip design, thermal management, easy installation, and multiple load outputs controllable.
If your battery is 12V, the maximum solar panel input is 25V 120W
If your battery is 24V, the maximum solar panel input is 50V 240W
If your battery is 12V, the maximum solar panel input is 25V 240W
If your battery is 24V, the maximum solar panel input is 50V 480W
If your battery is 12V, the maximum solar panel input is 25V 360W
If your battery is 24V, the maximum solar panel input is 50V 720W
If your battery is 12V, the maximum solar panel input is 25V 480W
If your battery is 24V, the maximum solar panel input is 50V 960W
If your battery is 12V, the maximum solar panel input is 25V 600W
If your battery is 24V, the maximum solar panel input is 50V 1200W
⭐60A
If your battery is 12V, the maximum solar panel input is 25V 720W
If your battery is 24V, the maximum solar panel input is 50V 1440W
⭐70A
If your battery is 12V, the maximum solar panel input is 25V 840W
If your battery is 24V, the maximum solar panel input is 50V 1680W
If your battery is 12V, the maximum solar panel input is 25V 960W
If your battery is 24V, the maximum solar panel input is 50V 1920W
If your battery is 12V, the maximum solar panel input is 25V 1080W
If your battery is 24V, the maximum solar panel input is 50V 2160W
If your battery is 12V, the maximum solar panel input is 25V 1200W
If your battery is 24V, the maximum solar panel input is 50V 2400W
Specifications.
Rated voltage: 12V 24V auto
Maximum PV voltage: 50V
With timer and light sensor, can be used for solar lighting system.
Only for off-grid PV solar system.
For 10A 12V PV system: 120W solar panel, 12V lead-acid battery, 21V for maximum input voltage
For 20A 24V PV system: 240W solar panel, 24V lead-acid battery, 42V for maximum input voltage
>>Product Features
1. Built-in industrial microcontroller.
2. One button setting, digital display, automatic memory function.
3. Fully 4-stage PWM charging management.
4. Built-in short circuit protection, open circuit protection, reverse connection protection, overload protection.
5. Double MOSFET reverse current protection, low heat generation.

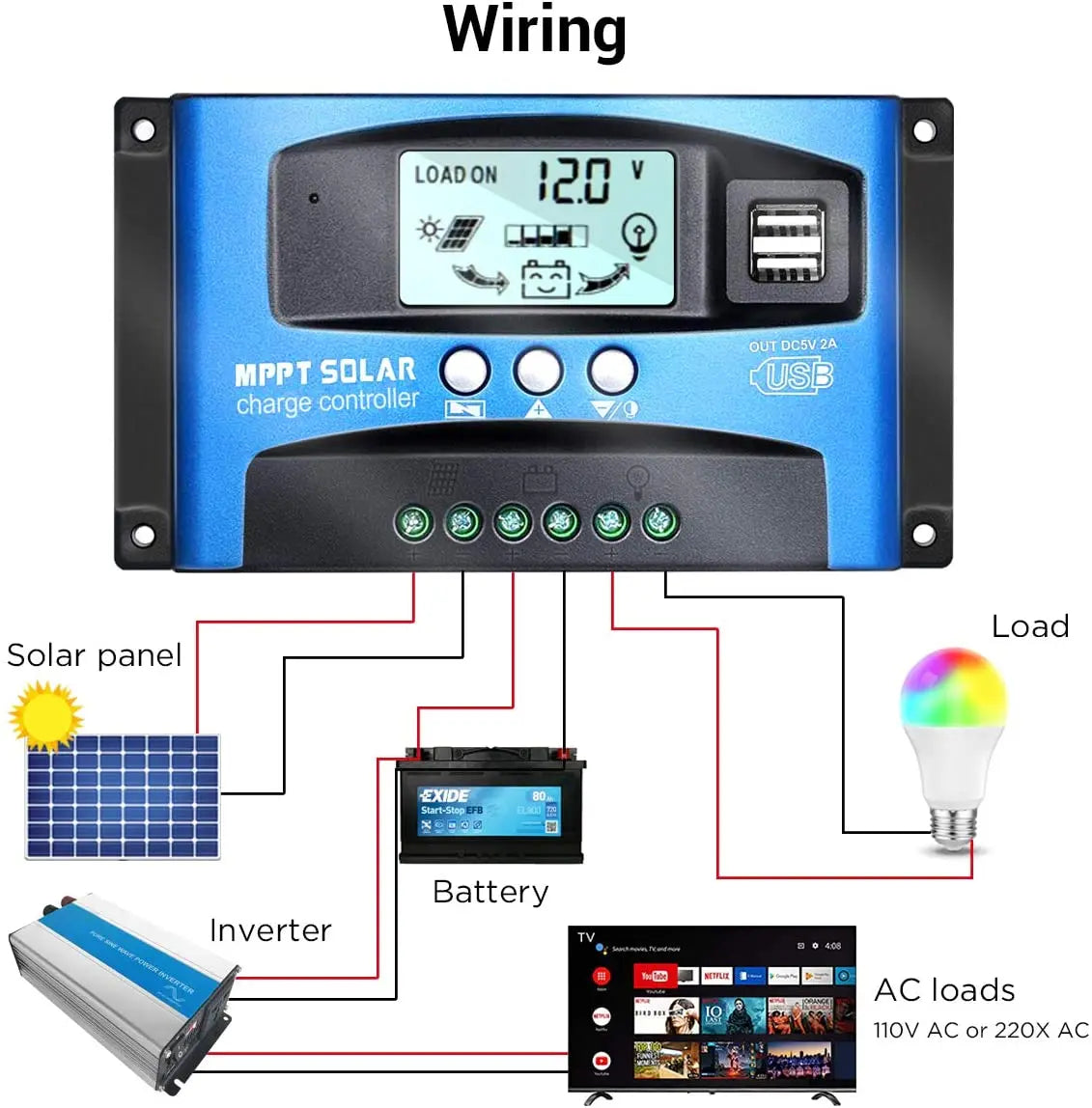

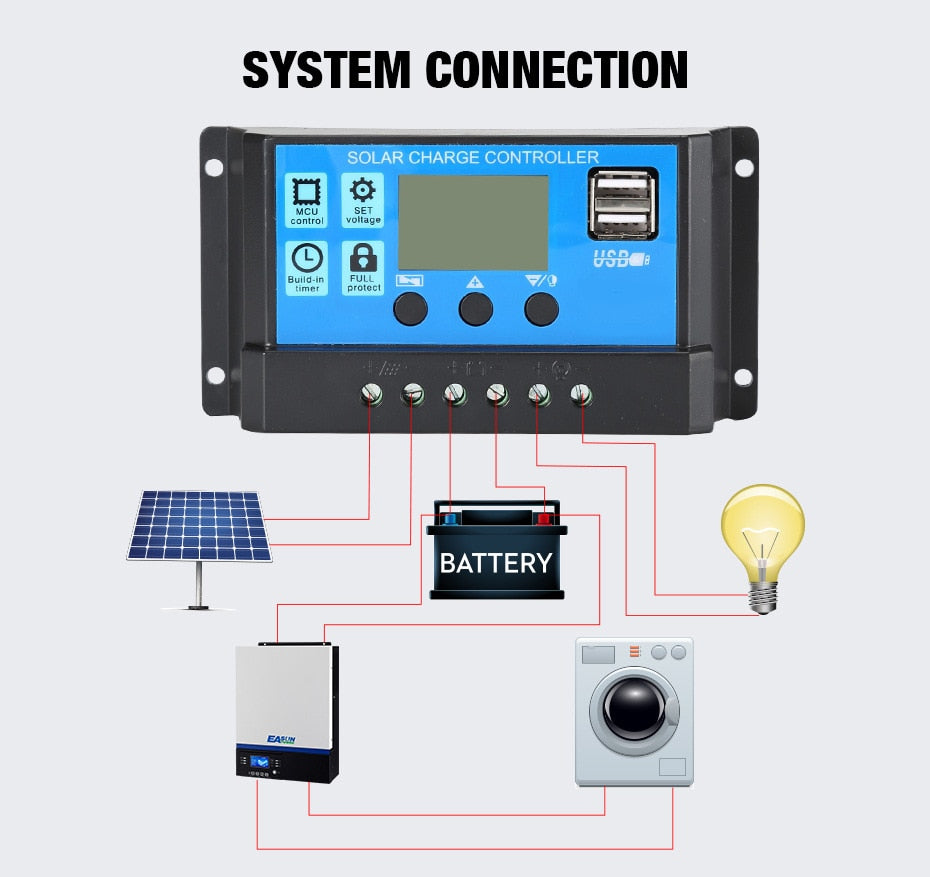

>>System Connection
1.1. Connect the battery to the charge regulator-positive and negative. If 12V battery is detected, it will show 1; if 24V battery is detected, it will show 2
2. Connect the PV modules to the regulator - positive and negative.
3. Connect the user to the charge regulator - positive and negative.
The reverse order applies when uninstalling!
Improper sequence sequence will damage the controller!
>>Function
1. Always keep the battery on fill voltage condition.
>>Product Features
>>Specifications

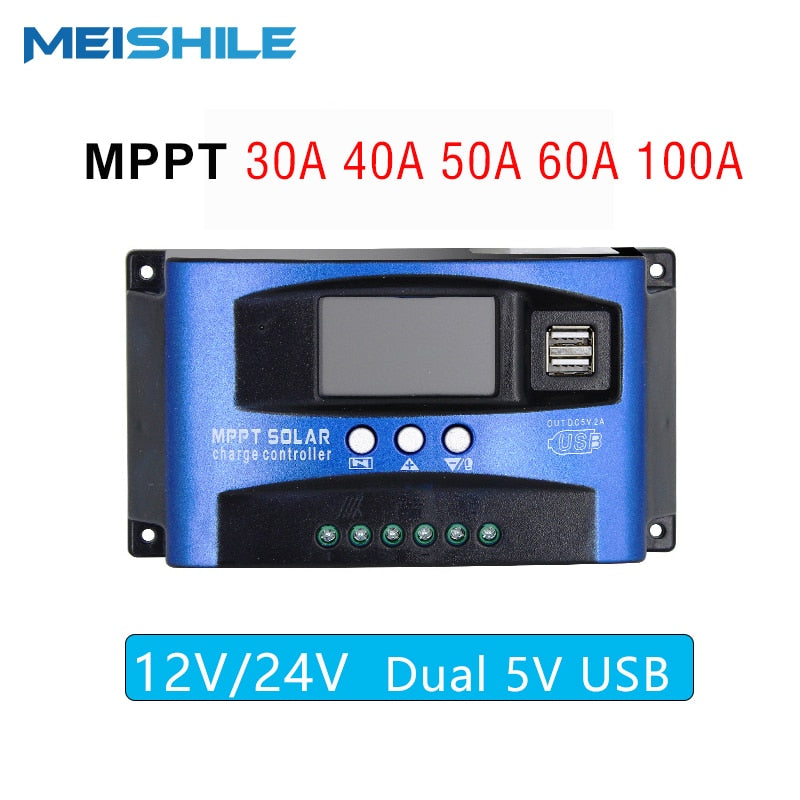

6.Rated charging current: 30A | 40A | 50A| 60A | 100A
7.Rated discharge current: 10A | 20A | 20A | 30A | 30A
8.Solar photovoltaic voltage :12V battery with 18V solar panel, 24V battery with 36V solar panel
9.Floating Charge Voltage : 13.7 V ( Default, Adjustable )
10.Discharge cut-off voltage::10.7 V ( default, adjustable )
11.Discharge recovery voltage: 12.6 V ( default, adjustable )
12.Standby current :10mA
13.USB Output : 5V / 2A MAX
14.Operating temperature:- 35 - 60

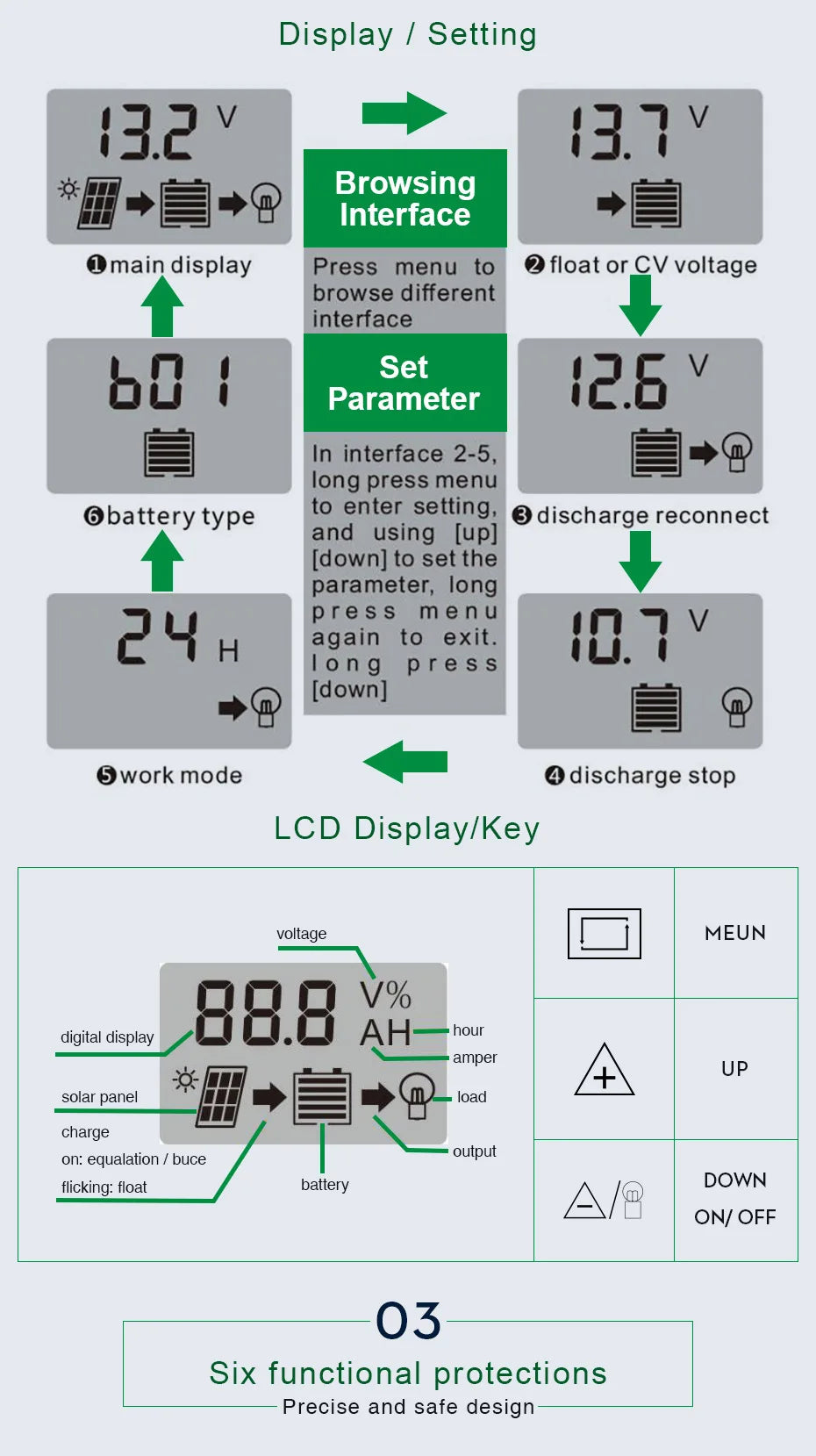

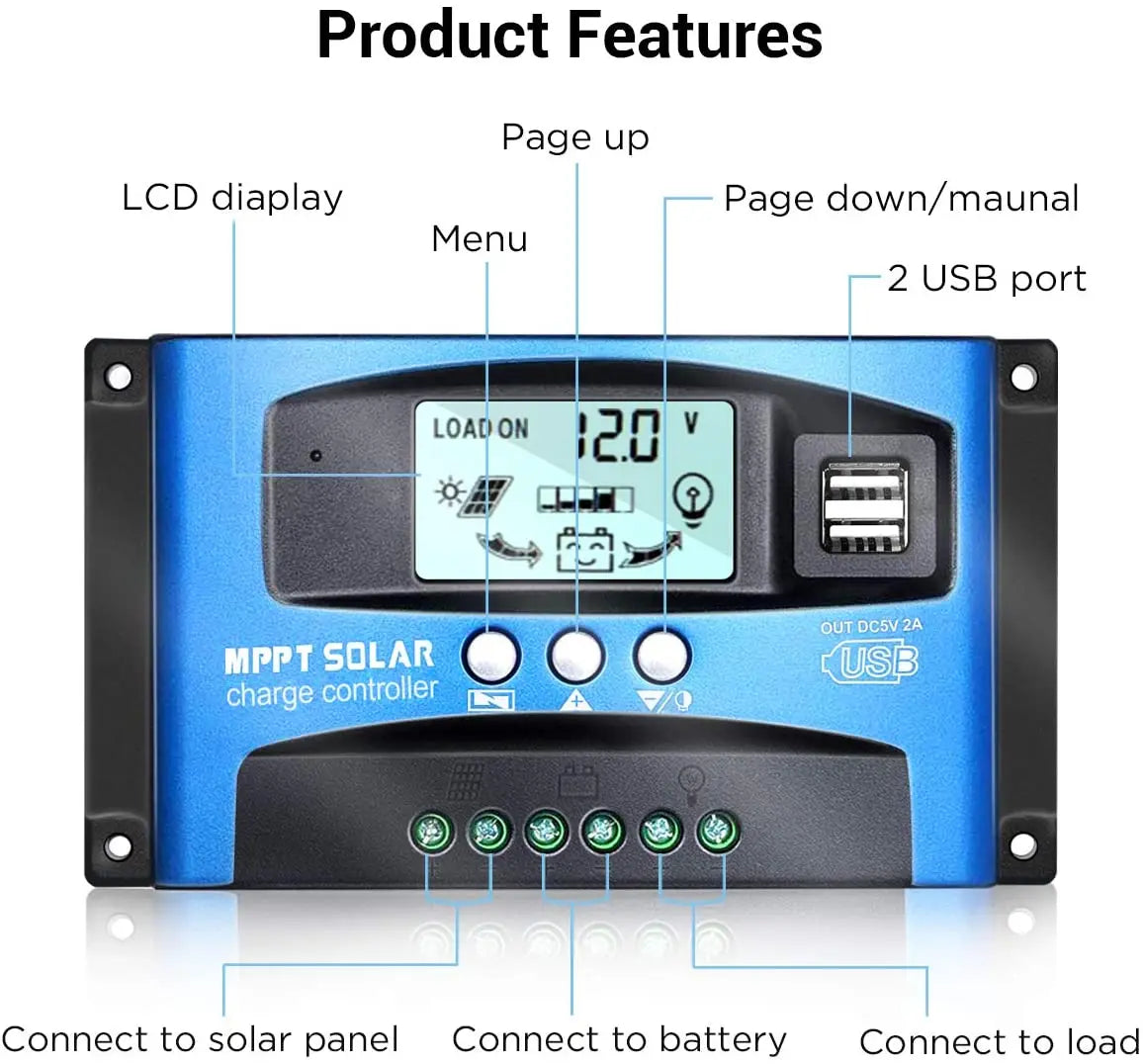

Features include an LCD display, page up/down and manual menu navigation. It has two USB ports and supports 28V max output. The MPPT solar charger controller can connect to solar panels, batteries, and loads.

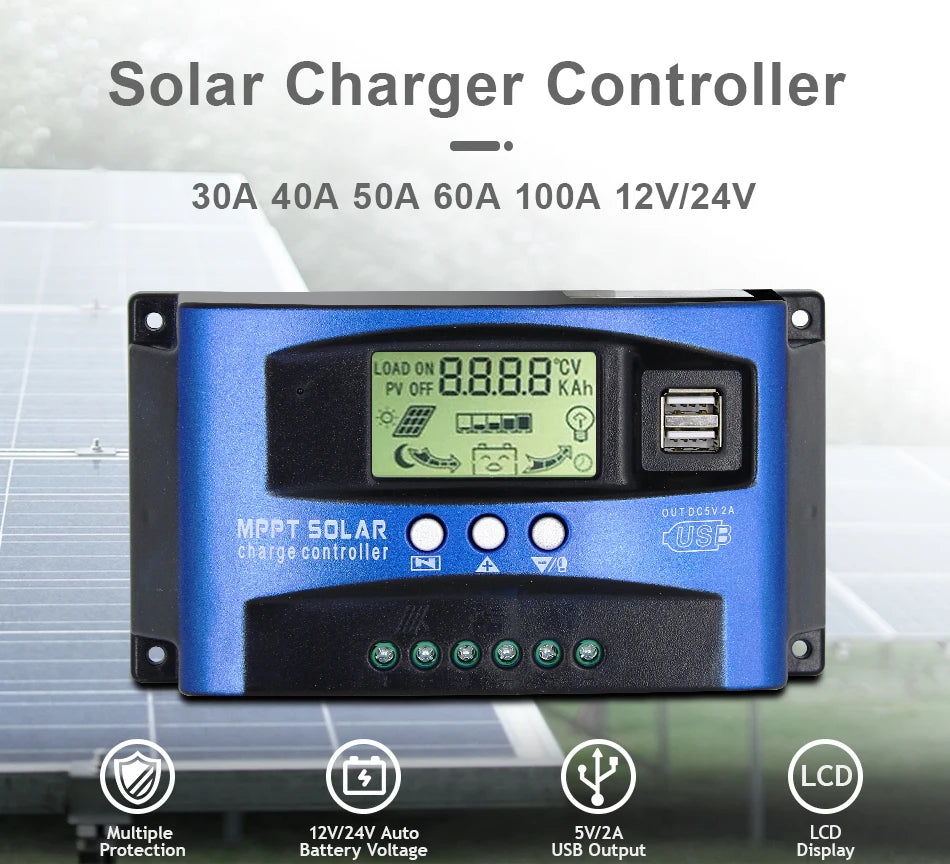

This solar controller (10A-100A MPPT) charges batteries and powers devices. It features an LCD display, dual USB ports (5V), and can regulate solar panels from 12V to 24V. It's suitable for auto applications and supports charging of EXIDE 8061 batteries.

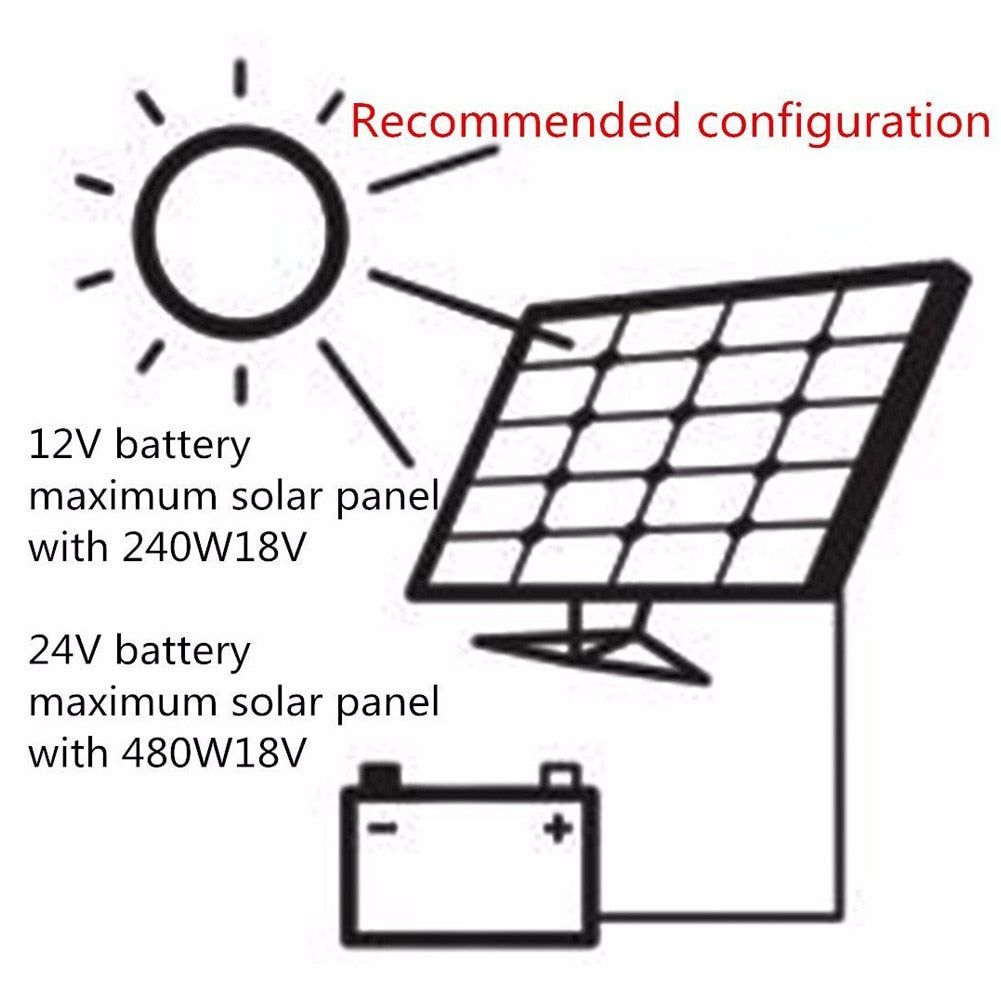

Recommended configuration: up to 240W for 12V batteries, or up to 480W for 24V batteries.

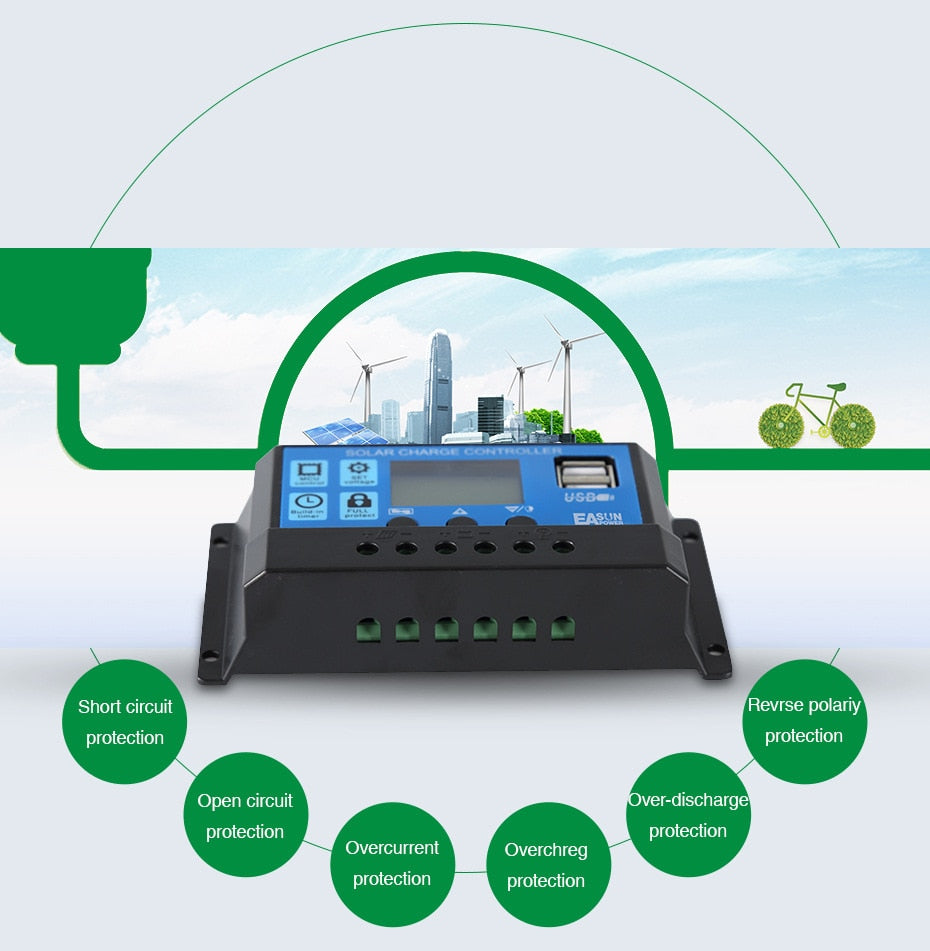

Features include short-circuit, reverse polarity, and over-discharge protections, as well as overcurrent and overload protections for safe and efficient charging.
Suitable for camping, home, RV, grassland, boat, mountain area, and border guard use.
