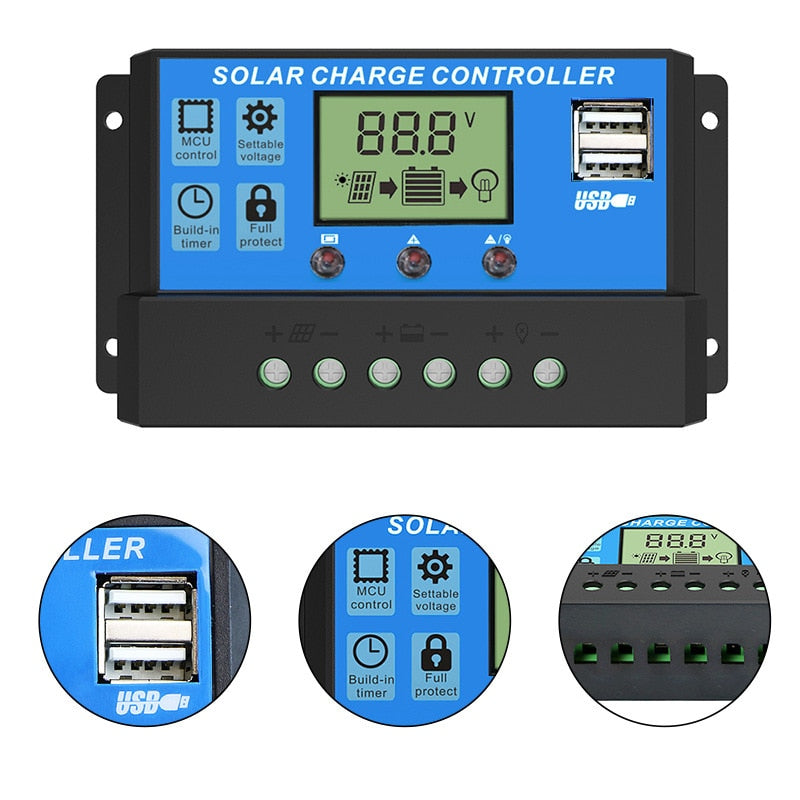

• SOLAR CHARGE CONTROLLER 0 MCU Sal
  • io0gosi 'Qoo2'
  • controi voltage 85860 Build-in FULL timer protect
  • SECURITY PROTECTION I Short-circuit Overload
  • 10A 20A 30A PWM Solar Charge Controller 12V/24V 50A 60A Solar Regulator USB 5V Panel Battery Regulator Intelligent LCD Display
  • AUTOMATIC MANAGEMENT OF CHARGE AND DIS
1 6

BestSolarPanel

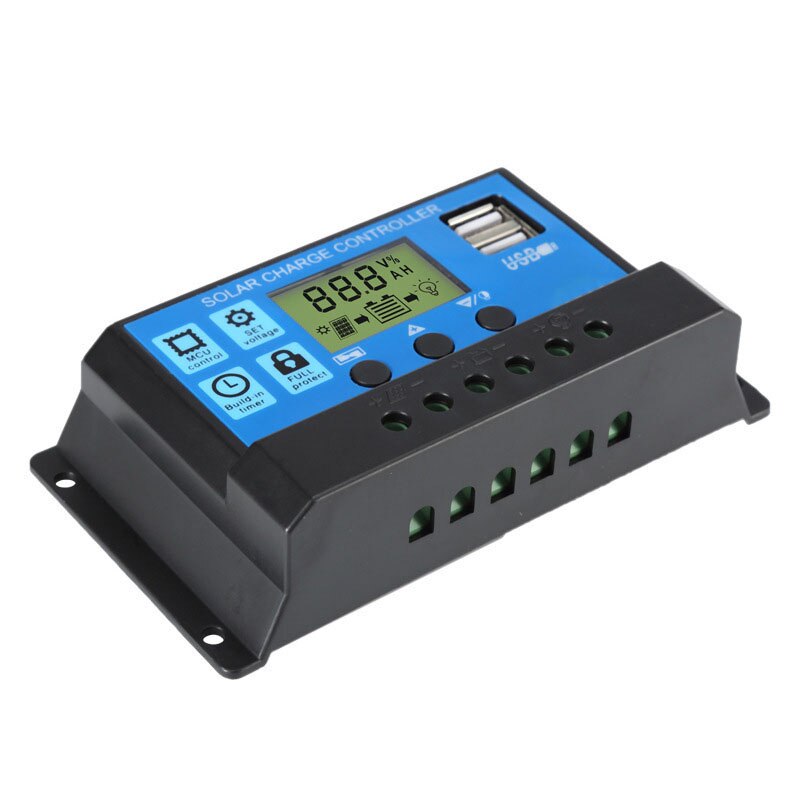

10A 20A 30A PWM Solar Charge Controller 12V/24V 50A 60A Solar Regulator USB 5V Panel Battery Regulator Intelligent LCD Display

10A 20A 30A PWM Solar Charge Controller 12V/24V 50A 60A Solar Regulator USB 5V Panel Battery Regulator Intelligent LCD Display

$12.48 USD
$12.48 USD
Sale Sold out
Shipping calculated at checkout.

245 orders in last 30 days

Current

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping：Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

Voltage: 12V/24V

USB: Dual USB Solar Panel Regulator

Origin: Mainland China

Model number: PWM-E Solar Controller

Model Number: PWM-E

Maximum Current: 60A

Is Smart Device: No

Current: 10A 20A 30A 40A 50A 60A Solar Charger Controller

Controller Type: PWM Solar Charge Controller

Certification: CE

Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller

10A 20A 30A PWM Solar Charge Controller, Quality Guaranteed, Customer First. Intelligent PWM Solar Charge Controller with LCD Display.

Quality Guaranteed, Customer First. Intelligent PWM Solar Charge Controller with LCD Display.


10A 20A 30A PWM Solar Charge Controller 12V/24V 50A 60A Solar Regulator USB 5V Panel Battery Regulator Intelligent LCD Display


Specification of PWM Solar Charge Controller

MODEL

PWM-E-10A

PWM-E-20A

PWM-E-30A

PWM-E-40A

PWM-E-50A

PWM-E-60A

Battery Voltage

12V 24V Auto

Charging Current

10A

20A

30A

40A

50A

60A

Discharging Current

10A

10A

10A

20A

30A

30A

Max Solar input

48V(for 24V battery) 24V(for 12V battery)

Equalization

14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)

Float charge

13.7V(Defaul,adjustable 12.7V-15V)

14.4V(Sealed) 14.2V(Gel) 14.6V(Flood) Adjustable 13V-15V

Discharge stop

10.7V(Defaul,adjustable 9V-11.3V)

10.7V(Defaul,adjustable 9.5V-11V)

Discharge reconnect

12.6V(Defaul,adjustable 11.5V-13V)

12.6V(Defaul,adjustable 11.5V-13V)

Charge reconnect

13V

Voltage of open light

Solar Panel 8V(Light lights delay)

Voltage of close light

Solar Panel 8V(Light off delay)

USB output

5V/2A

Self-consume

<10mA

Operating temperature

-35°C~+60°C

Size

133.5*70*35mm

188*90*47mm

The float charge voltage,discharge stop voltage,discharge reconnect voltage in excel is for 12V system,If 24V system,please multiply by 2

Note：This controller is only suitable for various lead-acid batteries (including openings, seals, gels, etc.), please do not use it to charge other batteries (including lithium batteries, nickel-metal hydride batteries, etc.)


Features of Solar Panel Controller


1. Upgraded version of solar panel controller: Compatible with 12V 24V system. This solar charge controller helps you automatically manage the work of the solar panels and batteries in your solar system using a built-in industrial microcontroller. No need to reset when the battery runs out, because it remembers various parameters set by the user. You can also charge your phone, tablet, PC with dual USB outputs up to 5V/2.5A.

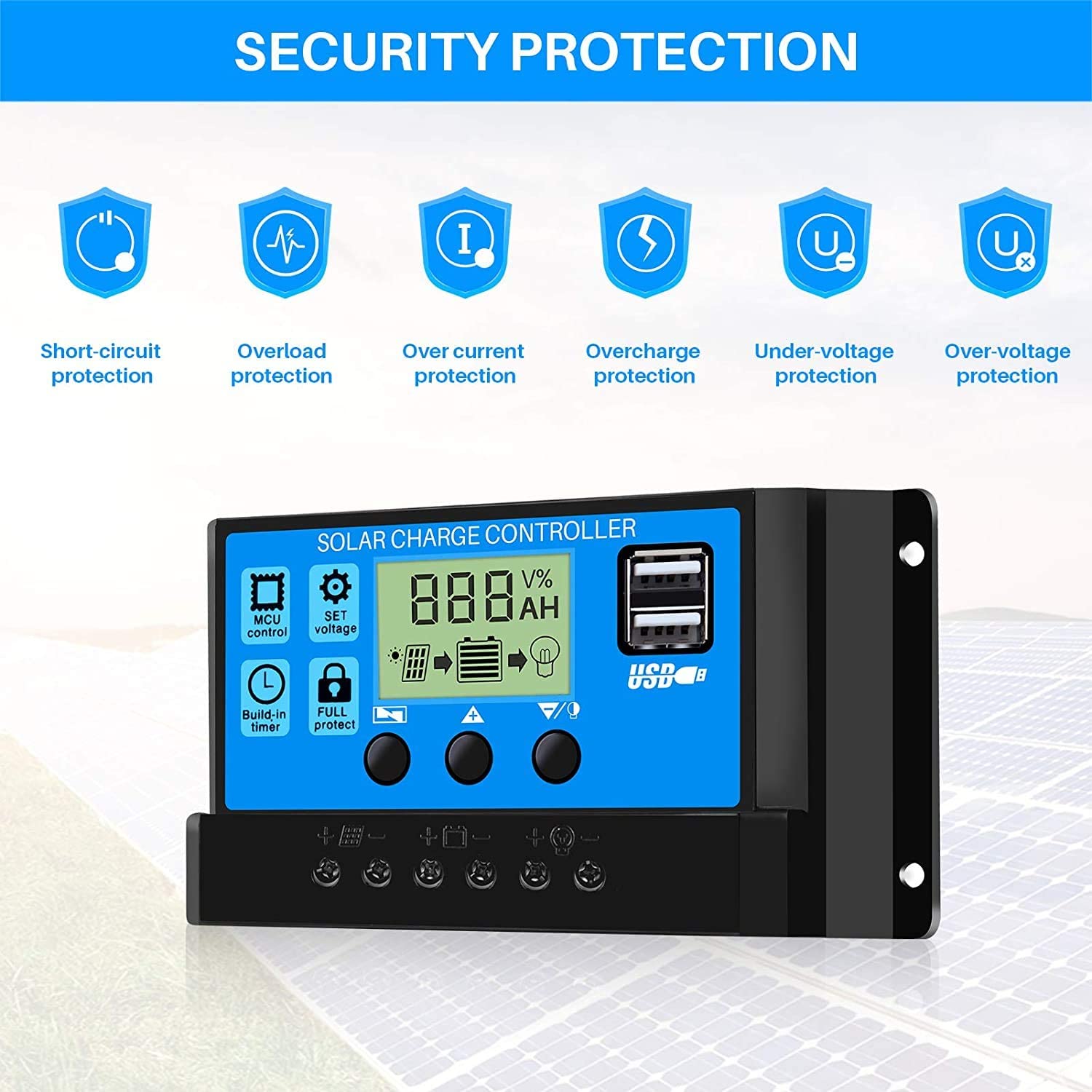

2. Safe to use: Equipped with overcurrent protection, short circuit protection, reverse connection protection, low voltage, overcharge protection, with full 3-stage PWM charging management. This 30A solar charge controller will help you safely increase system efficiency and extend battery life.
3. LCD Display: The LCD display keeps you informed of status and data. You can also easily switch modes and parameter configurations, and you can use the controller in different places such as home, industry, and business.
4. Multiple electrical protections: Built-in over current protection, short circuit protection, reverse polarity protection, open circuit protection, automatic recovery, and no damage to the controller, providing reliable protection for your equipment.
5. Good heat dissipation: Double MOSFET reverse current protection, low heat generation, all electronic components will heat up during the working process, it is best to shade them for better heat dissipation, and avoid direct sunlight or humid places.


Descriptions:


The LCD display keeps you informed of status and data. You can also easily switch modes and parameter configurations, and you can use the controller in different places such as home, industry, and business. Built-in over current protection, short circuit protection, reverse polarity protection, open circuit protection, automatic recovery, and no damage to the controller, providing reliable protection for your equipment.

*The reverse order applies when deinstalling!

*An improper sequence order can damage the controller!

*All red color voltage X2 ,while using 24V system.

*This solar controller is not waterproof ,please install it indoor or out of the rain


There are optional 10A 20A 30A 40A 50A 60A model:


10A:

if your battery is 12V ,the max solar panel input is 25V  120W

if your battery is 24V ,the max solar panel input is 50V  240W

20A:

If your battery is 12V, the max solar panel input is 25V   240W

if your battery is 24V, the max solar panel input is 50V   480W

30A

if your battery is 12V ,the max solar panel input is 25V   360W

if your battery is 24V ,the max solar panel input is 50V   720W

40A:

if your battery is 12V ,the max solar panel input is 25V  520W

if your battery is 24V ,the max solar panel input is 50V  1040W

50A:

If your battery is 12V, the max solar panel input is 25V   650W

if your battery is 24V, the max solar panel input is 50V   1300W

60A

if your battery is 12V ,the max solar panel input is 25V   780W

if your battery is 24V ,the max solar panel input is 50V   1560W

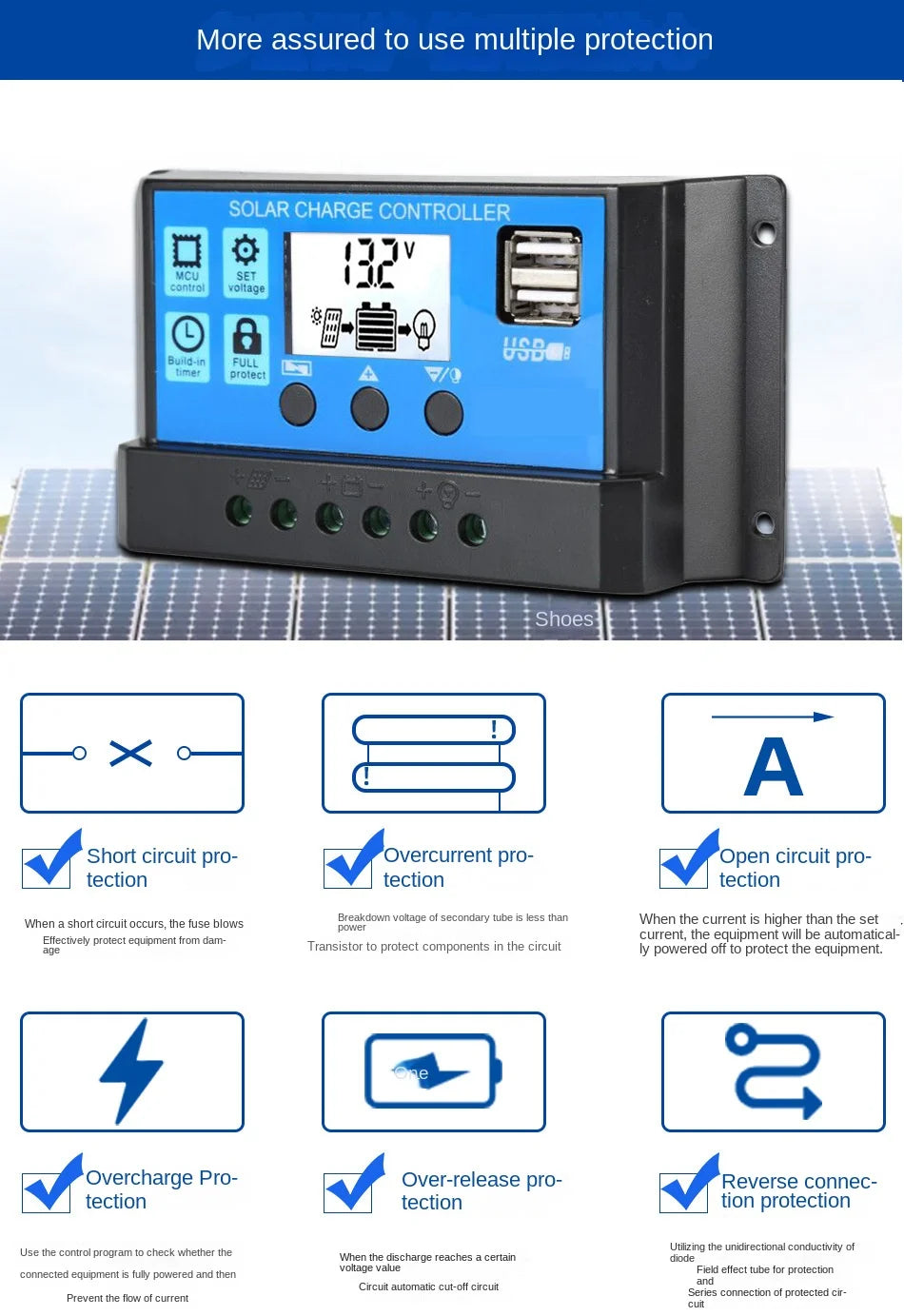

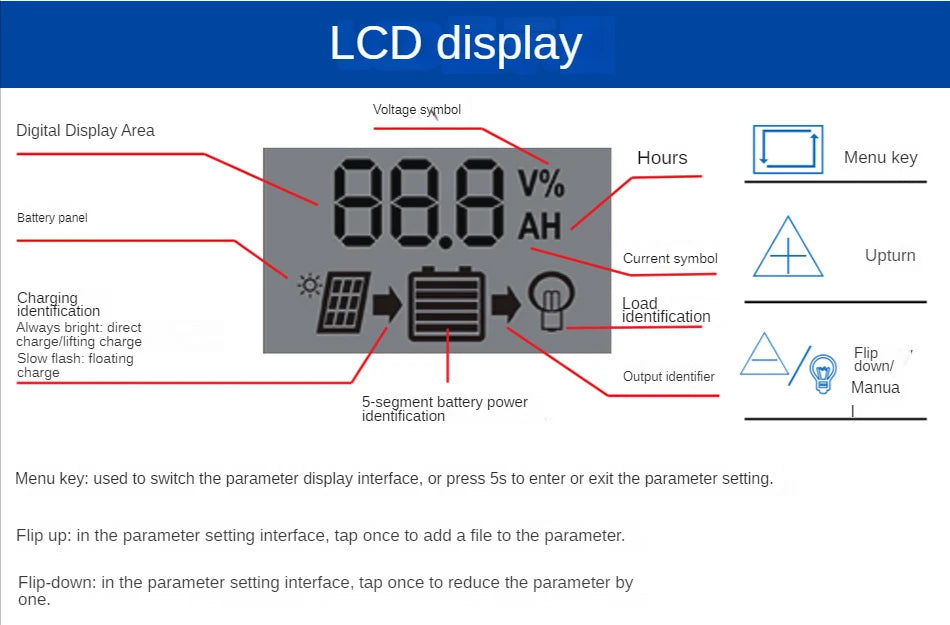

10A 20A 30A PWM Solar Charge Controller, 10A 20A 30A PWM Solar10A 20A 30A PWM Solar Charge Controller, Intelligent LCD Display with voltage/current readings, battery capacity/charge status, adjustable settings and automatic brightness control.

Intelligent LCD Display Features: • Voltage and current display • Digital display for battery capacity (Ah) and charge status • Menu with options for voltage, current, and battery level displays • Automatic brightness control for easy viewing in various lighting conditions • Parameter setting interface allows for adjustments to settings Note: The original sentence was likely the result of OCR technology and contained errors. This rewritten version aims to be clear, concise, and grammatically correct while still conveying the main features and functions of the product's LCD display.

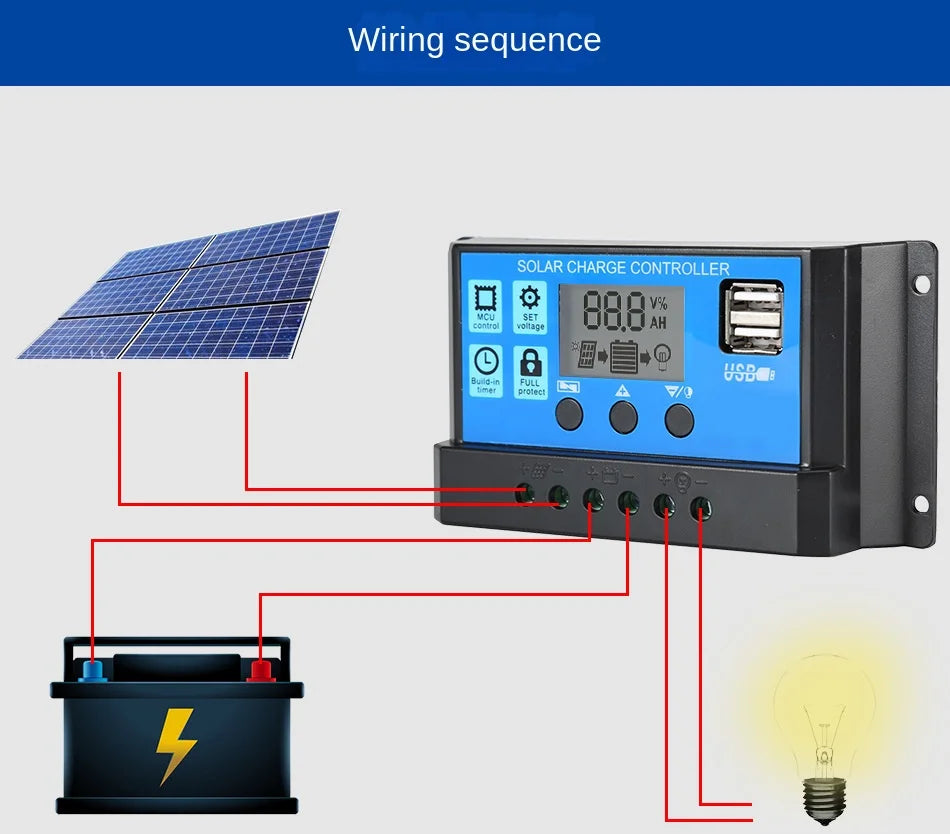

10A 20A 30A PWM Solar Charge Controller, Wiring sequence for solar charge controller: SOLAR, CHARGE CONTROLLER, and V%.

Solar Charge Controller wiring sequence includes SOLAR, CHARGE CONTROLLER, and V%. Follow instructions for 40Ah battery charging, ensuring optimal performance.

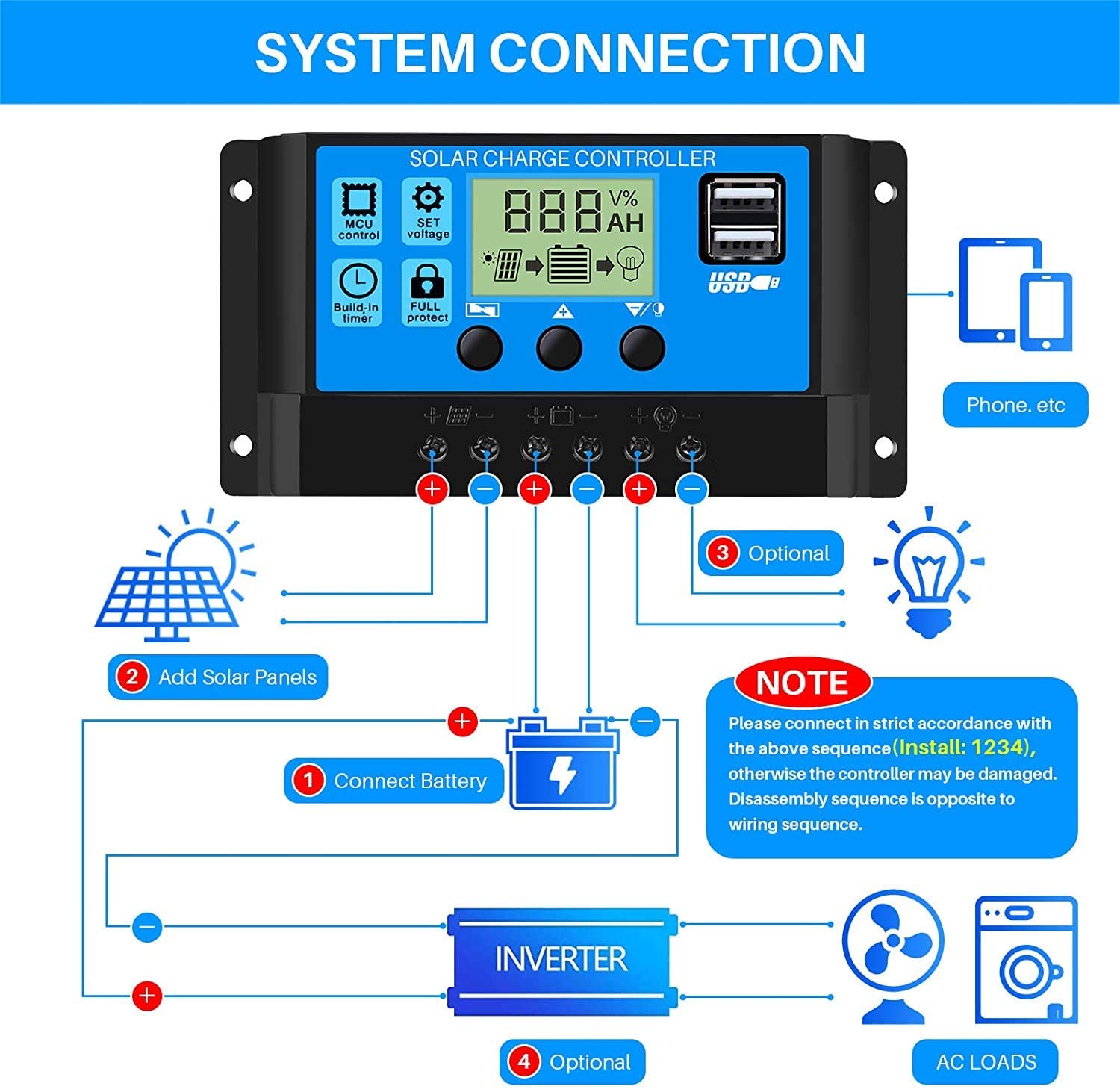

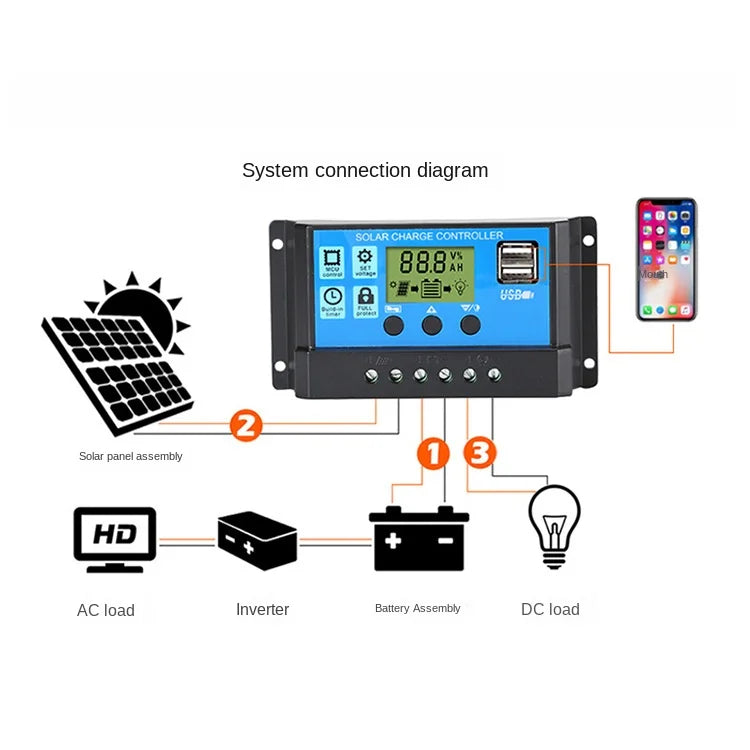

10A 20A 30A PWM Solar Charge Controller, Solar charge controller connects solar panel, battery, and load (AC/DC) for charging and power control.

System Connection Diagram: Solar Charge Controller connects solar panel, battery, and load (AC/DC) via USB output for charging and controlling power flow with intelligent LCD display.

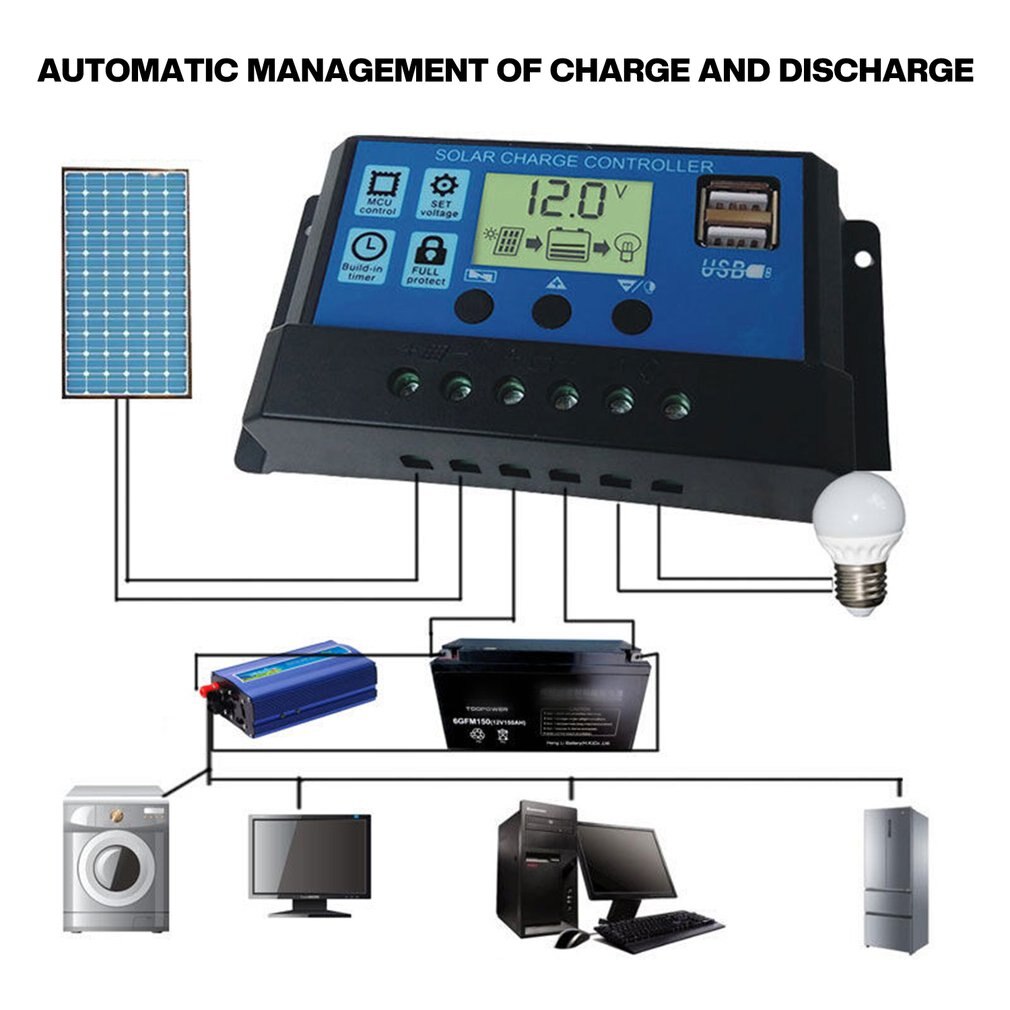

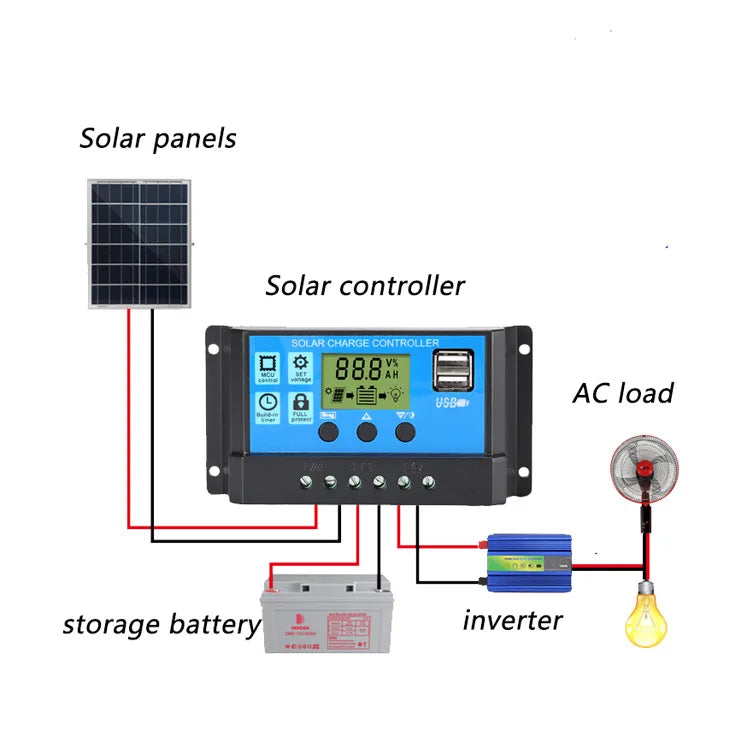

10A 20A 30A PWM Solar Charge Controller, Controller for charging batteries or powering devices with solar energy, supports USB and AC loads.

Solar panel charger controller regulates solar energy to charge batteries or power devices, suitable for USB and AC loads.

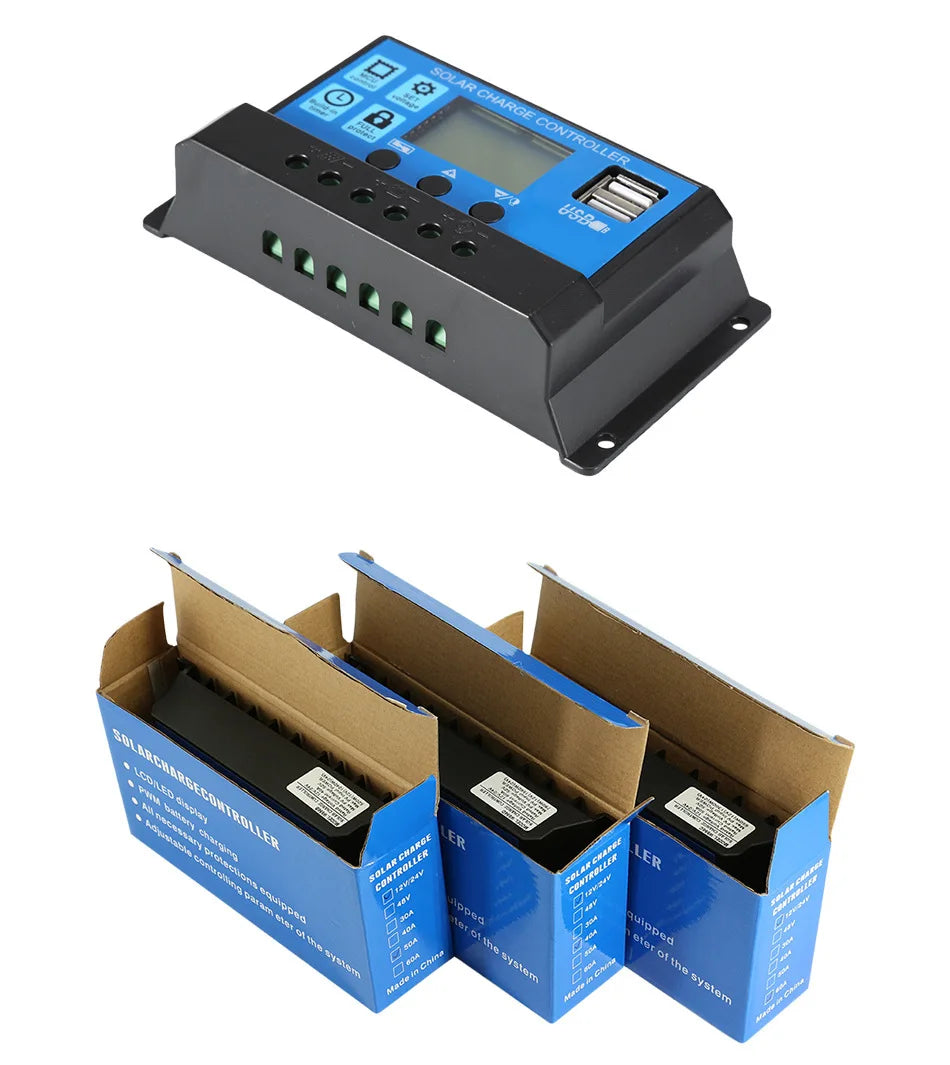

10A 20A 30A PWM Solar Charge Controller, Solar charge controller with LCD display regulates panel charging for safe and efficient battery charging.

Solar Charge Controller 10A/20A/30A PWM, 12V/24V, 50A/60A, intelligent LCD display. Regulates solar panels to charge batteries safely and efficiently. Features include overcharge protection, short-circuit protection, and adjustable charging current. Suitable for small-scale solar power systems.
