SPECIFICATIONS

is_customized: Yes

System voltage: 12V/24V Auto.

Origin: Mainland China

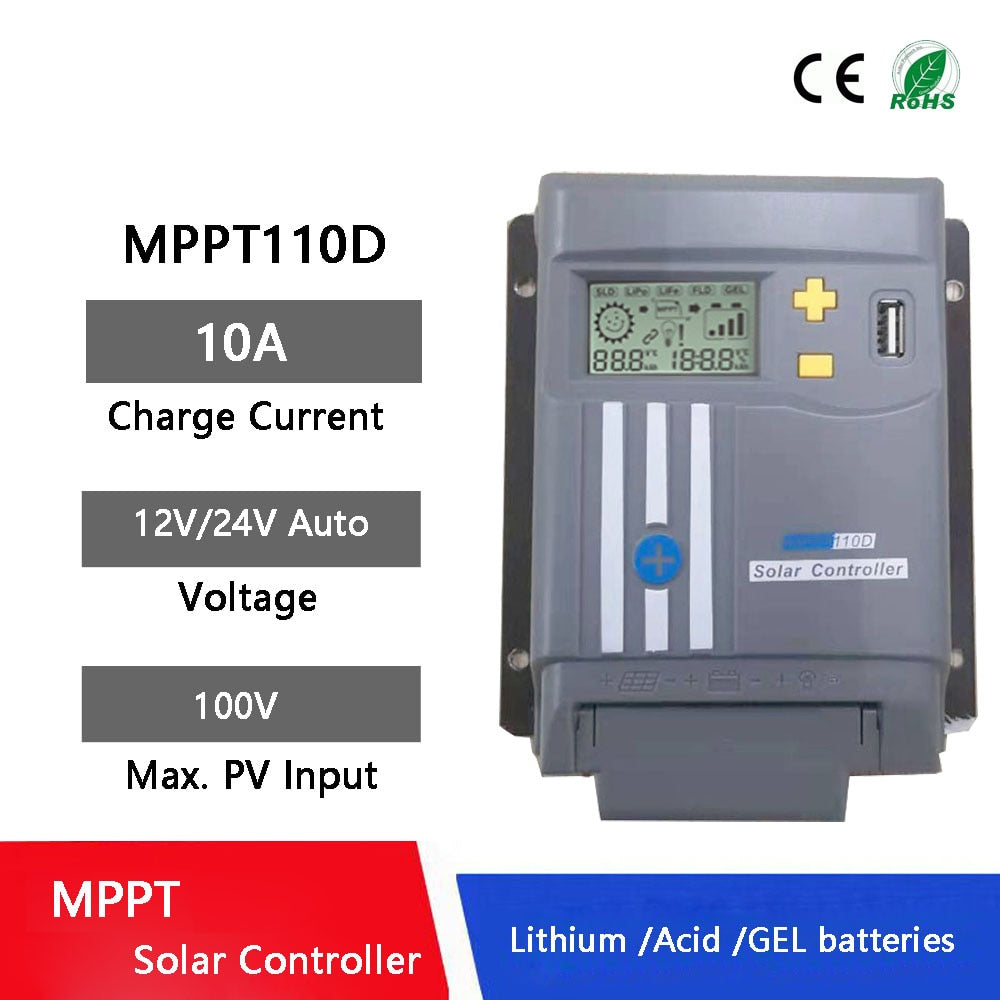

Model Number: MPPT110D

Maximum Current: 10A

Max.Solar Panel Input Power: 120W/240W

Max. PV voltage: 100V

Is Smart Device: YES

Certification: CE,RoHS

Battery type: Flooded,AGM,GEL,LifePO4,Lithium

Application: Charger Controller,Voltage Controller,Solar System Controller,Solar Working Station

Application: Charger Controller,Voltage Controller,Solar System Controller,Solar Working Station

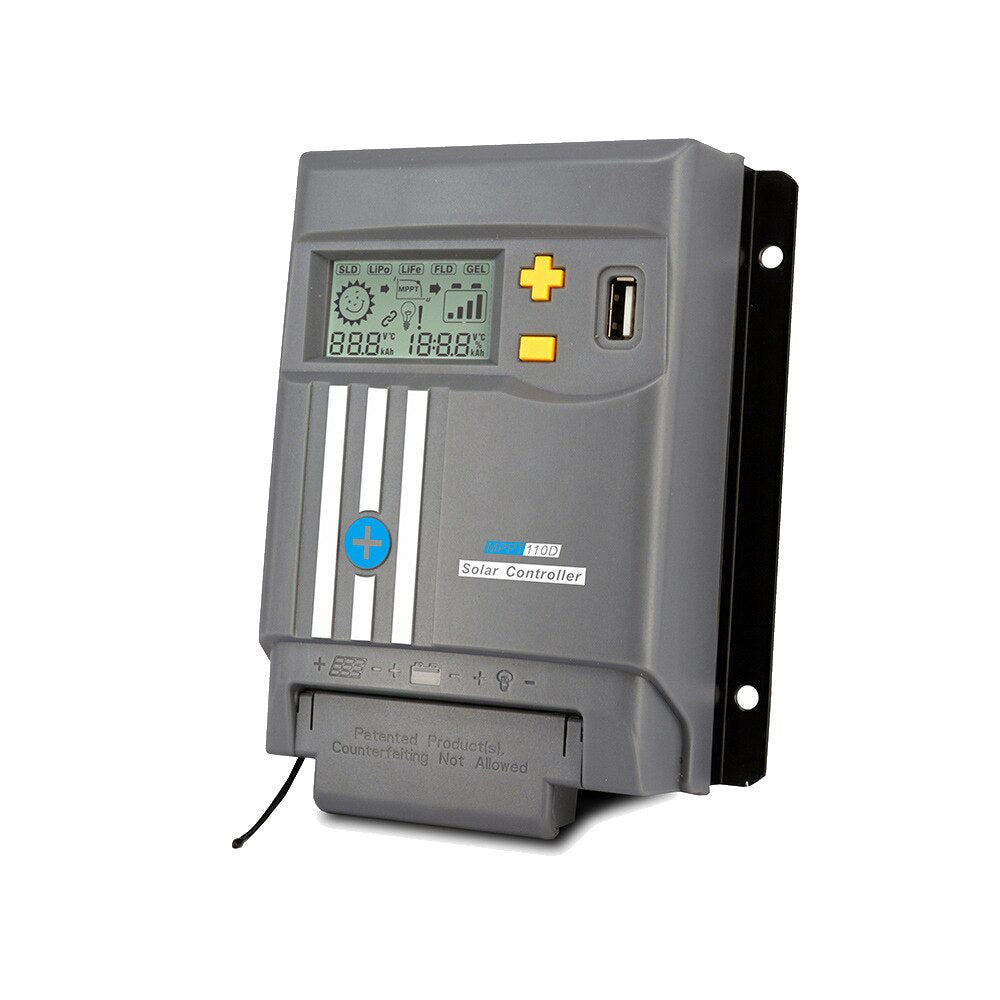

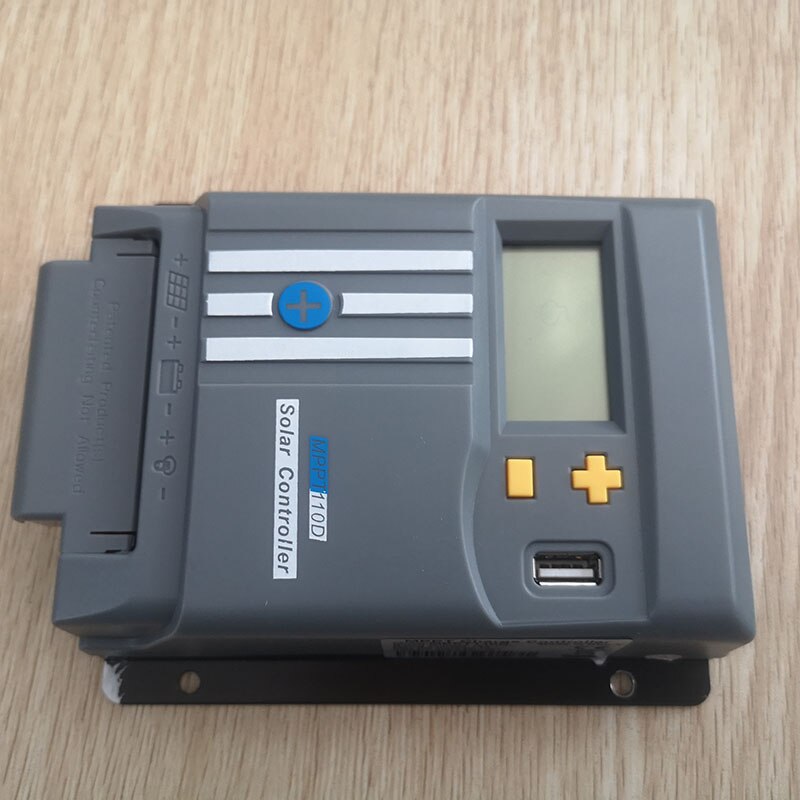

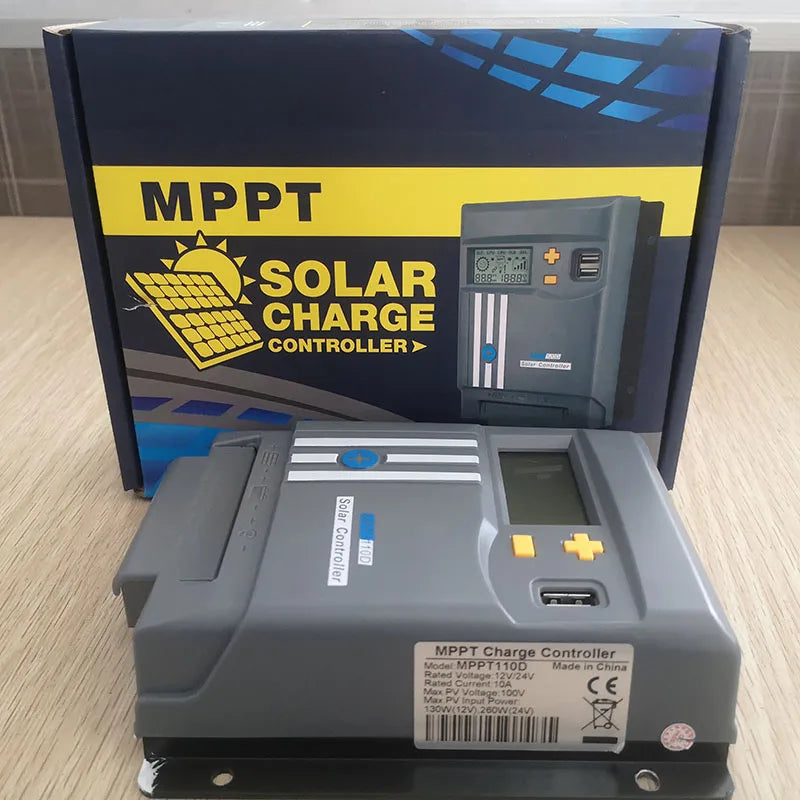

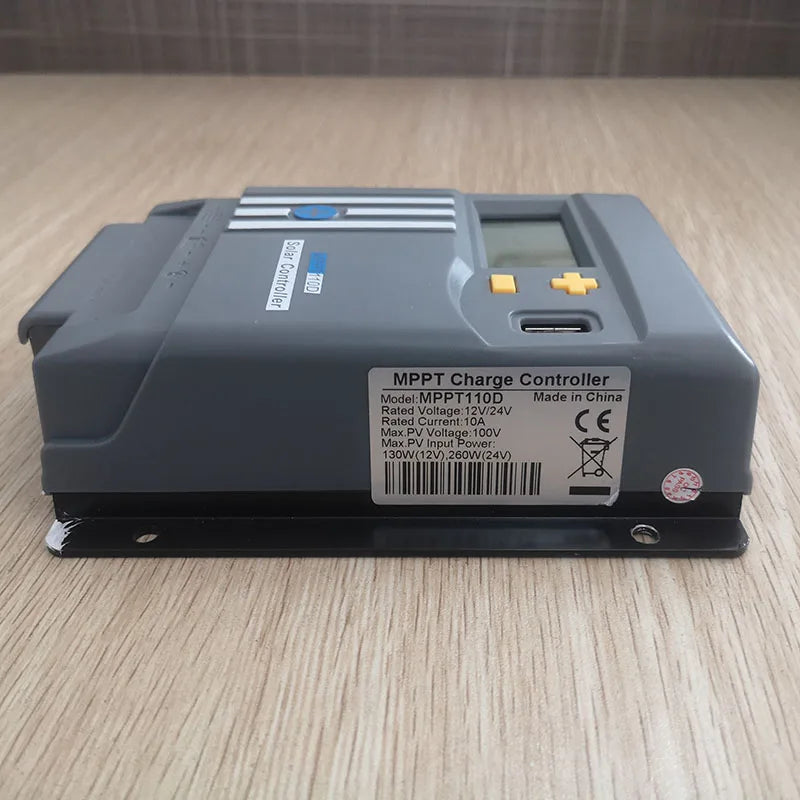

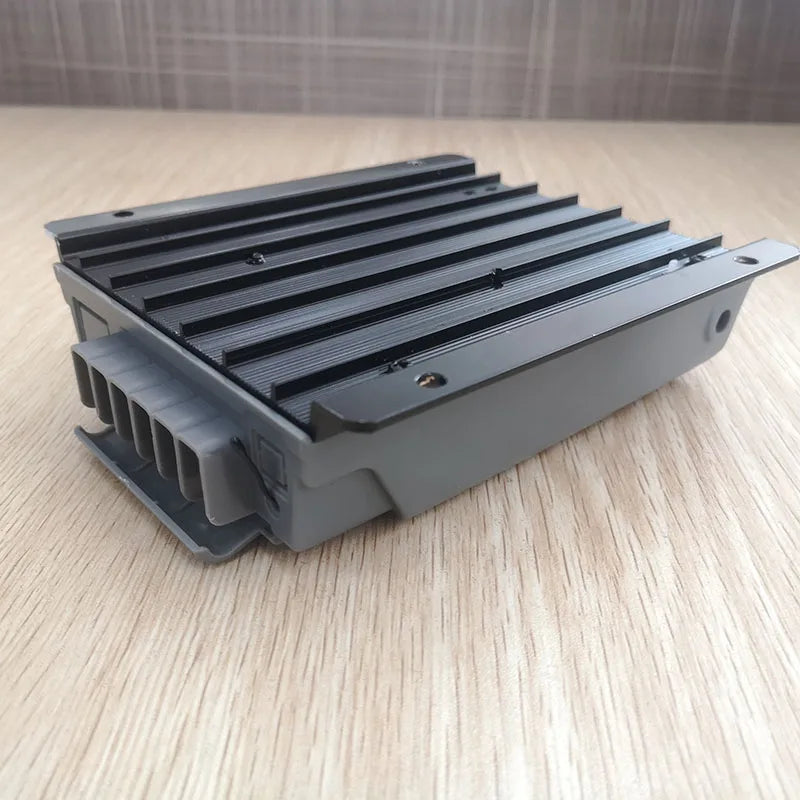

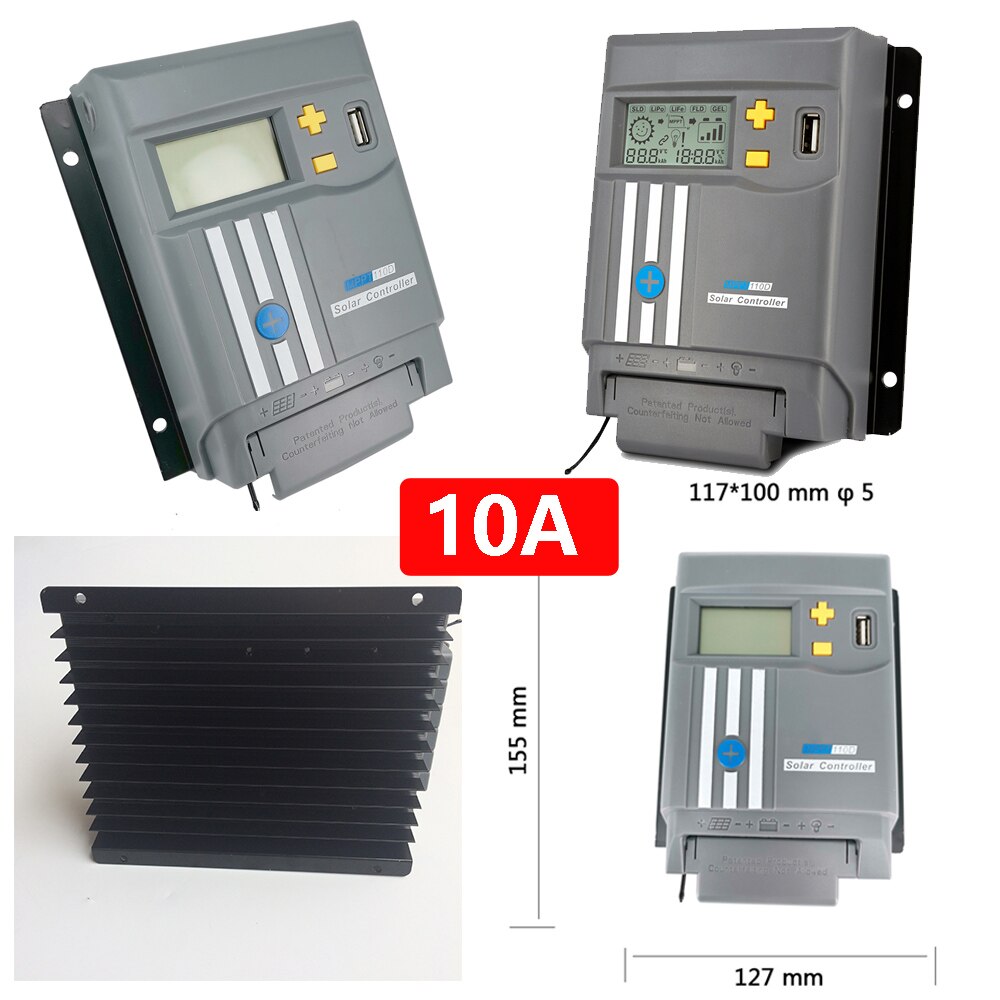

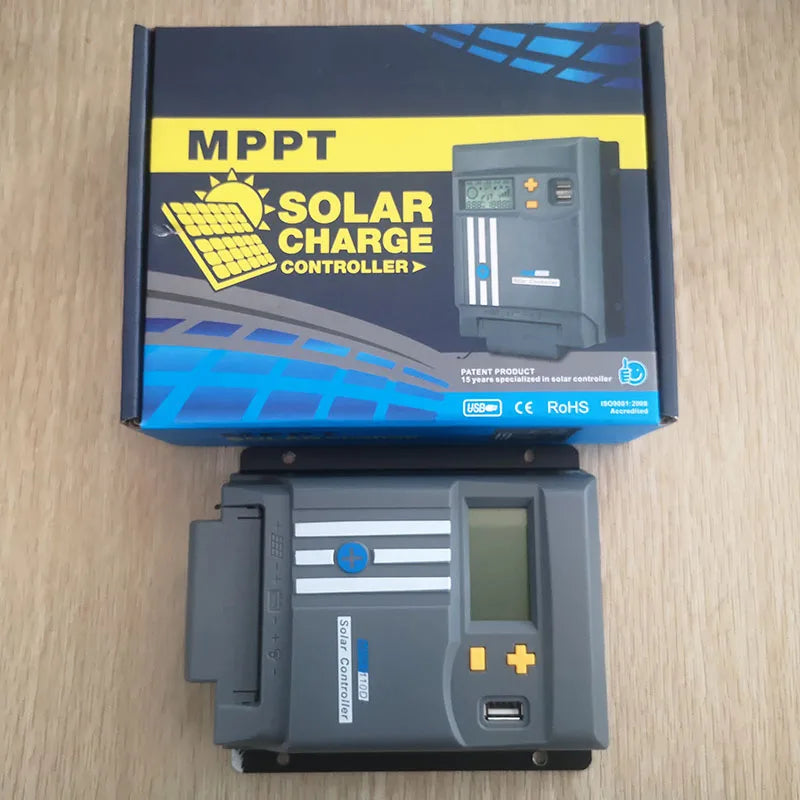

10A MPPT Solar Charge Controller with WiFi Bluetooth Device 12V/24V LCD Display Battery Regulator Dual USB LifePo4

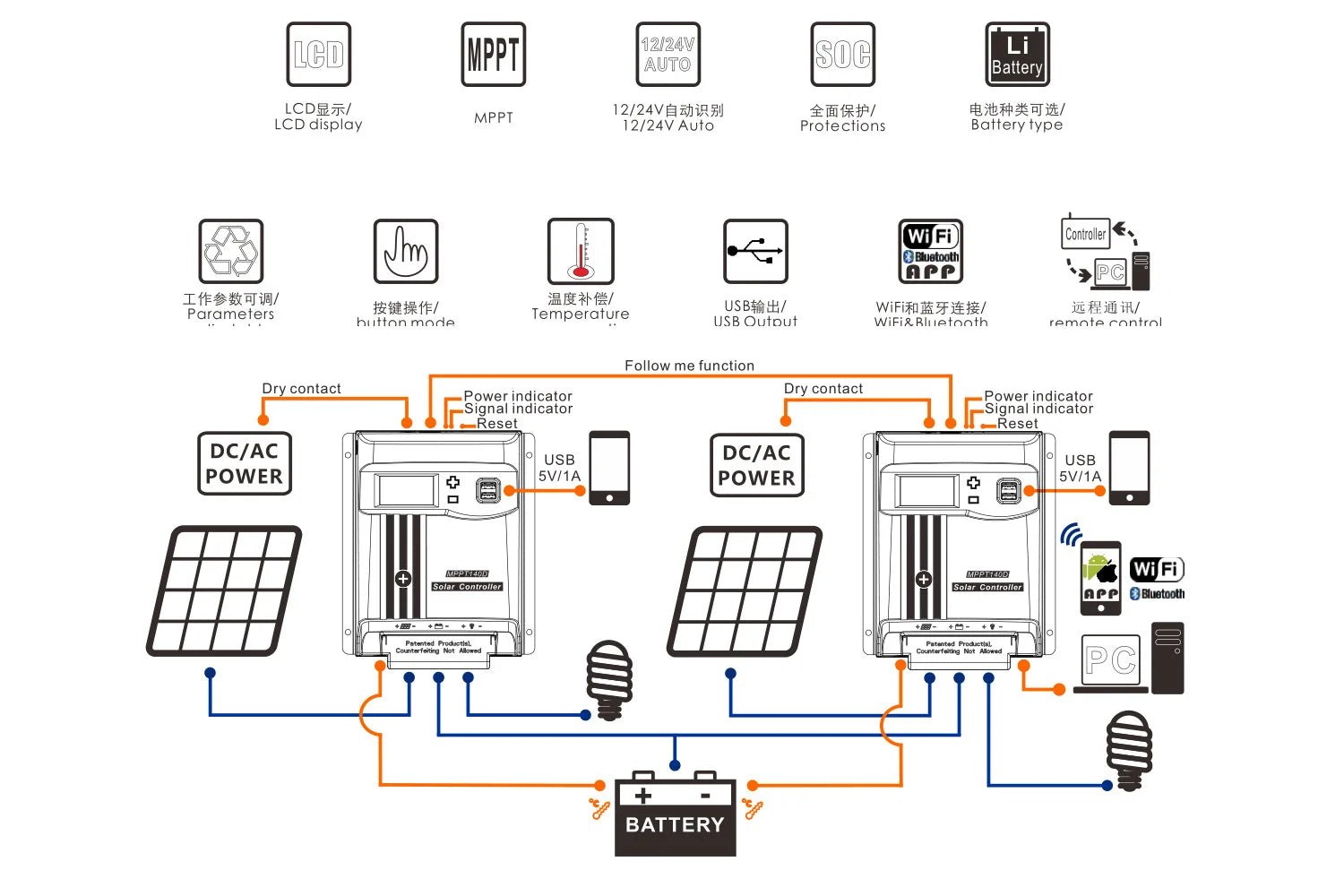

MPPT1 series products adopts DC/DC converting technology and MCU technology. It can adjust the working point of the solar array intelligently to make the solar array realize the maximum power output.When the external condition changes,MPPT controller bases on the MCU theory to track the maximum working point of solar panels,this can improve the using efficiency of the solar panels and decrease the solar generating costs.Compared with PWM solar charge controllers,MPPT improve the output efficiency of solar panel by 5% to 30%(the output increasing proportion affected by the factors such as the attribute of solar panels,environmental temperature and lighting conditions).

Features:

1. Self-made algorithm,fast and accurate lock MPPT point,within 10 seconds,accuracy is greater than 99%,MPPT peck conversion efficiency 98%.

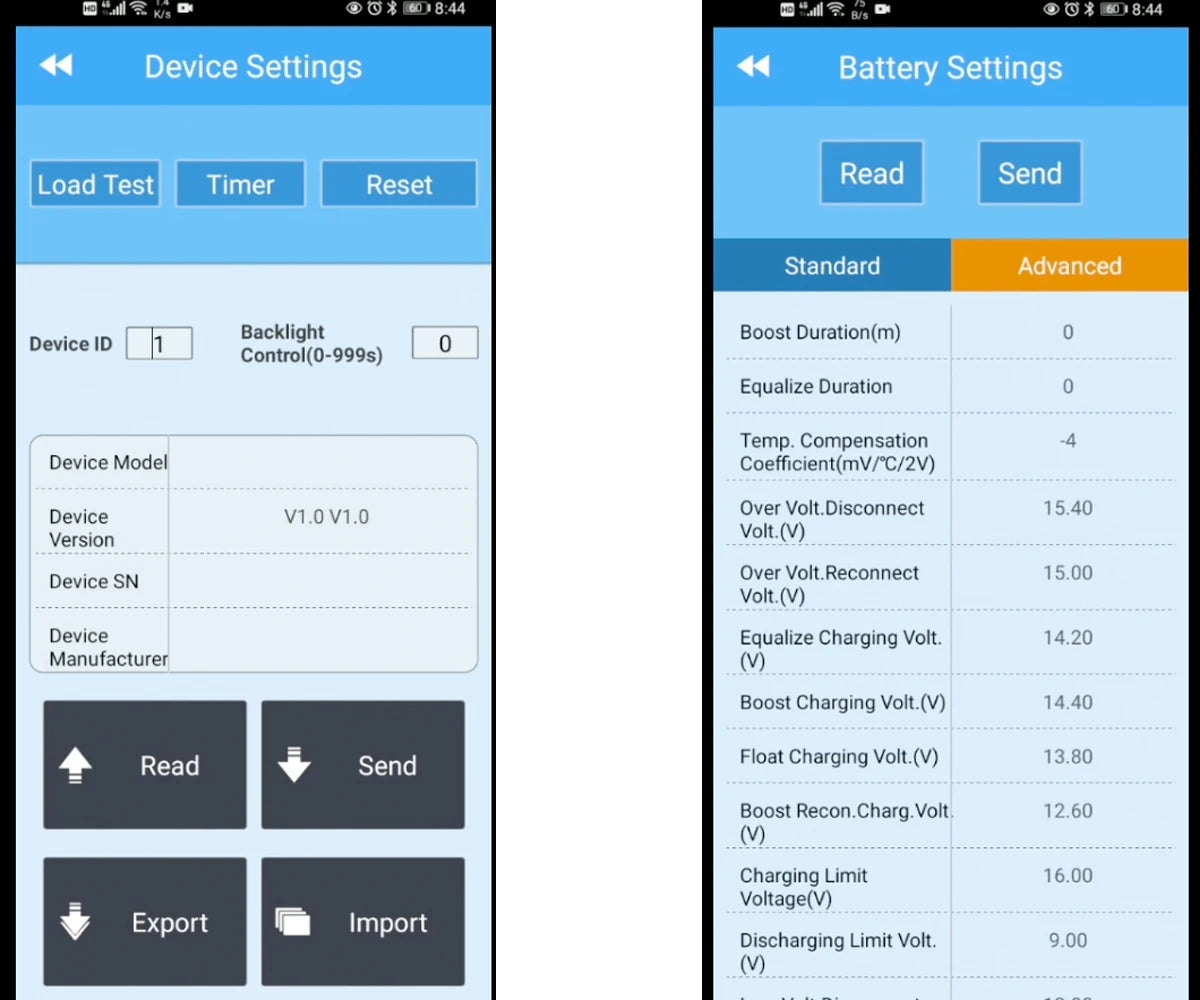

2. Four-stage charging:high current charing at MPPT points,float charging,absorption charging,equalized charging.

3. Used for lead-acid batteries/Gel batteries.Can be used for lithium battery(LiFePO4 battery,ternary lithium battery),when the lithium battery is low voltage protected,the battery can be activated.

4. External temperature sensor,accurate temperature compensation.

5. PV input maximum voltage:100V.

6. The system voltage is 12V/24V automatically identification.

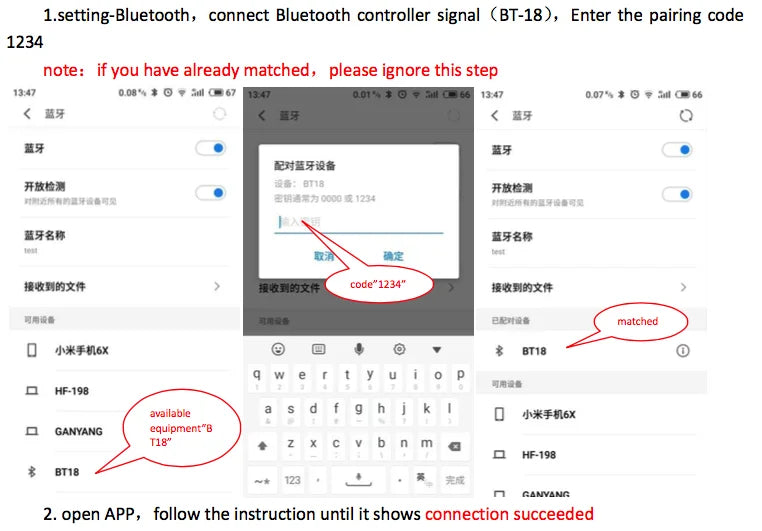

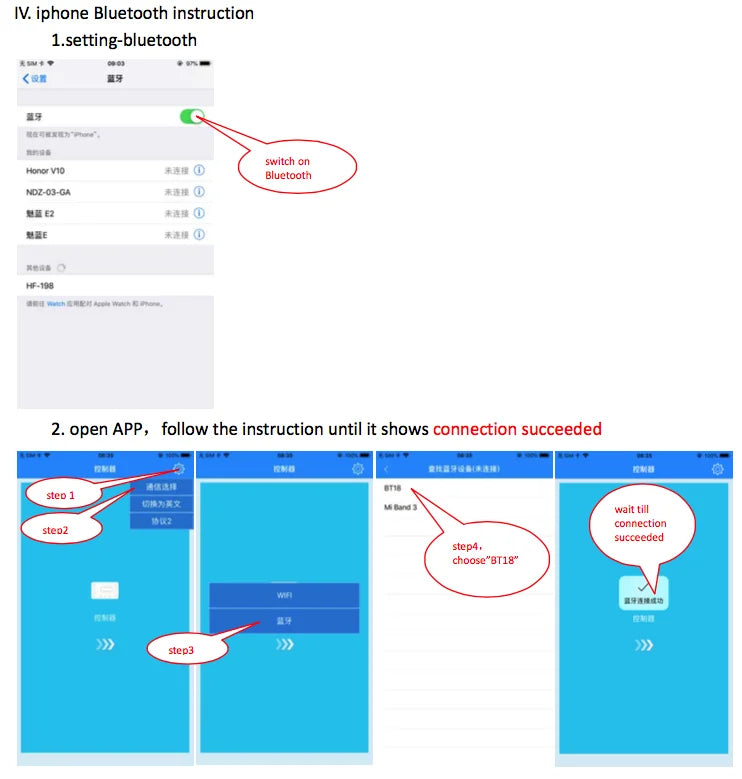

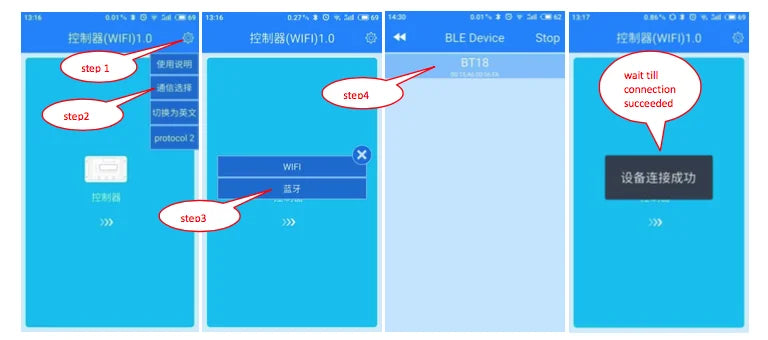

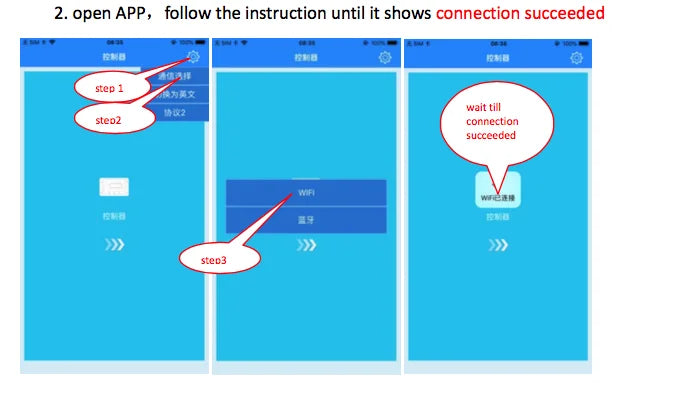

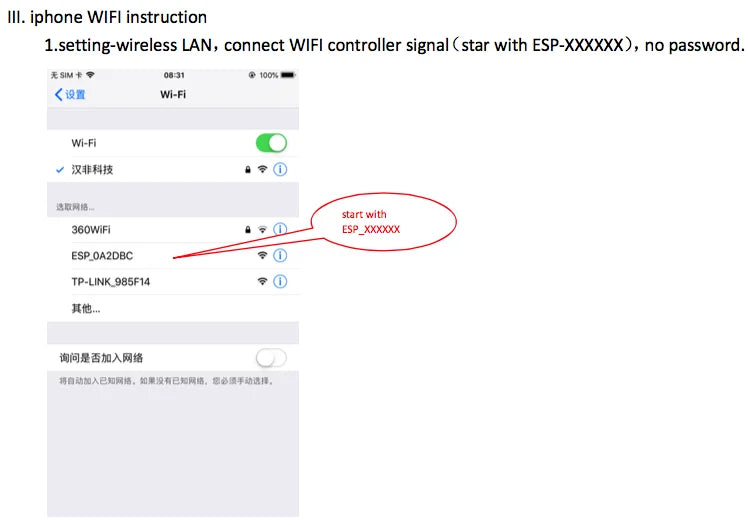

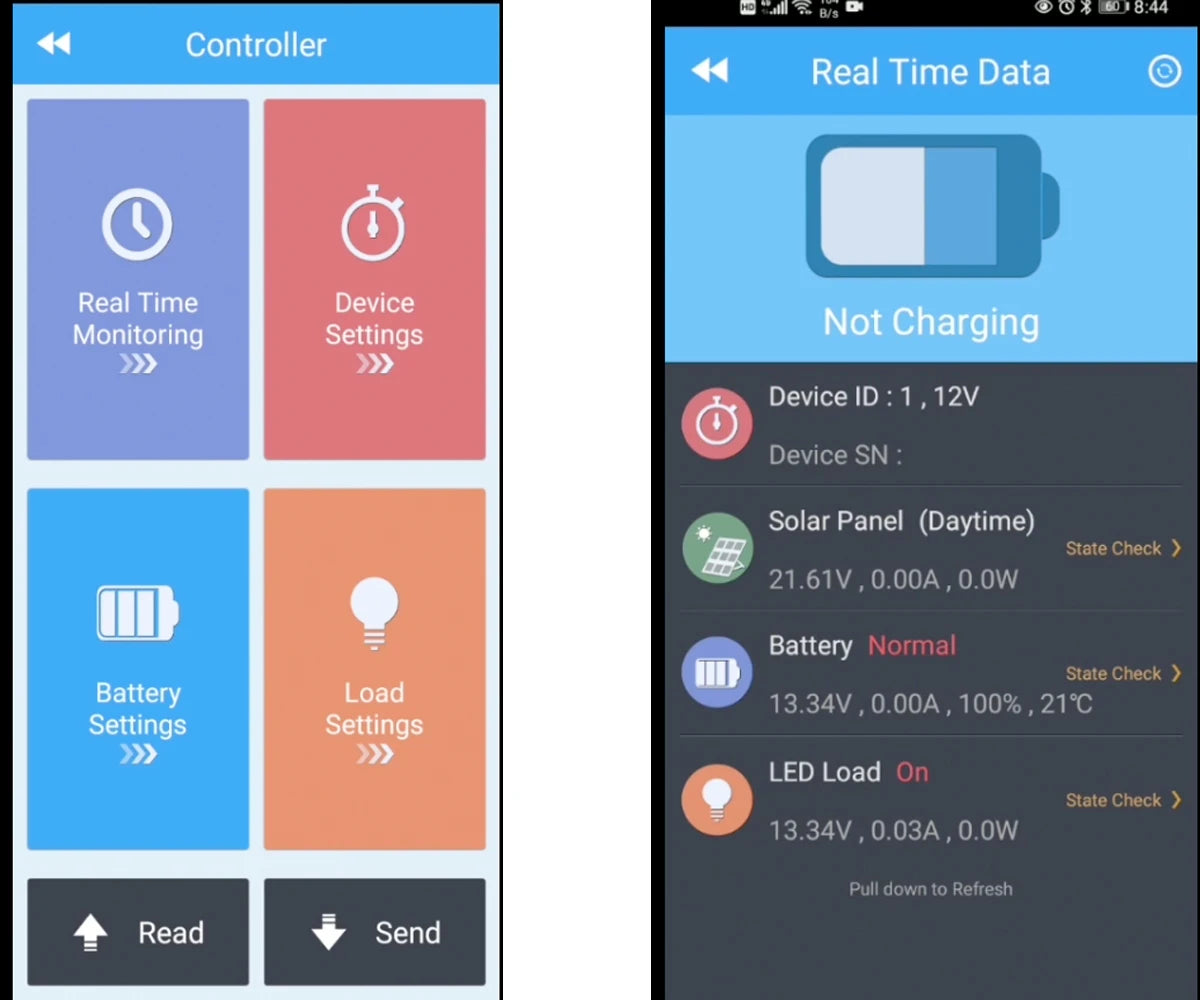

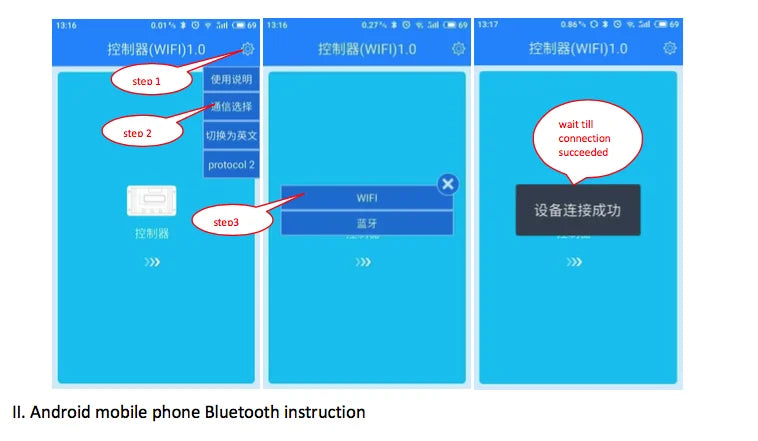

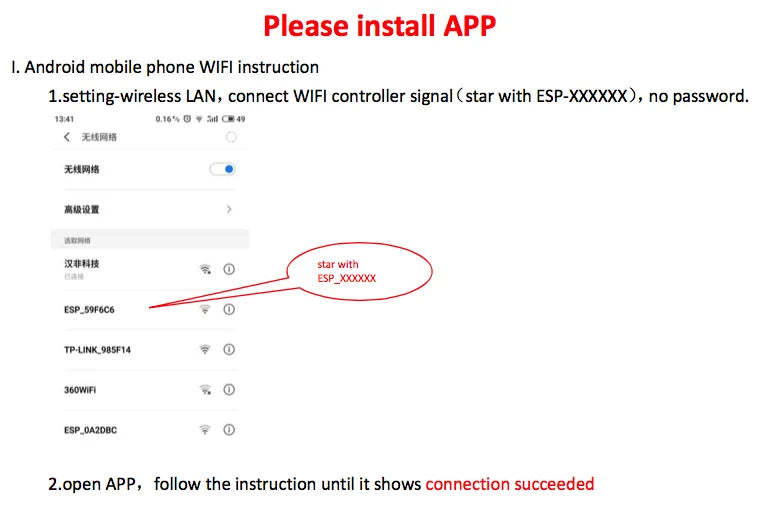

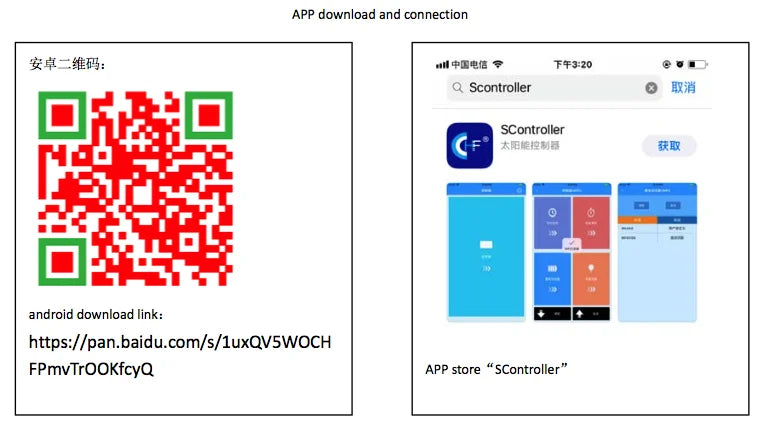

7. Communication function(with built-in or external WIFI,Bluetooth,GPRS module),providing standard MODBUS communication protocol.

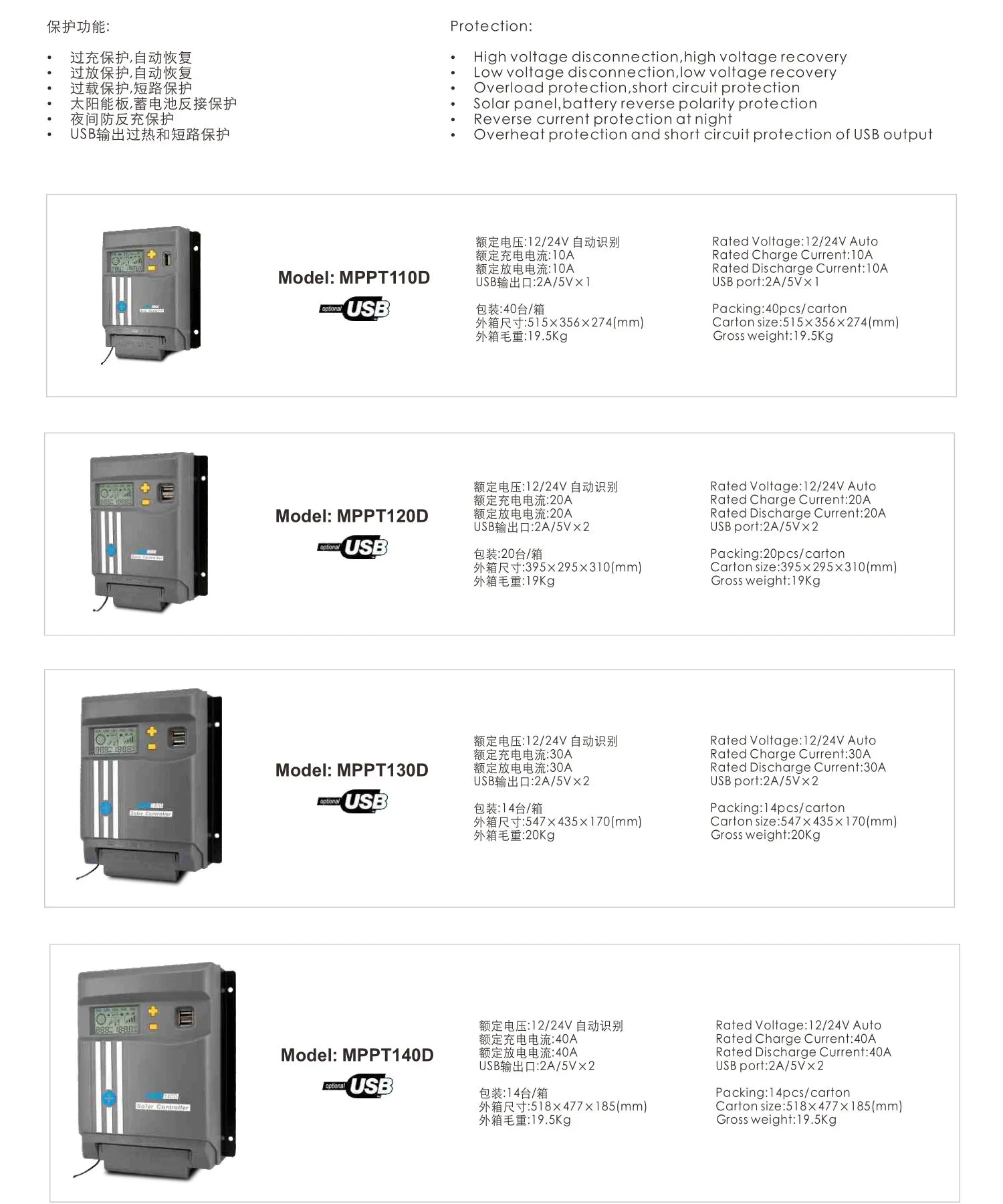

Technical Parameters:
