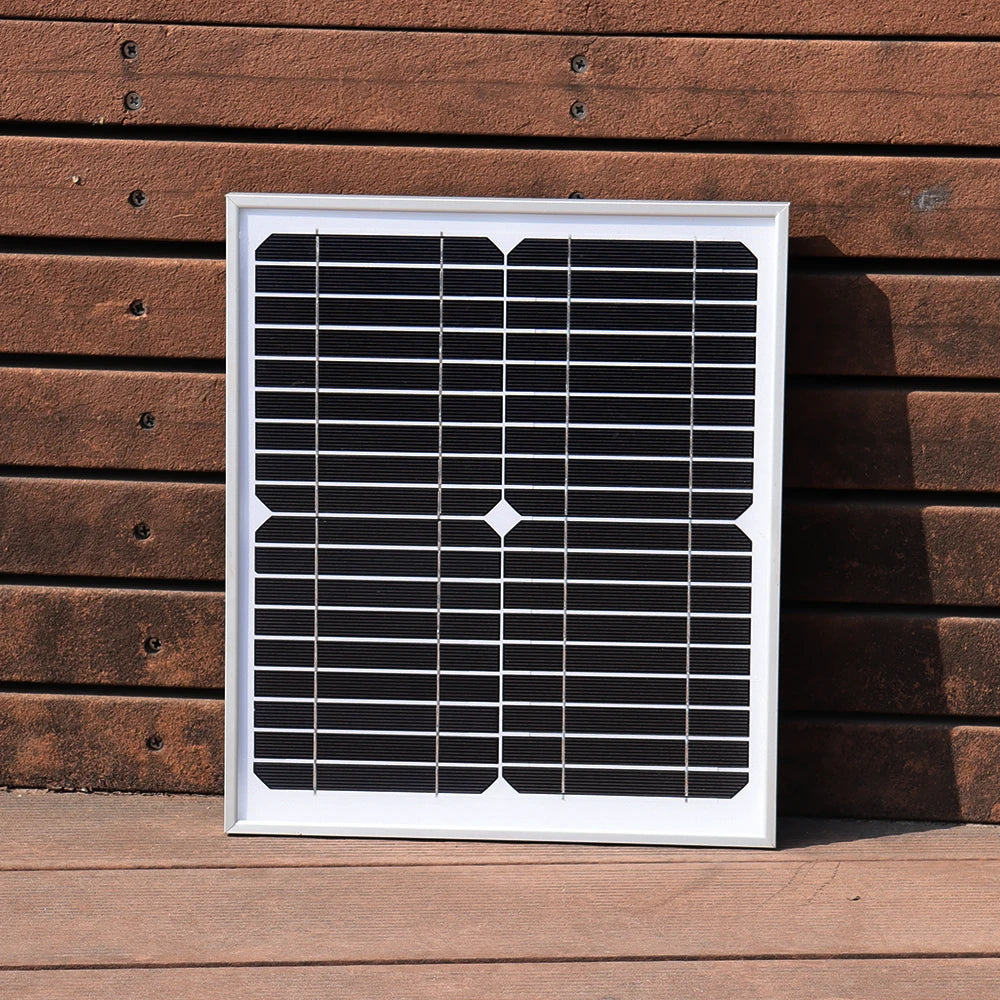

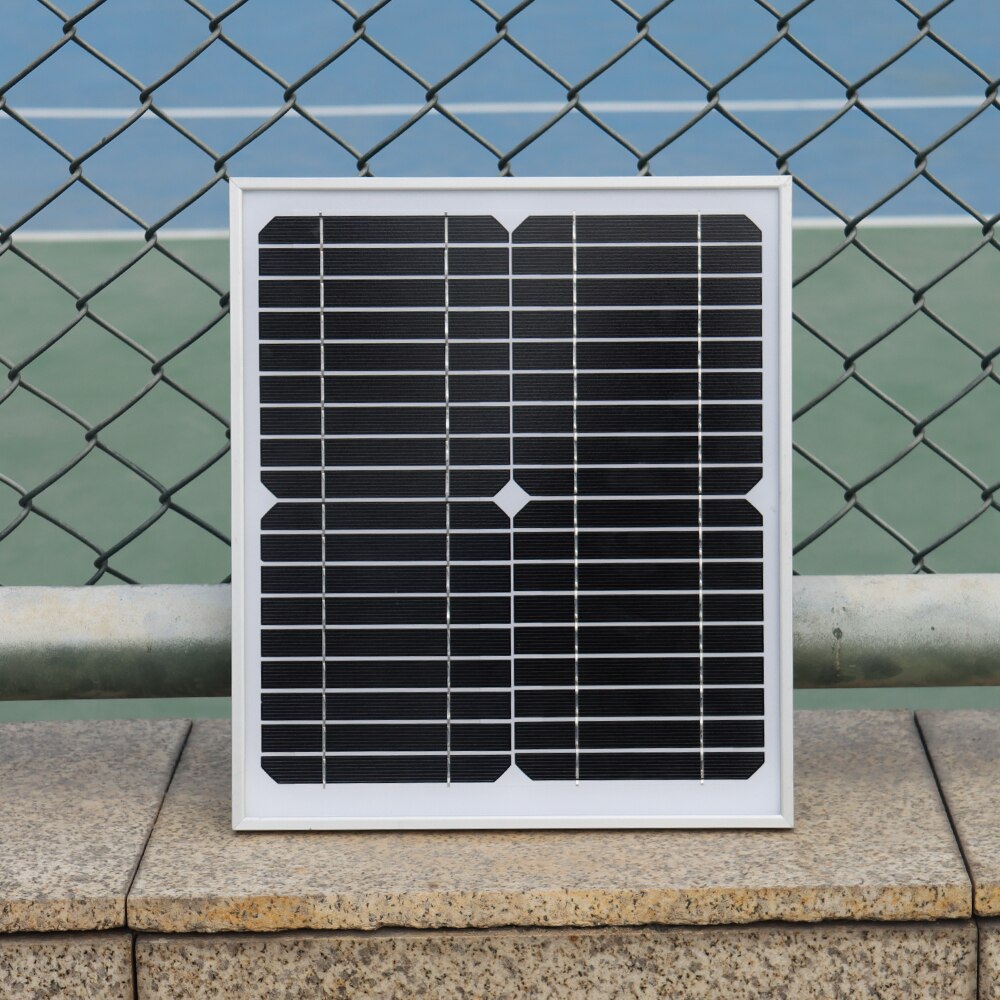

10W Rigid Solar Panel Tempered Glass Monocrystalline Solares Panels 12V Battery Charger Kit For Camping RV Yacht Street Light

Maximum power(Pmax)                          10W

Output tolerance                                     ± 3%

Maximum system voltage                       1000V DC

Open circuit voltage(Voc)                        21.6V

Short circuit current(Isc)                          0.61A

Maximum power voltage(Vmp)              18V

Maximum power current(Imp)                0.55A

Cell efficiency                                          19.5%

Operating temperature（NOCT）           45±2℃

Temperature range                                 -40℃～+80℃

Cell                                                          Monocrystalline silicon

Number of cells                                      36pcs

Weight                                                    1100g

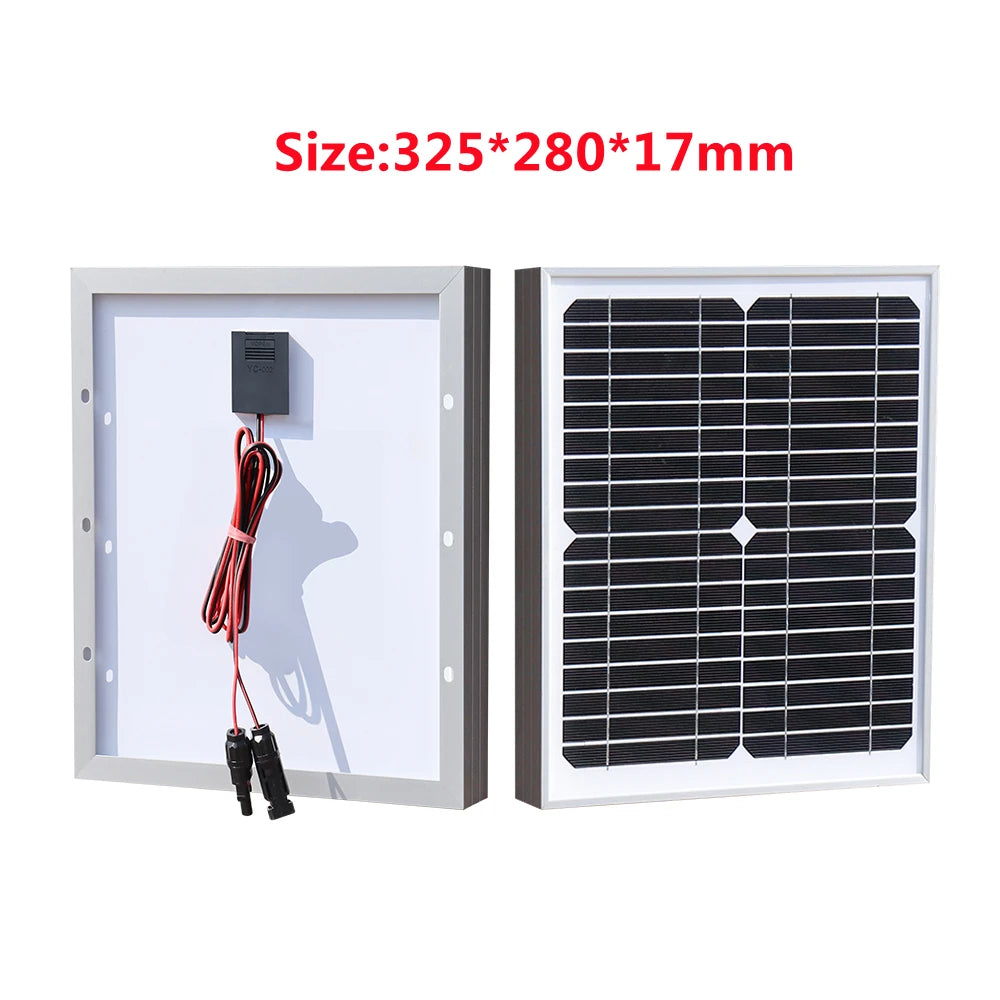

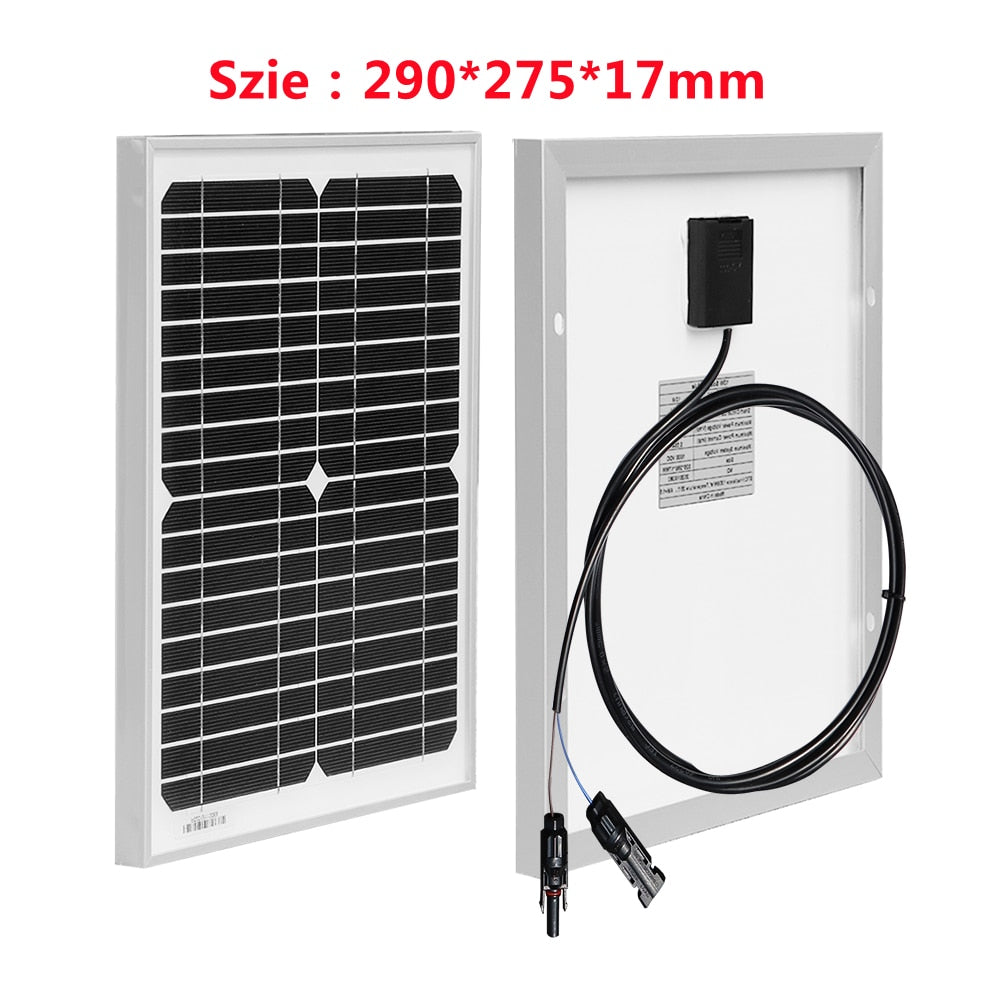

Size                                                         325*280*17 mm/290*275*17mm

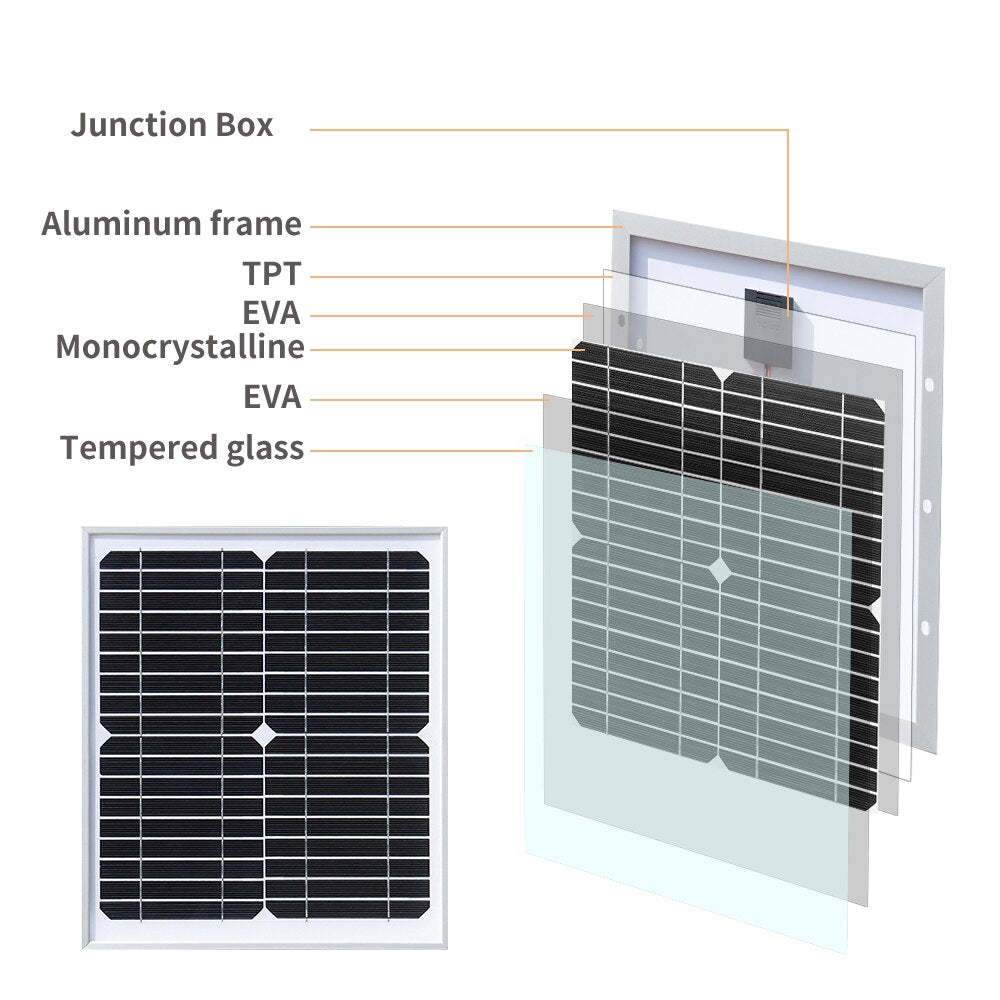

Surface material                                      Toughened glass

Back film Color                                        White

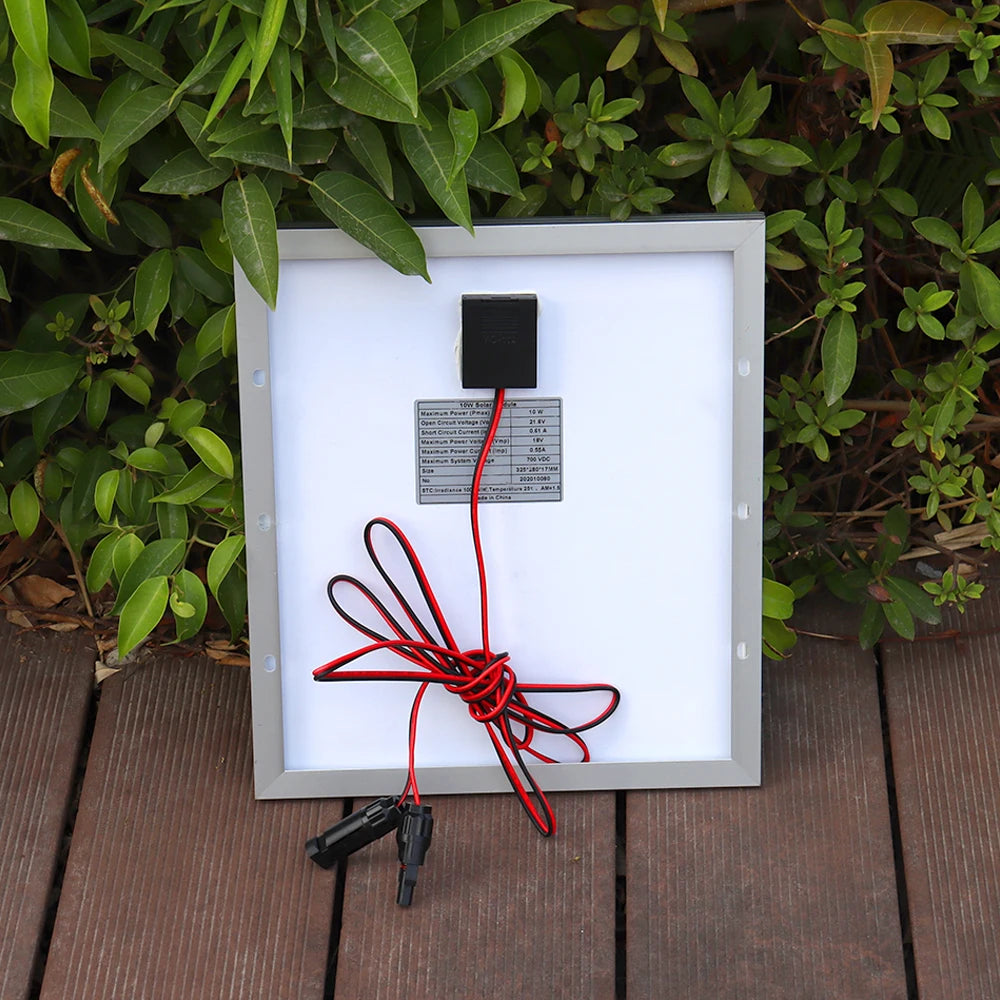

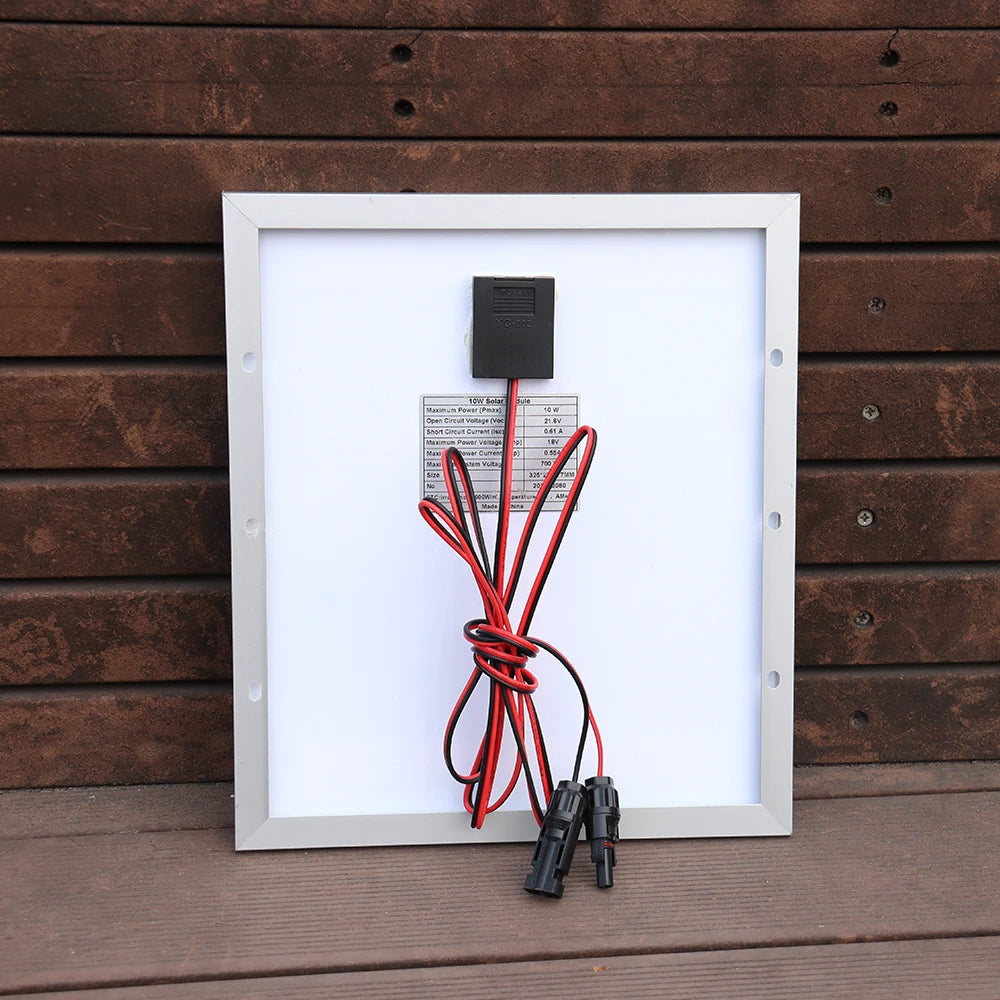

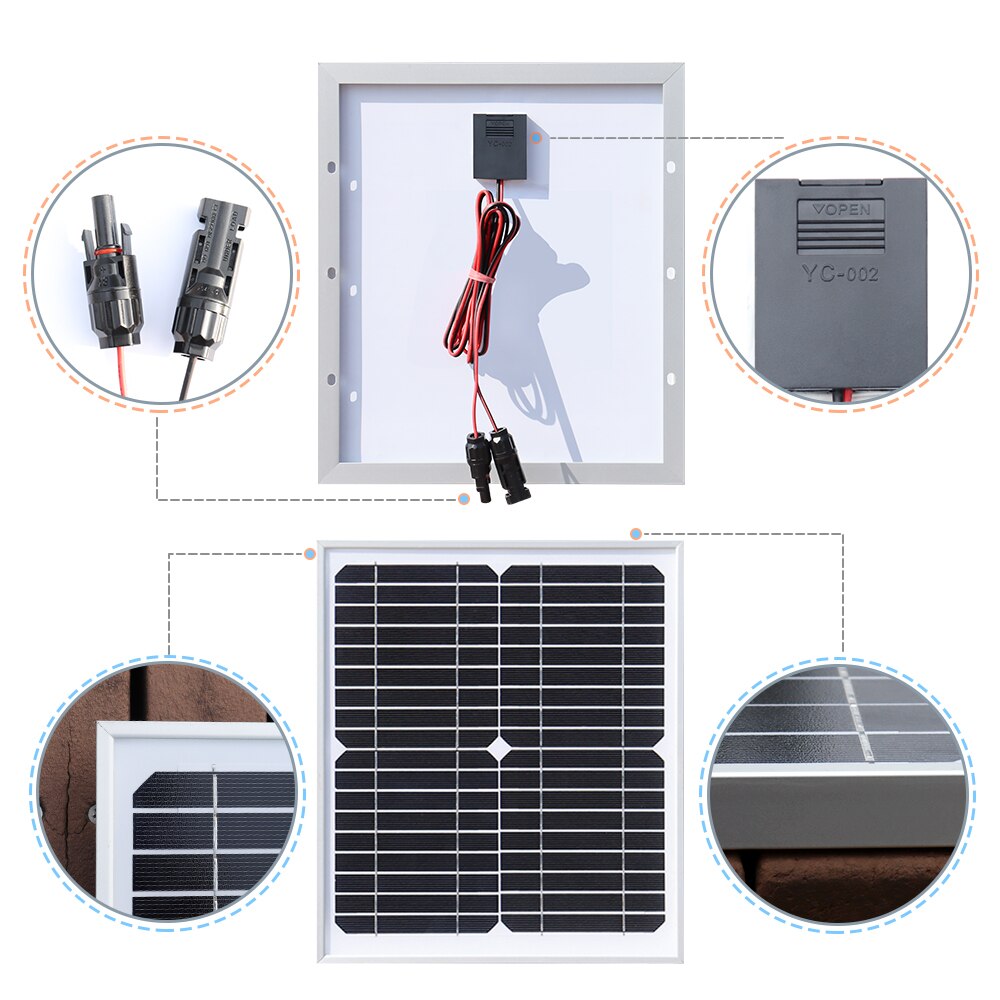

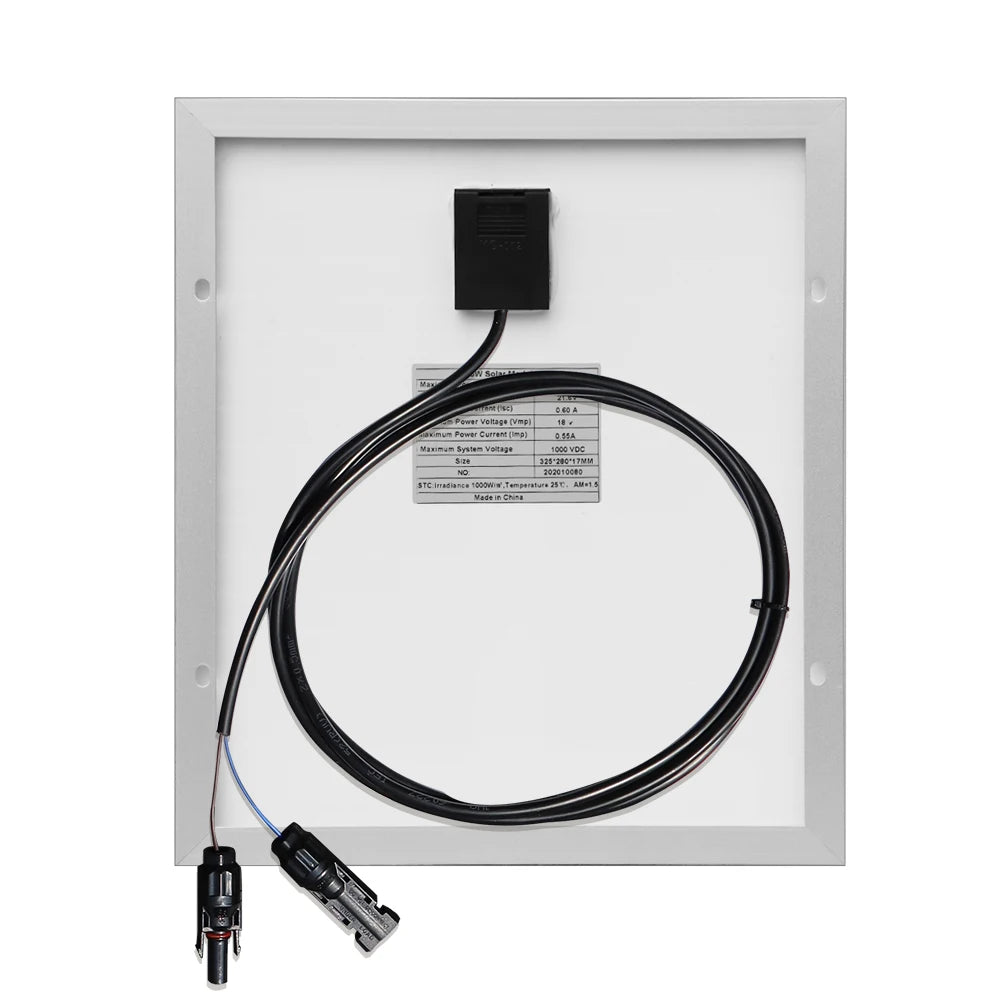

Output port                                        2 m long MC4 connector wire

Waterproof                                             Yes

Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5

Features:

1.Select high-efficiency monocrystalline silicon solar cells, the power generation efficiency is about 1.2 times that of conventional polysilicon, and the overall area is smaller at the same power.

2.The surface is made of Toughened glass, which is more wear-resistant and improves the absorption efficiency of sunlight.

3. With high light transmittance, safe and reliable, not afraid of high temperature, no danger of burning or explosion.

4.The junction box adopts IP67 waterproof design, contains bypass diode, and the circuit adopts overcharge and reverse current protection design.

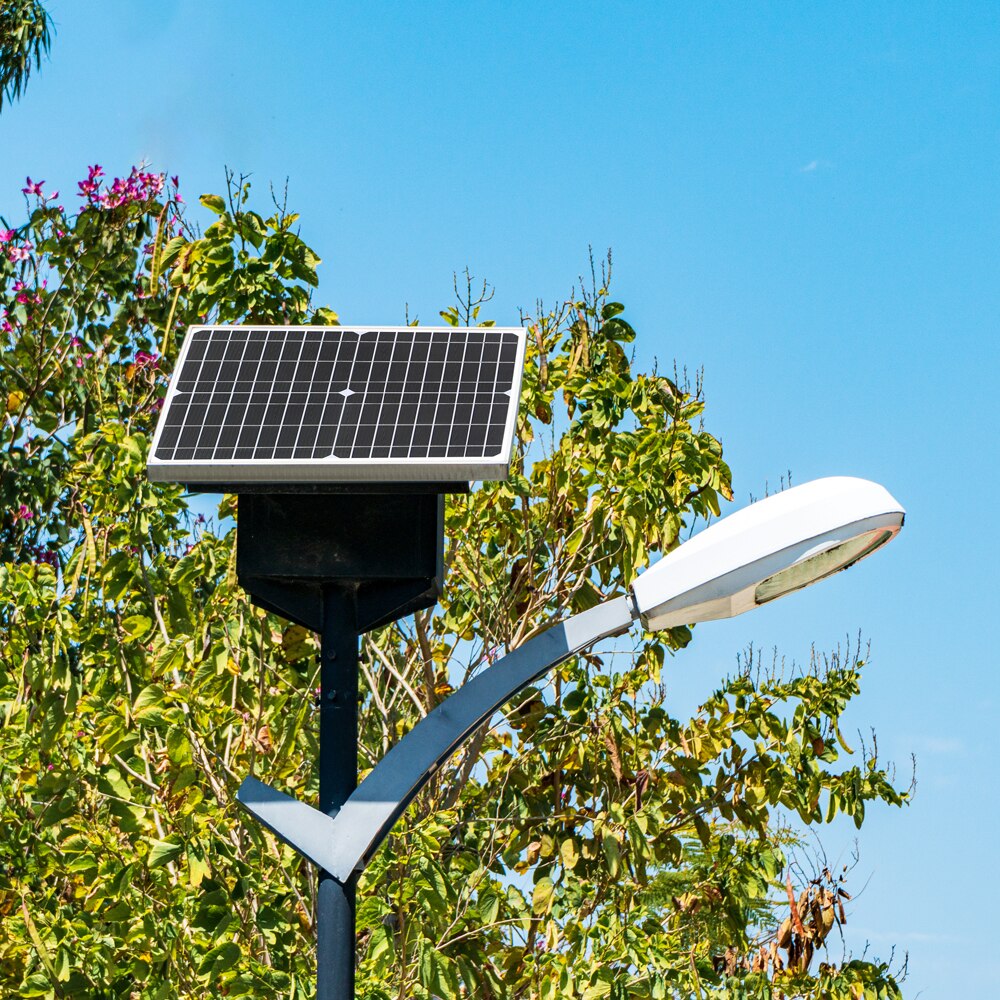

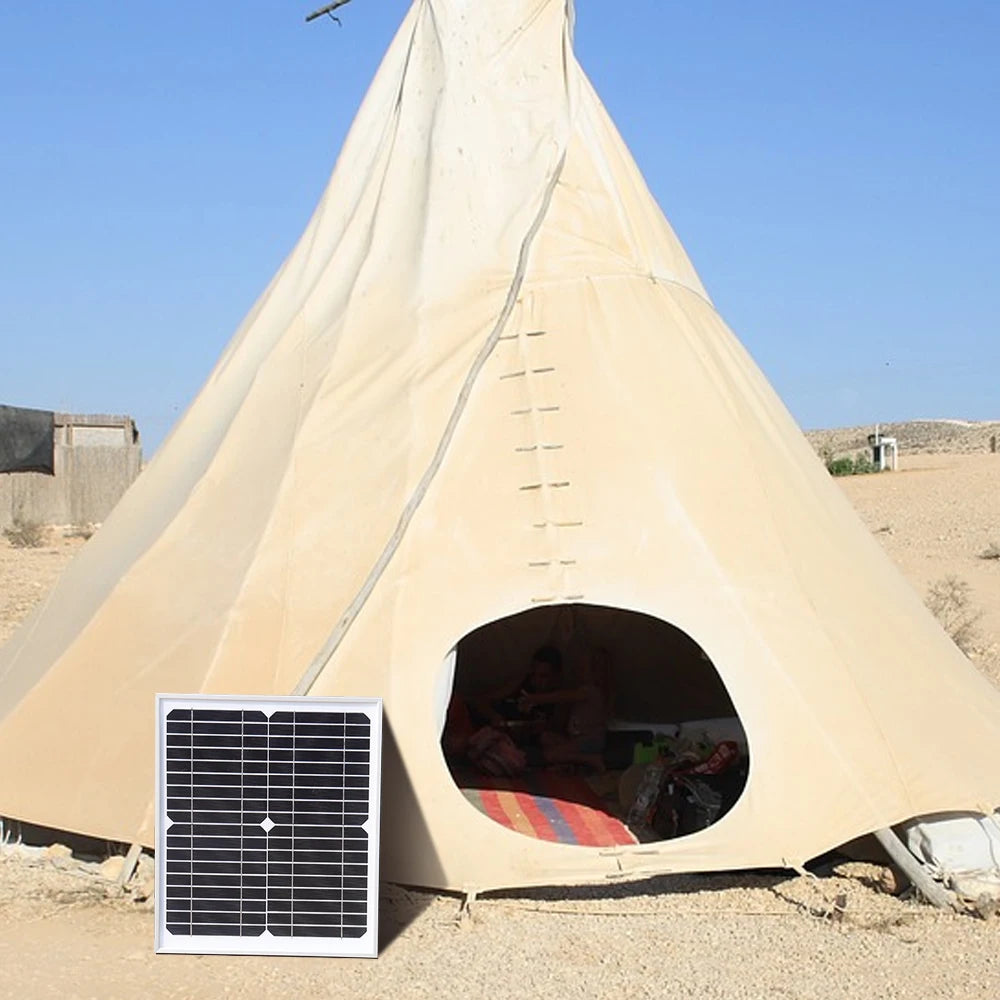

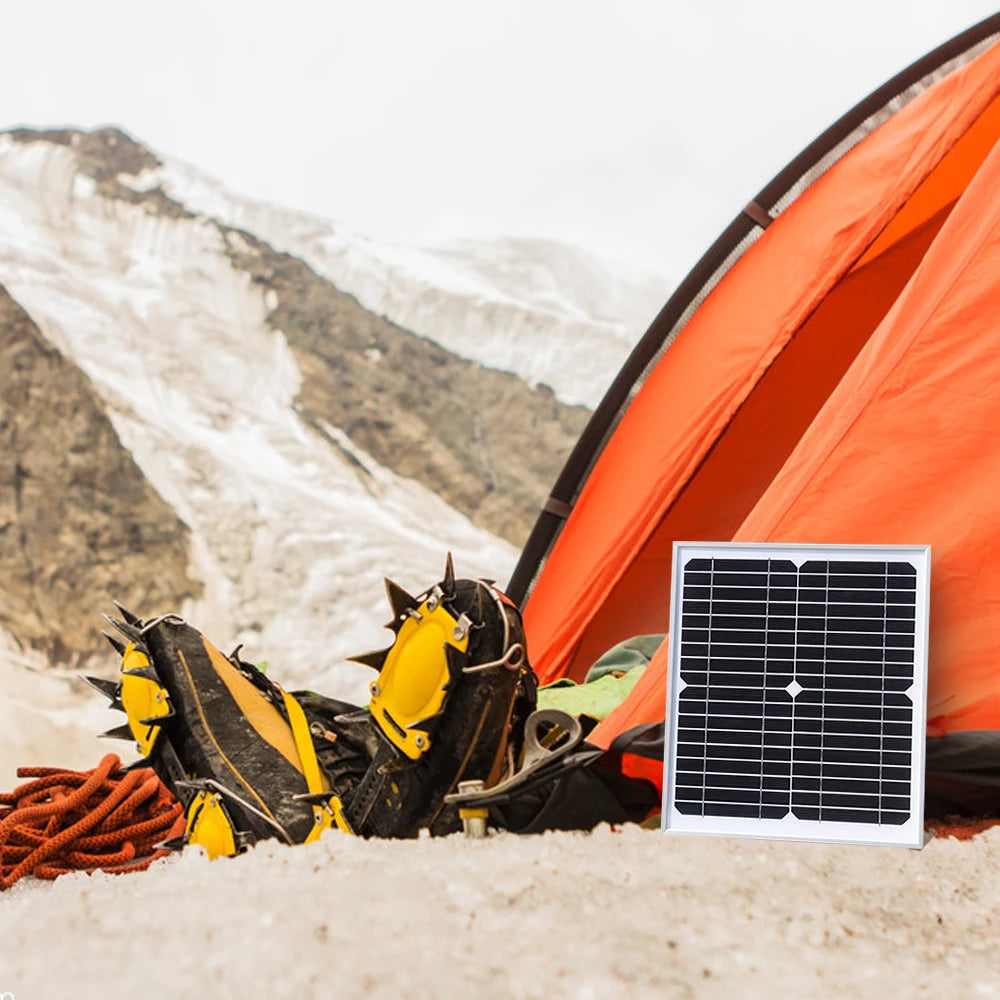

5.This product is a solar module. It is recommended to be used with controllers and batteries. It can be used in various scenarios such as households, camping, RVs, yachts, street lights and solar power stations.

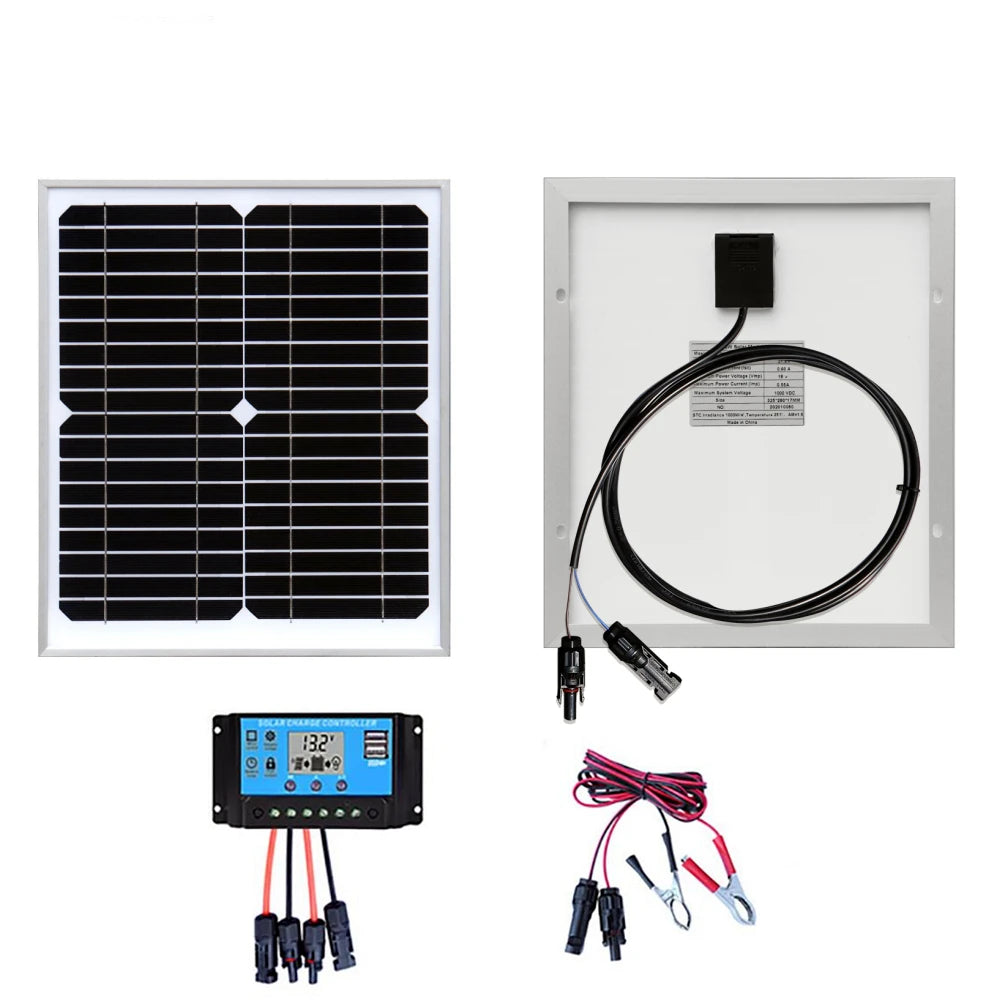

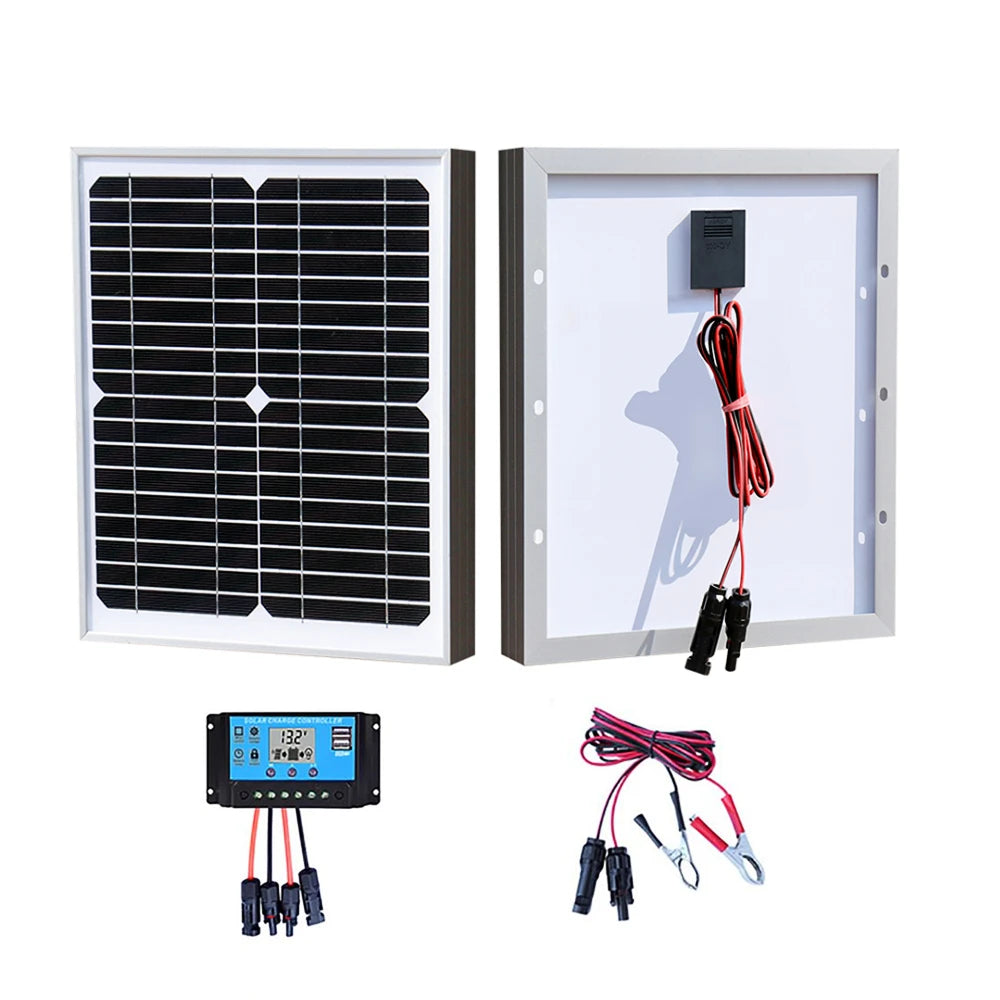

Package included:

1 x 10W glass solar panel

or

1 x 10W glass solar panel

1 x 10A 12V/24V Controller

1 set 2m PV connector cable with alligator clip

Notes for use:

1. This product must not come into contact with highly corrosive substances.

2. It is strictly forbidden to modify, disassemble, drop, and hit the junction box and products by yourself, avoid stepping on the surface and scratching the surface with hard objects during use.

3. A large number of scratches or dirt on the surface of the solar panel may cause the solar cell module to be inefficient, and in severe cases may cause burnout.

4. The suitable ambient temperature range of this product: -20 ° C-80 ° C, please do not exceed this range.

5.The solar panel must be installed in an area with good sunlight and no shadow. The long-term work of the solar cell module in the sun with shadow may have the risk of burning.

6.It is forbidden to connect the positive and negative poles of the product together, otherwise it will damage the product.

7.The overall power of the photovoltaic module must be less than the rated power of the controller (rated voltage × rated current). It is strictly prohibited to overload the controller.

8.The total voltage of the photovoltaic module connected to the controller must be within the photovoltaic input voltage range of the controller.

9. The inverter can only be connected to the battery, not directly to the controller.
