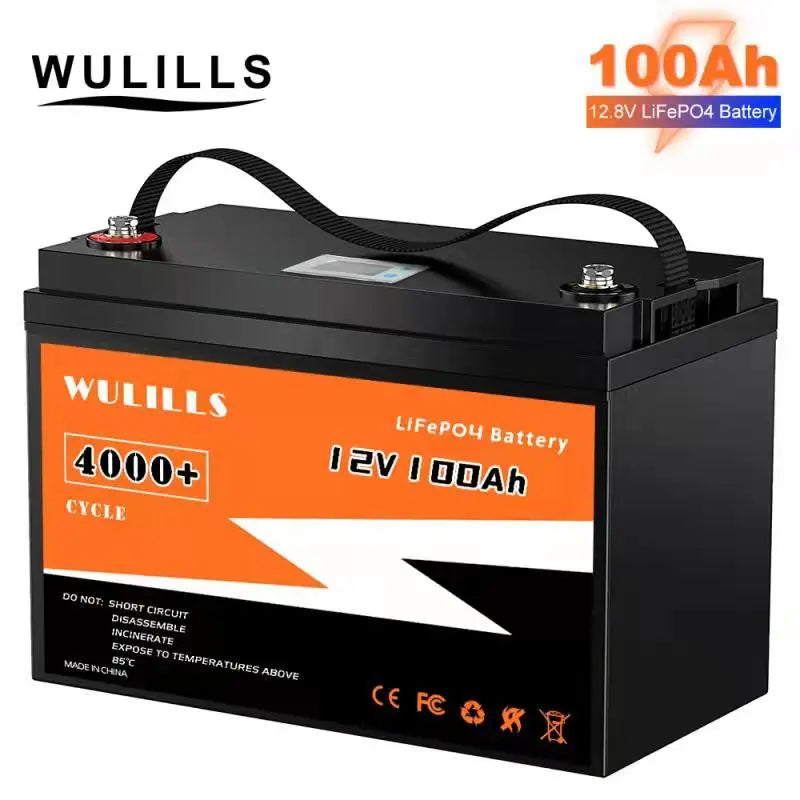

12V 100Ah Lithium Iron Phosphate Battery - LiFePO4 Built-in BMS LiFePO4 Battery for Solar Power System RV House Trolling Motor
12V 100Ah Lithium Iron Phosphate Battery - LiFePO4 Built-in BMS LiFePO4 Battery for Solar Power System RV House Trolling Motor
65 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
12V 100Ah Lithium Iron Phosphate Battery SPECIFICATIONS
Weight: 14KG
Warranty: 5 Years
Voltage: 12.8V
Type: Li-Ion
Support to OEM: Yes
Origin: Mainland China
Nominal Capacity: 100Ah
Model Number: 12V100Ah
Features 6: 4S1P 100Ah Battery Cells
Features 5: 12V 100Ah Lithium Iron Phosphate Battery
Features 4: Can be connected in 4 parallels and in 4 series
Features 3: 100Ah Lifepo4 batteries for RV Solar
Features 2: 12V 100AH Battery With Built-in BMMS
Features 1: 12V 100Ah Lifepo4 battery
Cycle Time: >4000 times
Certification: CE,RoHS
Brand Name: WULILLS
Application: Scooter, Street Bike,Solar
12V 100Ah Lifepo4 Battery
Specifications
Nominal Voltage: 12.8V
Nominal Capacity: 100Ah 0.2C
Energy: 1280Wh
Cycle Life: ＞4000 cycles at 0.2C; End of life 70% capacity.
Months of Self Discharge: ≤3.5% per month at 25℃
Charge Voltage: 14.6±0.2V
Charger Current: 20A
Max. Charge Current: 50A
Discharge Current: 20A
Max. Continuous Current: 100A
Max. Pulse Current: 200A(＜3S)
Discharge Cut-off Voltage: 10.0V
Charge Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Discharge Temperature: -20 to 60℃ (-4 to 140℉) at 60±25% relative humidity
Storage Temperature: 0 to 45℃ (32 to 113℉) at 60±25% relative humidity
Water Dust Resistance: IP5
Case Material: ABS
Dimension (L/W/H): 330*172*215 mm / L13*W6.8*H8.5in
Weight: Approx. 14kg
Terminal Type: M8
This 12V, 100Ah LiFePO4 battery features built-in BMS and is suitable for solar power systems, RV houses, and trolling motors. It has a high discharge rate and can operate in temperatures up to 0°C (32°F) without affecting performance.

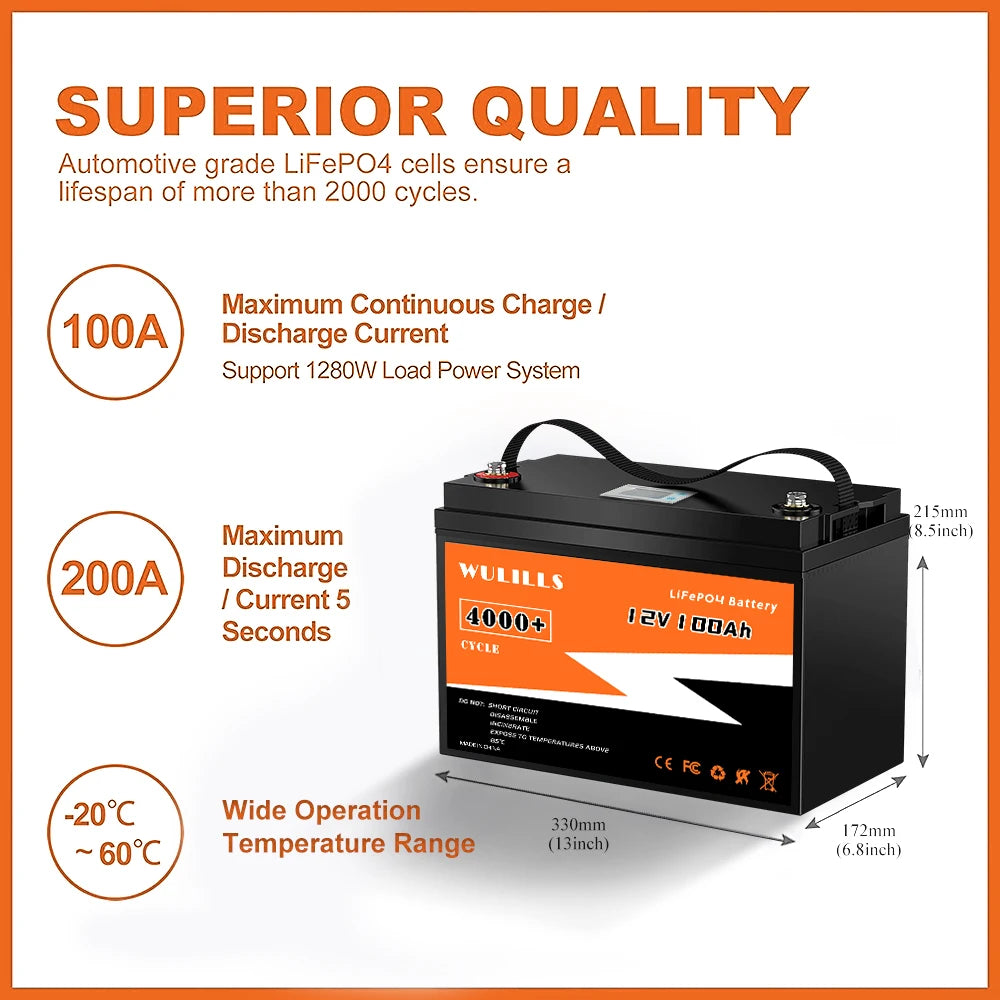

Superior quality
Maximus continous dichsarge current is about 100A
wide operation temperature range -20℃-60℃
High-quality LiFePO4 cells ensure a lifespan of over 2,000 cycles. Key features include: maximum continuous charge/discharge current support, 128A load power system, and a maximum discharge time of 8 seconds at 20C. The battery operates within a wide temperature range of -20°C to 60°C and has a compact size of 13 inches in length.

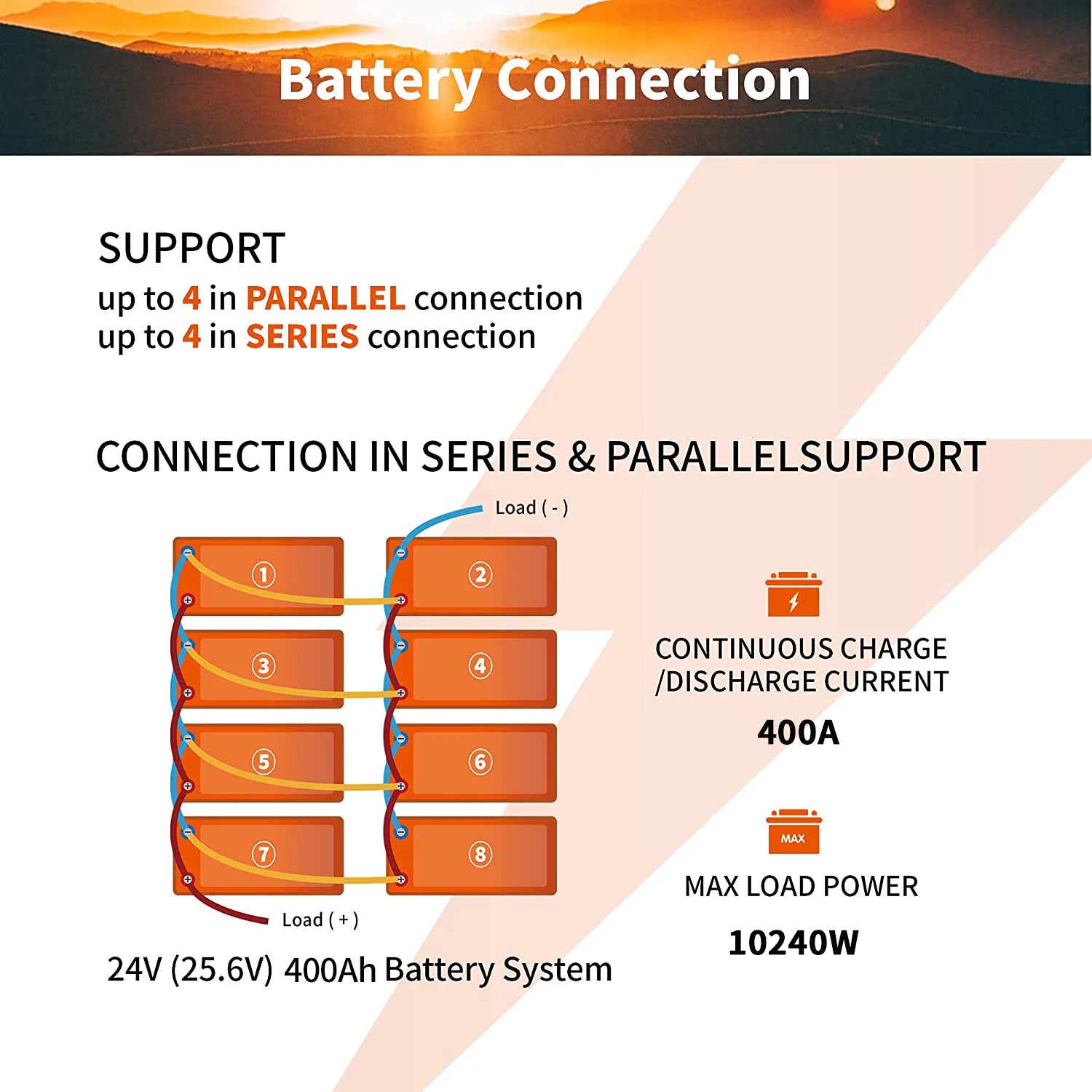

Battery Connection
Support up to 4 in parallel connection
up to 4 in series connection
This lithium iron phosphate battery supports parallel connections of up to four units in series or parallel. It can handle continuous charge/discharge currents of up to 400A with a maximum load power of 10240W at 24V (25.6V) and 400Ah. The battery system is designed for reliable operation.

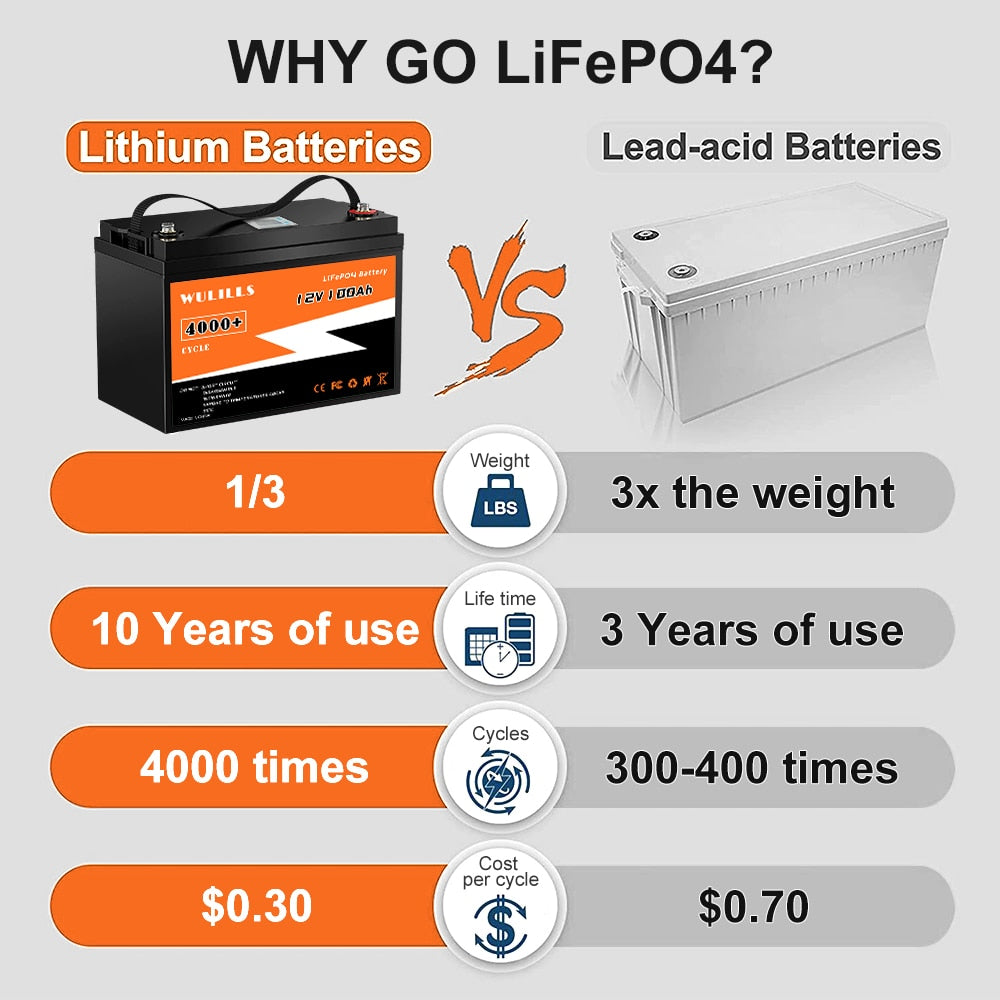

Why go LiFePO4
More than 4000 cycle times
10 Years of use life
1/3 the weight of the Lead-acid batteries
Cost per cycle 1/3 of the lead-acid batteries
Choose LiFePO4 over lead-acid batteries for solar power systems, RVs, and trolling motors. Compare: 1/3 weight, 10-year lifespan vs. 3 years, 4000 cycles vs. 300-400, and $0.30 per cycle vs. $0.70.

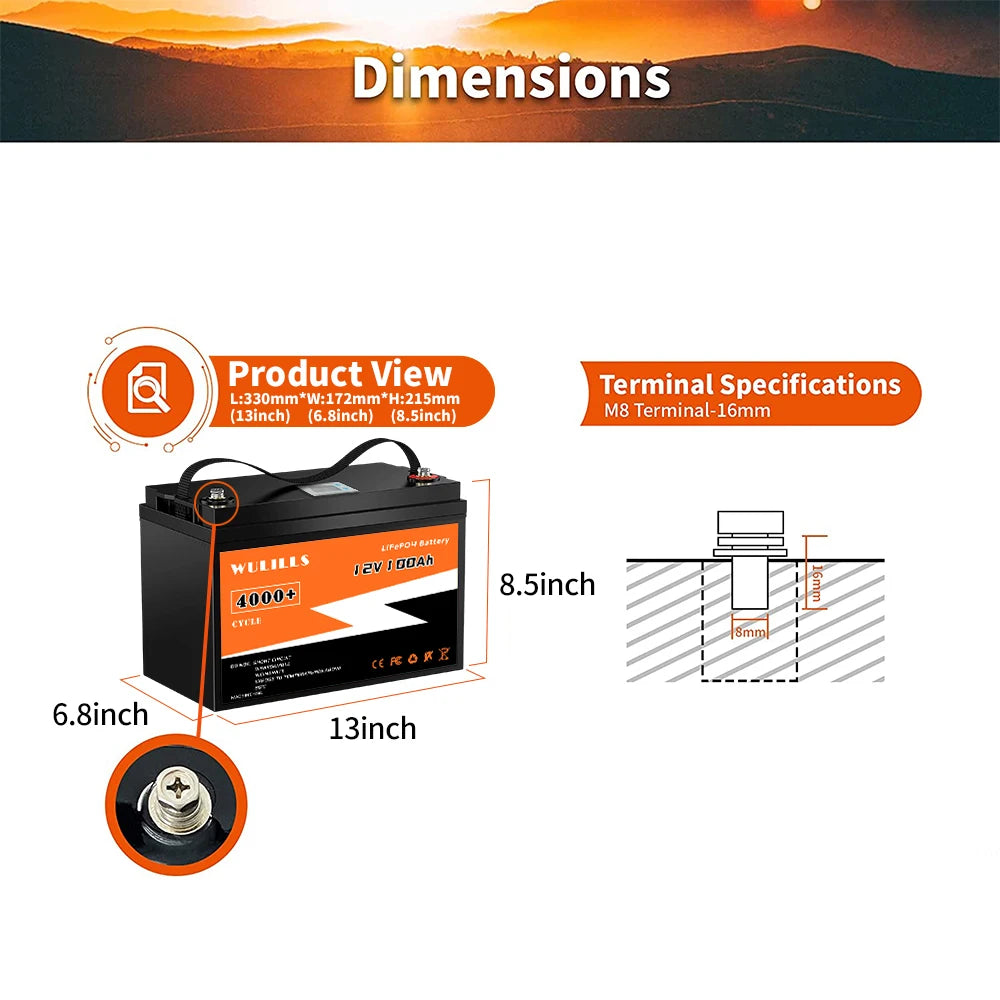

Dimensions
Product view:
12.9in（330mm）*6.8in（172mm）*8.4in（215mm）
M8 terminal specifications

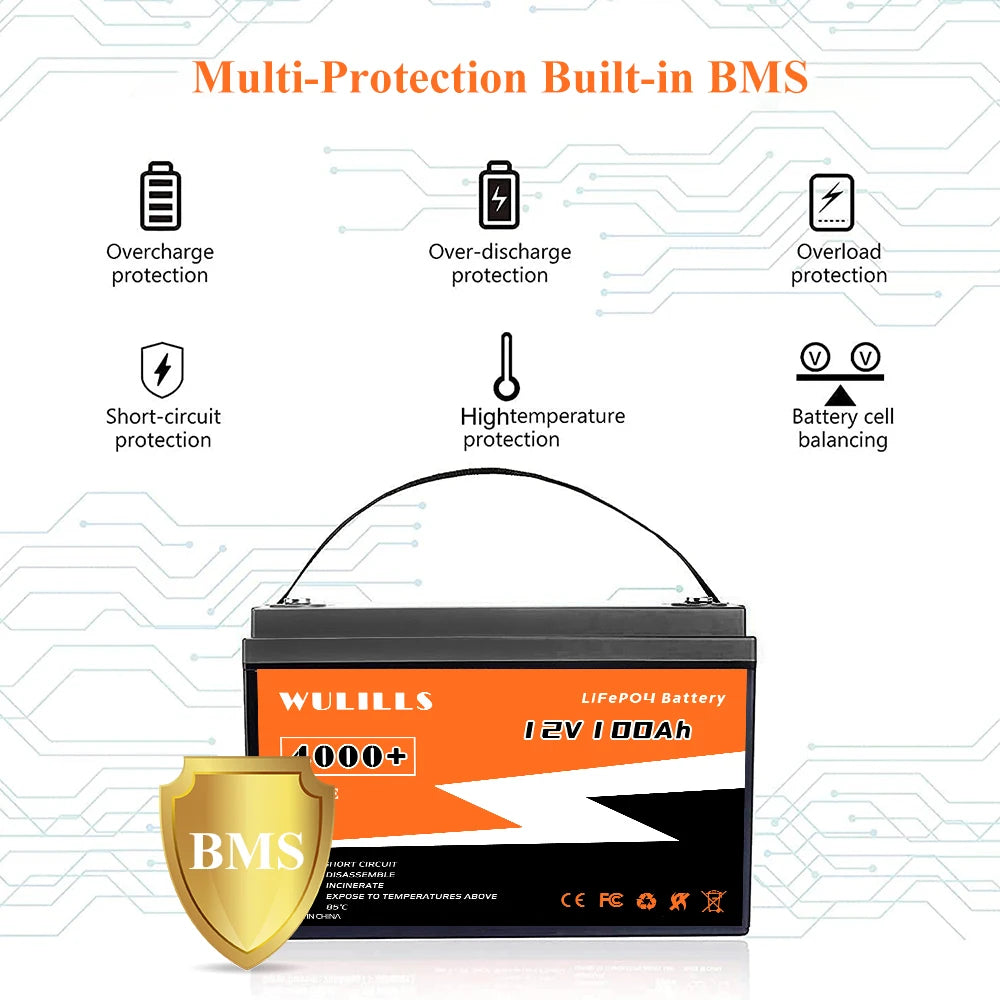

With Built-in BMS
Overcharge protection
Over discharge protection
overload protection
short-circuit protection
high temperature protection
battery cell balancing
This lithium iron phosphate battery features built-in multi-protection, including overcharge, over-discharge, and overload protection. It also prevents short circuits, high temperatures, and cell balancing issues. With its integrated BMS (Battery Management System), this 12V 100Ah LiFePO4 battery is suitable for solar power systems, RV applications, house trolling motors, and more.

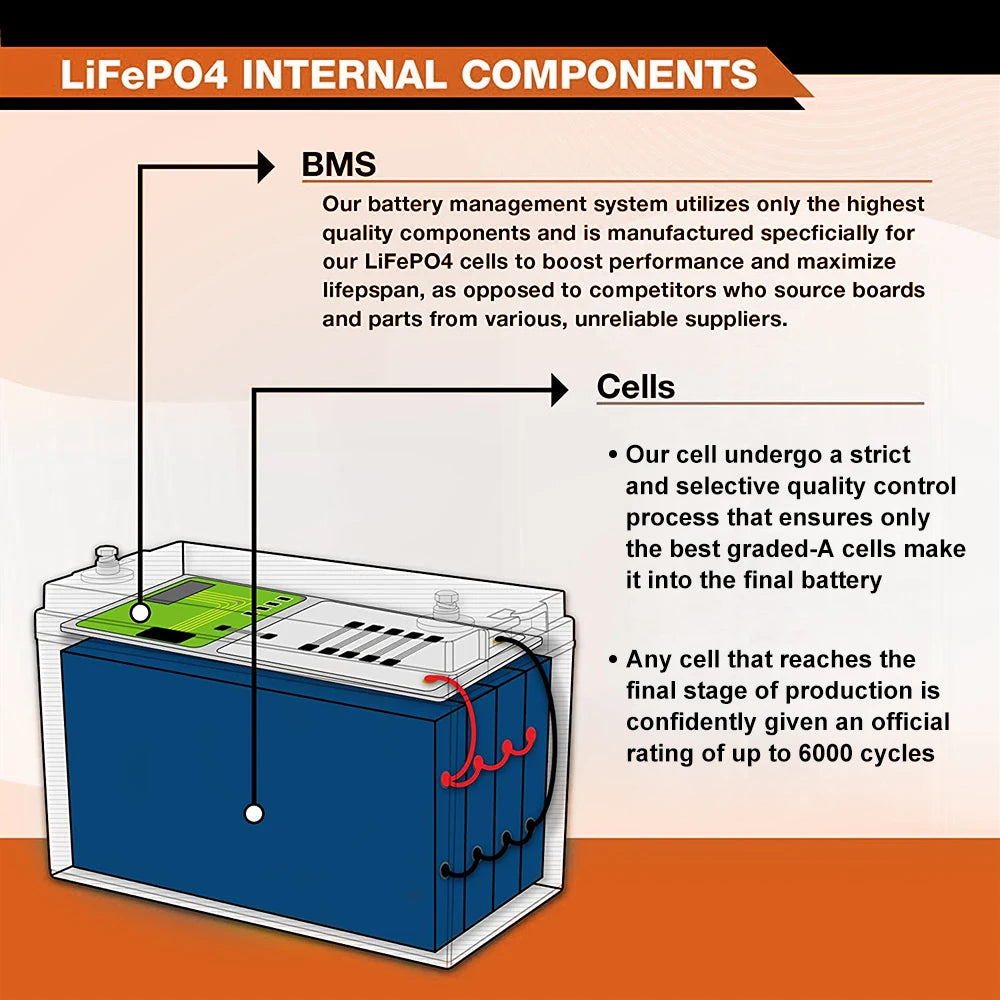

LiFePO4 Internal Components
With built-in BMS Protection
Grade A Cells make into the final battery pack

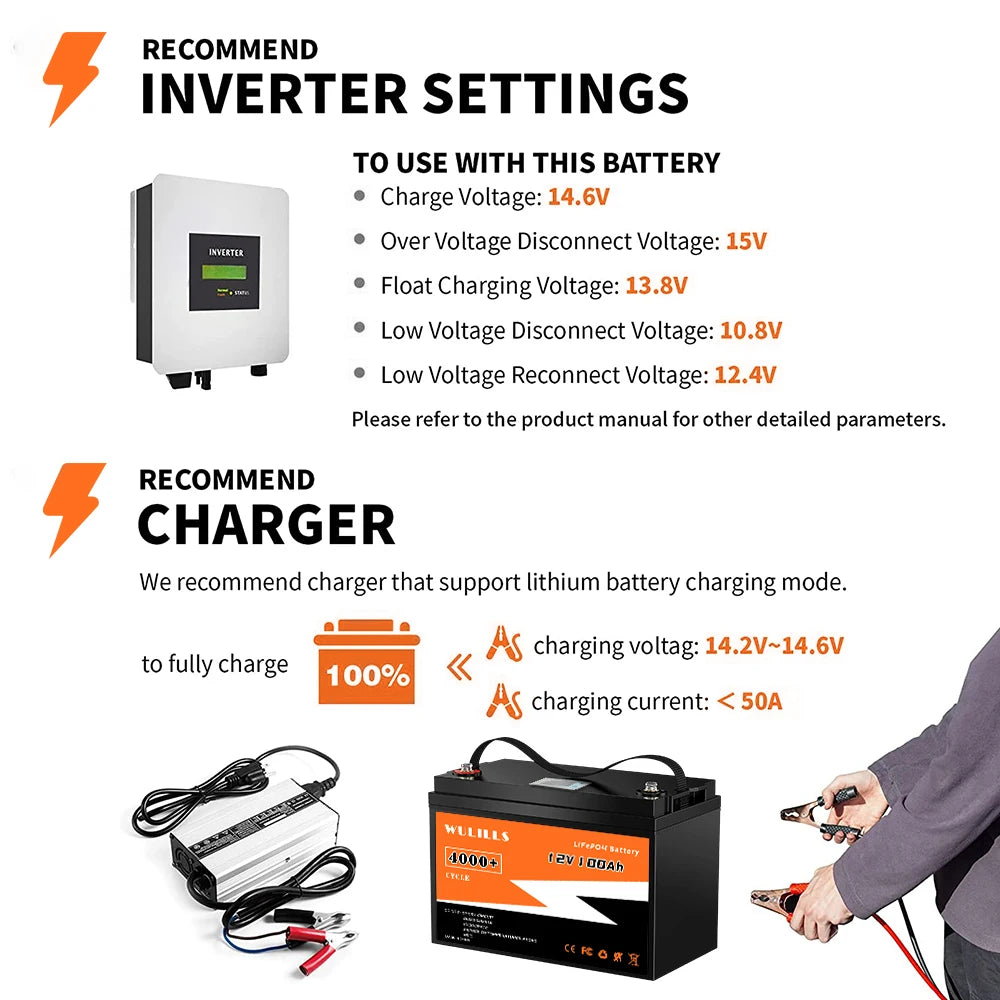

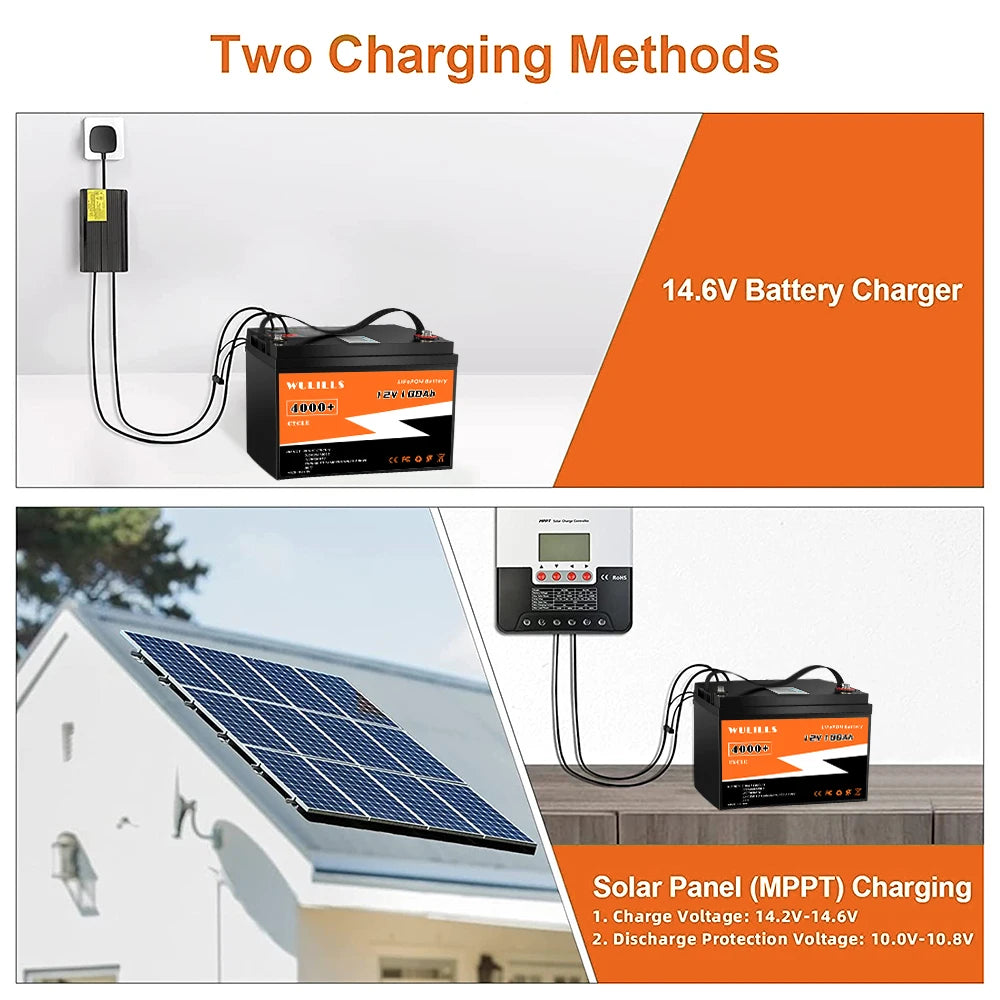

Two Charging Methods
14.6V Lifepo4 battery charger
Solar panel charging
Wide Applications
Motive power
Renewable energy storage systems
locomotion&power for travel
Suitable for various applications, this LiFePO4 battery supports motive power in wheelchairs, golf carts, and scissor lifts. It also stores energy for renewable systems like solar panels and wind power, as well as powering locomotion and travel needs for yachts and plug-in hybrid electric vehicles (PHEVs).
