12V 24V Auto 30A/40A Solar charger regulater for lithium/GEL/lead acid battery use

Features:
1. Automatic system voltage identification
2. Charging program options for sealed, GEL and flooded lead-acid batteries and lithium batteries are available.
3. An upgraded 3-stage PWM charging algorithm is adopted. Application of an equalizing charge to the battery periodically or when
over discharged, can effectively prevent the battery from non-equalization and sulfuration, thus extending the battery's service
life (with the exception of GEL and lithium batteries).
4. With temperature compensation employed, charging parameters can be automatically adjusted (with the exception of lithium
batteries).
5. A wide range of load working modes facilitate the product's application to different types of street lights and monitoring
devices.
6. The product provides overcharge, over-discharge, overload protection, as well as short-circuit and reverse-connection
protection.
7. By virtue of an advanced load starting method, large-capacitance loads can be started smoothly.
8. A range of parameter settings and power-down saving functions are available ,thus requiring no repeated setting.
9. The product provides a dot matrix graphic LCD screen and a human-machine interface with 2 keys.
10.The user-friendly design of browser and dynamic interfaces ensures convenient and intuitive operations.
11. (An optional communication function) provides a RJ12 data port (output of TTL232 level or bluetooth signals), with the data
adopting the standard Modbus protocol, and can be used together with our upper computer monitoring
software or mobile phone APP.
12. Boasting an industrial grade design, the product can function well in various tough conditions.
13.TVS lighting protection is adopted.

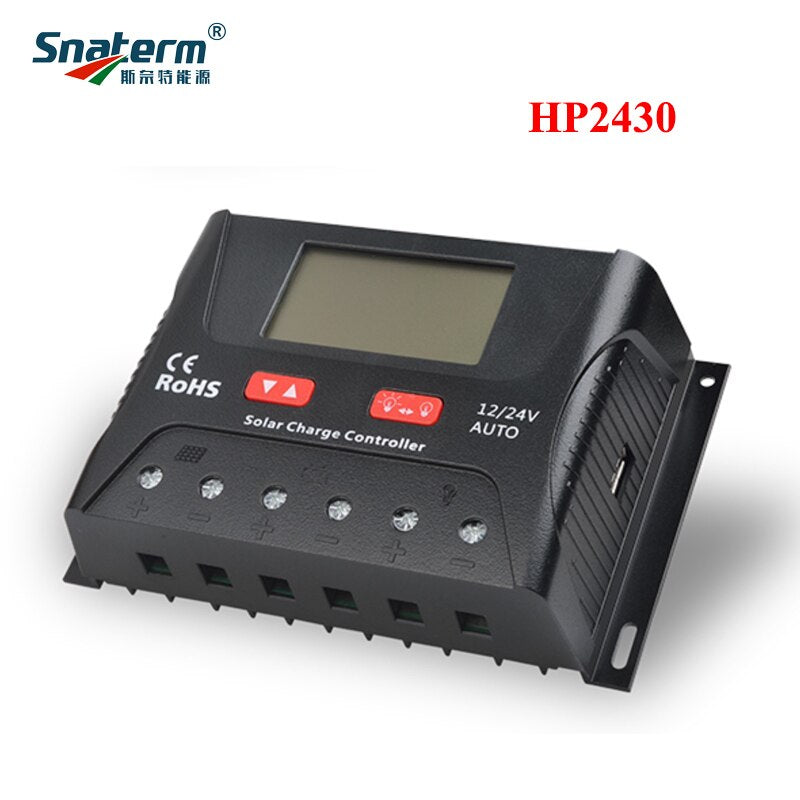

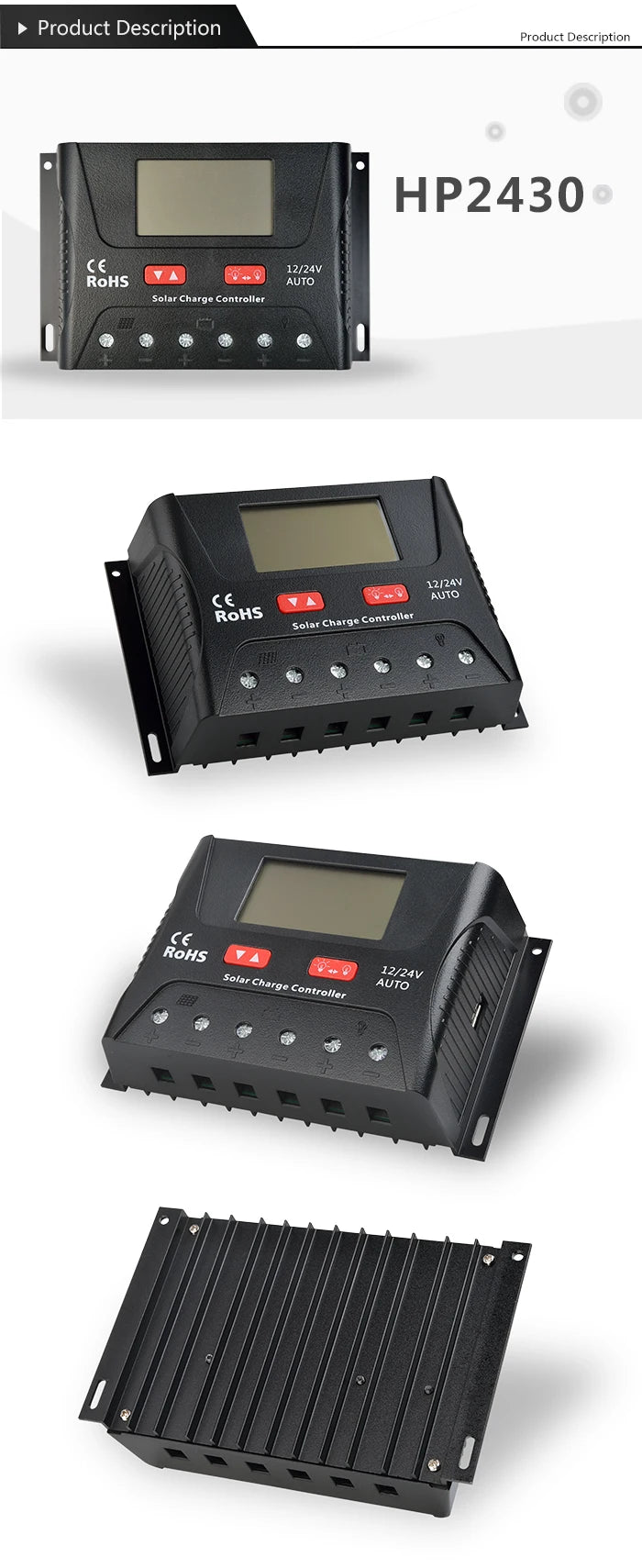

HP2430 CE 12V/24V RoHS Auto Solar Charge Controller regulates power from solar panels to charge sealed, AGM, gel, or flooded lithium batteries. This controller features PWM technology and LCD display.

Solar Charger Controller, RoHS Compliant, suitable for Sealed AGM Gel Flooded Lithium Batteries, with PWM and LCD display, supports USB charging, ideal for automotive and solar power applications.

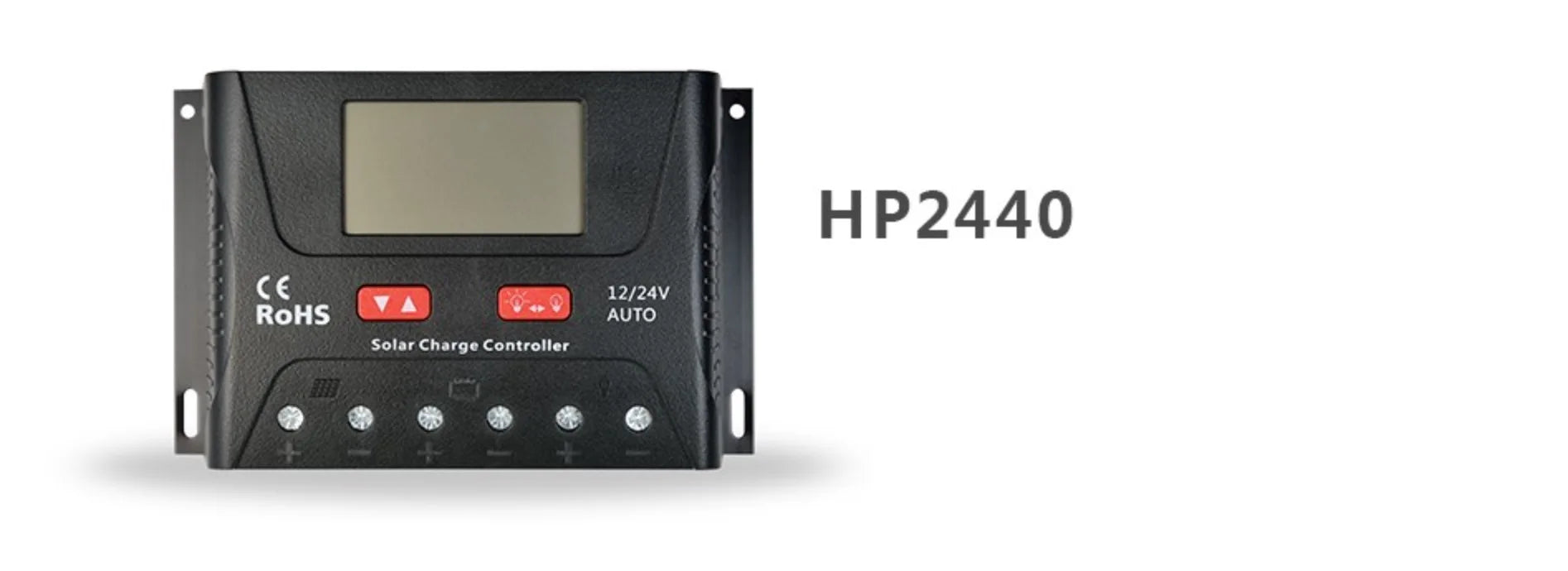

HP2430/2440, HP2450/2460, and HP4830/4840 parameters: Automatic recognition of 12V or 24V system voltage; Non-latching LCD display; Solar energy input (5V <10V); PWM charging control; Overvoltage protection up to 16.0V; Equalizing charge control; USB function with overcurrent protection. Dimensions: 189.27mm x 127.2mm x 54.0mm.

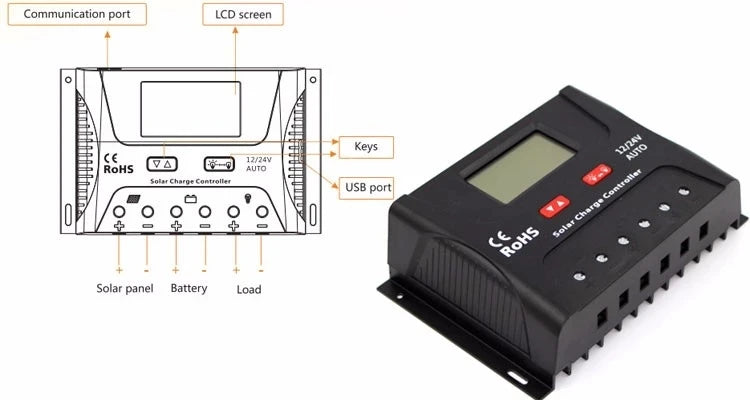

Features include an LCD screen, USB port, and keys; meets ROHS standards for solar panel battery chargers with load control and nuton ON function.

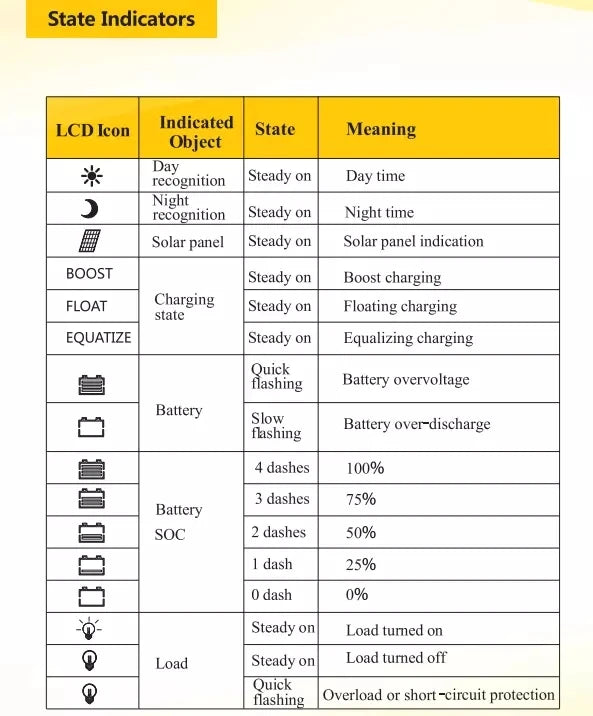

This solar battery charger features an LCD display with icons indicating its state. During the day, it displays steady-on time and at night, it shows steady-on nighttime mode. When solar panels are connected, it indicates

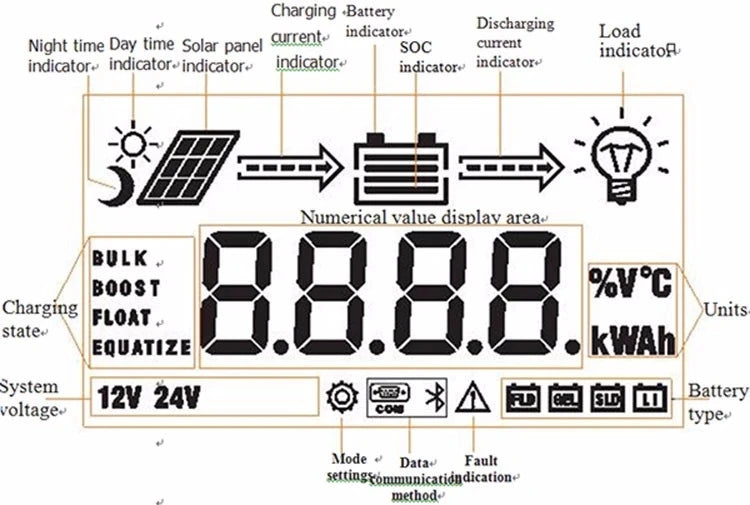

This solar battery charger features a PWM LCD display showing charging/discharging status, current, voltage, state of charge, and numerical values. It also indicates bulk/boost modes, float mode, and fault settings. The device supports 12V or 24V systems with various battery types, including sealed, AGM, gel, flooded, and lithium batteries.
