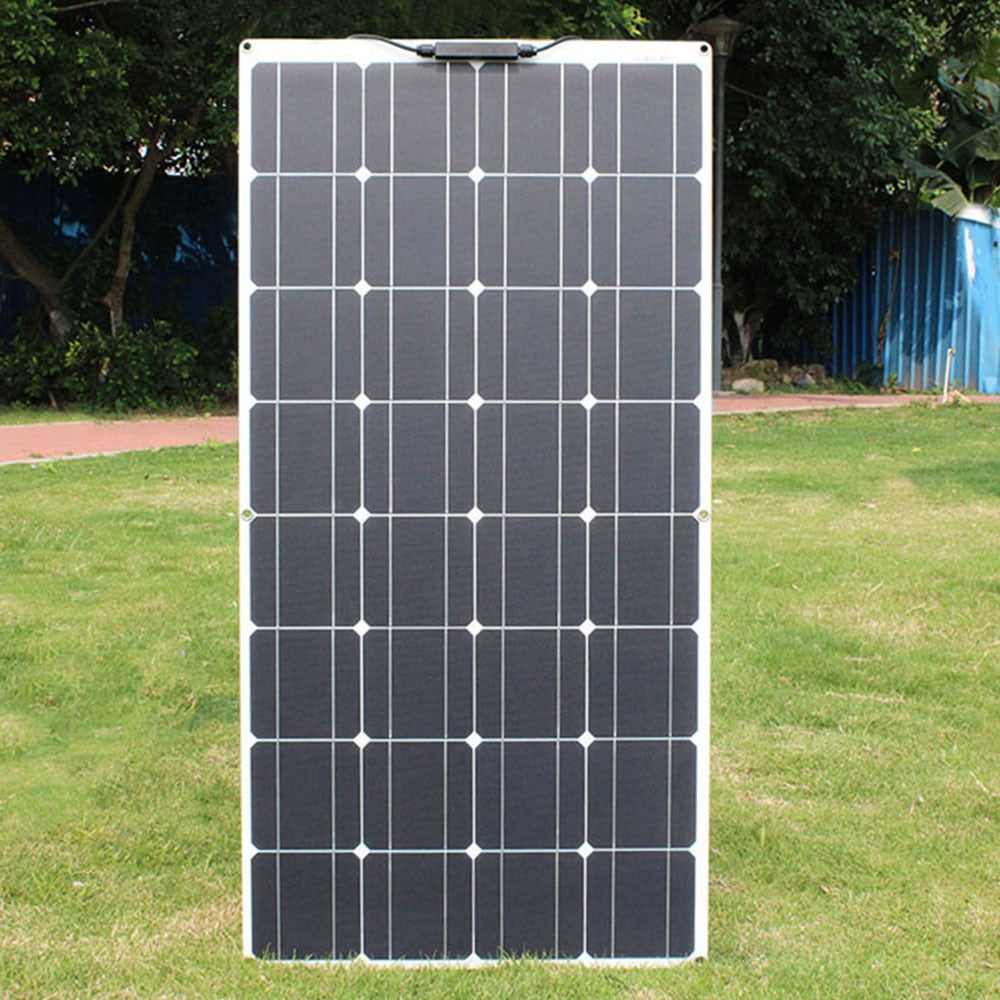

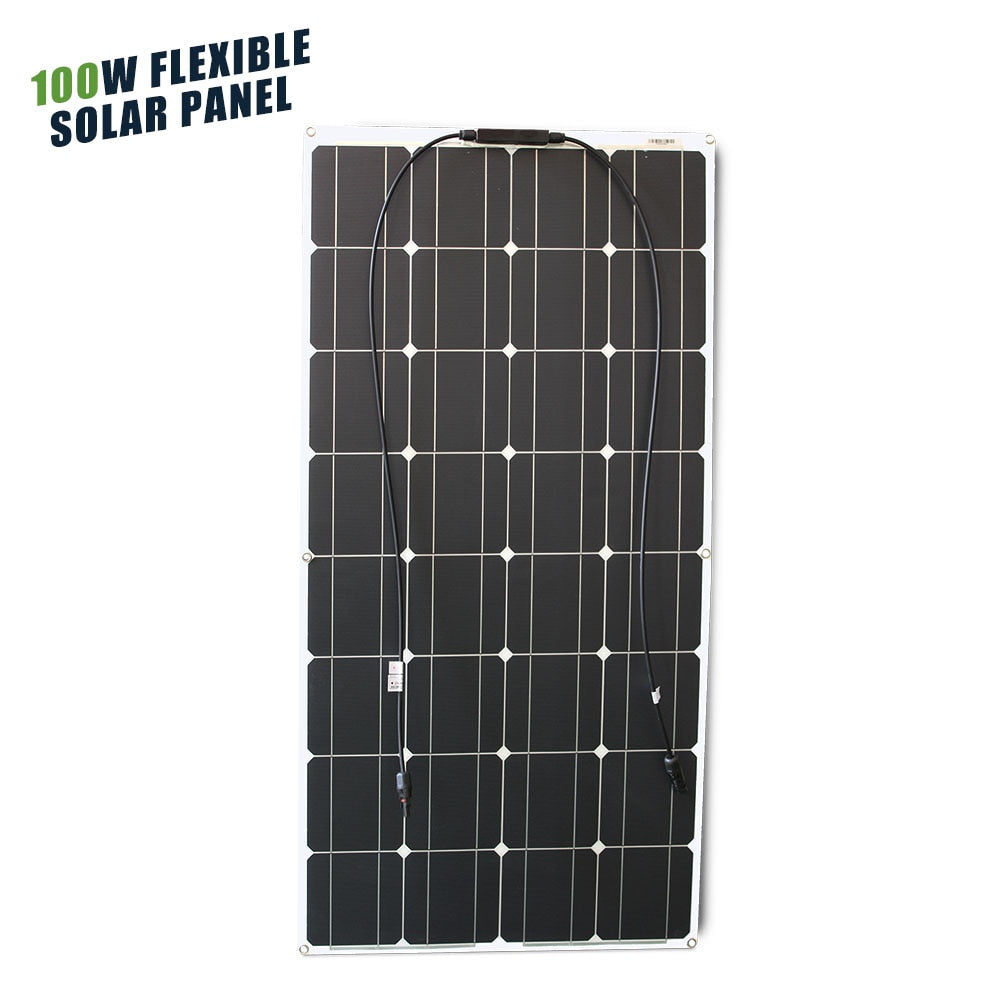

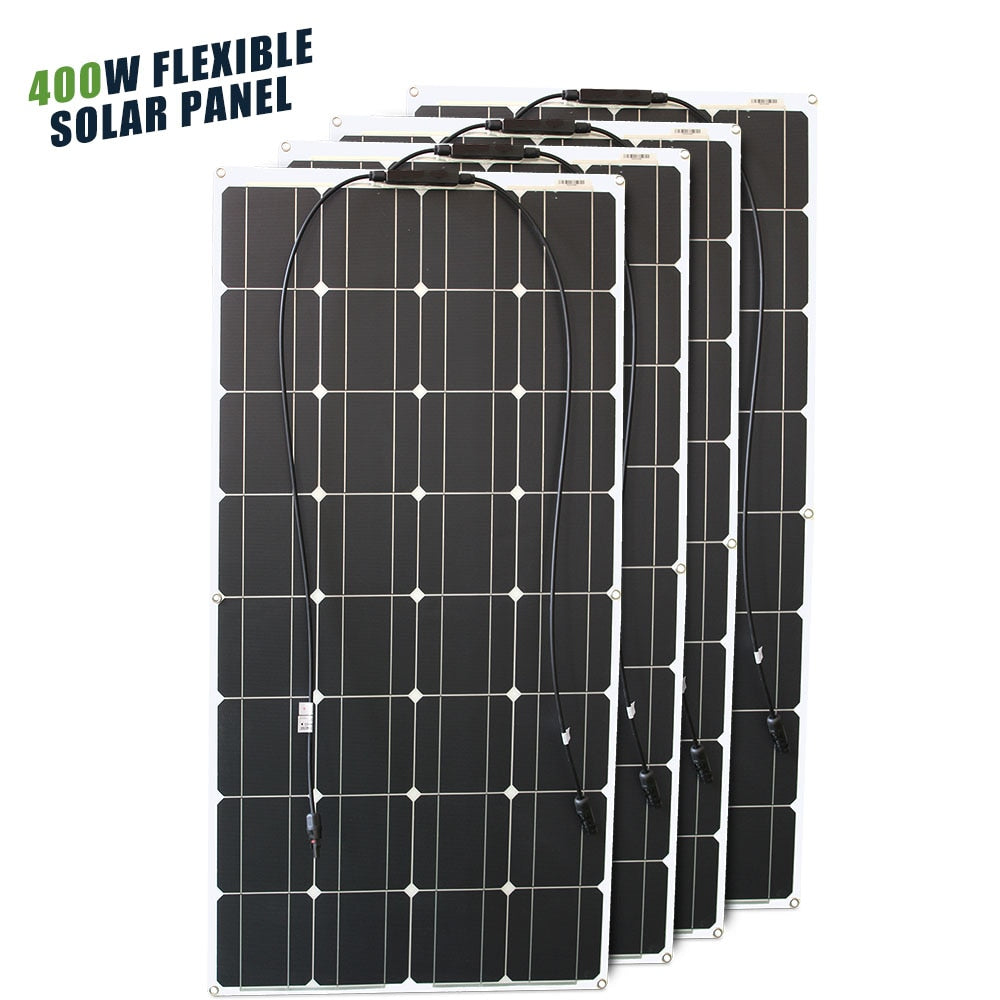

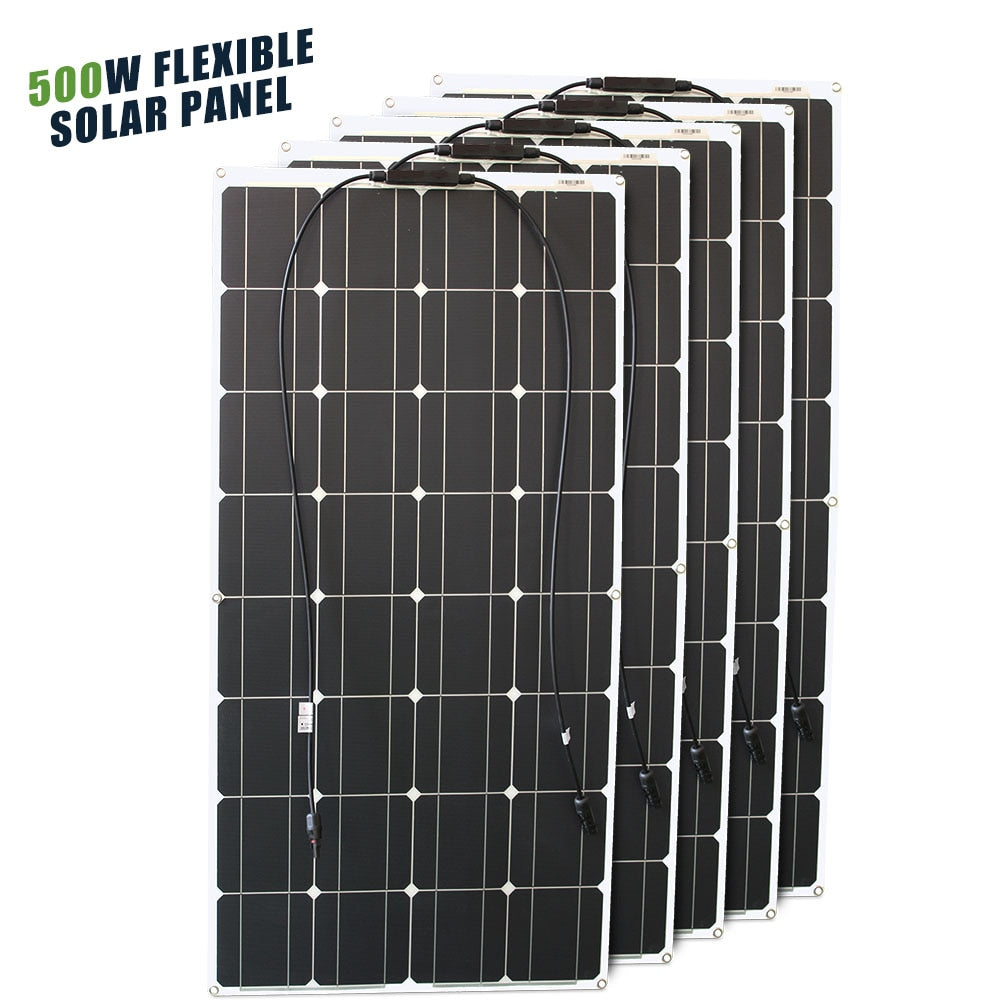

12V Flexible Solar Panel 600W 100W 200W 300W 400W 500W Bendable Waterp

Name: 12V Flexible Solar Panel 600W 100W 200W 300W 400W 500W Bendable Waterp
Brand: BestSolarPanel
SKU: 3256803025955878-China-600w Solar Panel
Price: 432.09 USD
Availability: InStock
Rating: 5.0 (111 reviews)

This product we set up warehouse in Spain, Czech Republic,Poland and Russia.When you buy it,if you are in EU or Russia,we will ship to your country from local warehouse with fast delivery.

However，
the zip code in Spain that starts with 35, 38, 51, 52.
the zip code in France that starts with 97
the zip code in Portugal that starts with 9.

For local express company,above zone are remote area,that means there is no shipping service.Please not place order with above address,thanks.

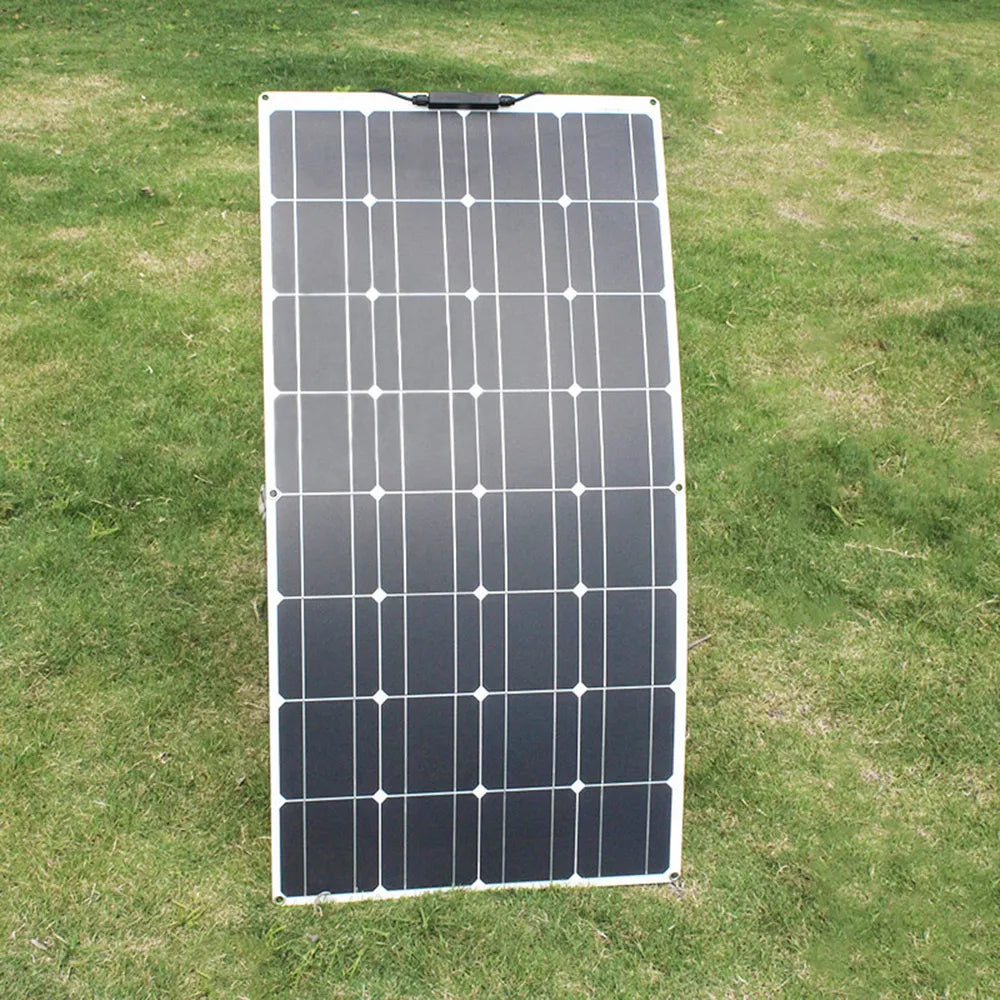

12V Flexible Solar Panel, Inspect solar panel's wiring, components, and structure after cleaning to check condition and function.

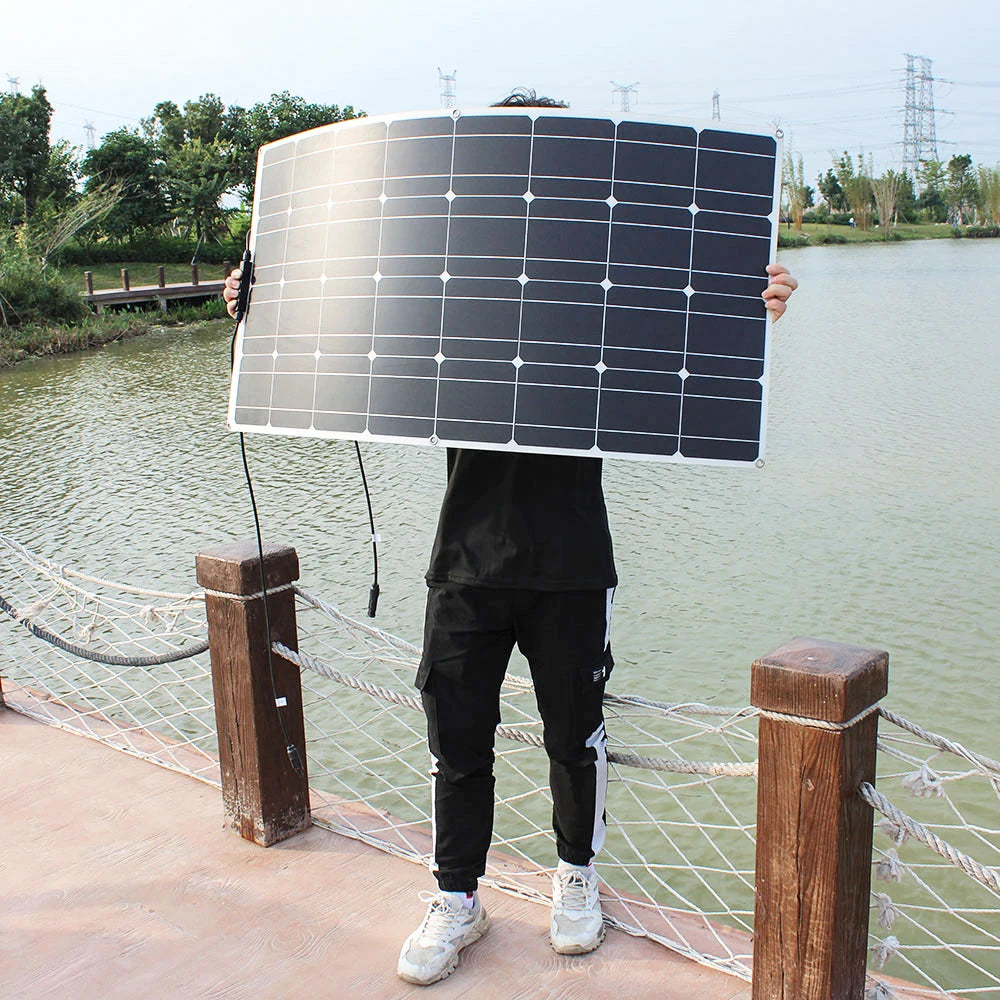

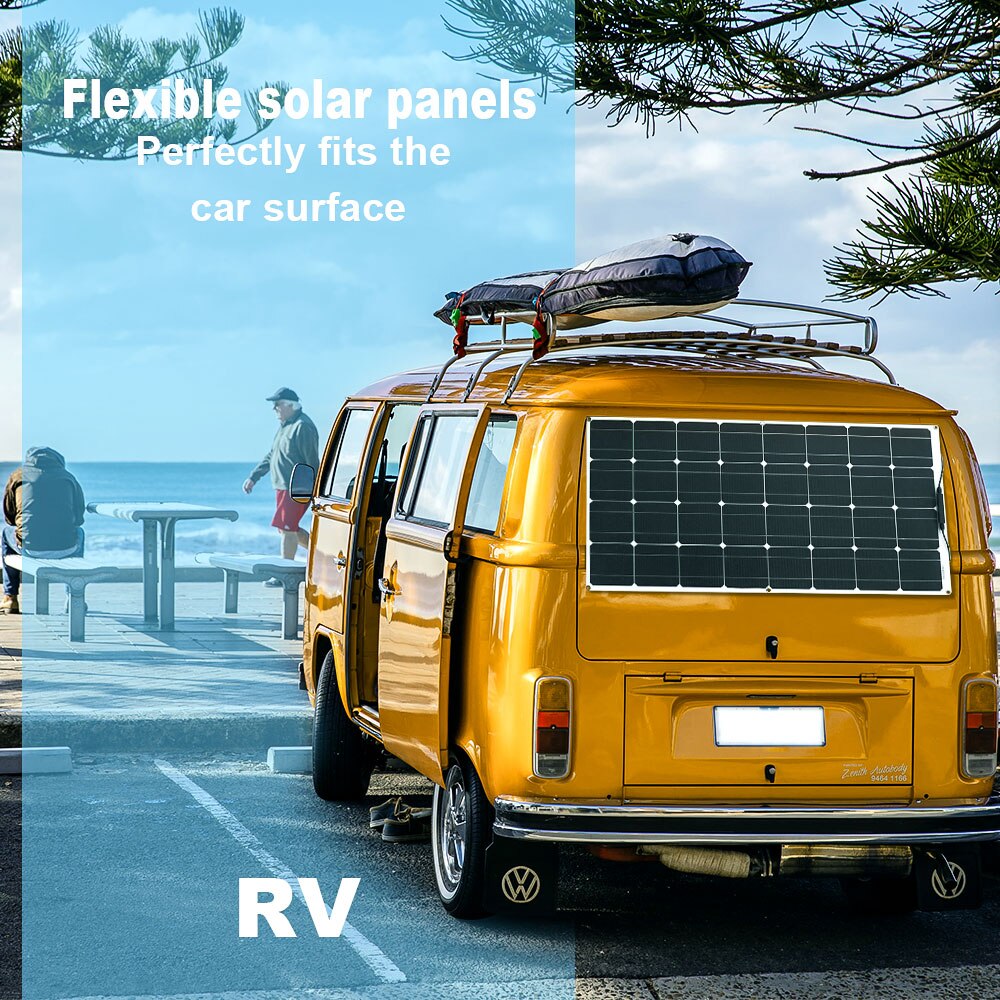

12V Flexible Solar Panel, Flexible solar panel with 20-degree bend for easy installation on curved or irregular surfaces like RVs and boats.

100W Solar Kit Package List

▶100W 16V solar panel *1
▶10A 12V/24V solar charger regulator *1
▶3 meter extend cables *1
▶1 meter cable with alligator clips *1

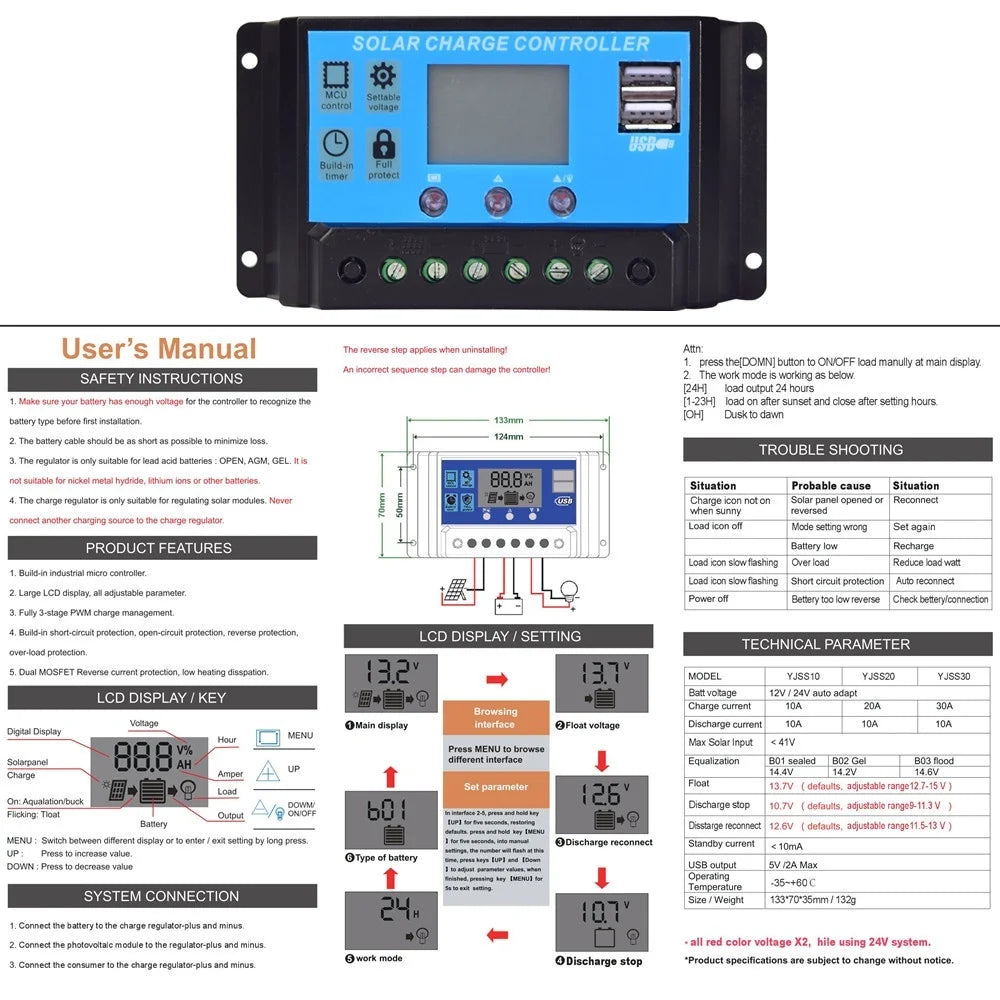

12V Flexible Solar Panel, USB Charge Controller for Solar Panel (100W)

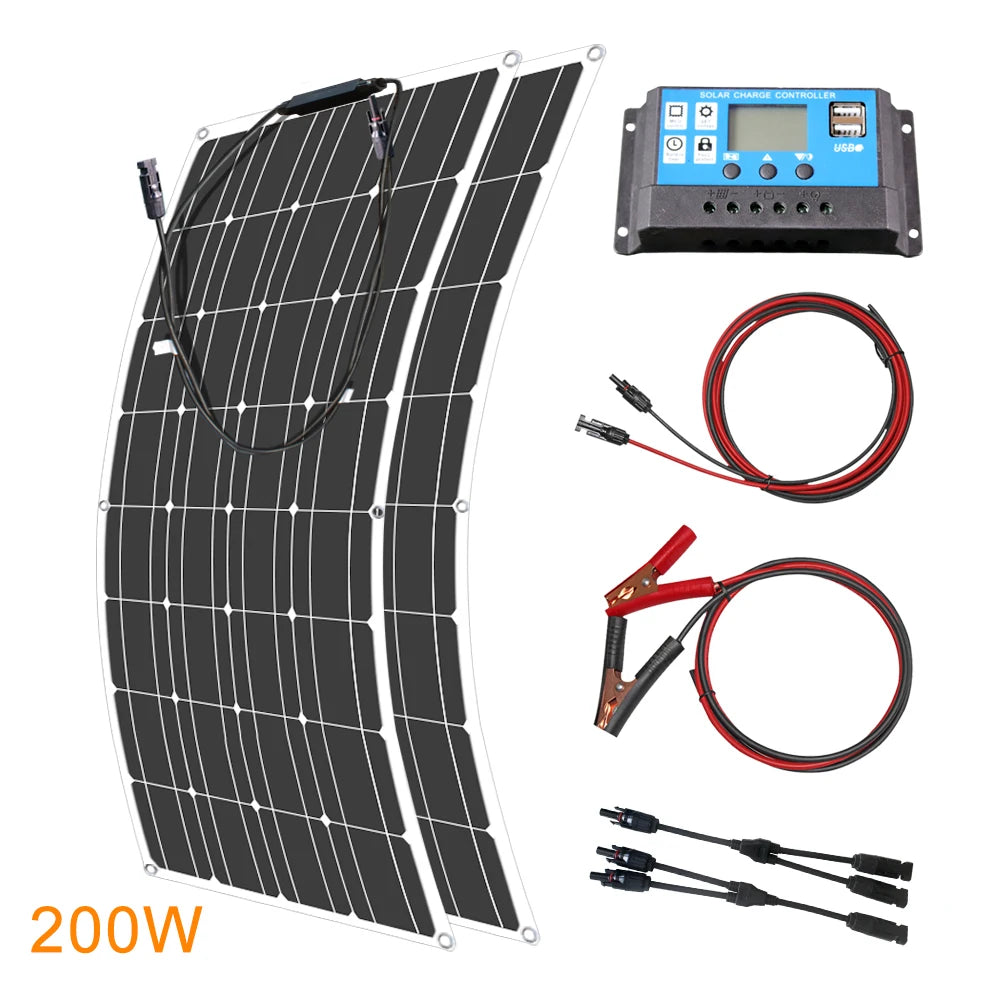

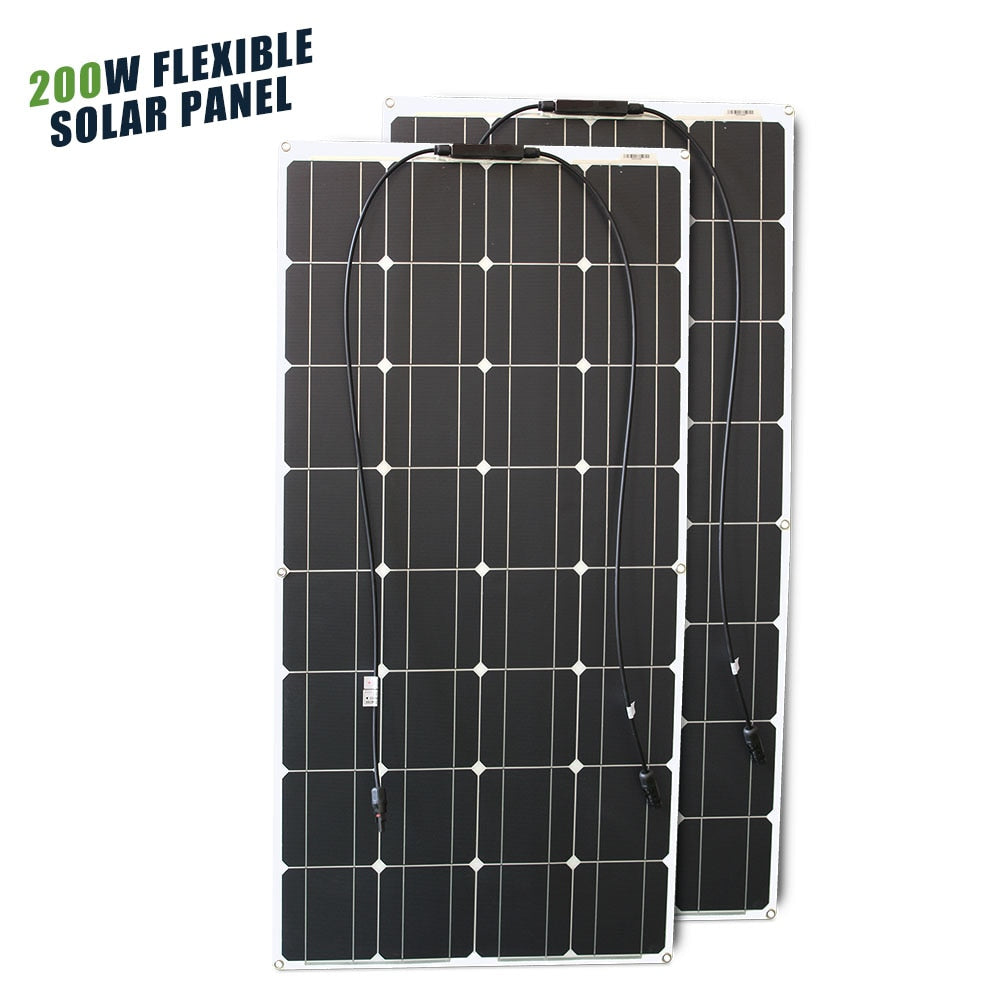

200W Solar Kit Package List

▶100W 16V solar panel *2
▶20A 12V/24V solar charger regulator *1
▶3 meter extend cable *1
▶1 meter cable with alligator clips *1
▶2-in-1 PV parallel adapter *1

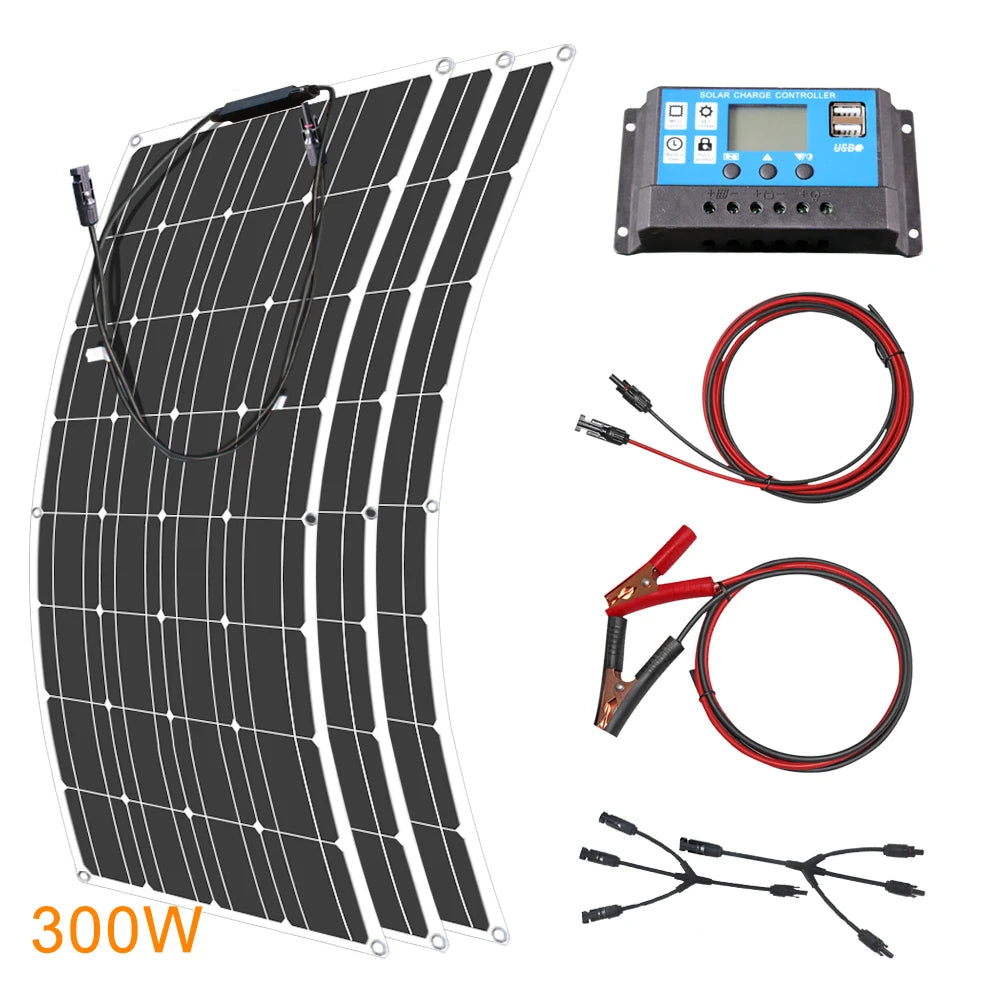

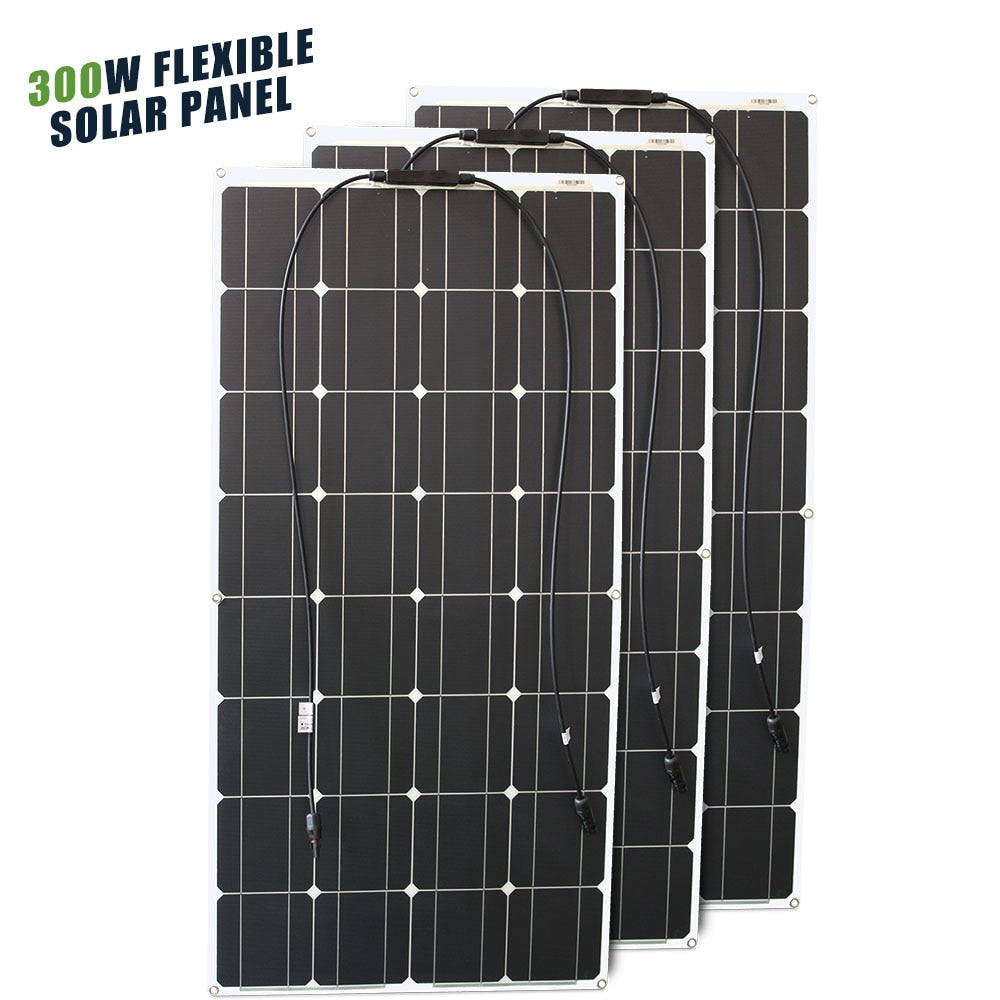

300W Solar Kit Package List

▶100W 16V solar panel *3
▶30A 12V/24V solar charger regulator *1
▶3 meter extend cable *1
▶1 meter cable with alligator clips *1
▶3-in-1 PV parallel adapter *1

12V Flexible Solar Panel, Connect solar panel to battery: attach cables to controller with alligator clips and ensure proper polarity for correct voltage display.

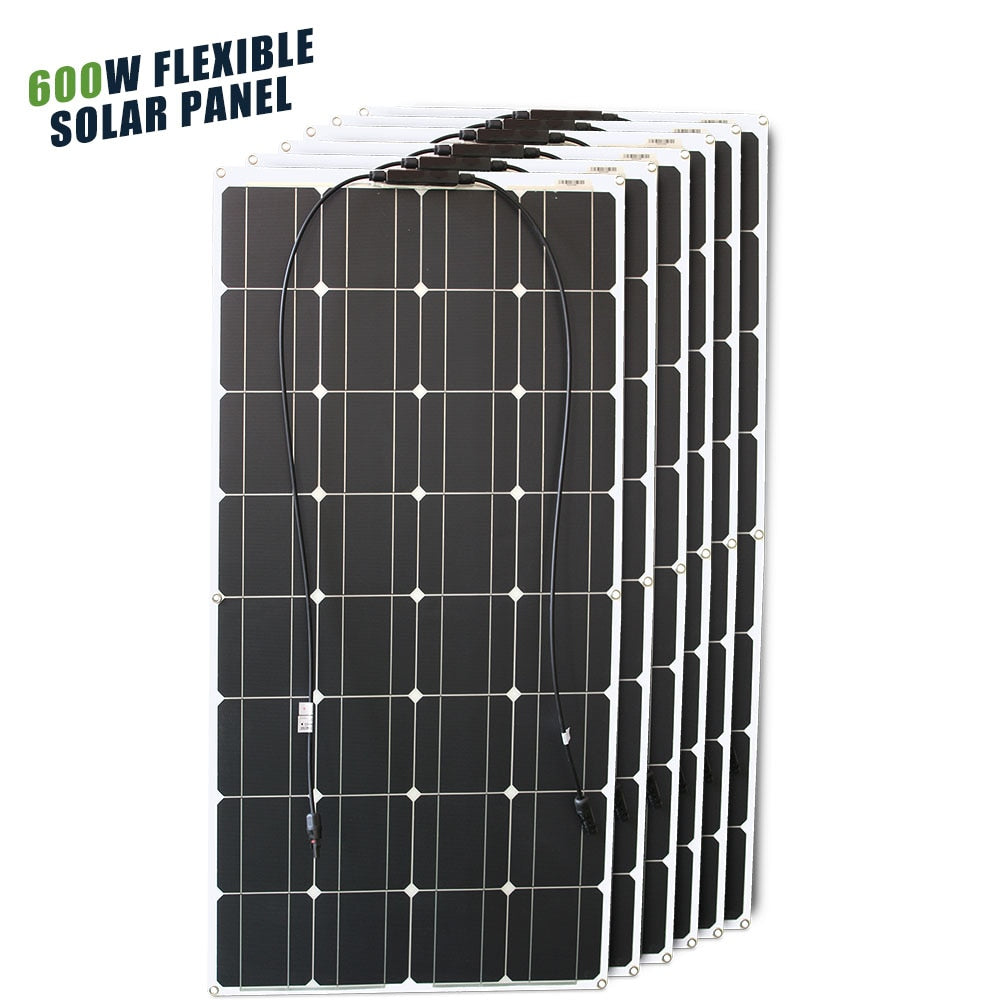

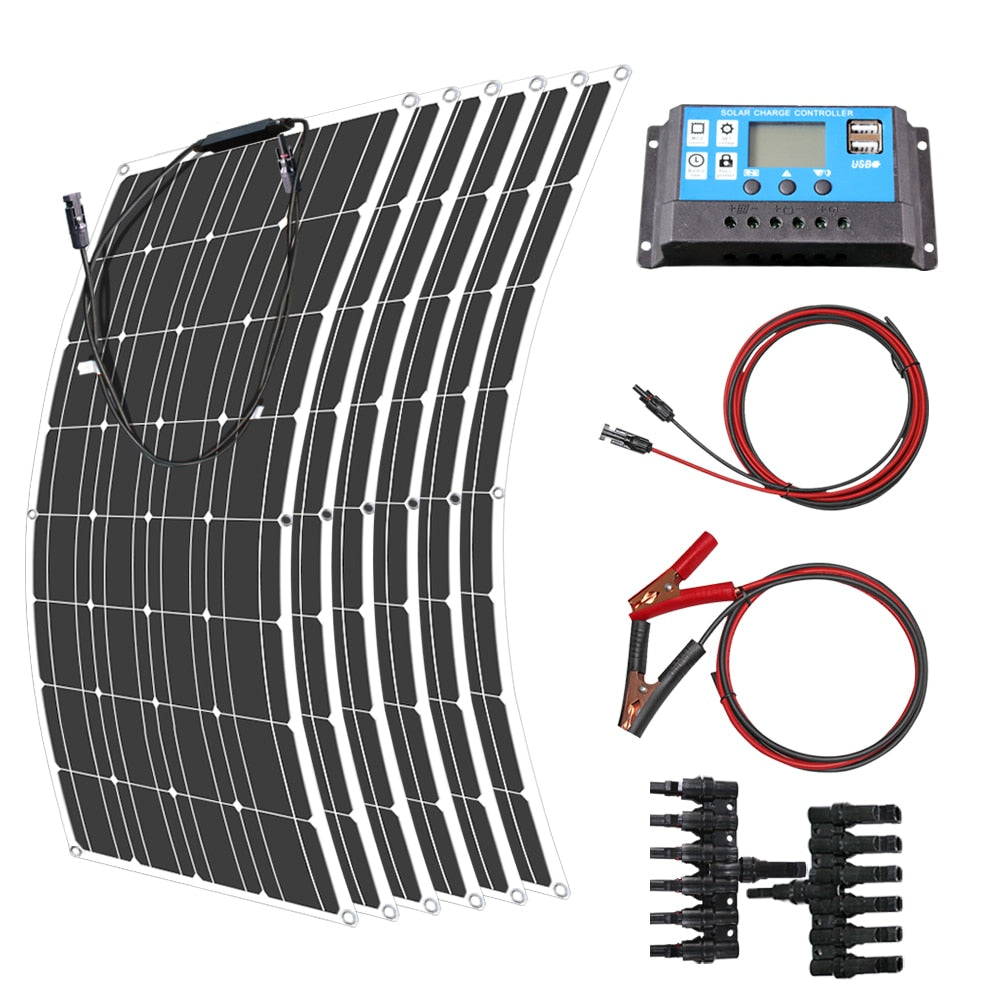

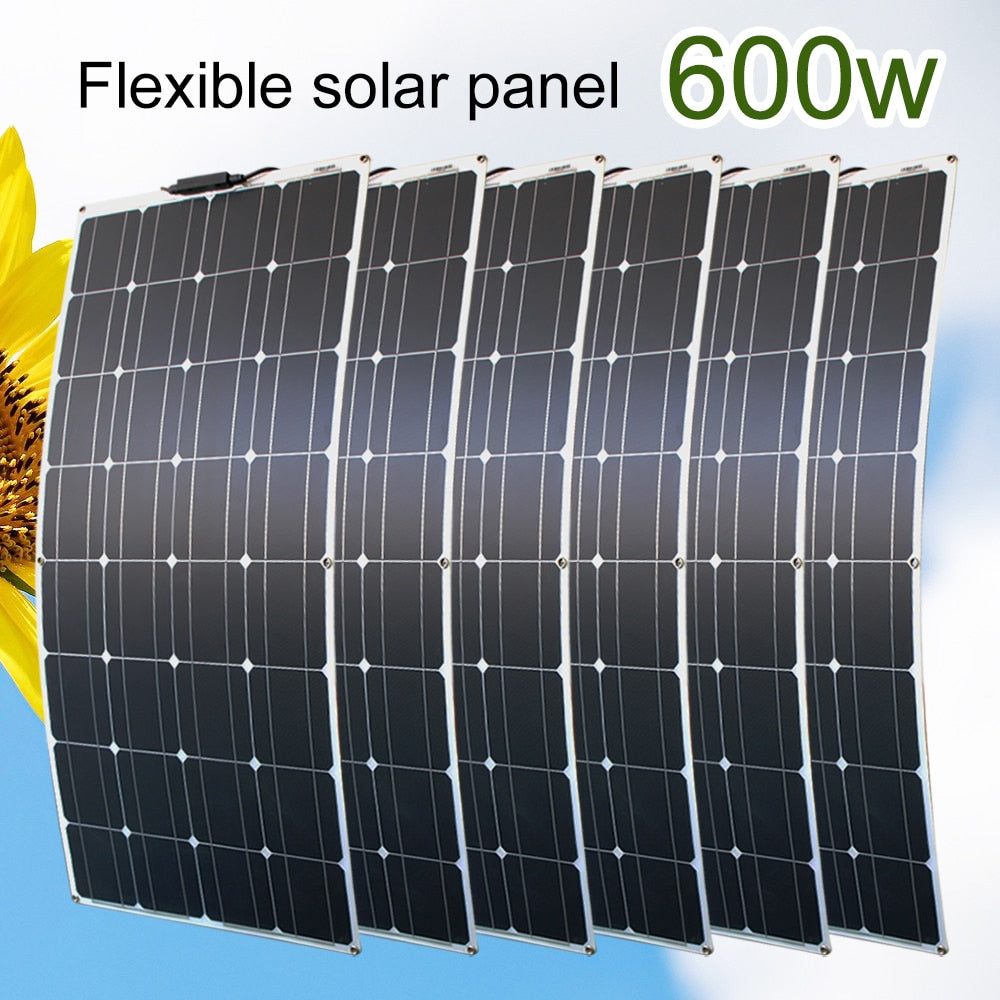

600W Solar Kit Package List

▶100W 16V solar panel *6
▶50A 12V/24V solar charger regulator *1
▶3 meter extend cable *1
▶1 meter cable with alligator clips *1
▶6-in-1 PV parallel adapter *1

12V Flexible Solar Panel, This waterproof solar panel boasts remarkable durability, ensuring reliable performance in harsh environments.

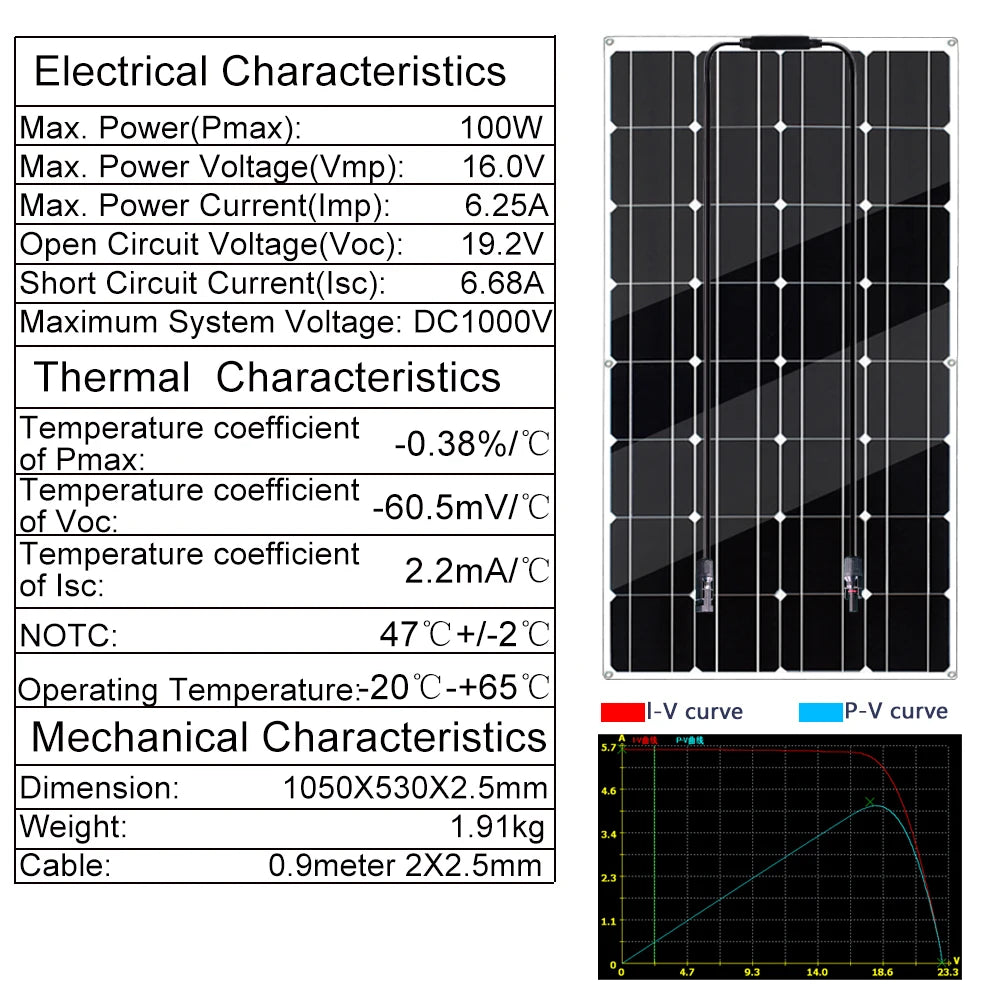

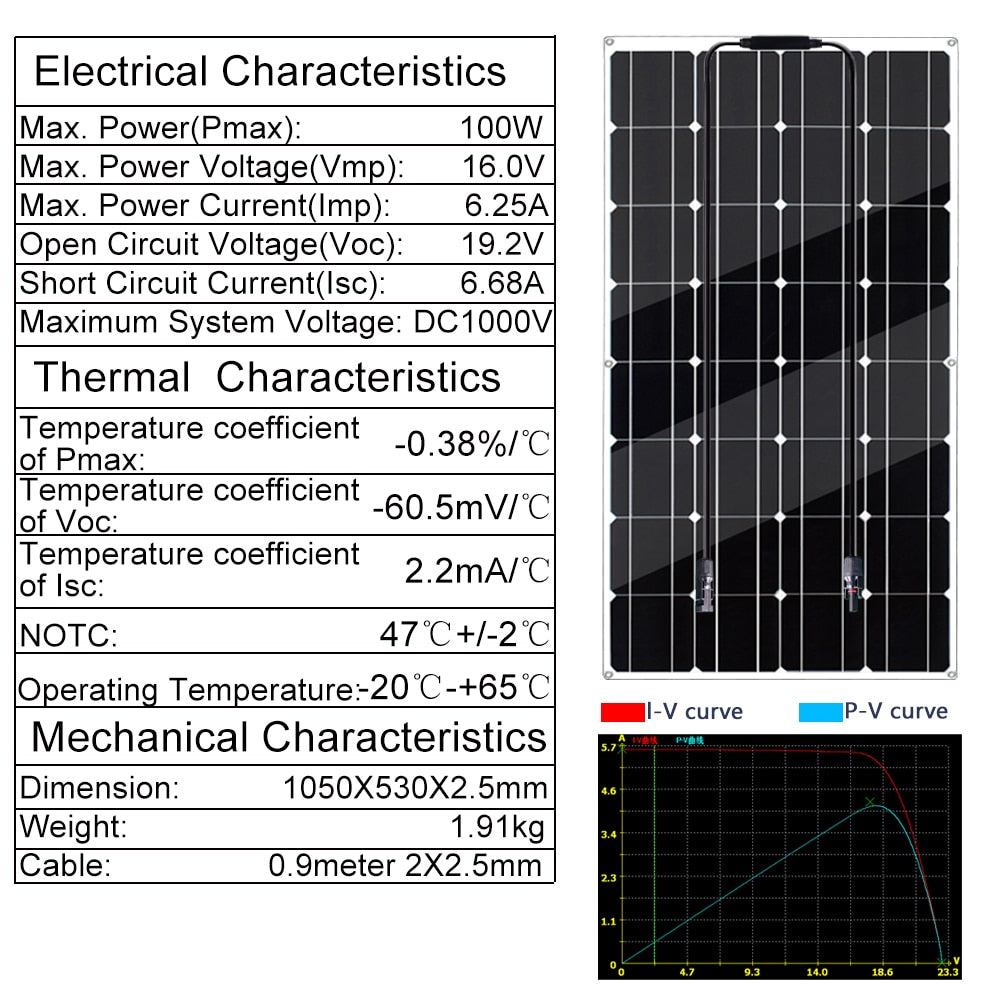

Specification

Maximum Power(Pmax): 100W
Maximum Power Voltage(Vmp): 16.00V
Maximum Power Current (Imp): 6.25A
Open-Circuit Voltage (Voc): 19.2V
Short-Circuit Current (Isc): 6.68A
Maximum System Voltage: DC1000V

Weight: 1.91 KG
Dimensions: 1050*530*2.5mm
(The above data is based on the laboratory standard test environment)

12V Flexible Solar Panel, Solar panel generates usable energy from sunlight with high efficiency, durable materials.

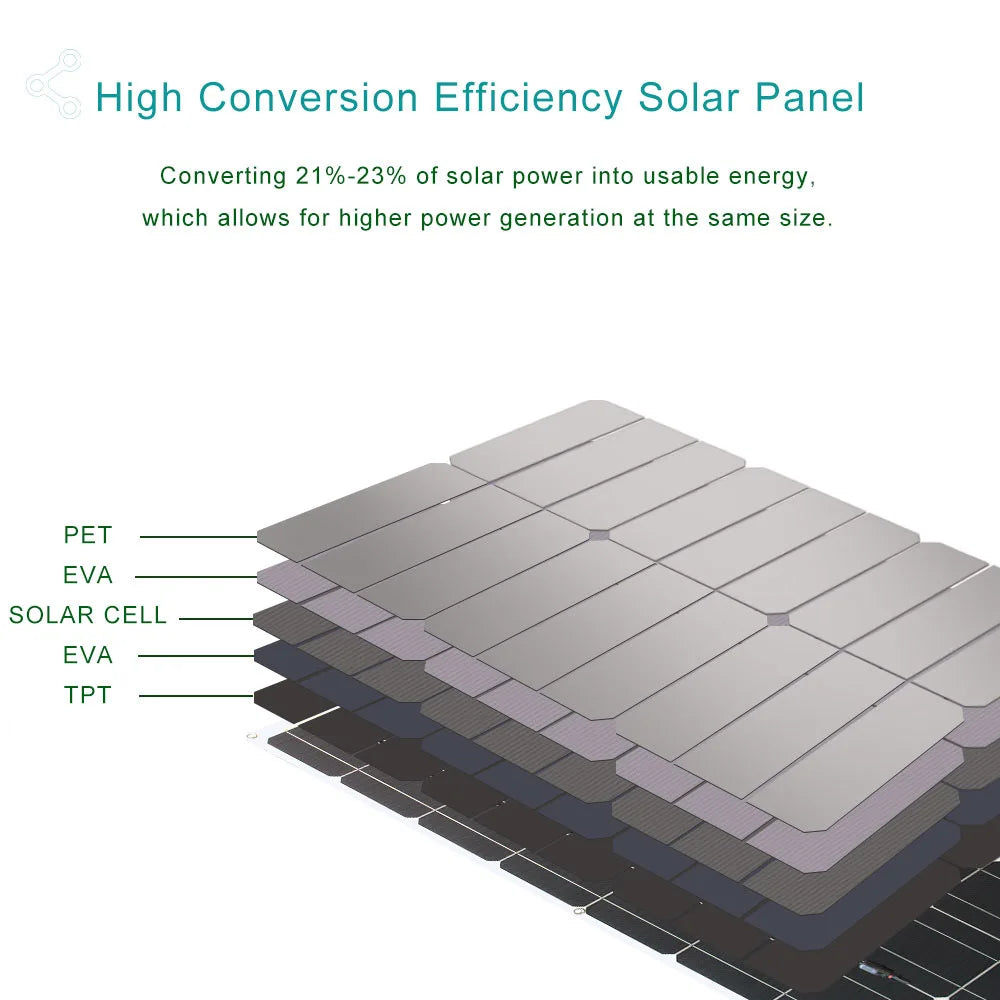

This high-efficiency solar panel converts up to 22% of sunlight into usable energy, generating more power in a smaller space. Features PET and EVA materials for durability.

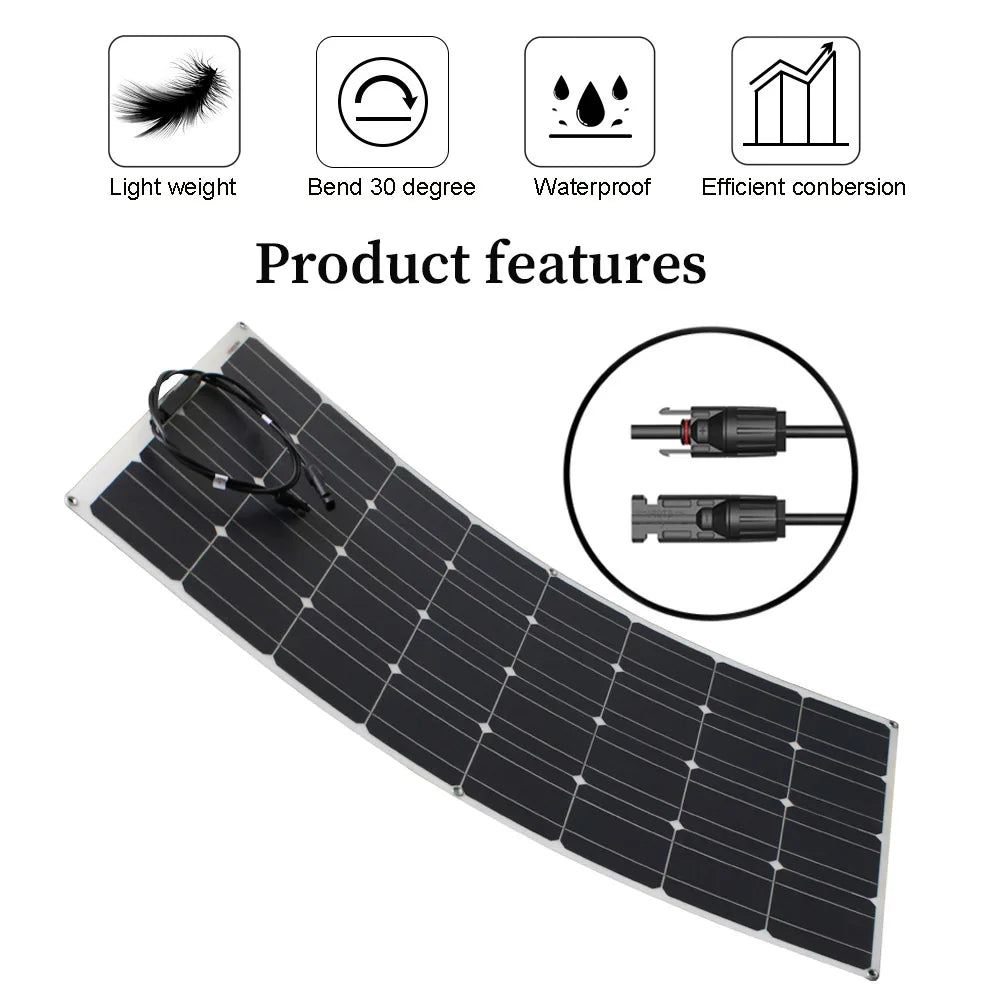

Flexible 30° bendable solar panel with waterproof coating for efficient energy conversion.

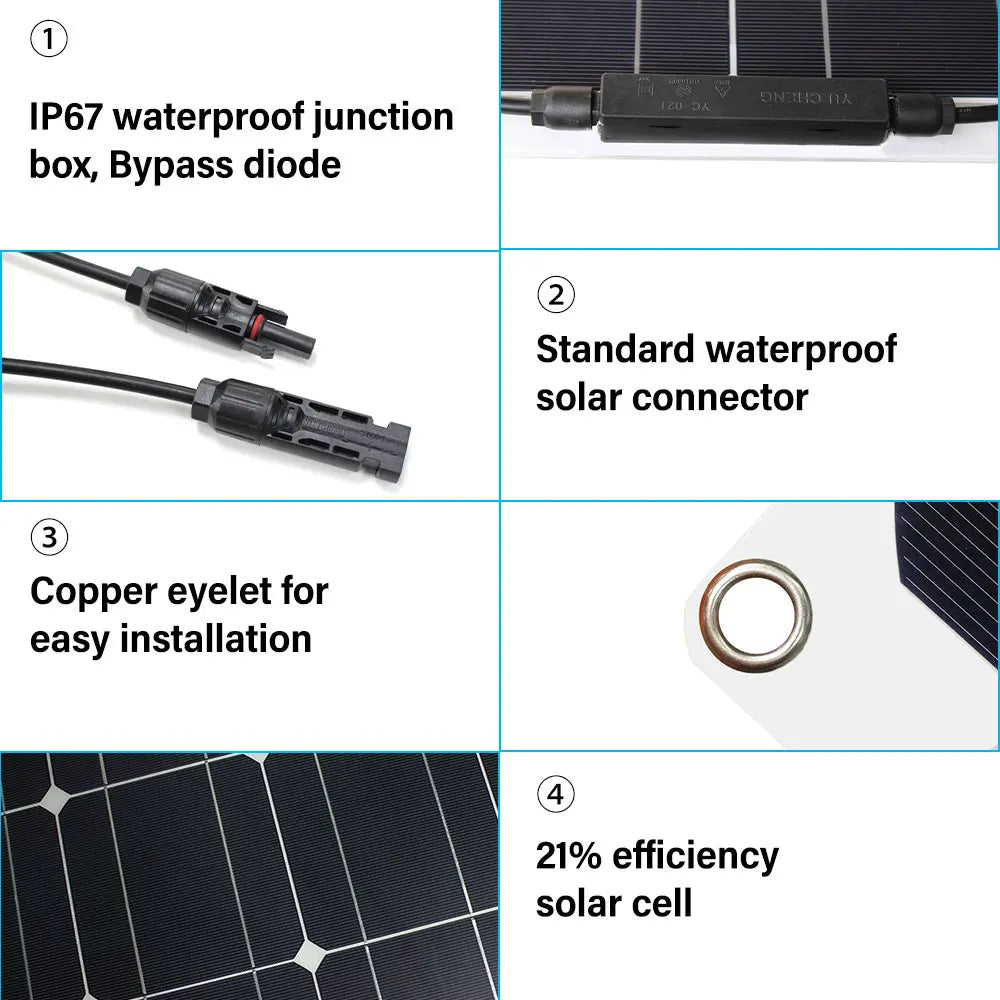

12V Flexible Solar Panel, Waterproof solar panel with high-efficiency cells and durable construction.

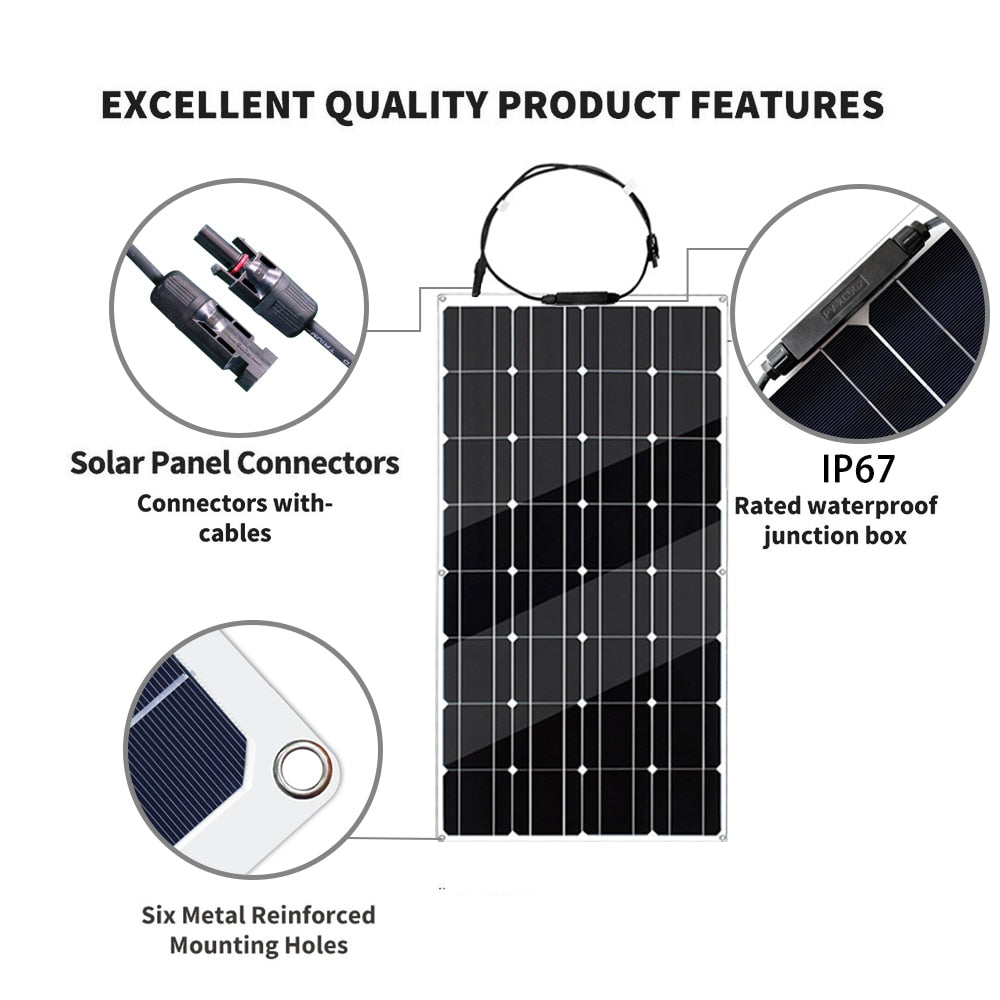

This flexible solar panel features an IP6Z waterproof junction box, bypass diode, and standard waterproof connectors. It also includes copper eyelets for easy installation and boasts a high-efficiency solar cell with 21.9% conversion rate.

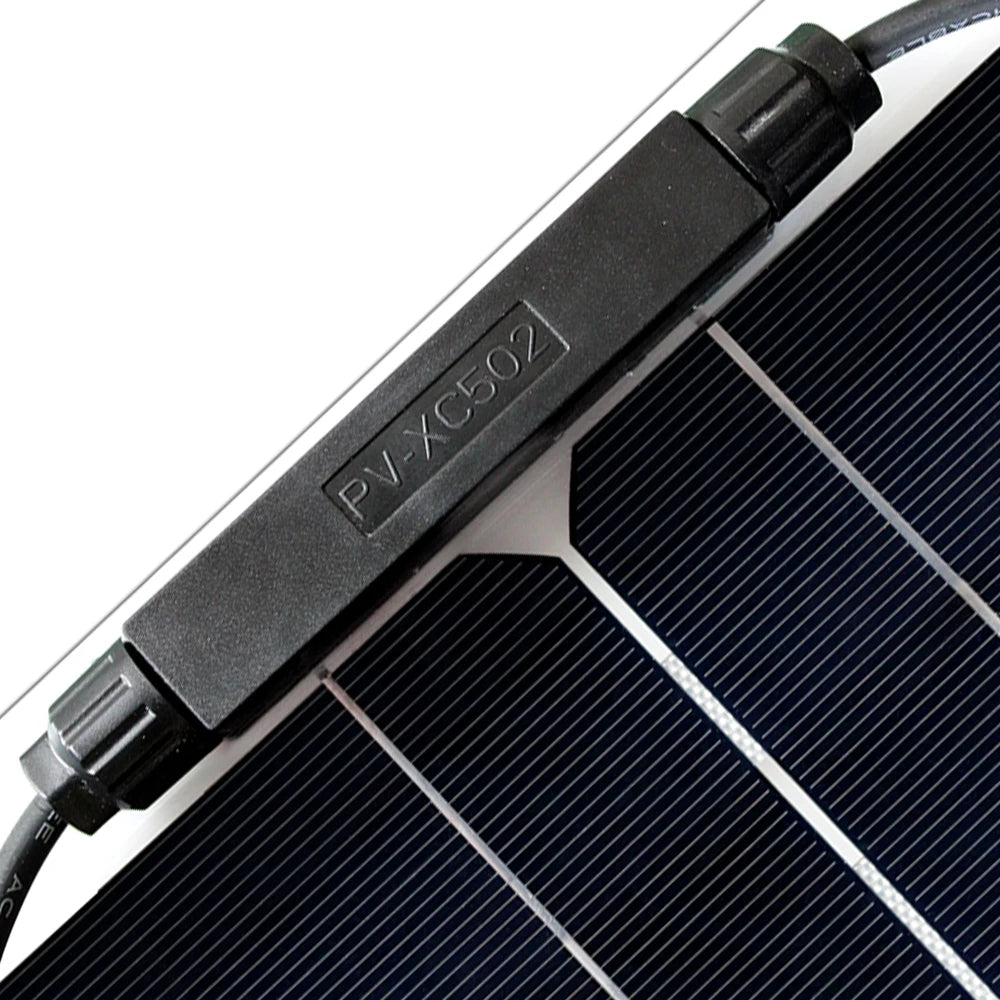

12V Flexible Solar Panel, Prevents energy loss with built-in blocking diode, ensuring efficient harvesting day and night.

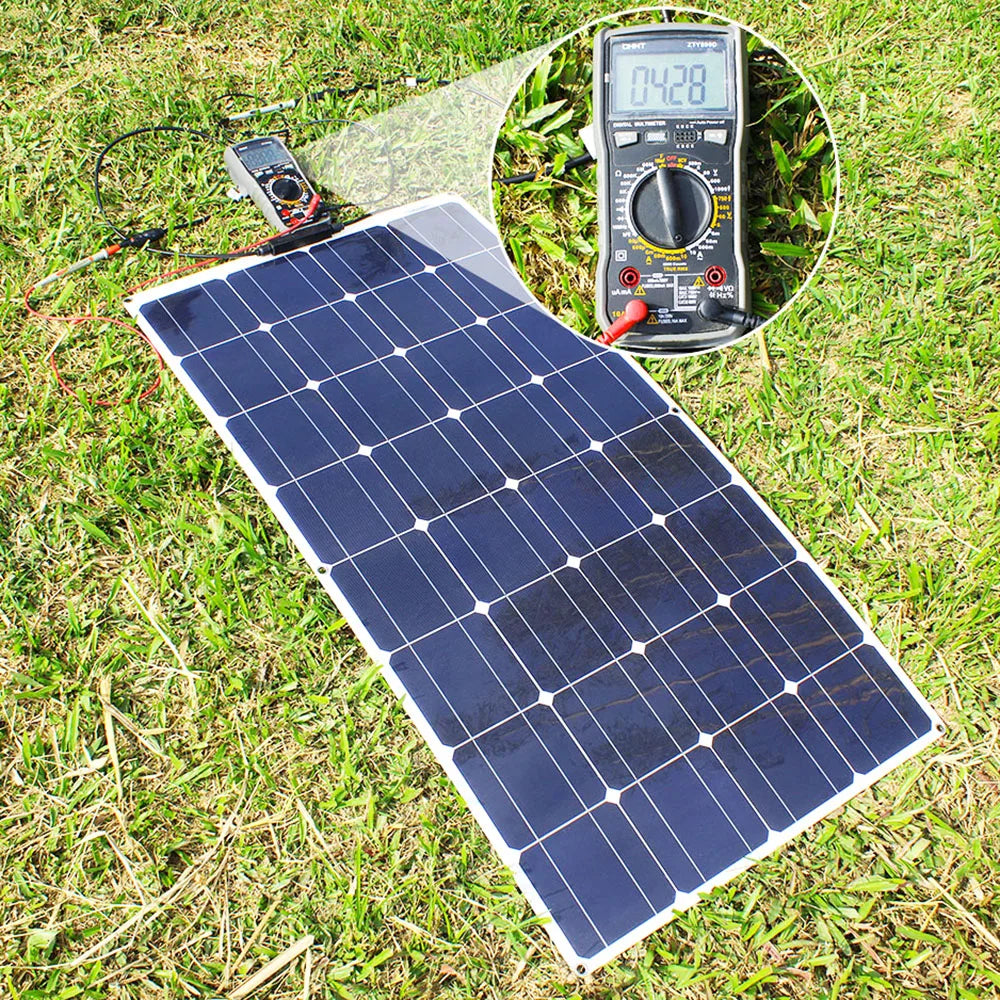

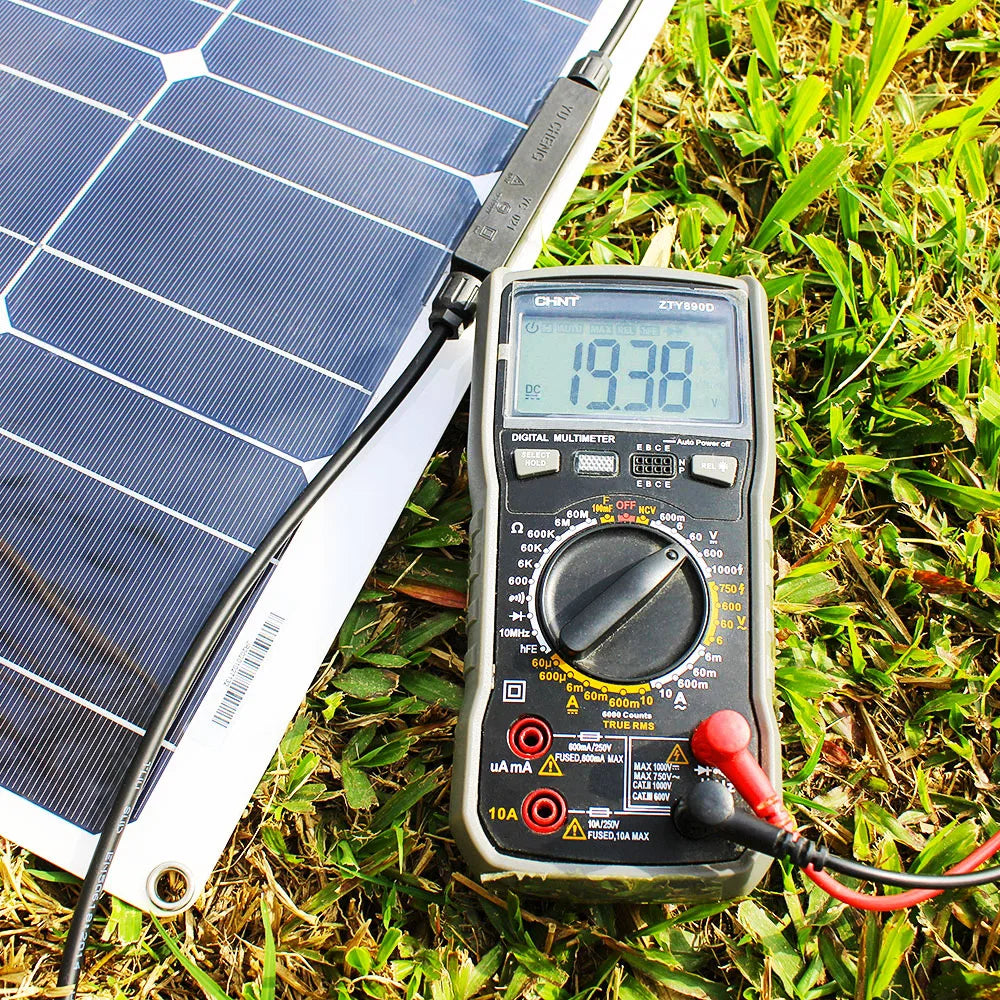

True Test

12V Flexible Solar Panel, 12V monocrystalline solar panel with flexible design, waterproof, and CE/RoHS certified, available in various power options.

12V Flexible Solar Panel, Connecting solar panel: attach extension cable to controller, then link panels in parallel with adapter.

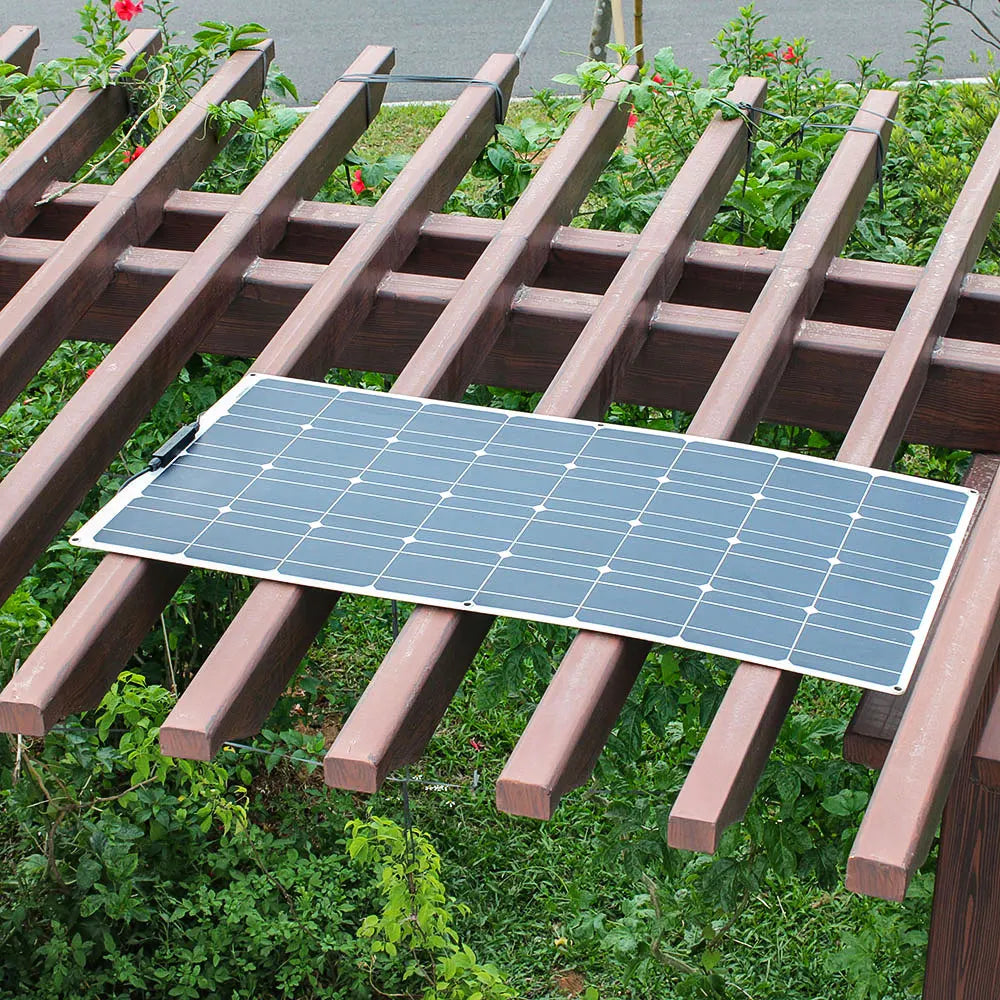

12V Flexible Solar Panel, Built with a waterproof design, this solar panel ensures reliable performance in harsh environments.

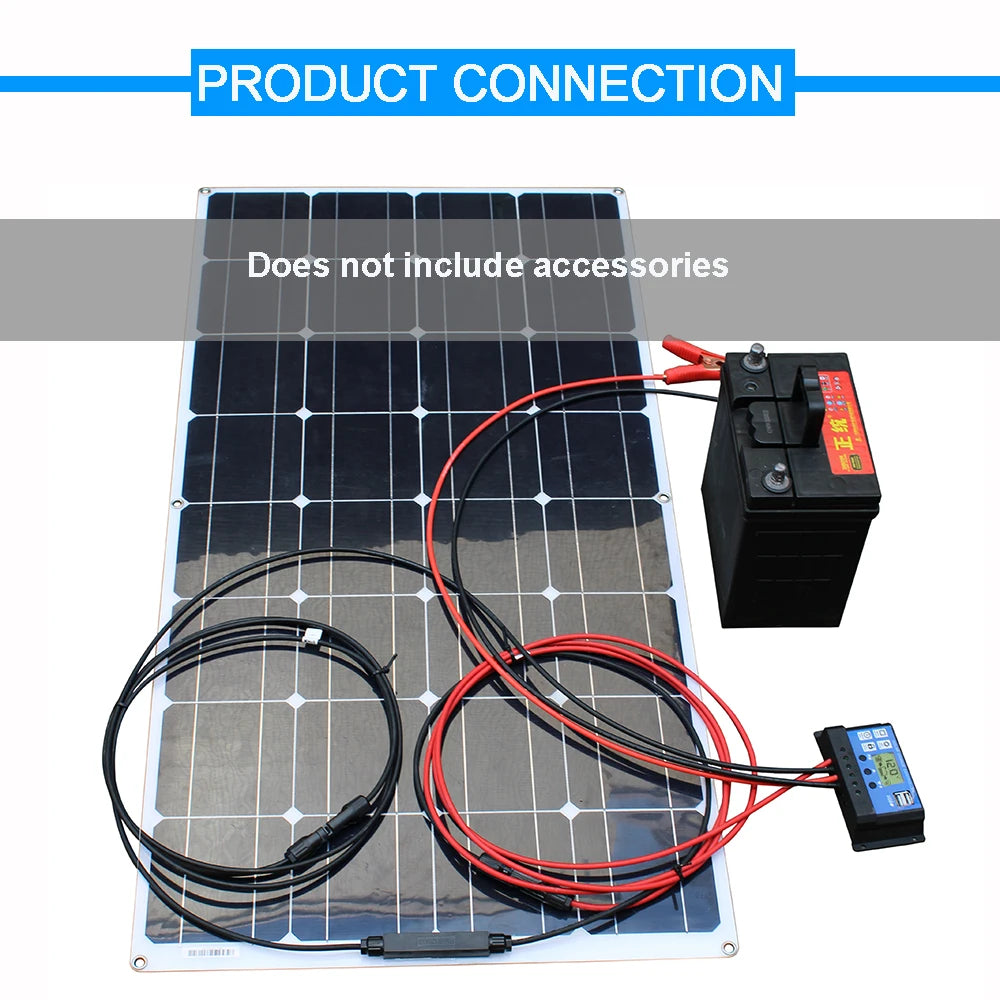

Panel Connection

1.First wiring,connect the controller to the battery.
first connect cable with alligator clips to controller by screwdriver.Then connect alligator clips(black ) to the negative pole of the battery, next connect alligator clips (red) to the positive pole of the battery,pay attention to the positive and negative poles.After correct connection, the controller will display the voltage parameters of battery.

2.Second wiring, connect the flexible solar panels to the controller.
first connect extend cable to the controller by screwdriver.Then connect connect parallel adapter to the solar panel.If there is only one panel, please ignore this step.Next connect parallel adapter to extend cable.taking care when connecting & disconnecting the connector to avoid damage.Afetr right connection,the controller will display the solar panel is charging the battery.

3. The third step is to connect the DC load to the controller

4. Forth step, connect the invertor to the battery for AC output

12V Flexible Solar Panel, Product connection only. No accessories included.

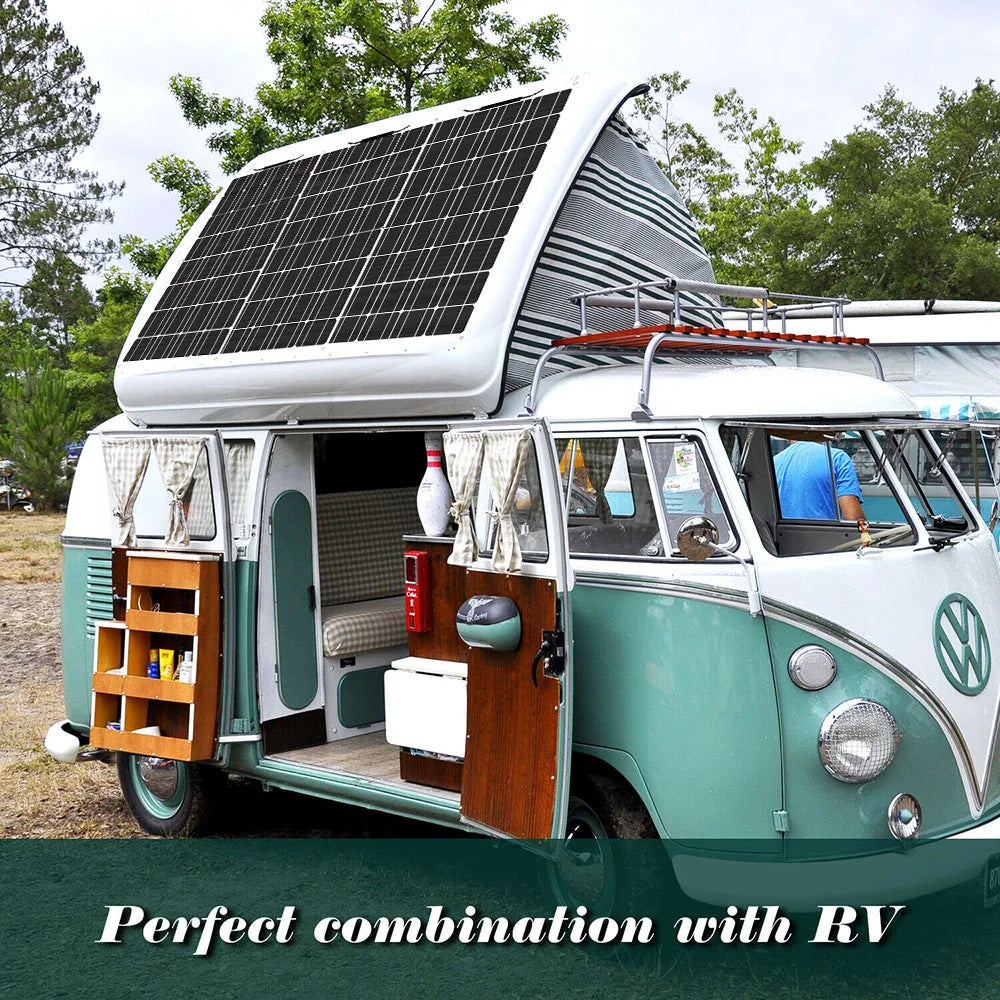

12V Flexible Solar Panel, This solar panel boasts impressive durability, featuring a waterproof design for reliable performance in various conditions.

How to clean panel?

First, you are regular to check and look for stains and deposits on the solar modules. By using freshwater, you can remove these dirt stains, dust particles, even the occasional bird droppings, alongside other debris that stands to lessen the interaction of the sun and your panels. Fewer chances of sunlight reaching your panels will mean less energy that you can store and use later on. Using water and neutral soap, wipe the surface of the panels carefully and thoroughly.

After cleaning the equipment, thoroughly check for the wirings, the small parts, and the overall structural integrity of the equipment in order to gauge its actual condition.

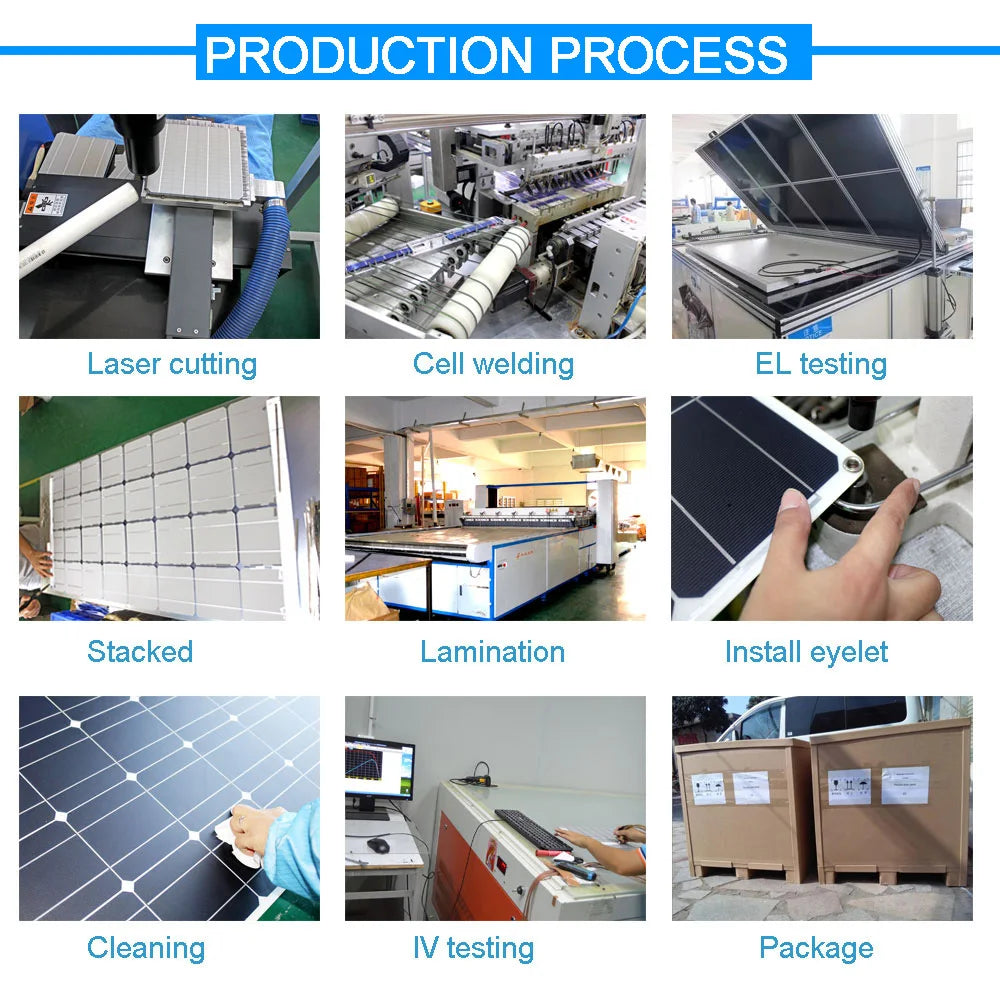

12V Flexible Solar Panel, Manufacturing process involves various steps, including laser cutting and assembly, for final product preparation.

Manufacturing process includes laser cutting, cell welding, EL testing, lamination, installation of eyelets, cleaning, and IV testing before packaging.
