SPECIFICATIONS

Type: Solar Panel

Origin: Mainland China

Number of Panels: 2

Foldable Solar Panel: No

Flexible Solar Panel: No

Certification: CE

Brand Name: luxuglow

NOTE: Solar panel single USB or dual USB Port shipped randomly.

Features:
[Car Power inverter] Car power inverter with 2 USB ports and one AC outlet. The power inverter comes with free cigarette lighter and 2pcs battery clips, providing 300Watt continuous power, 4000watt peak power (Please make sure that the total rated power of the connected devices is ≤ 300W). Cigarette lighter cable can supply power for device easily. If the output power is higher than 150W, please using the Crocodile Clips to a battery.



[LED Green & Red Work Lights] When inverter work normal, the green LED Lights work and tell you it is working well, but when it is on protection status, such as low voltage, high voltage, over temperature, or over load, the Red Led Lights will light up and you need to turn off the inverter, and check which protection function is work, and try to solve it then the inverter can work again.

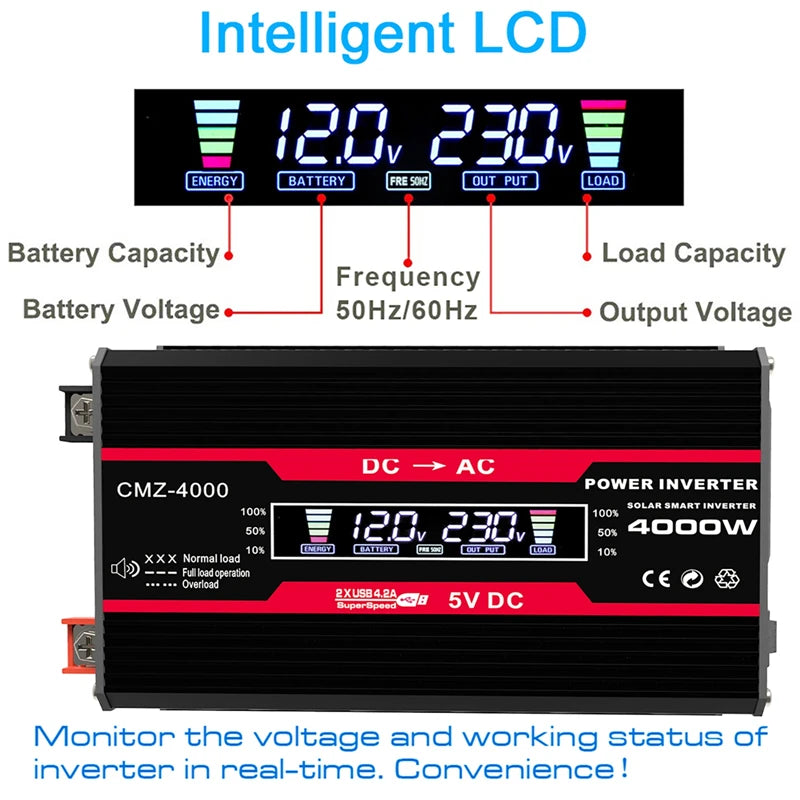

[Intelligent LCD Voltage Screen display] Colorful intelligent LCD Display shows the battery Input battery voltage, output voltage, Battery capacity, frequency 60Hz, load capacity in real-time, which can help you to know the state of inverter conveniently.


[Fast Charging Dual USB ports] One AC Outlets and support two USB charger ports(Max 4.2A) to work at same time and it can offer 100% fast charging for Mobile phones, computers, laptop, breast pump, Nebulizer, Razors, medical rescue device, emergency equipment etc. Easily meet the power supply needs of the diverse vehicle electrical appliance and it can be as an Emergency Power Supply.



[Multi Protection] Built-in fuses, safe charging design and cooling fan prevents the car power converter from over-heat, saving power and energy, over voltage, overload, over-current, short circuiting, under-voltage, overheating, short circuit protection.


[Lightweight design &Top Quality] Lightweight and compact, ideal for vacations, camping and work trips. It can be plugged into almost any 12V power output vehicle, providing charging opportunities anywhere.



Specification:

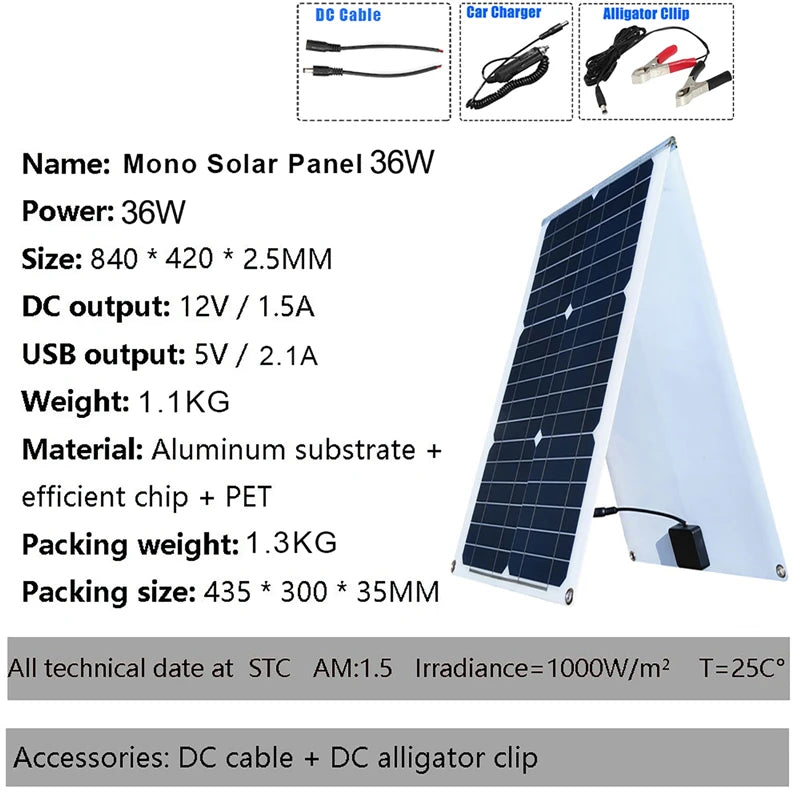

1. Solar Panel 36W 18V:

Power: 36W± 5%

Size: 840x420x2.5mm

DC output: 12V/1.5A

USB output: 5V/2.1A

Weight: 1.2kg

Type: Mono Solar Panel

Protect rate: IP65

Max powers: 36W

Color: blue & black

Max solar input: ＜50V output: 12/ 24 V auto adapt

Floating charge voltage: 13.6-13.8V

Discharge stop voltage: 14V

Discharge reconnect voltage: 10V

Operating temperature: -20℃ to 60℃

Material: Aluminum substrate + efficient chip + PET

Output accessories: 2 X DC cable + DC alligator clip + DC Cigarette Lighter Cable

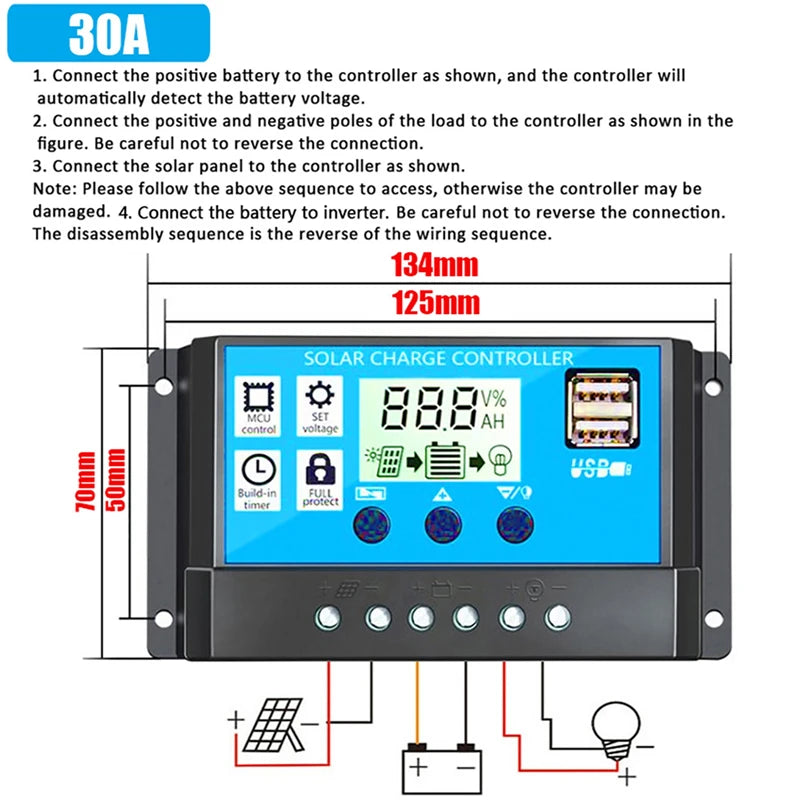

2. 30A 12V 24V Automatic Solar Charge Controller PWM with LCD Controller and Dual USB

Charge Current: 30A

Product Size: 148.5x78x35mm

Voltage: DC 12V / 24V Auto intelligent conversion

Display: LCD digital display

USB Charger Ports: Dual USB 5V 2.1A

Operating Temperature: -35~+60

Max Solar Input: 12V battery, the highest 23V

Float Charge: 13.7V (default, adjustable)

Discharge Stop: 10.7V (defaul, adjustable)

Discharge Reconnect: 12.6V (defaul, adjustable)

Charge Reconnect: 13V

Voltage of Open Light: Solar Panel 8V (Light lights delay)

Voltage of Close Light: Solar Panel 8V (Light off delay)

USB Output: 2 way USB output, 5V/2.5A (MAX)


3. Power Inverter 4000W:

Color: Black

Name: Car power inverter
Input voltage: DC 12V (12V is generally for cars, Voltage Range: 10.5V~15V)
(When the battery voltage is lower than 10.5V, the inverter will in low voltage protection. When the battery voltage is higher than 15V, the inverter will in high voltage protection)

Output voltage: AC 110V (Available Range Of Rated Voltage Of Electrical Appliances: 100~120V)
Output frequency is: 60Hz

Peaks Power: 4000W
Rated power: 300W (Make sure that the total rated power of the connected devices is ≤ 300W)
Output waveform: Modified sine wave

Product Size: 20X11.2X5.6cm
Package Size: 7.87x4.4x 2.2 inch
Weight: 0.65 kg

NOTE: The modified sine wave inverter is suitable for resistive load appliances, such as mobile phones, TV, computers, digital cameras, video cameras, incandescent lamps, rice cookers, electric kettles, non-laser printers, low-power electric tools, etc. (The power of the connected equipment cannot exceed the rated output power of the inverter)

- 8 Safety Protection Function:
①Reverse polarity protection
②Low input voltage protection
③High input voltage protection
④Over-current protection
⑤Short circuit protection
⑥Over temperature protection
⑦Overload protection
⑧Internal fuses


Battery Usage Time Calculation:

1) The working time of inverter, it is depend on the battery power and load power.

2) Formula: Working time (hours)= Battery Capacity X Battery Voltage X 0.8X0.9/Load Power
3) For example, the battery of 12V 60A is supplied to a 220V 100W bulb.

The working time is = 12(V) X 60(AH) X 0.8 X 0.9 / 100(W)=5.18(hours)

(Note: 0.8 is the discharge coefficient of battery, 0.9 is the conversion efficiency of inverter)

What Size Power Inverter Do I Need?
The size you choose depends on the watts (or amps) of what you want to run (find the power consumption by referring to the specification plate on the appliance or tool). We recommend you buy a larger model than you think you'll need (at least 10% to 20% more than your largest load). And if you want to run several appliance at the same time, you should refer to the total Watt. If you want to run a inductive load for a long time, it`s suggested to buy a pure sine wave inverter.



CAUTION!

-1.This is a modified sine wave inverter, NOT applicable for devices which work by built-in motor, hair dryers, air conditioners, coffee machine, water pump, induction cooker, refrigerators and microwave ovens etc. Make sure that the total rated power of the connected devices is ≤ 300W.

-2.Tighten the Positive (+) and Negative (-) terminals when the car converter is in use

-3.If the converter is directly connected with the cigarette lighter. The highest output power must be under 150W. If higher than 150W, we strongly recommend you using the Crocodile Clips to a battery, because car cigarette lighter might not afford power over 150W.

-4.The car converter suitable for DC12V and Car ONLY, not applied for DC 24V and airplane

-5.Please do not leave the inverter in the ON position before car start. It's easy to damage the inverter before connected to the battery. The correct operation is connect to the battery first and then turn on the inverter switch

-6.  It's normal for the inverter to become warm while you are using it. In order to get the best using results, please put the inverter on the flat surface The working place should meet the following criteria:
1. Keep dry, should not let the inverter contact the water or other liquids, keep the inverter away from moisture or water.
2. Cool environment, keep the temperature between 0 Celsius degrees and 40 Celsius degrees. Do not put the inverter next to heat vents or other devices. Try to keep the inverter not be shined directly by the sunshine.



What's in the box:
1 x Power Inverter

2 x Battery Clip
1 x Cigarette Lighter Plug(gift)
1 x User Manual

1 x Solar Panel 36W 18V+DC cable + DC alligator clip

1 x 30A Solar Charge Controller

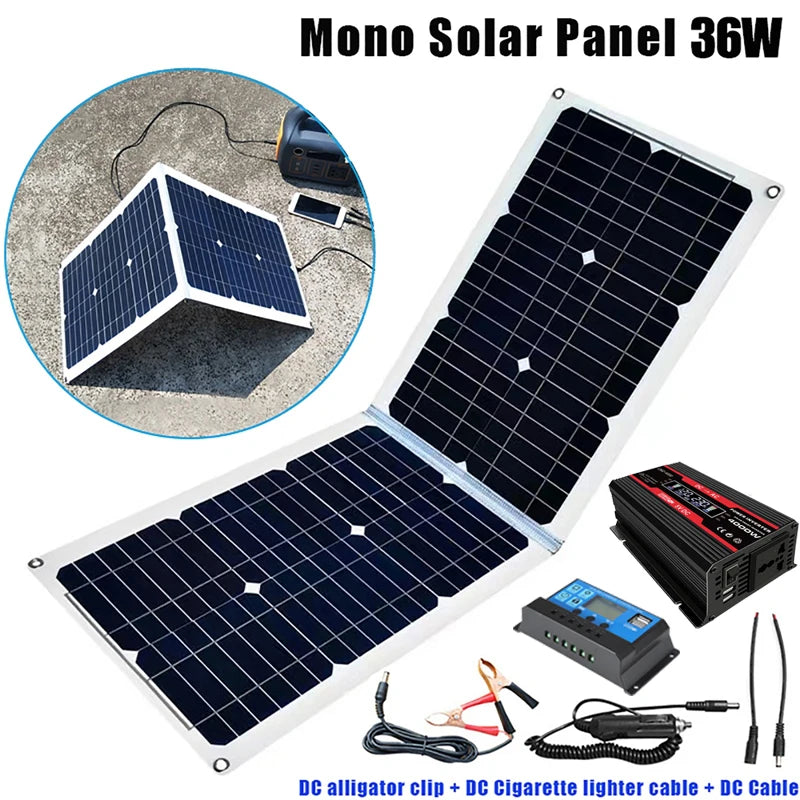

36W Mono Solar Panel with Alligator Clip and DC Cigarette Lighter Cable for easy installation and connection.

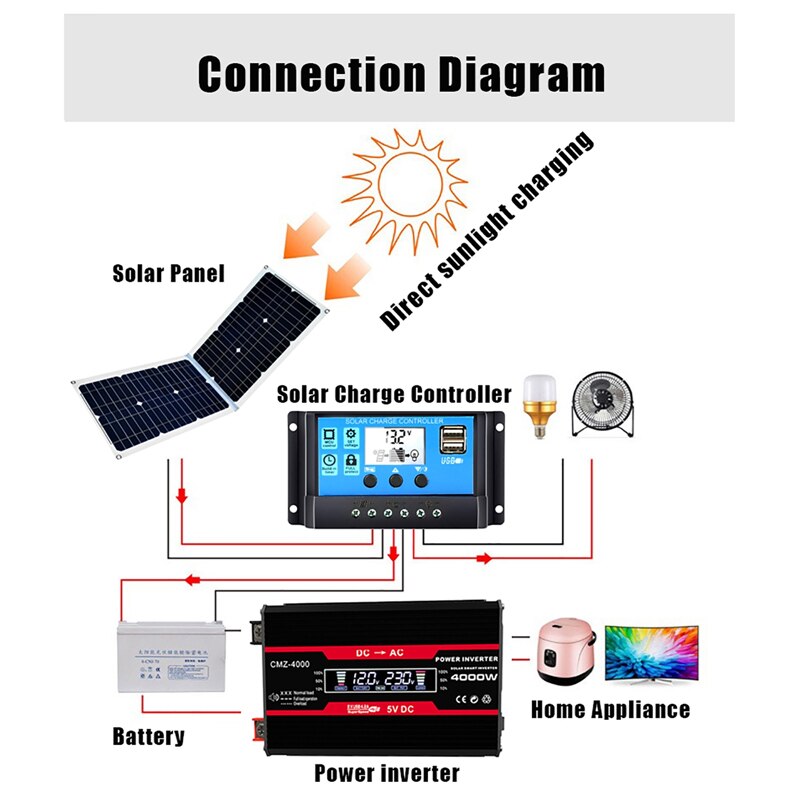

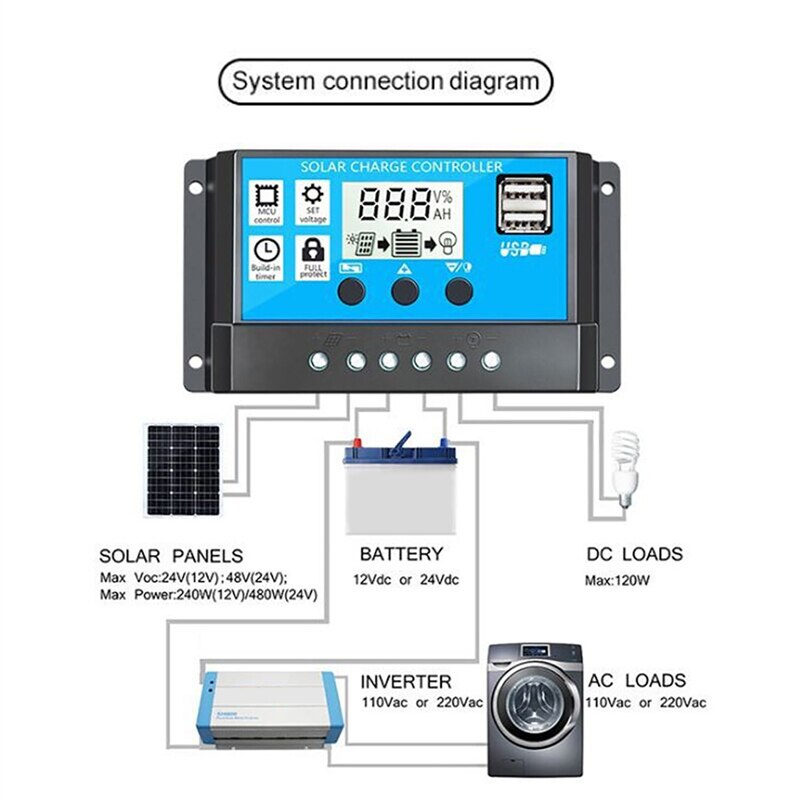

Connect solar panels to a charge controller, then to a 4000W power inverter and finally to home appliances or batteries. This system allows for direct charging using sunlight.

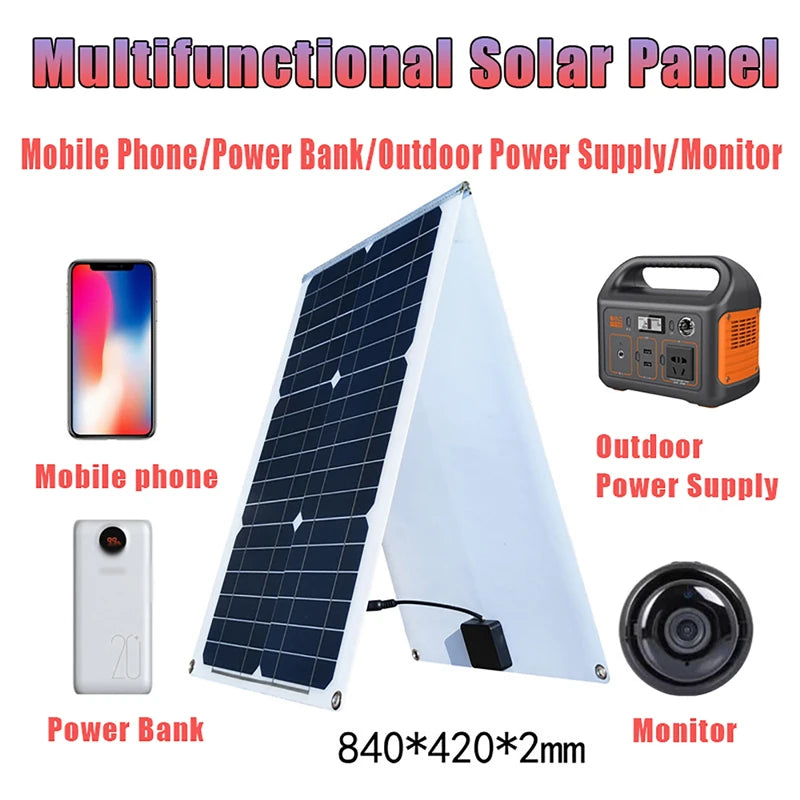

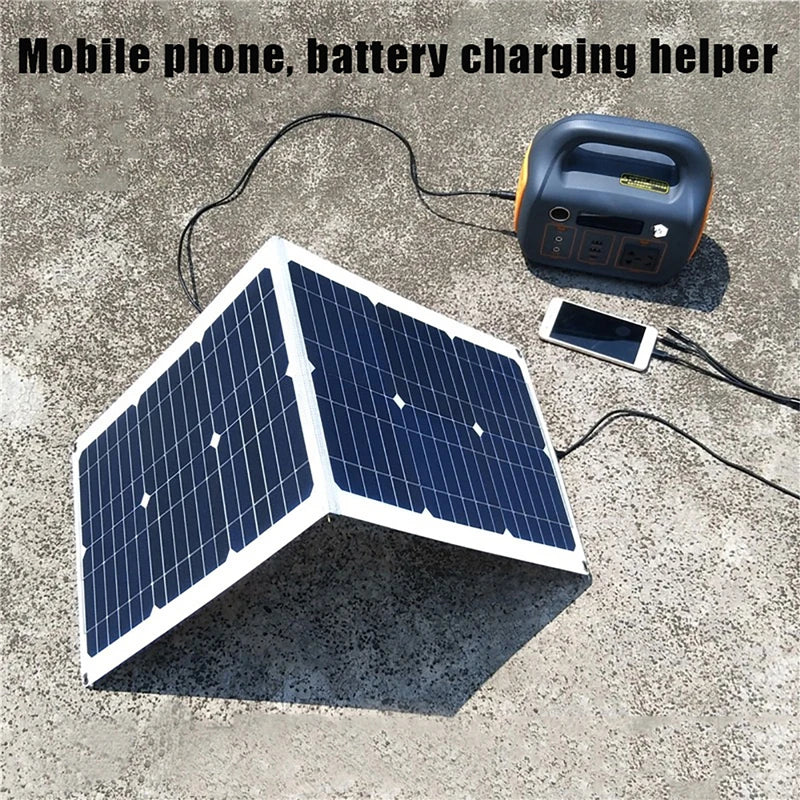

Mulilguncuiomal solar panel kit for mobile phones, power banks, and outdoor use, featuring a monitor with dimensions 840x420x20mm.

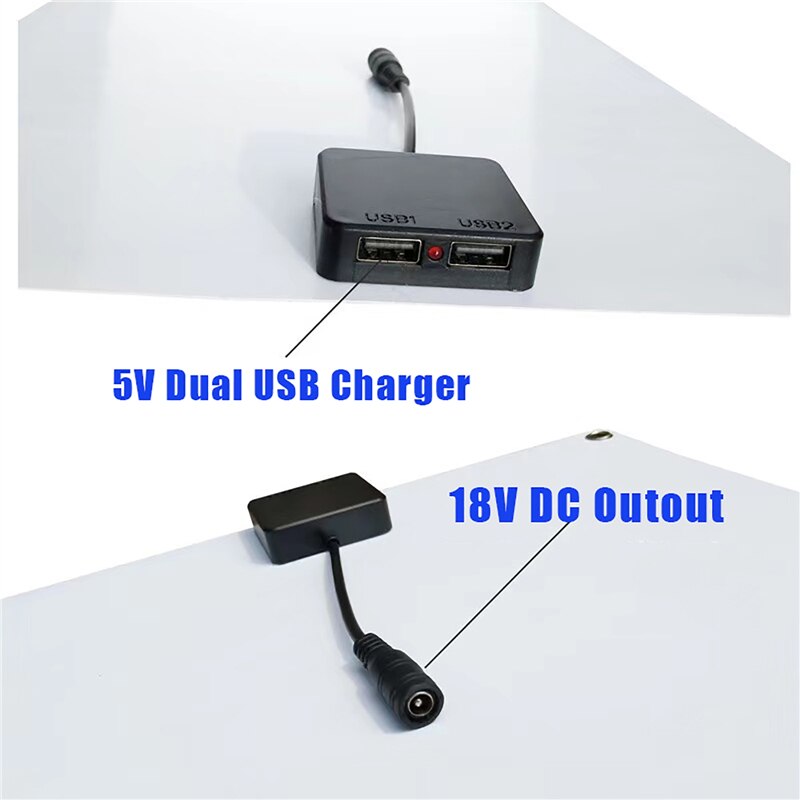

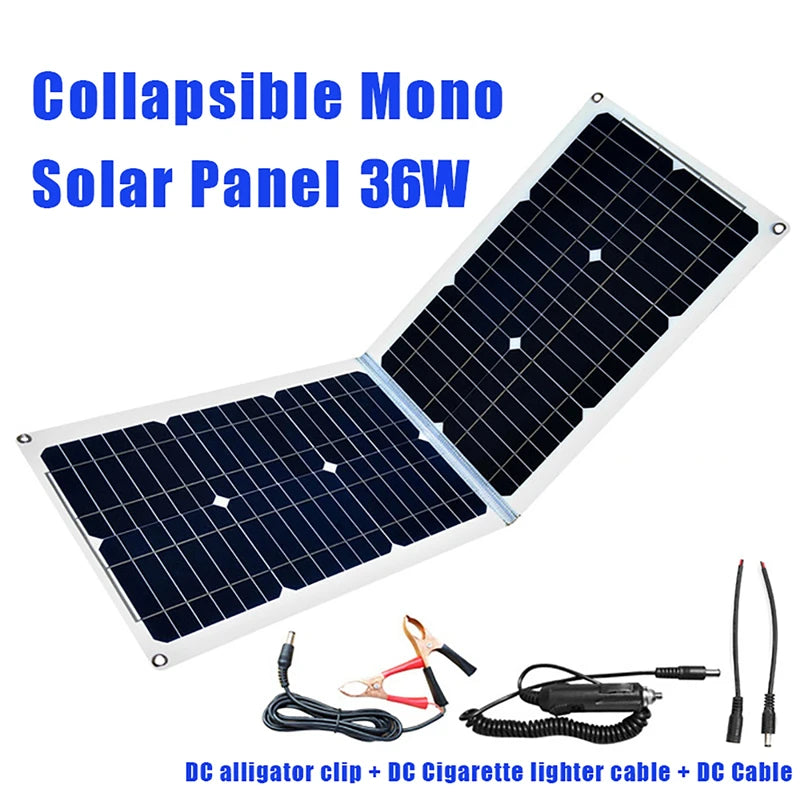

Portable mono solar panel with 36W DC output, equipped with an alligator clip and DC cigarette lighter cable for easy charging.

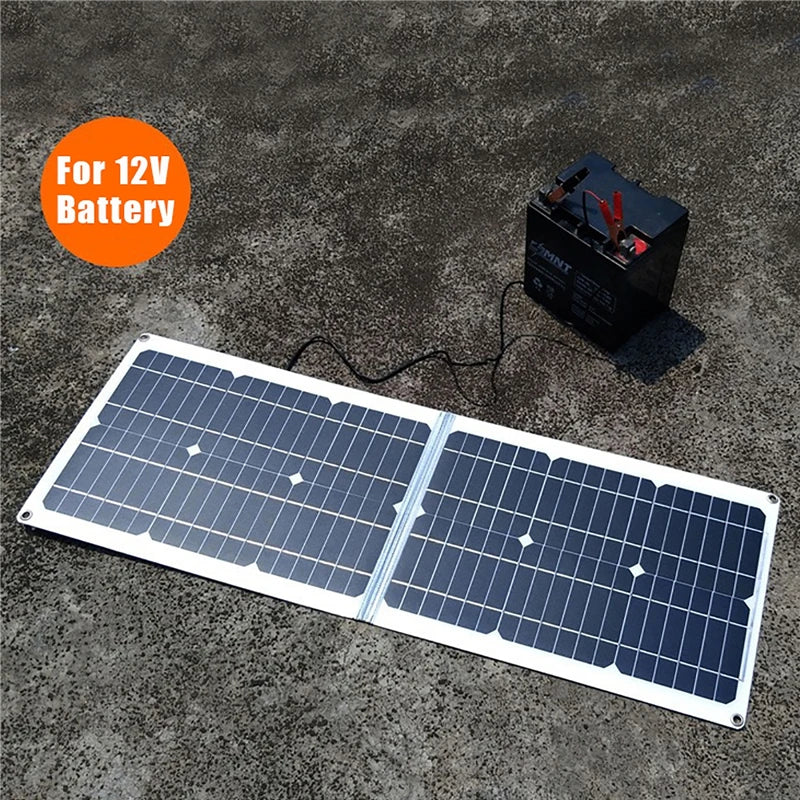

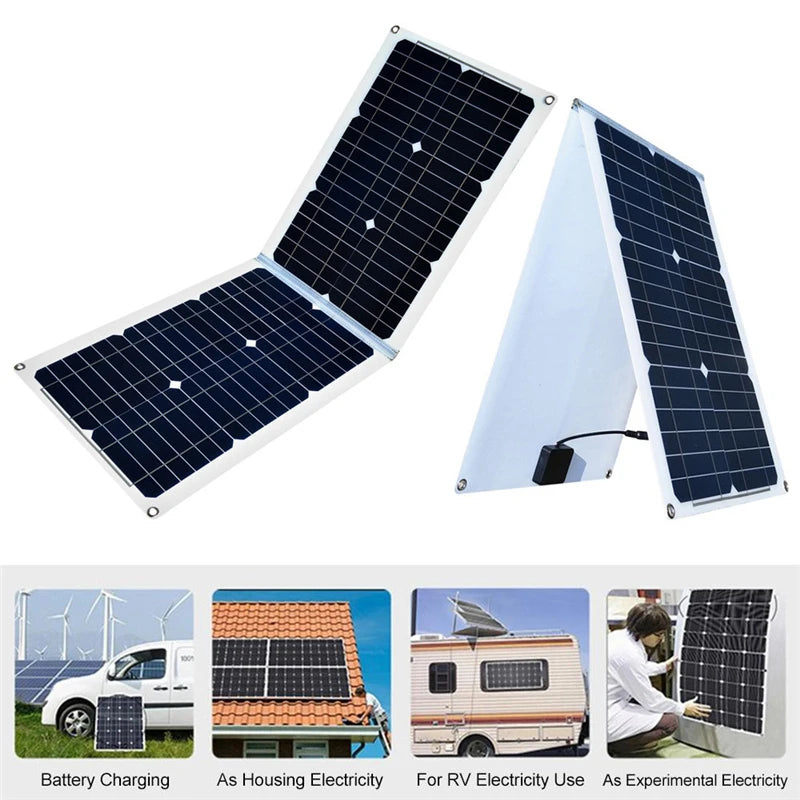

Charge RV batteries or power household appliances with solar-generated electricity for off-grid use.

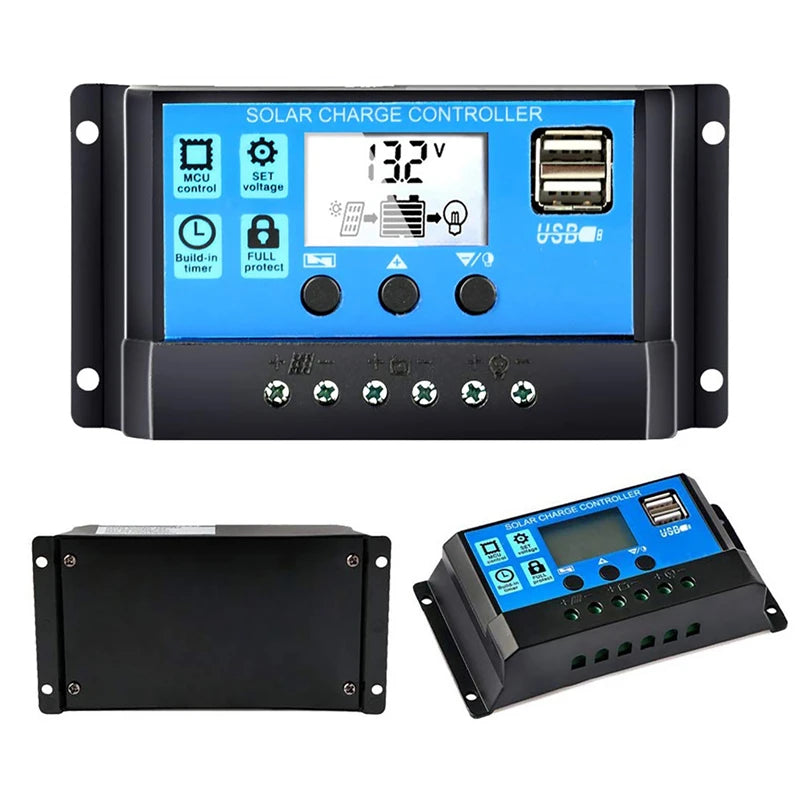

MCU set controls solar charge controller, adjusts voltage from 12V to 110V/220V, with full monitoring and processing capabilities.

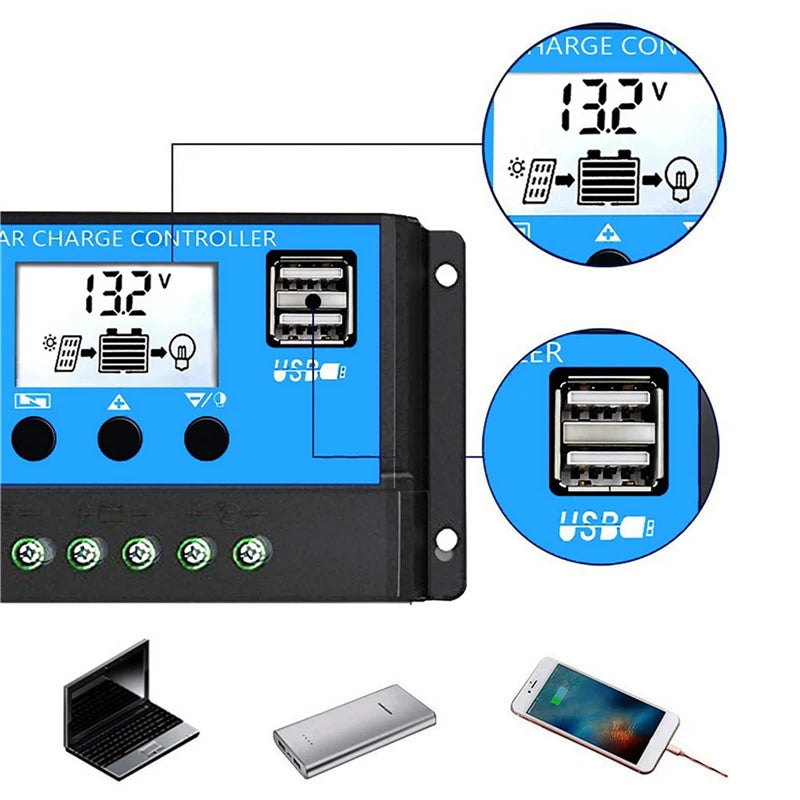

Large capacity solar charge controller with USB interface for easy charging and monitoring.

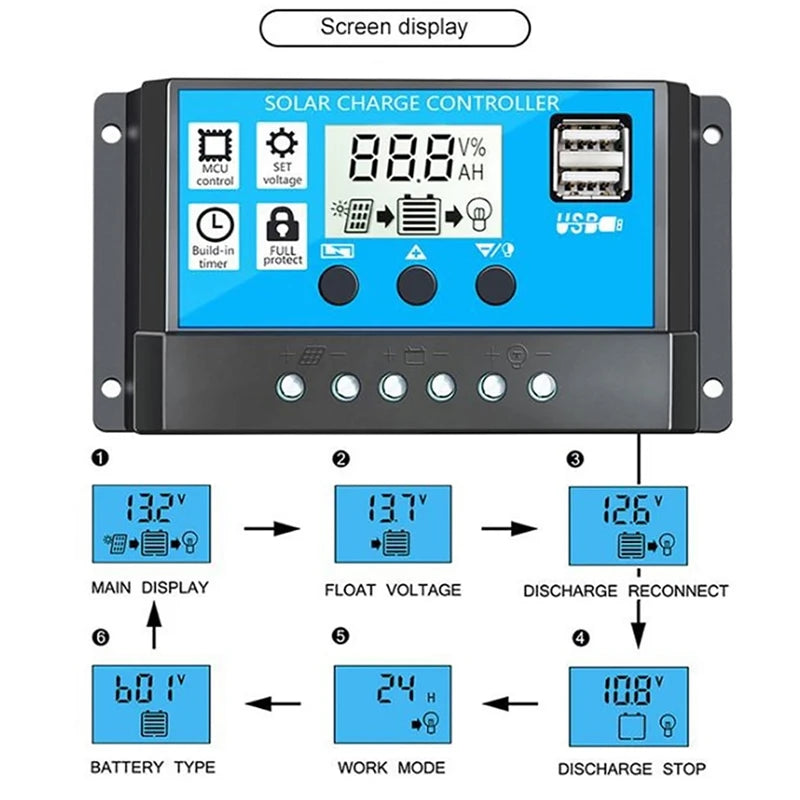

Solar Charge Controller Display: MCU Set AH. Built-in features include 8 main display settings, such as float voltage, discharge reconnect, battery type, and work mode. Discharge stop function also available.

Convert 12V to 110V/220V with this solar power inverter set, featuring a 4000W inverter, LCD display, 36W/18V solar panel, and 30A controller.

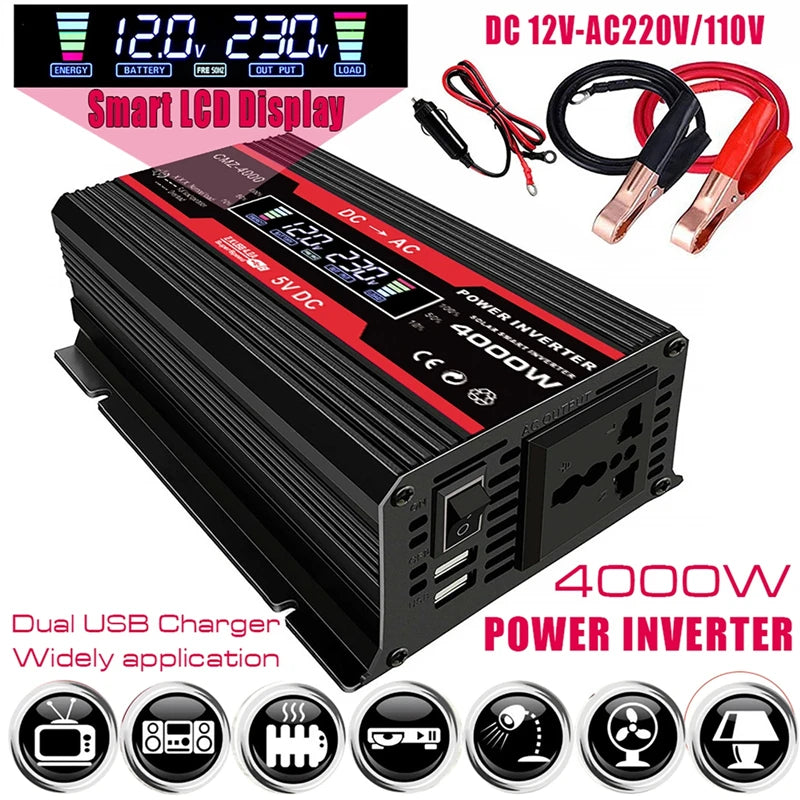

12V DC to AC 22/110V Power Inverter Set. Includes 4000W power inverter, 36W/18V solar panel, and 30A controller with LCD display. Widely applicable for powering devices, appliances, and tools.

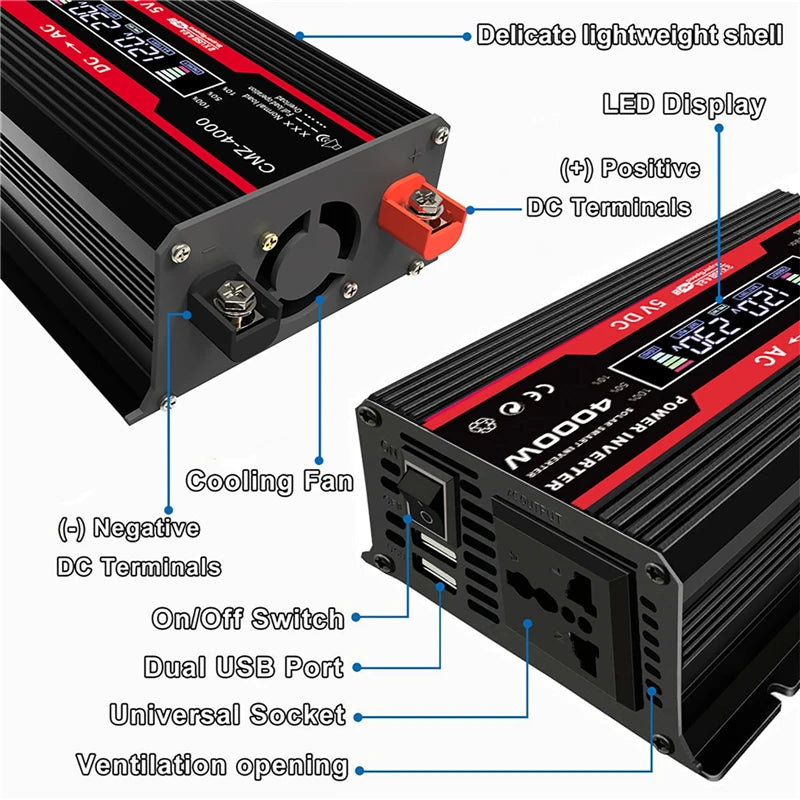

Powerful and compact inverter set with LCD display. Features dual USB ports, universal socket, ventilation opening, and ON/OFF switch. Includes a 30A controller and 36W/18V solar panel. Delivers 4000W of power and supports input voltage ranges from 12V to 110V/220V.

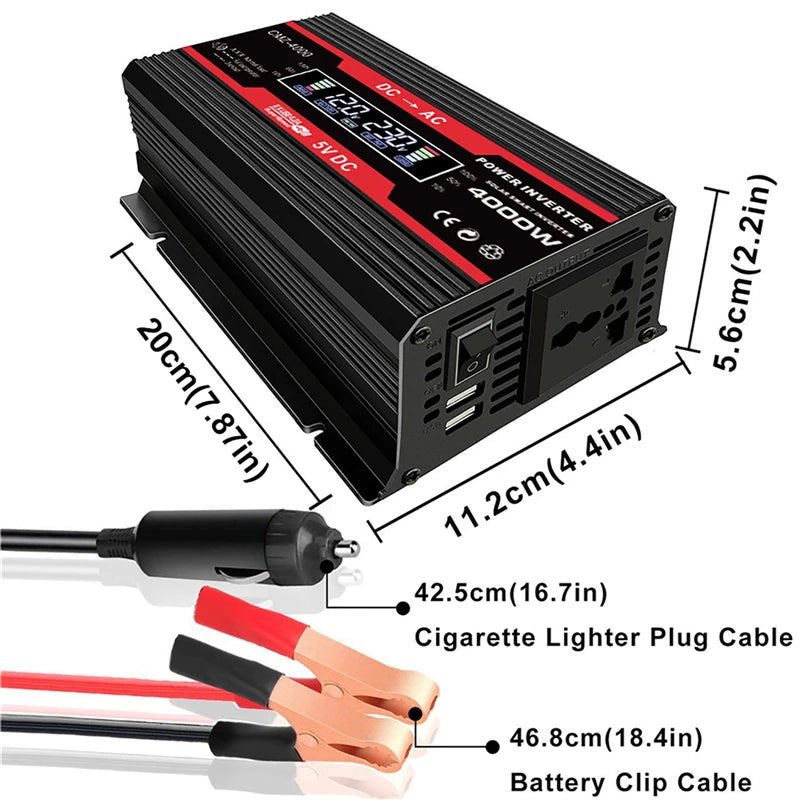

12V to 110V/220V Solar System Power Inverter Set: 4000W power inverter with LCD display, 36W/18V solar panel, and 30A controller. Includes cigarette lighter plug cable (16.7in) and battery clip cable (18.4in).

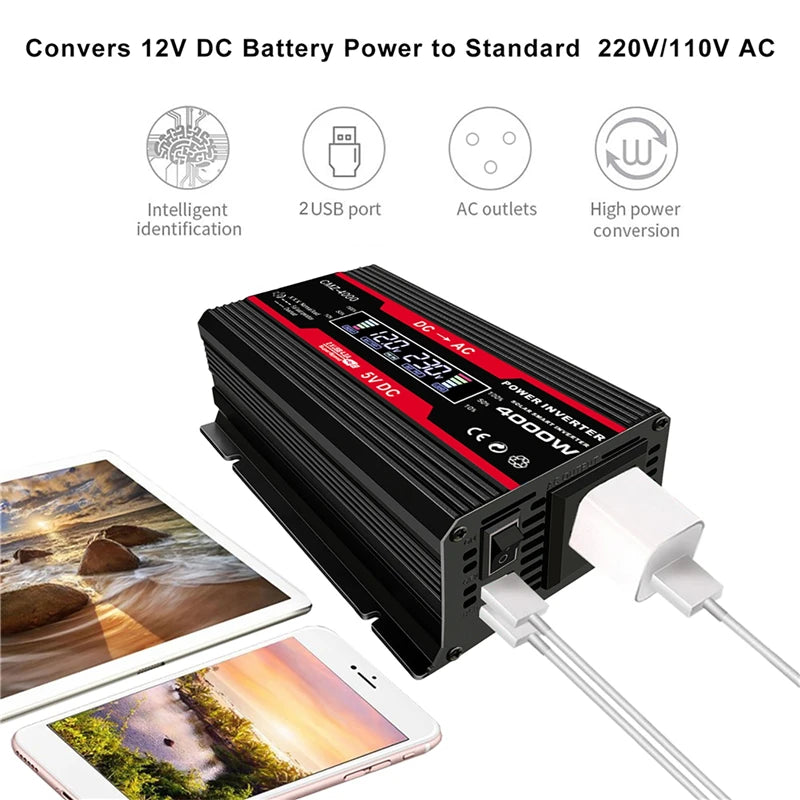

Converts 12V DC battery power to standard 220V/110V AC, featuring intelligent 2 USB ports and 3 AC outlets. High-power identification conversion and 72W SVD converter.

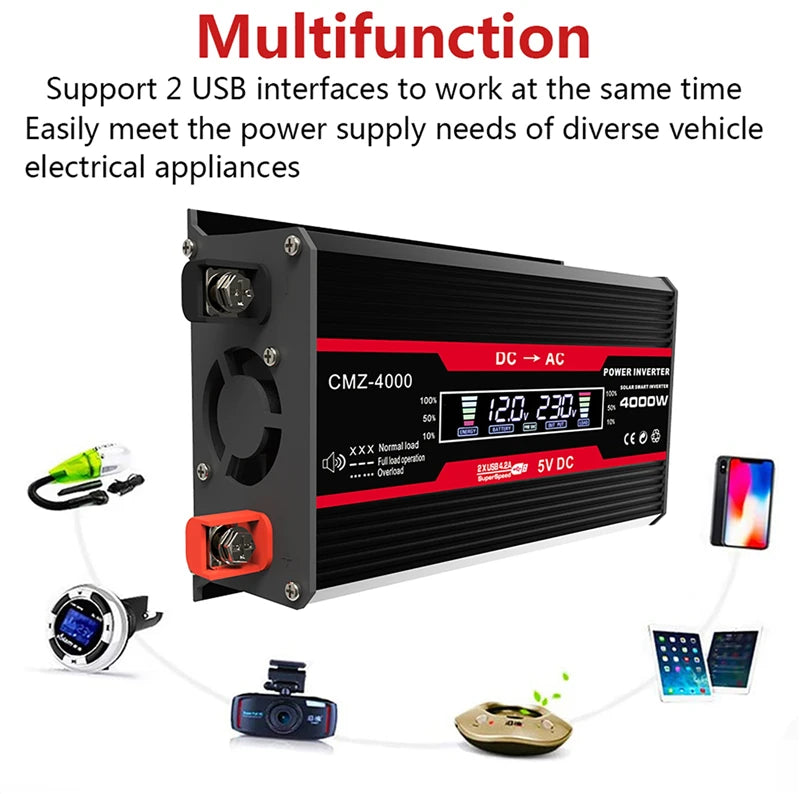

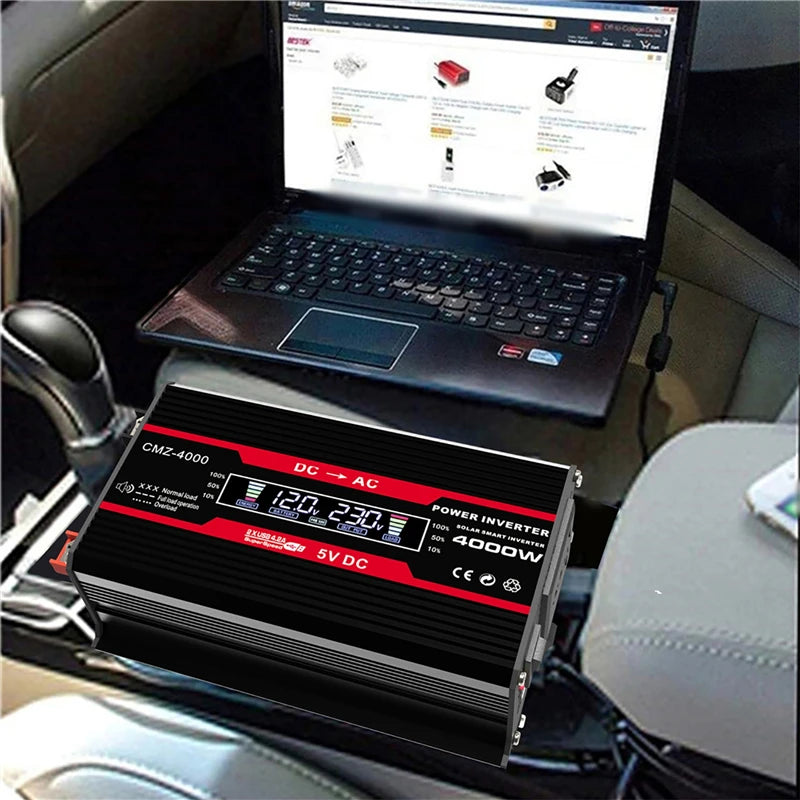

Multifunctional support for simultaneous USB charging. The CMZ-4000 inverter provides DC to AC power conversion, meeting diverse vehicle electrical appliance needs.

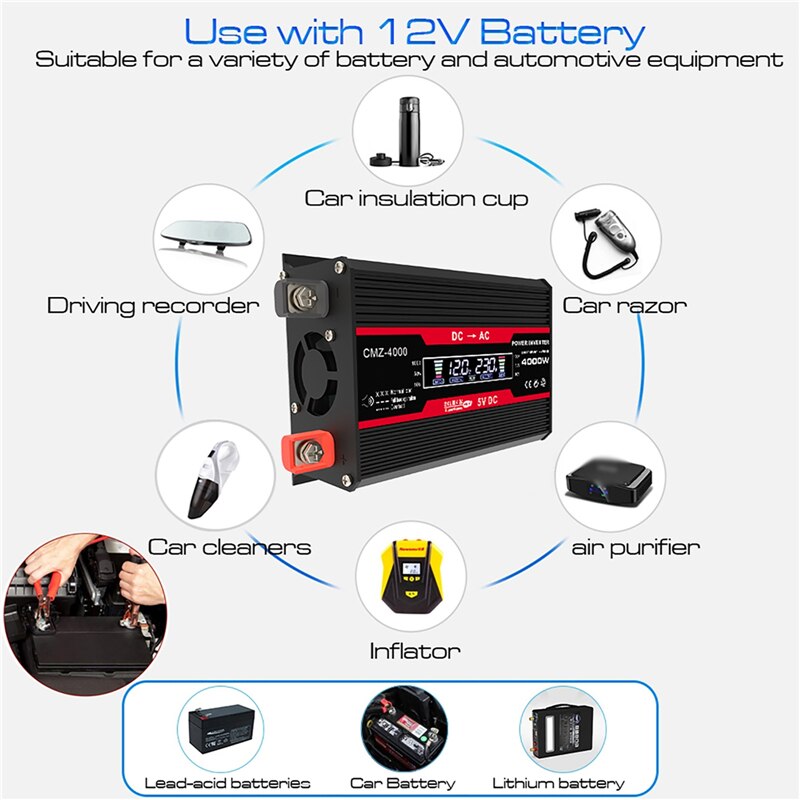

Suitable for various batteries and automotive equipment, including car insulation cups, driving recorders, DC-AC converters, and more. Compatible with 12V lead-acid or lithium-ion batteries.

Converts 12V DC battery power to standard 110V/220V AC anywhere, suitable for powering laptops, tablets, cameras, phones, electric drills, and LED printers.

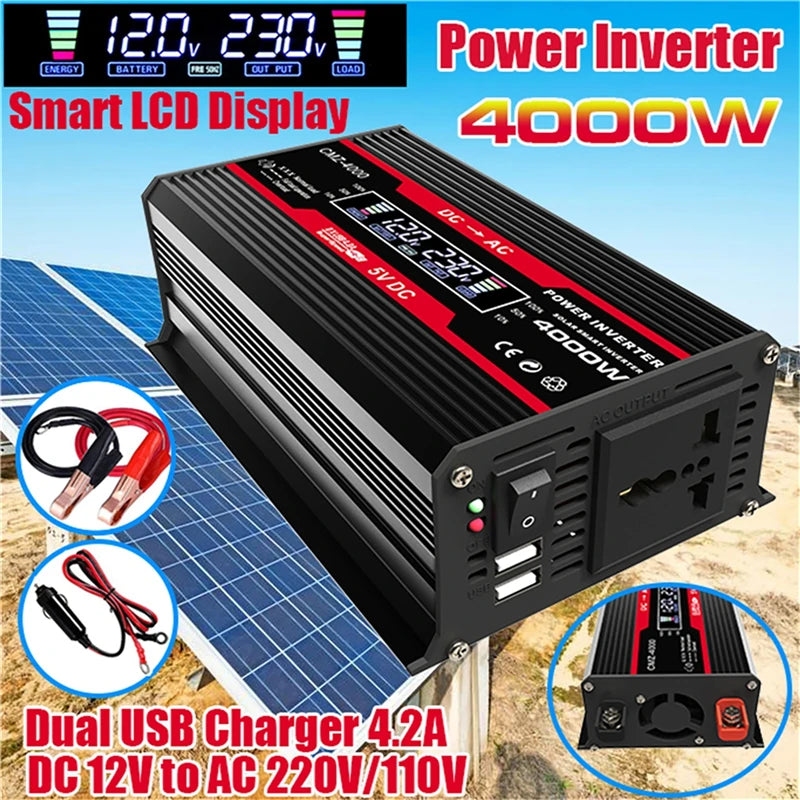

Get a comprehensive solar power system with this 4000W inverter set, featuring an LCD display and smart control. Includes a 36W/18V solar panel, 30A controller, and USB charger for efficient energy conversion from 12V DC to 110V or 220V AC.

12V-110V/220V solar power inverter set with LCD display, 4000W power and 36W/18V solar panel.

Suitable for outdoor use, this power generator can be paired with lead-acid or lithium batteries and serves as an energy storage unit for lamps.
