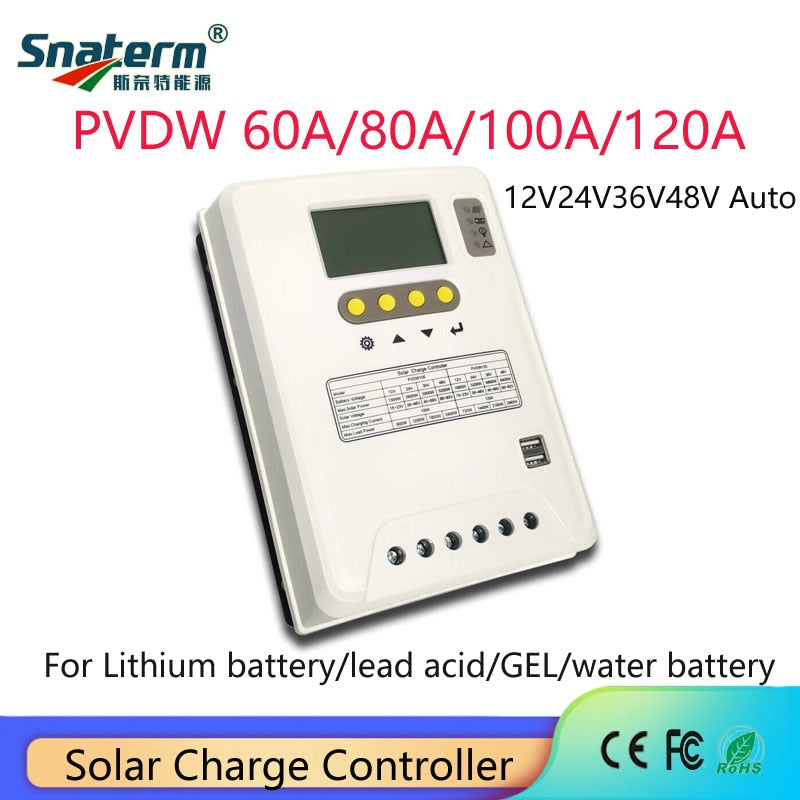

12V24V36V48V AUTO PWM 120A 60A 80A100A Solar PV Battery Charger with LCD Display 5V USB for solar off grid system home use

12V24V36V48V AUTO PWM 120A 60A 80A100A Solar PV Battery Charger with LCD Display 5V USB for solar off grid system home use

$39.20 USD
$39.20 USD
Sale Sold out
Shipping calculated at checkout.

261 orders in last 30 days

Color
Rated Voltage

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping：Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

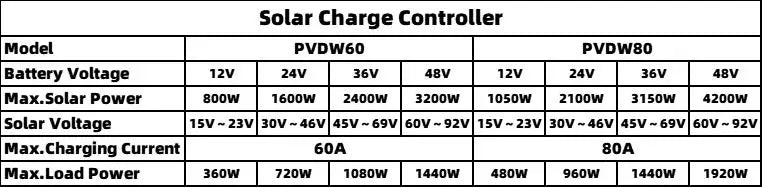

SPECIFICATIONS

is_customized: Yes

Use for: Seal,GEL,FLD,LifePo4,Lithium

USB output: Dual 5V

Rated Voltage: 12V/24V/36V/48V AUTO

Origin: Mainland China

Model Number: PVDW

Max.PV Input Voltage: 100V

Display: LCD with backlight function

Certification: CE

Brand Name: Snaterm

Application: Charger Controller,Solar System Controller,Solar Working Station,Lighting Controller


PVDW 120A60A80A100A 12V24V36V48V AUTO solar charge controller Solar PV Battery Charger with LCD Display Solar PV Regulators USB

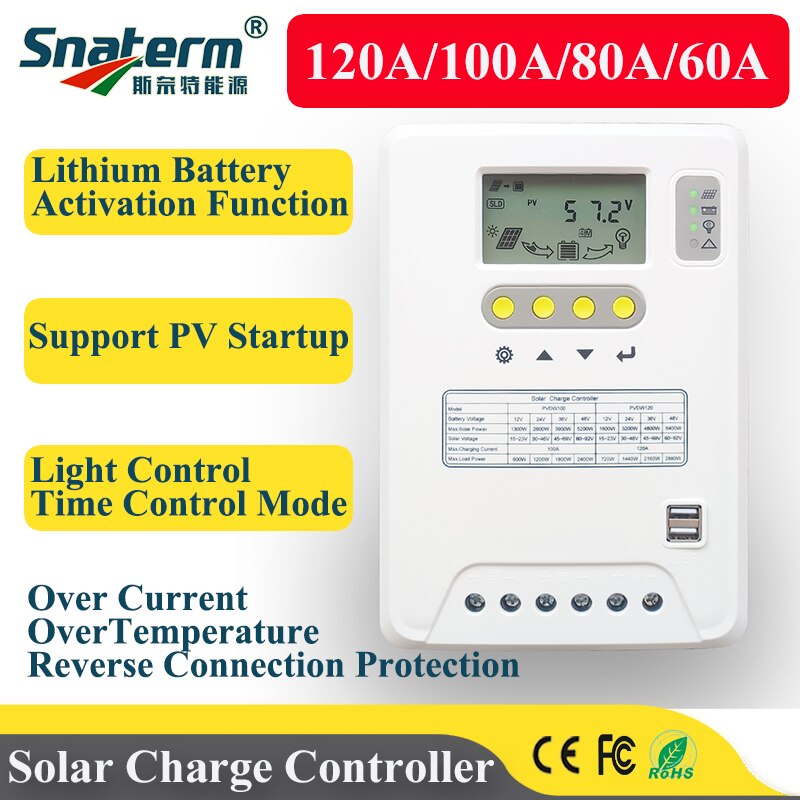

Product Features
1. High efficiency, high quality, low internal resistance large package MOS tube drive,  stable    performance.
2.Adopt Original imported chip control.
3. Battery over discharge/voltage/low voltage protection ,Overload protection of load discharge current.
4. PV panel current overcharge protection.
5. Overheating protection of the whole machine temperature.
6. Solar panel/Battery revese connet protection.
7.Seal,GEL,FLD,LifePo4,Lithium charging process can be selected.
8. 5V/2A USB with short circuit protection.
9. LCD display screen with backlight function
10.12V/24V/36V/48V lead-acid battery full automatic identification.
11. Full stage automatic "default" and manual setting of lithium battery
12. Time control mode (under manual setting of load opening time and load closing time).
13. Light control+time delay,(When the light controller is on, you can set the length of light on time).
Connect all battery wires together before connecting other components for safe and efficient charging.

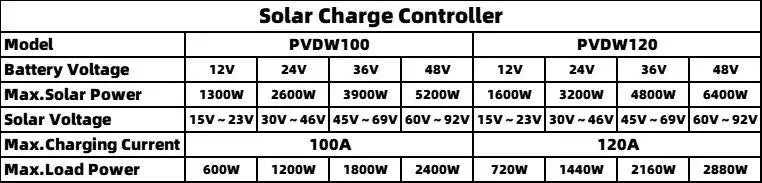

Whole unit features overheating protection via temperature monitoring.

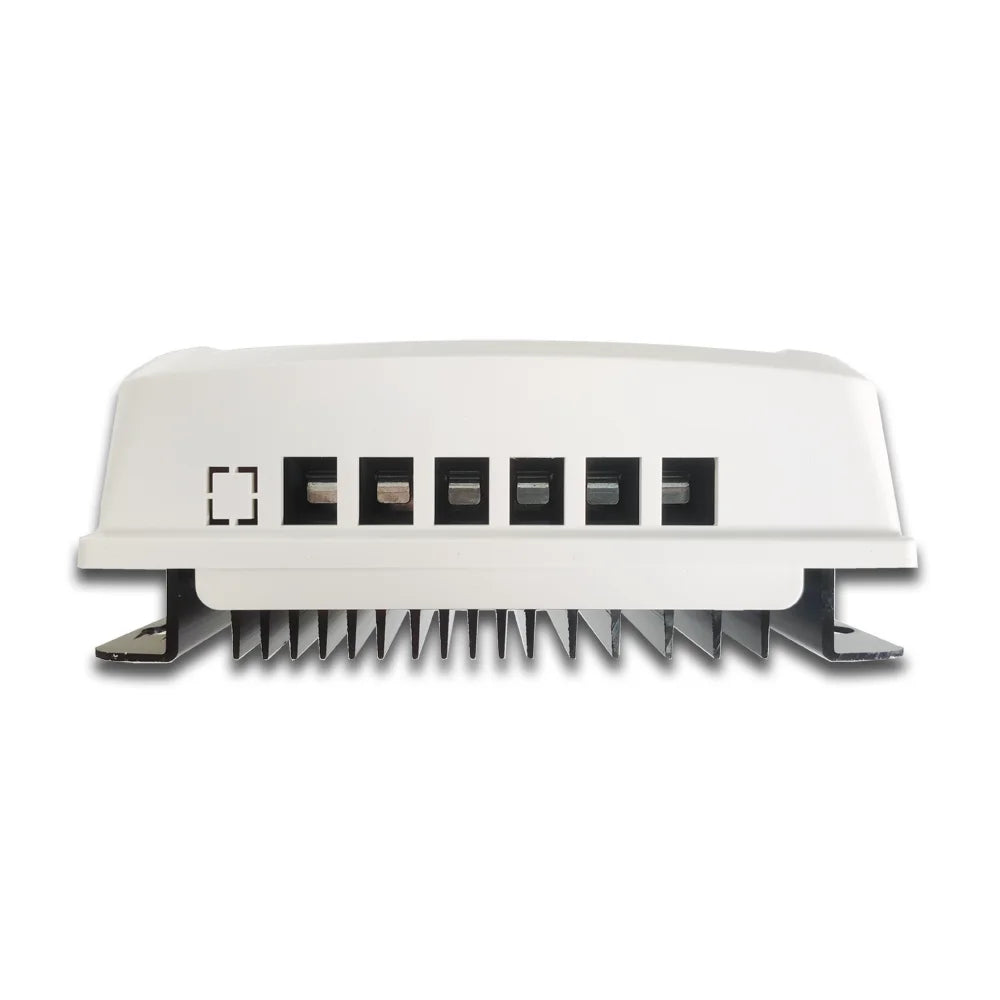

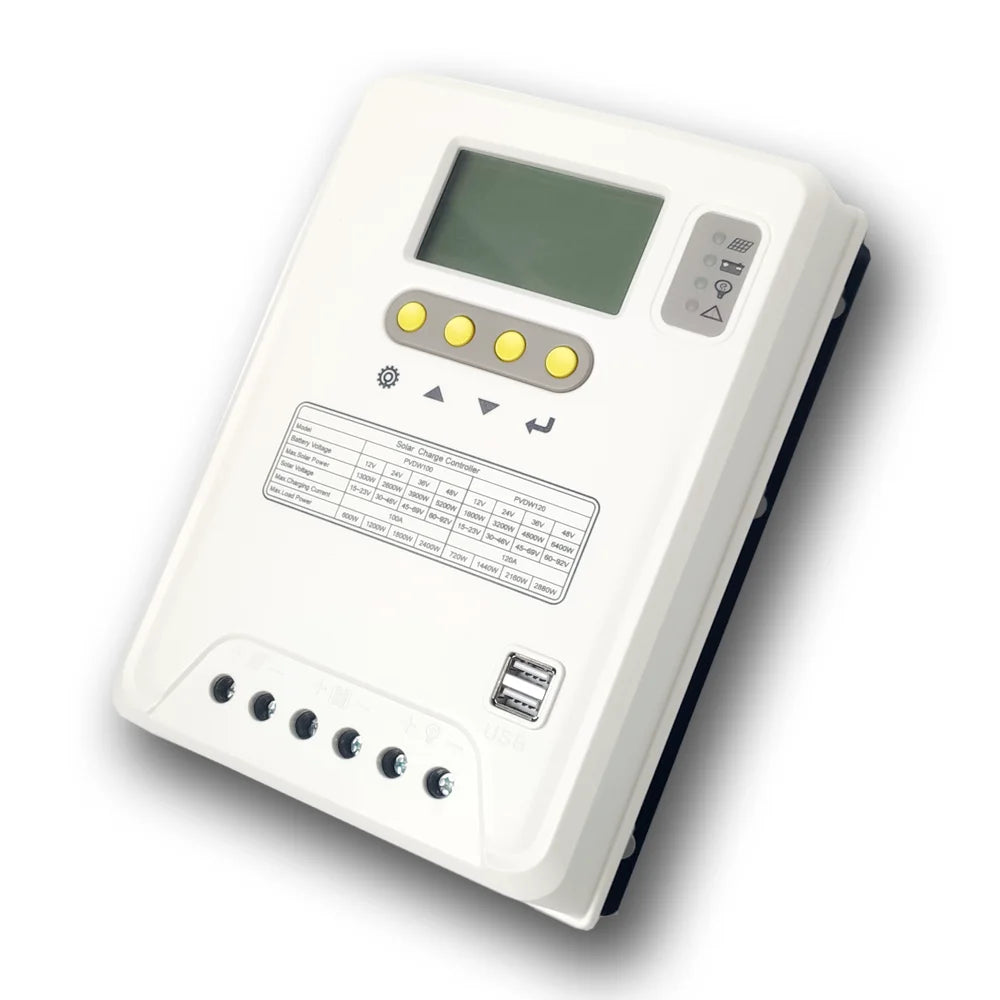

Use solar panels, not DC power supplies, to charge controllers for reliable and efficient performance.Prevent overloading by staying within the rated discharge current capacity to ensure safe and efficient charging.Smart charger detects and charges 12V to 48V lead-acid batteries.Solar charger with advanced safety features and LCD display.
Safety Instructions
① Get the tools and cables ready,Select the appropriate cable to ensure that the current desity is ≥6A/mm².
② This controller will be heat when working.Please install the controller in a well ventilated environment.
③ When wiring, connect all connecting wires of the battery first, and then connect other connecting wires.
④ Don't connect with solar panels that exceed the rated charging current of the controller.
⑤ Don't load too much that exceed the rated discharge current of the controller.
⑥ Please do not use AC/DC switching power supply instead of sloar panel to connet the controller.
⑦ The disassembly sequence of the circuit is opposite tothe wiring sequence.
⑧ The operation of solar panel must be 1.5 times of the battery grade voltage.

12V24V36V48V AUTO
