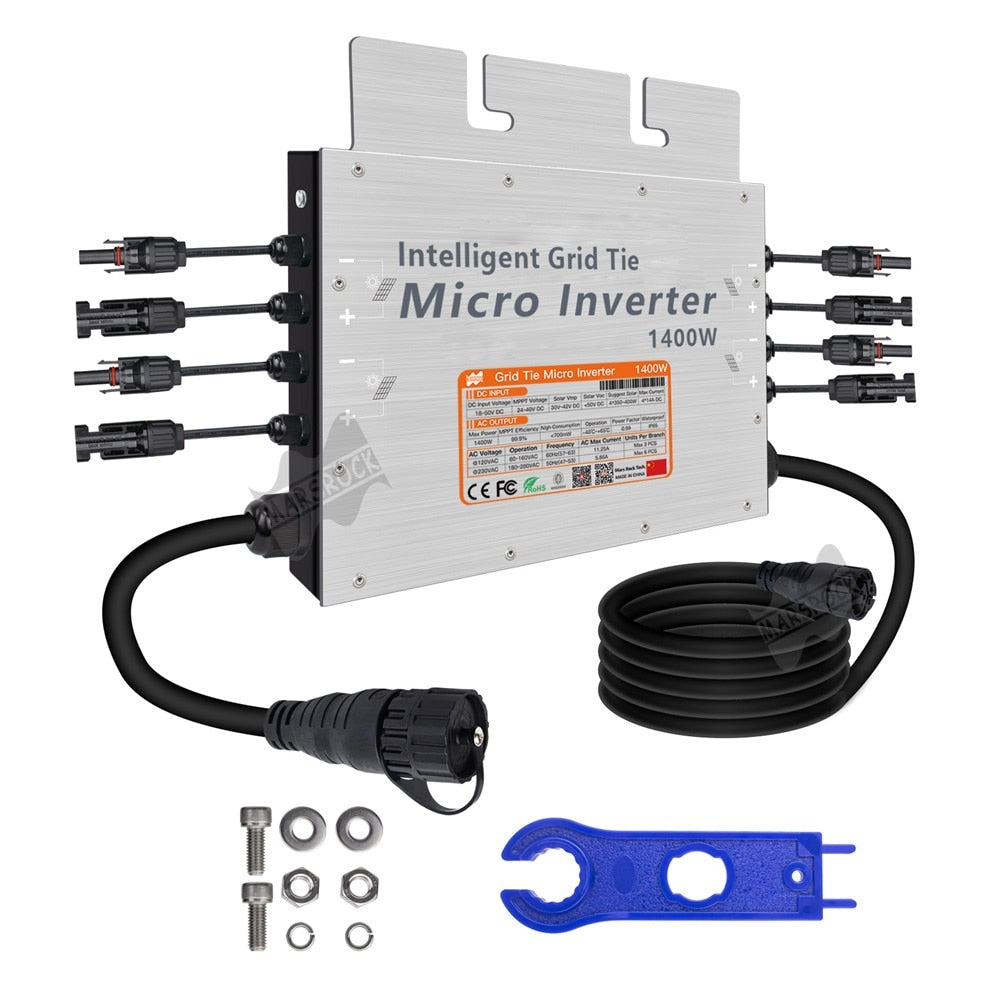

1400W IP65 Solar Grid Tie Micro Inverter Dual MPPT Microinverter Inversor 30V 36V DC 110V 220VAC For 4*300W or 350W Solar Panel
1400W IP65 Solar Grid Tie Micro Inverter Dual MPPT Microinverter Inversor 30V 36V DC 110V 220VAC For 4*300W or 350W Solar Panel
43 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Weight: 2.5kg
Waterproof Grade: IP65
Size: 250mm x 230mm x 38mm
Rated Output Power: 1350W
Output Type: Single-Phase Grid Type
Output Power: 1400W(Maximum)
Output Frequency: 50Hz/60 Hz
Output Current: 11.25A/ 5.86A
Origin: Mainland China
Operation Voltage Range: 18V-50V
Number of Input MC4 Connector: 4 set
Nominal Output Voltage: 120VAC/230VAC
Nominal Output Frequency: 50Hz/60 Hz
Nominal Output Current: 11.25A/5.86A
Model Number: EC1400
Maximum Units per Branch: 120VAC by 3 units or 230VAC by 6 units
Maximum Input Power: 4*350W
Max Current of AC Bus Cable: 40A
MPPT Voltage Range: 24V-40V
Is Smart Device: YES
Default Output Voltage Range: 80V-160V or 180V-280V
Cooling Mode: Natural Convection - No Fans
Communication(Inverter to DataBox): 2.4G Wireless
Certification: CE,FCC,RoHS
Related Products

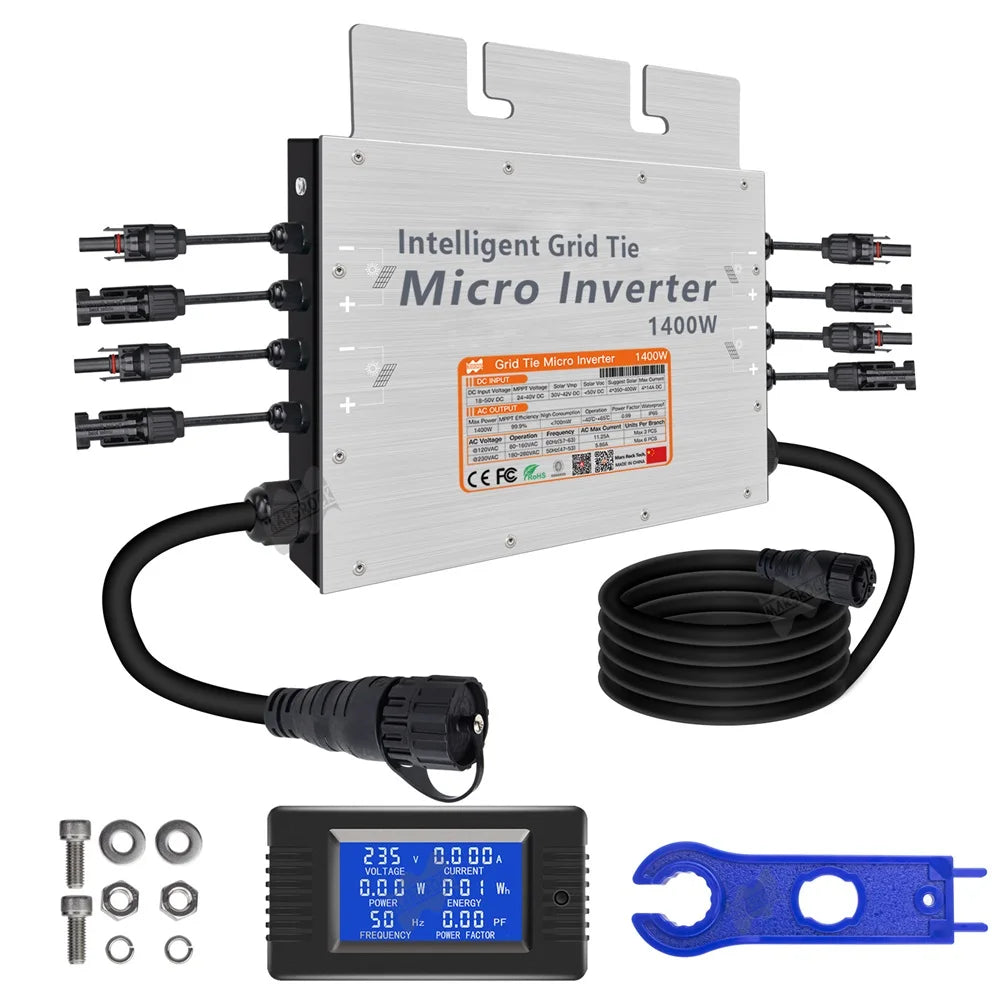

Product Description
Intelligent grid tie micro inverter for 350W solar panels, featuring 1400W power output, IP65 waterproof rating, and dual MPPT tracking. Supports 30V-36V DC input and 110V-220V AC output.
Single unit connects up to two PV modules: Maximum 700W AC output power
Single-phase output, Flexible 3-phase PV systems
2.4G wireless communication and monitoring
Up to 7 units (230V) per branch
Customizable various input (DC, PV) voltage range
Integrated AC bus cable, Ready-To-Use
Low cost, Easy installation

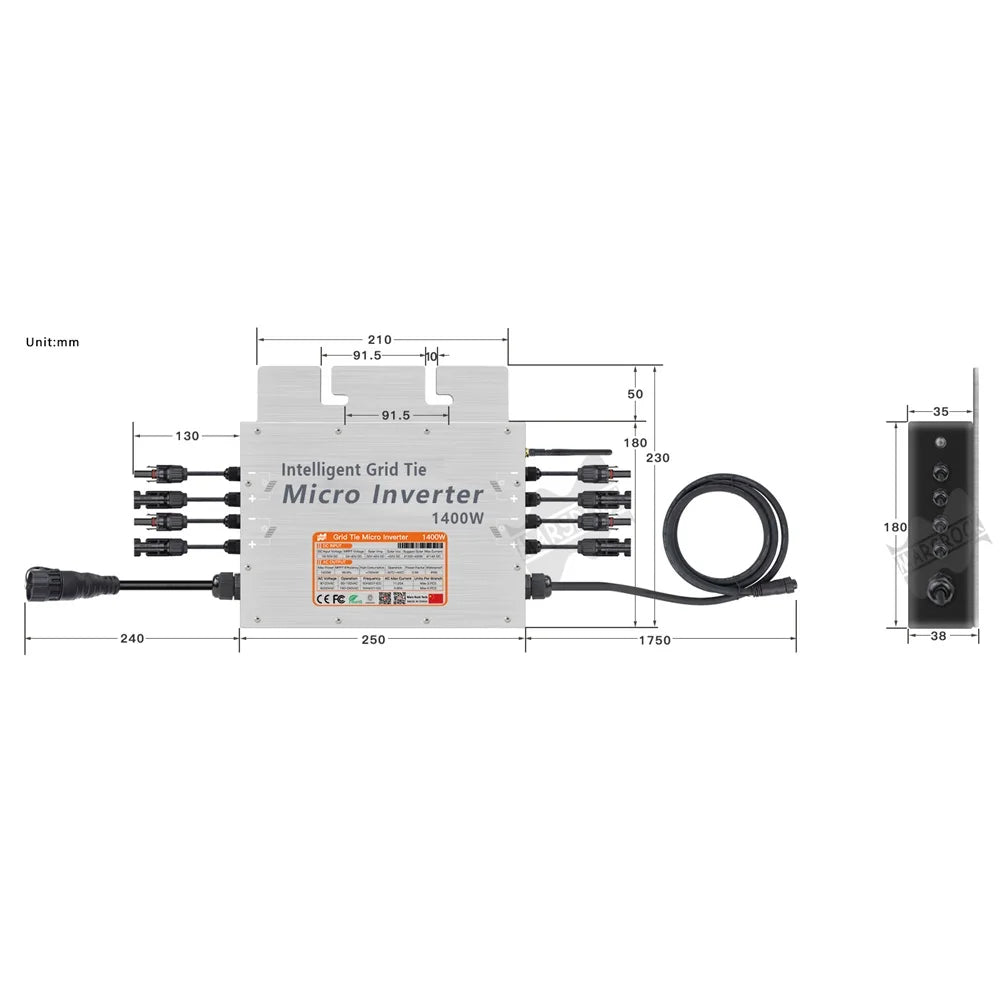

Intelligent Grid-Tie Micro Inverter, 1400W, IP65, suitable for 4 x 300W or 350W solar panels, with dual MPPT and outputting 110V-220V AC. Dimensions: 210mm x 91.5mm (height).
Product Parameters
Model |
EC700 |
EC1400 |
||
Input Data | ||||
Recommend Solar |
2*350W |
4*350W |
||
Start-Stop voltage |
18~50V DC |
18~50V DC |
||
Reccommend PV (Voc) |
24~50V DC |
24~50V DC |
||
MPPT |
24~40V DC |
24~40V DC |
||
Maxi Input Current |
2*14A |
4*14A |
||
Output Data | ||||
Max Output |
700W |
700W |
1400W |
1400W |
Continuous output |
650W |
650W |
1350W |
1350W |
Rated voltage |
120V |
230V |
120V |
230V |
AC workable scope |
80-160V |
180-260V |
80-160V |
180-260V |
Rated output current |
5.4A |
2.8A |
11.25A |
5.86A |
Max units per branch |
4PCS |
7PCS |
3PCS |
6PCS |
Rrequency |
Auto switch 50/60Hz(47.5-62.5Hz) |
|||
Output Efficiency | ||||
Static MPPT |
99.90% |
|||
Power factor |
>99% |
|||
Max output |
95.00% |
|||
CEC Weighted |
@120V:92.5% |
|||
Self consumption |
<700mW |
|||
THD |
<5% |
|||
Exterior | ||||
Ambient temperature |
- 40℃to +65℃ |
|||
Operating temperature |
- 40℃to +85℃(inverter inside) |
|||
Dimensions（W×H×D） |
250X230X38mm |
|||
Weight |
2.5kg |
|||
AC Cable withstand max current |
40A |
|||
Waterproof Rating |
IP65 |
|||
Cooling |
Self-cooling |
|||
Feature | ||||
Communication |
2.4G wireless(Inverter to DataBox) |
|||
Isolation |
High frequency transformer isolation |
|||
Power transmission |
Reverse transfer, load priority |
|||
Monitoring System |
Lifetime free |
|||
Protection |
Islanding,Over-temperature,Over / low AC & AC voltage |
|||
Design Standard | ||||
Electromagnetic compatibility |
EN50081.part1EN50082.part1 |
|||
Grid disturbance |
EN61000-3-2 Safety EN62109 |
|||
Grid detection |
DIN VDE 1026 UL1741 |
|||
Certificate |
CE, RoHs, FCC |
|||

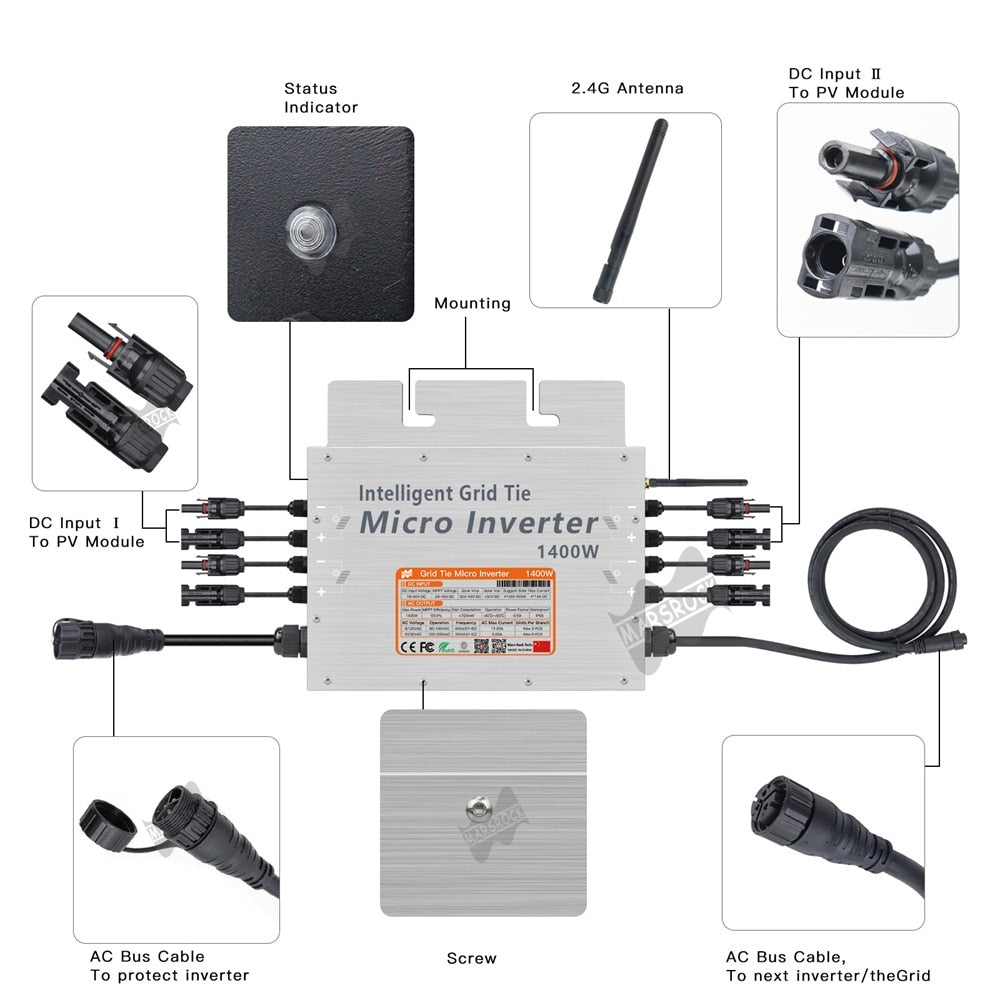

Details Images

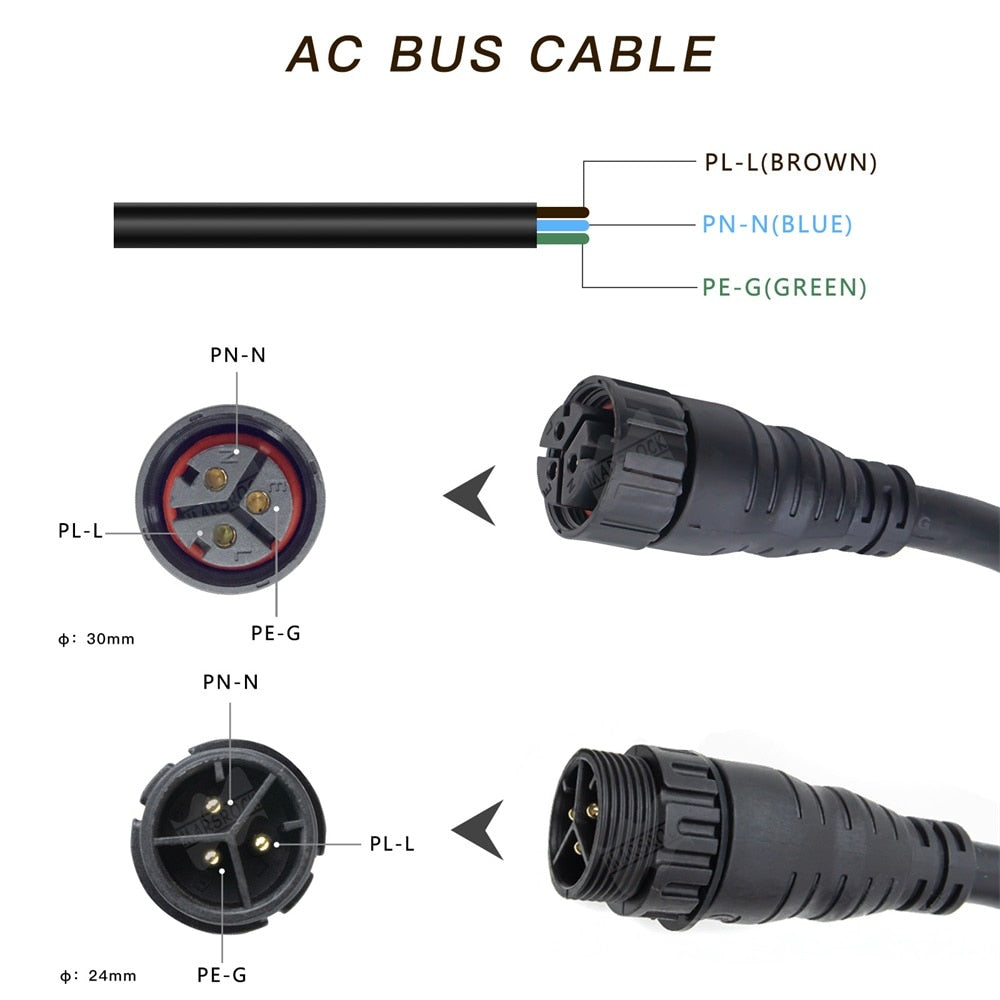

Ac Bus cable features brown (PL-L), blue (PN-N), and green (PE-G) wires. The cable has a diameter of 30mm for the main conductor and 24mm for the grounding wire.

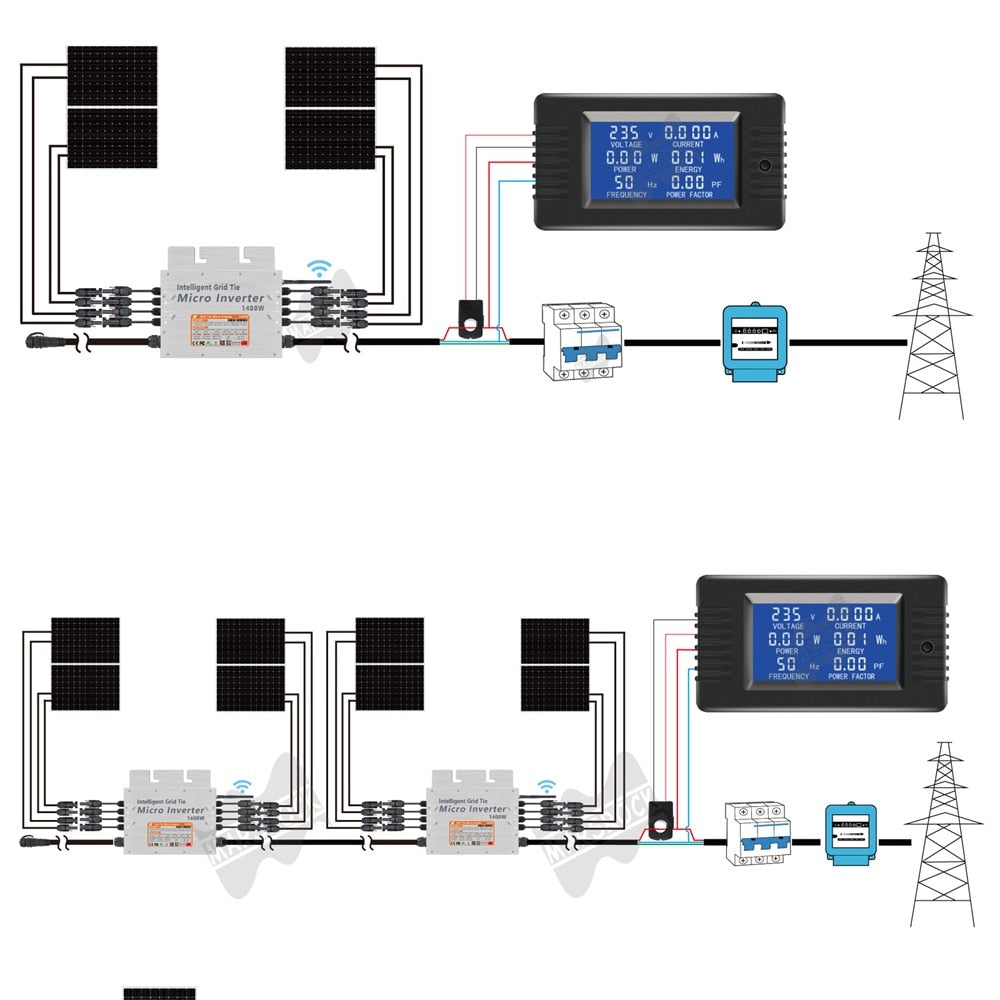

Installation Schematic
1.Single-Phase 120V
EC1400 Series @Single-Phase 120V grid, Maximum3 unitsEC1400 Microinverters per branch.
2. The max DC input power of each inverter is1400W(the PV module max output power is 4*350W).
3. TheVOCof PV modules should not be greater than the max DC input voltage of Microinverters.

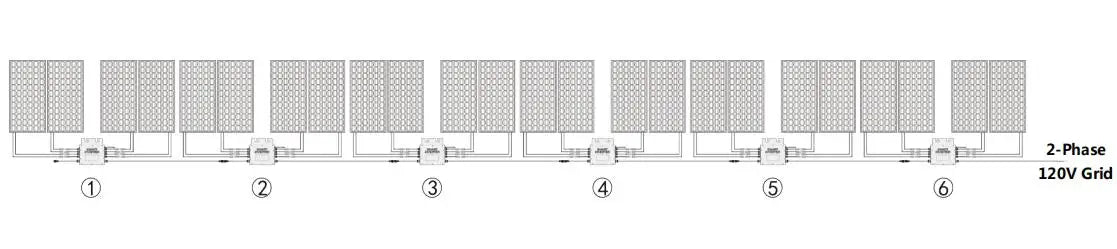

2.Two-Phase 208/240V(Single-Phase 120V)
EC1400 Series @2-Phase 208/240V grid, Maximum 6 unitsEC1400Microinverters per branch.
2. The max DC input power of each inverter is1400W(the PV module max output power is 4*350W).
3. TheVOCof PV modules should not be greater than the max DC input voltage of Microinverters.

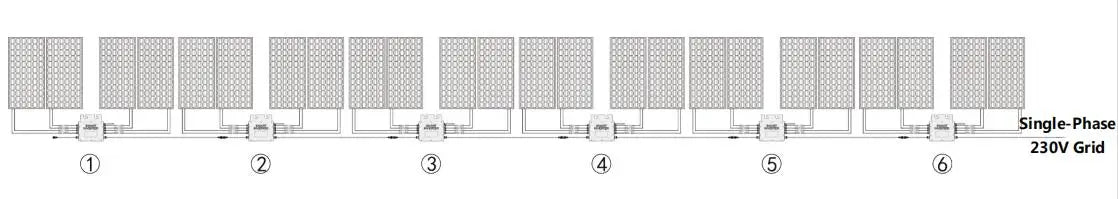

3.Single-Phase 230V
EC1400 Series @Single-Phase 230V grid, Maximum 6 unitsEC1400Microinverters per branch.
2. The max DC input power of each inverter is1400W(the PV module max output power is 4*350W).
3. TheVOCof PV modules should not be greater than the max DC input voltage of Microinverters.
Wiring Schematic

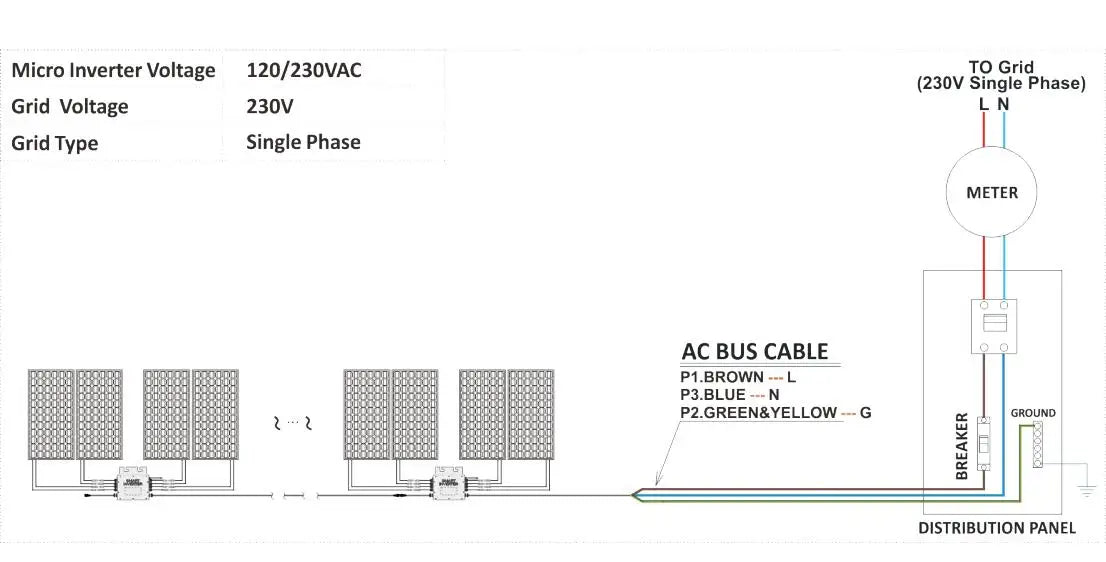

1. Single-Phase 230V
This micro inverter features grid-tied technology, outputting 230V single-phase voltage to the grid. It's designed for use with a standard AC bus cable and includes metering capabilities. The unit is compatible with grid voltages up to 230V.

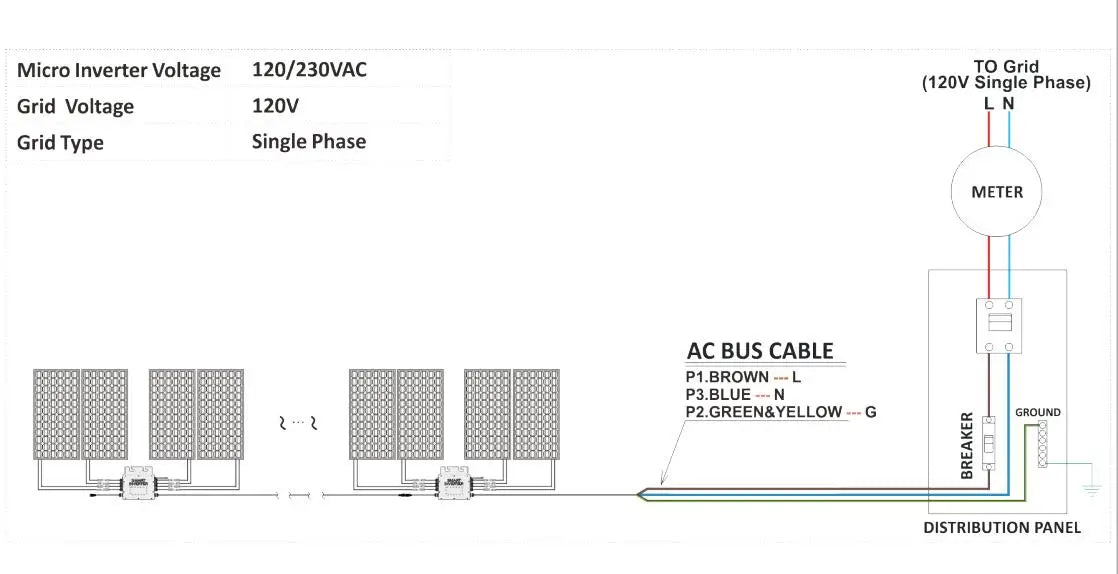

2. Single-Phase 120V
This micro inverter operates on a single-phase grid voltage of 120V AC, with an output range of 120V L-N. It features a meter AC bus cable with distinct color-coded wires (P1: brown, P3: blue, P2: green/yellow for ground) and is suitable for distribution panels.

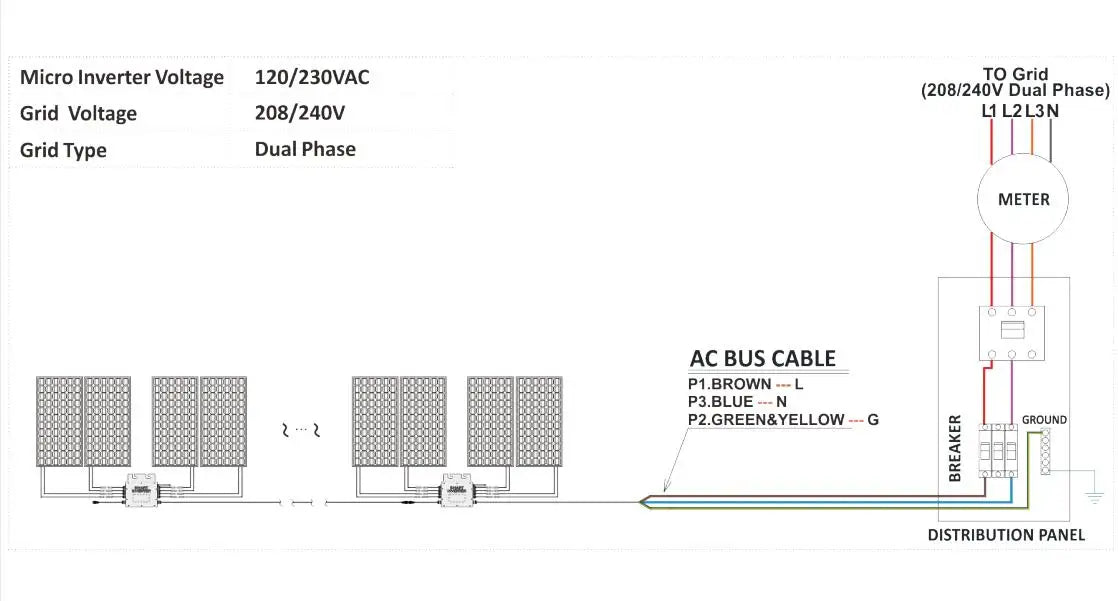

3.Two-Phase 208/240V(Single-Phase 120V)
This micro inverter converts DC power from your solar panels to 120/230VAC, compatible with dual-phase grid voltage (208/240V). It also features a meter AC bus cable and color-coded P1, P3, Z, and GND wires for easy installation and connection to your distribution panel.

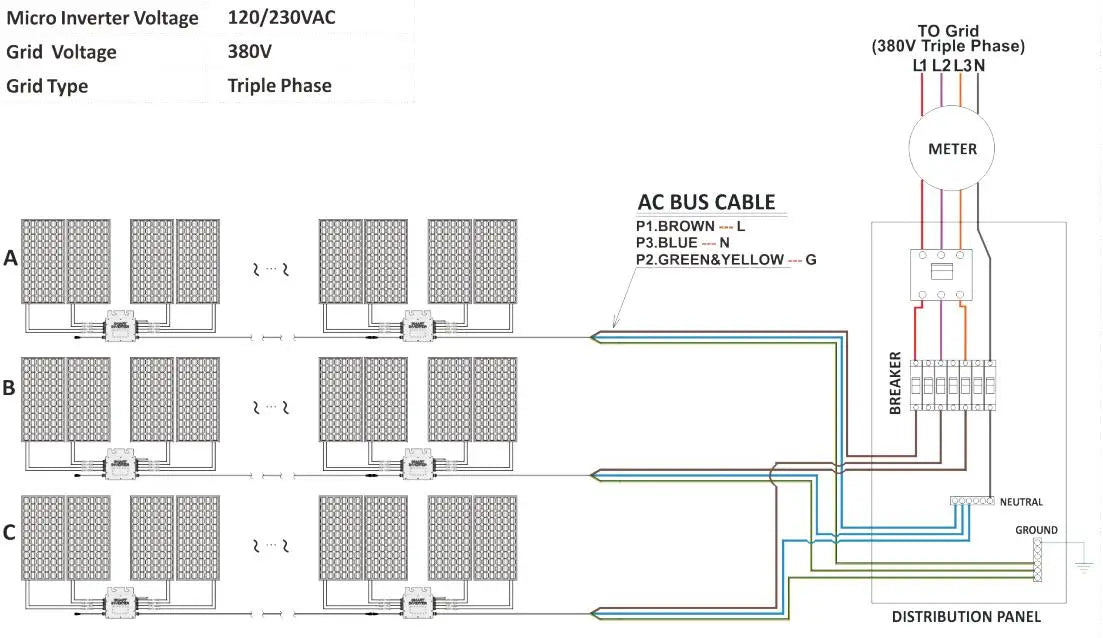

4.Three Phase 380V(Single-Phase 230V)
This micro inverter produces 120/230VAC output, synchronized with grid voltage (380V triple phase), and features metered AC bus cable connections labeled P1 (brown) for L1, P3 (blue) for L2, and PZ (green/yellow) for L3 and neutral ground distribution panel.

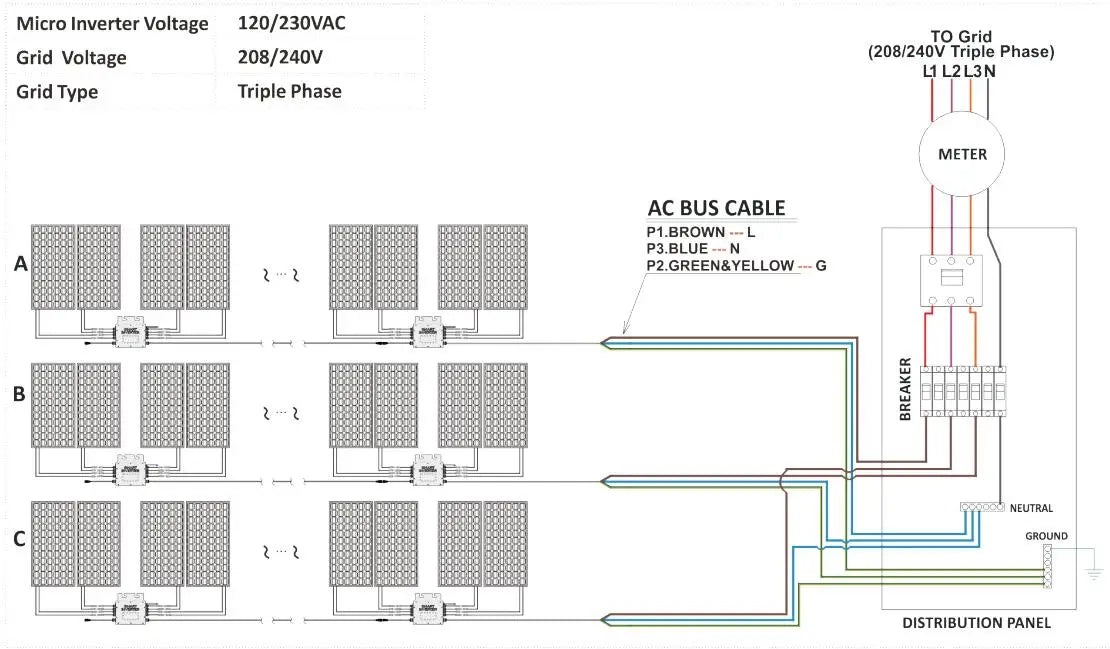

5.Three-Phase 208/240V(Single-Phase 120V)Ⅰ
This micro inverter supports grid tie voltage of 120/230VAC, with triple phase output for 208/240V grids (L1/L2/L3/N). It features a neutral ground distribution panel and includes an AC bus cable, meter, and PIBROWN/P3.BLUE/PZ GREEN&YELLOW components.

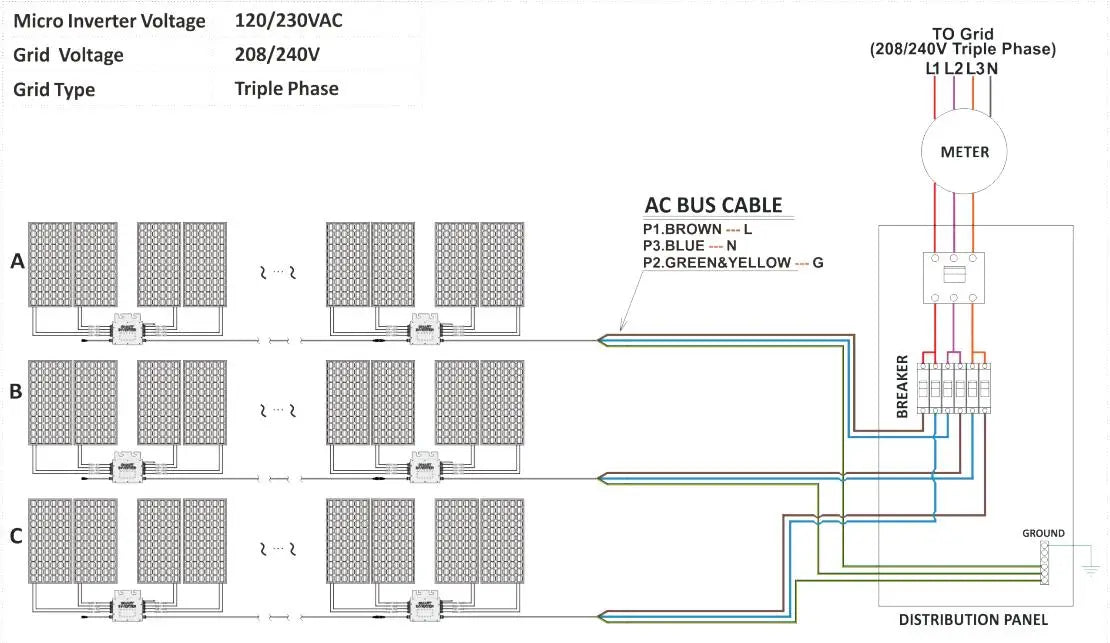

6.Three-Phase 208/240V(Single-Phase 120V)Ⅱ
This micro inverter supports grid tie voltage of 120/230V AC, matching with triple phase grid voltage of 208/240V (L1-L2-L3-N). It features an AC bus cable with P1 (brown), P2 (green&yellow) and P3 (blue) wires, as well as a ground distribution panel.

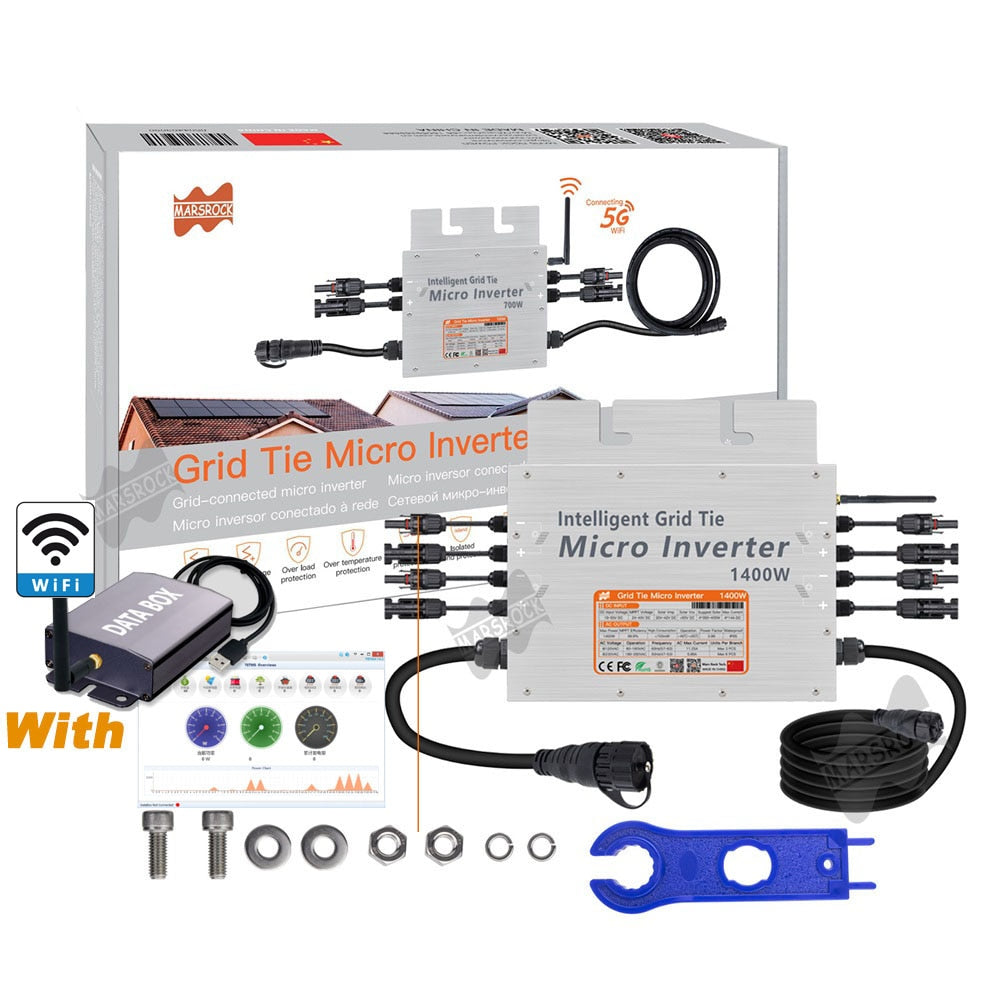

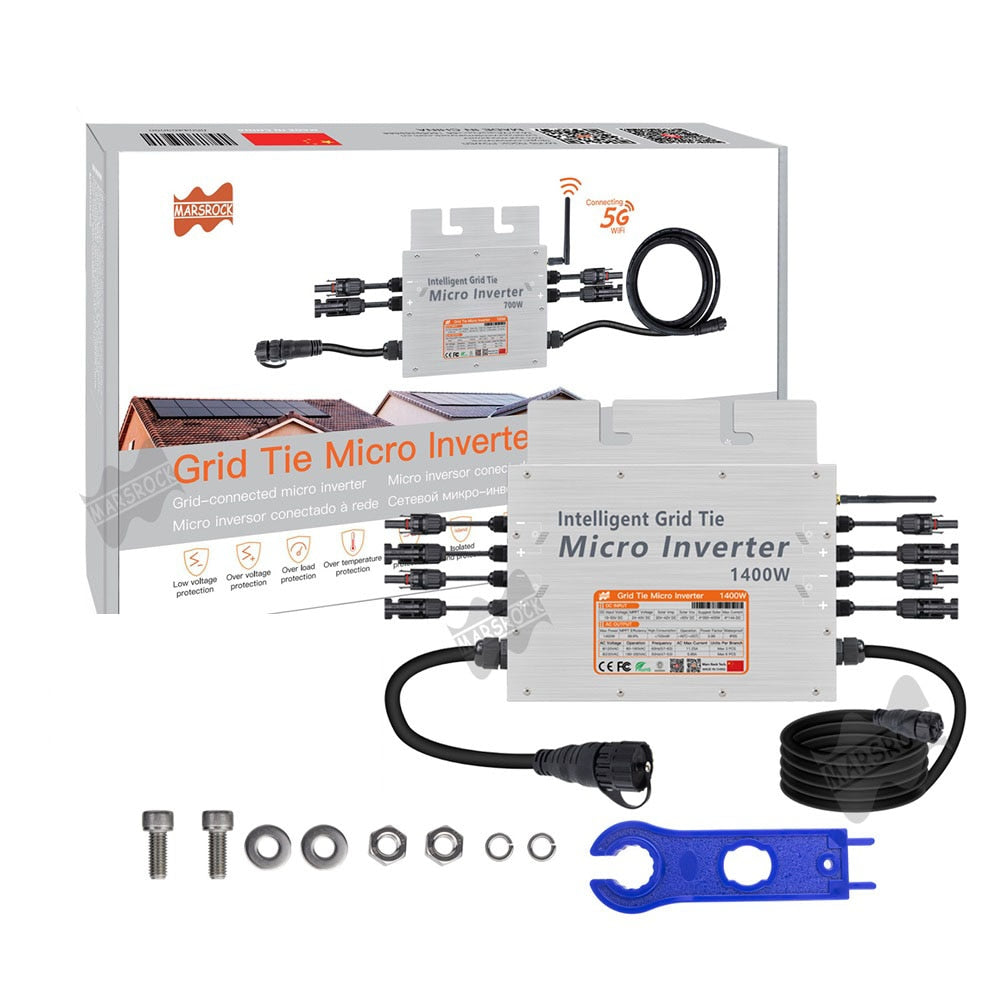

Product packaging:

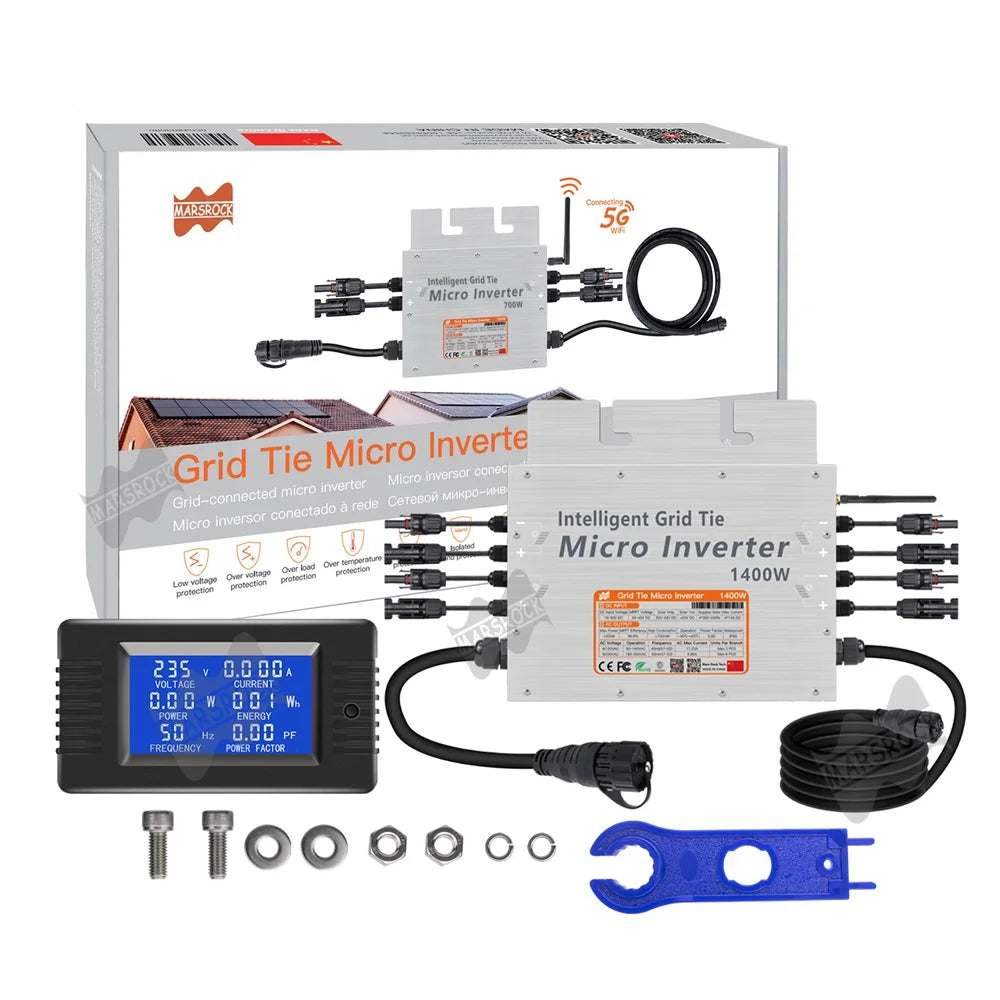

MARSROCH's Micro Grid Tie Inverter (1400W) is an intelligent, grid-connected solar power converter. With a maximum power output of 350W, it can support up to 4 x 300W or 350W solar panels. Key features include IP65 waterproofing, MPPT technology for efficient energy harvesting, and grid tie capabilities for feeding excess energy back into the grid. The inverter supports DC voltage ranges from 30V to 36V and AC output voltage of 110V/220V. It also features protection against overcurrent, overvoltage, and overheating.

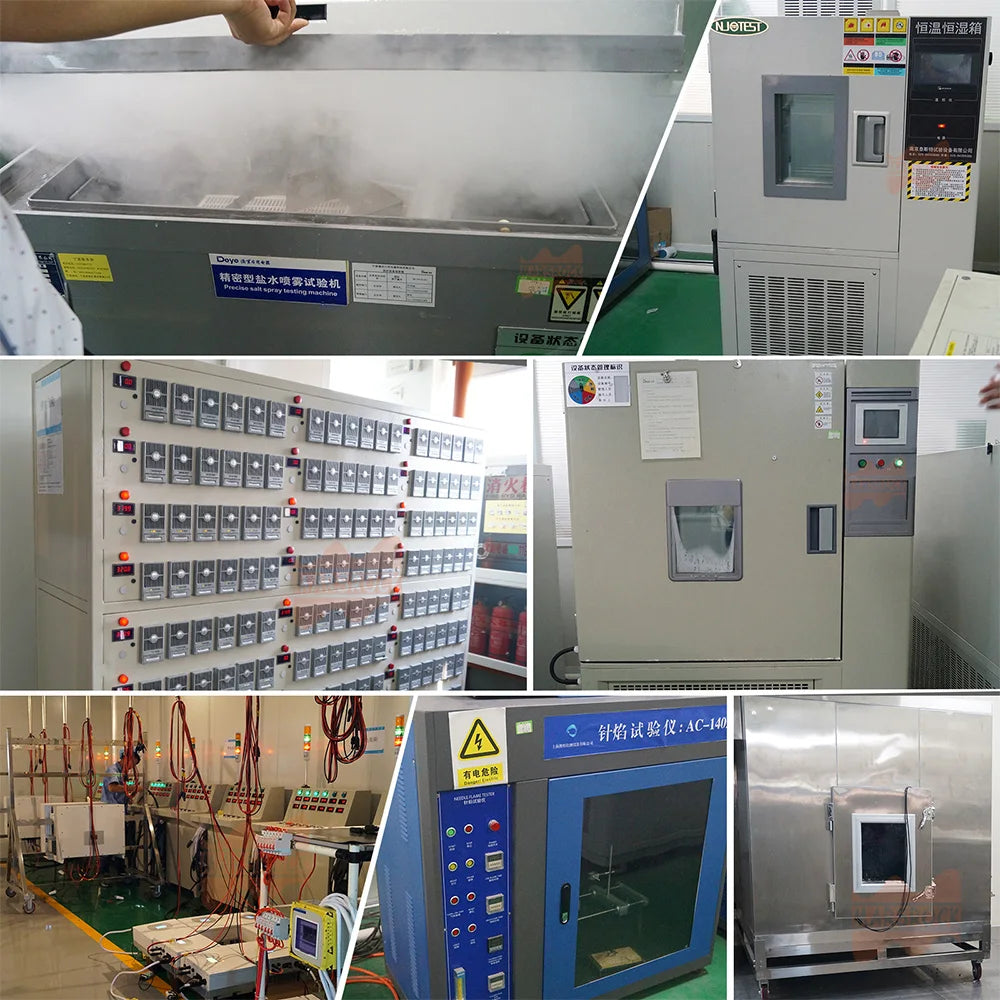

Product Testing Shows:
Solar Grid Tie Micro Inverter for 4x300W or 350W solar panels, with IP65 waterproof rating and dual MPPT technology. It supports DC input voltage of 30-36V and AC output voltage of 110-220V.
