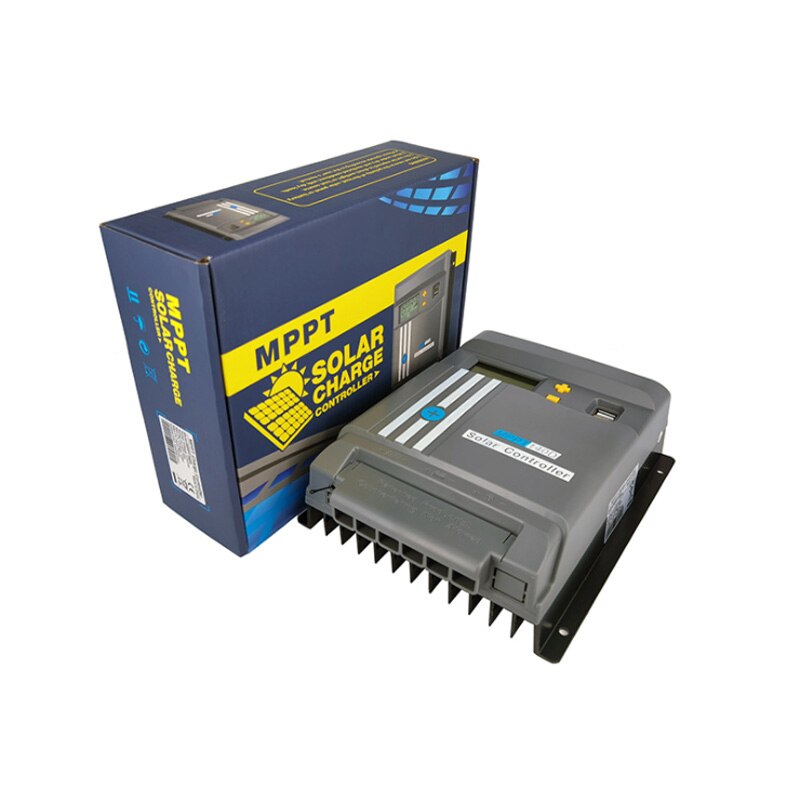

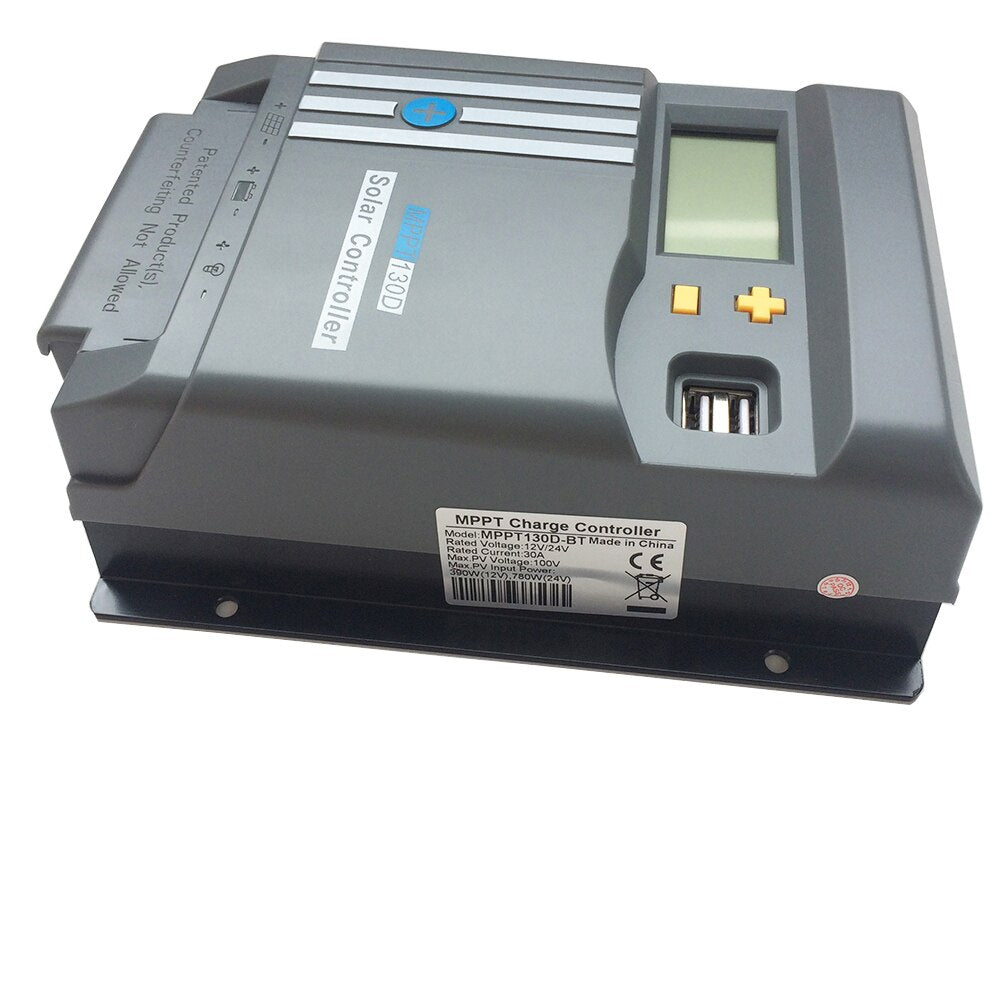

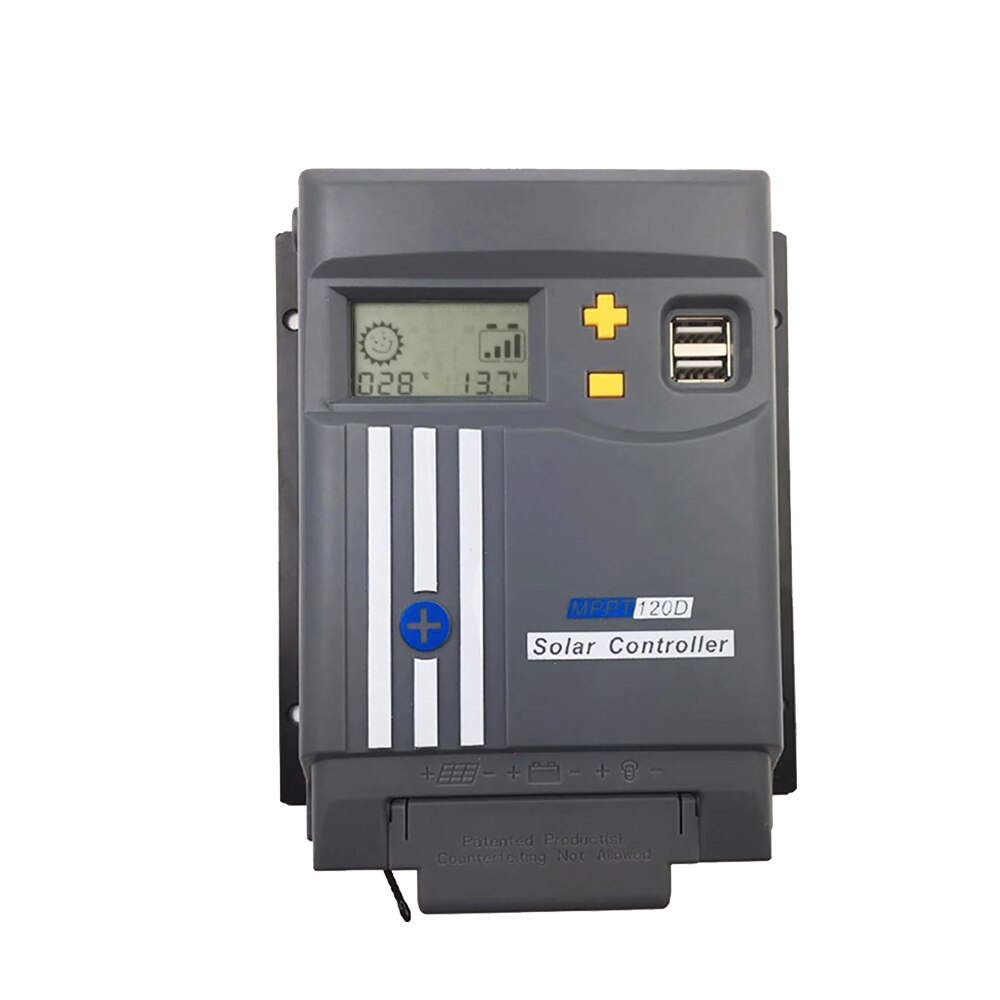

20A MPPT Solar Charge Controller with WiFi Bluetooth Device 12V/24V For Flood GEL LifePo4 Lithium Battery
20A MPPT Solar Charge Controller with WiFi Bluetooth Device 12V/24V For Flood GEL LifePo4 Lithium Battery
188 orders in last 30 days
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping:Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Warranty: 1 Year
System voltage: 12V/24V Auto.
Protection class: IP30
Origin: Mainland China

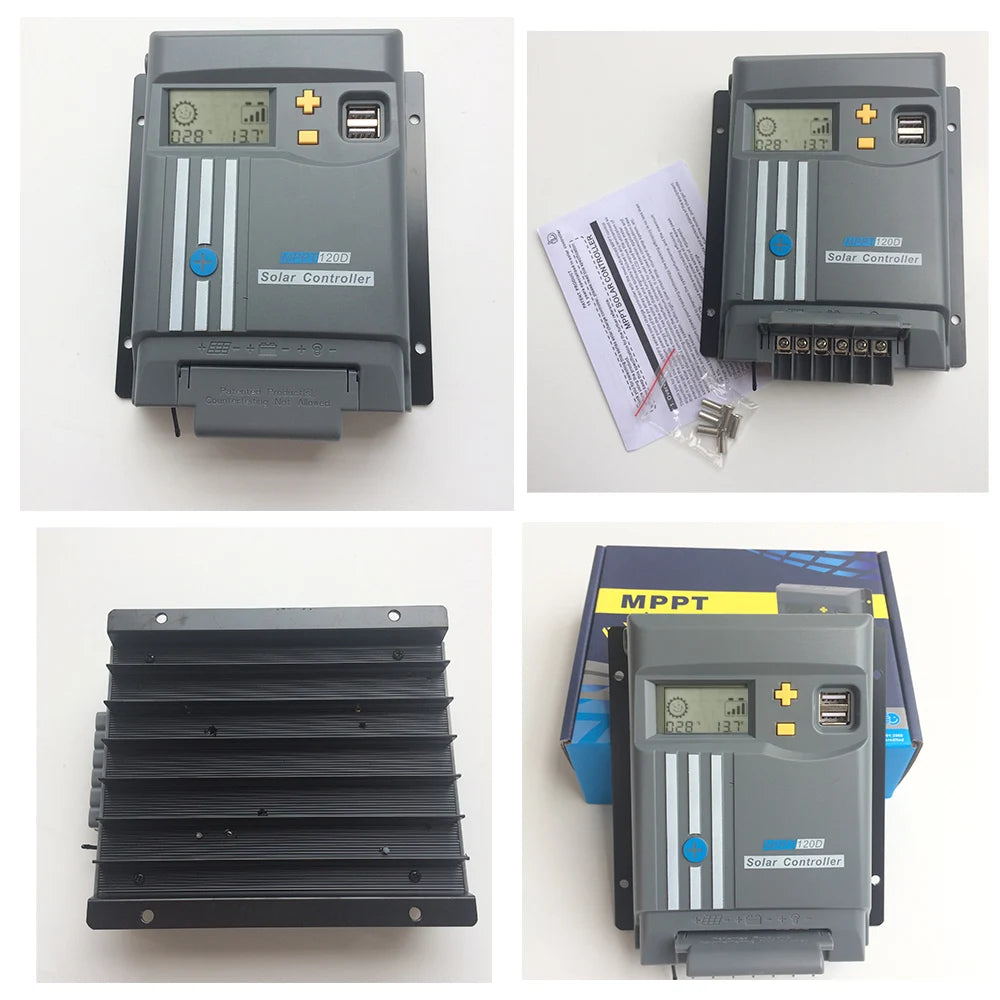

Model Number: MPPT120D
Maximum Current: 20A
Max.Solar Panel Input Power: 240W/480W
Max. PV voltage: 100V
Is Smart Device: YES
Certification: CE
Certification: CE
Battery voltage current: 20A
Battery type: Flooded,AGM,GEL,LifePO4,Lithium
Battery Voltage Range: 9V-32V
Application: Charger Controller,Voltage Controller,Solar System Controller,Solar Working Station
20A MPPT Solar Charge Controller with WiFi Bluetooth Device 12V/24V For Flood GEL LifePo4 Lithium Battery
MPPT1 series products adopts DC/DC converting technology and MCU technology. It can adjust the working point of the solar array intelligently to make the solar array realize the maximum power output.When the external condition changes,MPPT controller bases on the MCU theory to track the maximum working point of solar panels,this can improve the using efficiency of the solar panels and decrease the solar generating costs.Compared with PWM solar charge controllers,MPPT improve the output efficiency of solar panel by 5% to 30%(the output increasing proportion affected by the factors such as the attribute of solar panels,environmental temperature and lighting conditions).

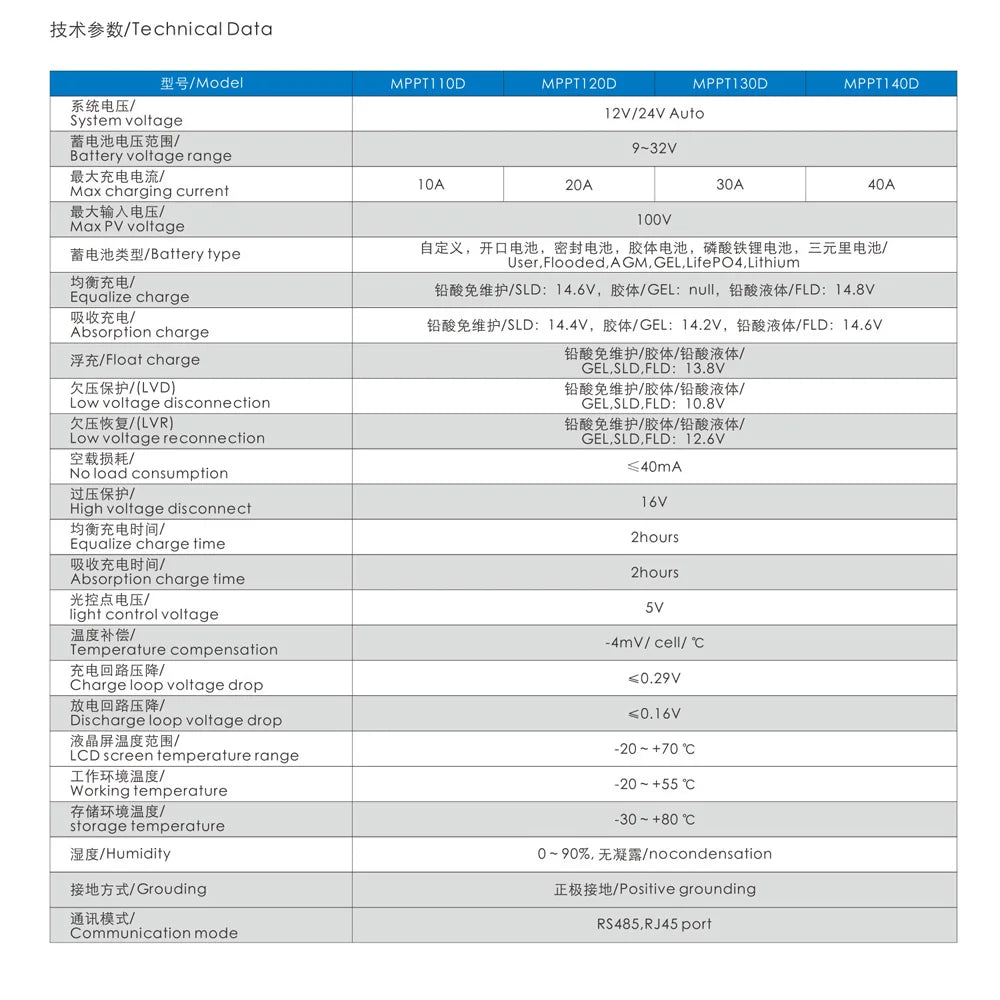

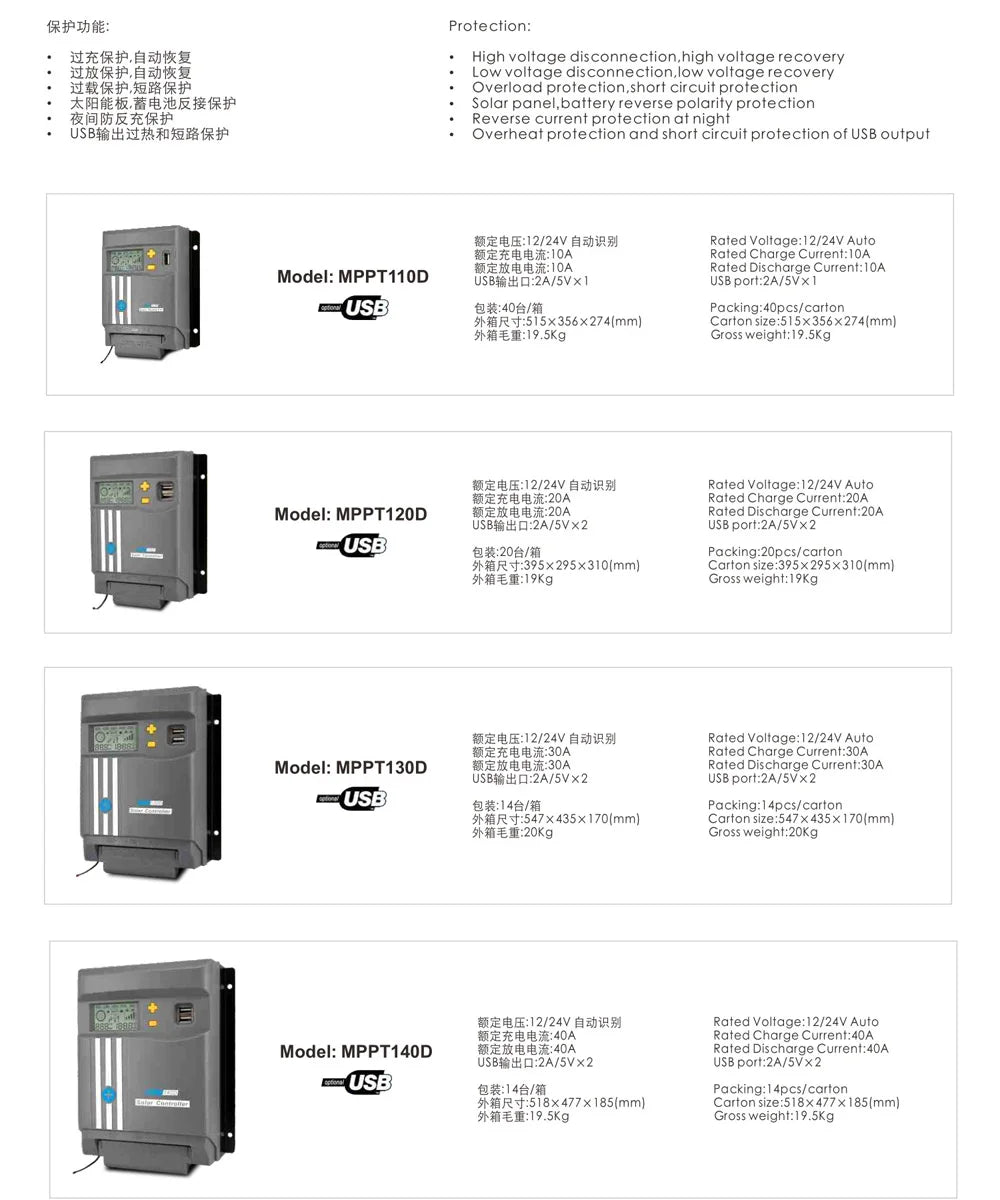

Model |
Battery Voltage |
Max solar panel input |
10A |
12V |
100V 120W |
24V |
100V 240W |
|
20A |
12V |
100V 240W |
24V |
100V 480W |
|
30A |
12V |
100V 360W |
24V |
100V 720W |
|
40A |
12V |
100V 500W |
24V |
100V 1000W |
1. Self-made algorithm,fast and accurate lock MPPT point,within 10 seconds,accuracy is greater than 99%,MPPT peck conversion efficiency 98%.
2. Four-stage charging:high current charing at MPPT points,float charging,absorption charging,equalized charging.
3.Used for lead-acid batteries/Gel batteries. Can be used for lithium battery(LiFePO4 battery,ternary lithium battery),when the lithium battery is low voltage protected,the battery can be activated.
4. External temperature sensor,accurate temperature compensation.
5. PV input maximum voltage:100V.
6. The system voltage is 12V/24V automatically identification.

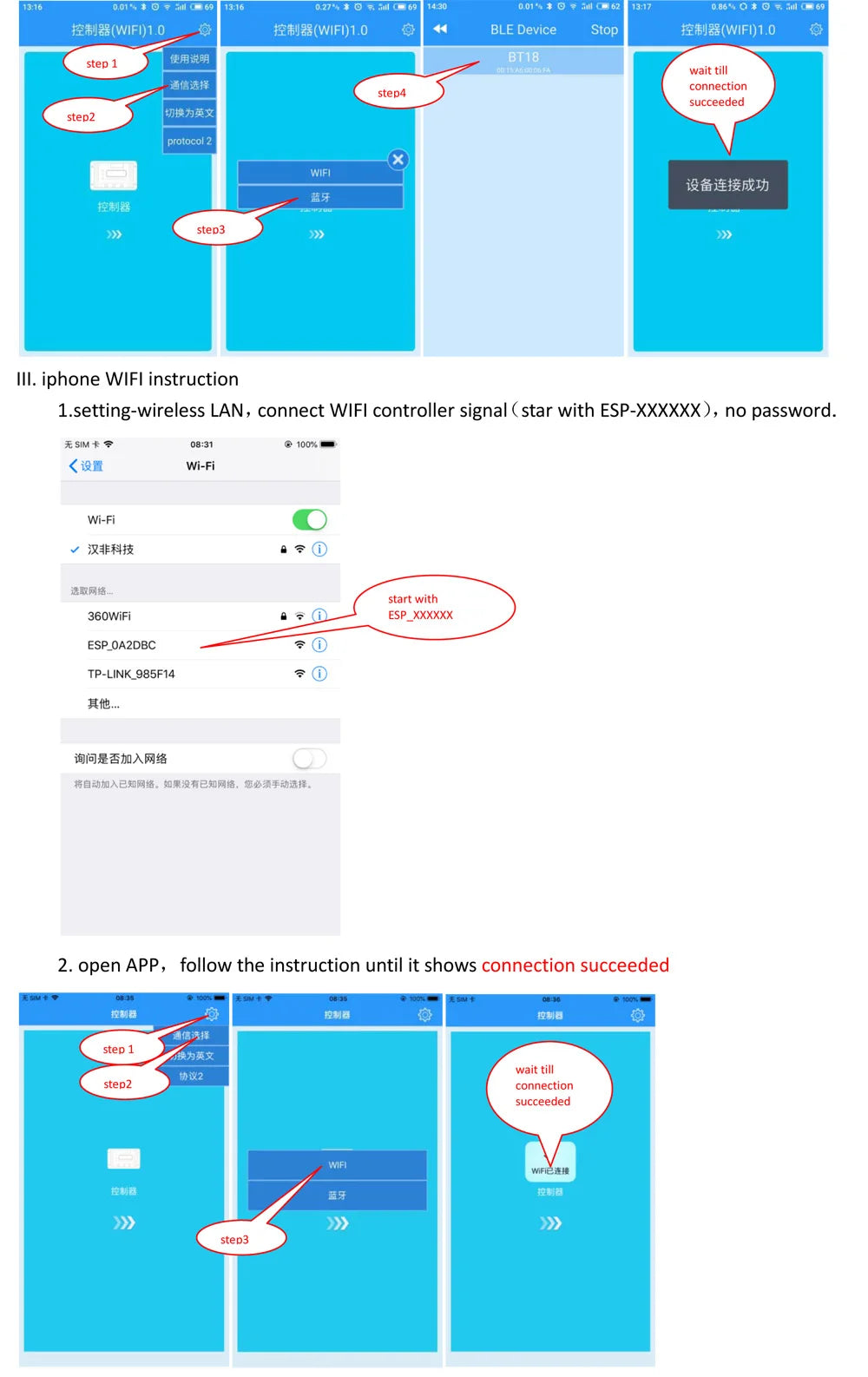

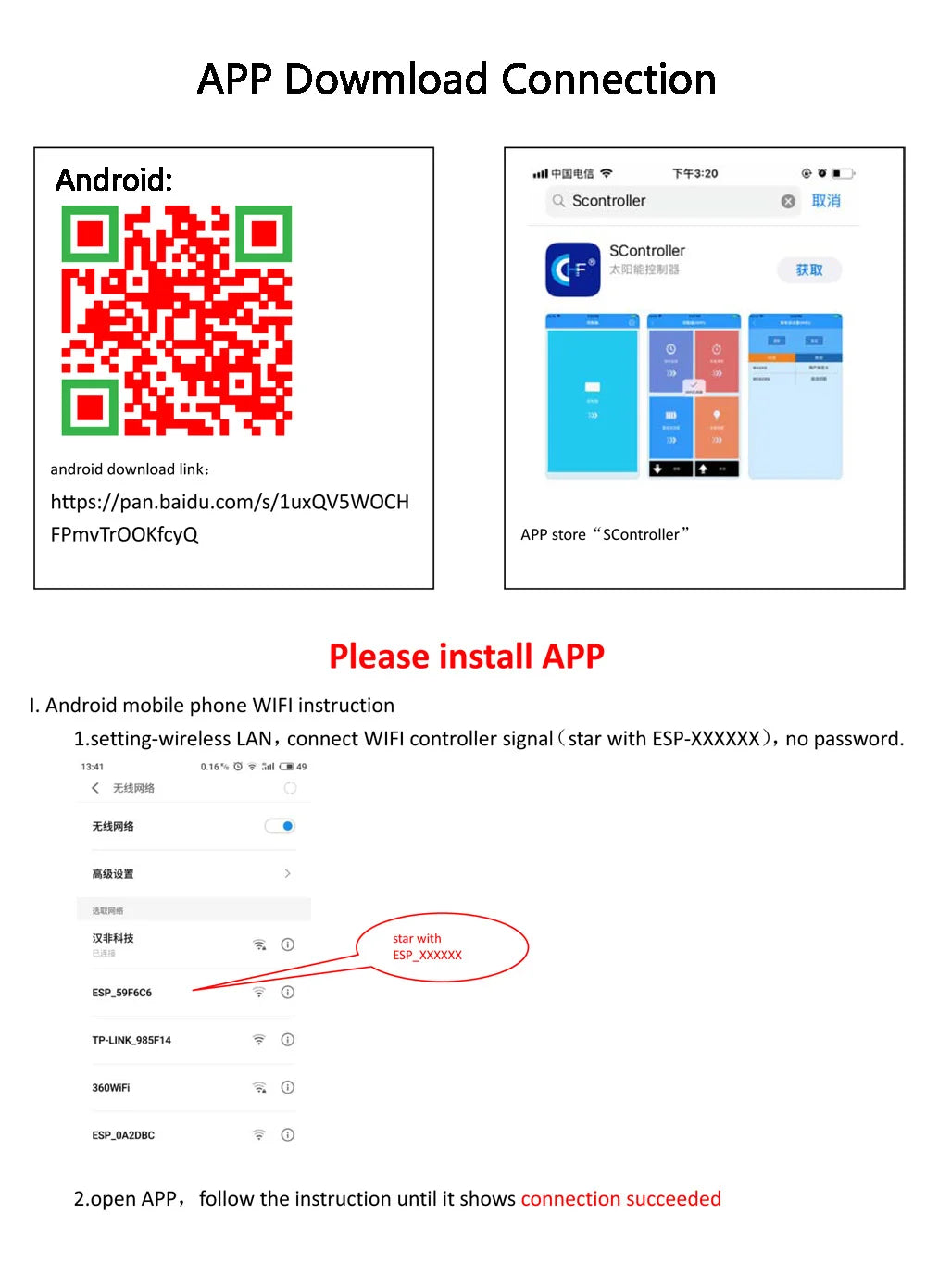

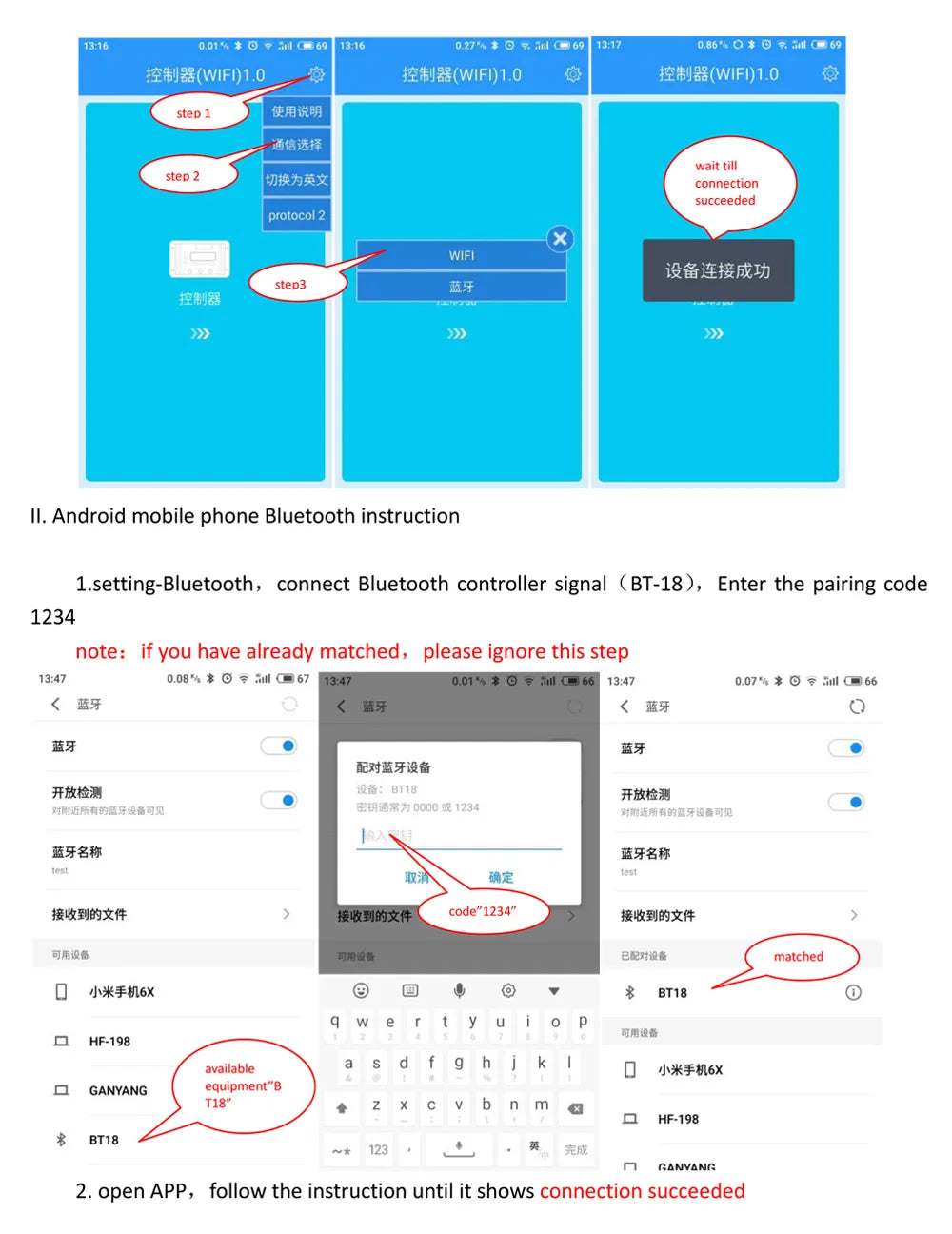

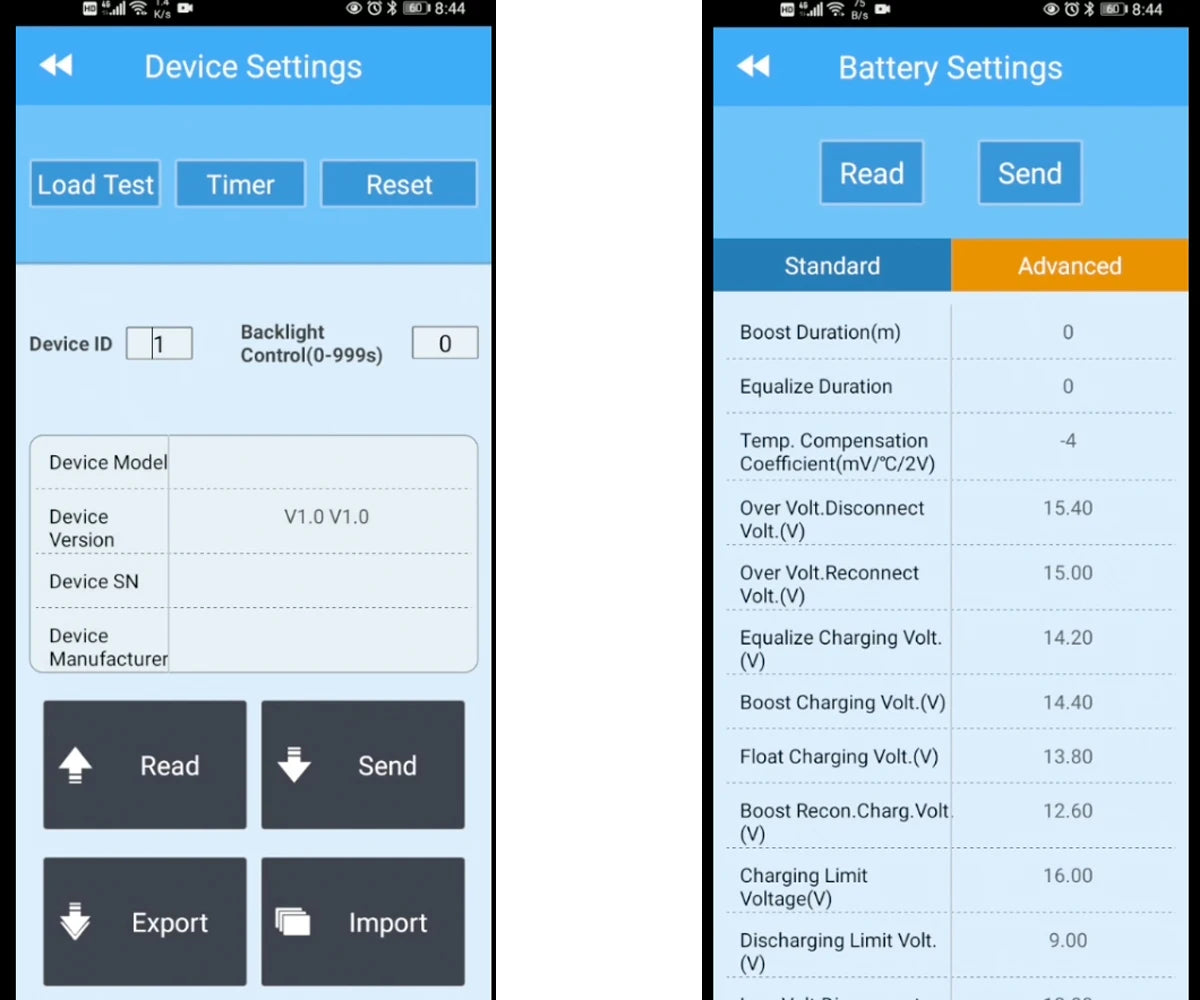

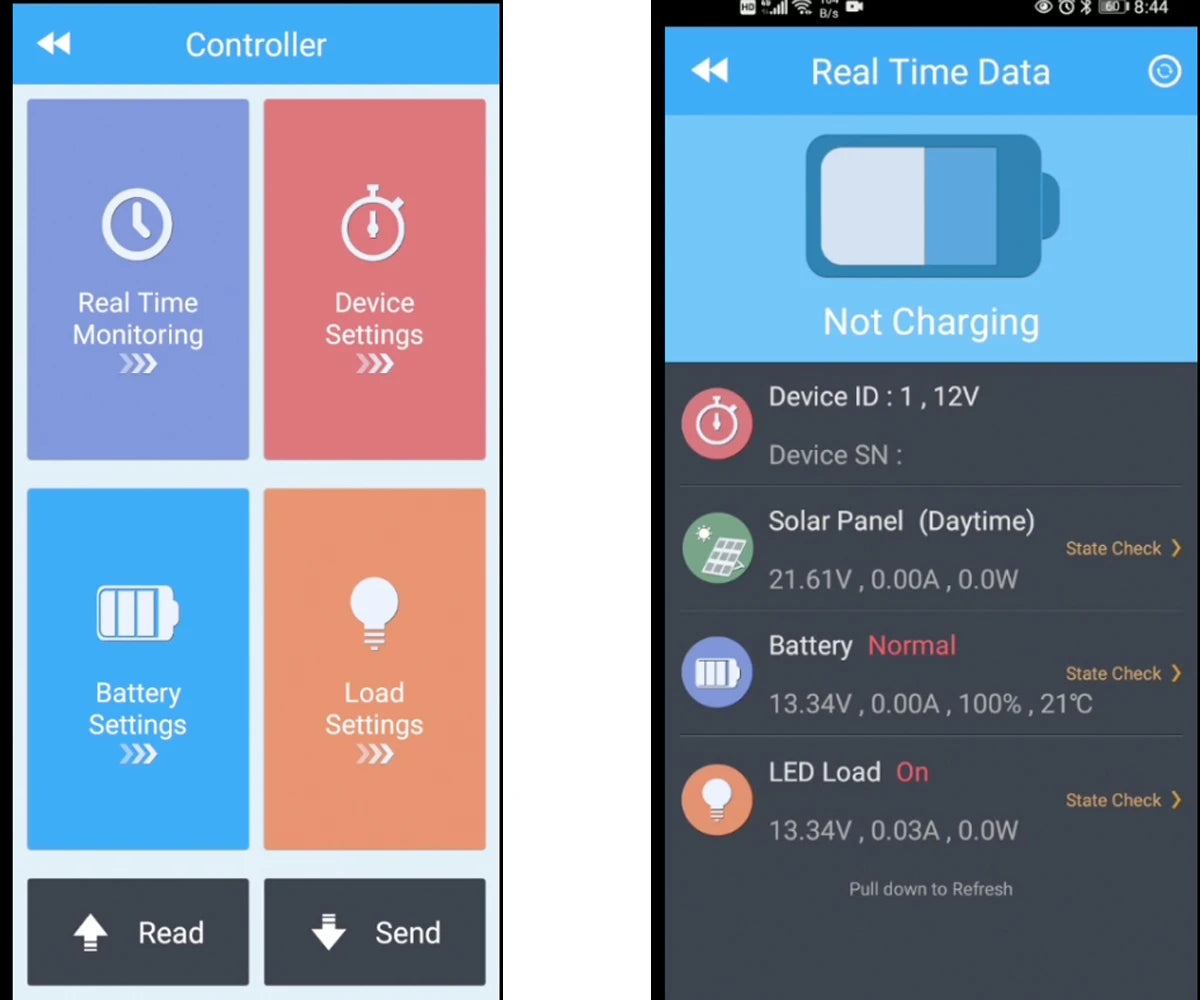

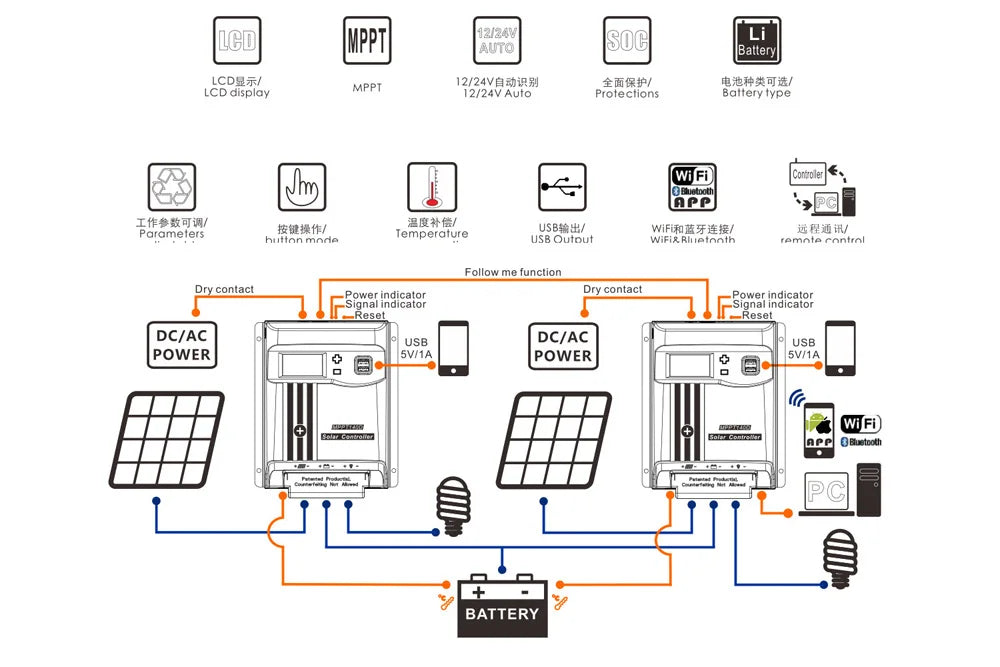

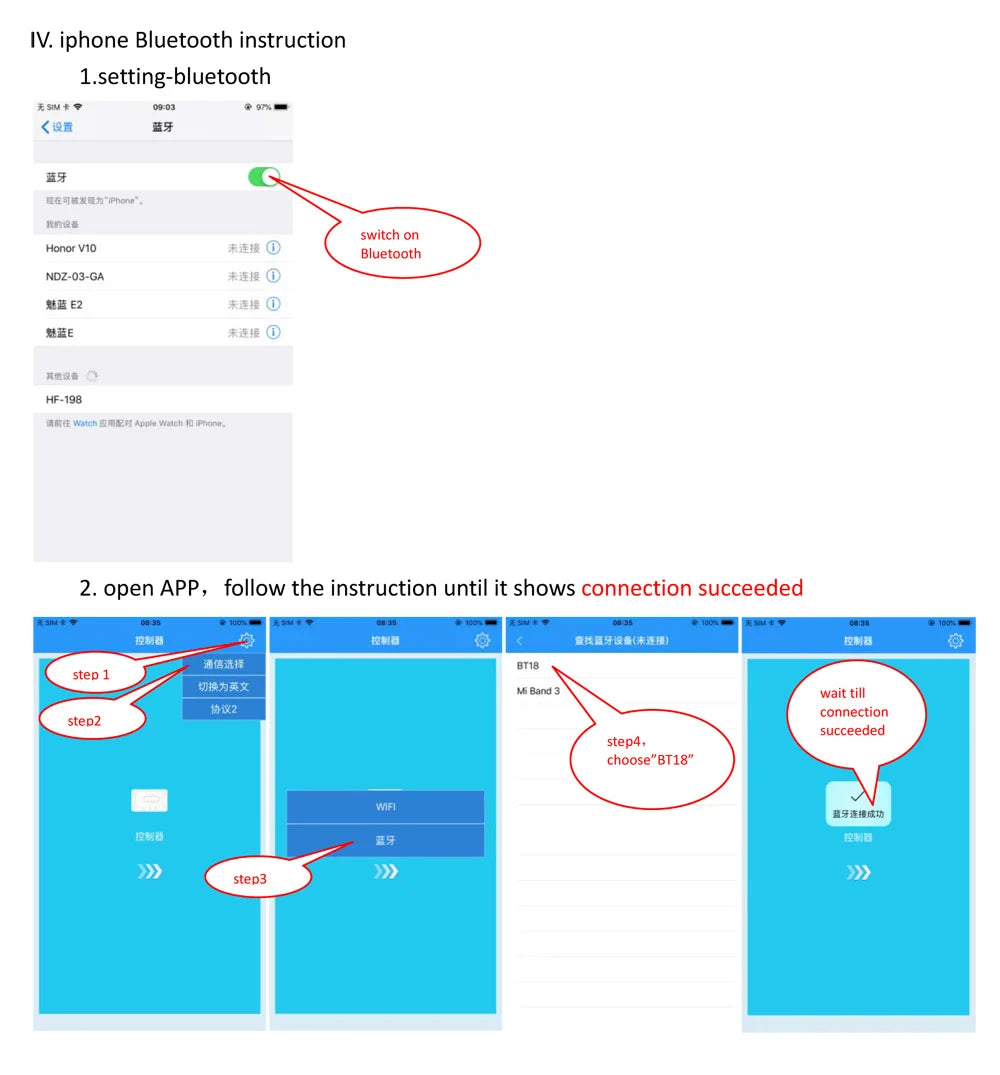

7. Communication function(with built-in or external WIFI,Bluetooth,GPRS module),providing standard MODBUS communication protocol.
