24h shipping 10A 20A 30A Solar Charge Controller 12V 24V Solar Panel PV Controller For Lifepo4 Lithium GEL Lead Acid Battery
24h shipping 10A 20A 30A Solar Charge Controller 12V 24V Solar Panel PV Controller For Lifepo4 Lithium GEL Lead Acid Battery
176 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
charging method: PWM
USB output: 5V2A
Suggestion solar panel Current: 10A,20A,30A
Origin: Mainland China
Model Number: 10A 20A 30A solar charge controller
Maximum Current: 30A
Max. PV input: 50V(24V battery) 25V(12V battery)
Is Smart Device: No
Compatibled With battery voltage: 12V or 24V
Compatibled With battery type: Lifepo4 Lithium GEL Lead Acid battery
Certification: CE,FCC,RoHS
Brand Name: HXCONTROLLER
Application: Charger Controller,Voltage Controller,Solar System Controller
Our controller can be used in ternary lithium battery, lithium iron phosphate and Lead-acid battery
This controller is a intelligent, multi-purpose solar charge and discharge controller. Fixed LCD display with a very friendly interface is used in this product; various control parameters can be flexibly set, fully meet your various application requirements.
This is NEW Solar Controller ,It can fully meet your home Photovoltaic system(including home lighting system)requirements.It can recognize 12V and 24V Lead acid ,Gel battery, nickel metal hydride, lthium ions , Lifepo4 or other batteriesautomatically.
There are optional 10A 20A 30A model
10A:
if your battery is 12V ,the max solar panel input is 25V 120W
if your battery is 24V ,the max solar panel input is 50V 240W
20A:
if your battery is 12V, the max solar panel input is 25V 240W
if your battery is 24V, the max solar panel input is 50V 480W
30A
if your battery is 12V ,the max solar panel input is 25V 360W
High-efficiency MPPT solar charge controller with 10A, 20A, and 30A charging capabilities, suitable for LifePO4, lithium, gel, or lead-acid batteries.
Demuda Solar Charge Controller - 10A/20A/30A, compatible with LiFePO4/Lithium/GEL/Lead-Acid batteries, for efficient solar panel charging.
1.Build-in industrial micro controller.
2.Big LCD display,all adjustable parameter.
3.Fully 4-stage PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
Model |
PV-10A |
PV-20A |
PV-30V |
Rated charging current |
10A |
20A |
30A |
Rated discharge current |
10A |
10A |
10A |
MAX PV Volt |
12V system < 25V/24V system < 50V |
||
The USB output |
5V2AMAX |
||
Stand-by Current |
< 10ma |
||
Dimensions/Weight |
133 70*35mm/132g |
||
Work Temperature |
0~60C |
||
Battery Parameter
Lead-acid battery /BAT/ B1 | ||||||
System Volt |
12V system |
24Vsystem |
48Vsystem |
|||
Float charging Volt |
Default 14.4V |
adjustable range |
Defaut 28.8V |
adjustable range |
Defaut 57.6V |
adjustable range |
Discharge cut-off Volt |
Default 10.7V |
adjustable range |
Dofaut 21.4V |
adjustable range |
Defaut 42.8V |
adjustable range |
Discharge recovery Volt |
Defaut 12.6V |
adjustable range |
Defaut 25.2V |
adjustable range |
Defaut 50.4V |
adjustable range |
Ternary lithium battery /LIT1/ B2 | ||||||
System Volt |
12V system 3 strings |
24V system 7 strings |
48V system 13 strings |
|||
Float charging Volt |
Defaut 12.6V |
Unadjustable |
Defaultl 29.4V |
Unadjustable |
Default 54.6V |
Unadjustable |
Discharge cut-off Volt |
Defaut 9V |
adjustable range |
Detfault21V |
adjustable range |
Default 39V |
Adlustable range |
Discharge recovery Volt |
Defaut 10.5V |
adjustable range |
Default24. 5V |
adjustable range |
Defaut 45.4V |
Adjustable range |
Lithium iron phosphate battery /LIT2/ B3. | ||||||
System Volt |
12V system 3 strings |
24V system 7 strings |
48V system 13 strings |
|||
Float charging Volt |
Defult 14.6V |
Unadjustable |
Default 29.2V |
Unadustable |
Default 58.4V |
Unaqustable |
Discharge cut-off Volt |
Detaut 11.8V |
Adjustable range |
Default 23.6V |
Adjustable range |
Detaut. 47.2V |
Adustable range |
Discharge recovery Volt |
Default 12.5V |
Adyustabie range |
Defaut 25V |
Adjustable range |
Default 50V |
Adjustable range |

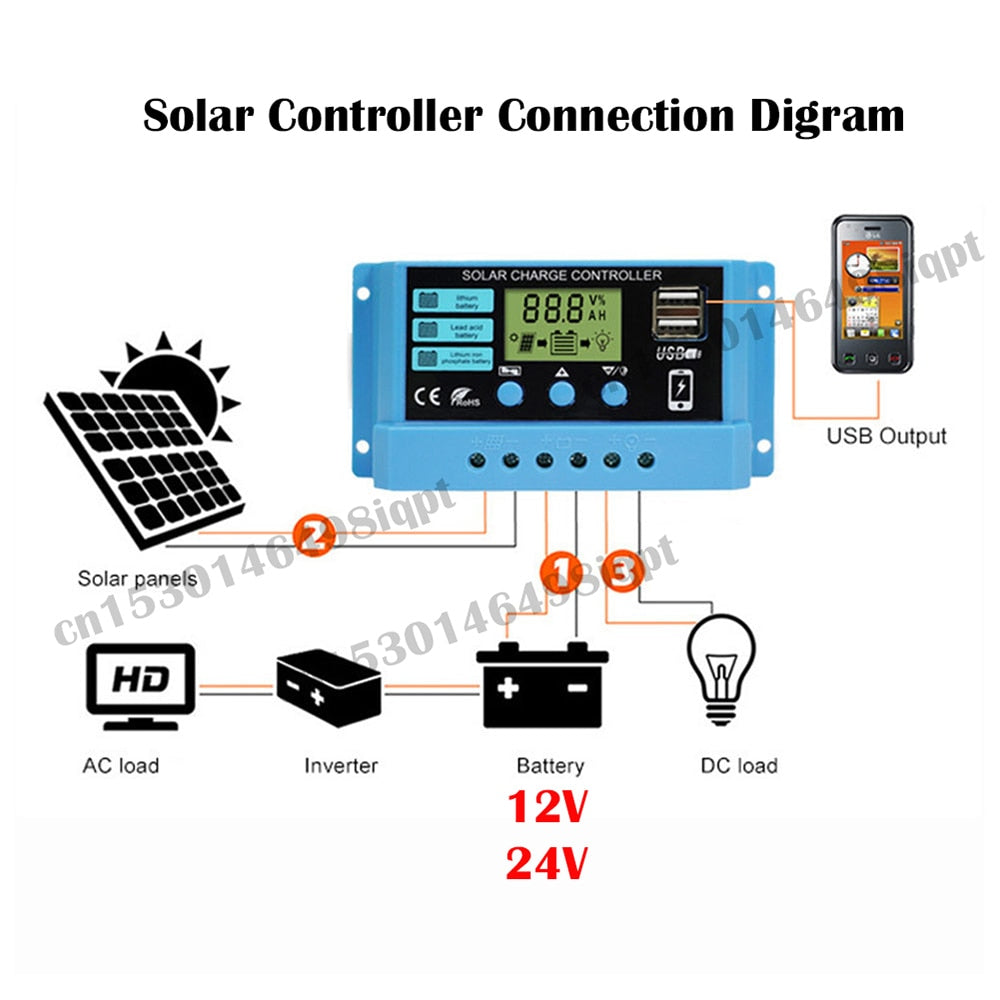

Solar charge controller diagram: Connect solar panels to the controller, then output USB-A and charge devices. Also connect AC load, inverter, or battery (12V/24V).

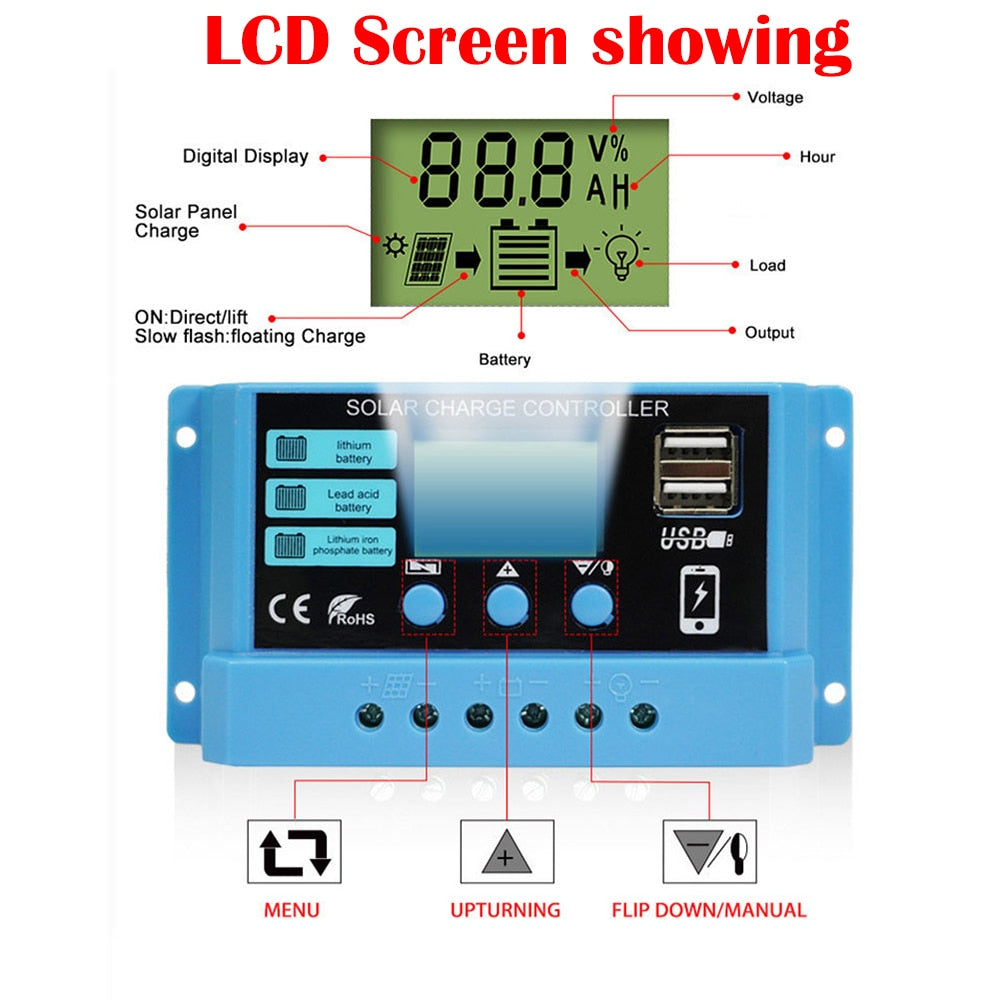

24-hour shipping available. Solar charge controller features: LCD screen displays voltage (V%) and hour count. Automatic slow-flashing charging mode for lead-acid batteries. Supports Lifepo4, lithium, and GEL battery types. Includes digital display and manual override. Menu options include ROHS compliance and flipping the display up or down.

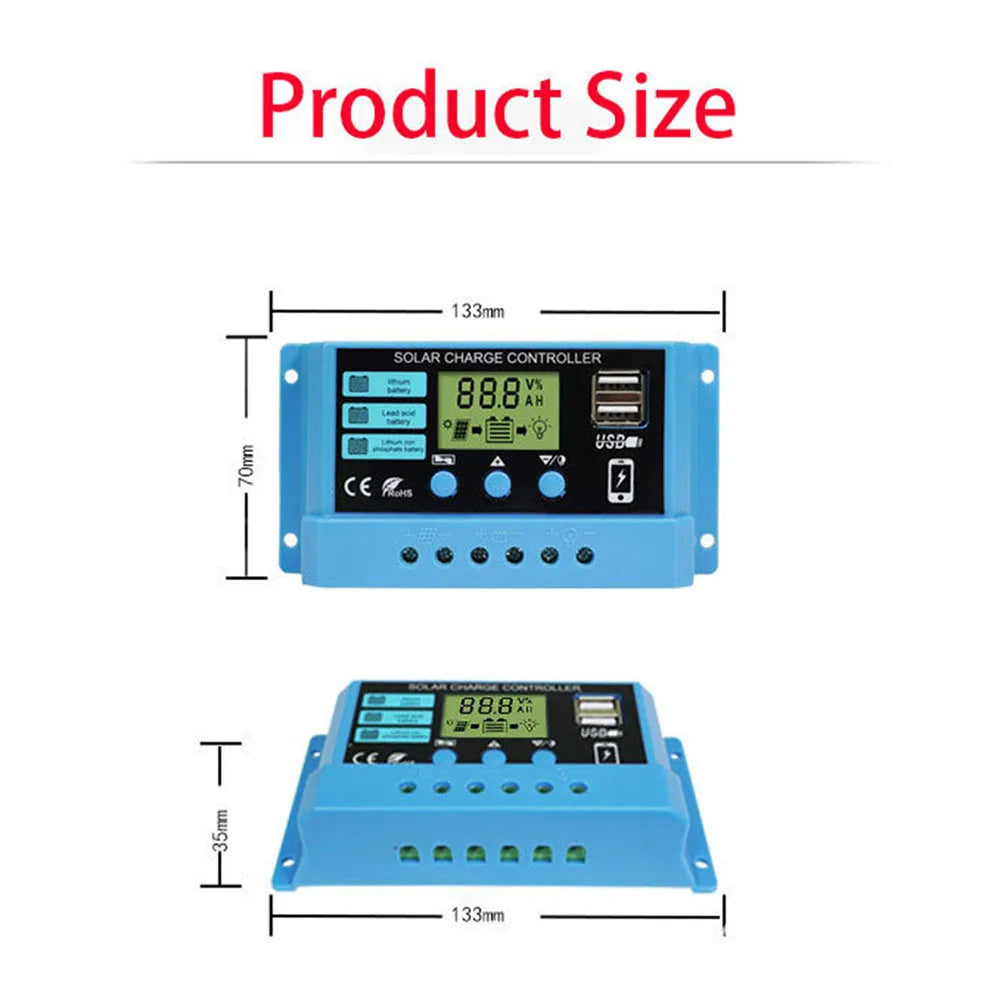

Product size: 13.3cm x 10mm (approximately), 24V/20A/30A Solar Charge Controller for LiFePO4, GEL, and Lead-Acid batteries.
24h shipping solar charge controller for Lifepo4, Li-ion, and lead-acid batteries, with 10A/20A/30A output, suitable for 12V or 24V solar panels.
This solar charge controller offers 24-hour shipping, suitable for Lifepo4 lithium-ion, GEL lead-acid, and other rechargeable batteries. It supports 10A, 20A, or 30A charging current and compatible with 12V or 24V solar panels.

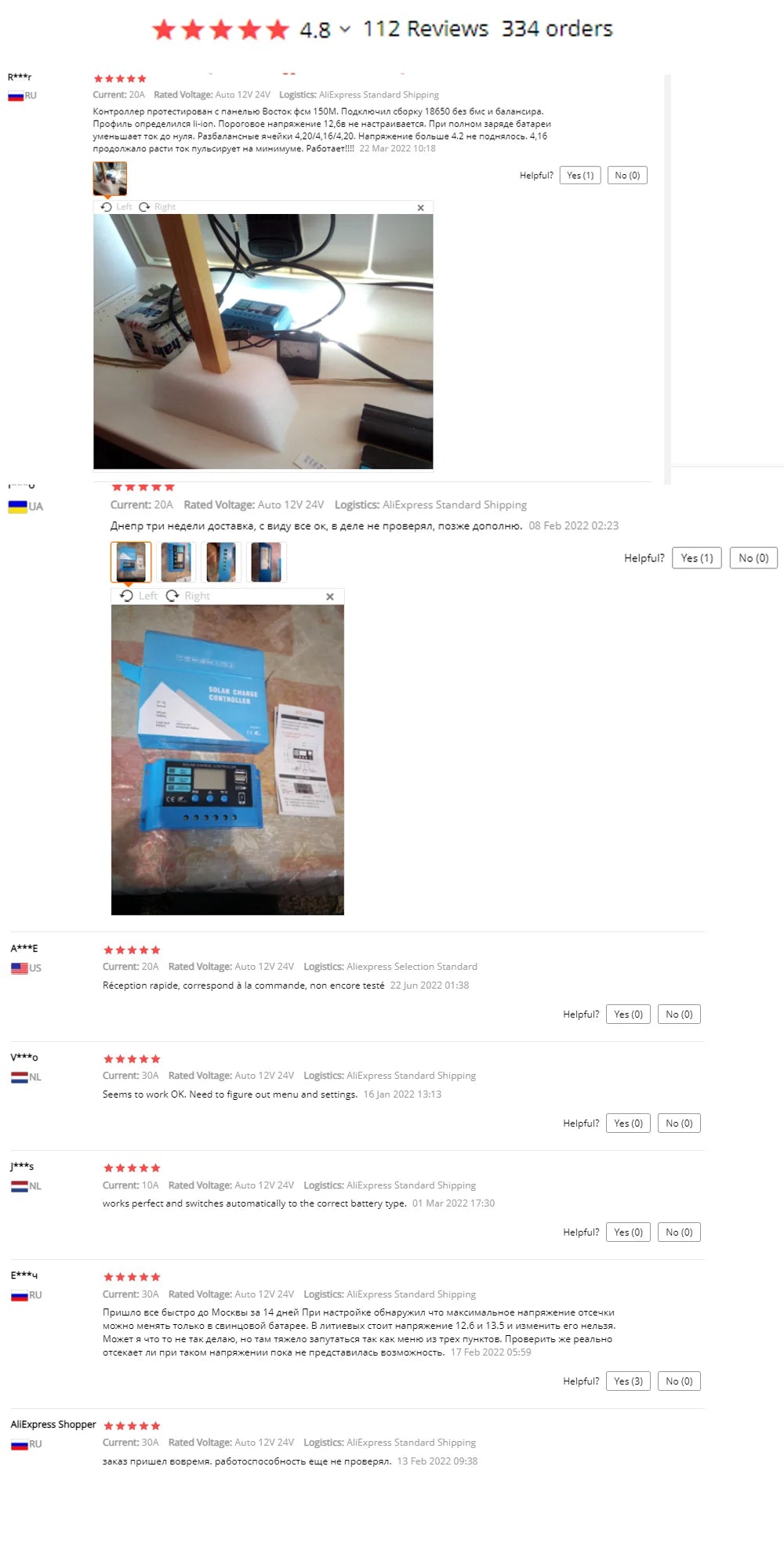

5 stars good feedback from buyer
