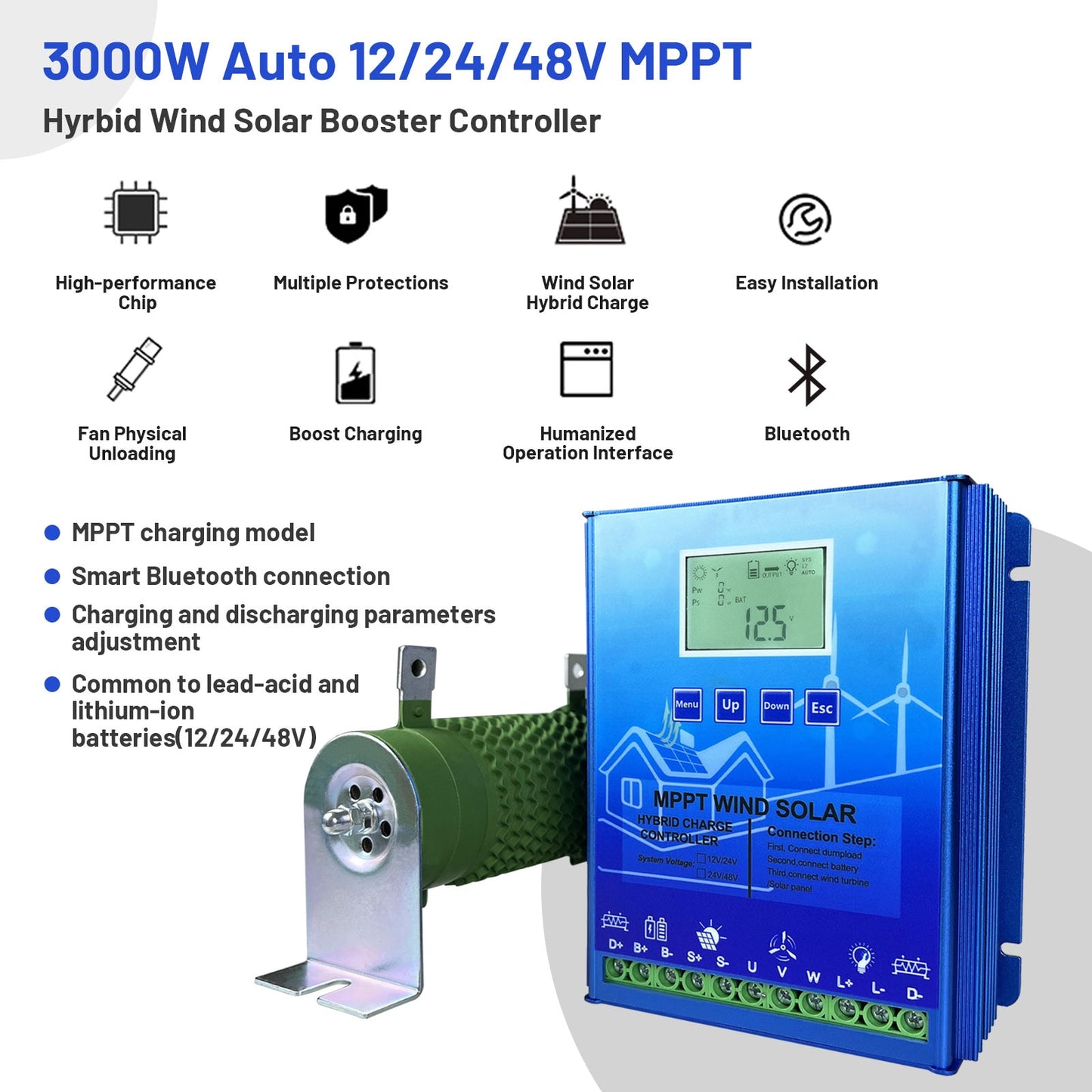

3000W MPPT Hybrid Solar Wind Charge Controller 12V 24V 48V PV Wind Turbine WIFI Regulator For Lifepo4 Lithium Lead Acid Battery

Name: 3000W MPPT Hybrid Solar Wind Charge Controller 12V 24V 48V PV Wind Tur
Brand: BestSolarPanel
SKU: 3256804105380419-China-Wind 1KW Solar 1KW-Auto 12V24V-Without Bluetooth
Price: 155.63 USD
Availability: OutOfStock

3000W MPPT Hybrid Solar Wind Charge Controller 12V 24V 48V PV Wind Turbine WIFI Regulator For Lifepo4 Lithium Lead Acid Battery

$131.87 USD

Sale Sold out

Shipping calculated at checkout.

95 orders in last 30 days

Ships From China Poland SPAIN Russian Federation

Color Wind1.5KW Solar1.5KW Wind1.2KW Solar1.2KW Wind 1KW Solar 1KW Wind 800W Solar 800W Wind 600W Solar 600W

Product variants

Quantity

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

Free Shipping：Ships within 3days, arrives within 9-15 days
Paid Express: Ships within 2days,arrives within 5-8 days
Money back guarantee: Quality problems, return and exchange within 30 days
12-month warranty, long-term after-sales service
No need to register account, Order tracking url will send to your email
More FAQ:FAQ

SPECIFICATIONS

suggestion battery voltage: 12V,24V,48V

suggestion battery type: ernary lithium battery, lithium iron phosphate and Lead-acid battery

is_customized: Yes

Whether support WIFI Functiono: Yes, APP monitor

Suggestion wind turbine power: 400W,600W,800W,1000W,1200W,1500W

Suggestion Solar Panel power: Max 1500W

Origin: Mainland China

Model Number: 3000W Hybrid Solar Wind Charge Controller

Maximum Current: 60A

Max wind turbine input voltage: 80V

Max Solar Panel input voltage: 95V

Is Smart Device: YES

Certification: CE,RoHS

Brand Name: HXCONTROLLER

Application: Charger Controller,Voltage Controller,Wind Controller,Solar System Controller

Product Introduction

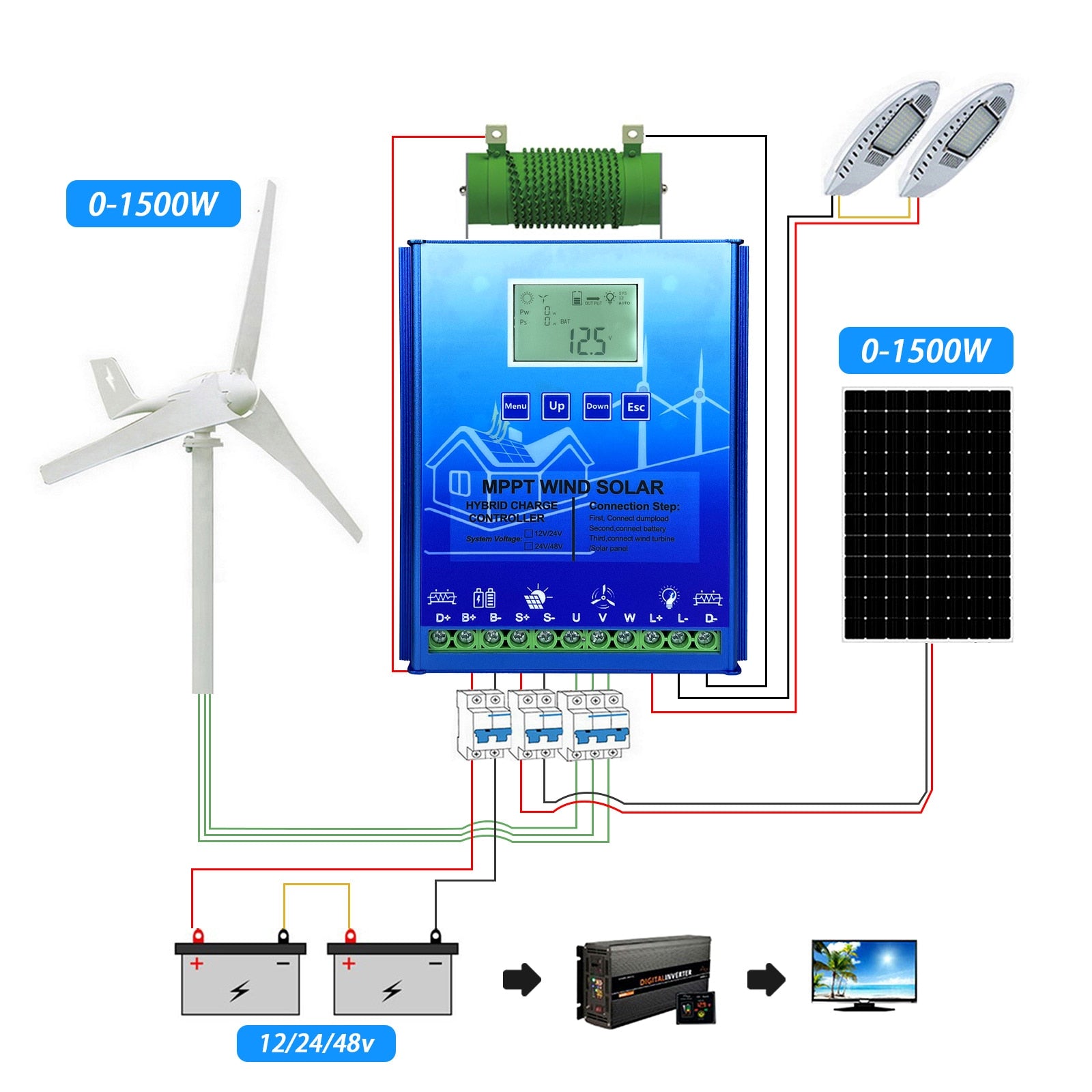

This model is special designed for hybrid wind solar power system charge for low-power street lamp, monitoring etc. system. And it is workable for Lithium , GEL, Lead-acid battery with full charge and discharge protection. Large size LCD screen is convenient for parameter(from solar, wind and battery) query and adjustment but low power consumption. It can be flexibly installed in cruise ships, RVs, and land indoors. Powerful functions and light size but very good heat dissipation are its outstanding features.

Controller protection function:

Solar Reversed Charging protection，Battery open circuit protection、battery anti-reverse connection protection protection、Over current and over voltage auto brake protection、Over load protection,etc.

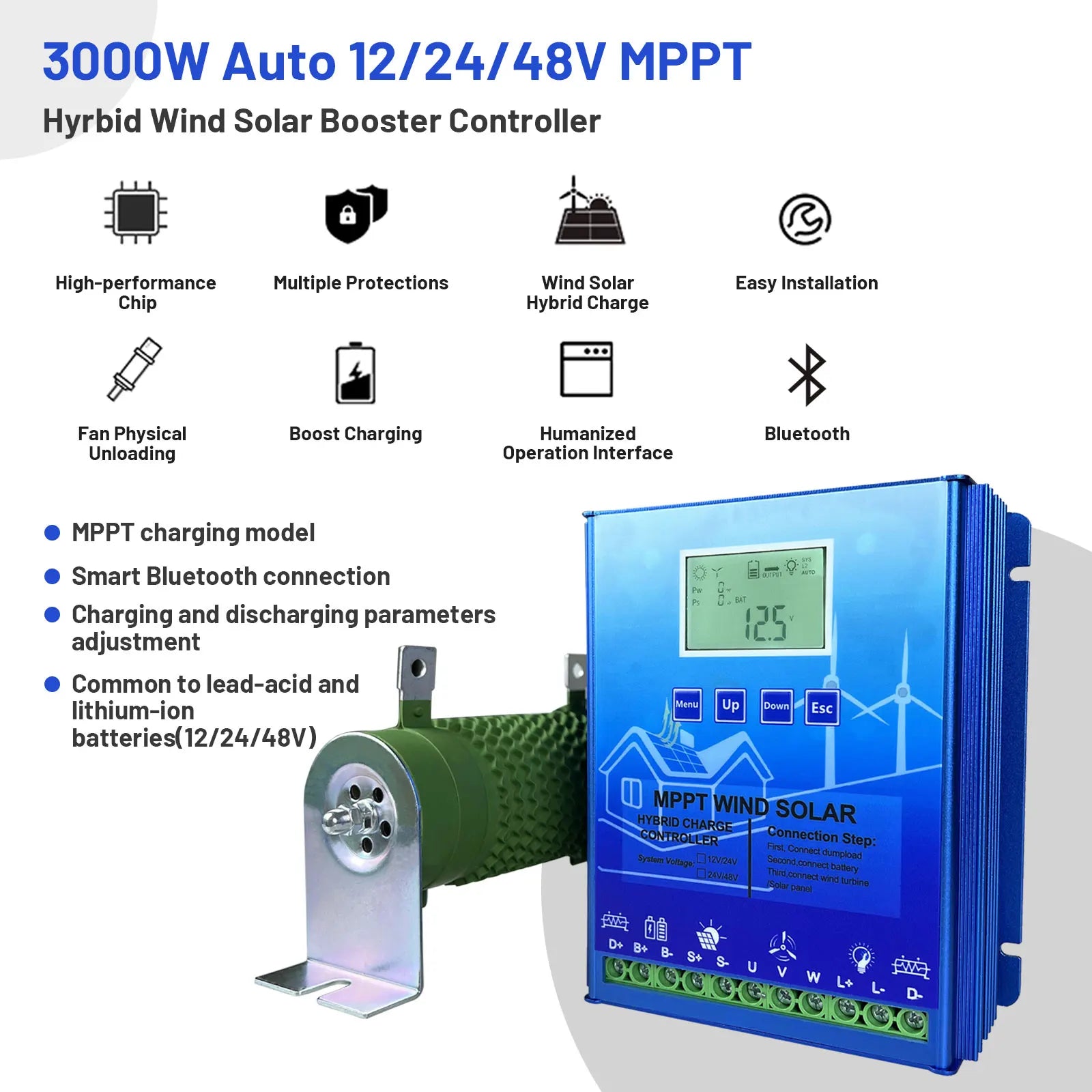

Advantage of controller

 High performance and stable chip control;

 Automatically match with 12V/24V 24V/48V sealed battery voltage;

 Workable for battery: 1. Sealed( Lead-acid, GEL); 2. Lithium(Ternary Lithium, Lithium iron);

 LCD displays voltage and current of wind, solar and load parameter; and you can adjust controller full and low voltage parameter, it will help you protect battery not damaged.

Our controller can help your wind turbine low voltage to charge battery, controller has booster voltage function, it's very good for low wind speed place.

 The inner circuit board of the controller is sprayed to prevent dust, moisture and static electricity.

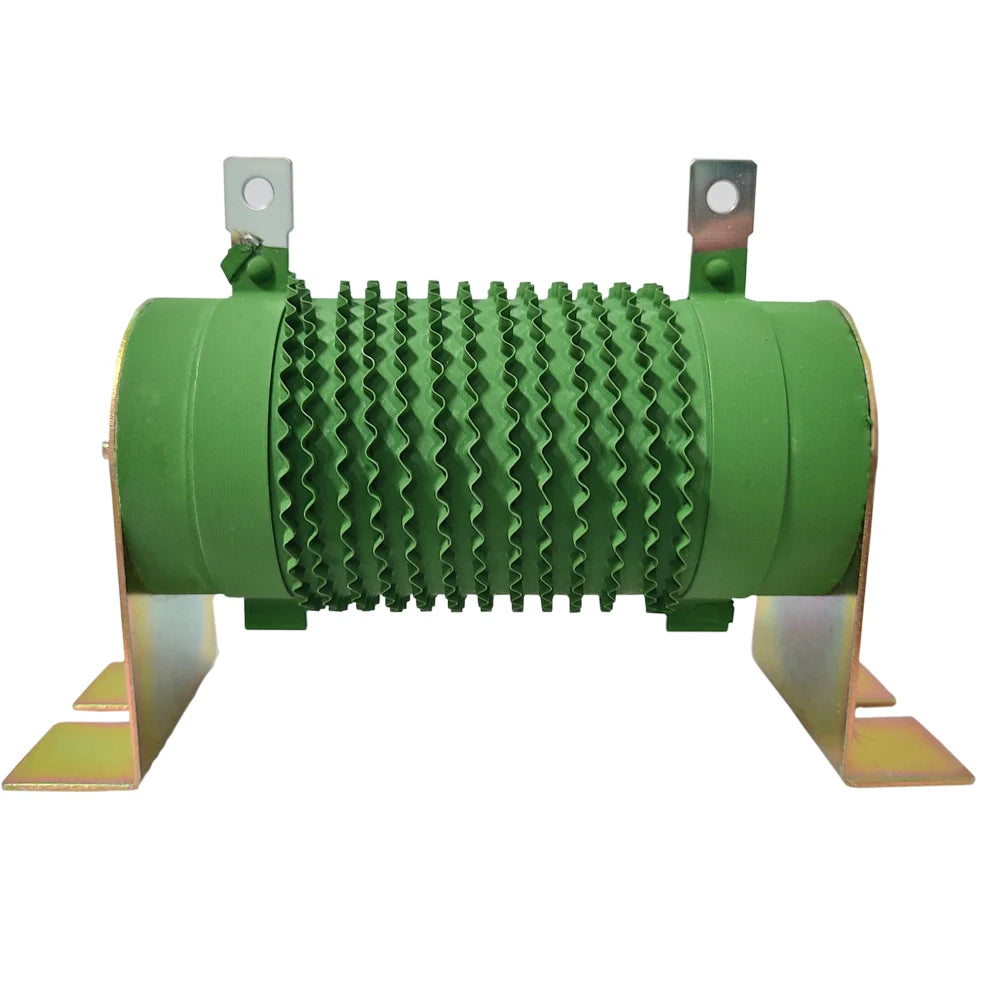

 Wind adopts MPPT boost charging; external dump-load resistance, intelligent disconnection of Solar charging.

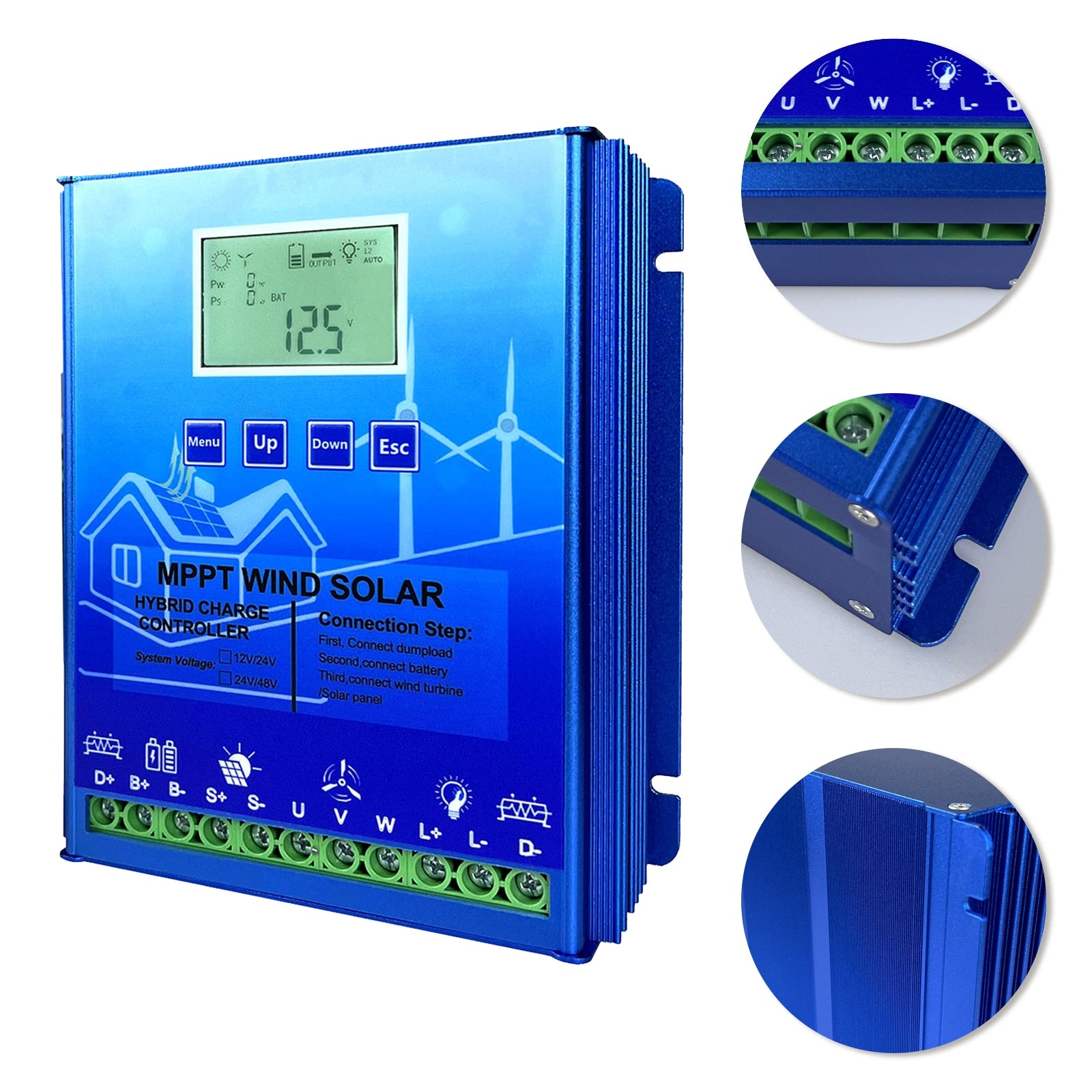

The controller body is made of aluminum alloy material, which has excellent heat dissipation. At the same time, there are a large number of heat dissipation convection grooves at the bottom to solve the heat generation problem caused by the operation of the controller.

Built-in Smart Bluetooth device( If you want to use bluetooth function, please buy bluetooth version, otherwise it's without bluetooth version)

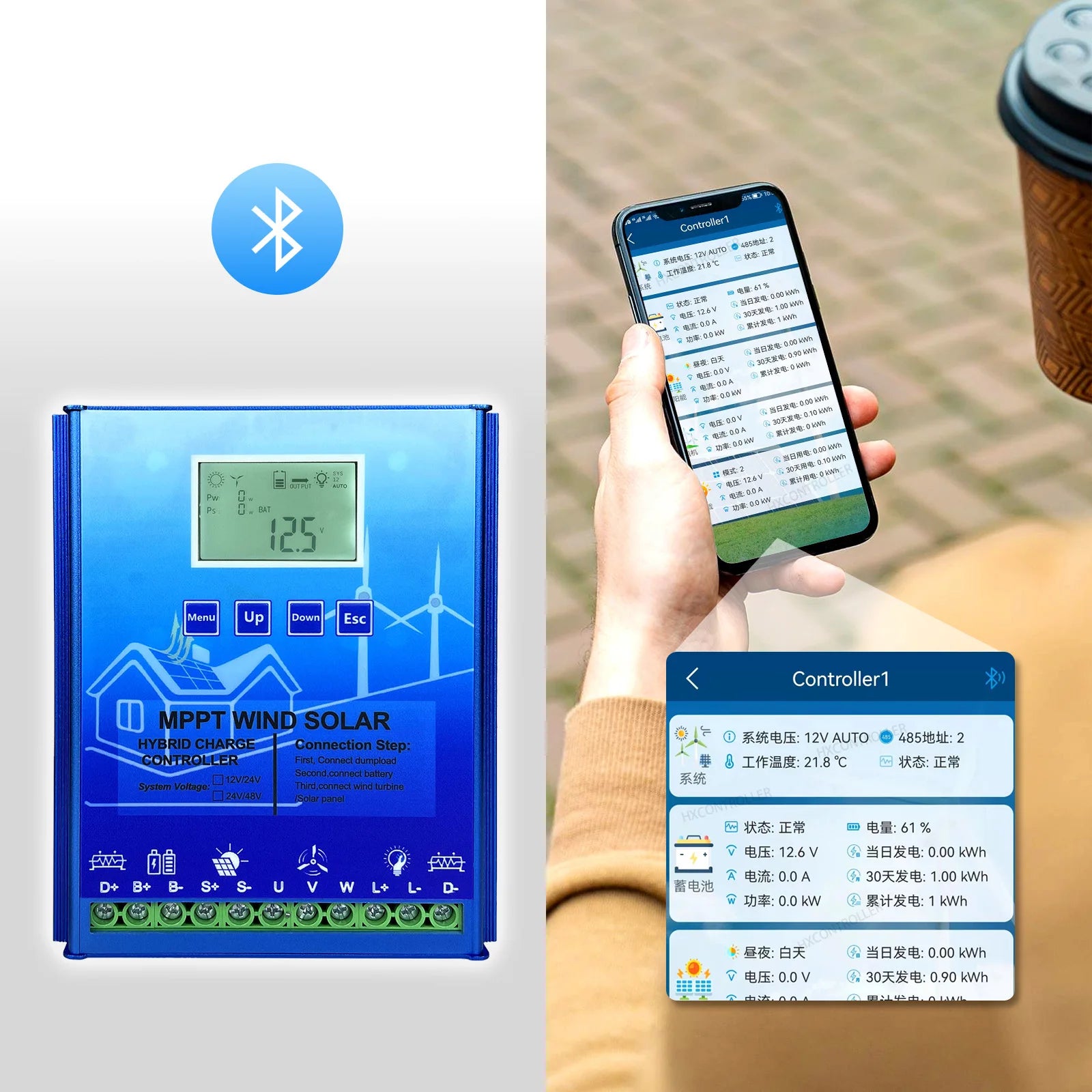

The Bluetooth module is directly built into the controller. You do not need to buy additional Bluetooth devices. You only need to turn on the Bluetooth device of your mobile phone and download the mobile APP at the same time to quickly connect to the network system of the controller. Due to the differences between the Android and IOS systems, the device only supports the Android system for the time being, not the IOS system. Our controller APP system can help you check the working conditions of the controller at any time on your mobile phone, such as the voltage of wind energy, solar energy and battery, and help you find out the abnormality of the controller or battery in time. The effective monitoring range of the Bluetooth system is within 200 meters. If your mobile phone is more than 200 meters away from the controller, the mobile phone will not be able to monitor the controller.

Rated system voltage	12/24 AUTO
Model	TGR-700W		TGR-1200W		TGR-1600W		TGR-2000W
Battery	12V	24V	12V	24V	12V	24V	12V		24V
Rated wind power	200	400	300	600	400	800	500		1000
Rated PV power	150	300	300	600	400	800	500		1000
Maxinput current	Wind turbine≤40Asolar panel≤30A
Max input voltage	Wind turbine≤80Vsolar panel≤55V
DC Output	20A
Rate system Voltage	24V48V Auto Match
Model	TGR-1200W		TGR-1600W		TGR-2000W		TGR-2400W		TGR-3000W
Battery voltage	24V	48V	24V	48V	24V	48V	24V	48V	24V	48V
Rated wind power	300	600	400W	800W	500	1000	600W	1200W	800W	1500W
Rated PV power	300	600	300W	800W	500	1000	600W	1200W	800W	1500W
Maxinput current	Wind turbine≤31.25Asolar panel≤30A
Max input voltage	Wind turbine≤80Vsolar panel≤95V
DC Output	20A
No-load Current (DC)	≤0.05A
Controller power mode	Battery or solar
Control mode	Wind generator MPPT boost charge、PWM dump load、PWM Over currentLimiting function,solar power is PWM
Supported battery types	1.Lead acid battery 2.Ternary lithium battery 3.Lithium iron phosphate
Outputworking mode(Mode)	Mode 1: Light-control on. Light-control off (3modes adjustable)
Display content	LCD display,Voltage,Percentage of battery power, Current, working mode of load,etc
Protection type	Solar Reversed Charging protection，Battery open circuit protection、battery anti-reverse connection protection protection、Over current and over voltage auto brake protection、Over load protection,etc.
Cooling mode	aluminium profiles Heat dissipation and self-cooling
Working temperature / Relative humidity	-25℃~+80℃ /0~90%，non-condensing
Net weight / Gross weight	2.1/2.35kg

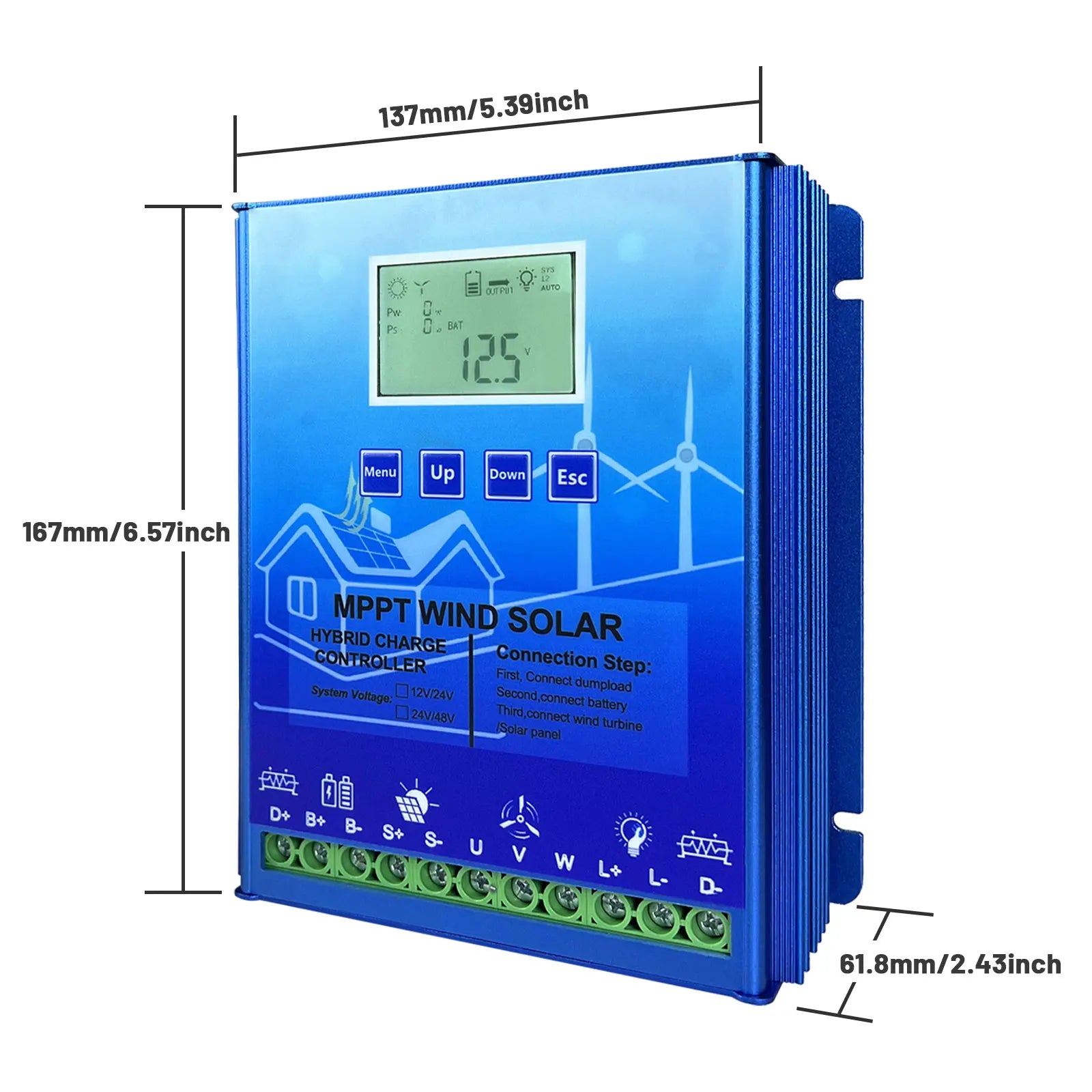

Controller size/Pack size	167mm145.5mm61.8mm/360mm250mm120mm

2. Battery Parameter
System Voltage		12V		24V		48V
(b0)Customer Type
FULL	Over Charge	14.7V	Adjustable	29.4V	Adjustable	58.8V	Adjustable
LOW	Over Discharge	10.2V	Adjustable	20.4V	Adjustable	40.8V	Adjustable
RLOW	Over Discharge Return	11.5V	Adjustable	23.0V	Adjustable	46.0V	Adjustable
Special Note: No one-key restore function, please do not modify preset parameters.
(b1)Lead acid battery
FULL	Over Charge	14.4V	Default	28.8V	Default	57.6V	Default
LOW	Over Discharge	10.2V	Default	20.4V	Default	40.8V	Default
RLOW	Over Discharge Return	11.5V	Default	23.0V	Default	46.0V	Default
(b2)Ternary lithium battery
FULL	Over Charge	12.6V	Default	25.2V	Default	50.4V	Default
LOW	Over Discharge	9.0V	Default	18.0V	Default	36.0V	Default
RLOW	Over Discharge Return	11.0V	Default	22.0V	Default	44.0V	Default
(b3)Lithium Iron Phosphate LiFePO4
FULL	Over Charge	14.4V	Default	28.8V	Default	57.6V	Default
LOW	Over Discharge	10.0V	Default	20.0V	Default	40.0V	Default
RLOW	Over Discharge Return	11.0V	Default	22.0V	Default	44.0V	Default
