> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)
bluesun
300W Solar Panel- Solar Panel Kit System Set Manufacturer Monocrystalline | Best Solar
300W Solar Panel- Solar Panel Kit System Set Manufacturer Monocrystalline | Best Solar
Regular price
$199.00 USD
Regular price
Sale price
$199.00 USD
Unit price
per
Shipping calculated at checkout.
24 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
300WSolar Panel Parameters
- Cell size: 158.75mmx158.75mm
- Type: PERC, Half Cell, Bifacial, Double-glass, All Black, HJT, N-TYPE, Standard Solar Panel
- Panel Dimensions: 1640*992*40mm
- Panel Efficiency: 20%
- Name: Mono 300w solar panel
- Certificate: ETL/TUV/CE/ISO9001/14001
- Frame: Anodized aluminium alloy
- Backing Color: White, Black, Transparent
- Junction Box: Ip 65 Rated/Past connector
- Front Cover: 3.2mm high transimissiion,low Iron tempered glass
- Frame Color: Silvery, Black
- OEM: Acceptable
- Place of Origin: Anhui, China
- Brand Name: Bluesun
- Model Number: BSM300M-60
Product Details
|
Moduel
|
BSM290M-60
|
BSM295M-60
|
BSM300M-60
|
BSM305M-60
|
BSM310M-60
|
|
Rated Maximum Power at STC
|
290
|
295
|
300
|
305
|
310
|
|
Open Circuit Voltage(Voc/V)
|
38.9
|
39.6
|
39.8
|
40.0
|
40.2
|
|
Maximum Power Voltage(Vmp/V)
|
32.2
|
32.5
|
32.6
|
329
|
33.1
|
|
Short Circuit Current(Isc/A)
|
9.66
|
9.68
|
9.77
|
9.85
|
9.94
|
|
Maximum Power Current(Imp/A)
|
9.01
|
9.08
|
9.19
|
9.28
|
9.37
|
|
Module Efficiency(%)
|
17.7
|
18.0
|
18.3
|
18.6
|
18.9
|
|
Power Tolerance
|
-0~+3%
|
||||
|
Standard Test Condition(STC)
|
Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5
|
||||
Junthon manufactures an 8-inch monocrystalline solar panel kit system set with a power output of 300W, featuring 15 connectors and a voltage of 54V. The product includes 1 x 4501BL module and 35 x 1.4m cable.
Detailed&Production

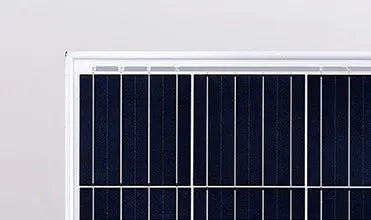

Glass

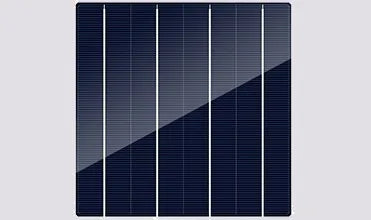

Solar Cell
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID

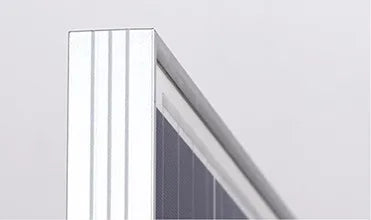

Frame
> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection

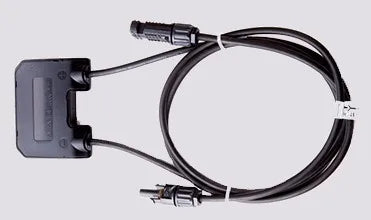

Junction box
> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life

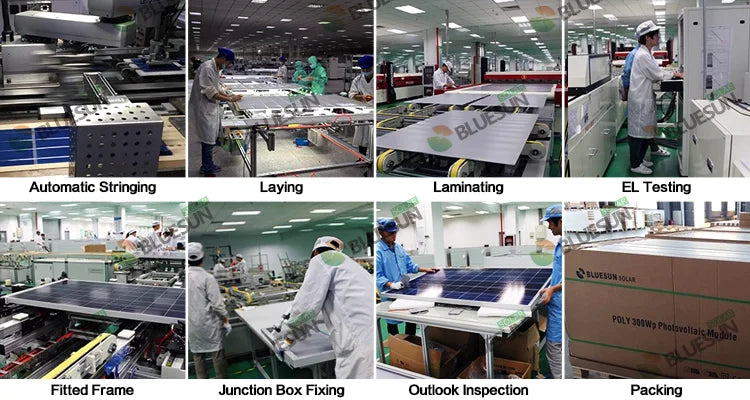

Kit includes automatic stringing, laying, laminating, and testing for efficient setup. Features poly-fitted frame, junction box, and outlook inspection for easy installation.

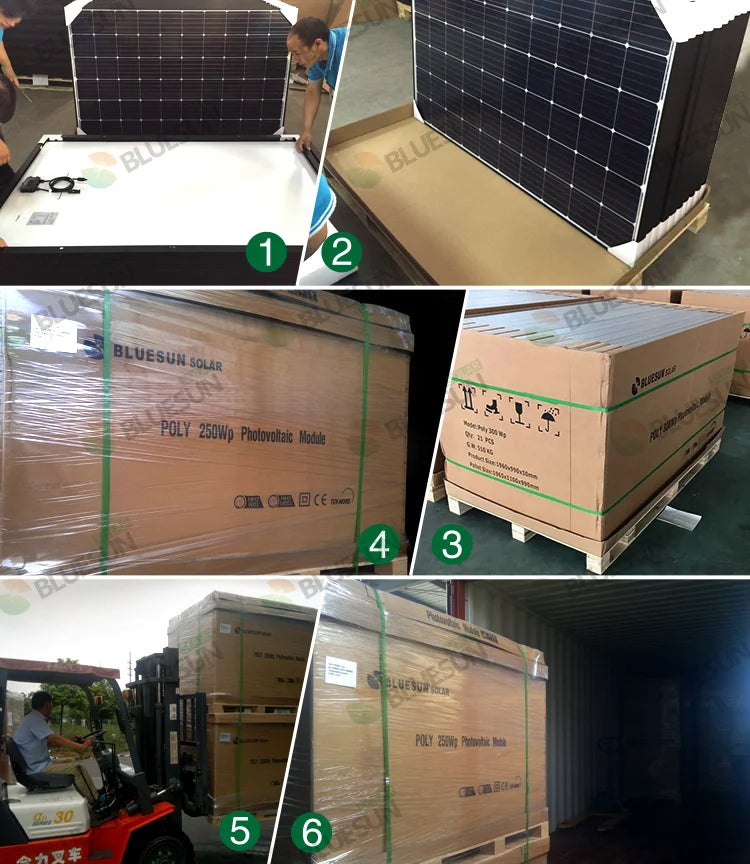

Packing & Delivery
