300w solar panel kit 200w 100w 12V 24V monocrystalline flexible solar panels for solar battery charger cell home system kits
300w solar panel kit 200w 100w 12V 24V monocrystalline flexible solar panels for solar battery charger cell home system kits
50 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Work Time (h): 8H
Specification: Normal
Solar Power (W): 100w
Short Circuit Current(Isc): 6.56A
Output Voltage (V): 12V/16V
Origin: Mainland China
Open Circuit Voltage (Voc): 19.2
Net Weight: 1.9KG
Model Number: RGN32-100W
Max Power Voltage(Vmp): 16V
Max Power Current(Imp): 6.25A
Load Power (W): 100W
Dimensions: 1050*530*2.5MM
Certification: CE,RoHS
Brand Name: dgsunlight
Application: Home
Shipping information
This product we set up warehouse in Spain, Czech Republic and Belgium，When you buy it,if you are in EU,we will ship to your country and it will be fast delivery.
However，
the zip code in Spain that starts with 35, 38, 51, 52.
the zip code in France that starts with 97
the zip code in Portugal that starts with 9.
Above zone for local shipping company,they are remote area.there is no logistics shipping to above zone from Spain or Belgium.we will not ship to above zone,pls not place order with above address,thanks
Country-specific shipping times for our solar panel kit are as follows: DE, IT, CZ, LU, NL, ES - 7-12 working days; Spain - 7-12 working days; HU, BE, FR, SK, SE, DK - 7-12 working days; AT, PL, SI, IE, PT, FI, GR - 7-15 working days. Please note that these times may vary for RU and BY.

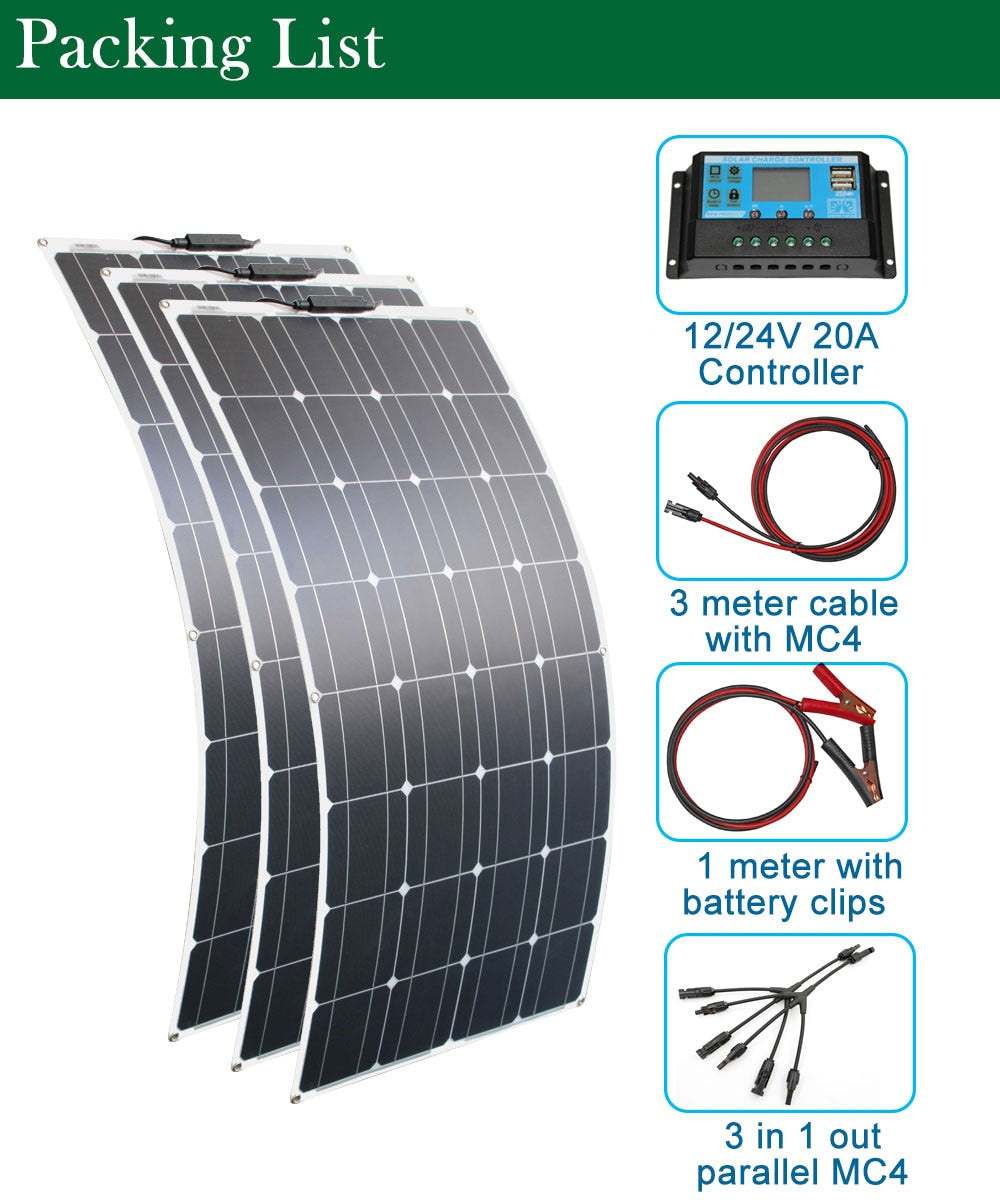

300W solar panel system packing listing:
3*100w 12v solar panel
1 *3 in 1 adapter
1*12V/24v 30A solar charger controller
1*3 meters cable with PV connector

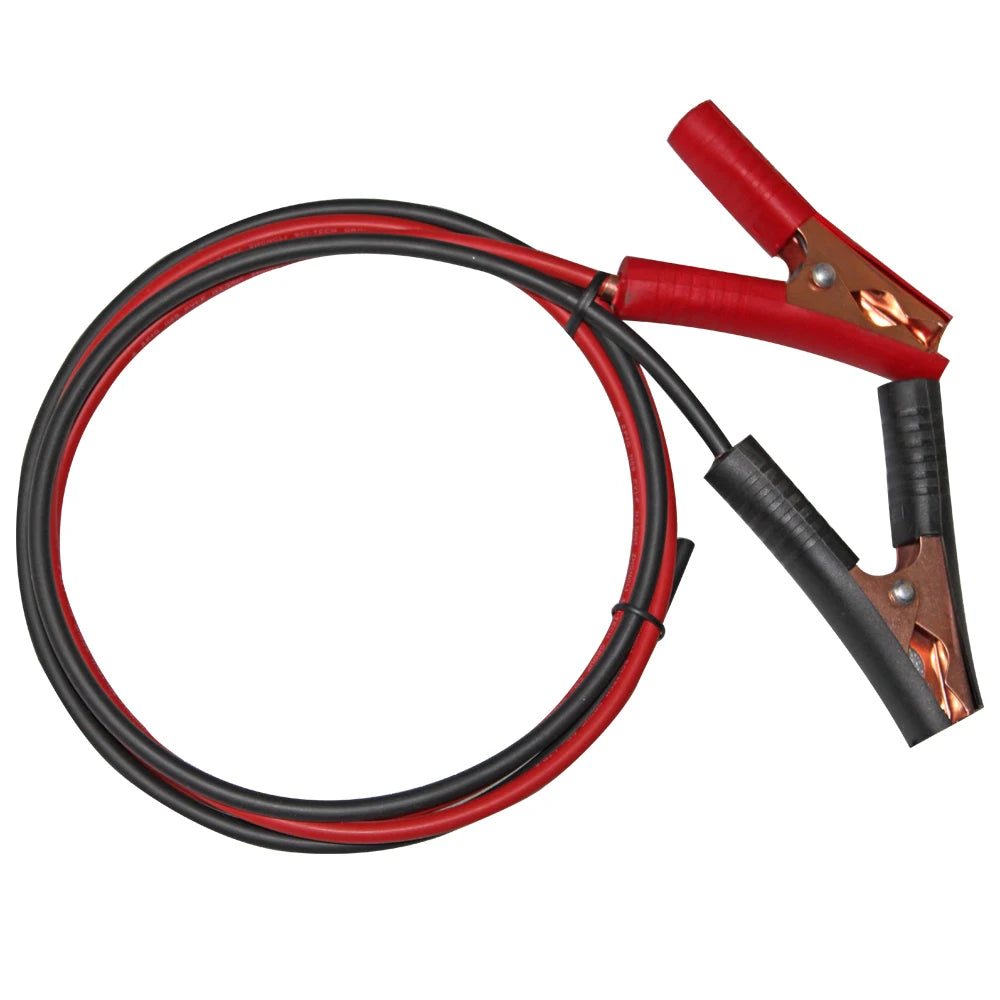

1*1 meter cable with Alligator clip
Kit includes a 12V/24V solar controller, 3-meter cable, connectors, and battery clips, plus a 3-in-1 PV adapter for easy charging.

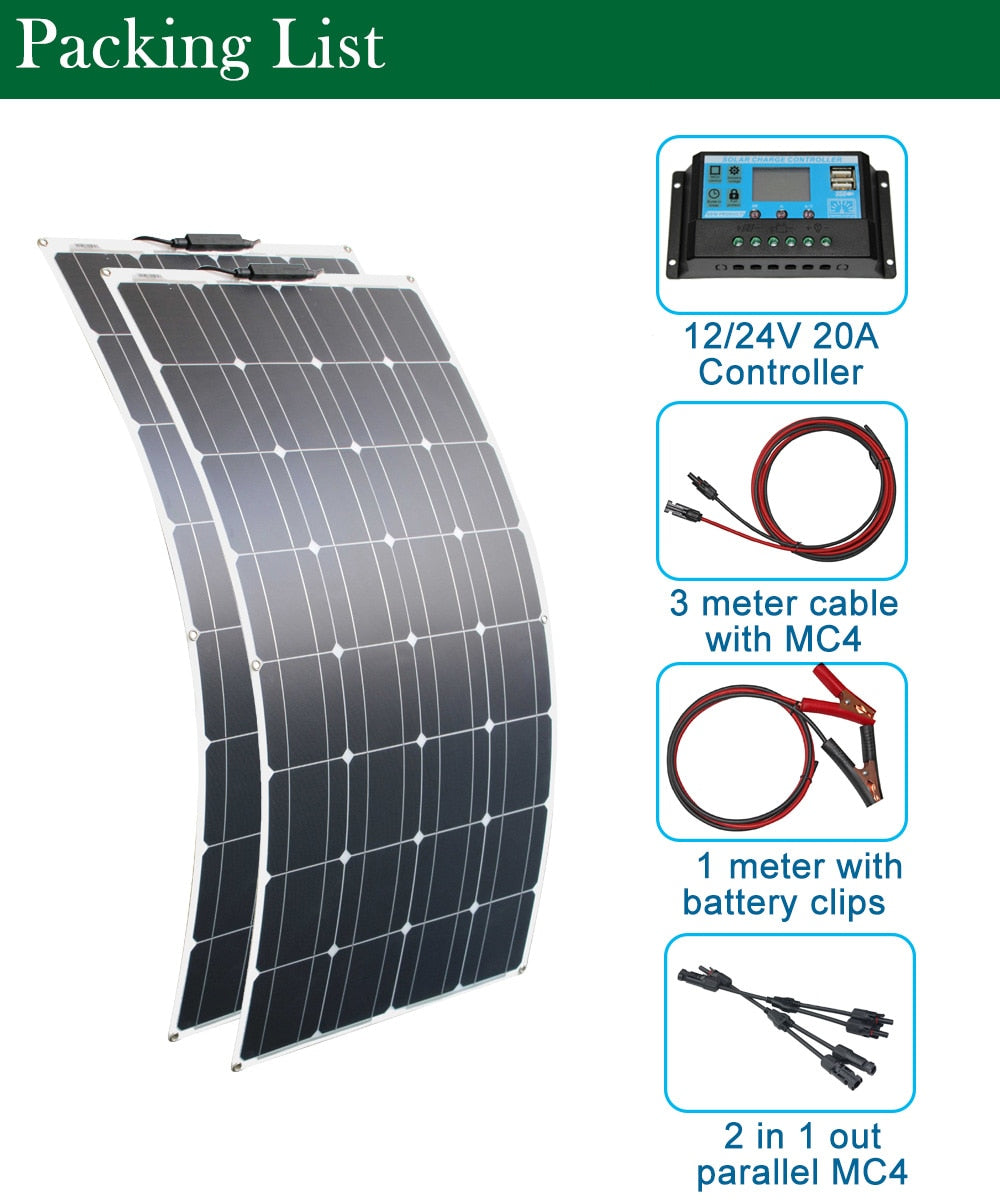

200W solar panel system Packing listing：
2*100W solar panel
1 *2 in 1 adapter
1*12v/24v 20A solar charger controller
1*3 meter cable with PV connector
1*1 meter cable with Alligator clip
Kit includes: 12/24V controller, 3-meter cable, connectors, and battery clips, plus a 2-in-1 PV adapter for easy charging.

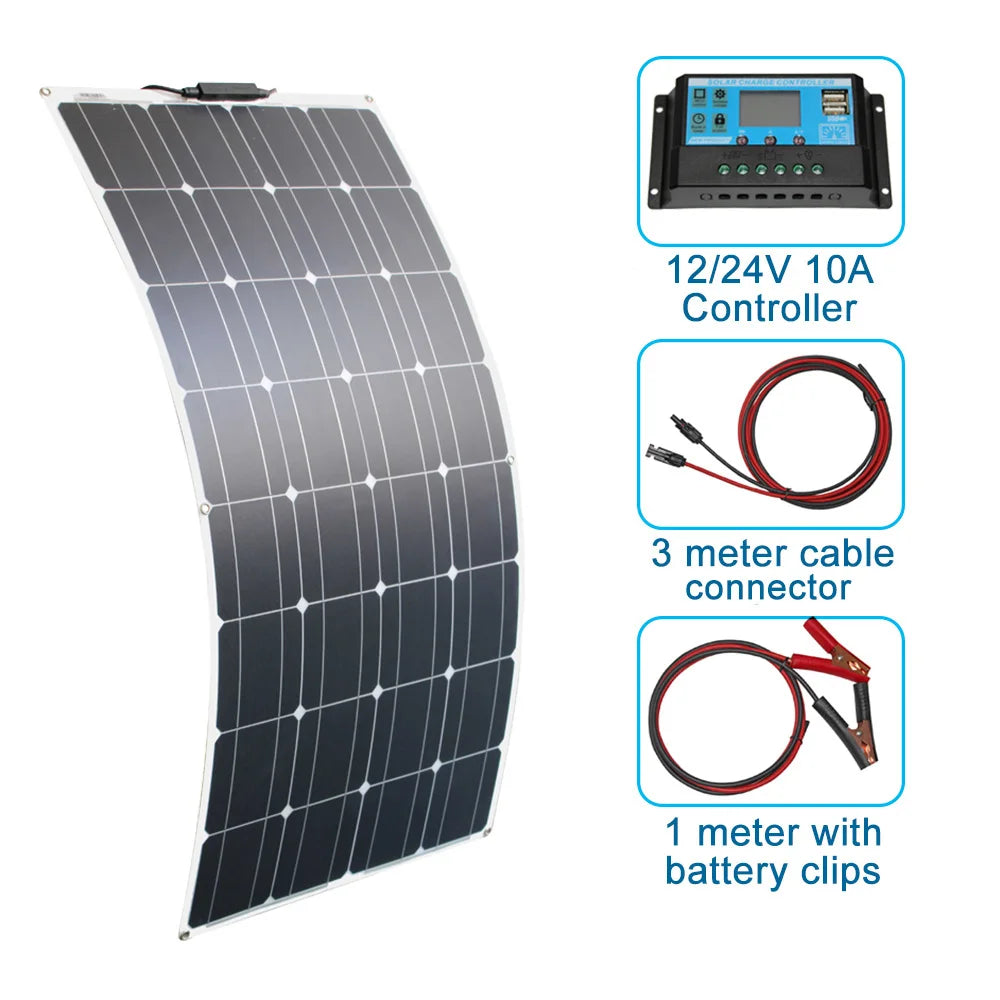

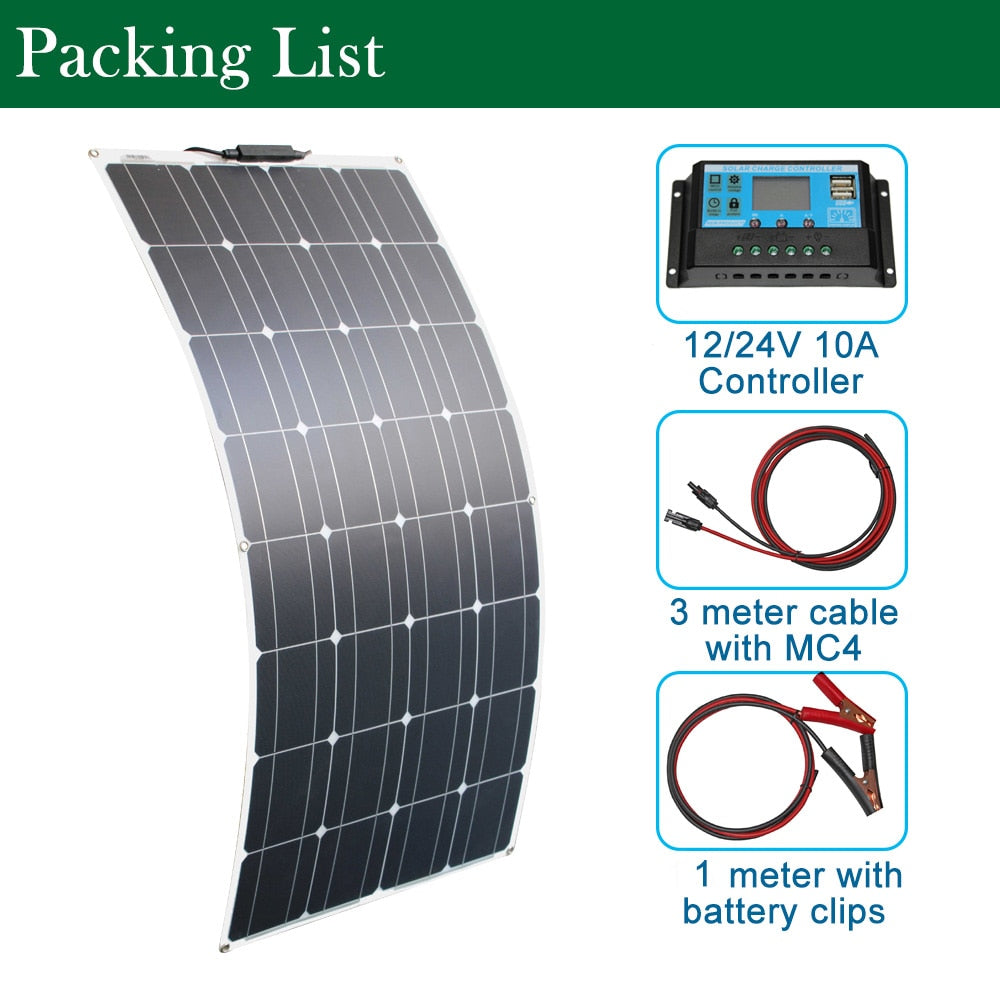

100W solar panel system Packing listing
1*100W solar panel
1*12V/24v 10A solar charger controller
1*3 meters cable with PV connector
1*1 meter cable with Alligator clip
Included: 12-24V controller, 3m cable, and connectors; complete with battery terminals for easy setup.

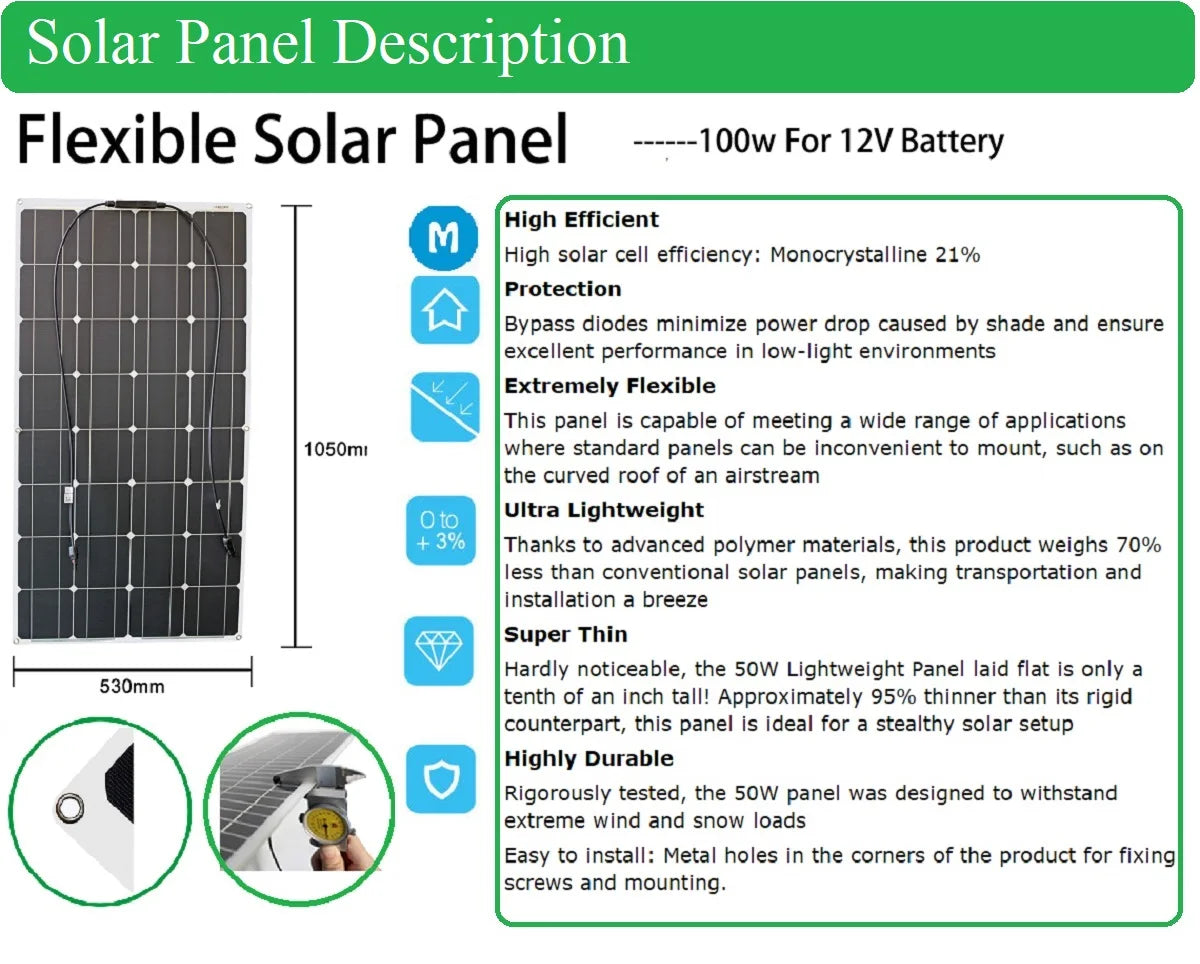

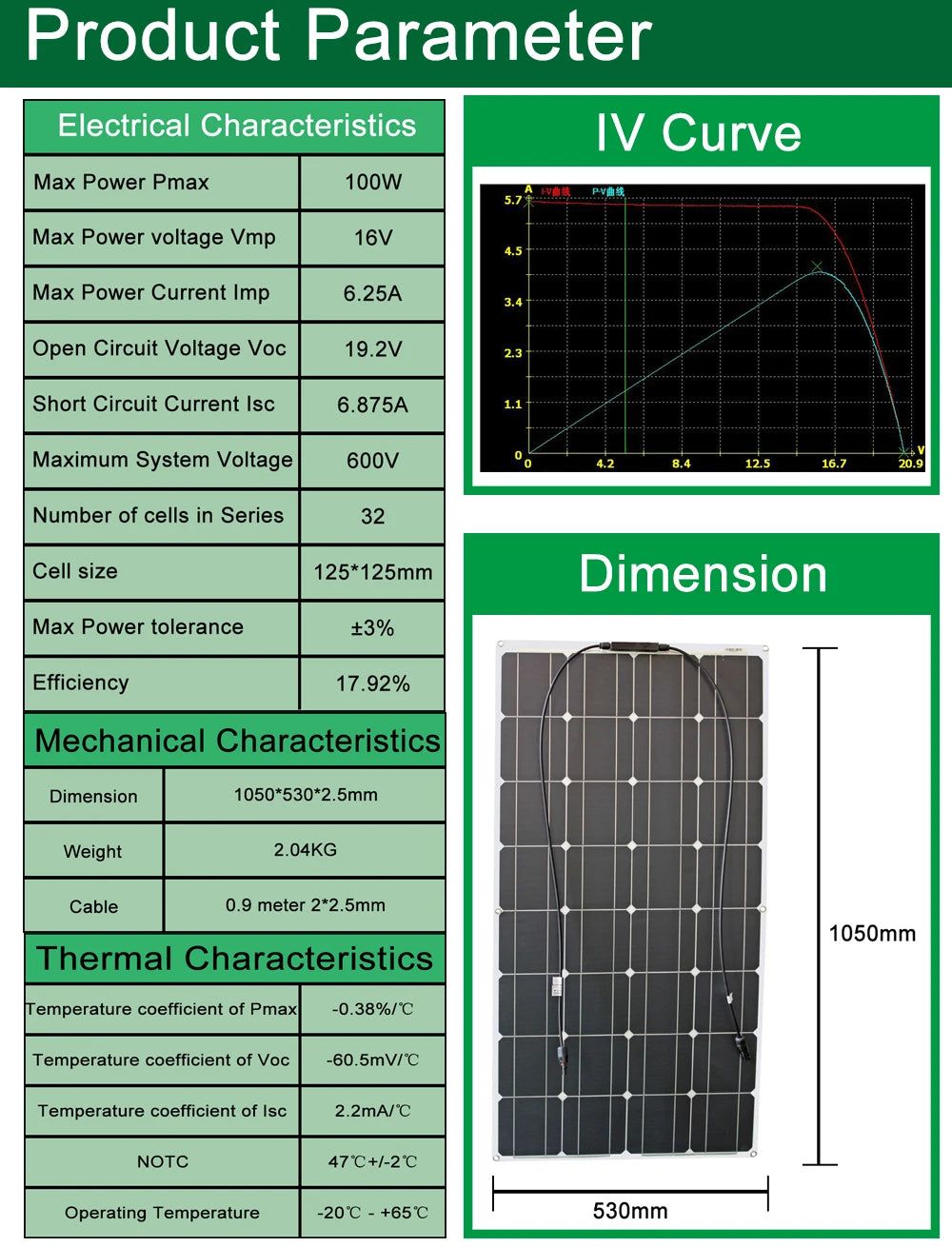

Electrical Characteristics
Max Power Pmax 100W
Max Power voltage Vmp 16V
Max Power Current Imp 6.25A
Open Circuit Voltage Voc 19.2V
Short Circuit Current Isc 6.85A
Maximum System Voltage 600V
Number of cells in Series 32
Cell size 125X125mm
Max Power tolerance ±3%
Efficiency 19.5%
Mechanical Characteristics
Dimension 1050X530X2.5mm
Weight 1.98kg
Cable 0.9 meter 2X2.5mm
Thermal Characteristics
Temperature coefficient of Pmax -0.38%/℃
Temperature coefficient of Voc -60.5mV/℃
Temperature coefficient of Isc 2.2mA/℃
NOTC 47℃+/-2℃
Operating Temperature -20℃ - +65℃

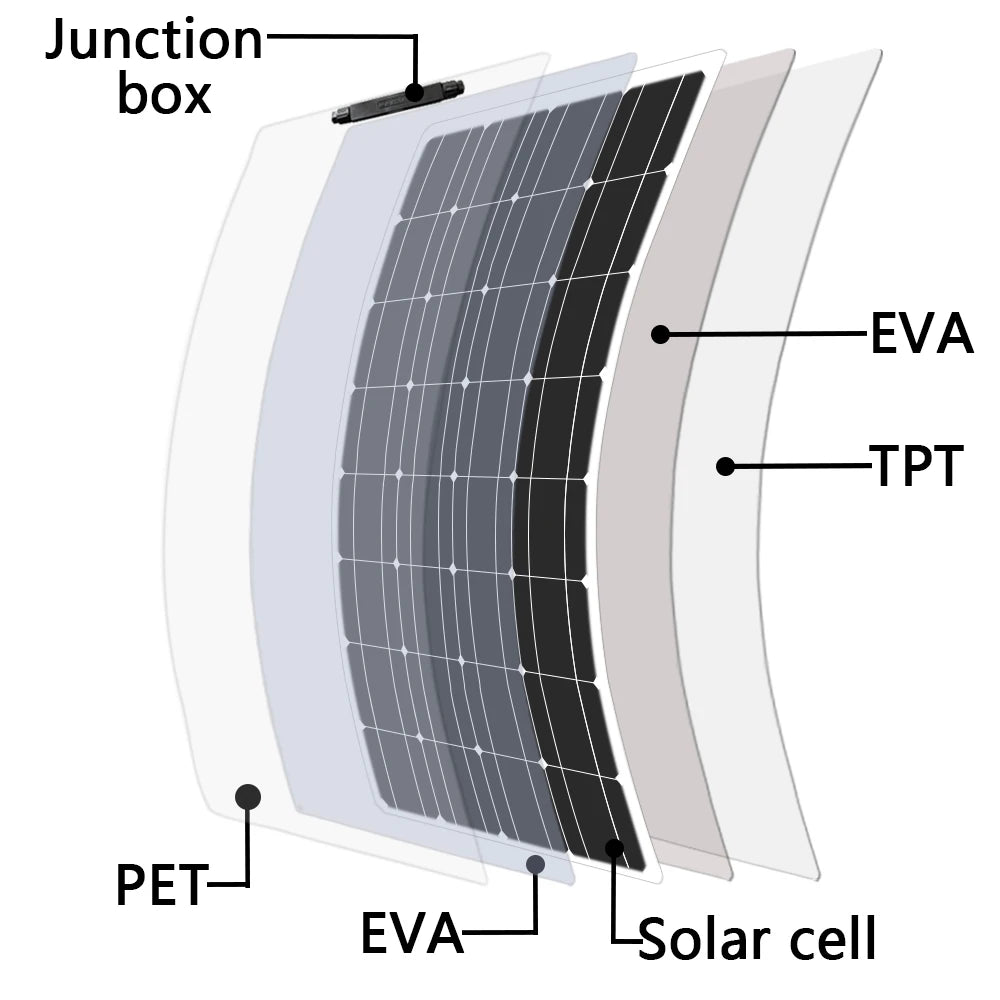

Manufacturing process involves laser cutting, cell welding, and testing. Solar panels are stacked, laminated, and installed with junction boxes and eyelets, followed by cleaning and IV testing before packaging.

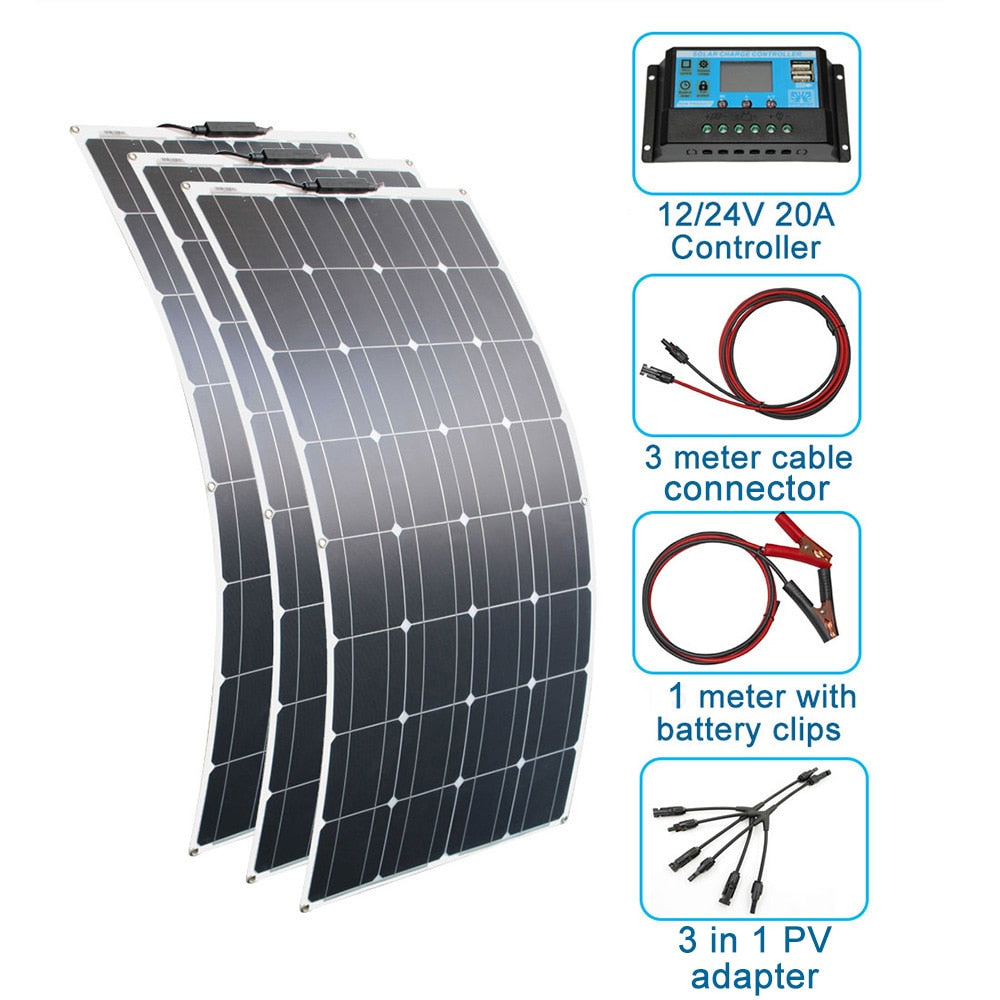

Kit includes: 12V/24V solar controller, 3m cable, connectors, and battery clips, plus a 3-in-1 PV adapter for easy charging.

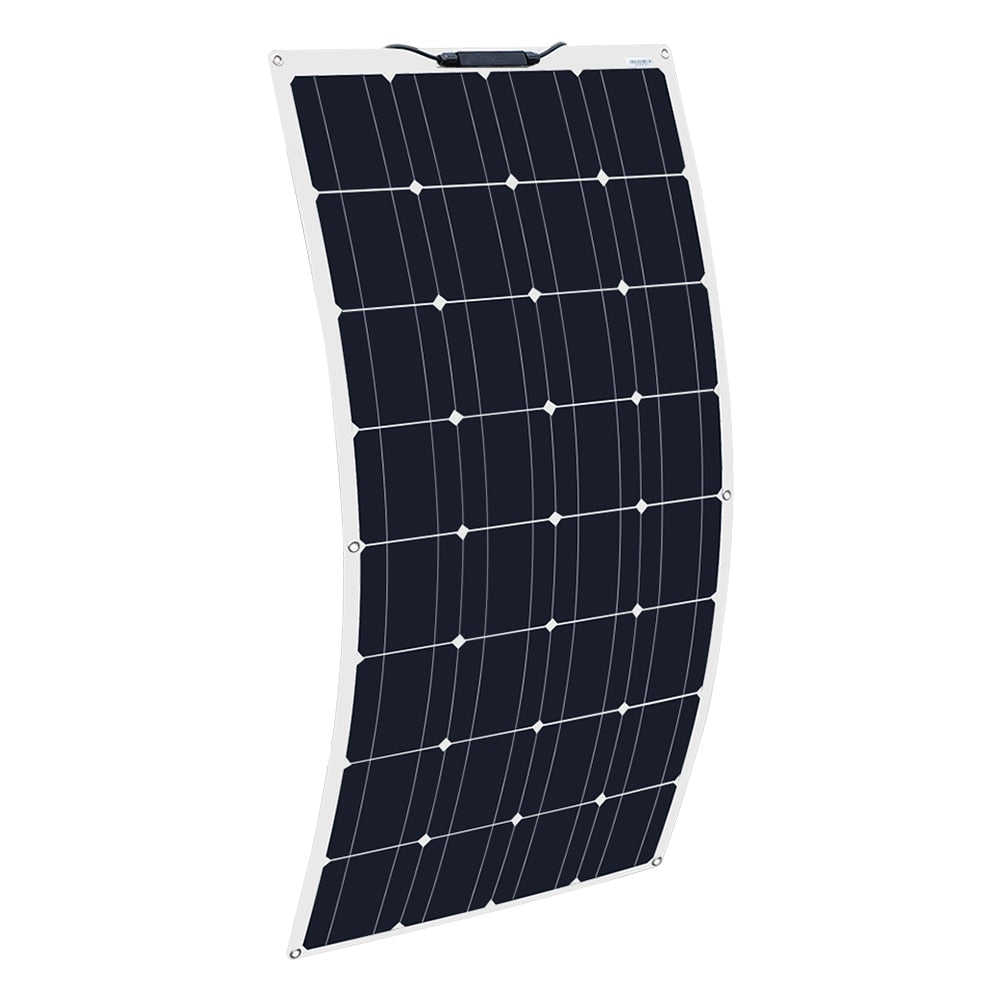

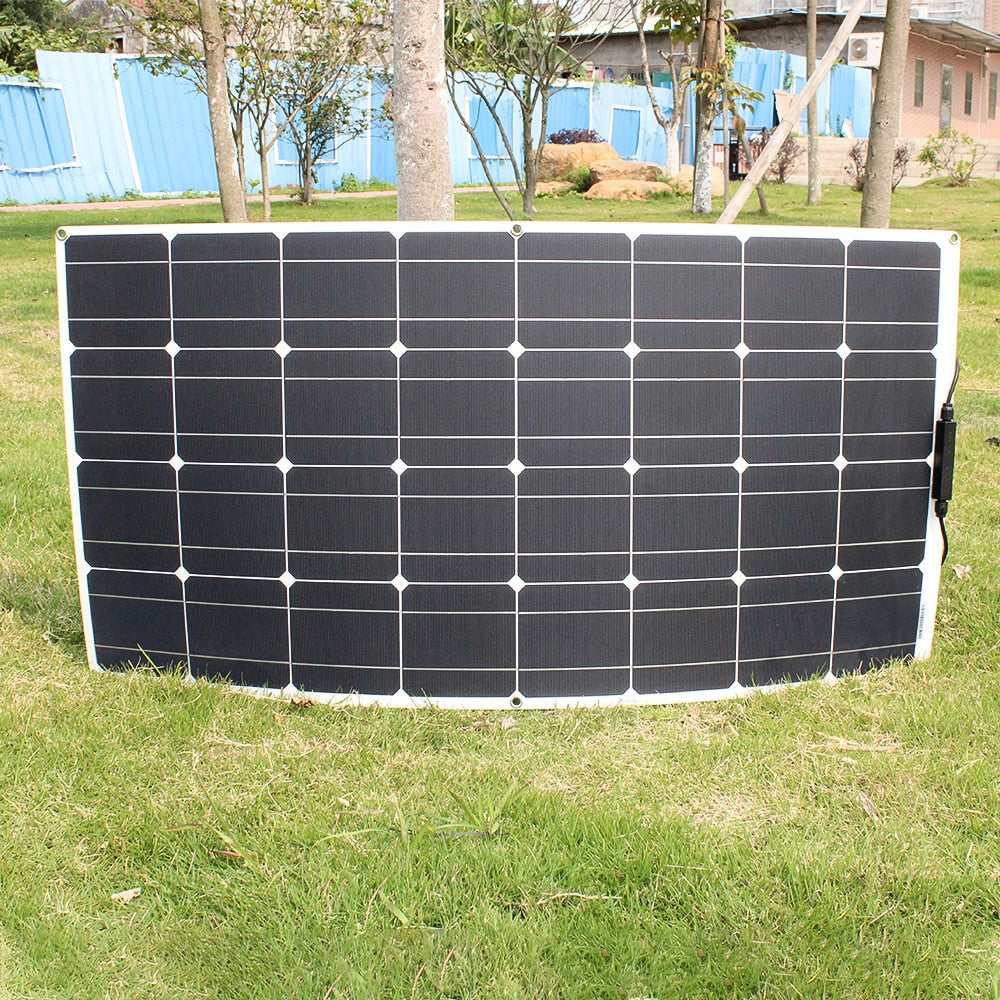

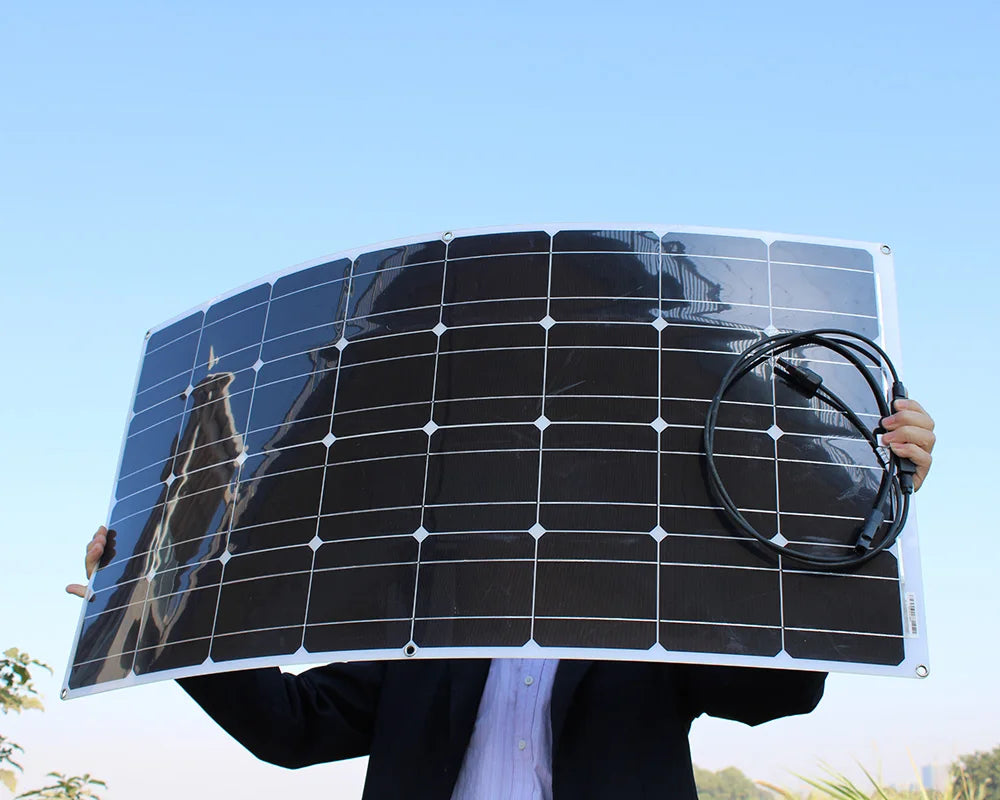

300w solar panel kit 200w 100w 12V 24V monocrystalline flexible solar panels for solar battery charger cell home system kits.

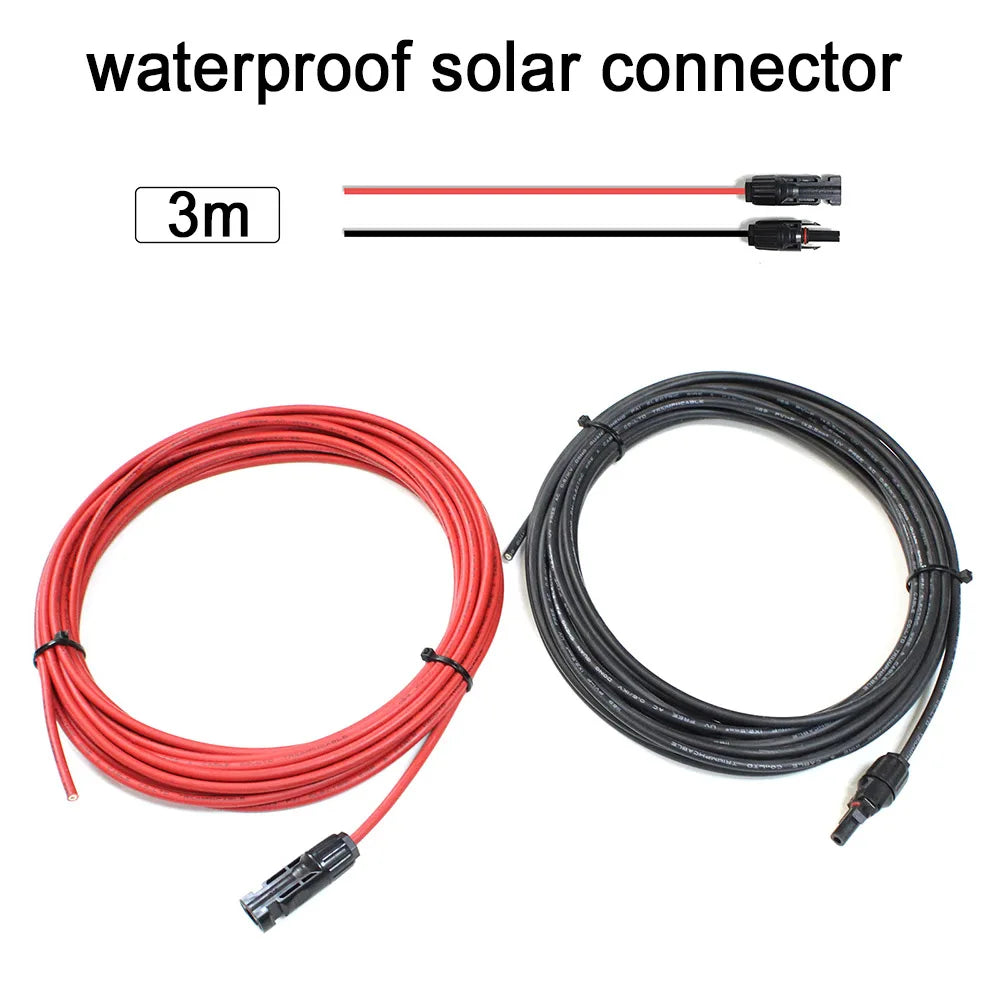

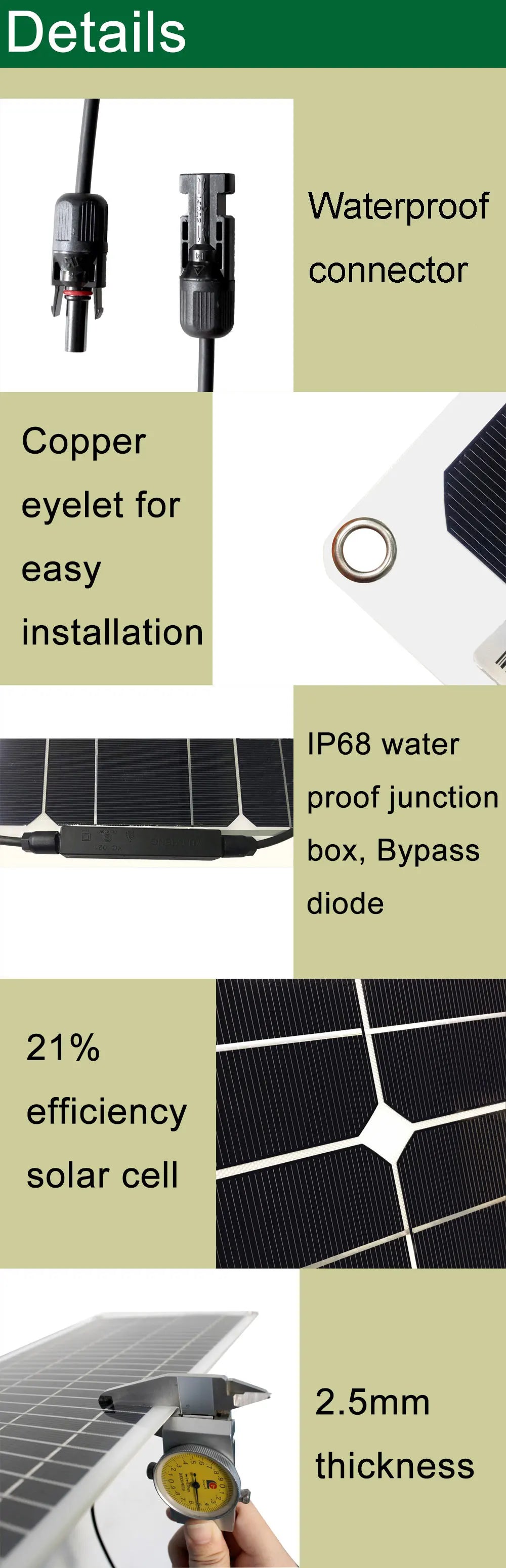

Waterproof connector for 3-meter cable connections.
300W Solar Panel Kit: Two 12V and one 24V monocrystalline flexible panels for charging batteries, ideal for home systems, cell phone chargers, or off-grid power solutions.

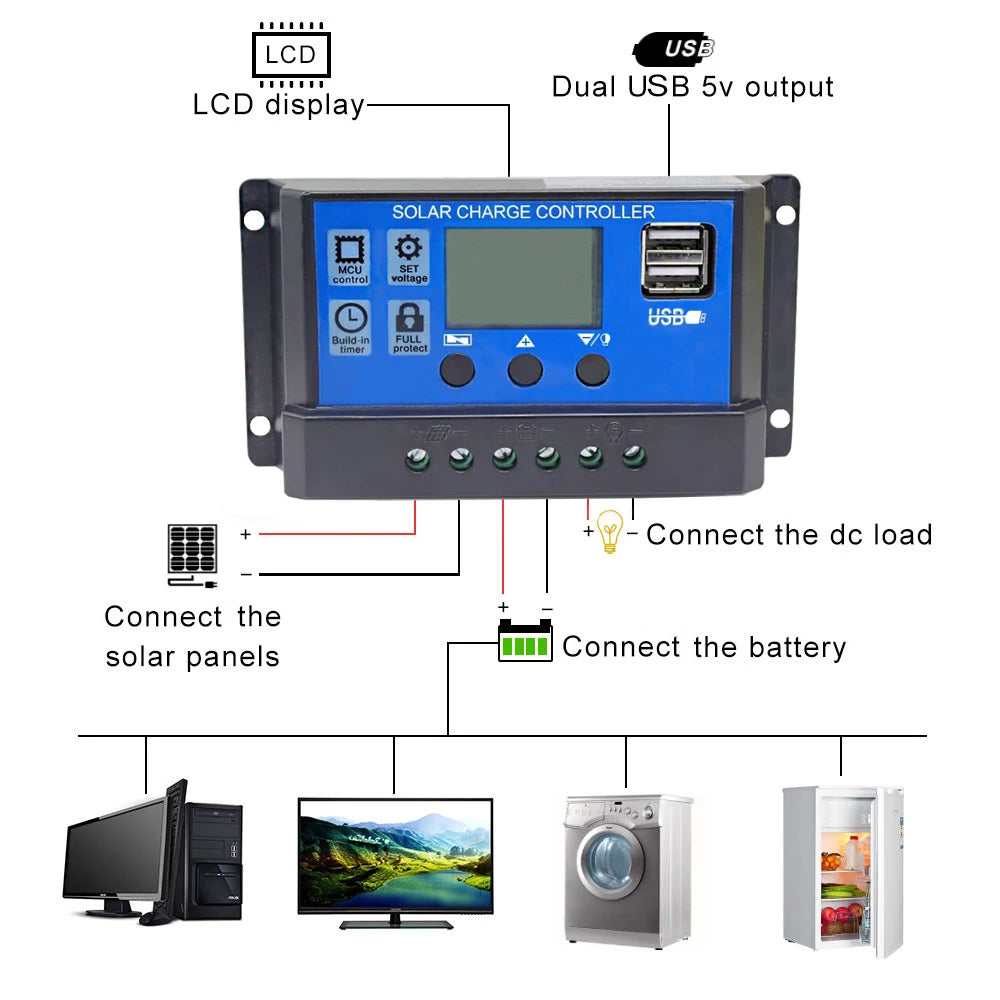

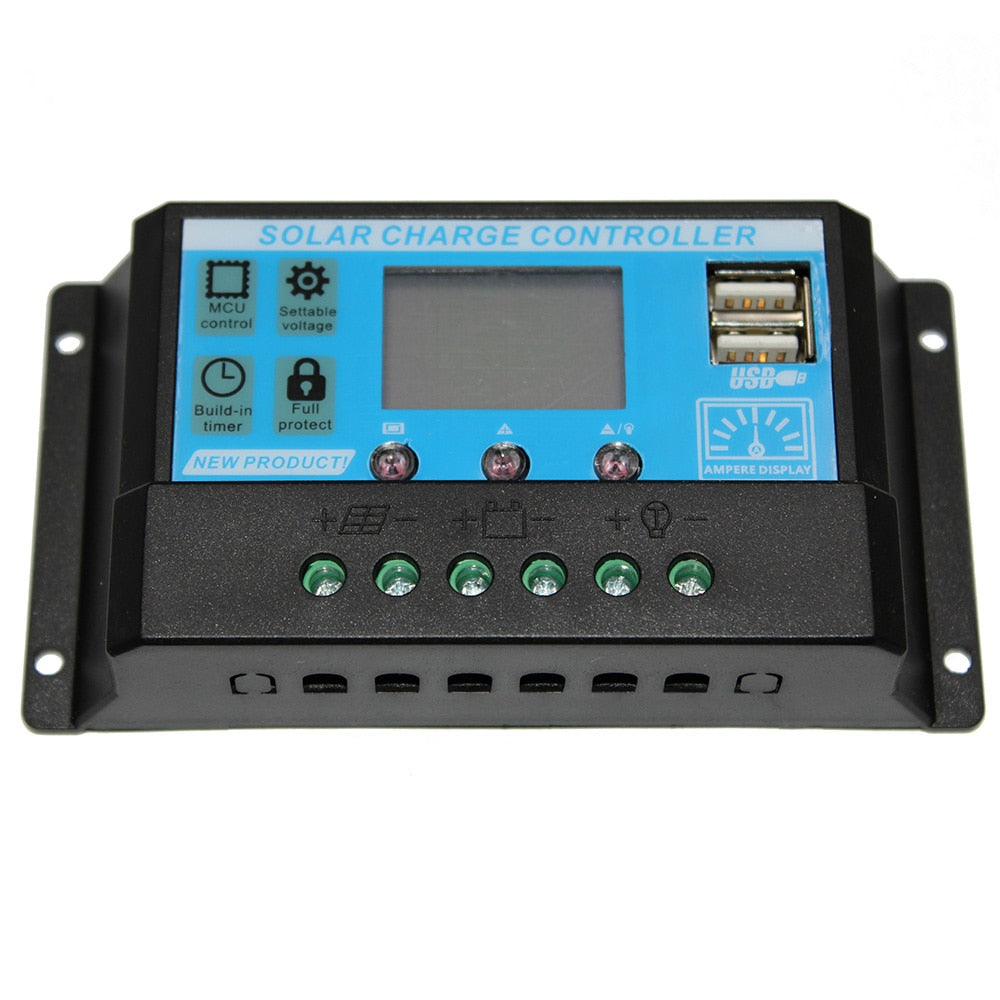

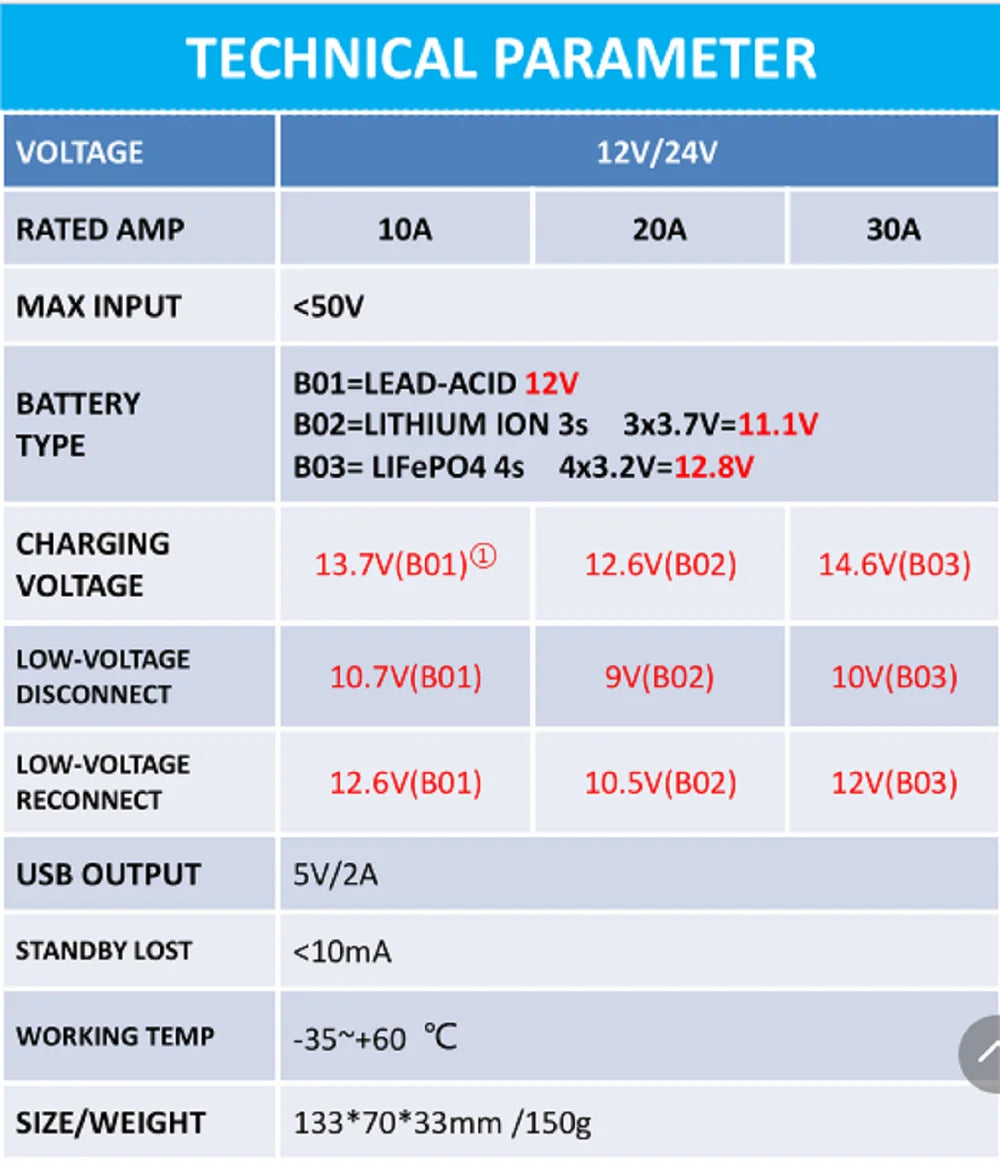

Solar Charge Controller Kit: MCUs set voltage control. Includes LCD display, USB output, and dual USB ports for charging and monitoring your solar power system.

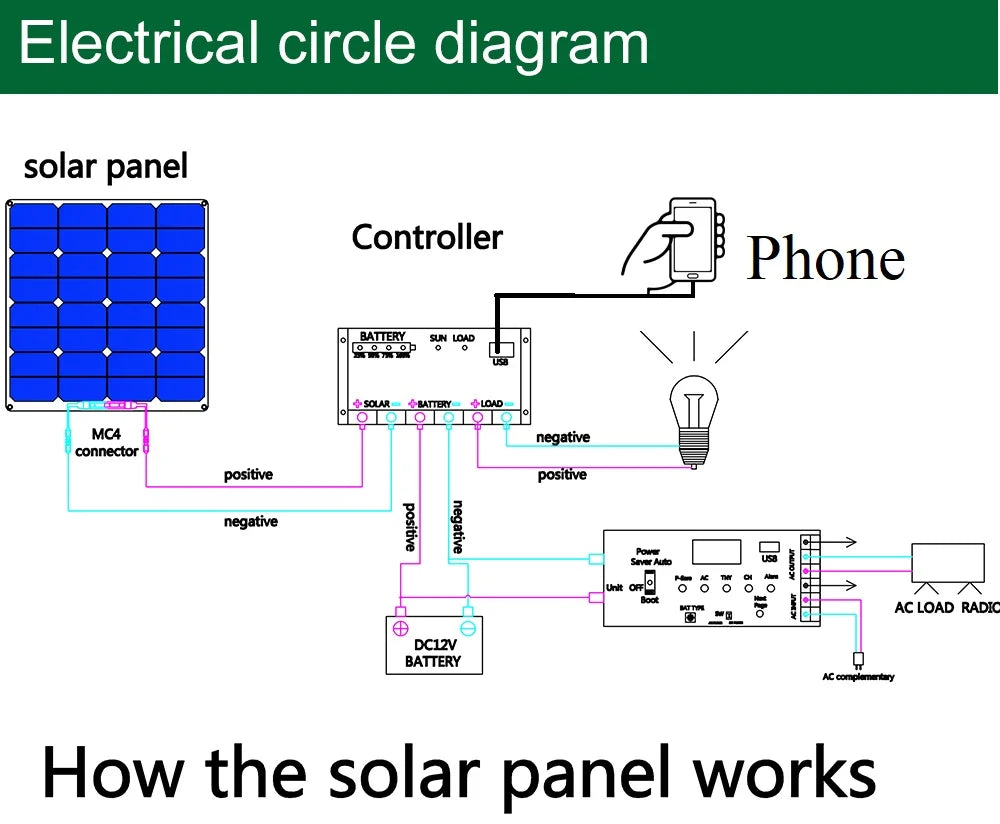

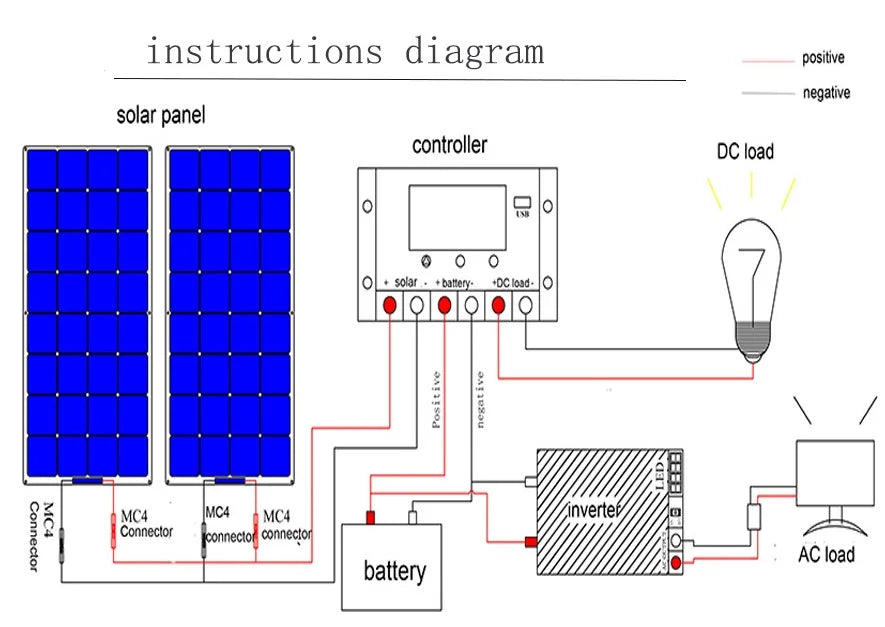

Kit includes 300W solar panel with 200W and 100W monocrystalline flexible panels, suitable for home system kits. The diagram illustrates connections: MC4 connectors for inverter, S0di positive/negative solar panel controller, DC load, and AC load battery charging.

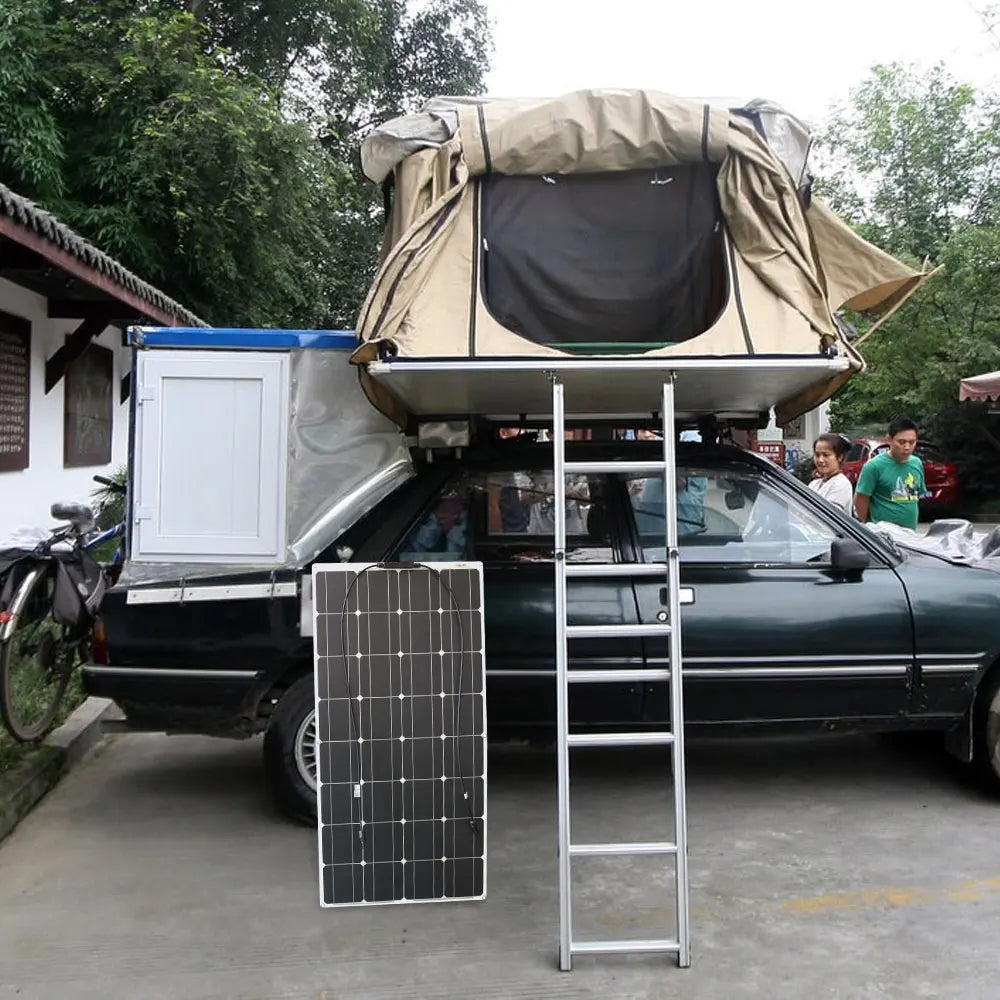

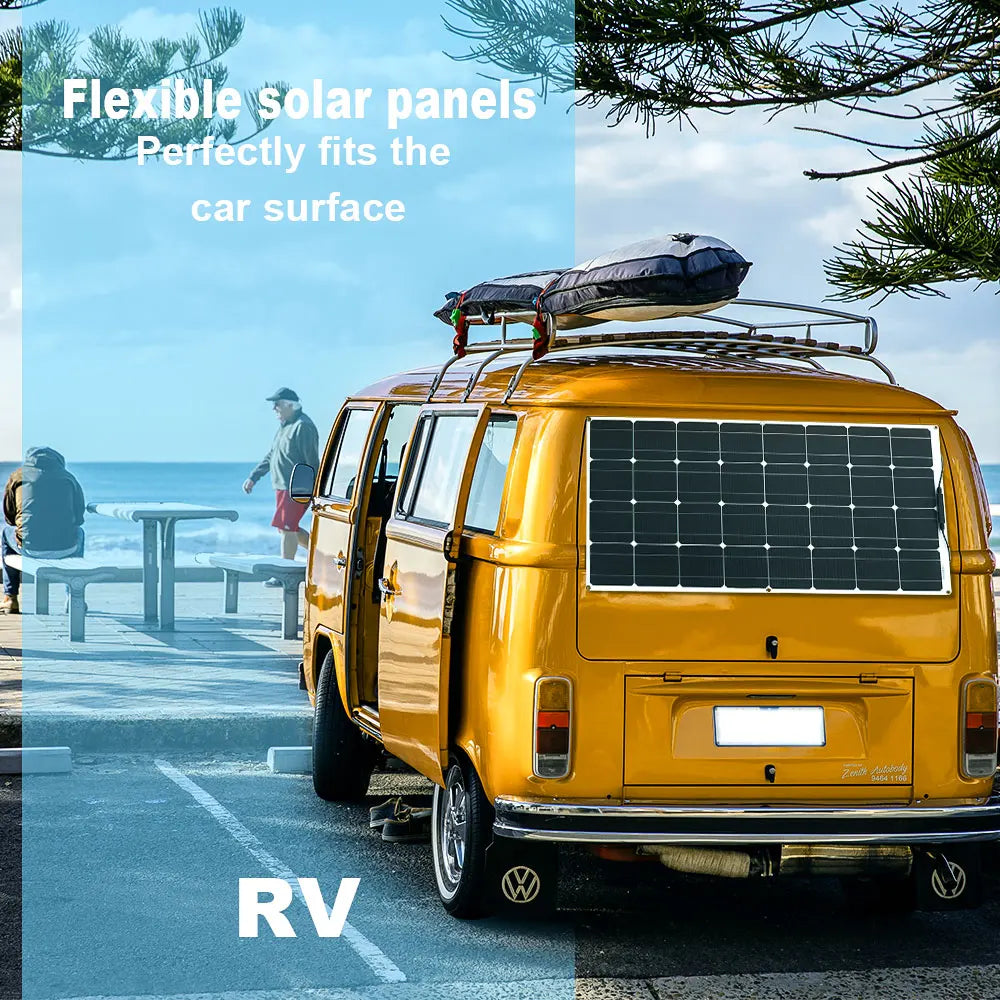

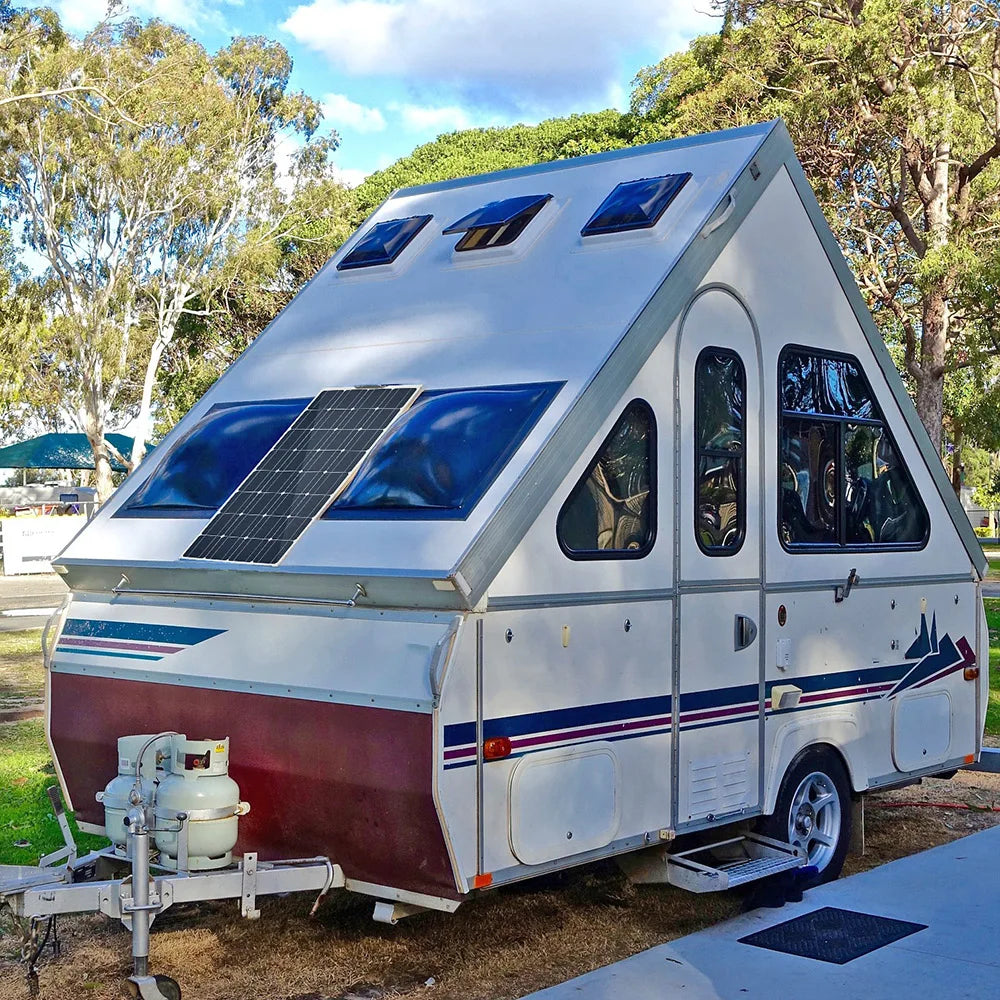

Flexible solar panels perfect for vehicle surfaces, such as cars, RVs, or boats.
