Specification of 150w:

Maximum power(Pmax) 150W

Output tolerance ± 5%

Maximum system voltage 700V DC

Open circuit voltage(Voc) 21.6V

Maximum power voltage(Vmp) 18V

Cell efficiency 21%

Operating temperature(NOCT) 45±2℃

Temperature range -40℃～+80℃

Number of cells 36pcs

Weight 3100g

Size 1160*530*25 mm

Standard Test Conditions : lrradiance 1000w/m2,Temperature 25℃,AM=1.5

(The size is manually measured and there is a certain error.)

Features waterproof design, high-efficiency battery cells, and [insert additional details if necessary].

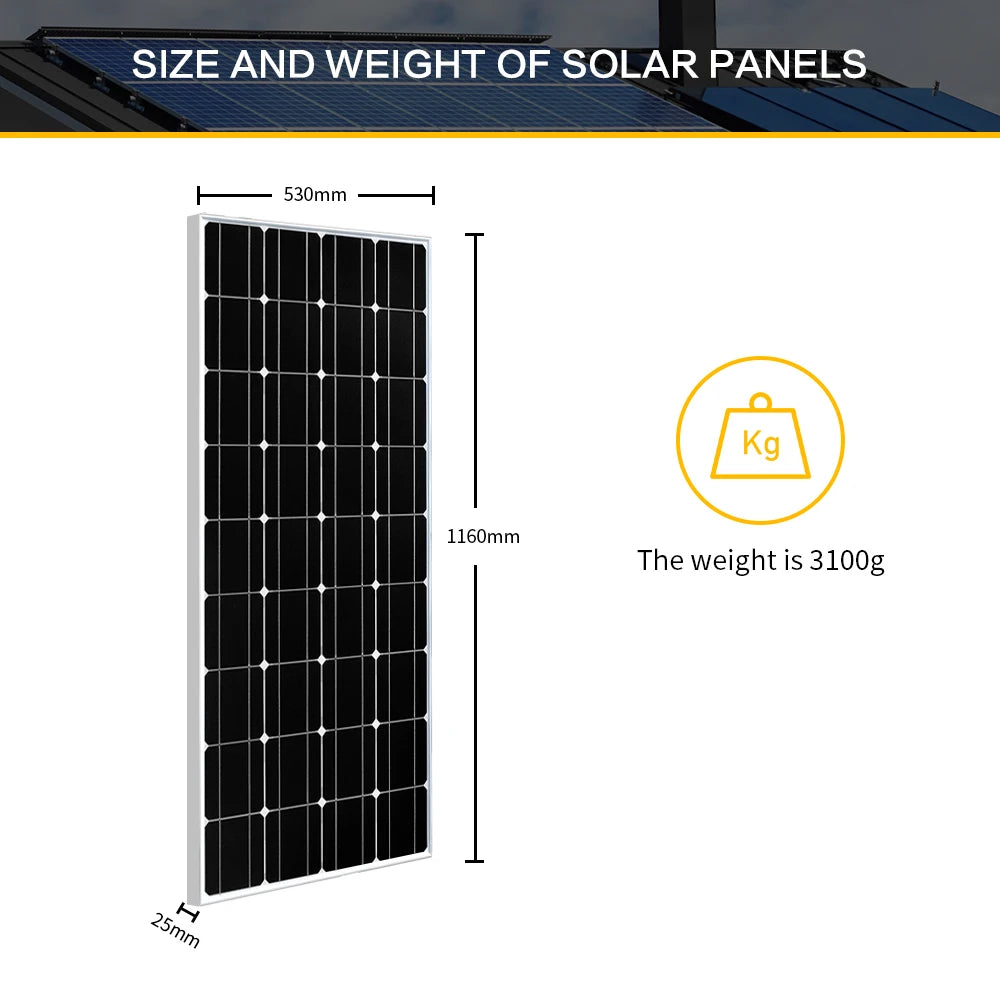

Solar panels measure 530mm x 1160mm and weigh 3100g, with a thickness of 25mm.

Package#1 of 150w solar panel

150w solar panel

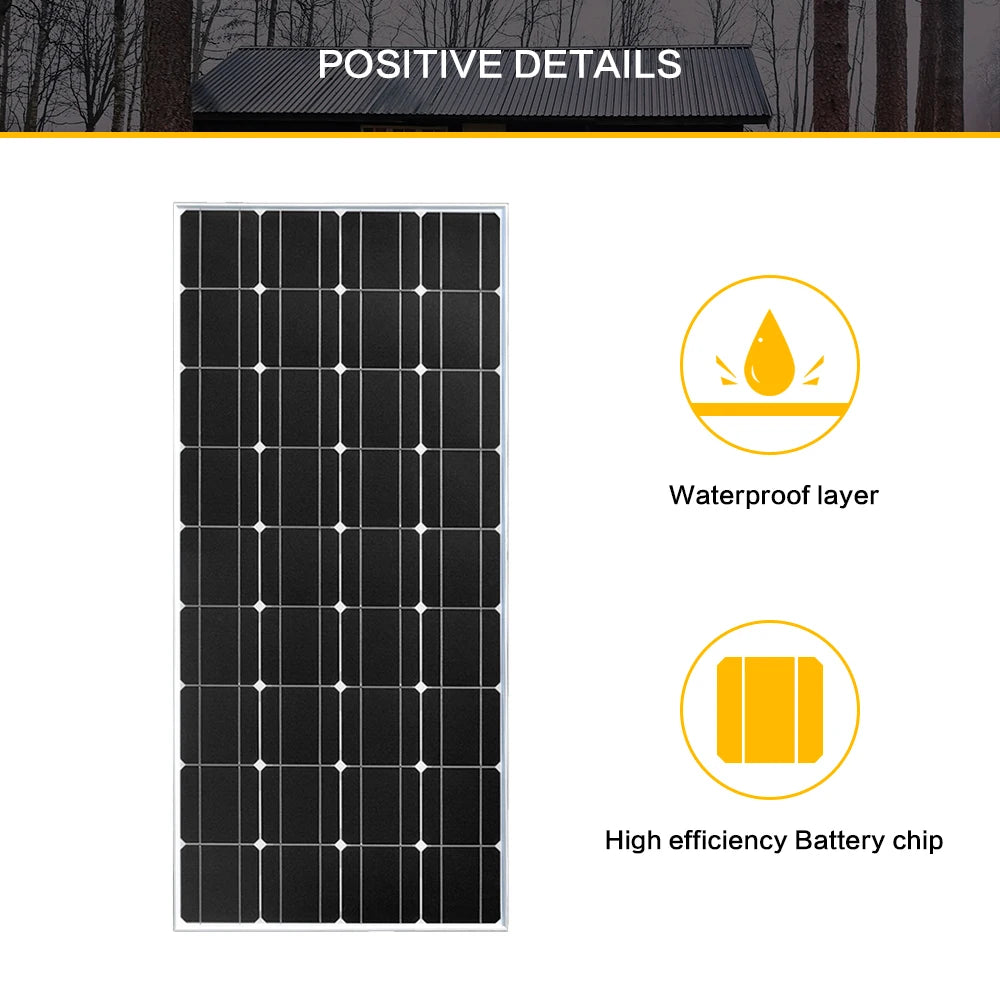

Waterproof design ensures durability, while high-efficiency battery chips maximize power output.

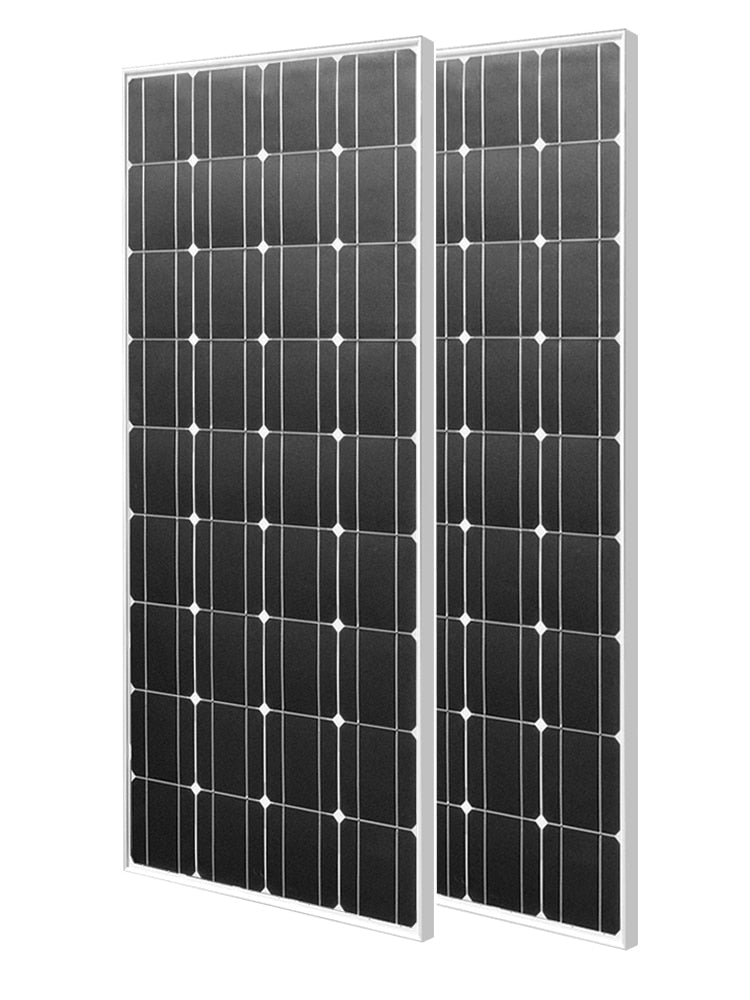

Package#2 of 300w solar panel

2*150w solar panel

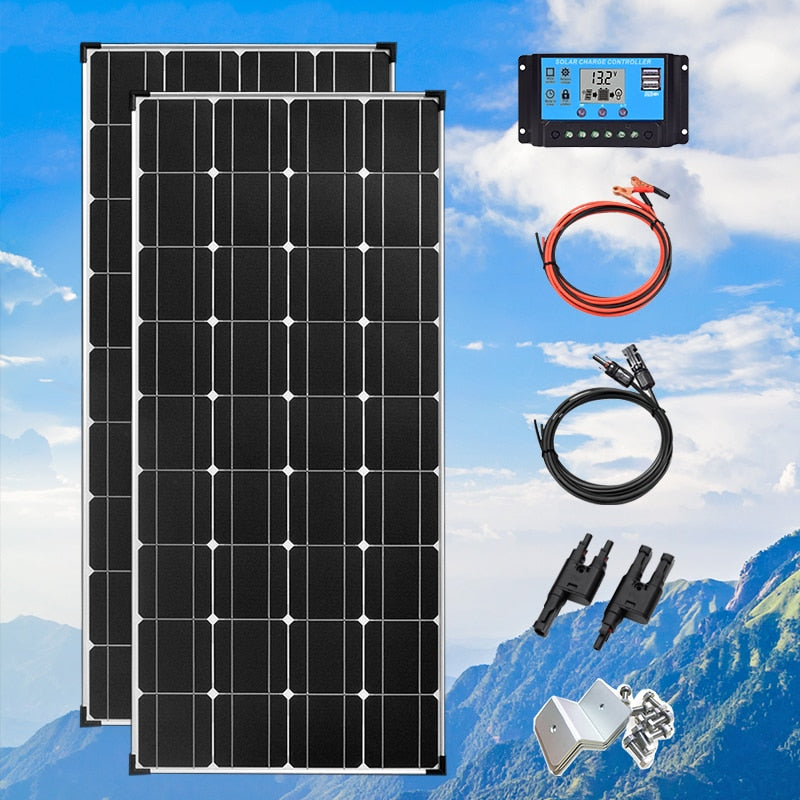

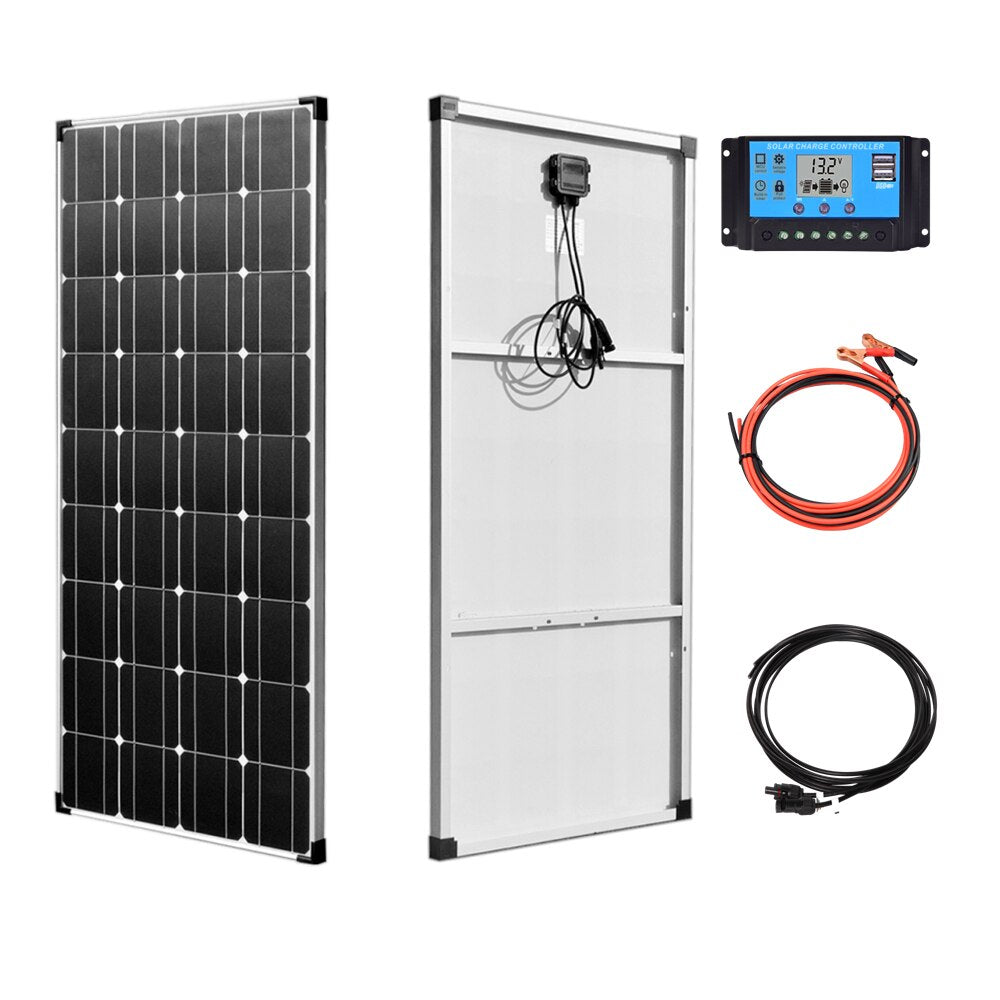

Package#3 of 300w solar kit

2*150w solar panel

1*12v/24v 20A controller

1* 3 meter alligator clips

1* 3 meter pv cable

1* 2 in 1 adapter

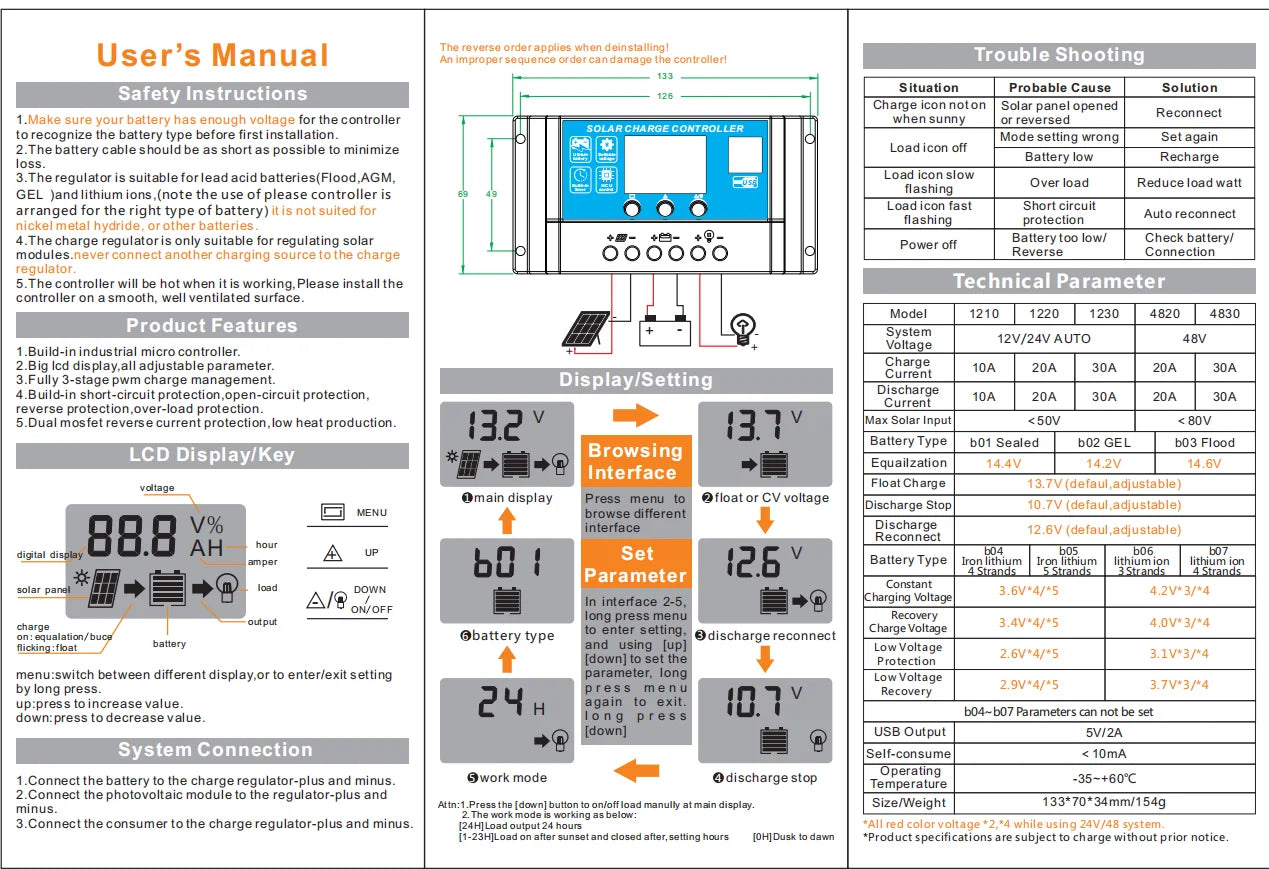

About the Controller

Batt voltage:12V/24V auto

Charge current: 20A

Discharge current:20A

USB output:5V/2A

Self-consume:<10mA

Operating temperature:-35~+60 ℃

Suitable for :lead acid batteries AND lithium ions

Build-in short-circuit protection,open-circuit protection,reverse

Features:

a. High efficiency: cell efficiency is about 1.2 times that of conventional polycrystalline

b. Using the latest component packaging technology, thinner, lighter, softer and longer life.

c. The surface is made of PET and treated with a special process, which is more wear-resistant and improves the absorption efficiency of sunlight.

d. With high light transmittance, safe and reliable, not afraid of high temperature, no danger of burning or explosion.

e. The junction box has an IP67 waterproof design, which includes a bypass diode, and the circuit adopts input overcurrent protection and reverse protection design.

f. The PV cables for photovoltaic modules are used for outgoing cables. The outdoor use is safe, waterproof, high temperature resistance and weather resistance. pv connectors are easy to use, plug and play.

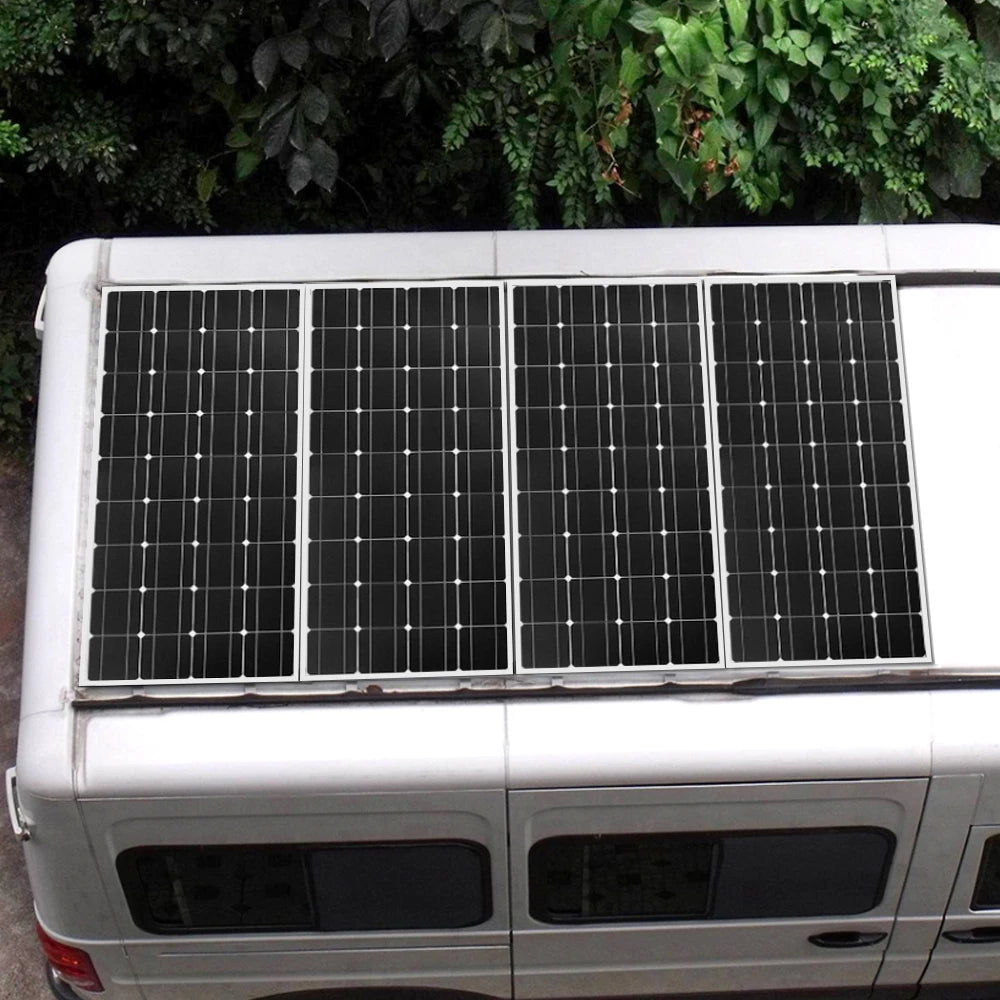

g. This product is a solar module. It is recommended to be used with controllers and batteries. It can be used in a variety of scenarios such as RVs, households, camping, yachts, street lights and solar power stations.

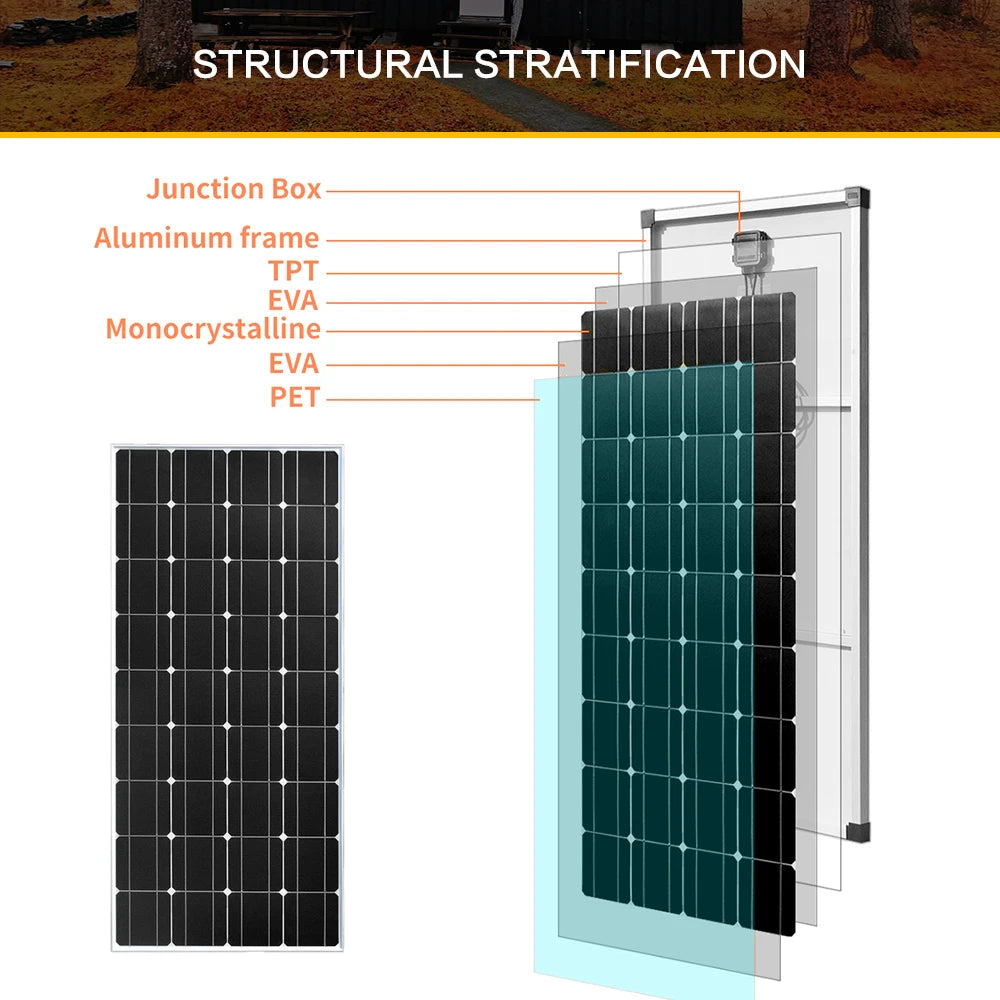

Kit includes a junction box with an aluminum frame, TPT and EVA/PET materials for structural integrity.

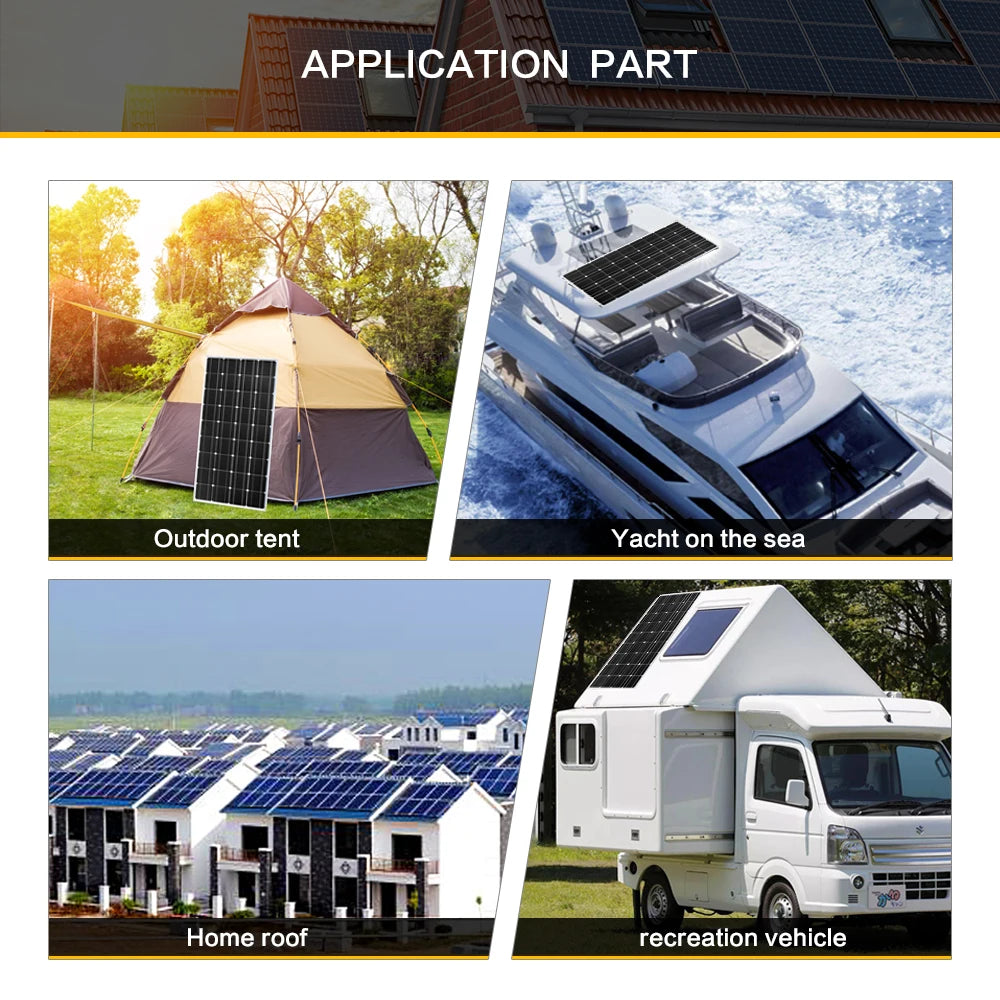

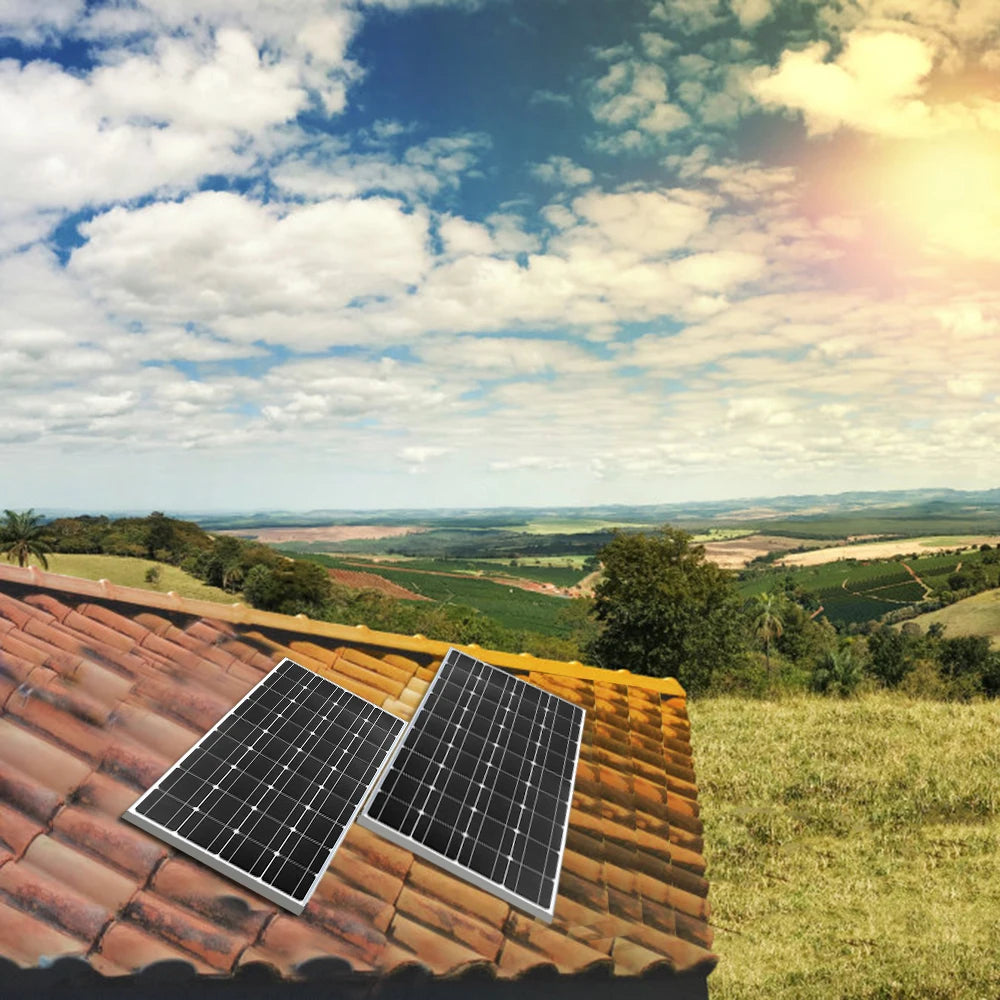

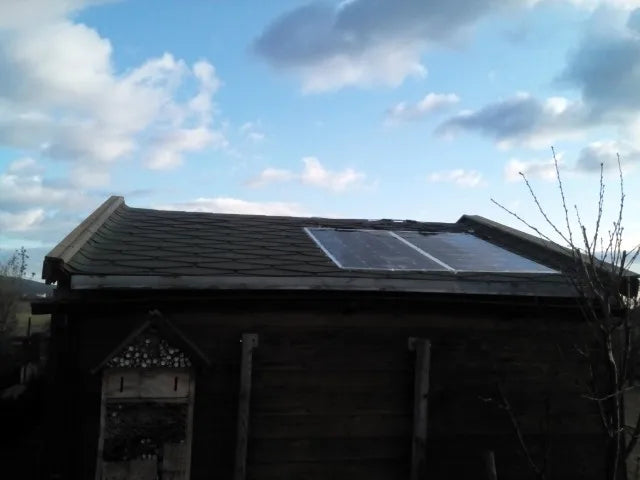

Suitable for outdoor applications such as tents, yachts, homes, roofs, and recreational vehicles like caravans.

Easy to install

2 holes of right and left side 6mm*9mm(oval)

Solar panel dimensions: 53cm x 116cm. Weight: approximately 3.1kg.

Waterproof design ensures durability; high-efficiency battery chips provide reliable performance.

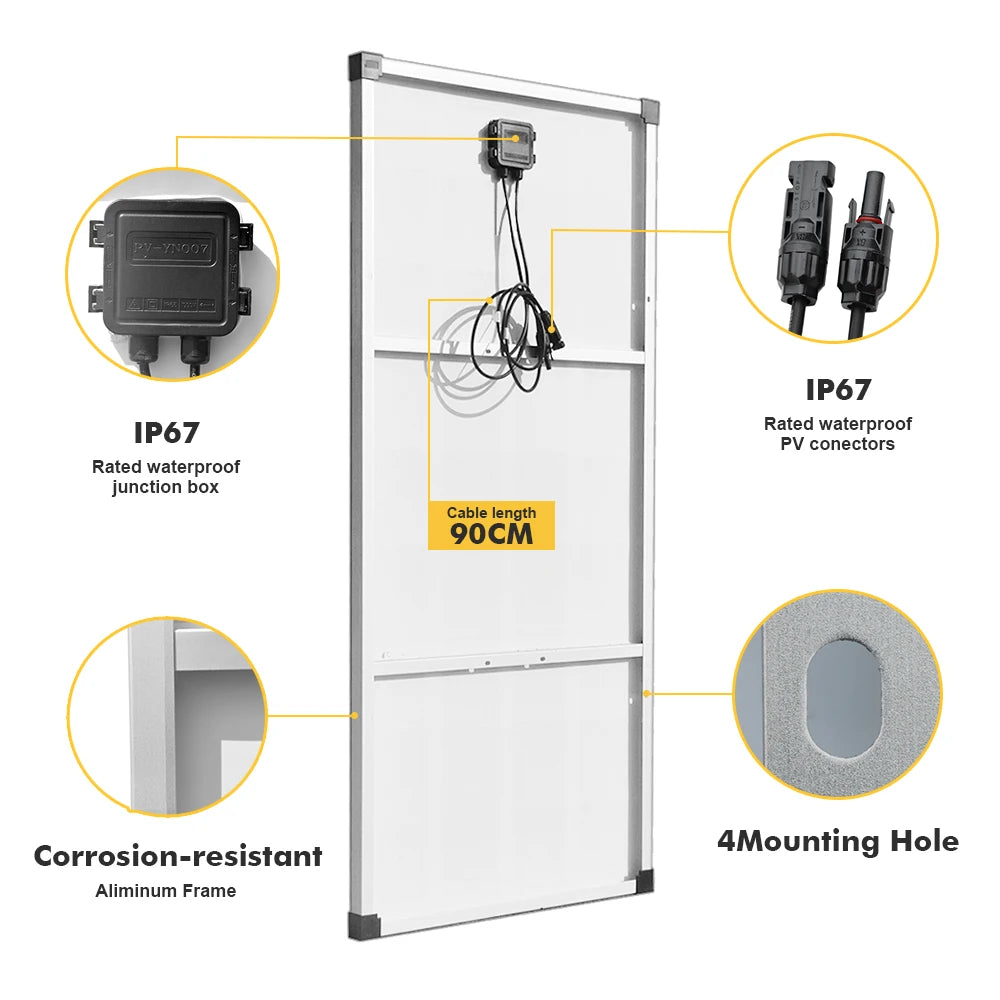

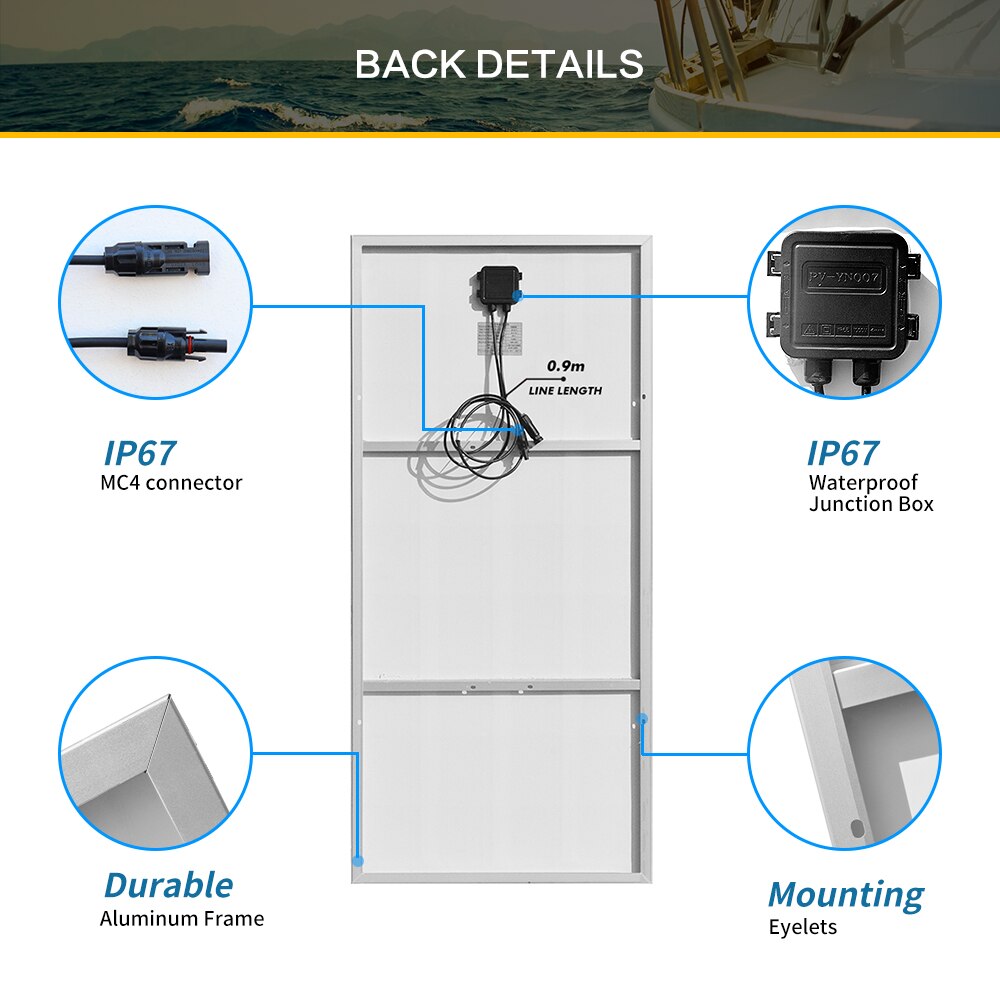

This solar panel kit features waterproof connectors (IP67 rated), a corrosion-resistant aluminum frame, and mounting holes. The junction box has a length of 9m and a 4-mounting hole design.

Notes for use

a. This product must not come into contact with highly corrosive substances.

b. It is strictly forbidden to modify, disassemble, drop, and hit the junction box and products by yourself, avoid stepping on the surface and scratching the surface with hard objects during use.

c. A large number of scratches or dirt on the surface of the solar panel may cause the solar cell module to be inefficient, and in severe cases may cause burnout.

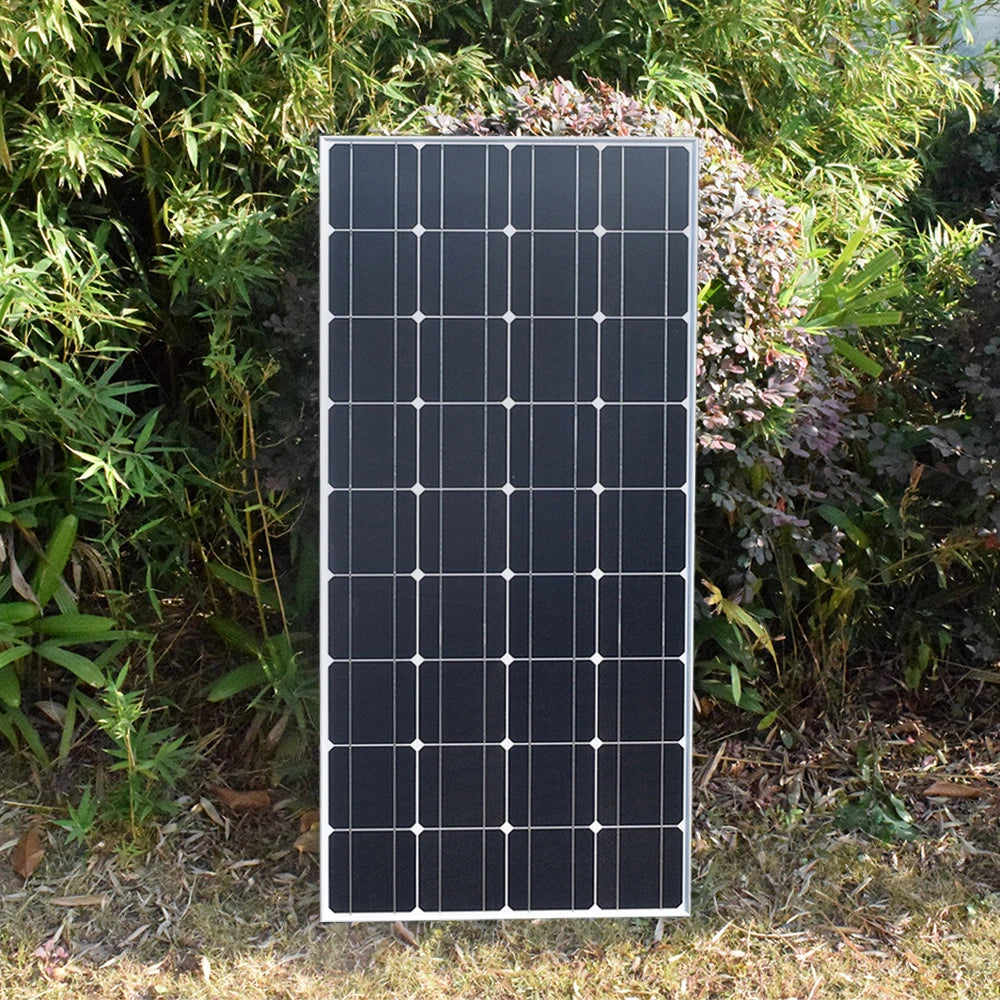

d. The suitable ambient temperature range of this product: -20 ° C-80 ° C, please do not exceed this range.

e. The solar panel must be installed in an area with good sunlight and no shadow. The long-term work of the solar cell module in the sun with shadow may have the risk of burning.

f. It is forbidden to connect the positive and negative poles of the product together, and it is forbidden to put the product into water or fire, otherwise it will damage the product.

g. The overall power of the photovoltaic module must be less than the rated power of the controller (rated voltage × rated current). It is strictly prohibited to overload the controller.

h. The total voltage of the photovoltaic module connected to the controller must be within the photovoltaic input voltage range of the controller.

i. The inverter can only be connected to the battery, not directly to the controller.

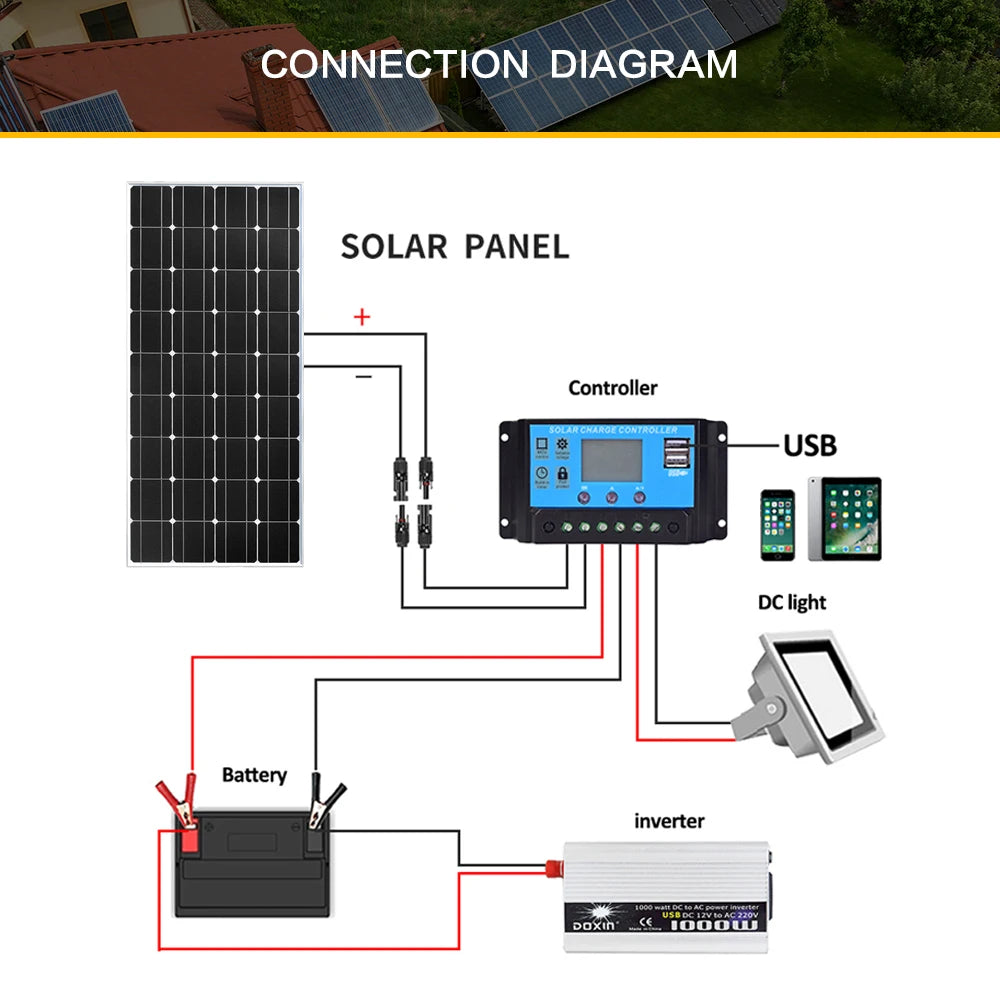

Connect solar panel to controller, inverter, battery, and devices like USB ports, lights, and DC outlets for a seamless off-grid power system.

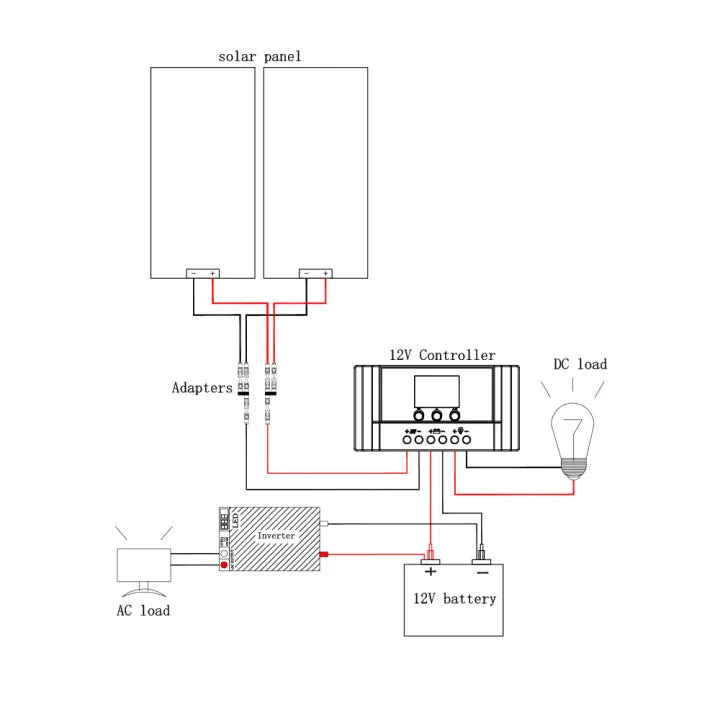

Complete solar kit includes 12V controller, adapters for 12V batteries, and compatible AC loads.
