30A Solar Charge Controller MPPT 12V 24V for 200W-380W Solar Panel Battery Regulator Max PV 48V USB Output 5V LCD Display
30A Solar Charge Controller MPPT 12V 24V for 200W-380W Solar Panel Battery Regulator Max PV 48V USB Output 5V LCD Display
116 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Origin: Mainland China
Model Number: M30
Maximum Current: 30A
Is Smart Device: YES
Certification: CE,FCC,RoHS
Brand Name: PowMr
Application: Charger Controller,Water Heater Controller,Lighting Controller,Solar System Controller,Solar Working Station
$69-$10 CODE NAME: HBD10
MPPT 30A Solar Charge Controller 5V USB Output 12V 24V Auto Solar Panel Controller LCD Displa PV Home Battery Charger Regulator
Description:
This is a compatible MPPT charge controller PWM intelligent / efficient / energy saving, he not only has efficient MPPT controller charging function to automatically track the maximum power point, 10% -30% higher than the ordinary controller charging efficiency, also has standby energy saving, more than 30% energy than ordinary controller, the standby power consumption of only 10mA-15mA.
Notcie: not true MPPT ,there is no large transformer coil inside
Product introduction
LCD screen display |
Battery reverse discharge protection |
Easy operation interface |
Battery reverse polarity protection |
MPPT+ PWM charging mode |
Battery under voltage protection |
Parameter user can reset Overload |
Short-circuit protection |
A key to restore the factory settings |
USB 5V charging (for 500mA) for mobile phone(Only for M30) |
A key to open and close the load |
Automatic temperature compensation function |
Solar LCD series a kind of intelligent,multi-purpose solar charge and discharge controller
Data Sheet
Parameters / Model |
MPPT30 |
|||
Maximum power current |
30A |
|||
Installation Lin(mm2) |
10mm2 |
|||
Installation Line(AWG) |
7(AWG) |
|||
Weight |
475g |
|||
Dimensions |
187*97*61(mm) |
|||
System load loss |
≤13mA |
|||
Loop Buck |
≤100mV |
|||
Specification
Battery float voltage |
13.8V(12V system)/27.6V(24V system) |
Battery(under voltage) protection |
10.6v(12V system)/21.2V(24V system) |
Battery (under voltage) recovery voltage |
12.6V(12V system)/25.2V(24V system) |
Charge mode |
MPPT+PWM MODE |
Operating Temperature |
-10degree centigrade~60degree centigrade |
Storage Temperature |
-30degree centigrade~70degree centigrade |
Humidity requirements |
≤90%, No condensation |
Temperature compensation |
-4mV/Cell/degree centigrade |
Temperature Probe (built components) |
NTC 100K thermistats |
Maximum open circuit voltage of the solar panel |
18V-24V(12V system)36V-48V(24V system) |
Solar panels maximum open circuit voltage (V) |
≤48V |
(Cases) 12V system standard configuration
The peak voltage of the solar cell panel |
18V-25V |
|||
Peak power of solar cell panel |
200W-380W |
|||
Model |
MPPT30 |
|||
Battery standard voltage |
12V |
|||
Battery capacity |
≥300AH |
|||
Installation Lin(mm2) |
10mm2 |
|||
Installation Line(AWG) |
7(AWG) |

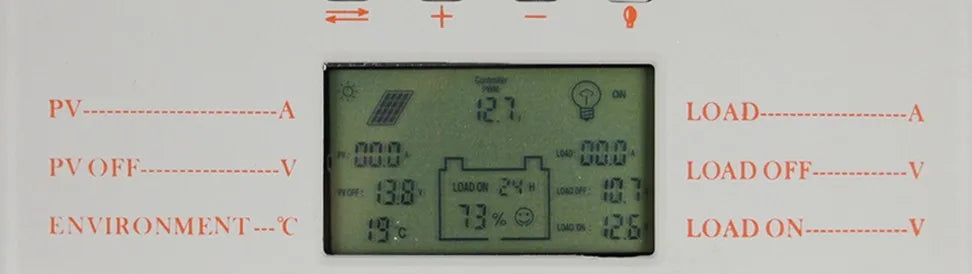

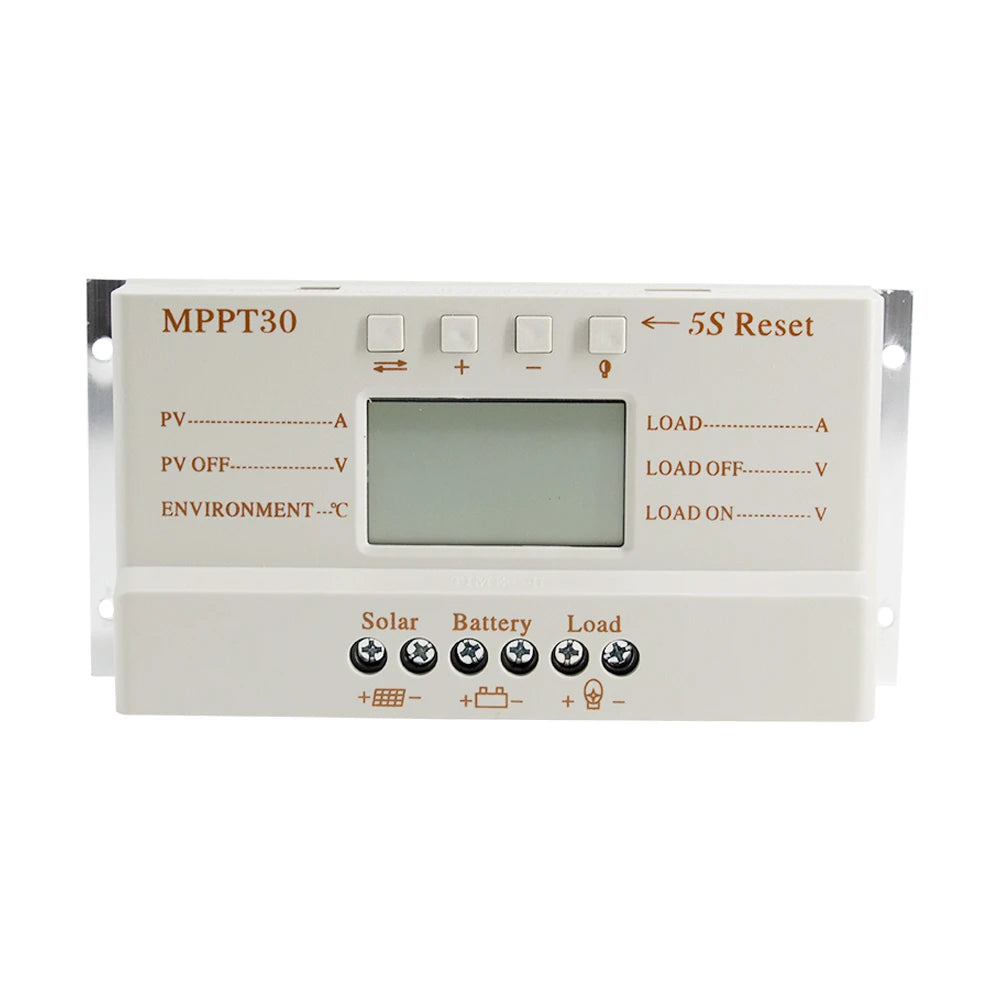

Reset MPPT30 solar charger to load off, PV off, environmental conditions, battery charging and load on. This device allows for solar panel charging, battery regulation, and USB output with a 5V LCD display.

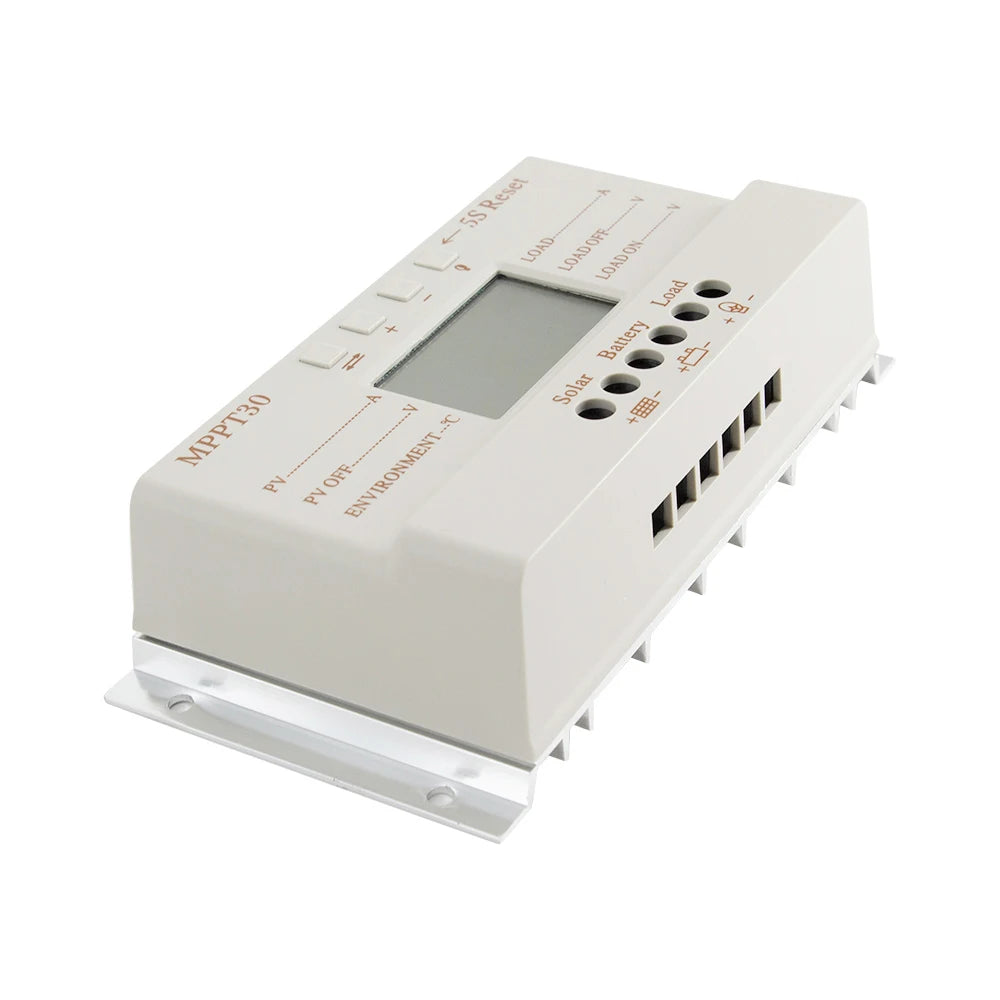

4/2 58 Rekord Loak LCD: Low-Voltage Environment - 30A MPPT Solar Charge Controller for 200W-380W Solar Panel and Battery Regulator.

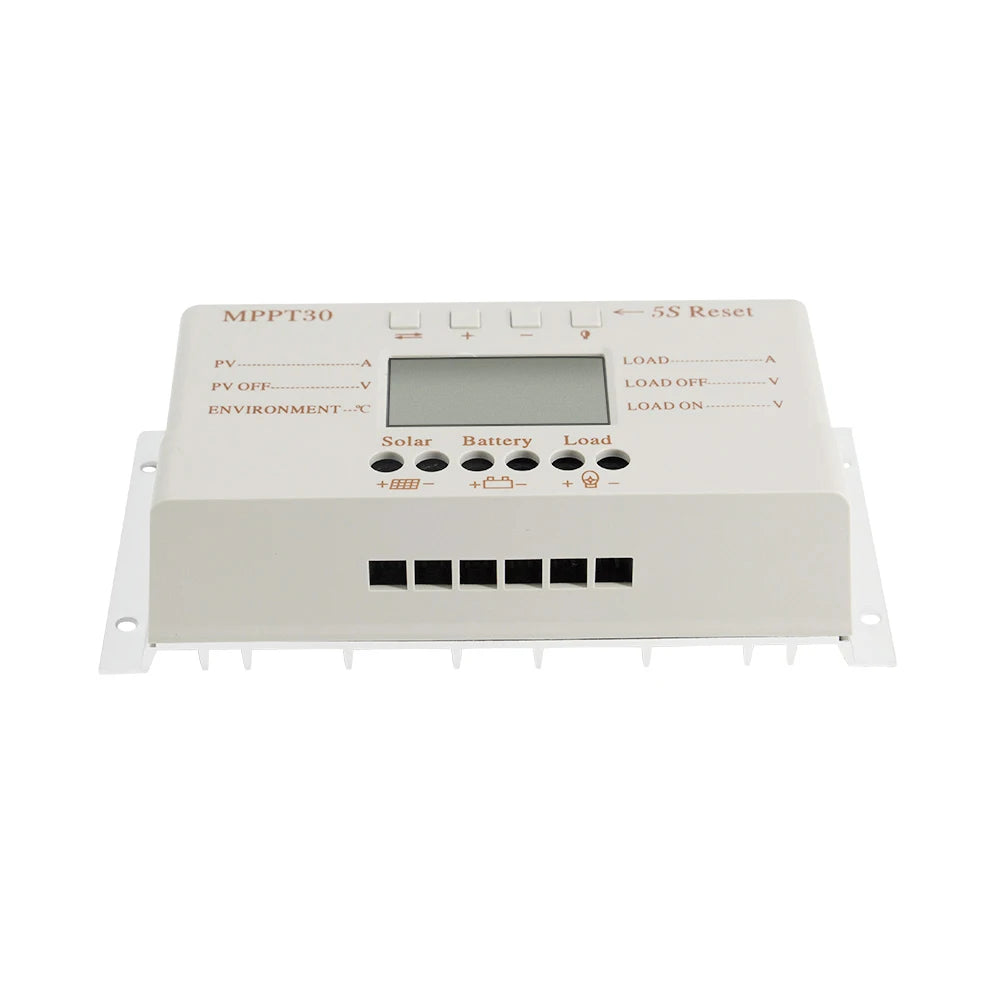

Maximum Power Point Tracking (MPPT) solar charge controller for 12V or 24V batteries, with max PV input voltage of 48V. Features USB output and 5V LCD display for monitoring.

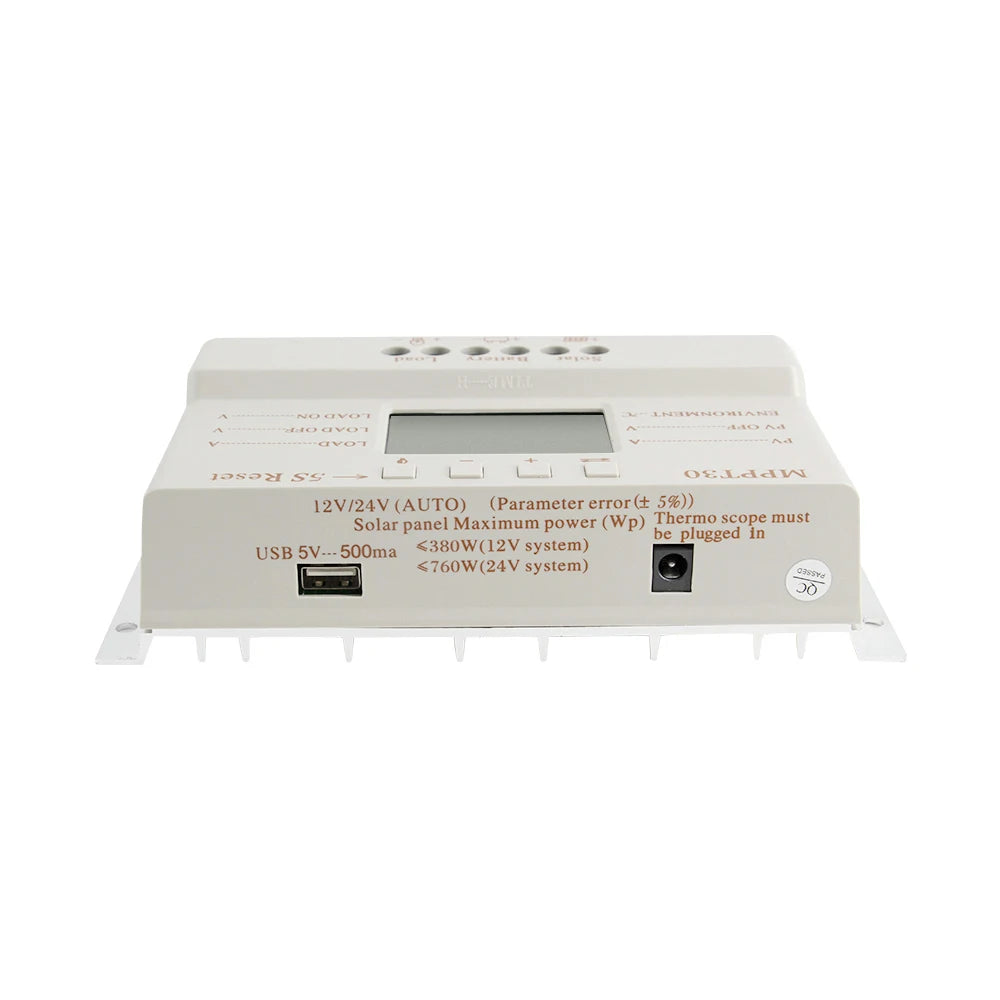

Solar Charge Controller MPPT 30A regulates 12V/24V battery charge from solar panels. It can handle up to 380W (12V system) or 760W (24V system). The USB output provides a steady 5V supply, while the LCD display shows key parameters.

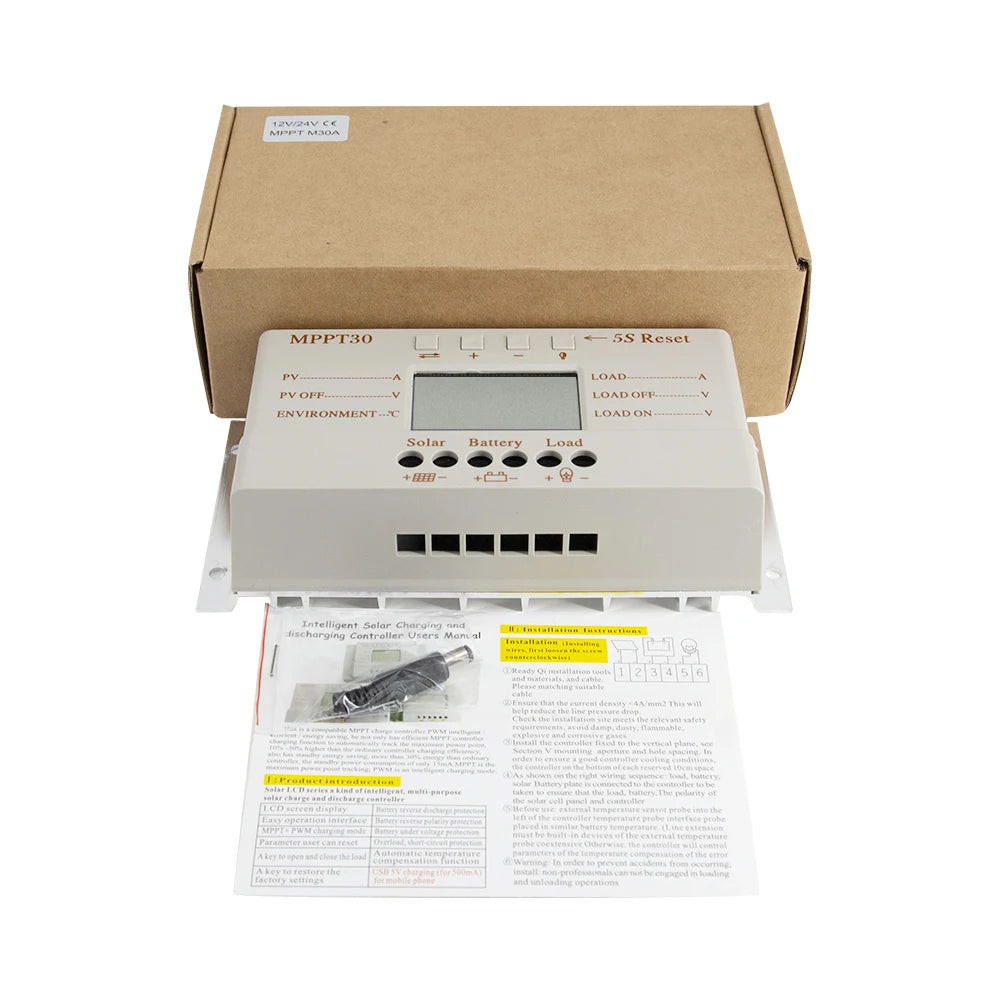

Intelligent Solar Charge Controller MPPT for 200W-380W solar panels and batteries. This controller features load management, overload protection, and environmental monitoring. It has an LCD display showing the charging status and allows for USB output at 5V. The controller is designed to work with 12V or 24V battery systems and supports up to 48V maximum PV input.
30A Solar Charge Controller MPPT for 12V or 24V battery system, compatible with 200W-380W solar panels, featuring 48V maximum PV input and 5V USB output with LCD display.
