3600W 6200W Grid Tie/Off Grid Hybrid Solar Inverter 6.2KW 48V 120A MPPT Solar Controller 90-450VDC PV Input With Wifi
3600W 6200W Grid Tie/Off Grid Hybrid Solar Inverter 6.2KW 48V 120A MPPT Solar Controller 90-450VDC PV Input With Wifi
52 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Weight: 13kg
Solar inverter Type: Hybrid Solar inverter
Size: 420*310*120mm
Output Voltage Waveform: Pure sine Wave
Output Voltage: 220VAC-240VAC
Output Type: single
Output Power: 1 - 200KW
Output Frequency: 50Hz/60Hz(Auto sensing)
Output Current: 120A
Origin: Mainland China
Model Number: AGH-6.2KW
Maximum PV Array Power: AGH-6.2 KW 6200W AGH-3.6KW 3600W
Is Smart Device: YES
Communication Interface: RS232/WIFI/BMS
Certification: CE
Brand Name: daxtromn
Battery voltage: AGH-3.6KW 24VDC /AGH-6.2KW48VDC
Quality guaranteed. Dedicated to customer satisfaction.
Feature of Hybrid Solar Inverter 6.2KW
1.Pure Sine Wave Solar Inverter
2.Max 120A MPPT Solar Charger
3.Max 450VDC PV Input
4.High PV Input Voltage Range(120~450VDC)
5.Output Power Factor1.0
6.Real Hybrid Solar Inverter(Grid Tie & Off Grid)
7.Wifi Module For Easily Connection
8.Efficiency Work With Or Without Battery
9.Bundled Monitoring & Setting Software
10.Supports 50hz or 60hz (Program Adjustable)
11.Able to Use AC Grid Or Generator Power
12.Built-in Anti-dusk Kit For Harsh Environment
13.Optional DC Output For DC fan, LED bulb,Router And so on
14.Cold Start Function
Note
This is a wide voltage Hybrid Solar inverter, If Solar Inverter without external battery ,The voltage which starts to connect to the solar panel must be above 150V for the inverter to work normally, if with external battery 120V is working.
Model |
AGH-3.6KW |
AGH-6.2KW |
PHASE |
1-phase |
|
MAXIMUM PV INPUT POWER |
6200W |
|
RATED OUTPUT POWER |
3600W |
6200W |
MAXIMUM CHARGING POWER |
6200W |
|
GRID-TIE OPERATION | ||
PV INPUT(DC) | ||
Nominal DC Voltage/Maximum DC Voltage |
360VDC/500VDC |
|
Start-up Voltage/Initial Feeding Voltage |
120VDC |
|
MPPT Voltage Range |
90VDC~450VDC |
|
Number of MPPT Trackers/Maximum Input Current |
1/27A |
|
GRID OUTPUT(AC) | ||
Nominal Output Voltage |
220/230/240VAC |
|
Output Voltage Range |
195.5~253VAC |
|
Nominal Output Current |
15.7A |
26.1A |
Power Factor |
>0.9 |
|
EFFICIENCY | ||
Maximum Conversion Efficiency(DC/AC) |
97% |
|
OFF-GRID OPERATION | ||
AC INPUT | ||
AC Start-up Voltage/Auto Restart Voltage |
120-140VAC/180VAC |
|
Acceptable Input Voltage Range |
90-280VAC or 170-280VAC |
|
Maximum AC Input Current |
30A |
40A |
PV INPUT(DC) | ||
Maximum DC Voltage |
500VDC |
|
MPPT Voltage Range |
90VDC~450VDC |
|
Number of MPPT Trackers/Maximum Input Current |
1/27A |
|
BATTERY MODE OUTPUT(AC) | ||
Nominal Output Voltage |
24VDC |
48VDC |
Output Waveform |
Pure sine wave |
|
Efficiency(DC to AC) |
94% |
|
HYBRID OPERATION | ||
PV INPUT(DC) | ||
Maximum DC Voltage |
360VDC/500VDC |
|
Start-up Voltage/Initial Feeding Voltage |
120VDC |
|
MPPT Voltage Range |
90VDC~450VDC |
|
Number of MPPT Trackers/Maximum Input Current |
1/27A |
|
GRID OUTPUT(AC) | ||
Nominal Output Voltage |
220/230/240VAC |
|
Output Voltage Range |
195.5~253VAC |
|
Nominal Output Current |
15.7A |
26.1A |
AC INPUT | ||
AC Start-up Voltage/Auto Restart Voltage |
120~140VAC/180VAC |
|
Acceptable Input Voltage Range |
90~280VAC or 170~280VAC |
|
Maximum AC Input Current |
30A |
40A |
BATTERY MODE OUTPUT(AC) | ||
Nominal Output Voltage |
220/230/240VAC |
|
Efficiency(DC to AC) |
94% |
|
BATTERY & CHARGER | ||
Nominal DC Voltage |
24VDC |
48VDC |
Maximum Solar Charging Current |
120A |
|
Maximum AC Charging Current |
80A |
|
Maximum Charging Current |
120A |
|
GENERAL | ||
PHYSICAL | ||
Dimension, D*W*H(mm) |
420*310*120 |
|
Net Weight(KGS) |
11 |
13 |
INTERFACE | ||
Communication Port |
WIFI |
|
ENVIRONMENT | ||
Operating Temperature |
0℃~90℃ |
|
Storage Temperature |
-10℃~50℃ |
|
Q:Whats the Rated output power ?
A:Its AGH-3.6KW 3600W AGH-6.2KW 6200W
Q:Whats the max charge currency for battery ?
A:Its 120A
Q:Whats the MAX DC PV Input?
A:Its 450VDC
Q:How many volts of external battery use ?
A:24V for Model :AGH-3.6KW and 48V for AGH-6.2KW
Q:It can support Parallel ?
A:No it can not support .If you need to support Parallel ,Please check our BGH-5KW(Up to 9pcs) And BOH-8KW(Upt to 6pcs)
Q:Whats the warranty?
A:1 Year
Q:If it has Wifi Model ?
A:Yes
Q:Do it feed the power to grid?
A:Yes,it is on/off grid solar inverter ,Real Hybrid Inverter

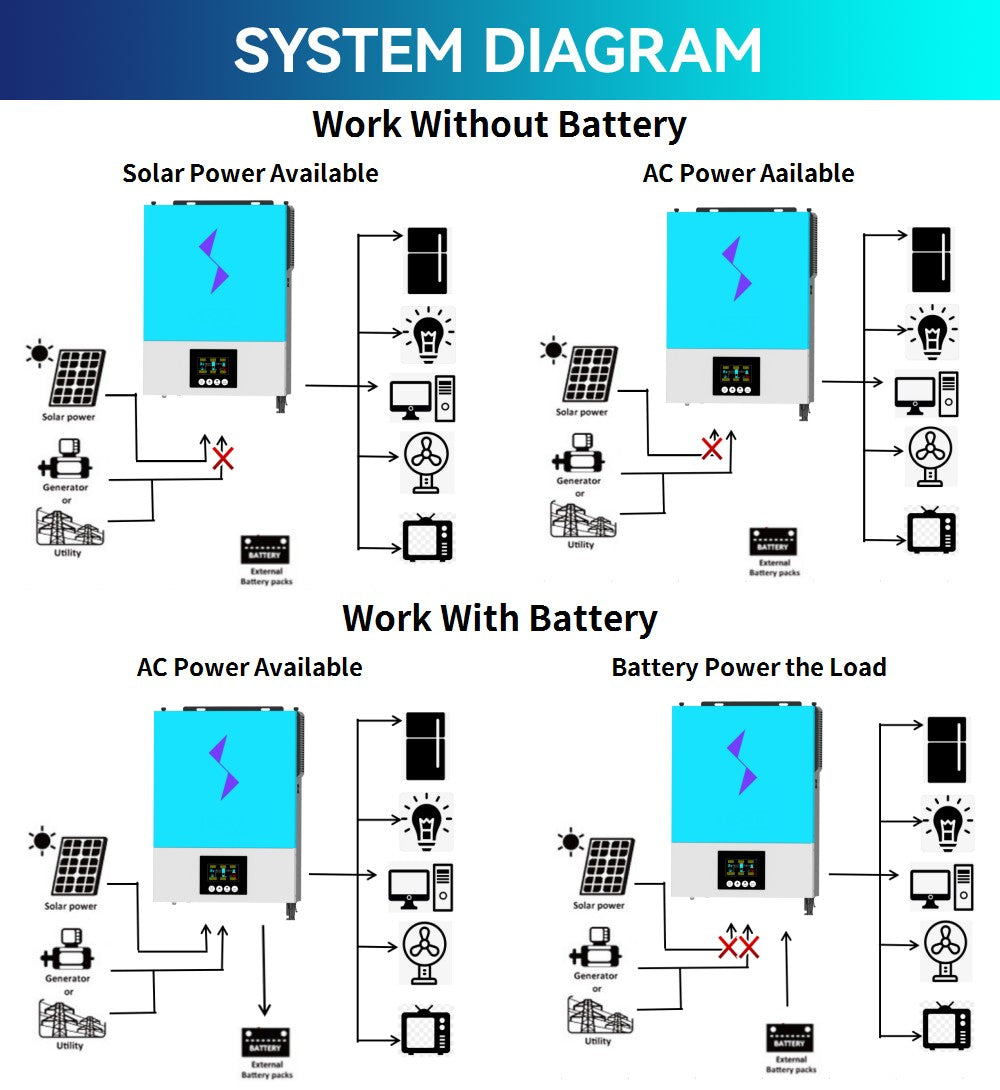

The system diagram shows two modes: 'Work Without Battery' for solar power availability with AC power available. In this mode, excess energy is fed into the grid. The second mode, 'Work With Battery', connects to battery-powered loads when AC power is unavailable.

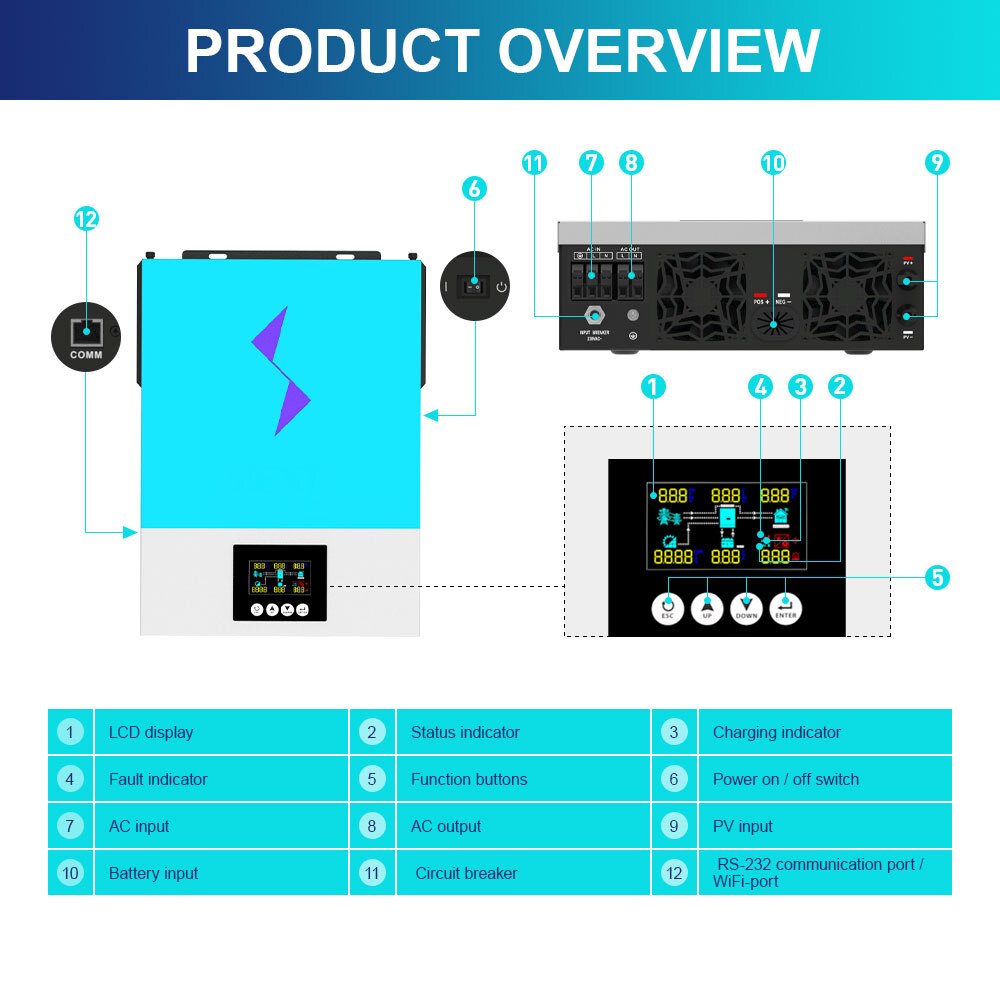

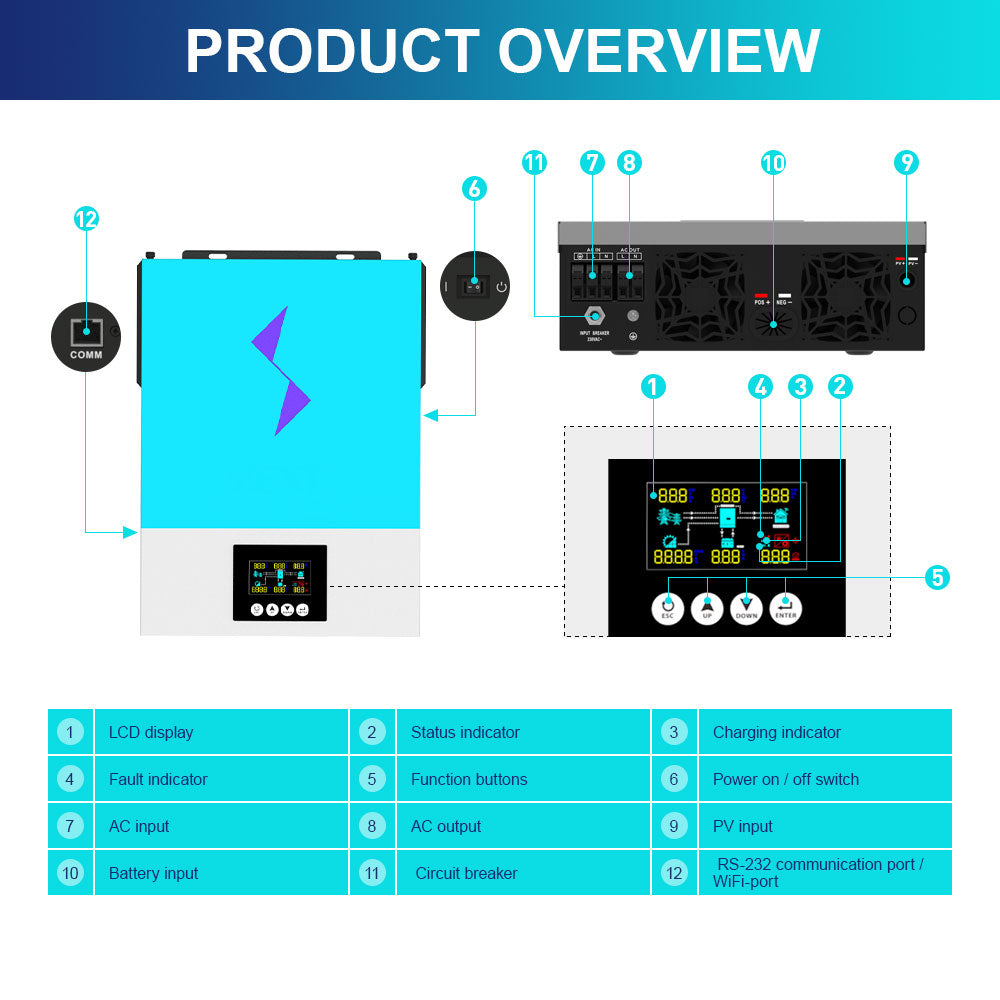

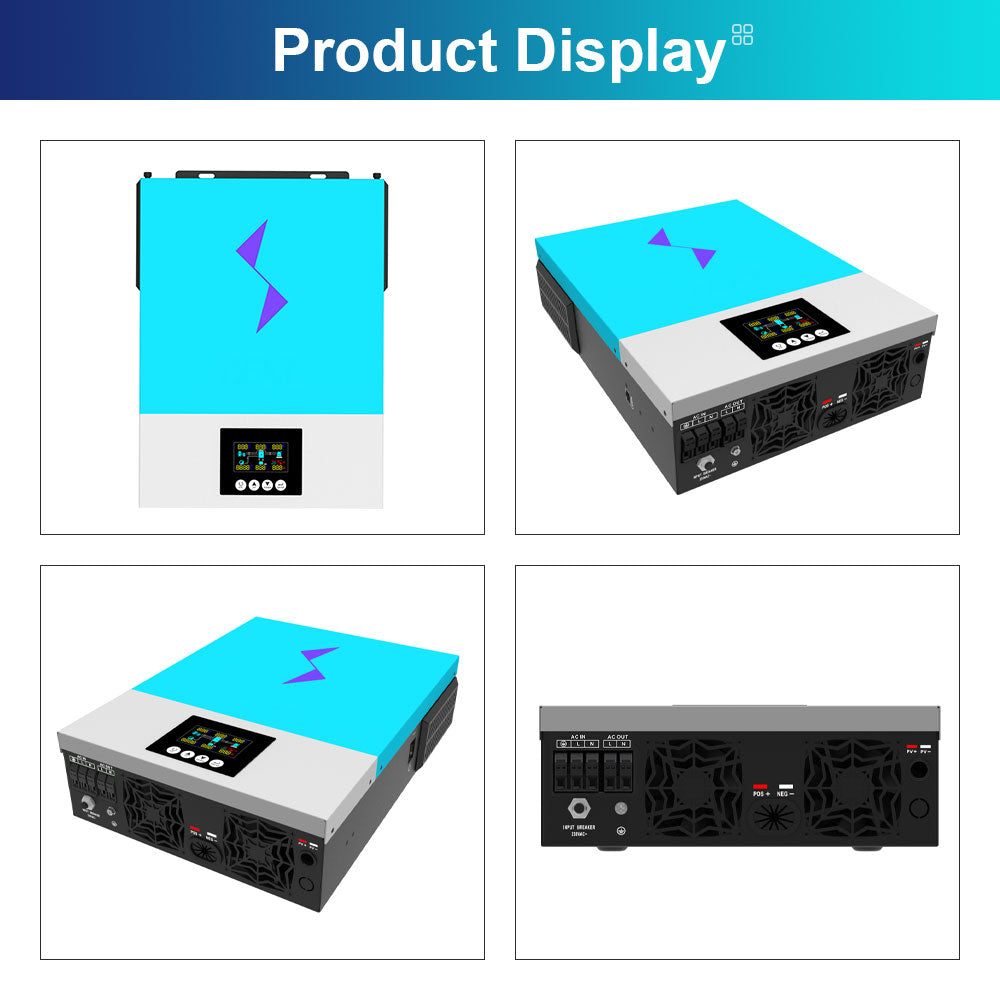

Product Overview: The 3600W inverter features an LCD display with status, charging, and fault indicators. Control functions include power on/off, AC inputs/output, PV, battery, and circuit breaker settings. Additionally, it has RS-232 and WiFi communication ports for remote monitoring.
Grid-tie/off-grid hybrid inverter with WiFi for 6.2kW/48V/120A solar system, compatible with PV input (90-450VDC)
Product Details: * Model Name: AGH-3.6KW * Model Number: AGH-6200W * Color: Blue and Black * Operating Temperature: 10°C - 50°C * PV Input: + Nominal Operating Voltage: 240Vdc + Maximum PV Input Voltage: 450Vdc + Maximum Solar Charging Current: 120A * Grid Tie Output: + Nominal Output Voltage: 220/230/240Vac + Feed-in Grid Voltage Range: 195-253Vac + Feed-in Grid Frequency Range: 49-51Hz * Efficiency: + Maximum Conversion Efficiency (DC/AC): 97% + Nominal Operating Frequency: 50/60Hz * AC Input: + Nominal Operating Voltage: 230Vac + Maximum Input Current: 30A + Nominal Operating Frequency: 50/60Hz * Battery: + Voltage Range: 33Vdc + Maximum Battery Current: 10A Note: The product is made in China.

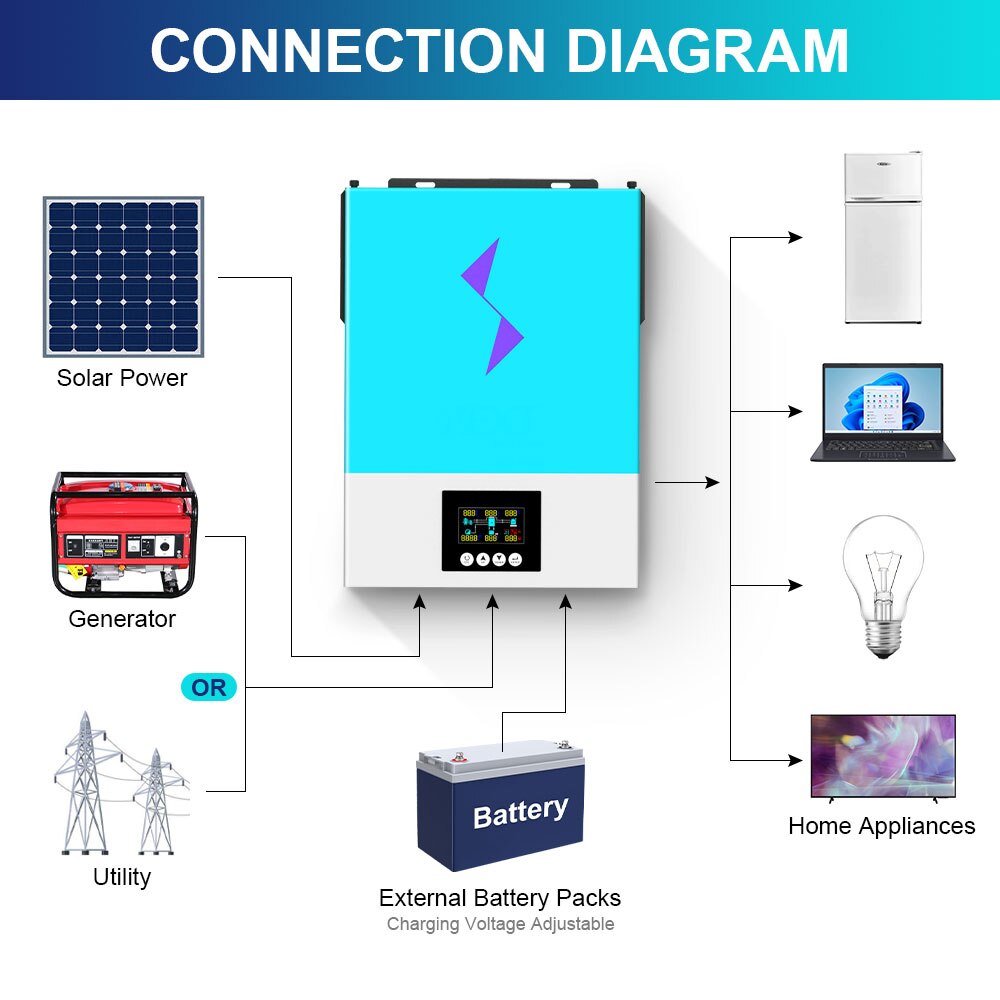

Connects to solar power generators or external battery packs; adjusts charging voltage for home appliances and utility grid tie/off-grid hybrid systems.
