4.5KW 24V 230V MPPT 150A Solar Inverter and 6.25 Inch LCD Screen Max PV Input 6000W 0 Layer Display Built Li-Battery Activation
4.5KW 24V 230V MPPT 150A Solar Inverter and 6.25 Inch LCD Screen Max PV Input 6000W 0 Layer Display Built Li-Battery Activation
27 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Weight: 7.5Kg
Waveform: Pure Sine Wave
Standby Power Consumption: 2W
Size: 468*318*159(mm)
Rated Output Power: 4.5KVA/4.5KW
PV Array MPPT Voltage Range: 120-450Vdc
Output Type: single
Output Power: 1 - 200KW
Output Frequency: 60Hz or 50Hz
Output Current: MPPT 150A
Origin: Mainland China
Nominal Input Voltage: 230Vac
Model Number: POW-HVM4.5K-24V
Is Smart Device: YES
DC Input Voltage: 24Vdc
Certification: CE
Brand Name: PowMr
Application: Solar power System,Home,Power stations so on
PowMr 4.5KW 24V 230V MPPT 150A Solar Inverter and 6.25 Inch LCD Screen Max PV Input 6000W 0 Layer Display Built Li-Battery Activation
●Pure sine wave solar inverter
●Unique glass top cover design with 6.25inch LCD display and touchable buttons
●Built-in 150A MPPT(Max PV) solar charger
●High PV input range from 120V-450Vdc
●Smart battery charger design for optimized battery performance
●Configurable AC/Battery input priority via LCD setting
● Auto restart while PV is recovering
●Over-load, over temperature and output short circuit protection
● Cold restart function
●Built-in lithium battery automatic activation
●Communication with RS232/RS485
●WiFi monitoring function(optional)
●Anti-dust kit for harsh environment(optional)
● Restore default Settings with one click

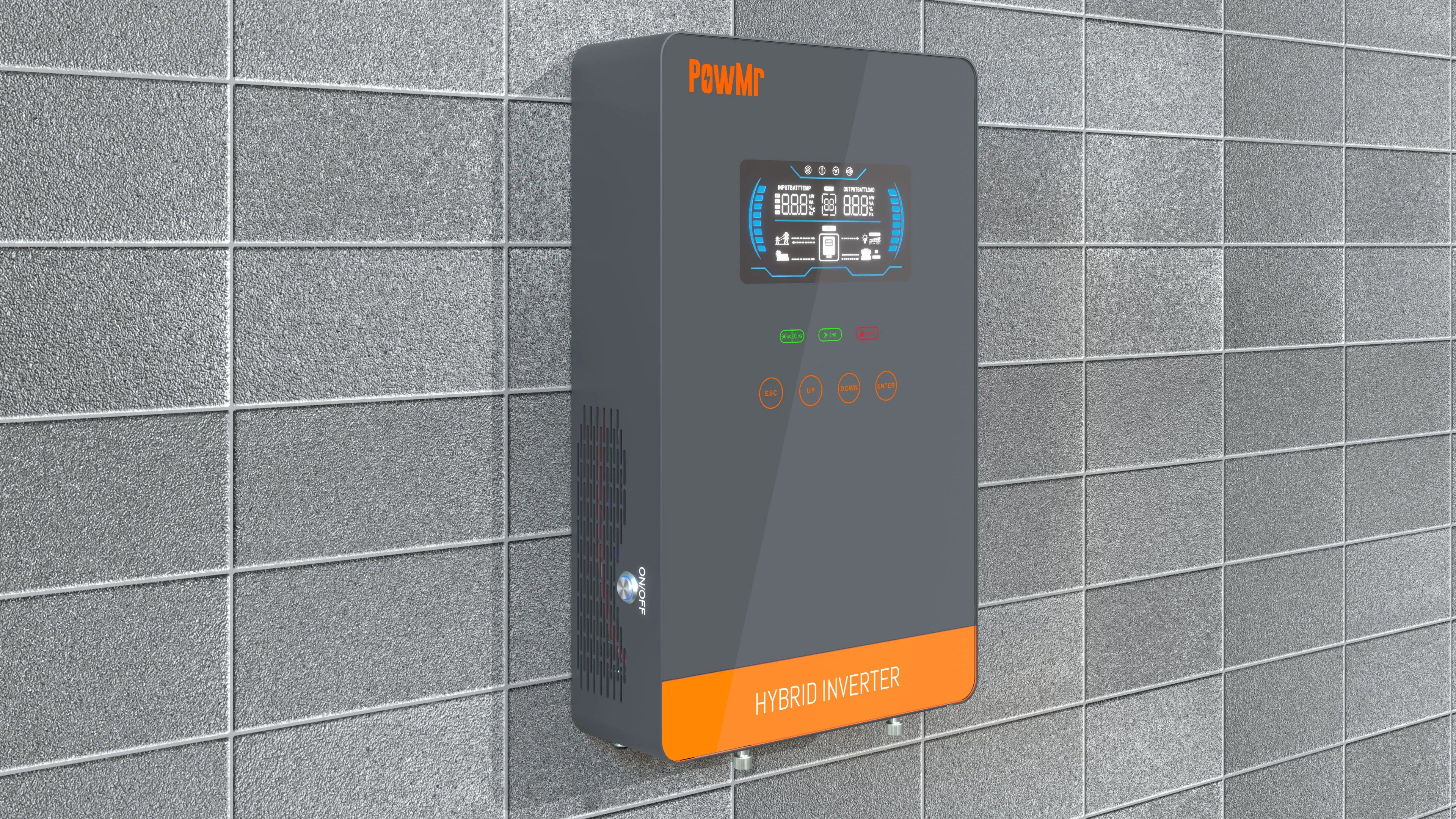

Inverter settings: Power input, battery temperature, and output load. Display shows 78.983% & 881 DOWN, Enter or ESC to activate hybrid mode.
INVERTER MODEL |
4.5KW 24V |
Input Voltage Waveform |
Sinusoidal(utility or generator) |
Nominal Input Voltage |
230Vac |
Max AC Input Voltage |
300Vac |
Nominal Input Frequency |
50Hz/60Hz(Auto detection) |
Rated Output Power |
4.5KVA/4.5KW |
Output Voltage Waveform |
Pure Sine Wave |
Output Voltage Regulation |
230Vac±5% |
Surge Capacity |
2* rated power for 5 seconds |
Nominal DC Input Voltage |
24Vdc |
Floating Charging Voltage |
27Vdc |
PV Charge Current |
150A |
Max.PV Array Open Circuit Voltage |
450Vdc |
PV Array MPPT Voltage Range |
120-450Vdc |
Standby Power Consumption |
2W |
Efficiency(Line Mode) |
>95% |
Safety Certification |
CE |
Operating Temperature |
0℃ to 55℃ |
Storage temperature |
-15℃~60℃ |
Dimension(D*W*H),mm |
468*318*159mm |
Net Weight, kg |
7.5kg |
Built-in lithium battery automatic activation

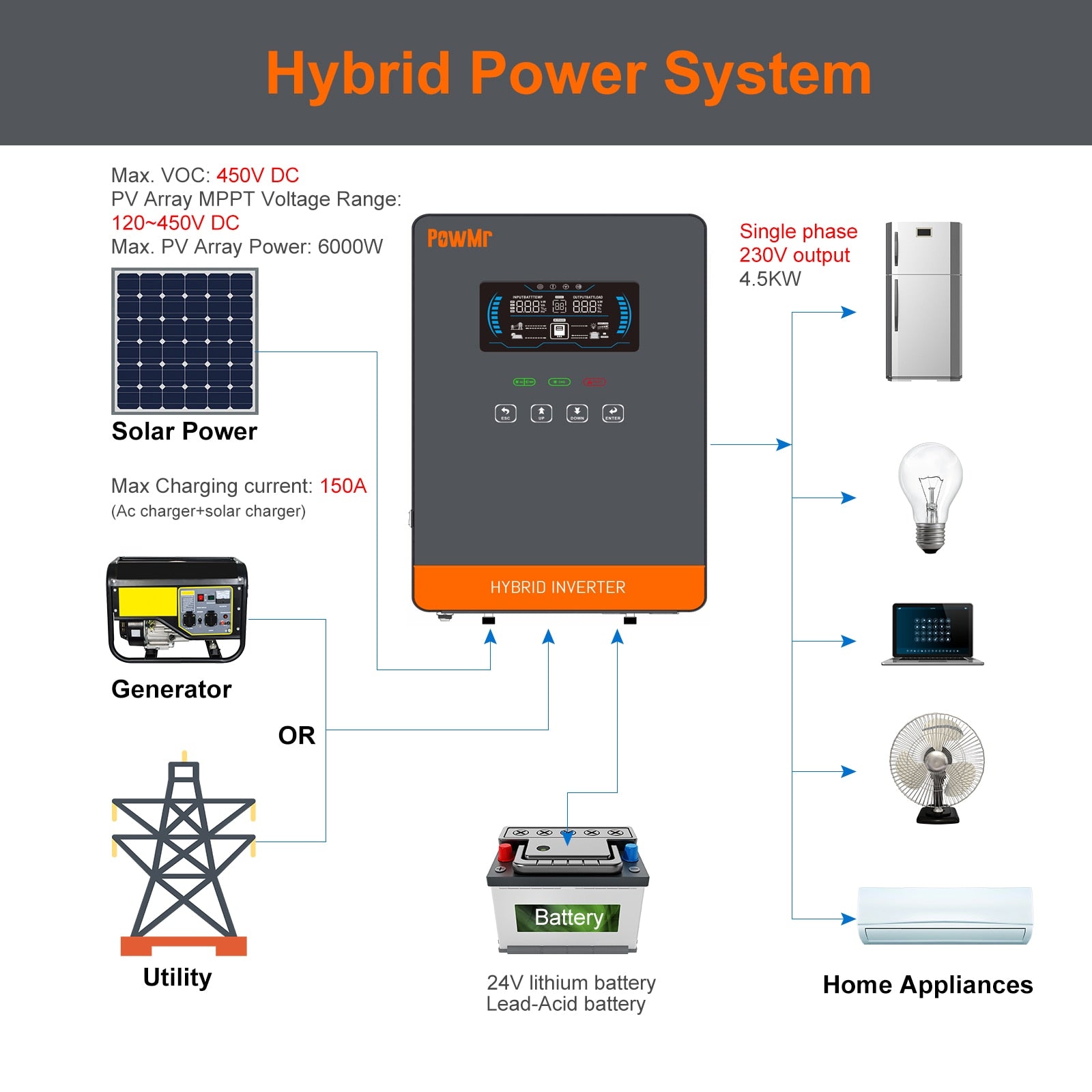

This solar inverter supports hybrid power systems, with a maximum voltage of 450V DC from the PV array. It features MPPT technology with a voltage range of 120-450V DC and can handle up to 6000W of single-phase input power. The output is 230V AC at 4.5kW. Additionally, it has a maximum charging current of 150A for lithium-ion batteries or lead-acid batteries, making it suitable for home appliances.

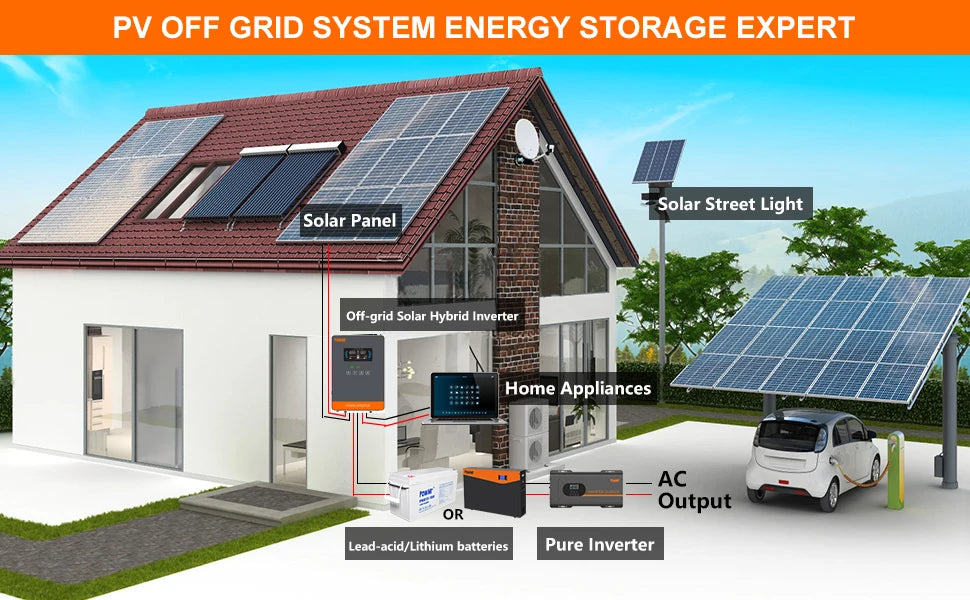

Off-grid solar hybrid inverter for energy storage, suitable for solar street lights, home appliances, and AC output. Compatible with lead-acid or lithium batteries, this pure inverter ensures reliable power supply.

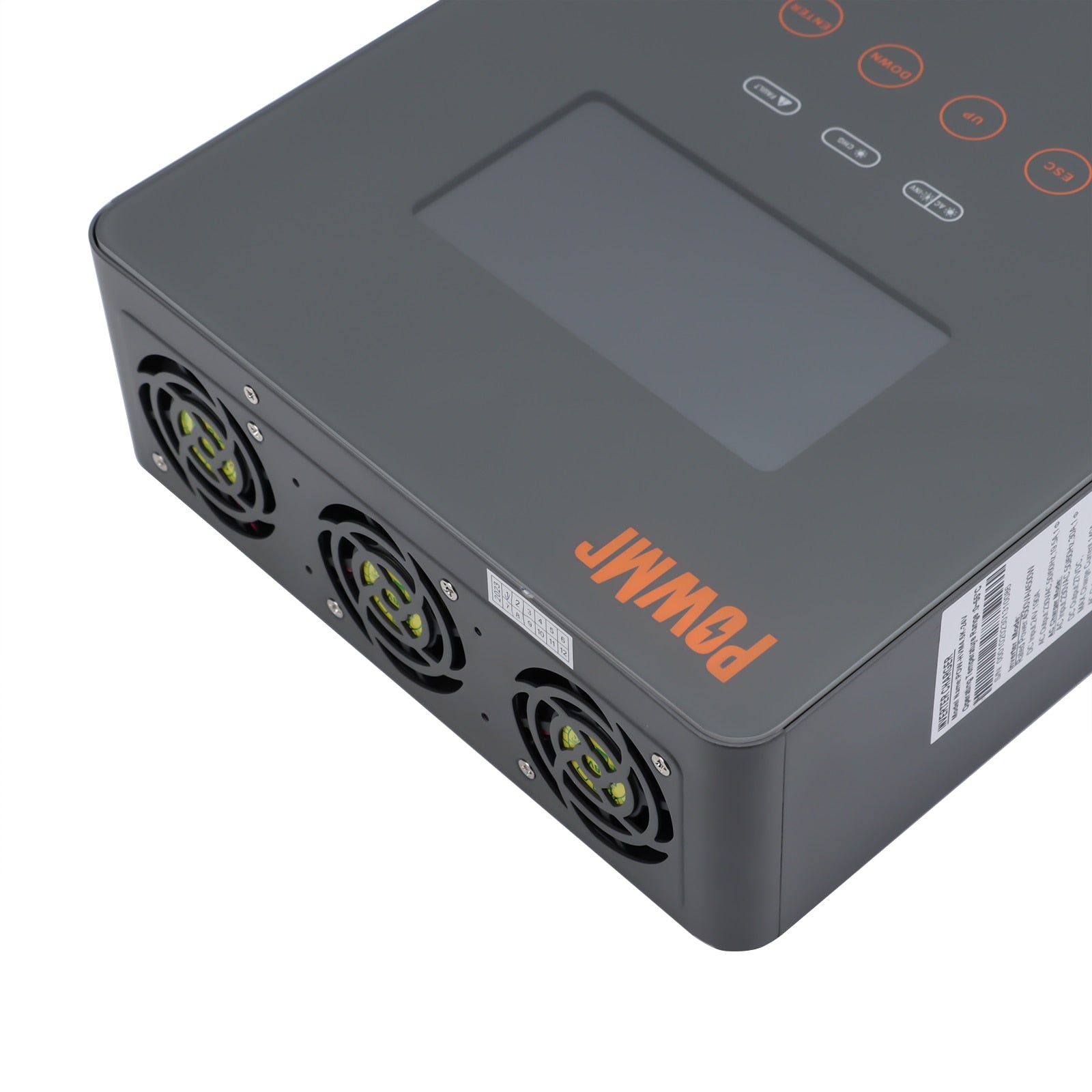

Unique glass top cover design with 6.25inch LCD display and touchable buttons

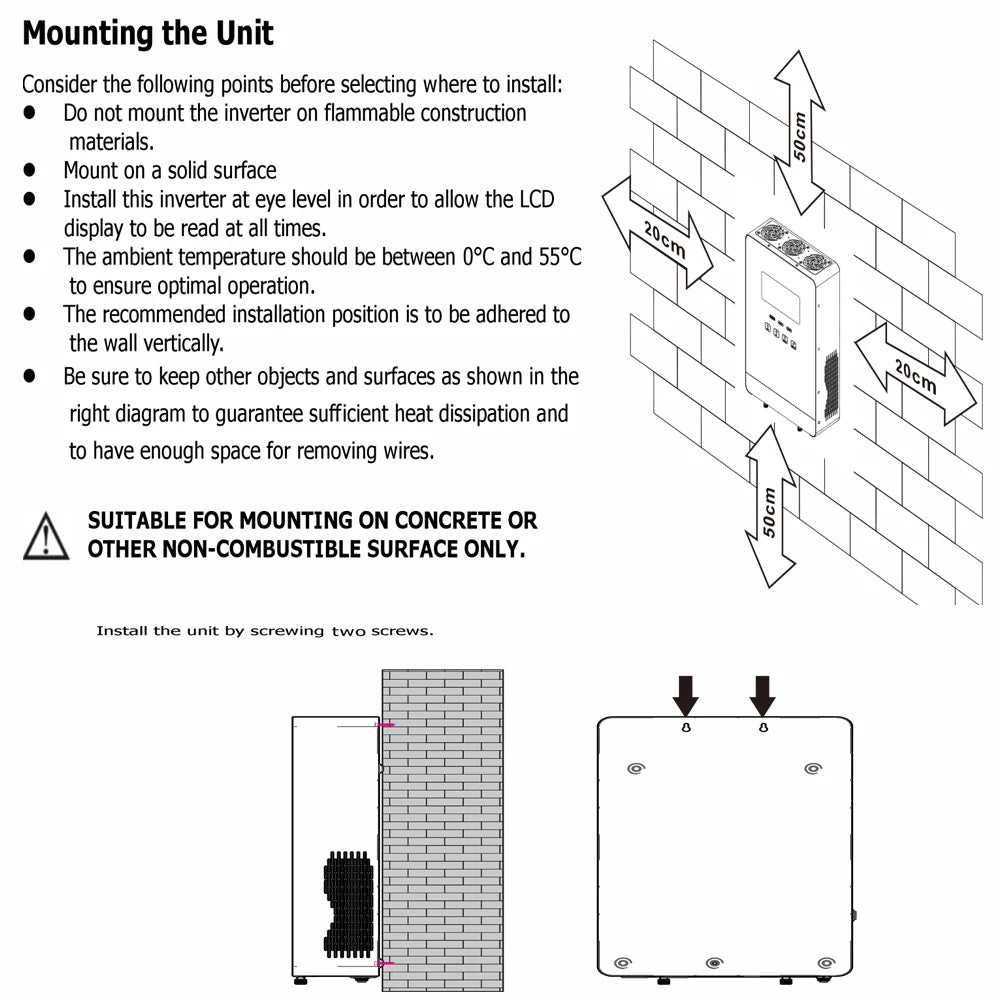

Inverter Installation
Before installing the inverter, consider the following guidelines: 1. **Install on a solid surface**: Mount the unit at eye level to ensure the LCD display can be easily read. 2. **Ambient temperature range**: Ensure the operating environment is between 0°C and 55°C for optimal performance. 3. **Recommended installation position**: Install vertically against a wall, as shown in the diagram, to facilitate heat dissipation and wire management. **Important:** Only mount on concrete or other non-combustible surfaces using two screws (30mm apart) for secure installation.

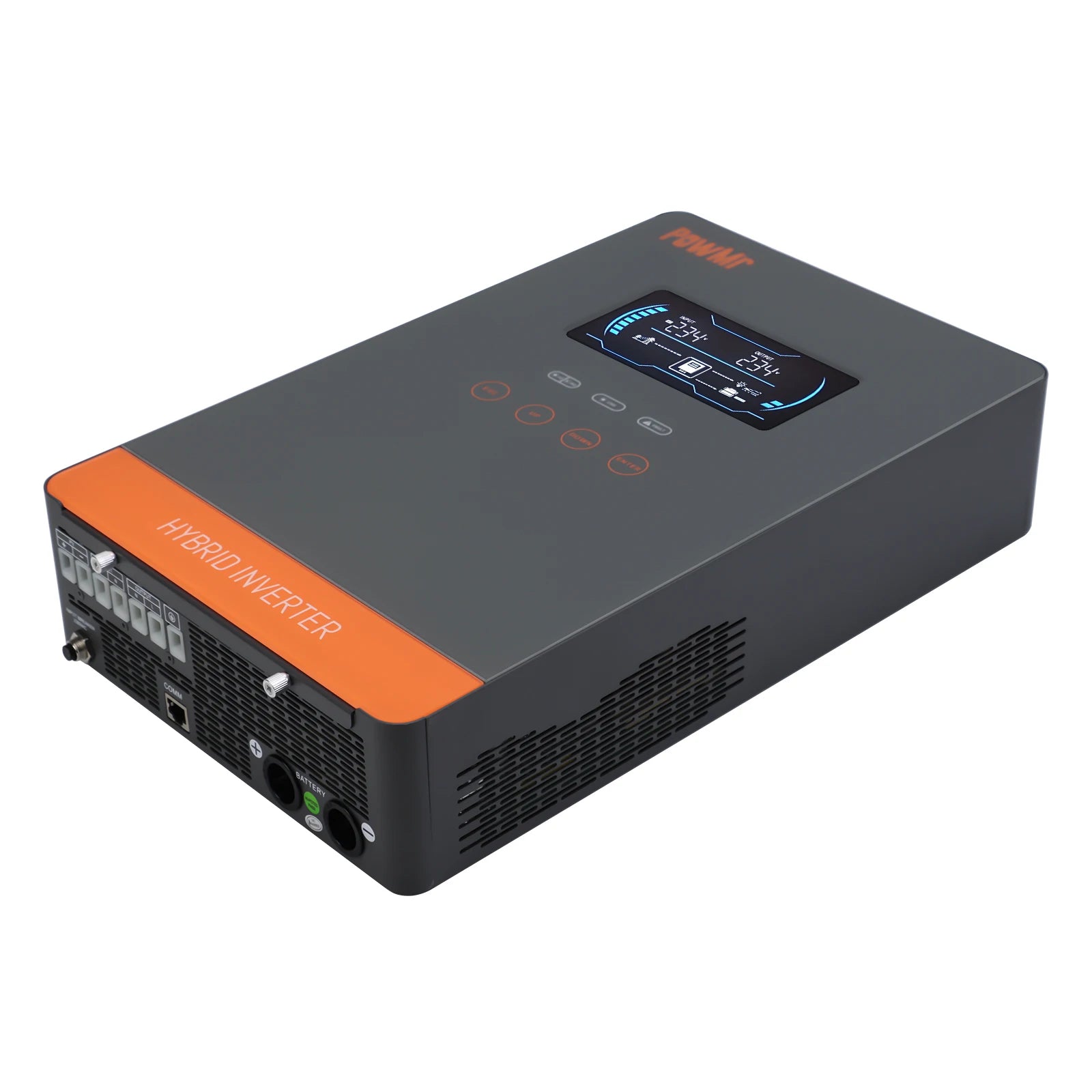

24V DC Hybrid Inverter with 230V AC Output for Solar Power Systems.

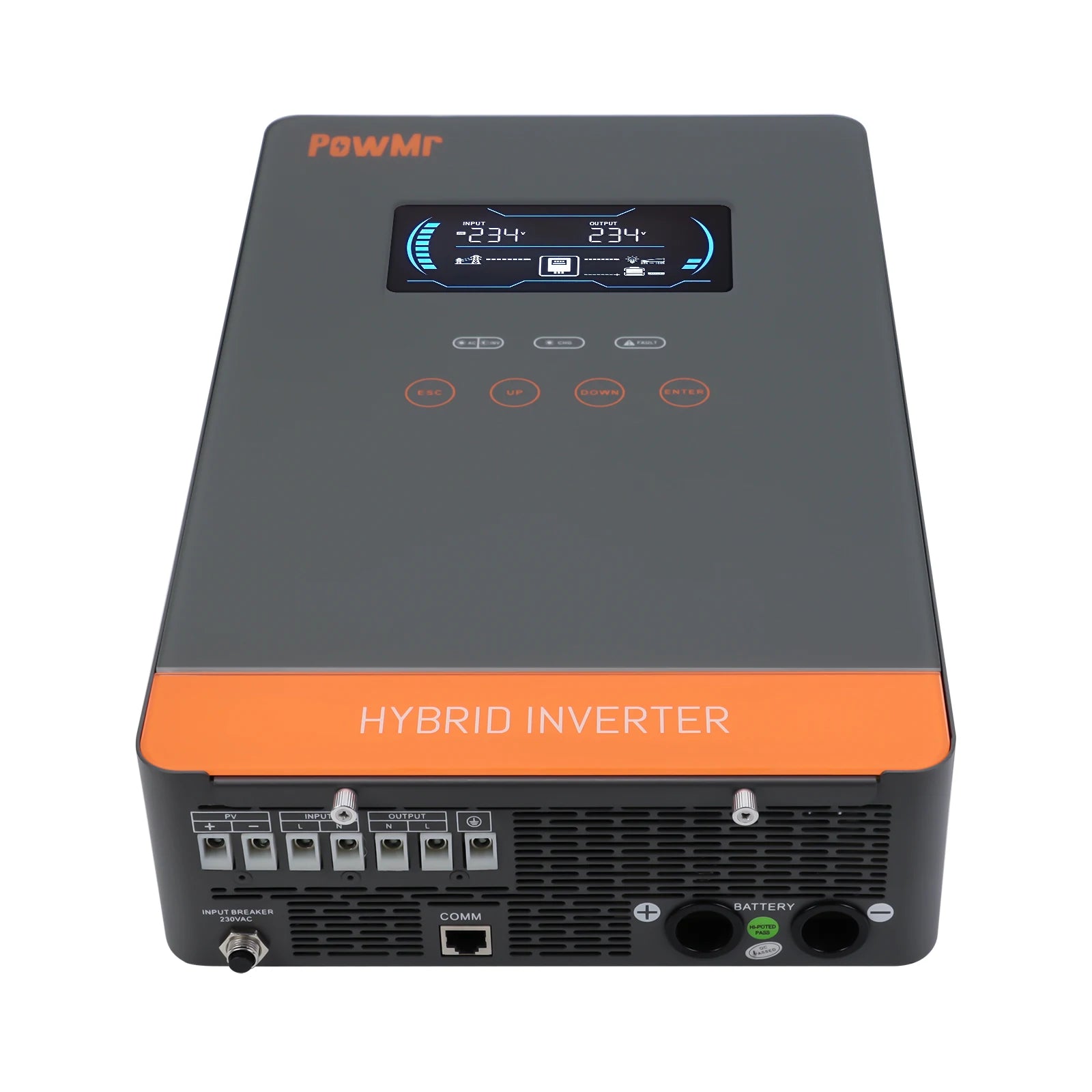

PowerMax hybrid inverter with 230V output and 24V input. Includes jumper breaker for battery activation, supports up to 6000W power and features a 6.25-inch LCD screen for monitoring.
