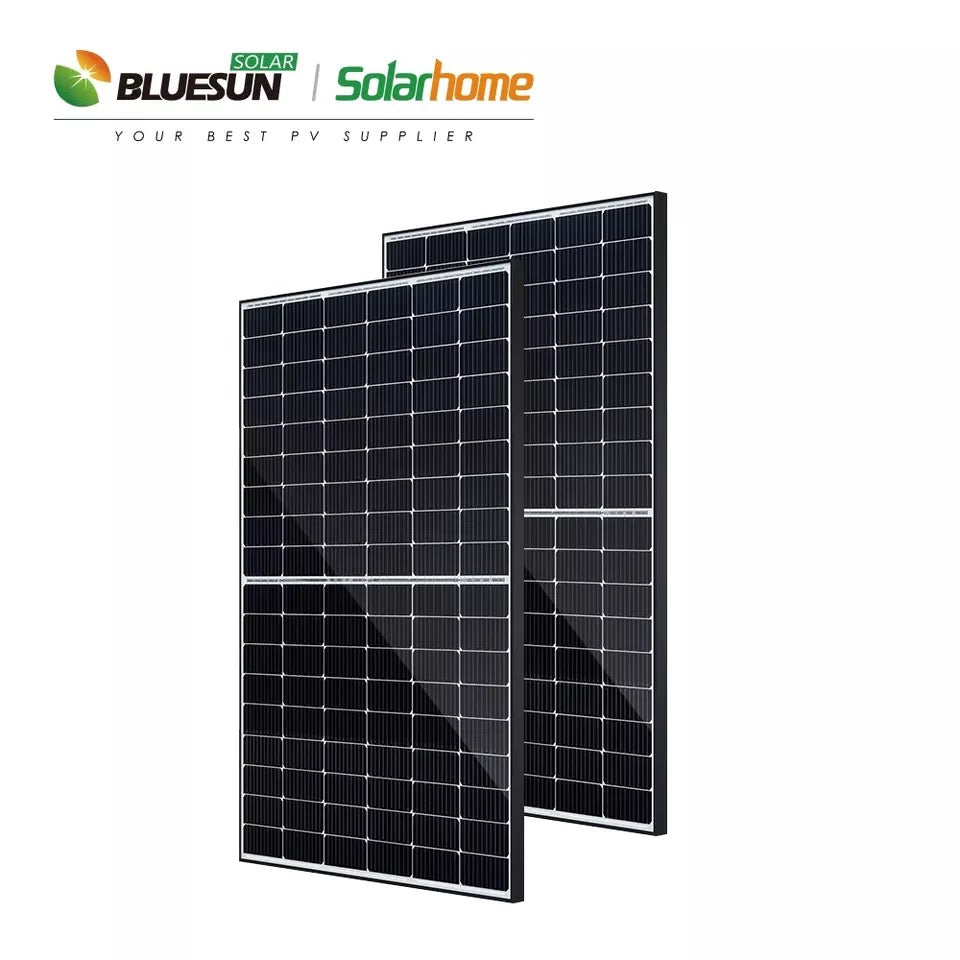

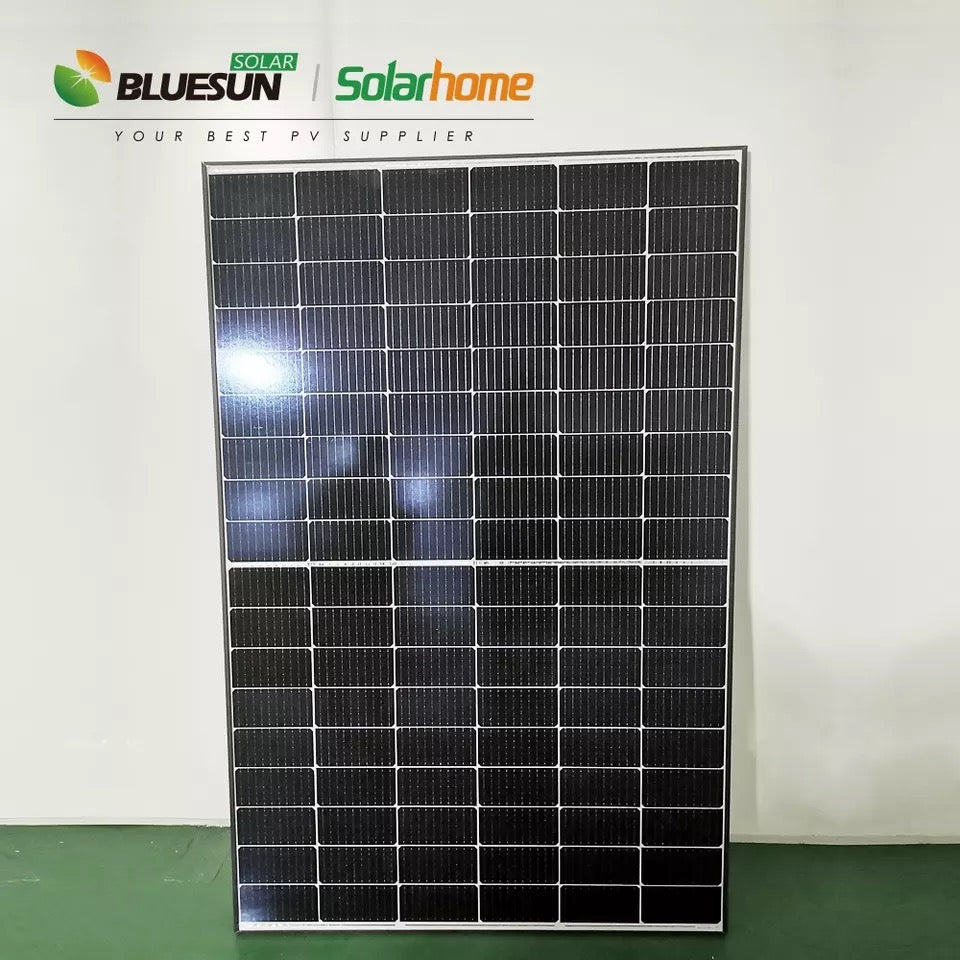

425W Solar Panel - PERC Mono Solar panel System for Home Large Commercial Solar Energy | Best Solar
425W Solar Panel - PERC Mono Solar panel System for Home Large Commercial Solar Energy | Best Solar
Regular price
$249.00 USD
Regular price
Sale price
$249.00 USD
Unit price
per
Shipping calculated at checkout.
83 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
425W Solar Panel Parameters
- Cell size: 182mmx182mm
- Type: PERC, Half Cell, IBC

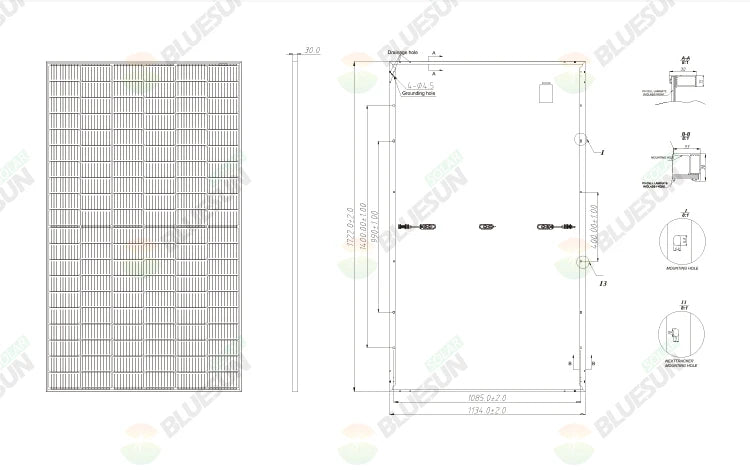

- Panel Dimensions: 1722*1134*30mm
- Panel Efficiency: 21.7%
- Certificate: IEC 61215 / IEC 61730 / CE / UL1703, IEC 61215 / IEC 61730 / UL 61730
- Warranty: 25 years
- Frame: Anodized aluminium alloy
- 48 volt mono solar panels: Bluesun high quality 48 volt mono solar panels for home power system
- Front cover: 2.0 mm (0.08 inches) AR Coating Tempered Glass
- Frame color: Silvery
- Connector: T01/LJQ-3-CSY
- Backing Color: White, Black, Transparent
- OEM Order: Acceptable
- Solar panel: Mono Solar Panel
- Junction Box: IP68
Products Description

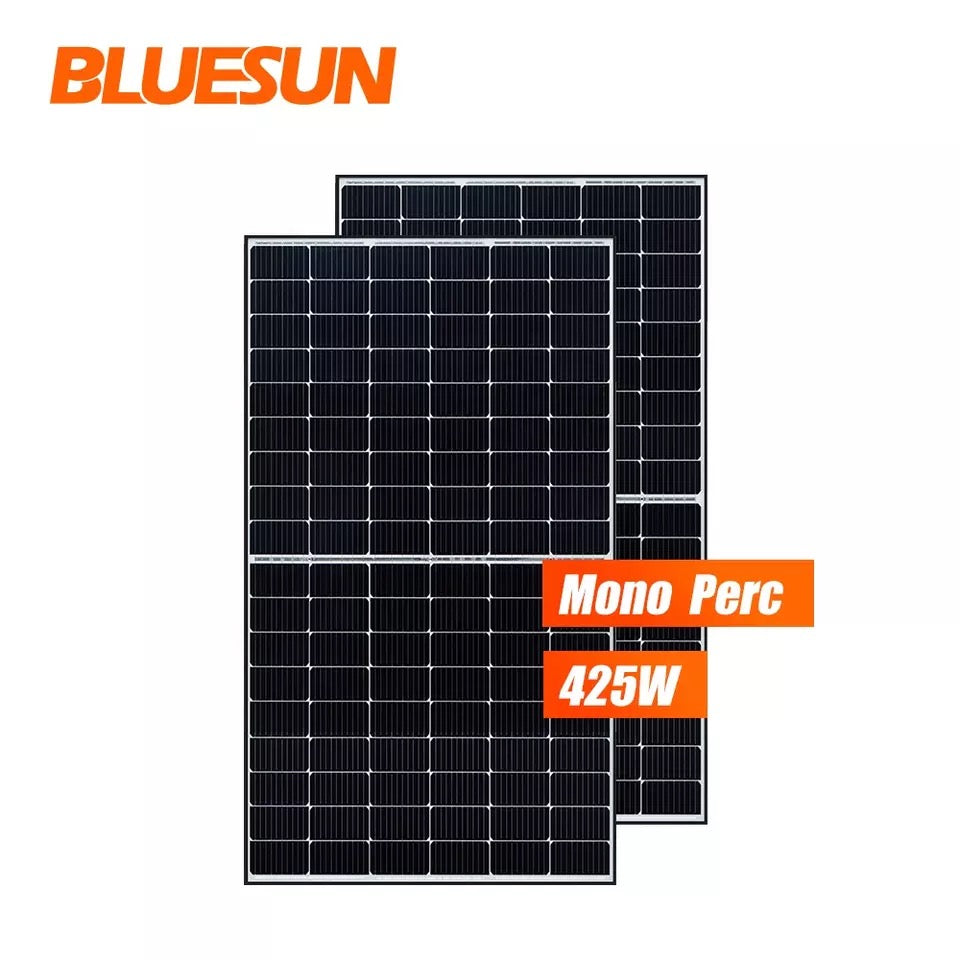

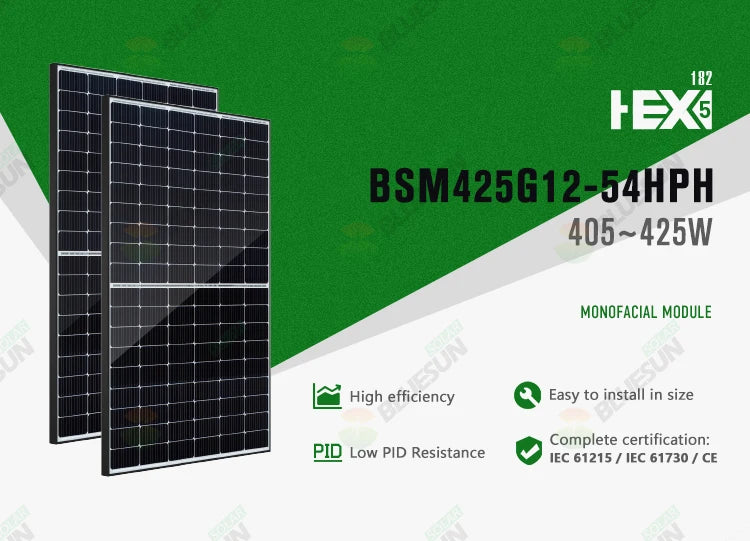

BSM425G12-54HPH monofacial solar module with high-efficiency and low PID resistance. Certified to IEC 61215 and IEC 61730 standards, it offers easy installation and a power output range of 405-425W.

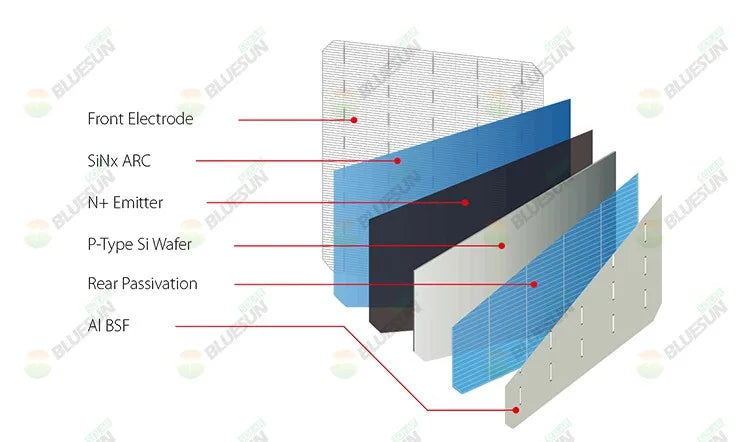

PERC Cell
The PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.
The PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.
|
Module Type
|
BSM405G12-54HPH
|
BSM410G12-54HPH
|
BSM415G12-54HPH
|
BSM420G12-54HPH
|
BSM425G12-54HPH
|
|
|
STC
|
STC
|
STC
|
STC
|
STC
|
|
Maximum Power (Pmax/W)
|
405
|
410
|
415
|
420
|
425
|
|
Operating Voltage (Vmpp/V)
|
37.25
|
31.43
|
31.64
|
31.83
|
32.03
|
|
Operating Current(Impp/A)
|
13.86
|
13.05
|
13.13
|
13.21
|
13.29
|
|
Open-Circuit Voltage (Voc/V)
|
31.24
|
37.50
|
37.75
|
38.00
|
38.25
|
|
Short-Circuit Current (Isc/A)
|
12.97
|
13.94
|
14.02
|
14.10
|
14.18
|
|
Module Efficiency (%)
|
20.7
|
21
|
21.3
|
21.5
|
21.7
|
|
STC: Irradiance 1000W/㎡,Cell Temperature 25℃, Air Mass AM1.5
|
|||||
|
More details please send inquiry to us
|
|||||

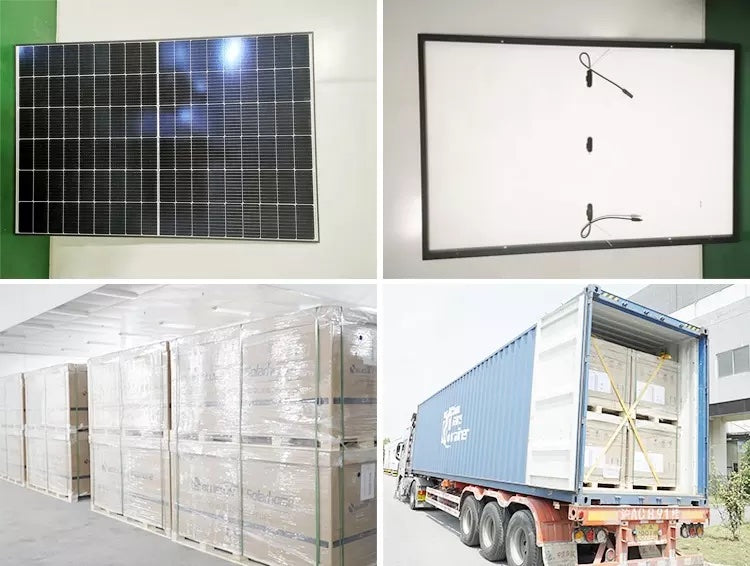

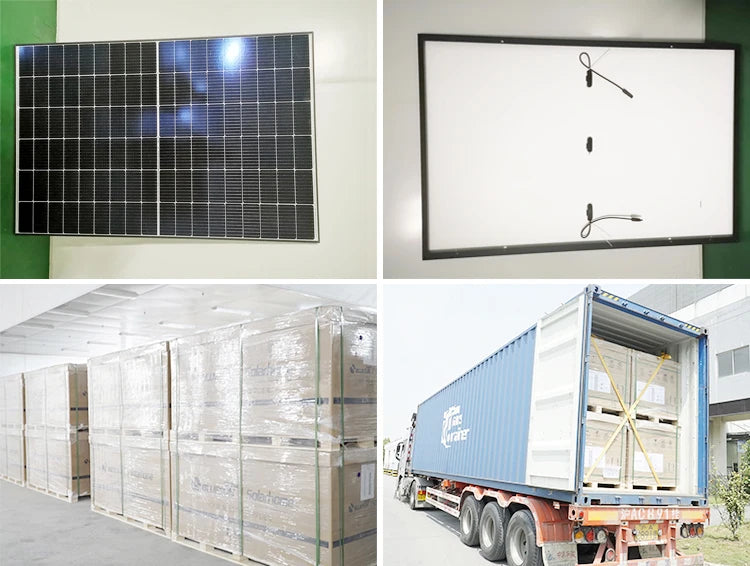

Packing
Packing Details:36pcs/carton, 936pcs/40hq

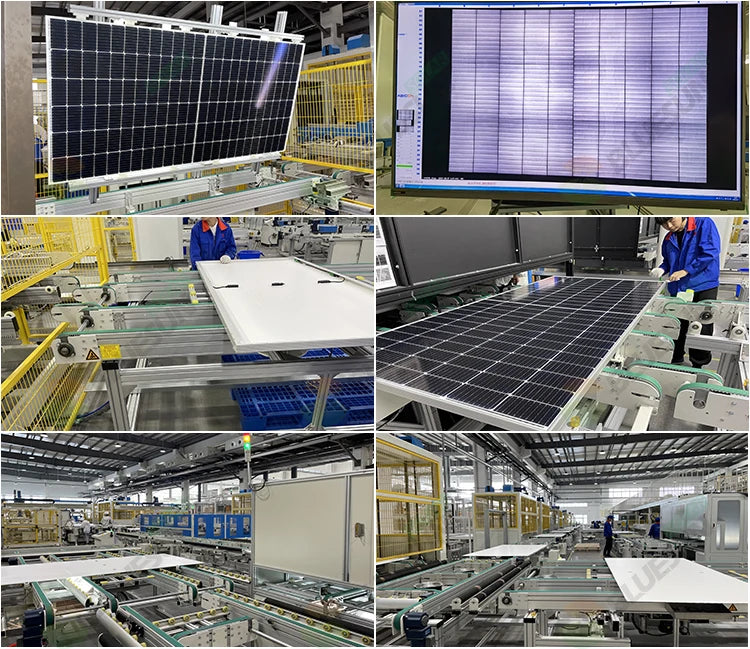

Factory Show
Certifications

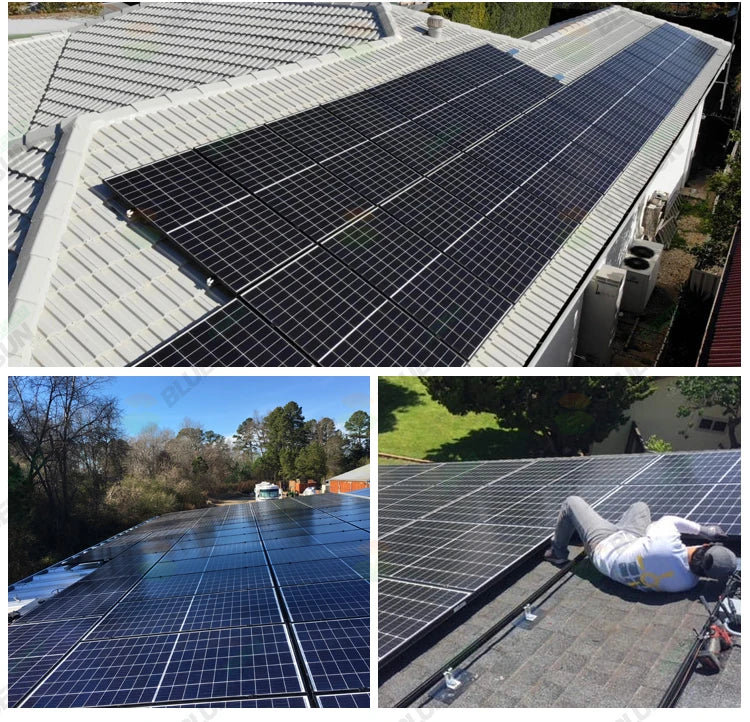

Bluesun Projects
