48V 100AH 200AH LiFePO4 Battery - 5KW 10KW Solar Lithium Batteries 6000+ Cycles RS485 CAN BUS PC Monitor For Off/On Grid Inverter
48V 100AH 200AH LiFePO4 Battery - 5KW 10KW Solar Lithium Batteries 6000+ Cycles RS485 CAN BUS PC Monitor For Off/On Grid Inverter
8 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
48V 100AH 200AH LiFePO4 Battery SPECIFICATIONS
Weight: 48kg
Voltage: 48V
Type: Lifepo4
Size: 480*440*160mm
Origin: Mainland China
Nominal Capacity: 100AH
Model Number: 48V 100AH 200AH
Floating charging voltage: 54.0V

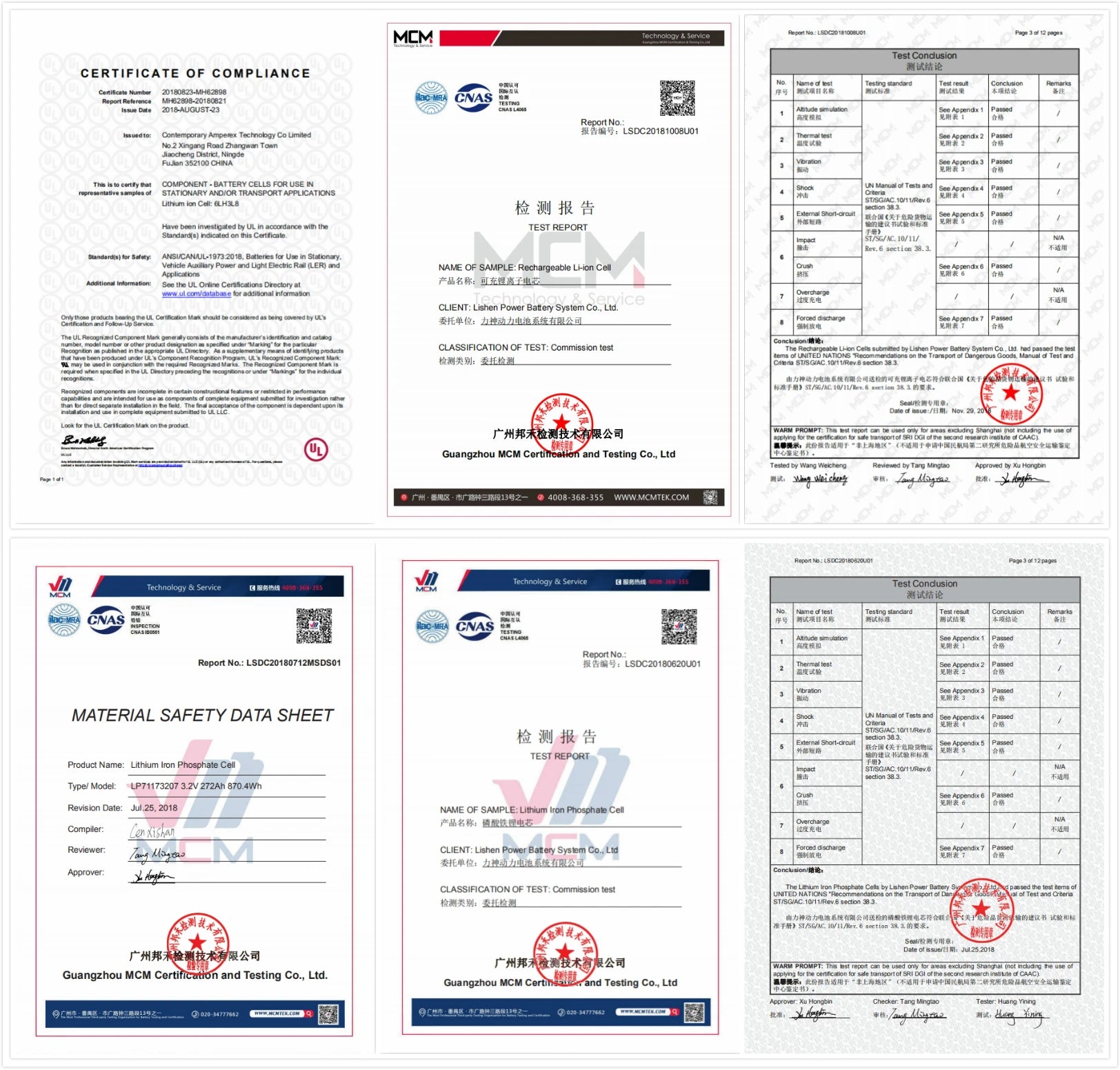

Certification: CE,Dot,EAC,EPA,FCC,GMP,RoHS,TGA,UL,KC,pse,WEEE,NONE
Brand Name: CERRNSS
Battery Type: lifepo4 battery
Application: Inverter

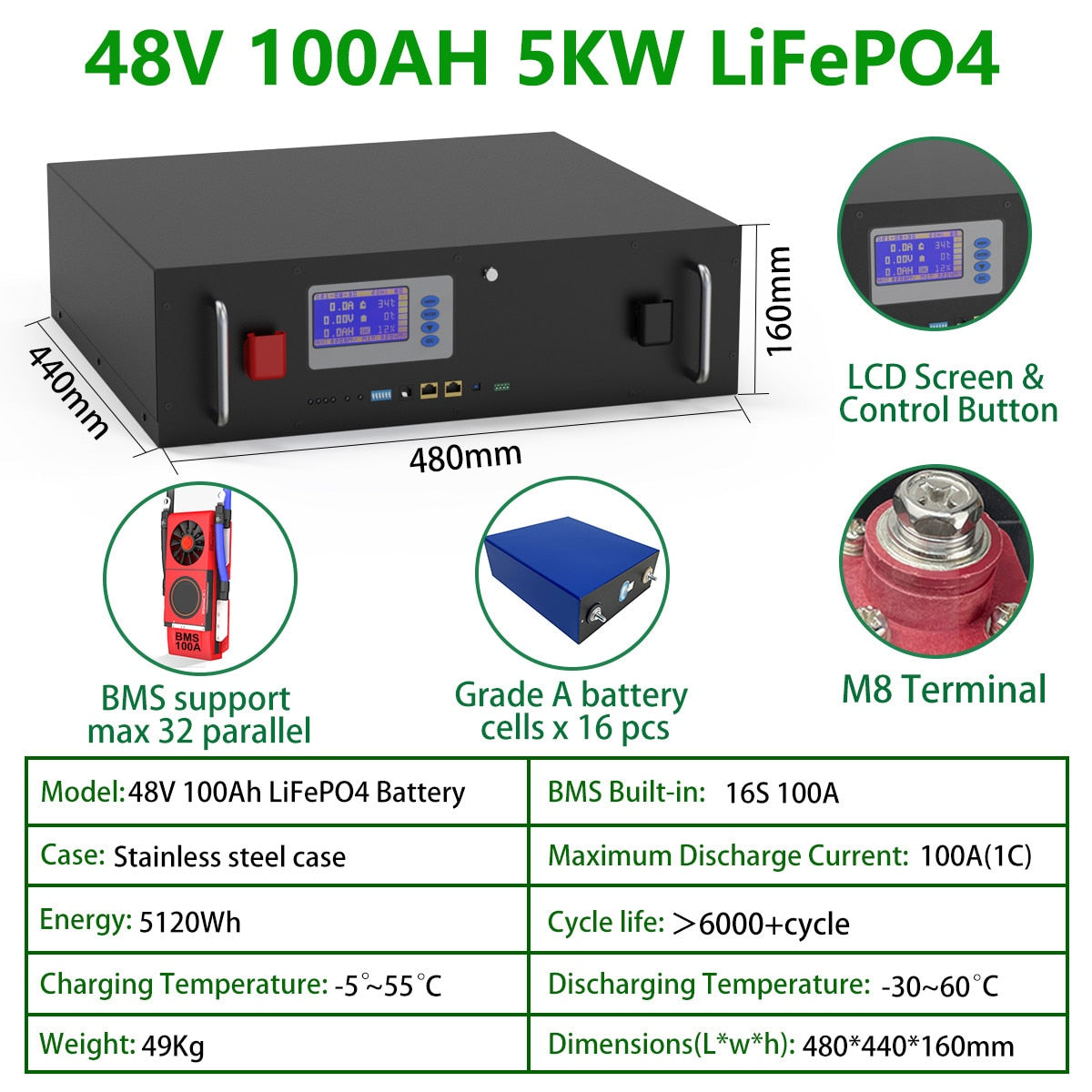

Specifications:
Cycle Life : 6000+ Cycles
Communication Protocol: CAN RS485
Nominal Voltage : 51.2V
Rate Capacity : 100Ah
Energy Power : 5120Wh
Max Charge Voltage : 58.4V
Maximum Charging Current : 100A (1C)
Maximum Dicharge Current : 100A (1C)
Charging Temperature : -5~55°C
Discharging Temperature : -20~60°C
Dimensions(L*W*H) : 480*440*160mm
Studs : M8 Terminal
Weight : 49KG

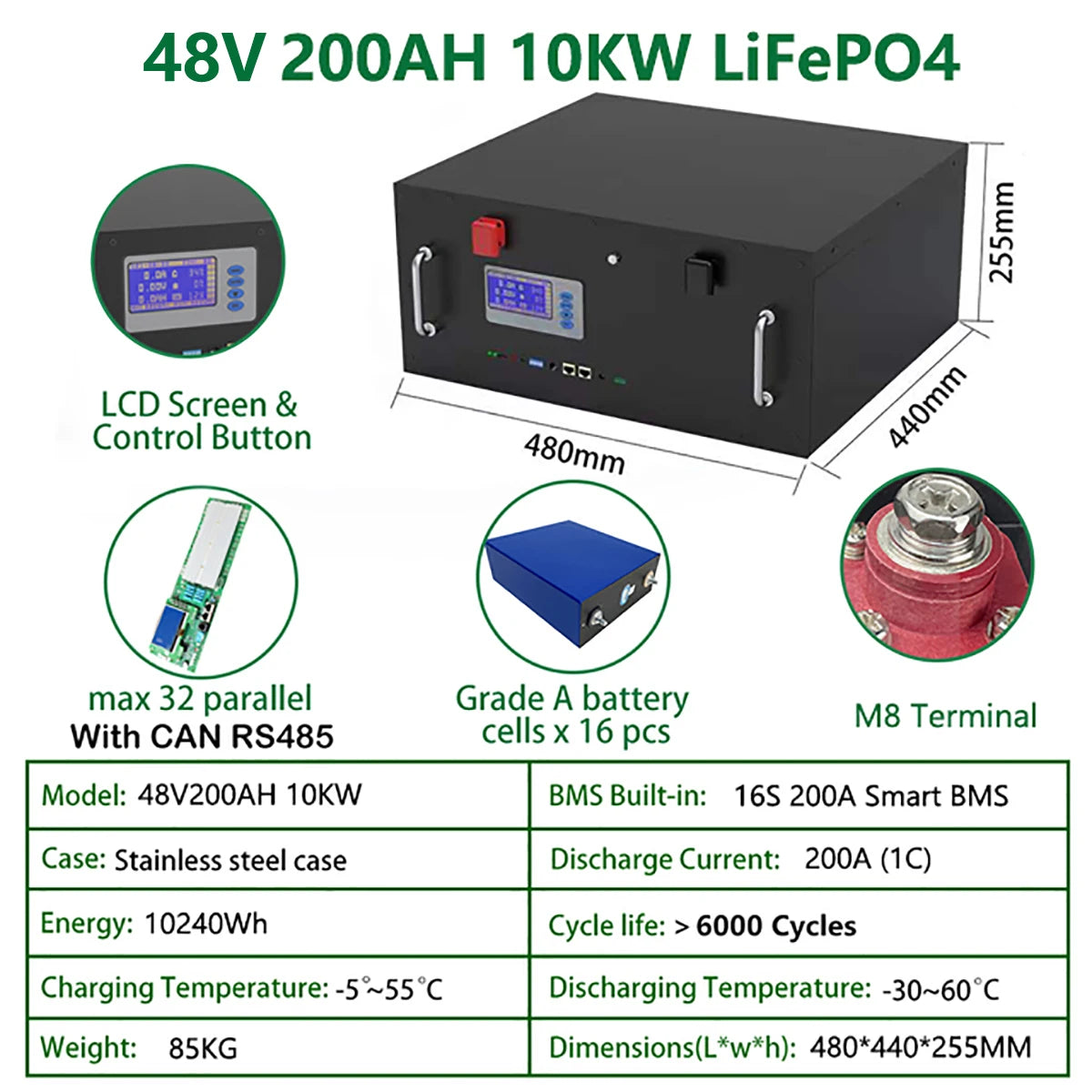

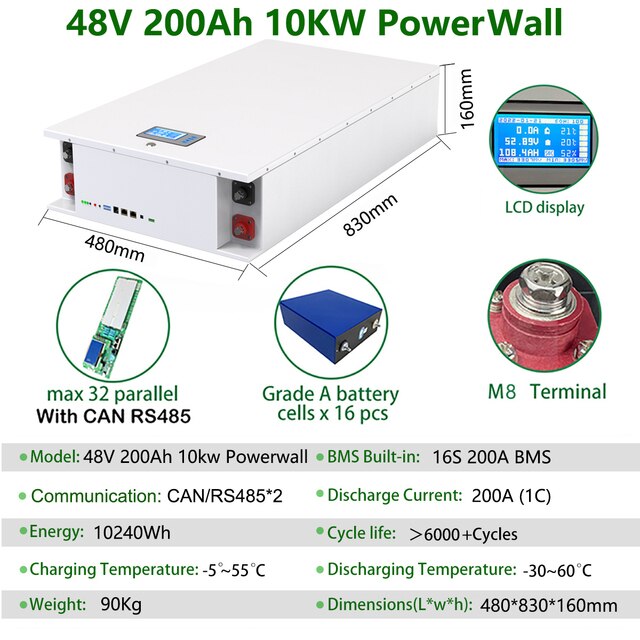

Battery specification:
BMS: Samrt 16S 200A (Support up to 32 pcs in parallel)
Cycle Life: ＞6000+ True cycles
Communication Protocol: CAN RS485*2
Nominal Voltage : 48v/51.2V
Charge Voltage: 58.4±0.4V
Rate Capacity : 200Ah
Energy Power : 10240Wh
Max Charging Current: 200A
Max Discharging Current: 200A
Charging Temperature : -5~55°C
Discharging Temperature : -20~60°C
Dimensions(L*W*H) : 480*440*255mm
Terminal Type: Dual M8
Weight : 85KG
Battery warranty: 10 years
Replace any accessories and technical support free of charge during the warranty period

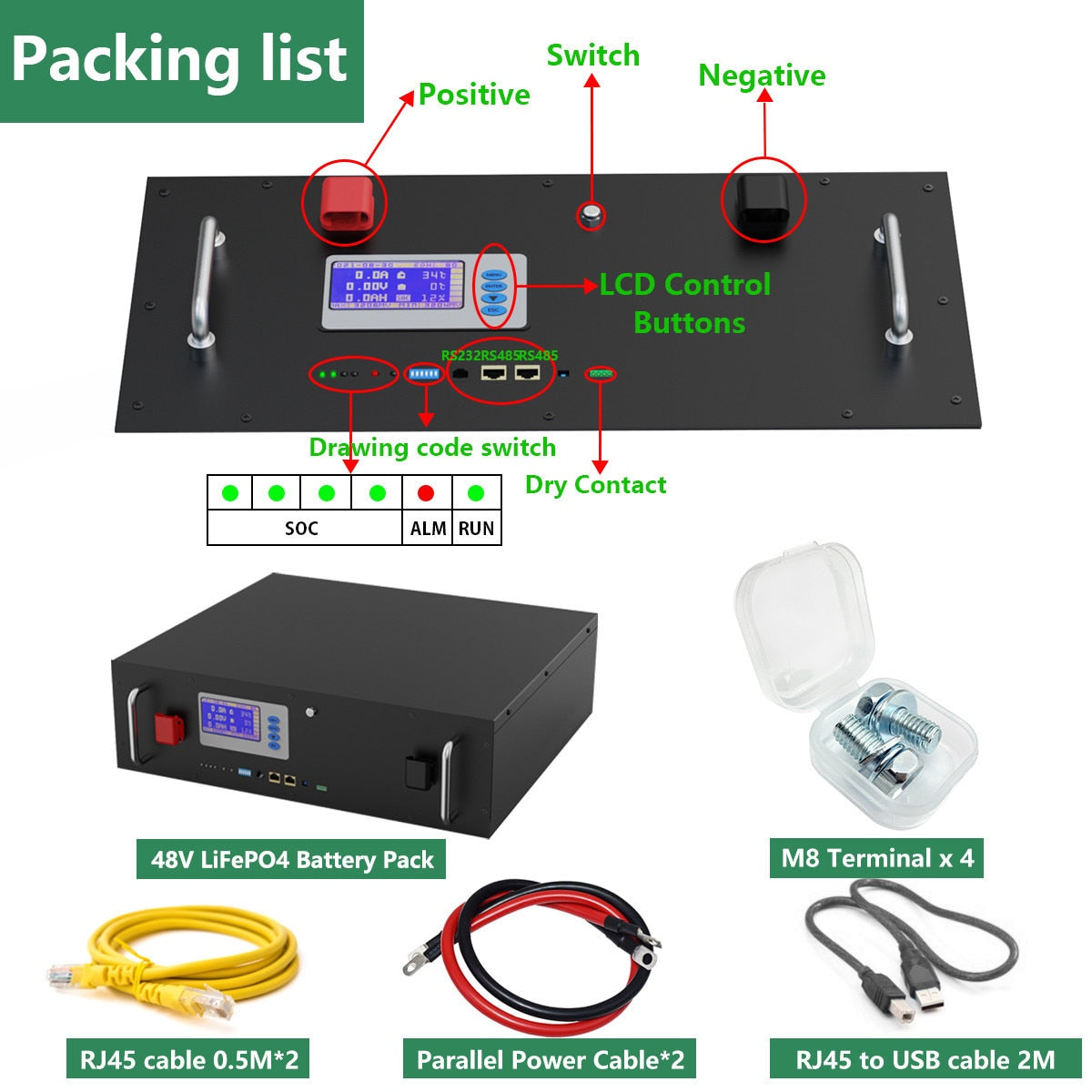

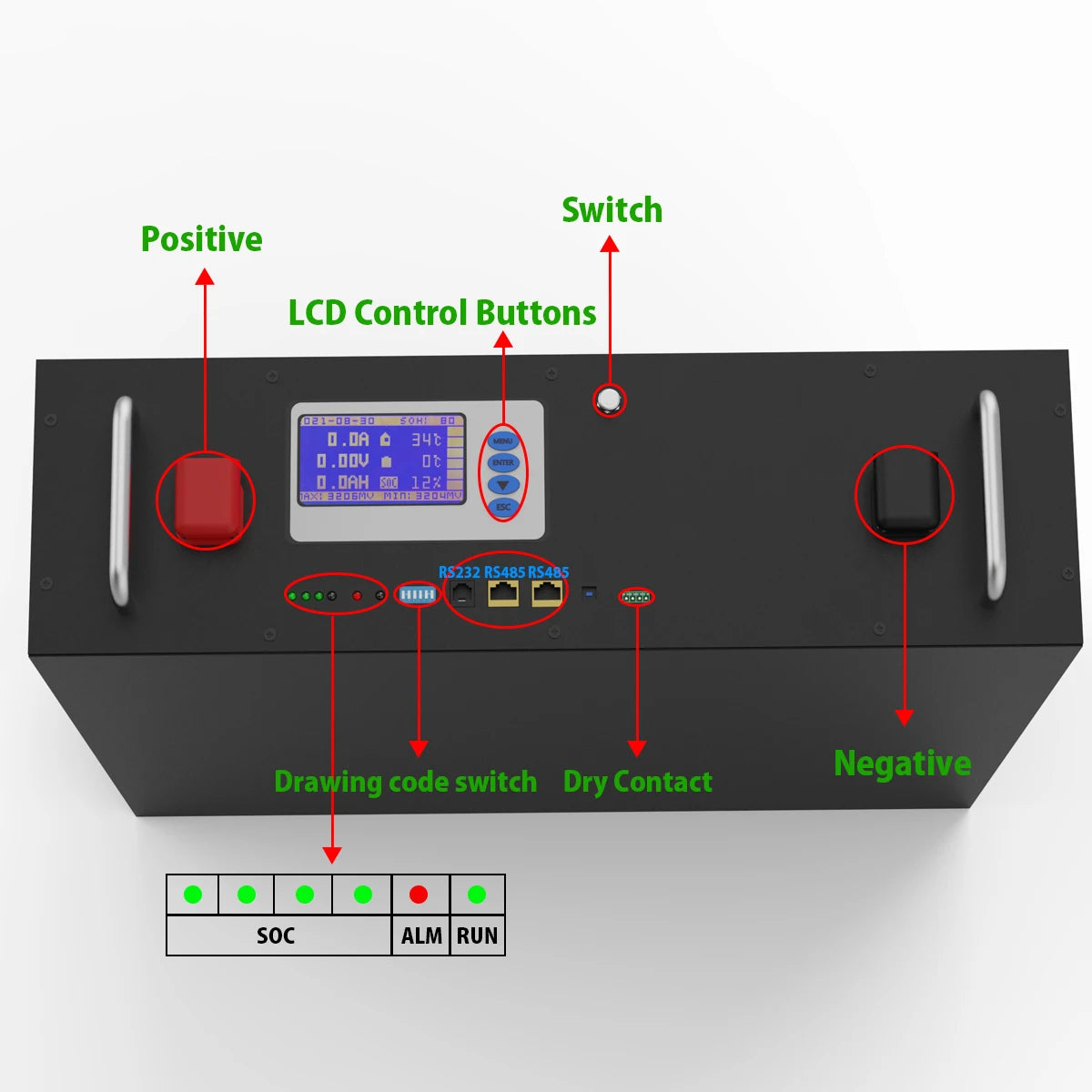

Equipped with positive LCD control buttons, this product features RS232, RS485, and CAN bus communication. It also includes drawing codes for switch, dry contact, negative SOC (State of Charge), alarm RUN, and more.

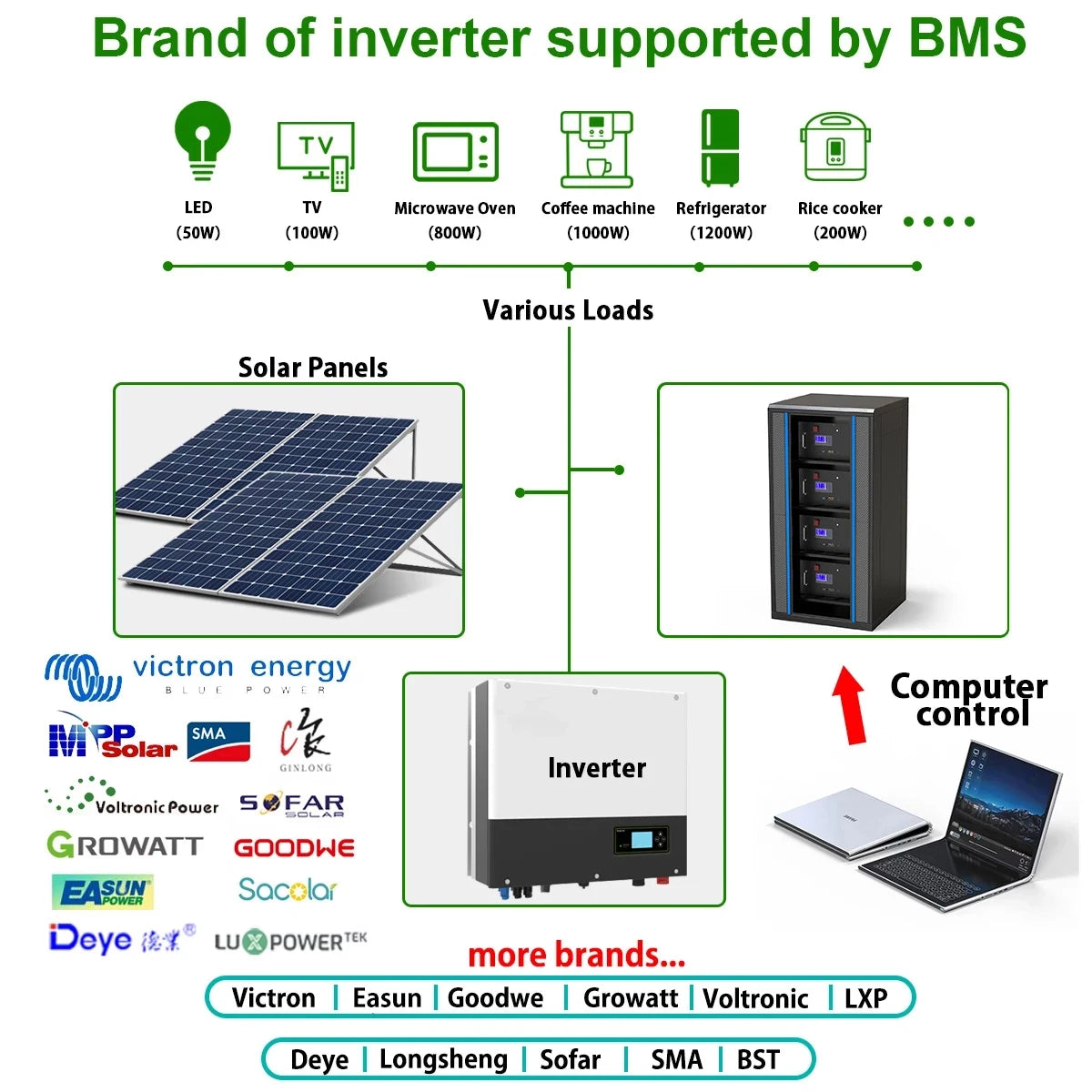

Compatible inverter brands list:
Victron, Easun, Goodwe, Growatt, Voltronic, Deye, LXP, Sofar, GinLong, SMA.Etc.If you have other brands of inverters or other questions, you can consult with me at any time, and I will reply to you immediately

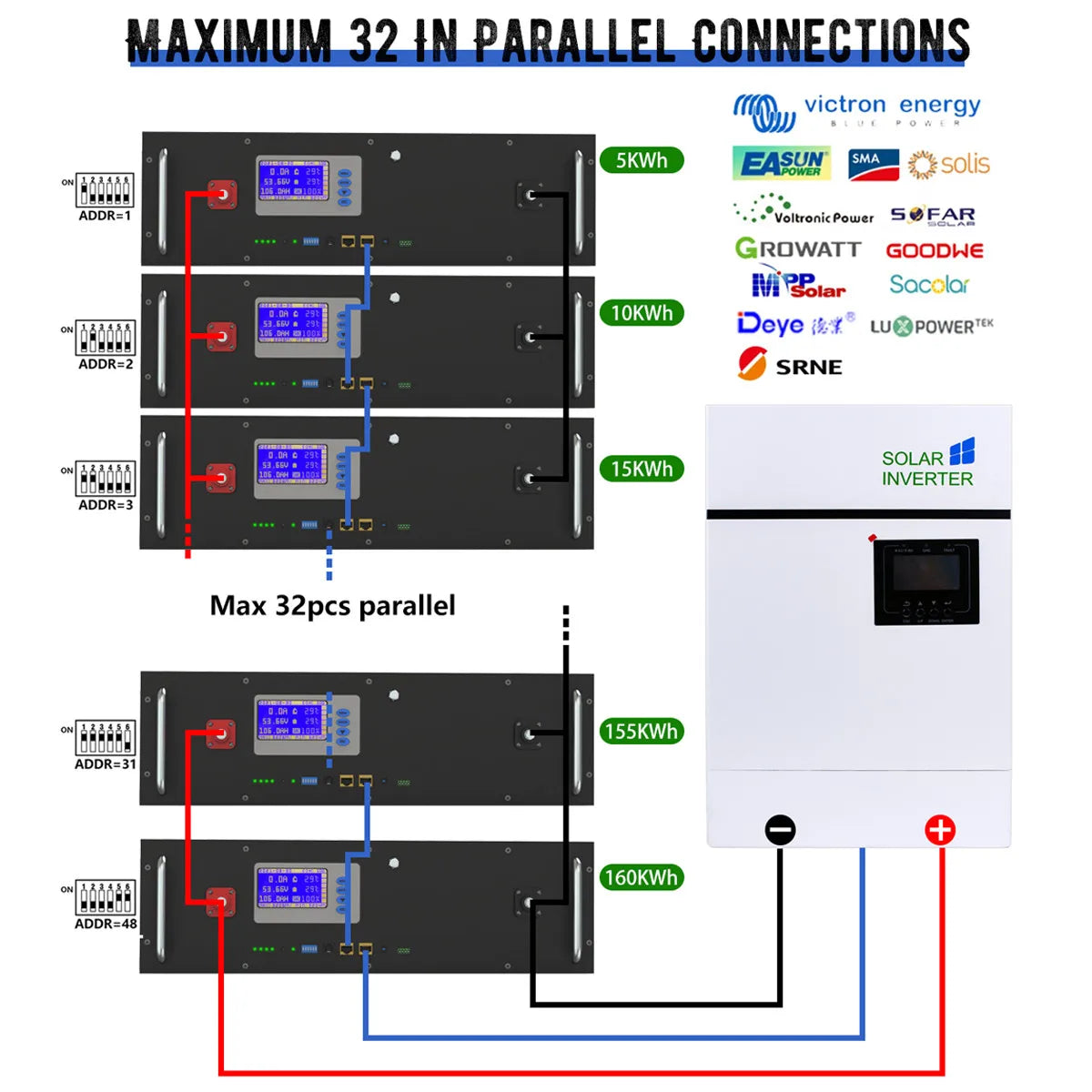

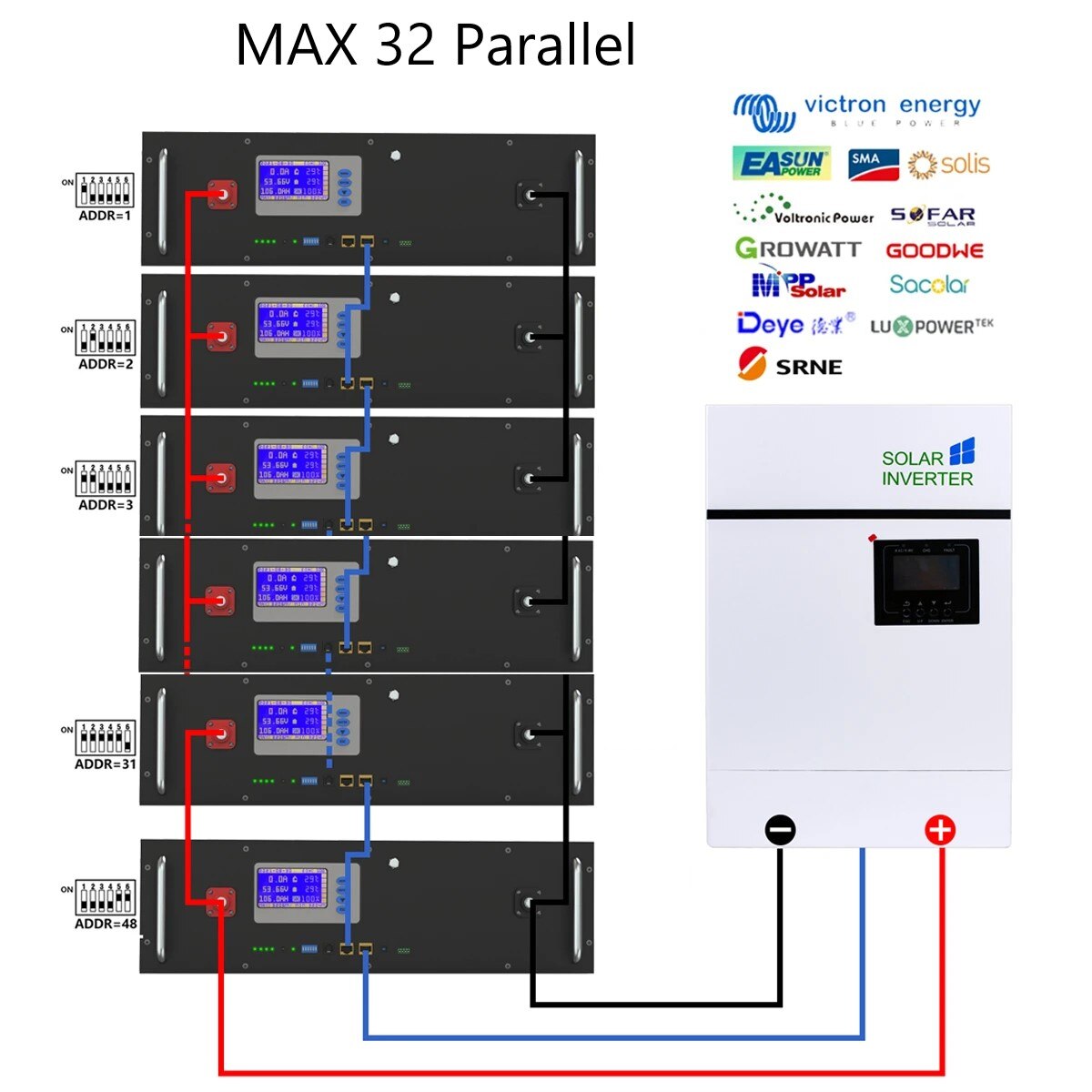

This lithium battery supports up to 32 units in parallel connection, compatible with popular brands such as Victron Energy, Eastron, SMA Solis, and PowerTec. The battery features CAN BUS communication protocol and RS485 monitoring for off-grid or on-grid inverter applications. With a maximum capacity of 5-10 kW, this product is suitable for a wide range of solar power systems.

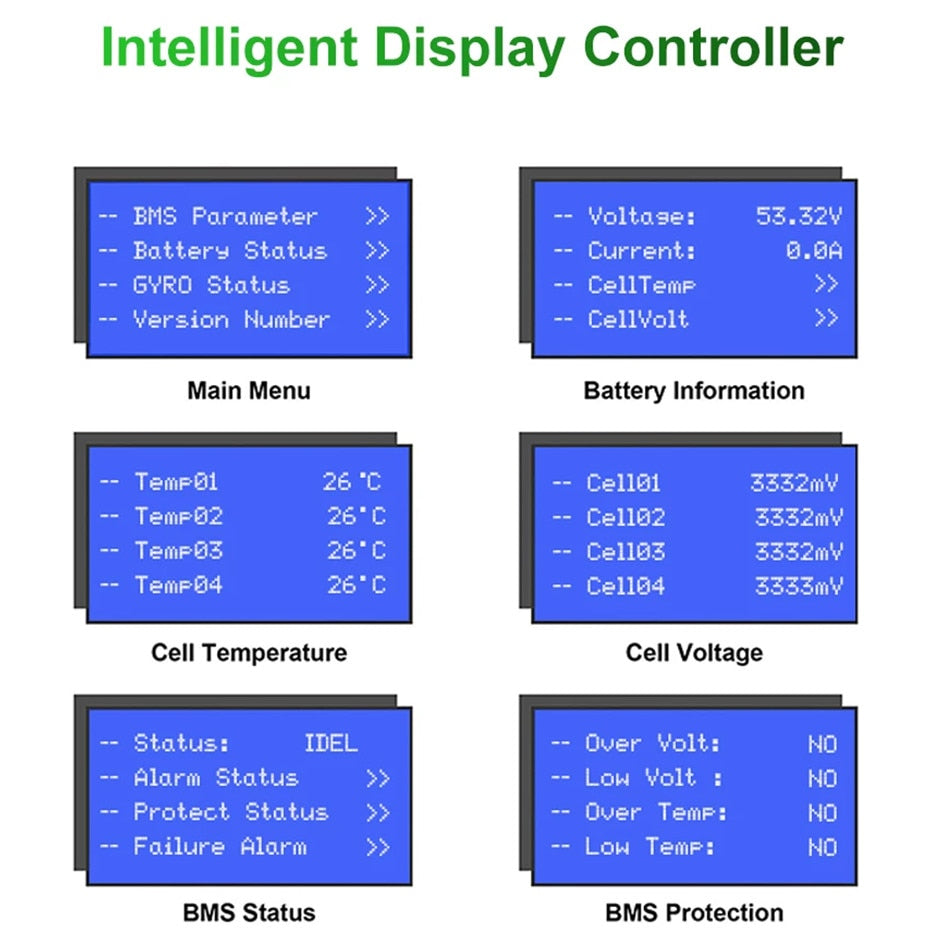

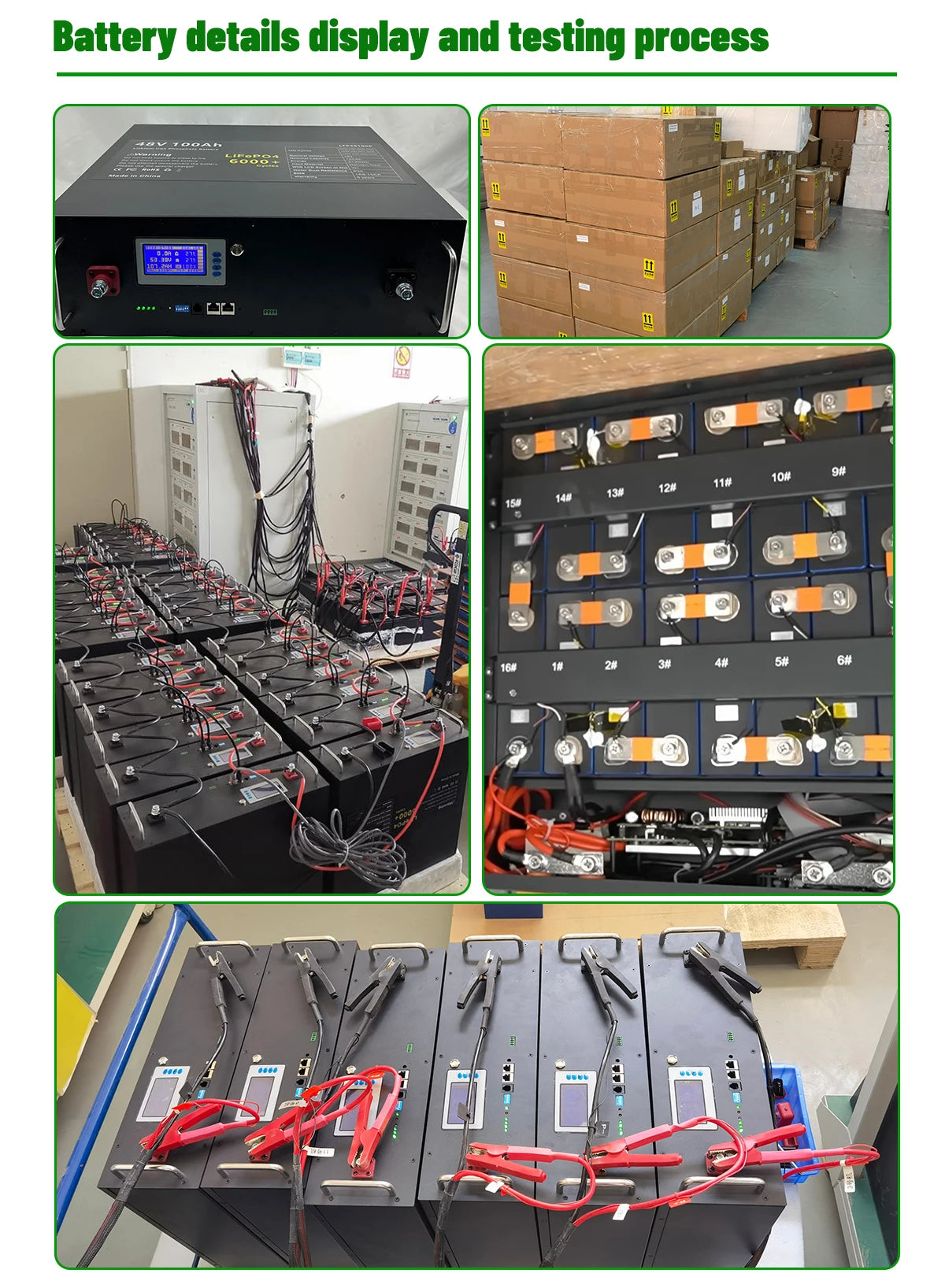

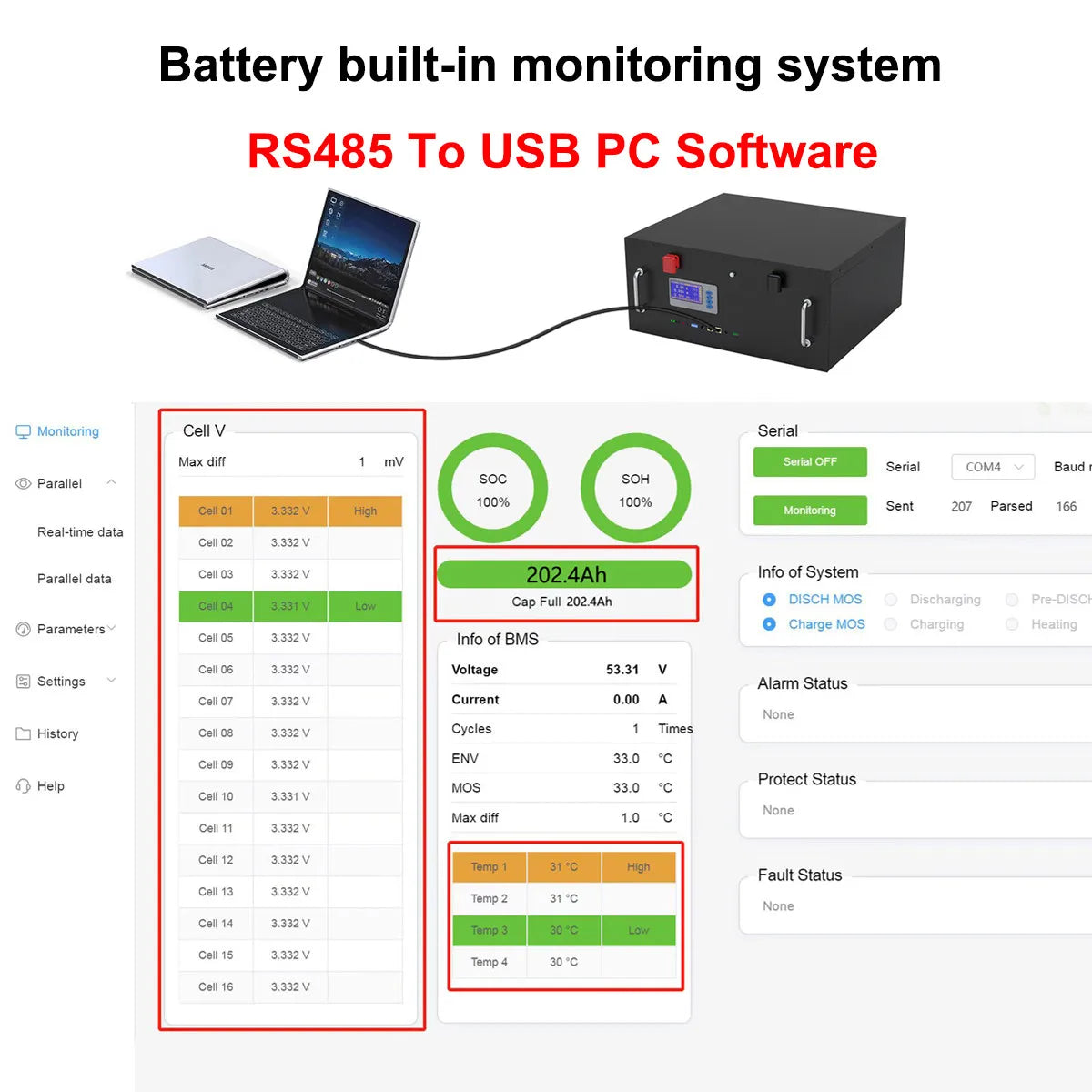

The battery's display and testing process shows information including FM, voltage, current, resistance, and more.

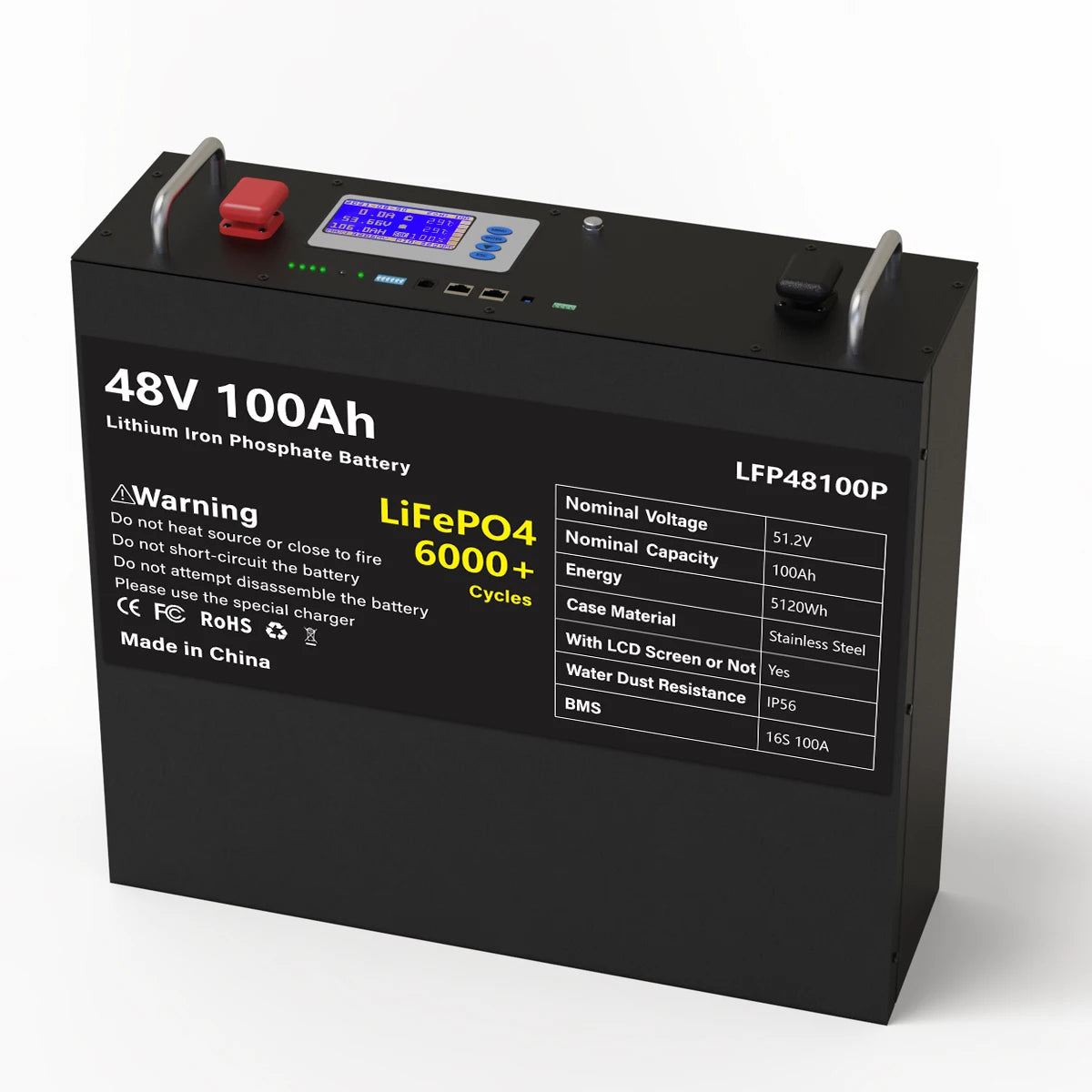

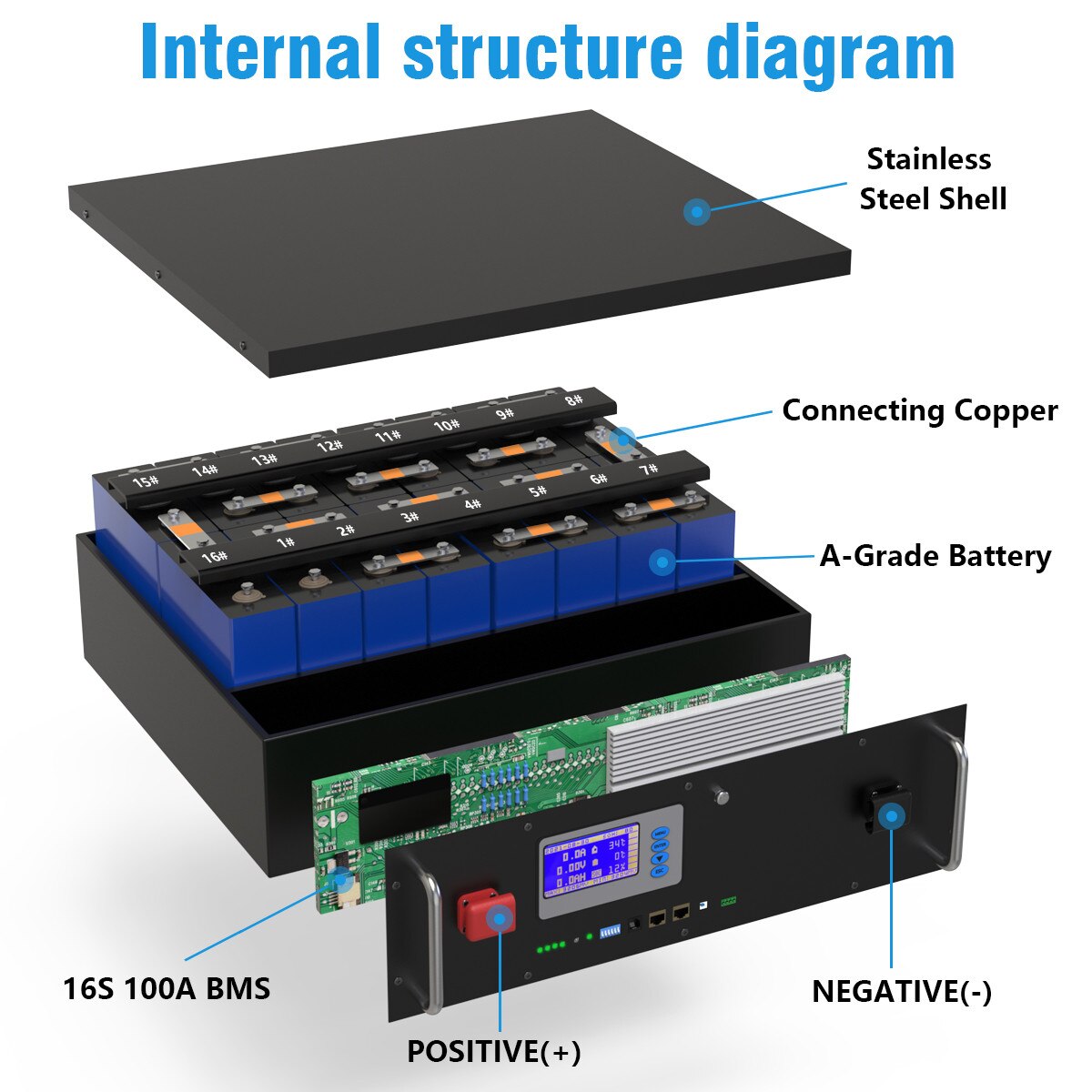

This LiFePO4 lithium-ion battery features a nominal voltage of 48V, with capacities available in 100Ah and 200Ah. It has over 6,000 cycles, making it suitable for off-grid and on-grid inverters. Equipped with RS485 CAN BUS communication protocols and PC monitoring capabilities, this battery is designed for reliable performance. Additionally, it boasts a stainless steel case, dust resistance, and water resistance, ensuring safe use in various environments.

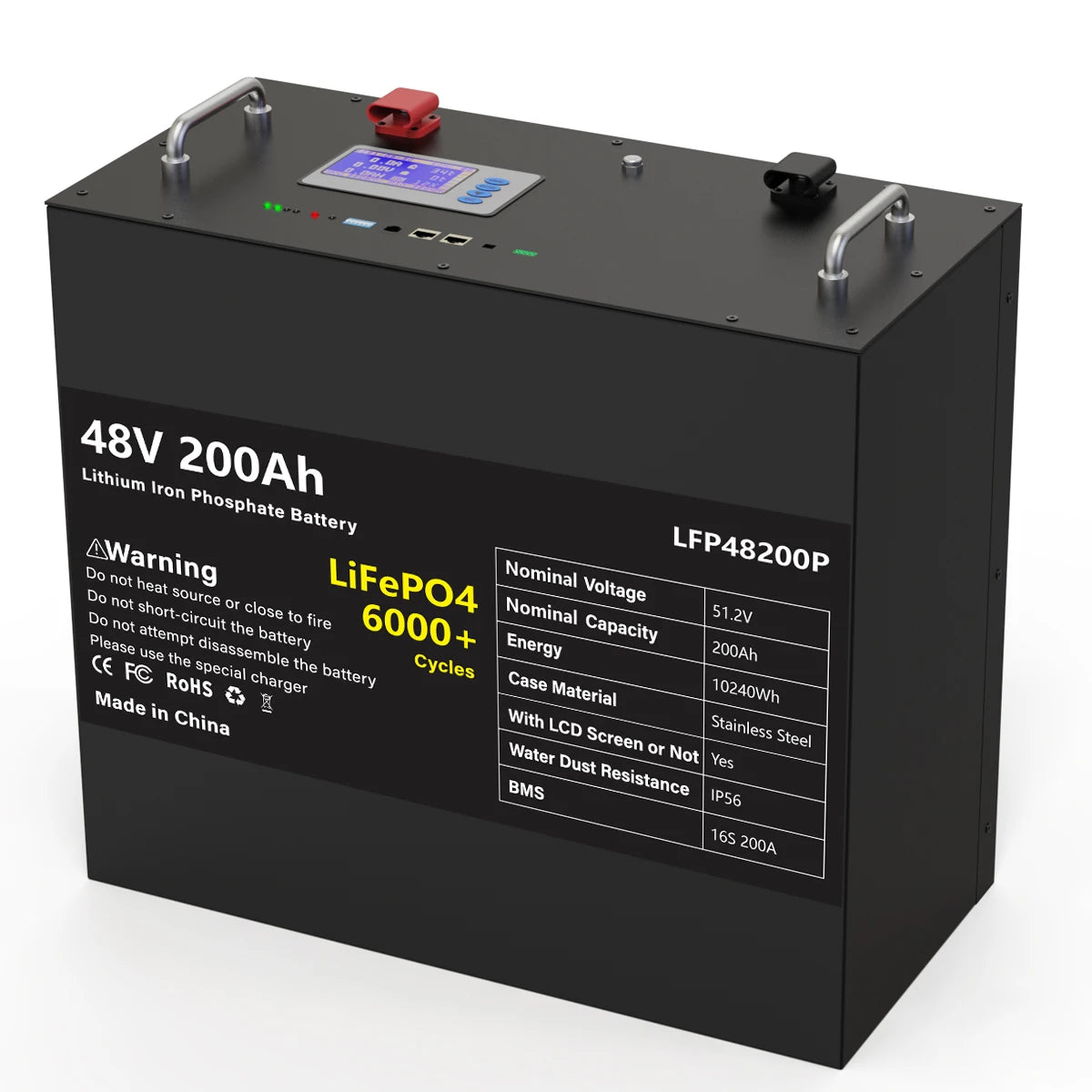

Important Safety Note: Do not discharge or overcharge this 48V 200Ah LiFePO4 battery. The nominal voltage is 51.2V, and it has a capacity of 10240Wh. This product is designed for use in off-grid/inverter applications only. Please do not attempt to open or disassemble the battery pack. Use a special battery charger with a RoHS-compliant material made from stainless steel and LCD screen.
