48V 72V 96V Batttery Discharge Grid Tie inverter 1200W with Limiter Solar Panel Grid Tie Micro Inverter with LCD display MPPT
48V 72V 96V Batttery Discharge Grid Tie inverter 1200W with Limiter Solar Panel Grid Tie Micro Inverter with LCD display MPPT
28 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Weight: 4.5
Size: 305*190*85 mm
Output Type: single
Output Power: 1200W
Output Frequency: 50/60Hz
Output Current: 5-10A
Origin: Mainland China

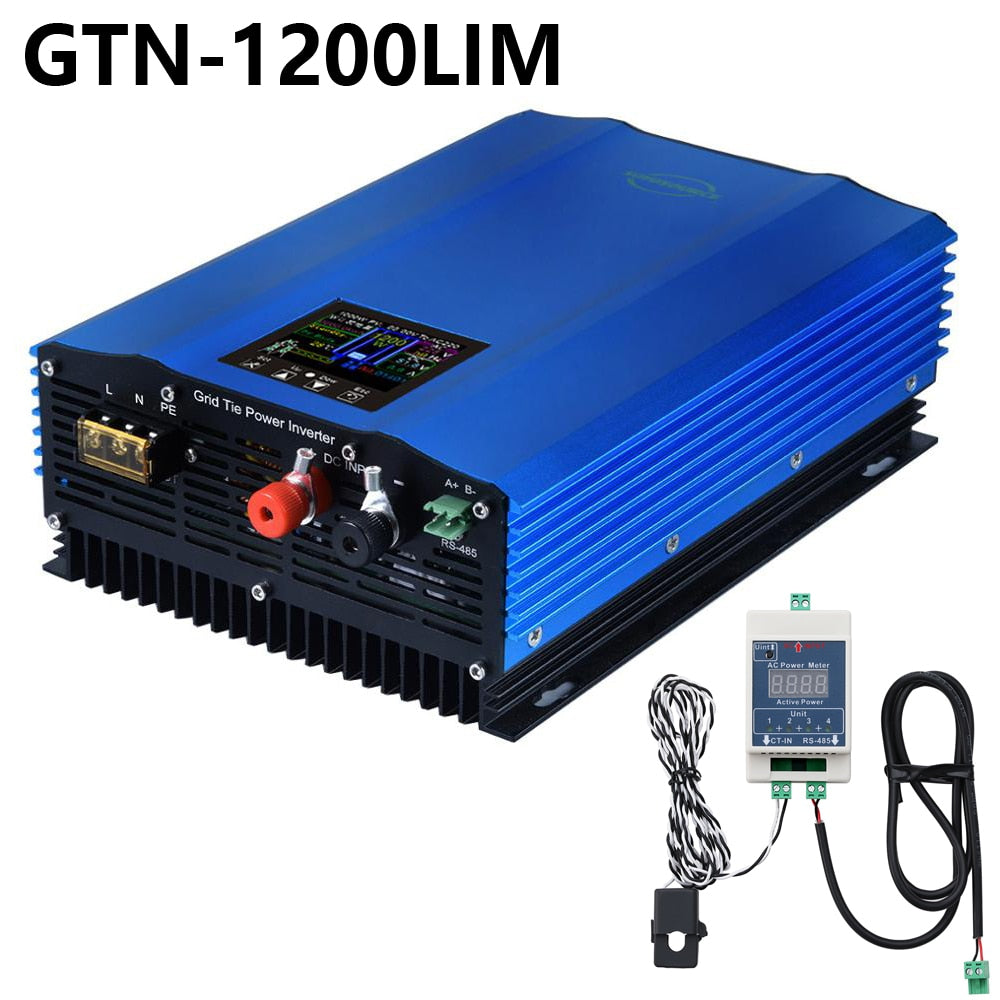

Model Number: GTN1200LIM
Is Smart Device: YES
Certification: CE
1200W grid tie inverter with limiter battery discharge solar panel grid tie inverter

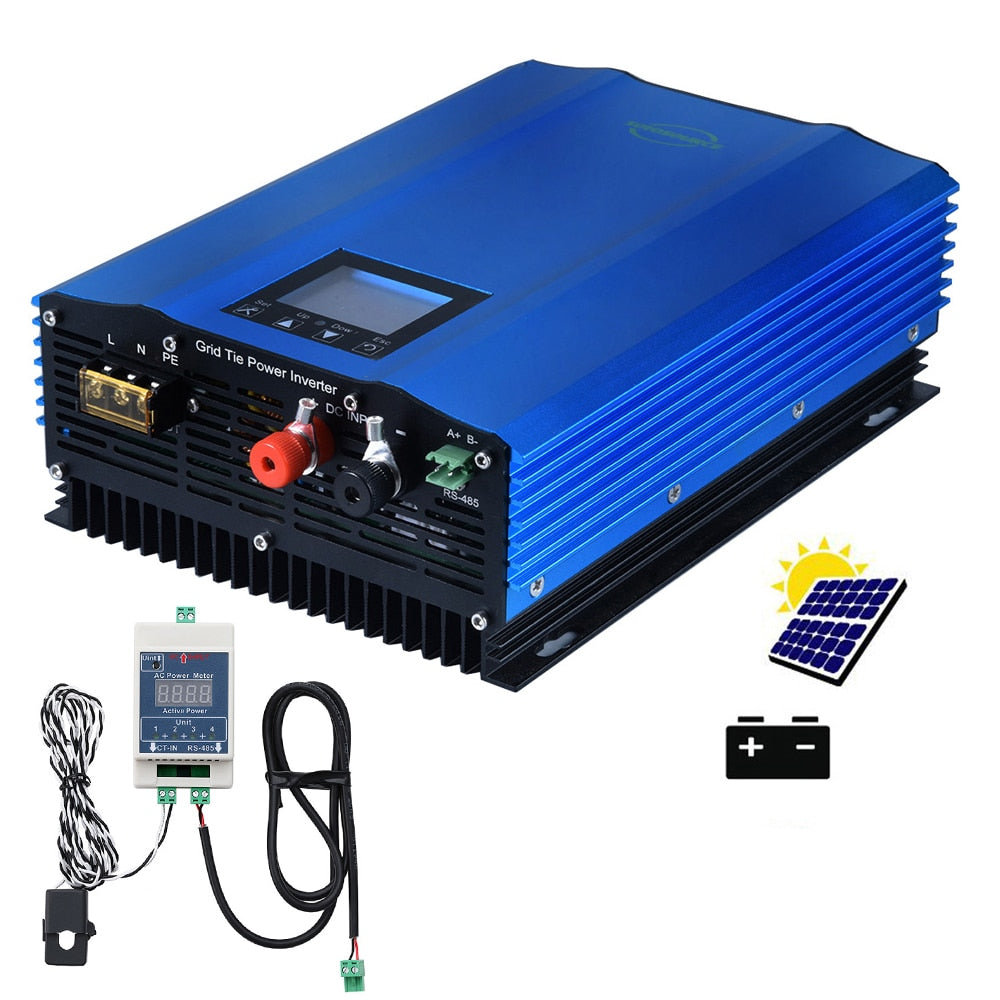

1200w Grid Tie Inverter for Solar Panels or Battery
- working well with Battery
--with power acquisition meter(one acquisition meter can connect 5 inverters）
-- Limiter Clamp Sensor
--woking well with sloar panels, PV Input voltage Range (optional ):
PV Voc range:
1).55V-90V (for 48V battery or 60V Battery)
2).85V-130V (for 72V battery)
3).120V-180V(for 96V battery)
--Output Voltage : AC 110V 120V 220V 230V 240V
Why we produced the GRID TIE INVERTER WITH LIMITER ?
It is in response to the overwhelming clamor from our customers for a product that can control the amount of power that the grid
tie inverters (GTI) can generate so that the amount of excess power produced by the solar panels are reduced to insignificant
levels, if not eliminated --- because in some countries,the producer pays for the excess power it gives to the distribution grid. This
is because the electric power meters (the one provided by the electricity provider in the area) are not aware of the direction of
power flow. In other words it only adds even if power is exported to the grid, thus, the consumers will be charged for power even if
it is given to the grid, and this is the problem
This is the 2nd generation grid tie inverter with limiter.

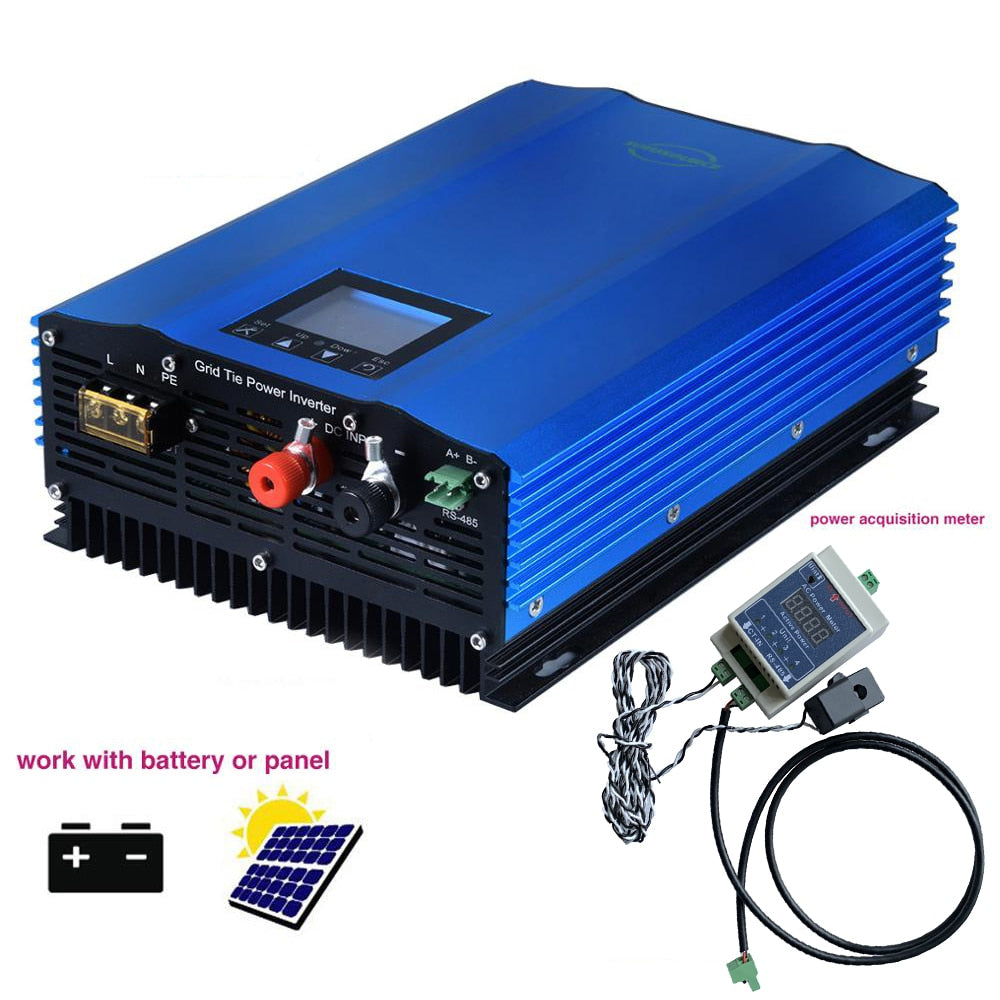

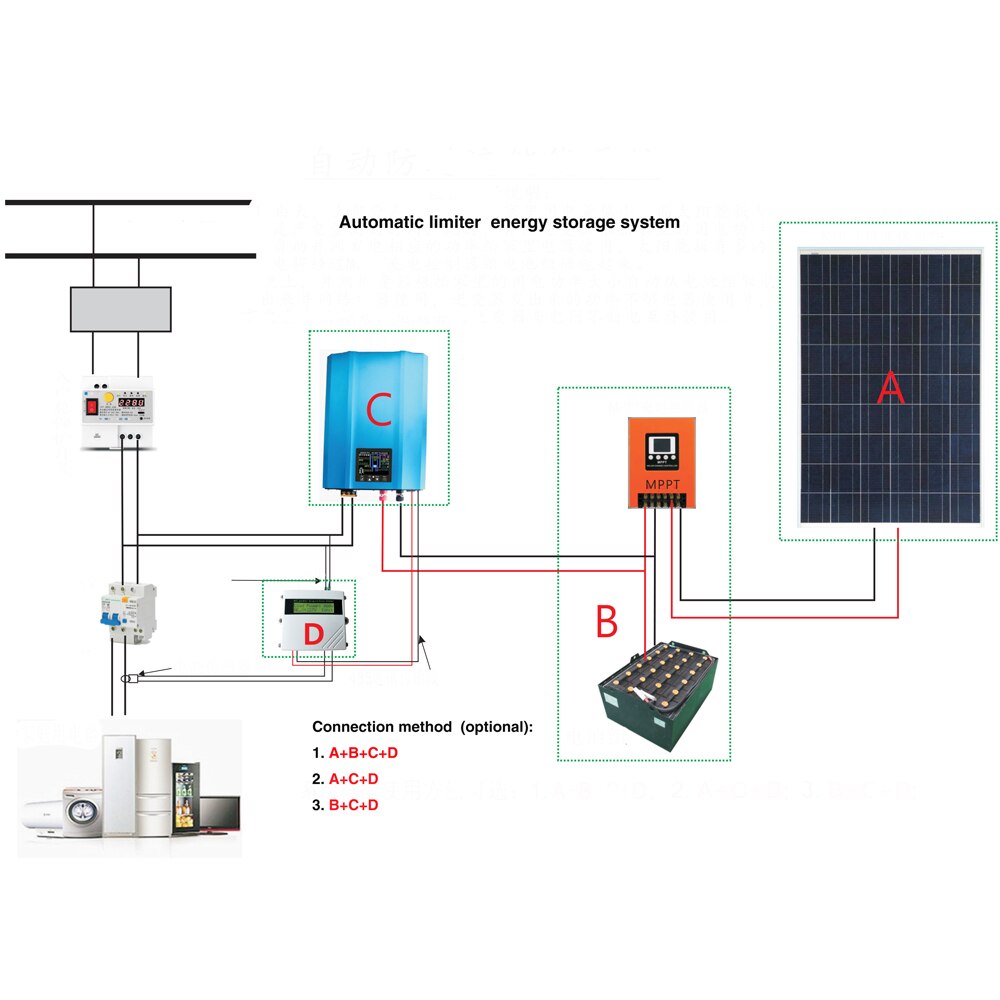

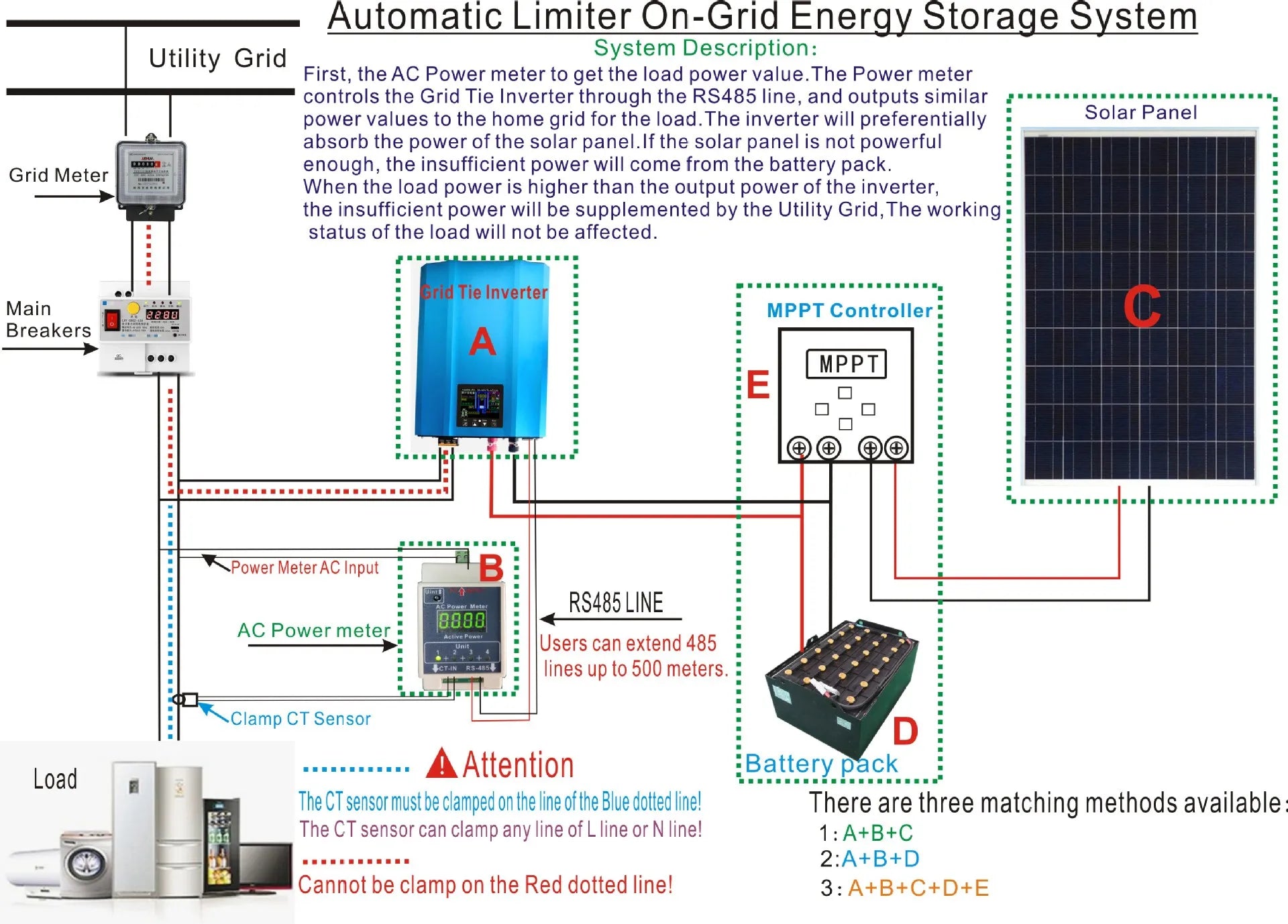

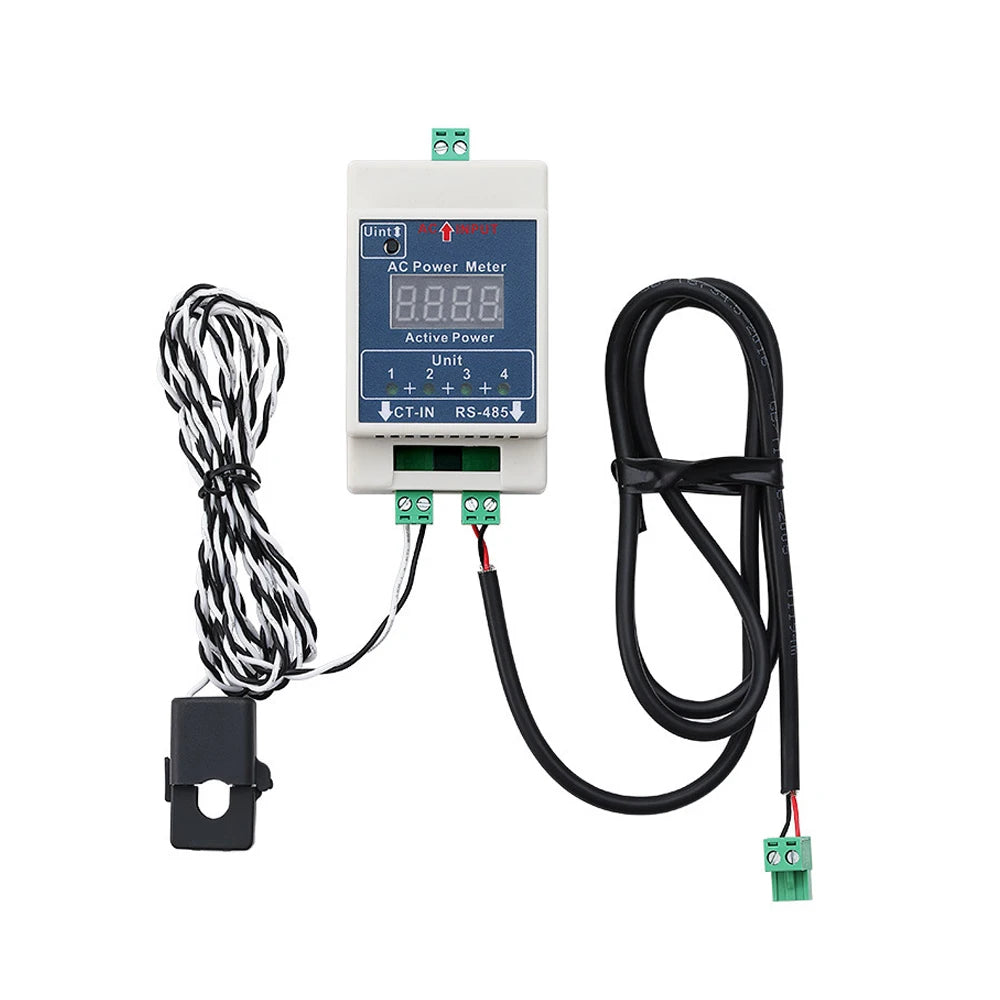

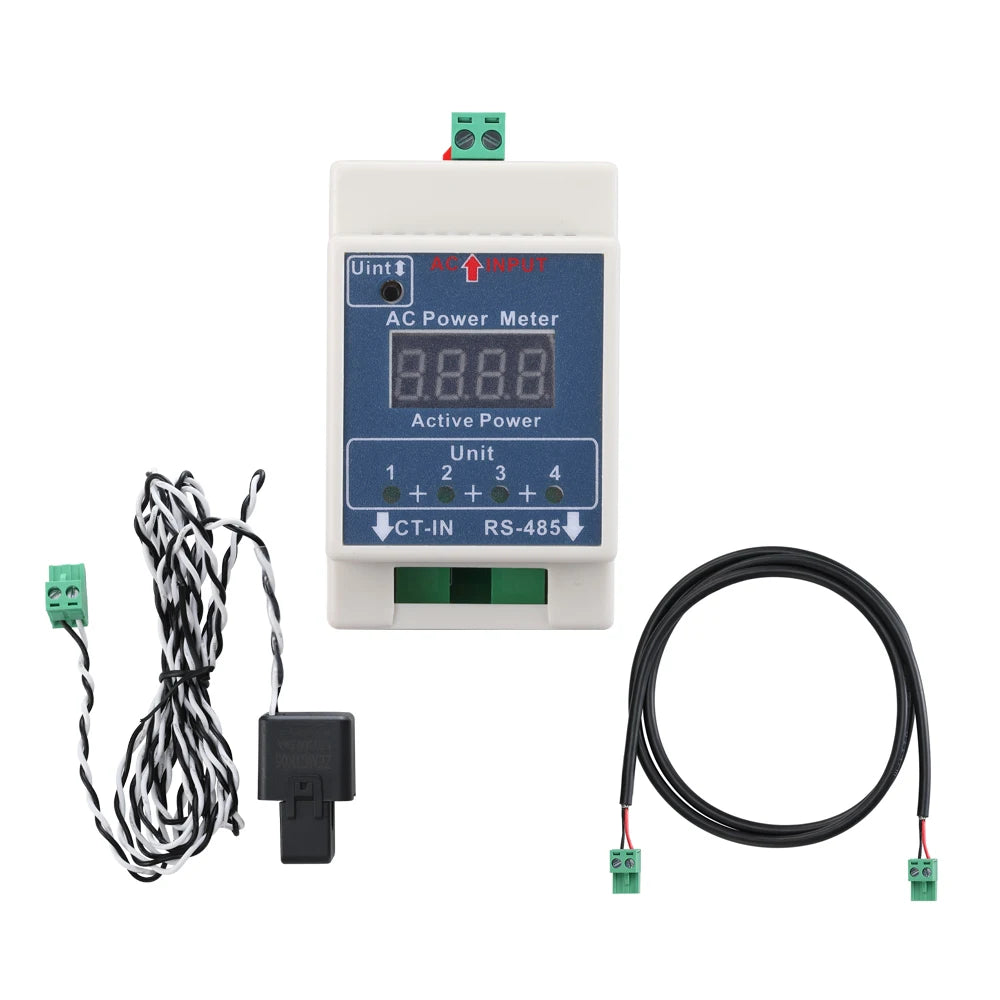

This is the second generation grid-connected inverter with limiter. With the second generation GTN-LIM, we added a acquisition
meter. The collecting meter collects the power consumption of the load through the sensor, and then transmits it to the inverter
through the RS-485 port. The inverter will output the corresponding power to the grid, which we call an external power acquisition.

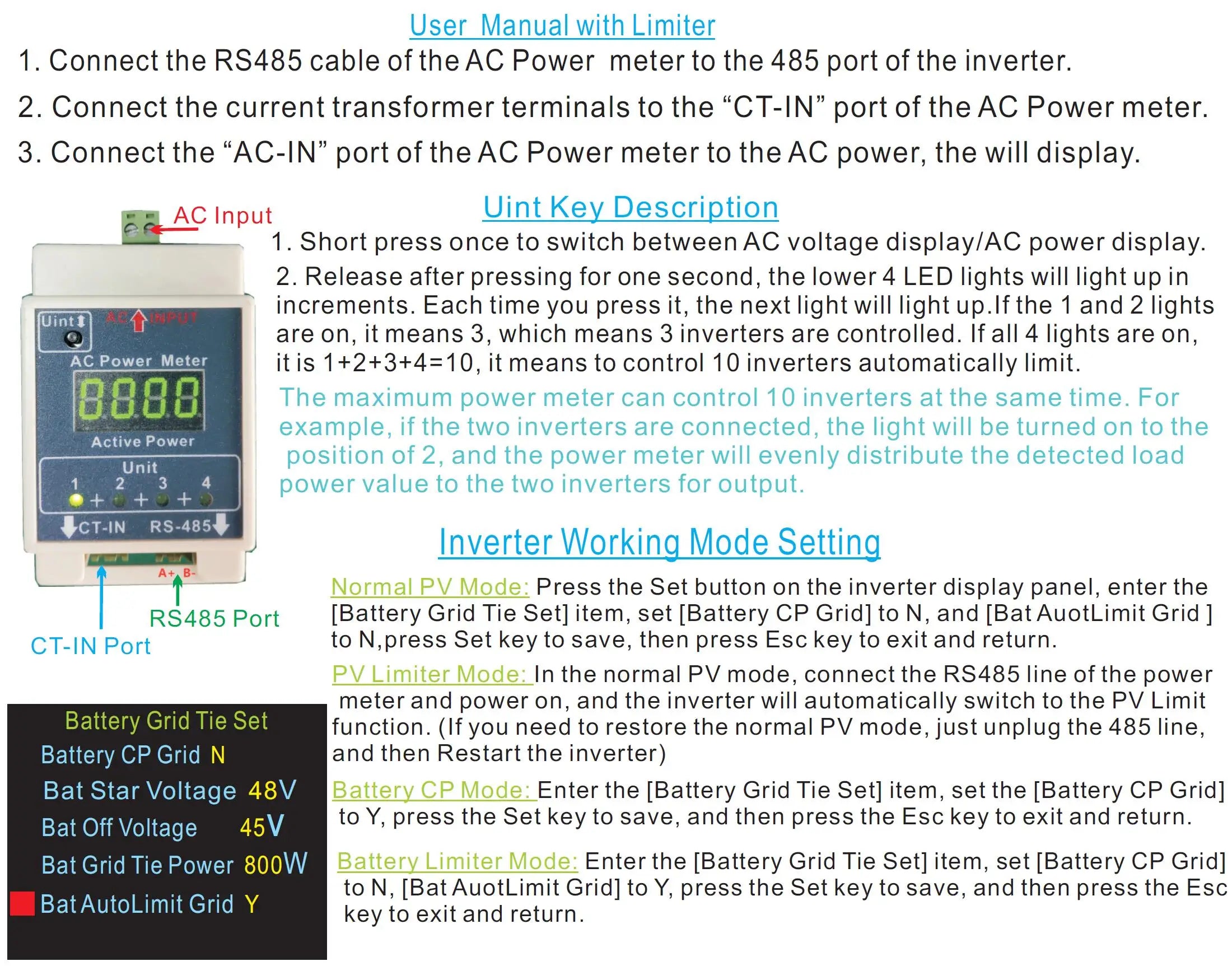

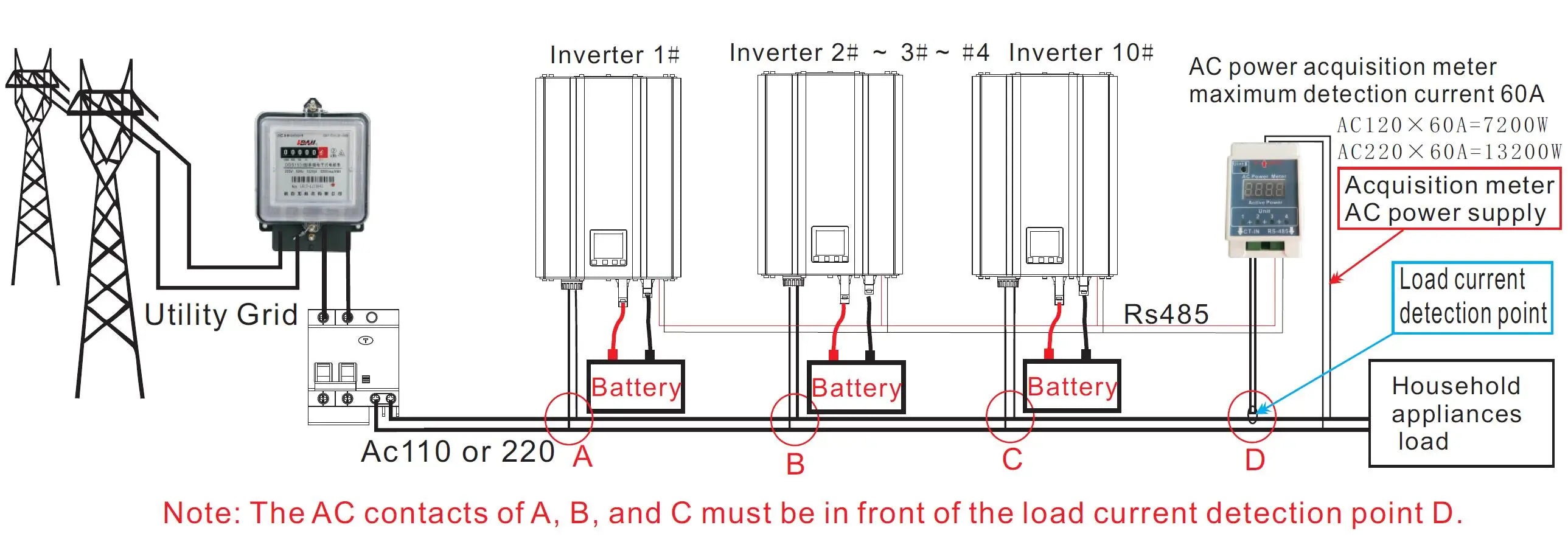

How to connect the sensor?

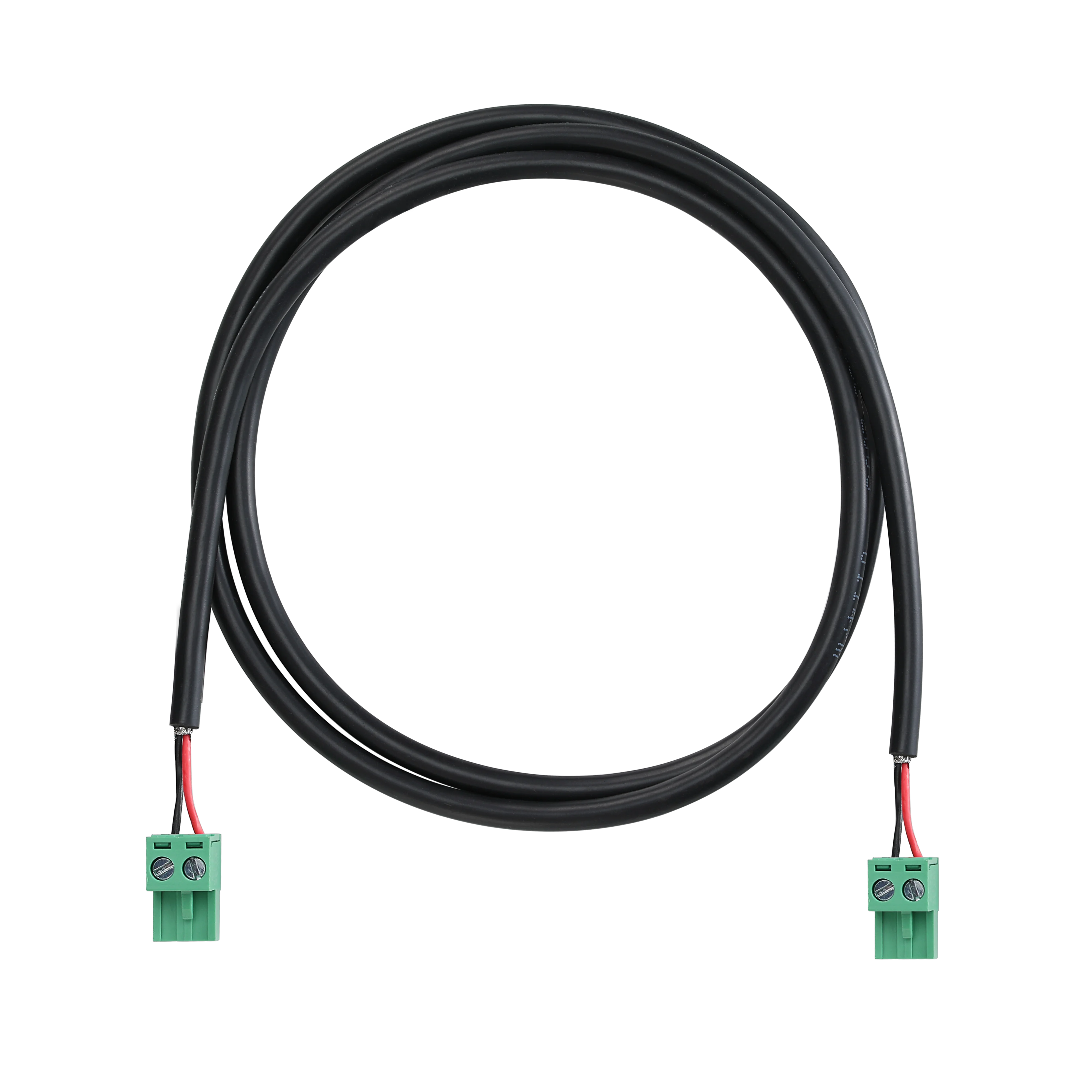

1.conect the RS485 cable of the AC power acquisition meter to the 485 port of the inverter.
2.Plug the connection terminal of the transmitted current sensor into the port of the collector "CT-IN" (no +-)
3.Connect the AC power supply port "AC-IN" of the collector to the same AC power supply for the load. After the connection, it will light up.
4.In the inverter LCD, enter the "battery grid connection", through the SET {Bat AutoLimit Grid} for Y
5.Connect the inverter to AC power first, then connect the battery, the inverter will automatically output the same power as the power
detected by the collector.Therefore, the inverter will not have excess electricity to be sent to the grid (ie: automatic limiter function)
48V, 72V, or 96V battery discharge grid-tie inverter with limiter. Compatible with solar panels, this micro inverter features an MPPT (Maximum Power Point Tracking) algorithm and LCD display. The inverter supports grid tie operation and can supply AC power up to 1200W at 120V or 220V. A built-in acquisition meter measures the maximum detection current of up to 60A. Suitable for household appliances, this inverter is designed for use with a wide range of loads.
Wintron's 48V/72V/96V battery discharge grid-tie inverter with limiter, suitable for solar panel grid tie applications, features an LCD display and MPPT function.

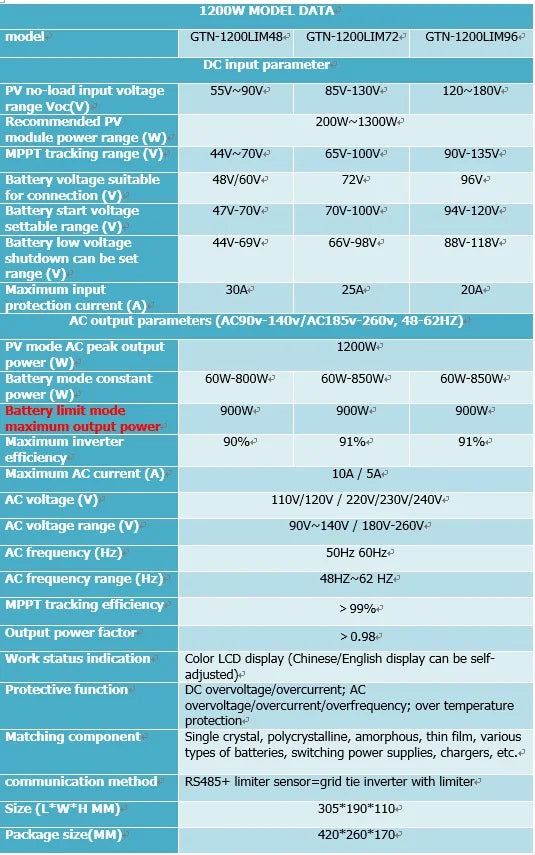

Specifications:

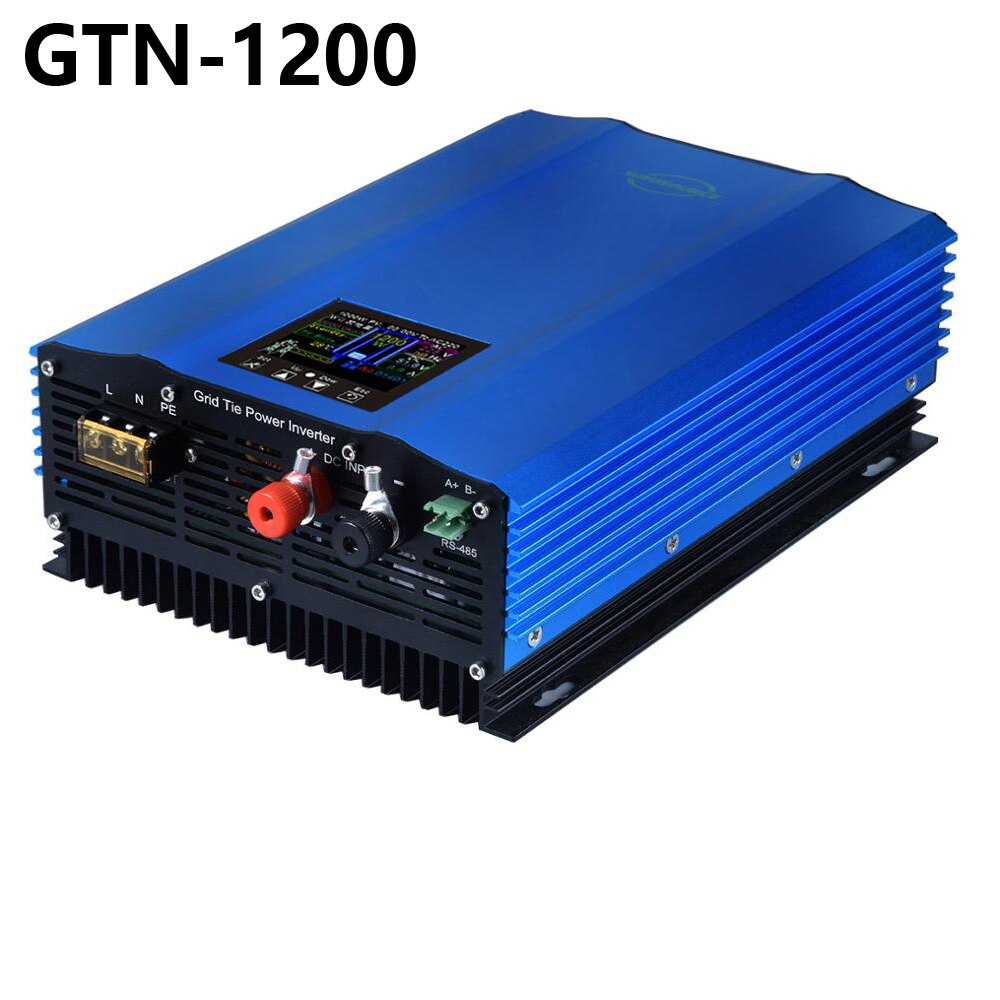

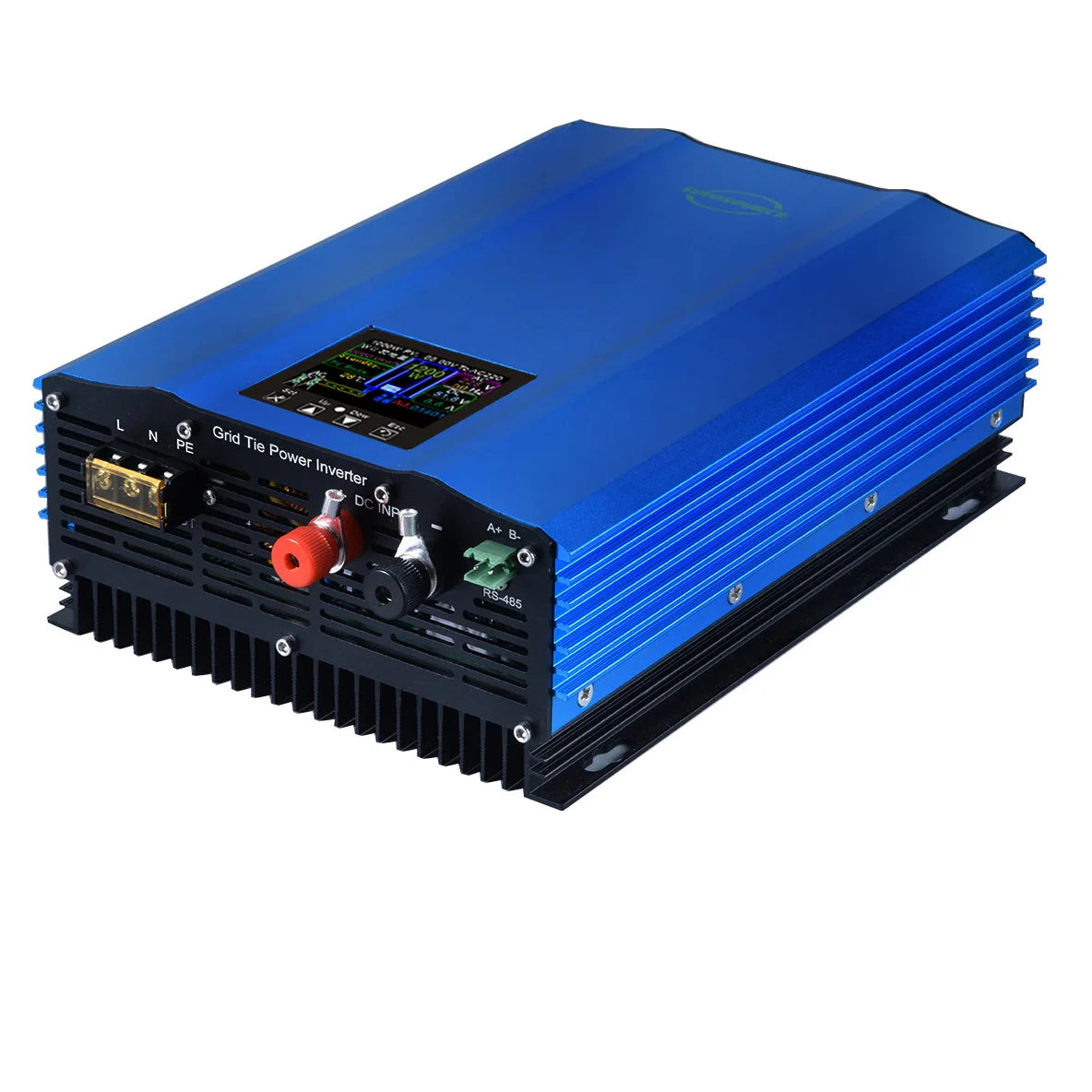

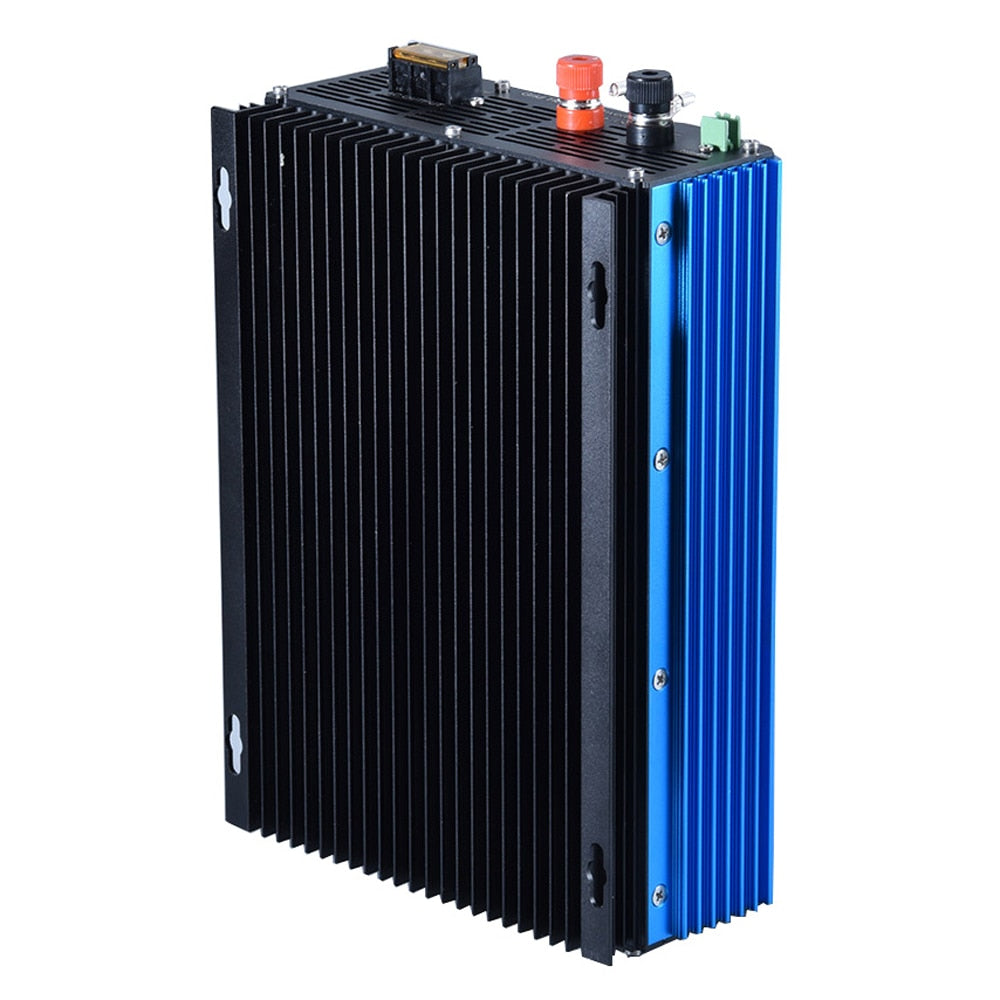

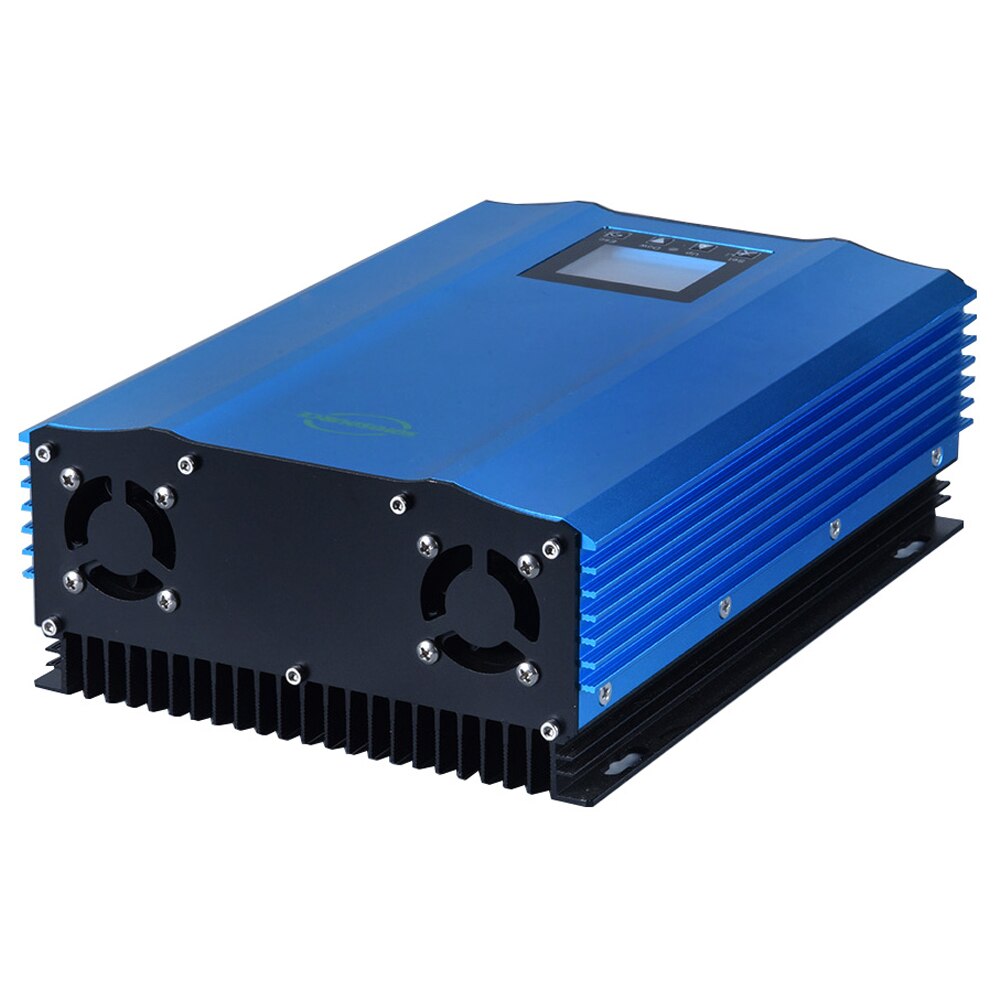

Product photos:
Grid tie inverter with MPPT solar charge controller and LCD display for monitoring grid power and battery performance.
Packing List
A). Solar Grid Inverter with Limiter-----1unit

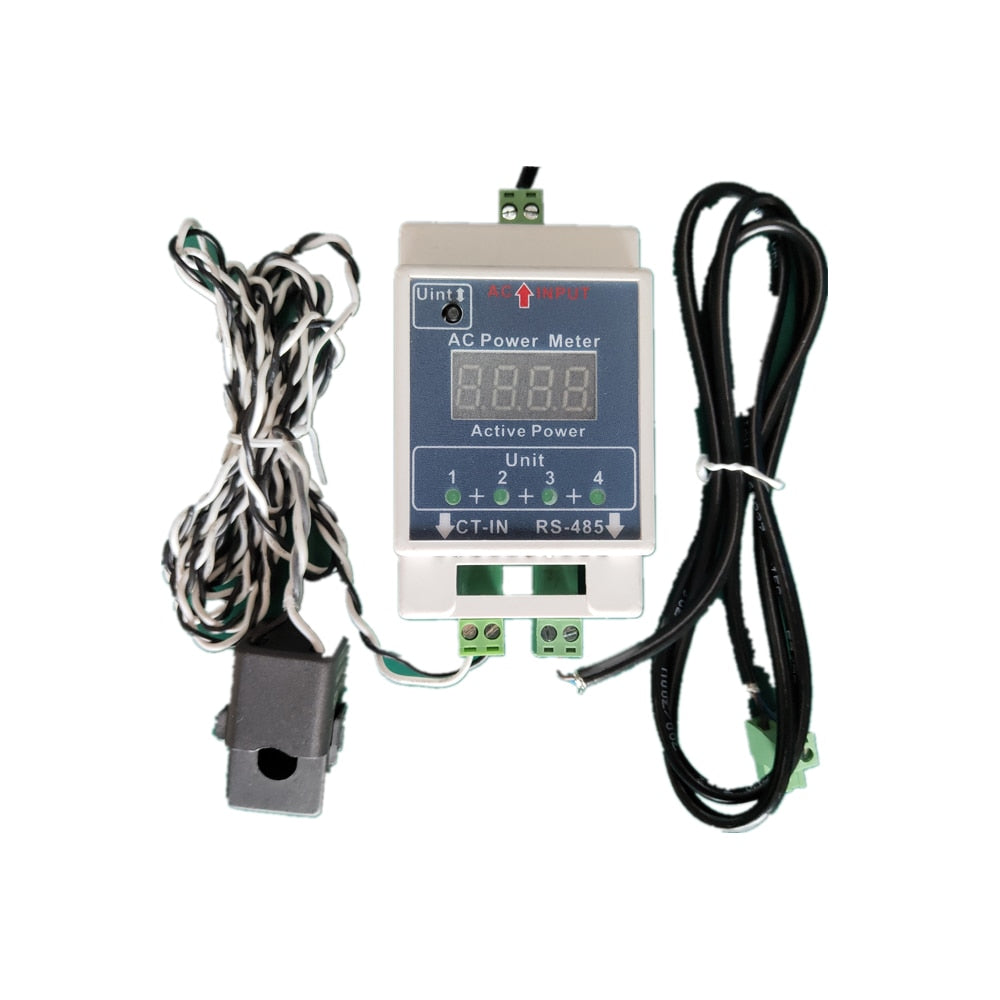

B).AC power acquisition meter --------1unit(Optional)
C). Limiter sensor clamp ---------------1pcs (Optional)
D). AC cable 50cm----------------------1pcs
E). English Manual----------------------1Pcs
