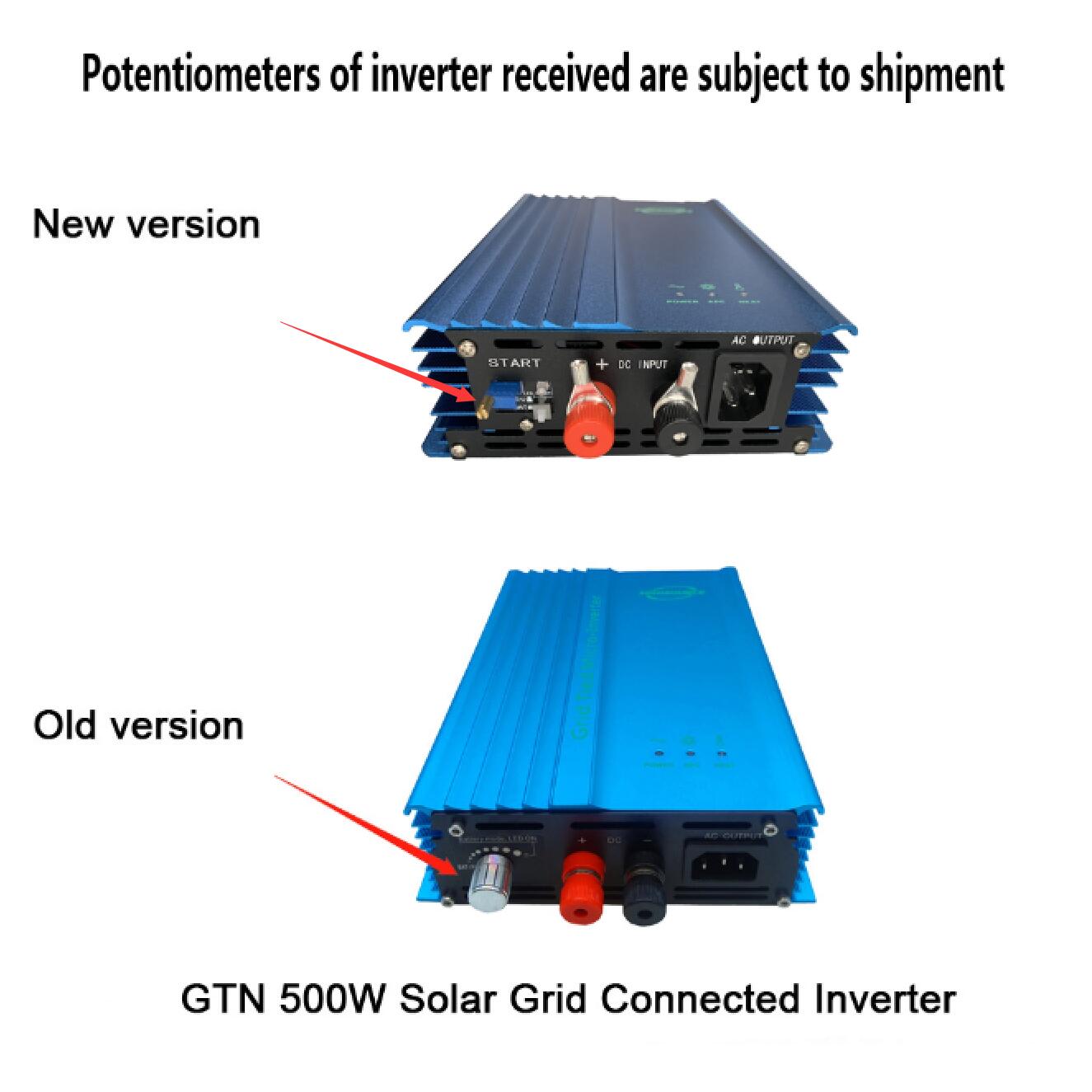

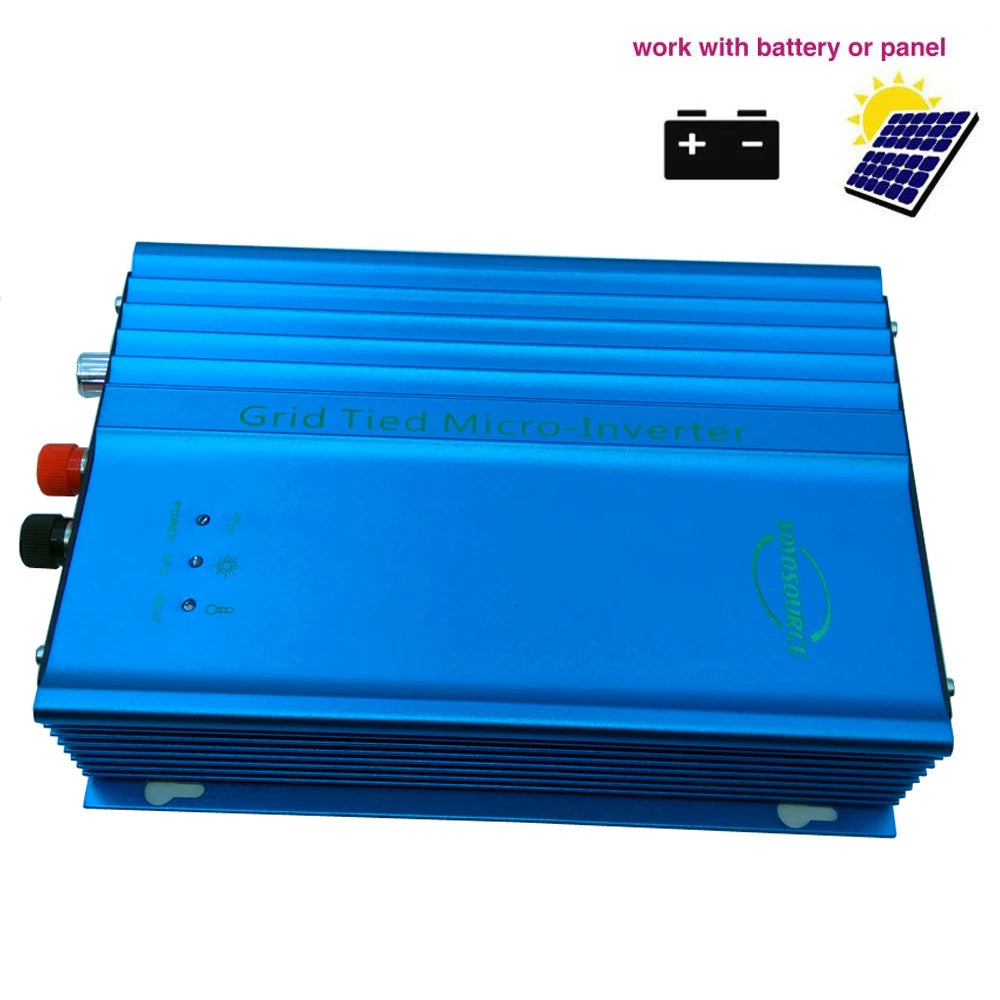

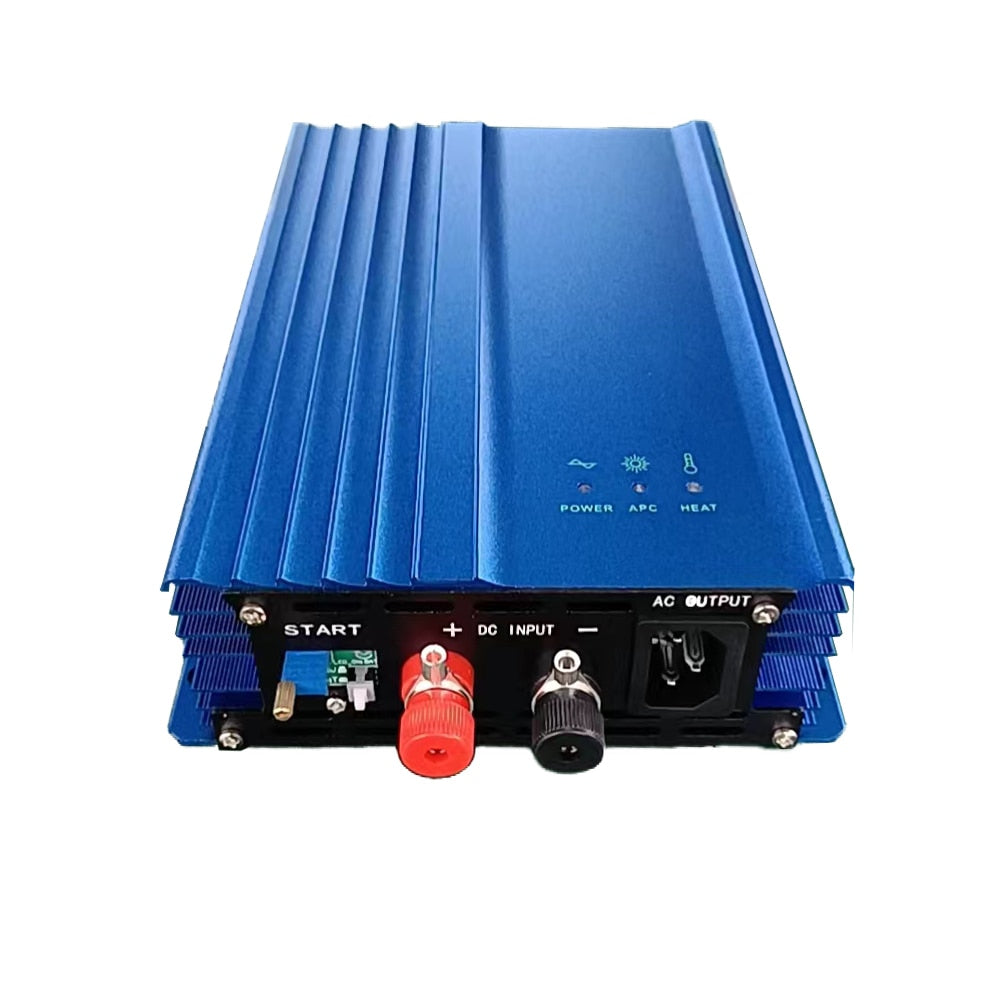

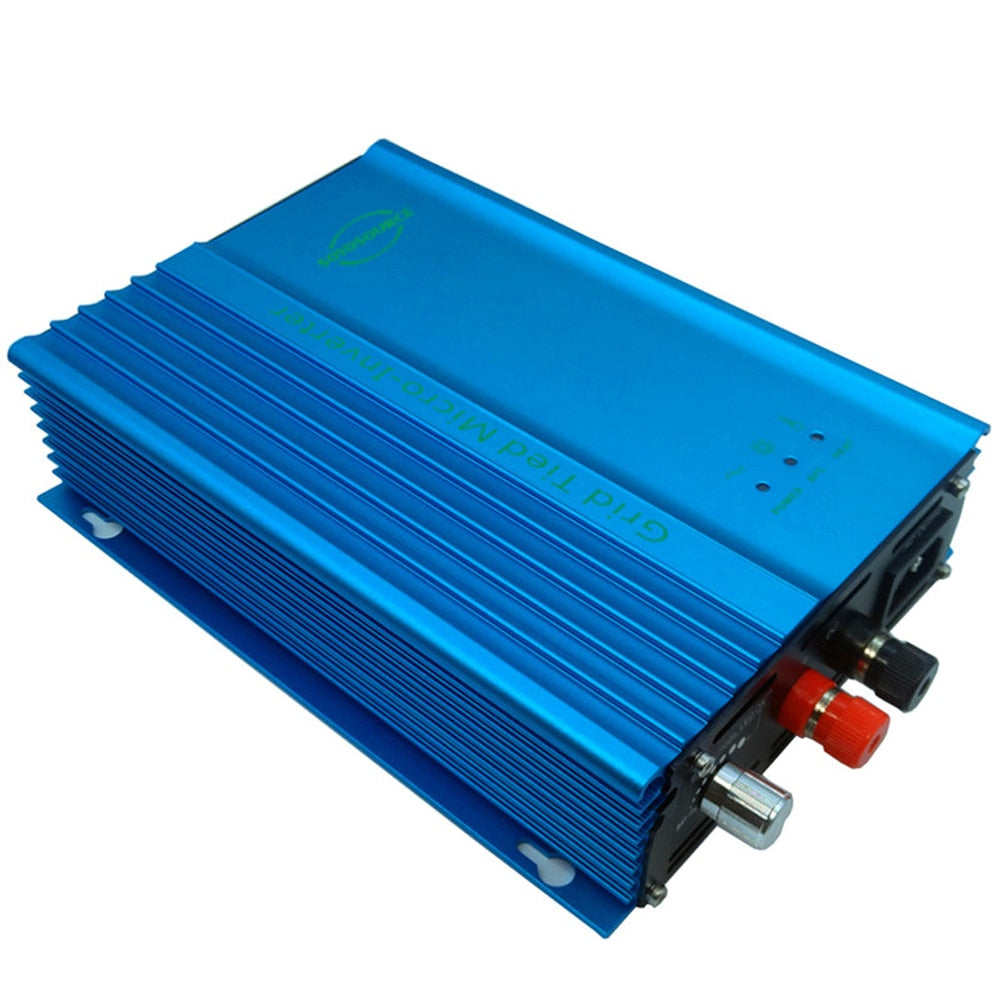

500W Grid Tie Inverter 12V 24V Battery Discharge Micro Grid Tie Inver Adjustable Output Power Solar Panel On Grid Inverter CE

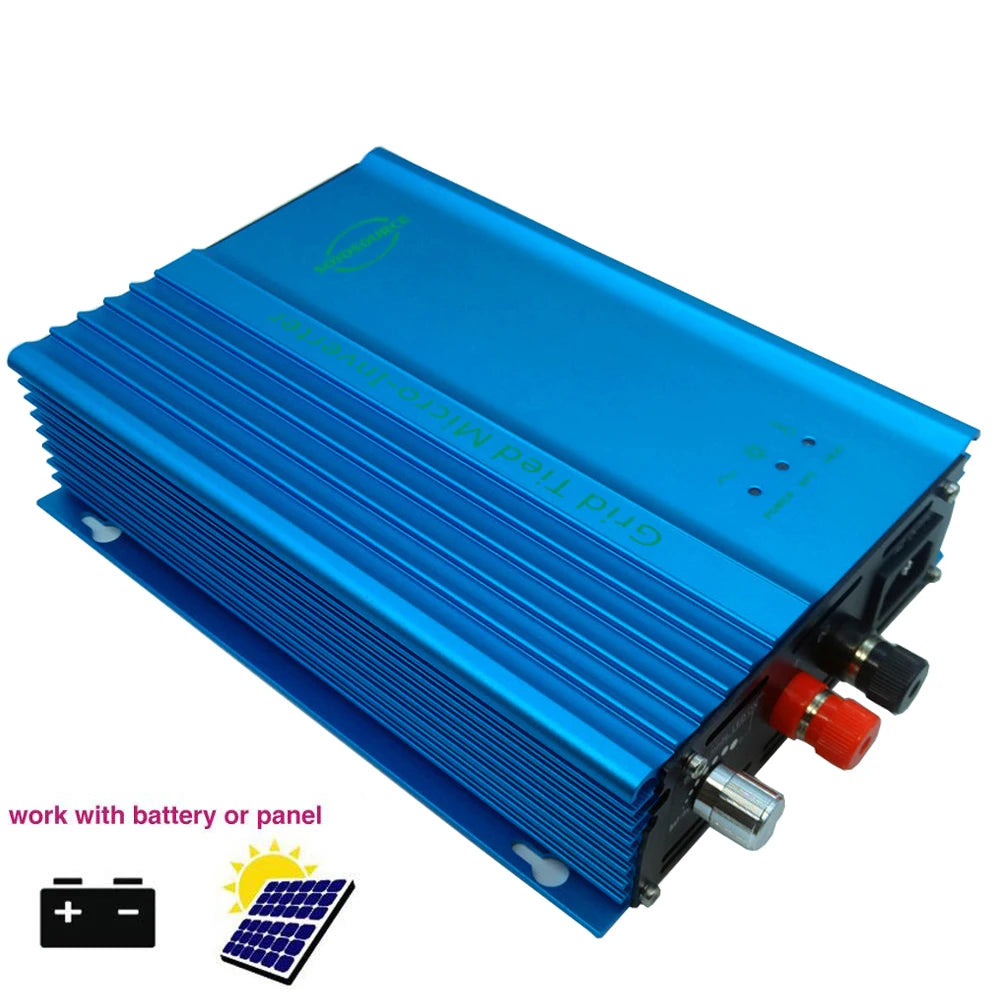

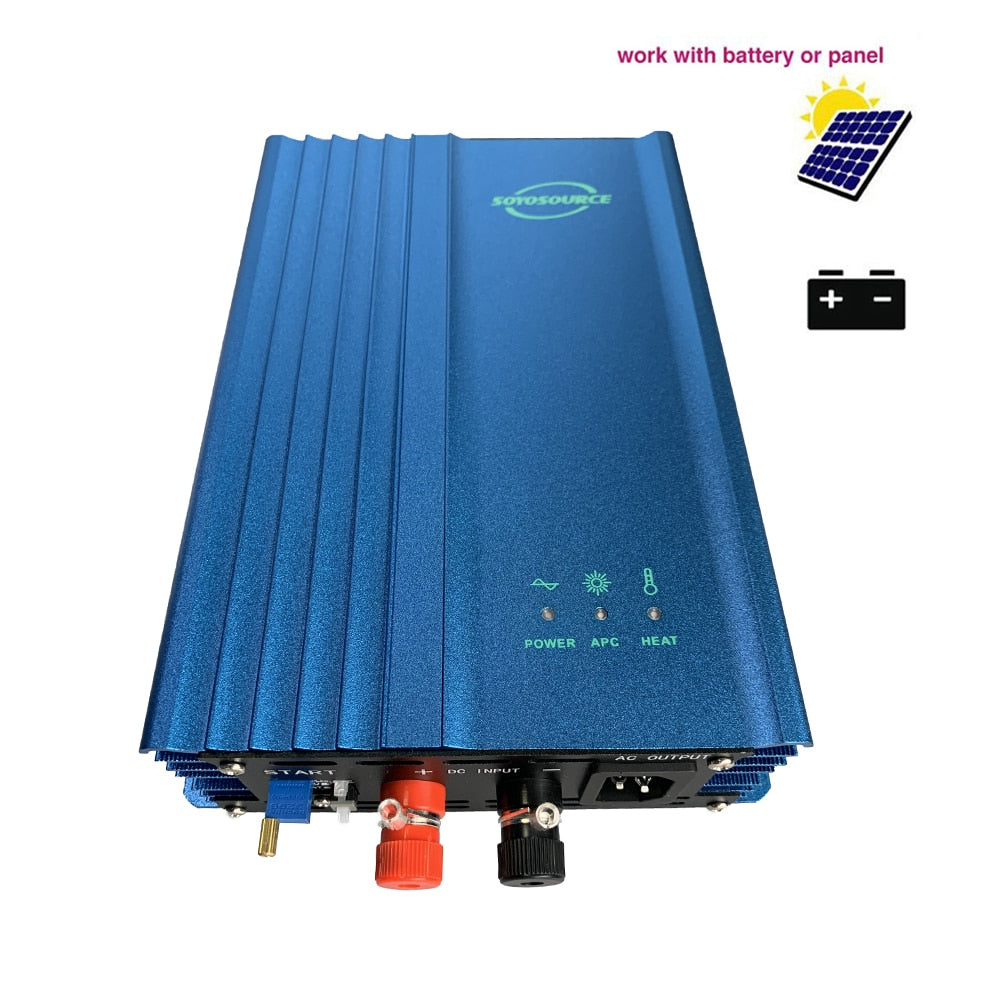

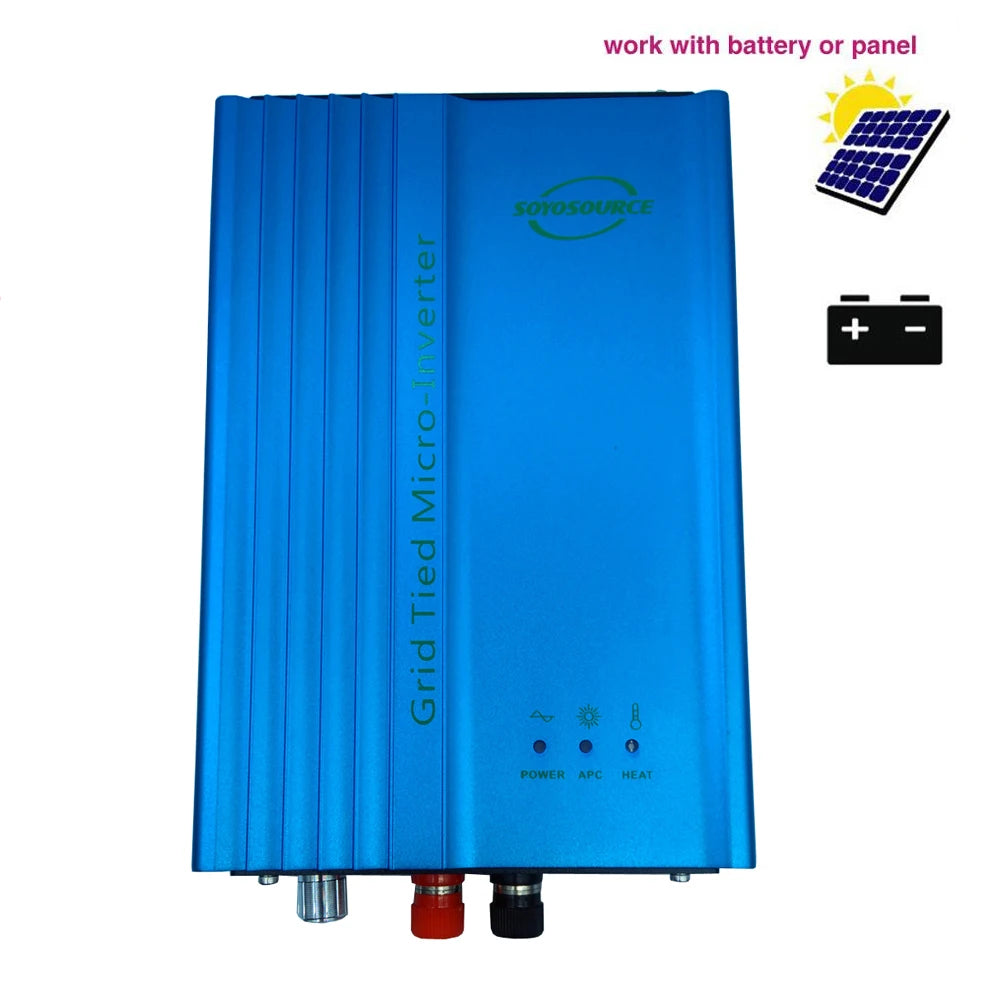

Works with batteries (12V/24V) or solar panels for grid-tied micro-inverters with adjustable output power.

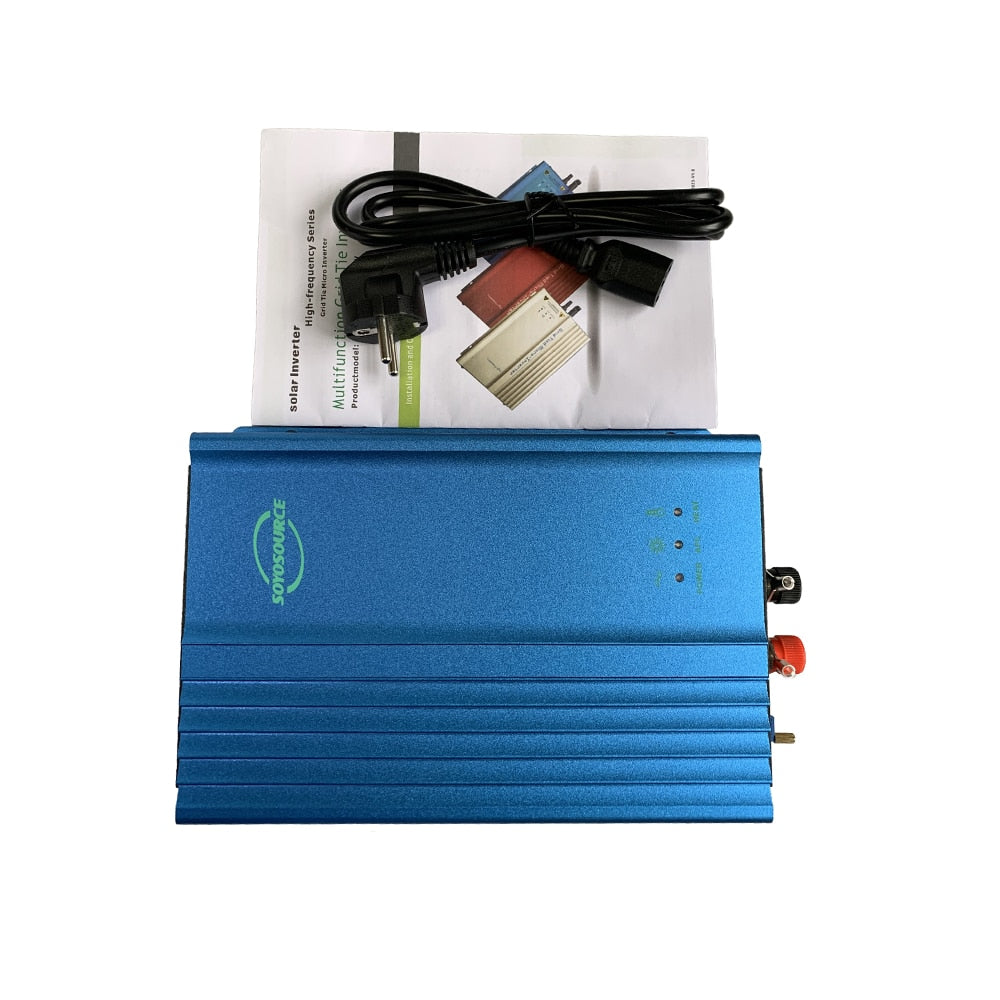

Packing list includes S19 Fno 074, a high-frequency grid tie micro-inverter for efficient green energy generation, meeting RoHS standards.

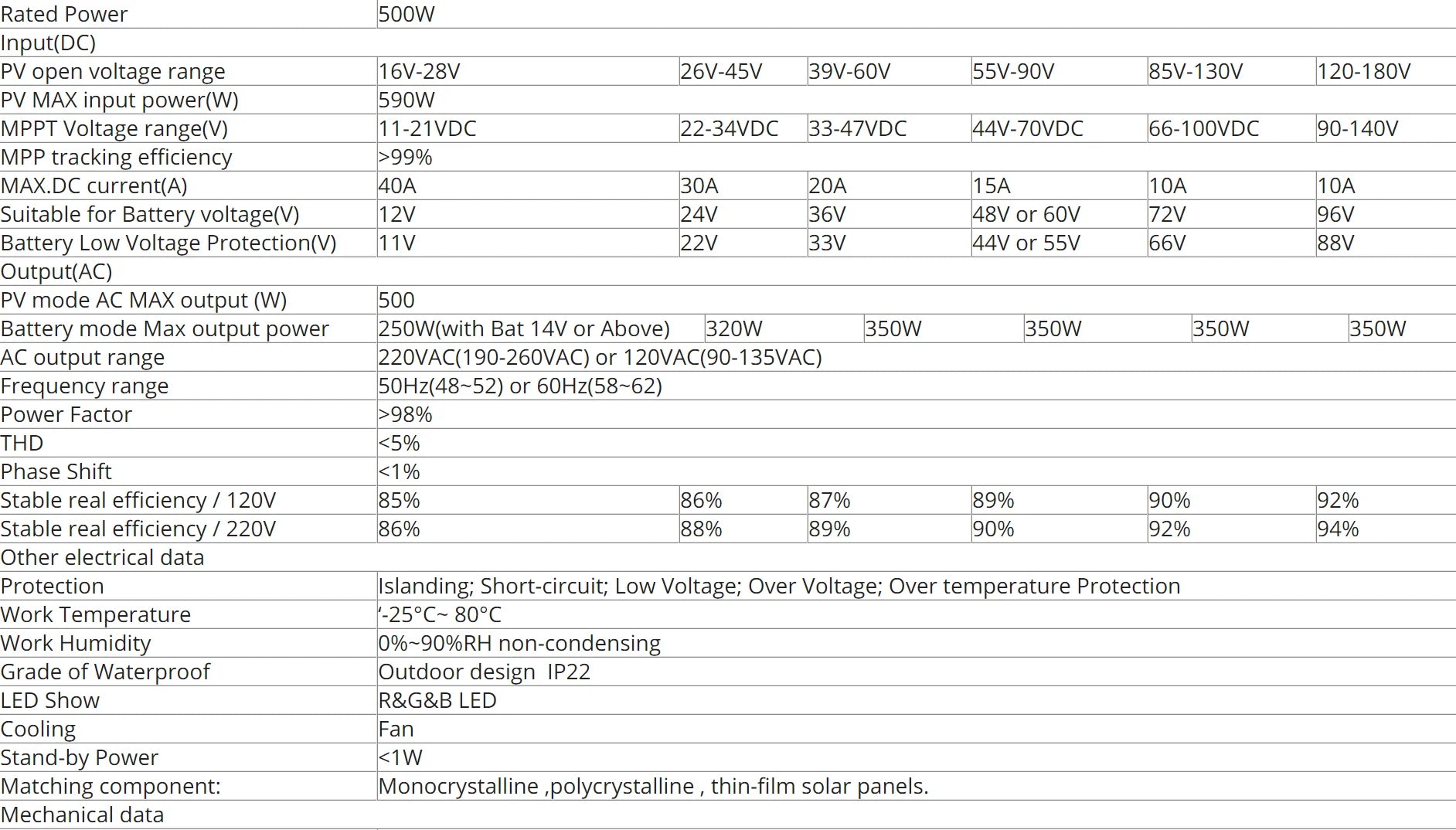

Specifications:

PV grid-connected inverter operating mode

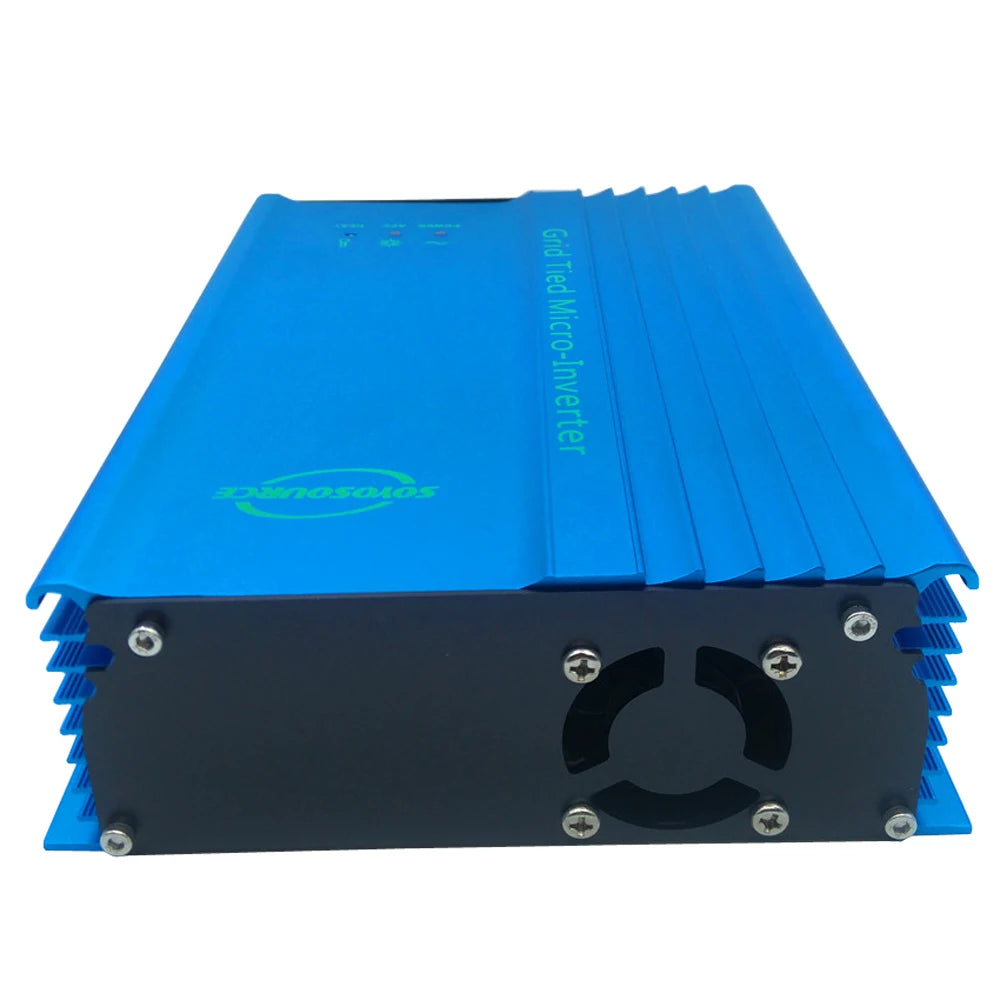

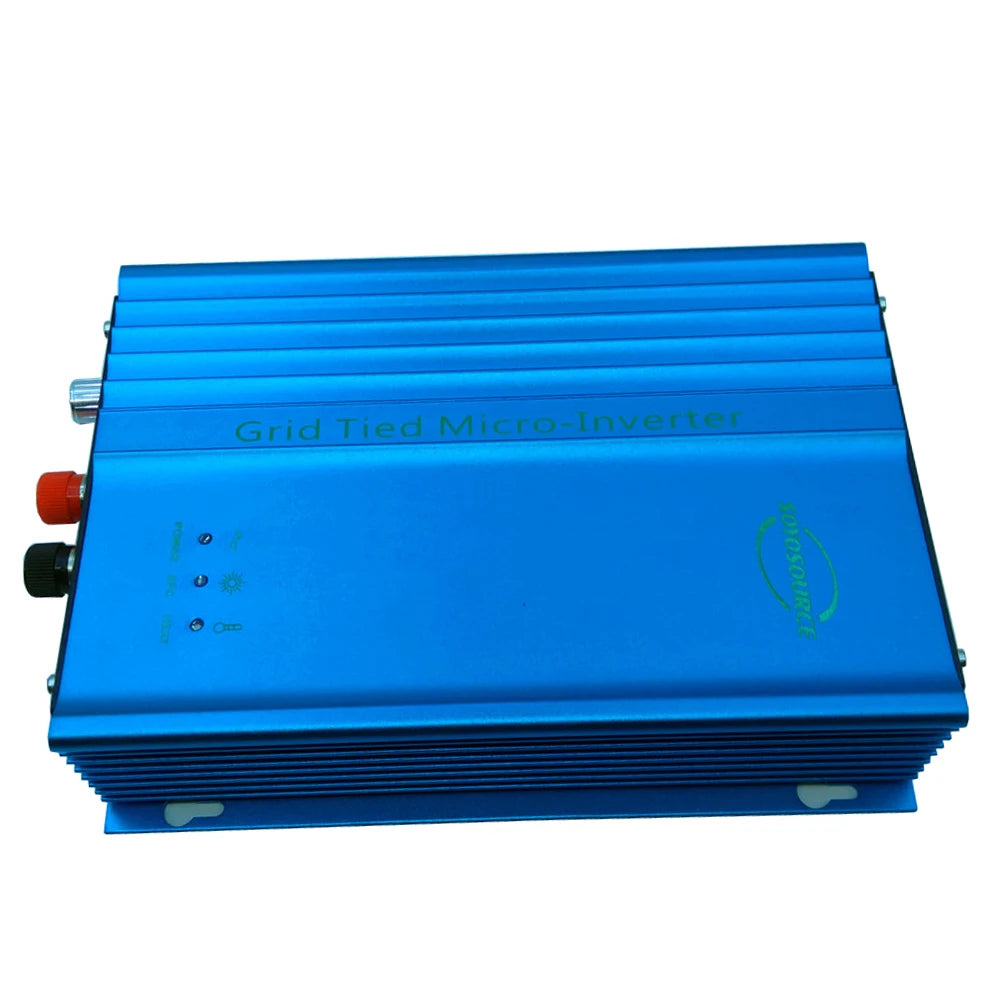

The grid-tied inverter has an automated working order, without needing to monitor. On detection the power output from solar panels, device will decide if the power was large enough to begin the conversion process. Coversion process includes 5 modes, Startup, Grid-tied begin, Standby, Stop, Fault-find.

Startup - When the start button is on, solar panel and grid lines both connected in normal condition, inverter enters working condition.

Grid-tied begin - Grid-tied begin mode is when inverter starts to convert the Direct Current fed through from PV solar panel to a stable Alternate Current and flow to the utility grid. To enable the maximum output of energy, the device uses MPPT control technology to track sun rays, this technology promises the maximum efficiency under diferent daylight and temperature conditions.

Standby - Standby mode is when device detects insufficient power feeding through from the solar panel, or device detects abnormal status such as voltages, frequencies, and temperatures not in the permitted range, the device enters standby mode.

Stop - Insufficient sunlight hence insufficient PV power feeding through to the device and device enters into the standby mode, when this condition continues and DC voltages falls below 12V for over 1 minute, the device will enter Stop mode.

When error ocurs, fault find indicator starts flashing, device will enter Stop mode. Please see 3.4 error status on LED indicator.

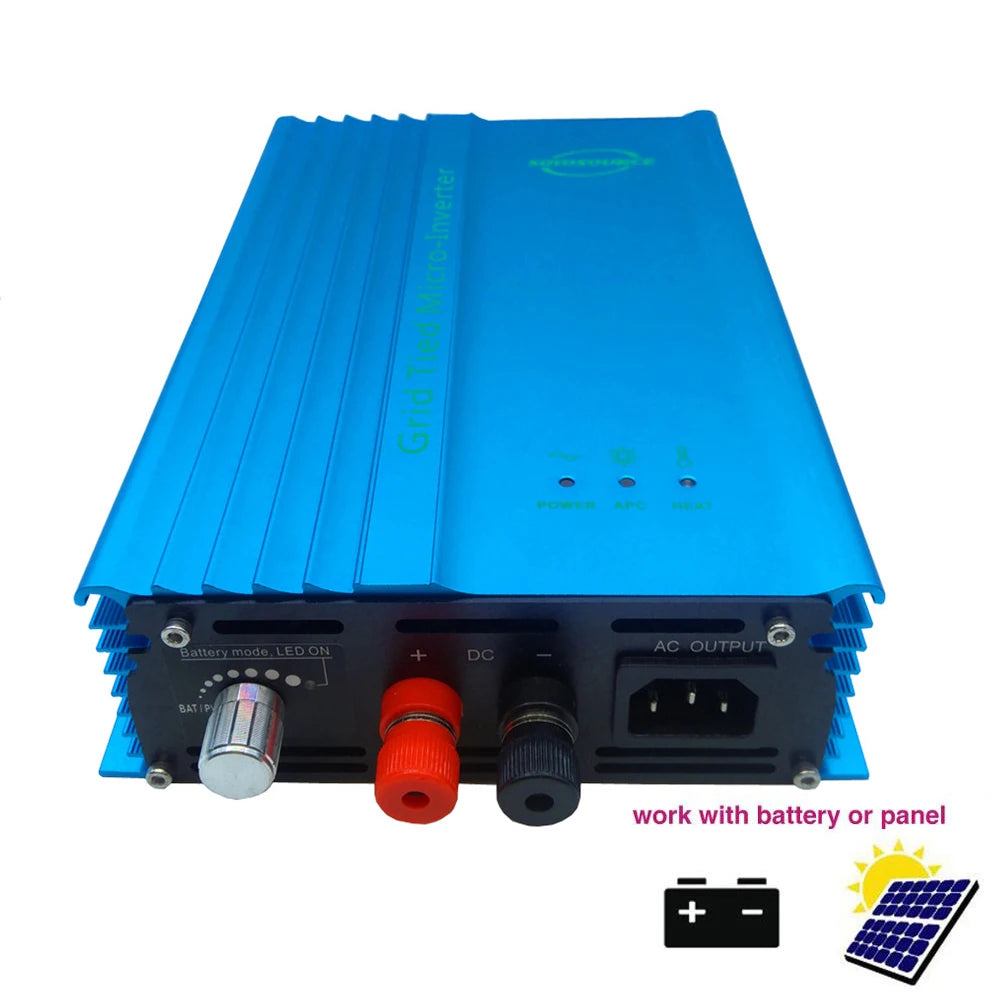

(Battery) discharge and grid mode(With ADJ function models)

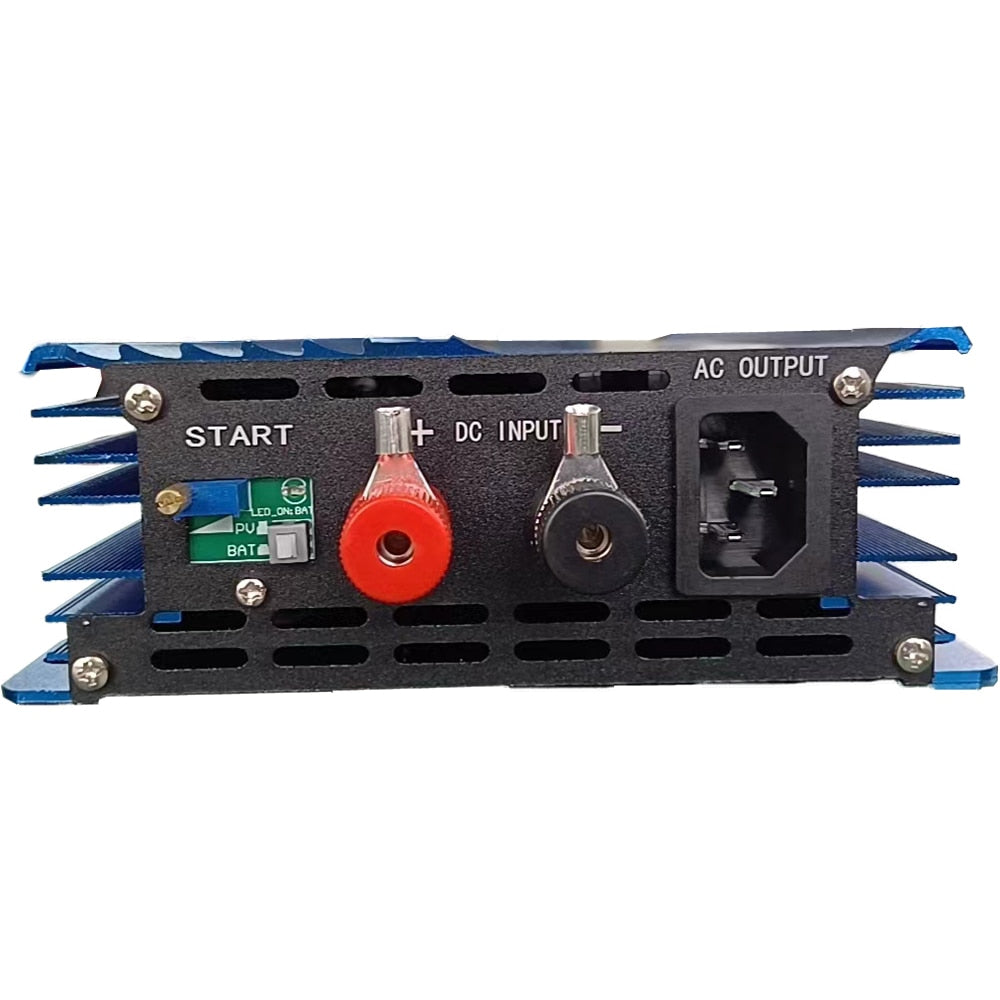

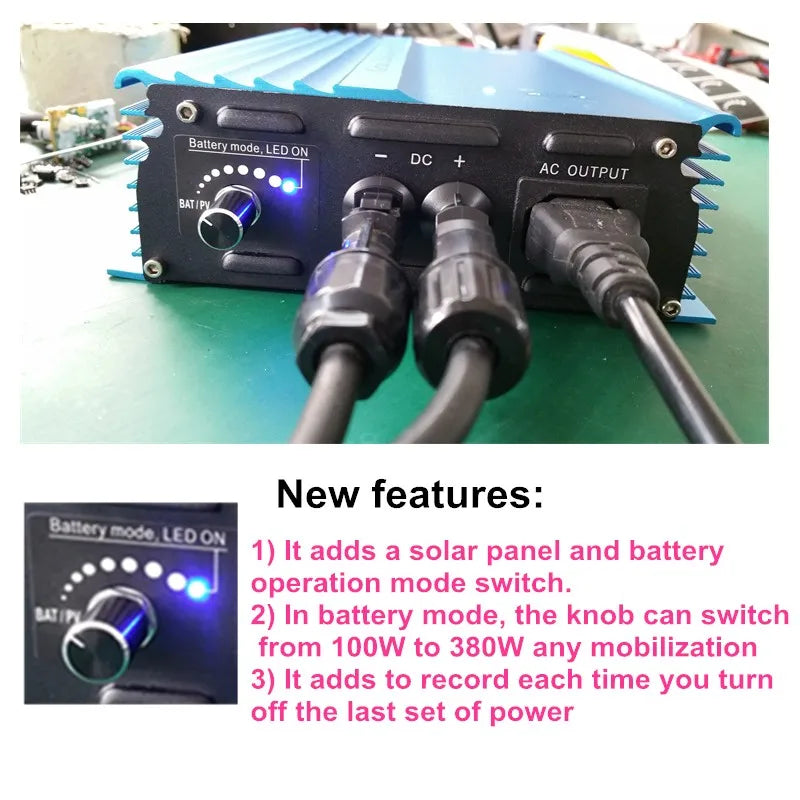

New features include a solar panel and battery operation mode switch. In battery mode, the output power can be adjusted from 1000W to 380W for mobility. Additionally, it records the last set point each time you turn off.

1.The DC input of the system can be directly connected with the battery, Turn the knob of the inverter to the right into the battery mode, then the tracking function will be turned off, the output power will be adjusted from left to right, At this point the output power can be adjusted from 60W-350W or so arbitrary output to ensure that the inverter can work for a long time in the grid status.

2. When the inverter connected to the battery discharge, if the battery voltage is too low, the inverter will automatically stop and cut off grid output to protect the battery over discharge to extend battery life.

3.Different specifications of the input voltage of the inverter will be used with different voltage battery, the battery voltage protection point please refer to the following

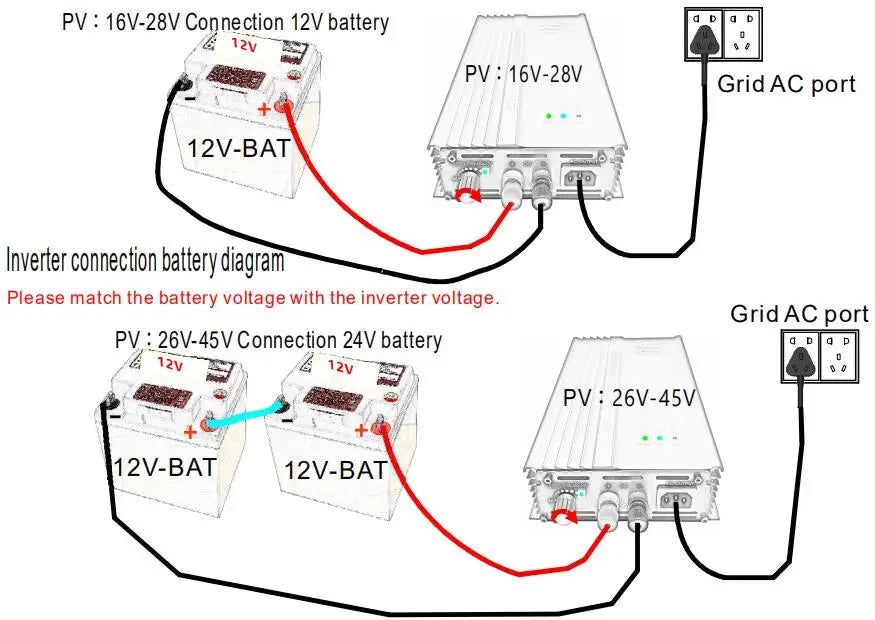

Connect your solar panel to the inverter's 16V-28V input. The inverter's output voltage matches the battery voltage: 12V for 12V batteries and 24V for 24V batteries. For grid tie applications, connect your 26V-45V solar panel to a 24V battery. Ensure the battery voltage matches the inverter voltage.

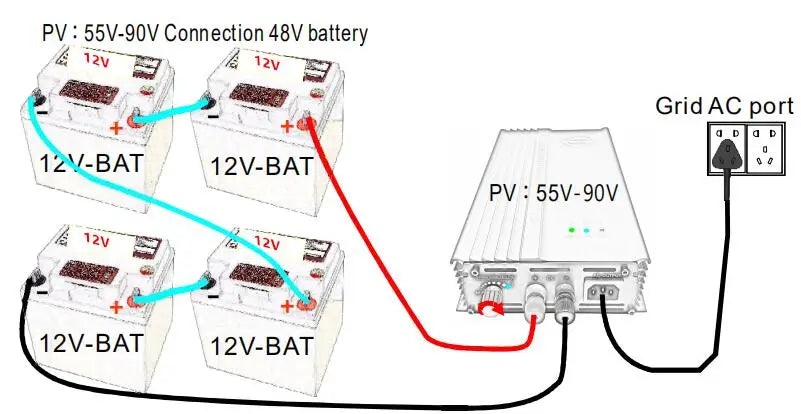

Connects solar panels (55V-90V) to a 48V battery and provides an AC output, suitable for grid-tie applications. Supports 12V DC input and adjustable power output.
