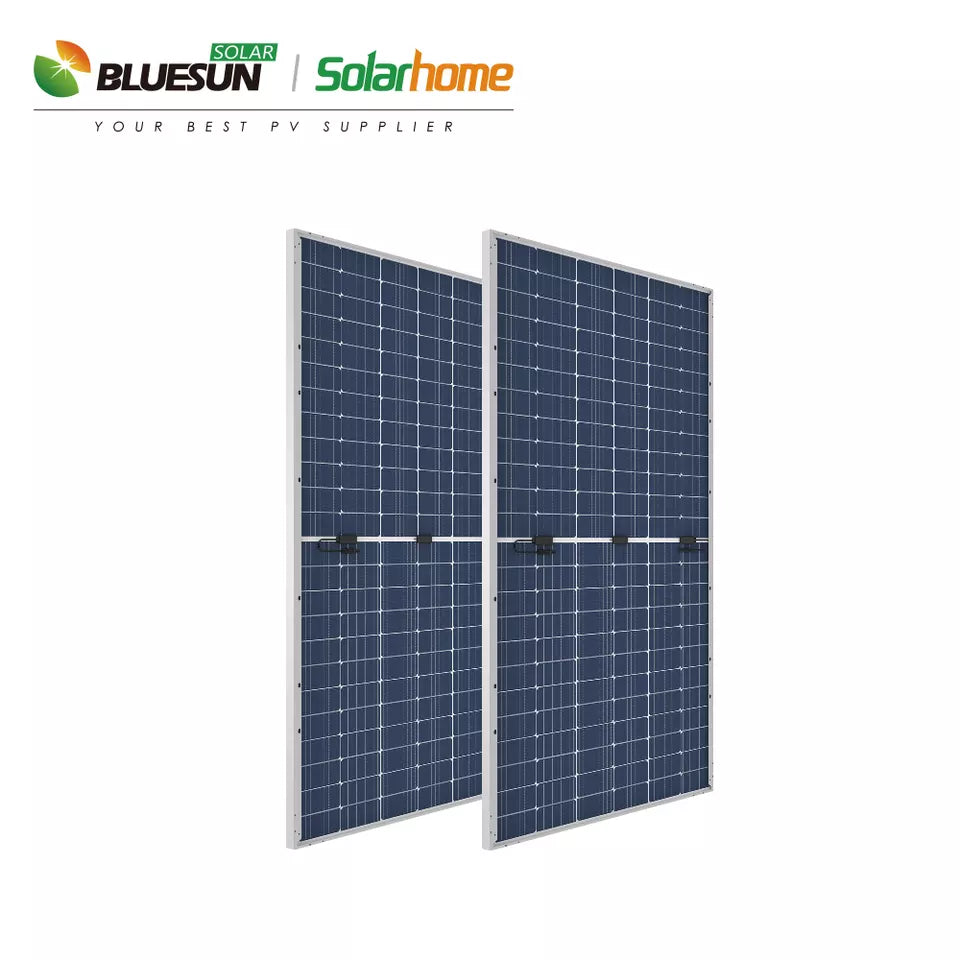

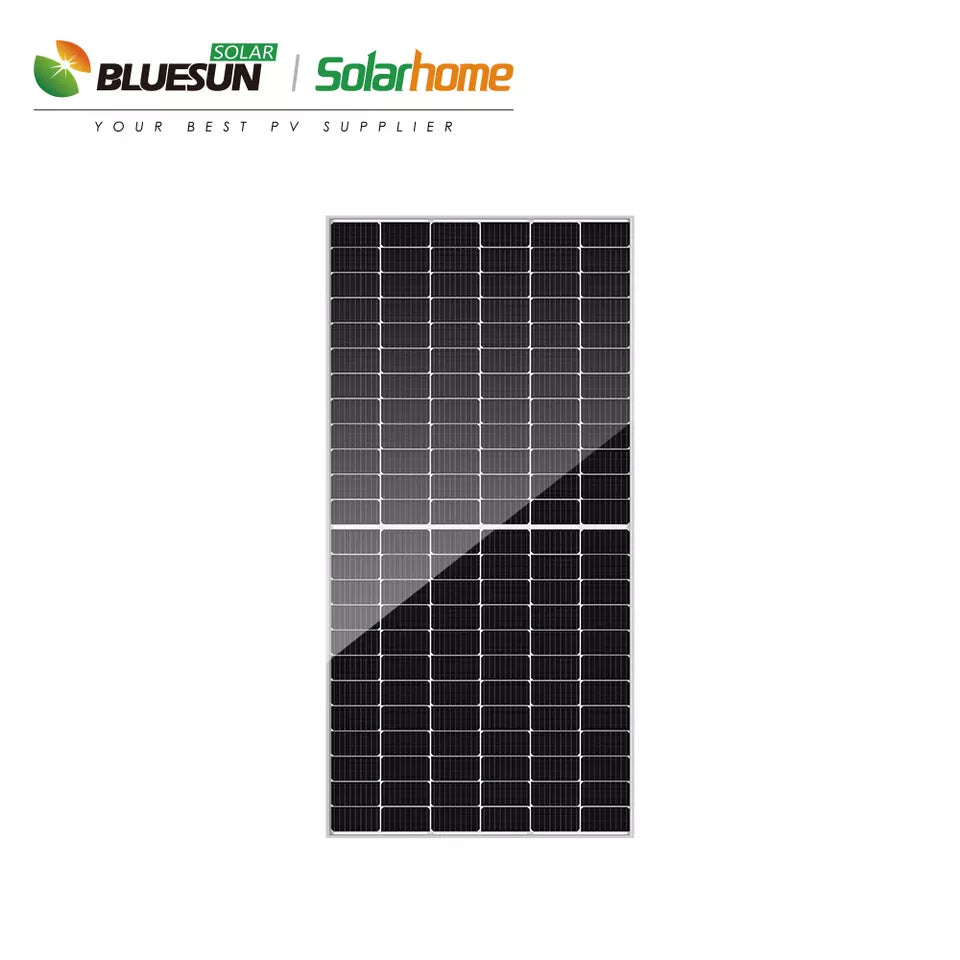

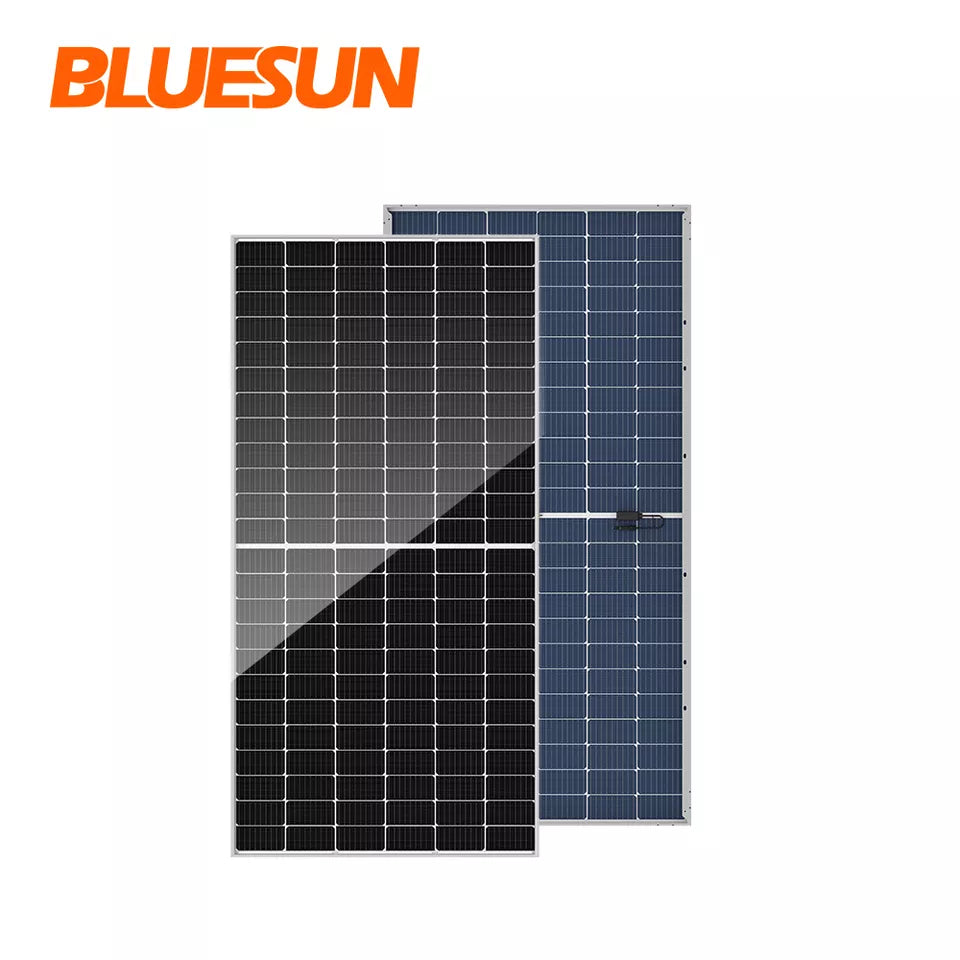

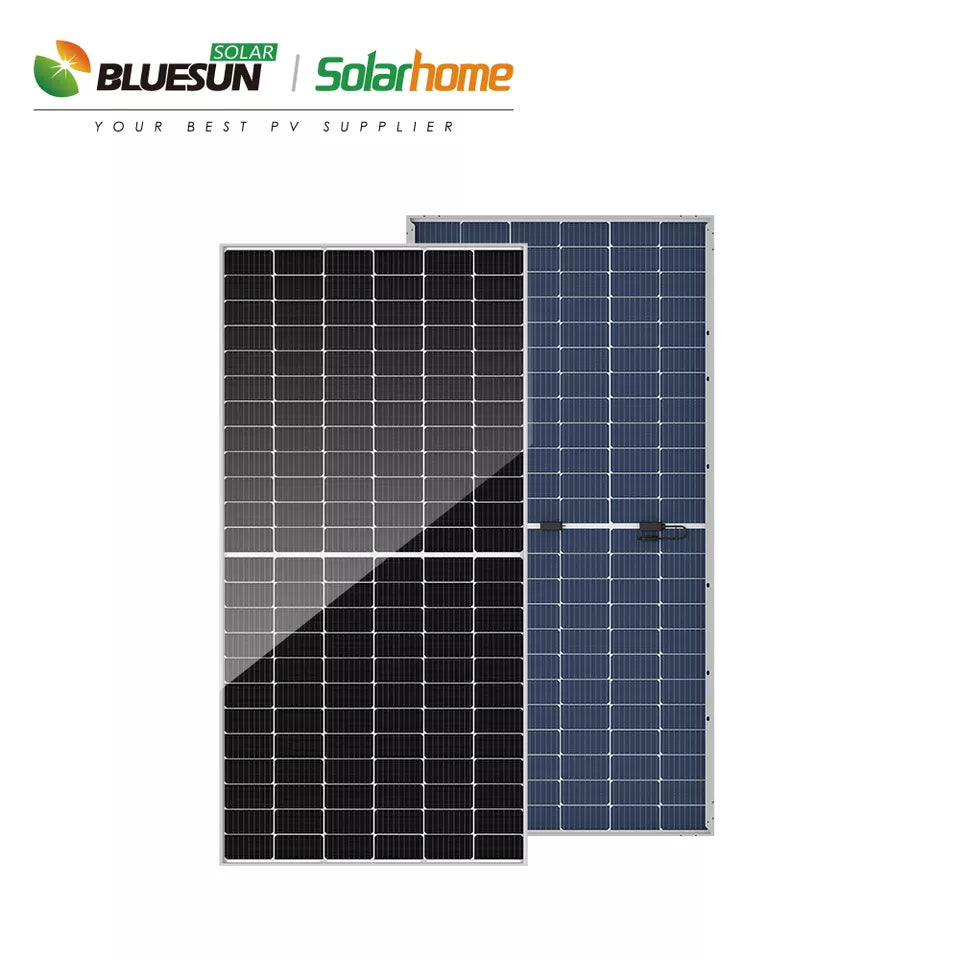

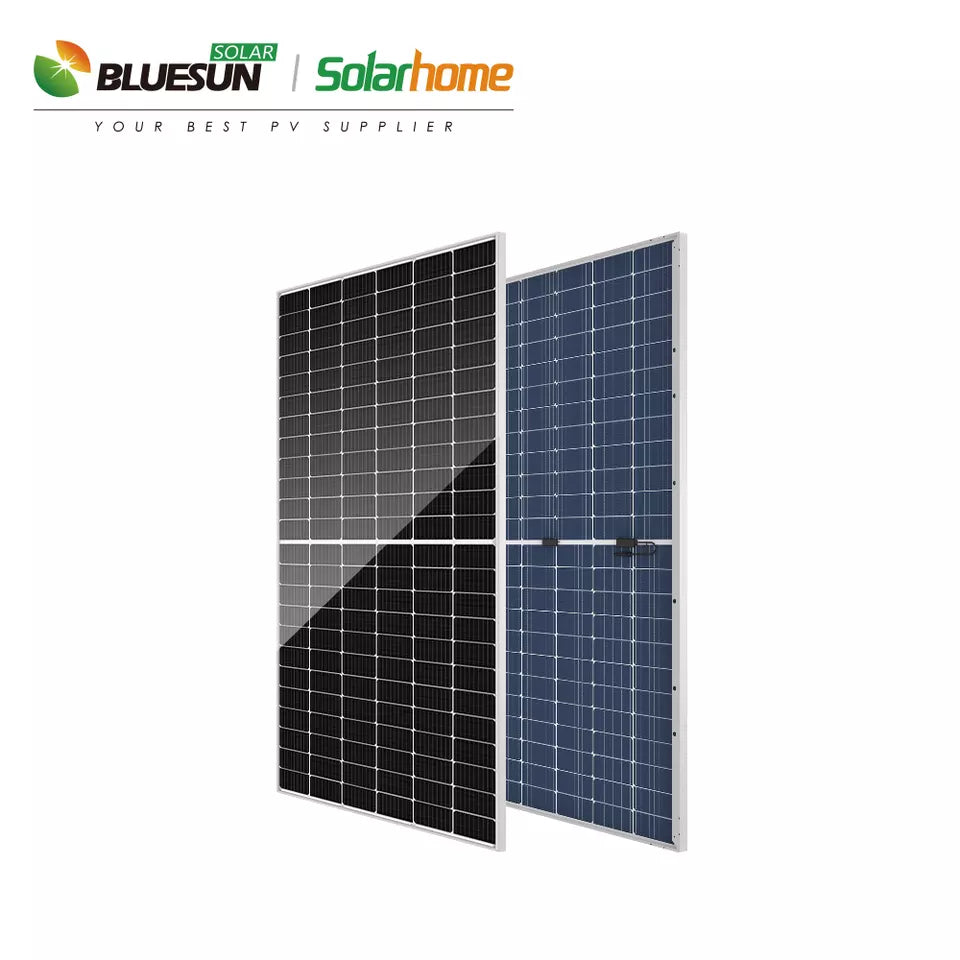

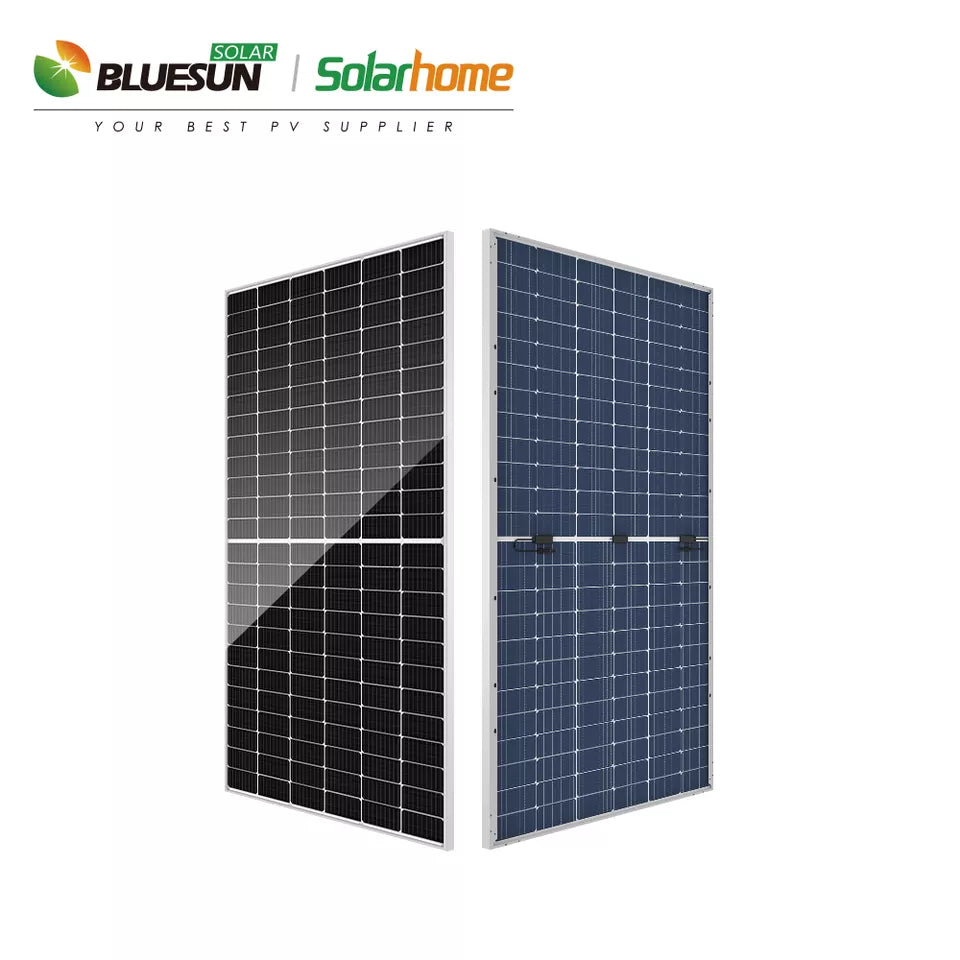

550W Solar Panel - Monocrystalline Half cell Bifacial Mono Solar Panels Photovoltaic Modules | Best Solar
550W Solar Panel - Monocrystalline Half cell Bifacial Mono Solar Panels Photovoltaic Modules | Best Solar
Regular price
$349.00 USD
Regular price
Sale price
$349.00 USD
Unit price
per
Shipping calculated at checkout.
34 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
- 550W Solar Panel Parameters
- Place of Origin: Anhui, China
- Brand Name: Bluesun
- Model Number: BSM560M10-72HBD
- Cell size: 182mmx182mm
- Type: PERC, Half Cell, Bifacial, IBC

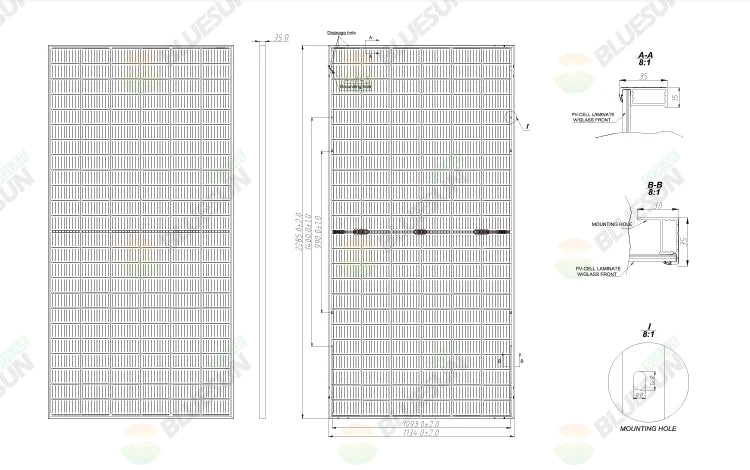

- Panel Dimensions: 2278*1134*35mm
- Panel Efficiency: 21.68%
- Certificate: IEC 61215 / IEC 61730 / TUV, IEC 61215 / IEC 61730 / UL 61730
- Frame: Anodized aluminium alloy
- Junction Box: IP68
- Connector: T01/LJQ-3-CSY
- Backing Color: White, Black, Transparent
- OEM Order: Acceptable
- Solar panel: Mono Solar Panel
- Cable Length: Portrait 300mm/Landscape 1200mm/Customized
- Maximun System Voltage: 1000/1500V/DC(IEC)
- Static Loading: Snow Loading: 5400Pa/ Wind Loading: 2400Pa
Products Description

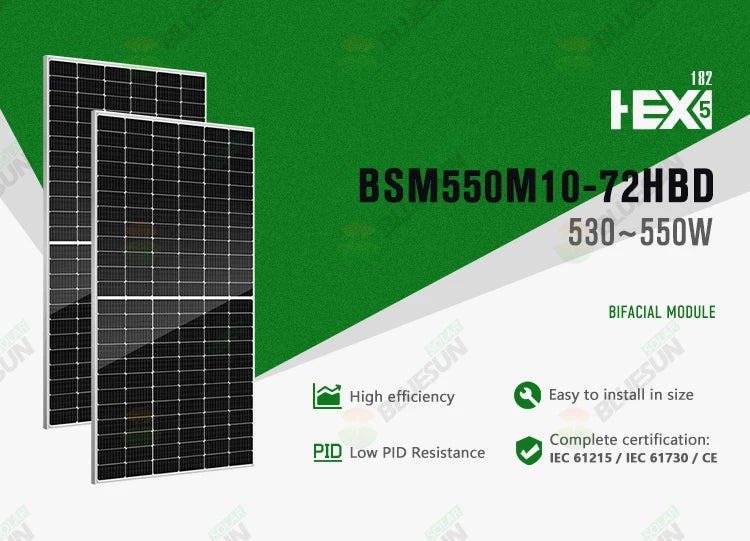

Product Code: 182EX; Certification: IEC 61215 & 61730-2; Features: High Efficiency, Easy Installation, Bifacial Design, Low PID Resistance. Size: 550W.
Bifacial PERC Solar Cell
For a bifacial PERC cell, the Al back surface field is replaced by Al grid, hence render the majority of rear side transparent which enable the cell to absorb light and generate electricity from both sides.
For a bifacial PERC cell, the Al back surface field is replaced by Al grid, hence render the majority of rear side transparent which enable the cell to absorb light and generate electricity from both sides.

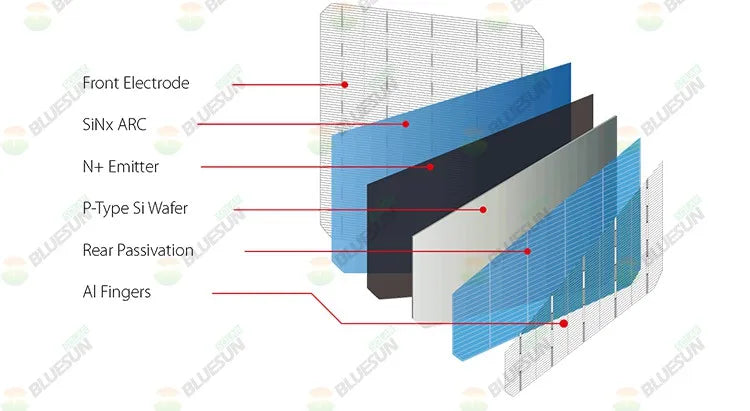

Features include front-side electrode, SiNx anti-reflective coating, N-type emitter, P-type silicon wafer, and rear passivation with Al fingers.
|
ELECTRICAL PARAMETERS at STC
|
|||||
|
Module Type
|
BSM530M10-72HBD
|
BSM535M10-72HBD
|
BSM540M10-72HBD
|
BSM545M10-72HBD
|
BSM550M10-72HBD
|
|
Maximum Power (Pmax/W)
|
530
|
535
|
540
|
545
|
550
|
|
Operating Voltage (Vmpp/V)
|
41.32
|
41.48
|
41.64
|
41.8
|
41.96
|
|
Operating Current (Impp/A)
|
12.83
|
12.9
|
12.97
|
13.04
|
13.11
|
|
Open-Circuit Voltage (Voc/V)
|
49.32
|
49.46
|
49.6
|
49.76
|
49.92
|
|
Short-Circuit Current (Isc/A)
|
13.72
|
13.79
|
13.86
|
13.93
|
14
|
|
Module Efficiency (%)
|
20.5
|
20.6
|
20.8
|
21
|
21.2
|
|
Performance at NMOT
|
|||||
|
Maximum Power (Pmax/W)
|
395
|
398
|
402
|
406
|
410
|
|
Operating Voltage (Vmpp/V)
|
38.6
|
38.7
|
38.8
|
39
|
39.1
|
|
Operating Current (Impp/A)
|
10.24
|
10.3
|
10.36
|
10.41
|
10.47
|
|
Open-Circuit Voltage (Voc/V)
|
46.4
|
46.5
|
46.7
|
46.8
|
47.0
|
|
Short-Circuit Current (Isc/A)
|
11.06
|
11.12
|
11.17
|
11.23
|
11.28
|
|
More details please send inquiry to us
|
|||||
Packing
Solar Panel Packing Details:31pcs/carton, 620pcs/40hq

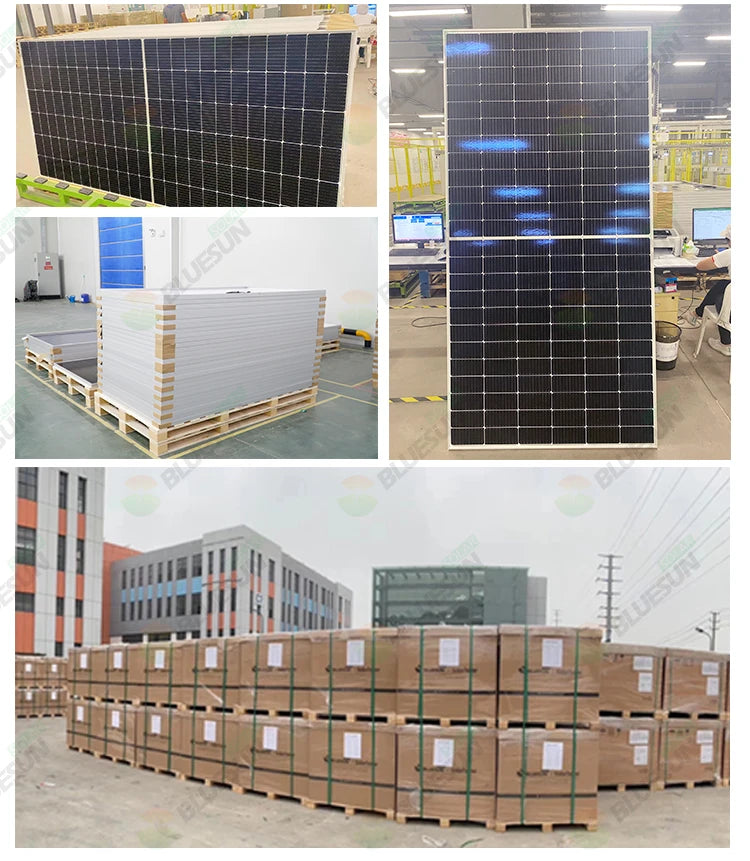

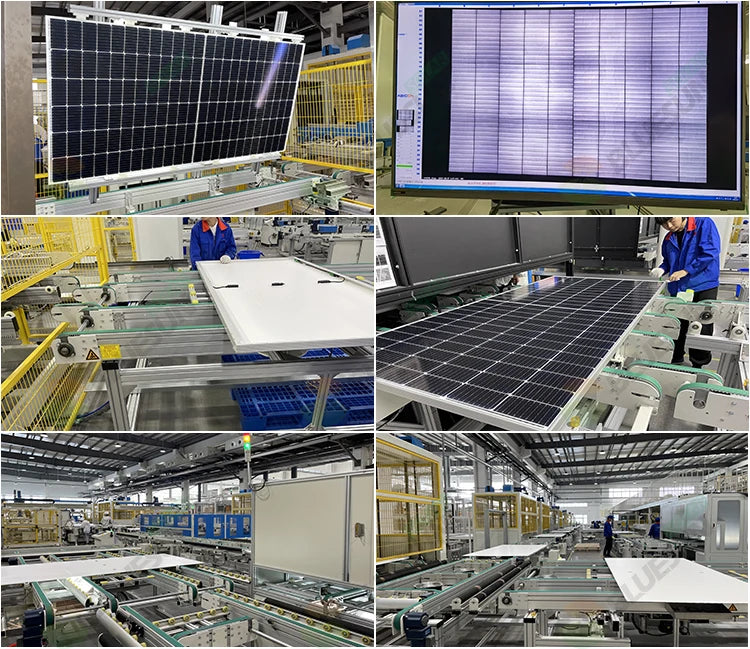

Factory Show
Certifications
CERTIFIED: Meets international standards, including IEC 61701, IEC TS 62804, IEC 61215, and CE certification for high-quality performance and safety.

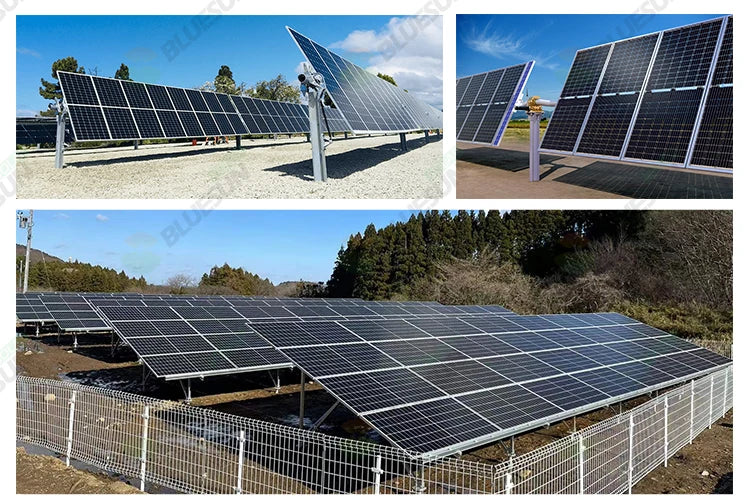

Bluesun Projects
Global Exhibitions
