60A/50A/40A/30A/20A/10A Solar Charger Controller 12V 24V Auto PWM Controllers LCD Display 5V Dual USB Output Controller
60A/50A/40A/30A/20A/10A Solar Charger Controller 12V 24V Auto PWM Controllers LCD Display 5V Dual USB Output Controller
238 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
USB: Dual USB 5V 2.5A Max
Origin: Mainland China
Model Number: ICharger PWM N120/1220/1230
Maximum Current: 60A/50A/40A/30A/20A/10A
Max Solar Panel input: 50V(for 24V battery) 25V(for 12V battery)
Float charge: 13.7V (defaul,adjustable)
Discharge stop: 10.7V (defaul,adjustable)
Discharge reconnect: 12.6V (defaul,adjustable)
Charging current: 60A 50A 40A 30A 20A 10A
Brand Name: POWLAND
Application: solar energy
Application: Charger Controller,Solar System Controller,Voltage Controller,Solar Working Station,Lighting Controller
60A/50A/40A/30A/20A/10A Solar Charger Controller 12V 24V Auto PWM Controllers LCD Display 5V Dual USB Output Controller
This is NEW Solar Controller ,It can fully meet your home Photovoltaic system(including home lighting system )requirements .It can recongize 12V and 24V Lead acid ,Gel battery automatically
If you want to use other type battery,you need to set up.Such as Lithium battery charging,full protection 12.2V,discharge 9.5V,restart 11.5V.

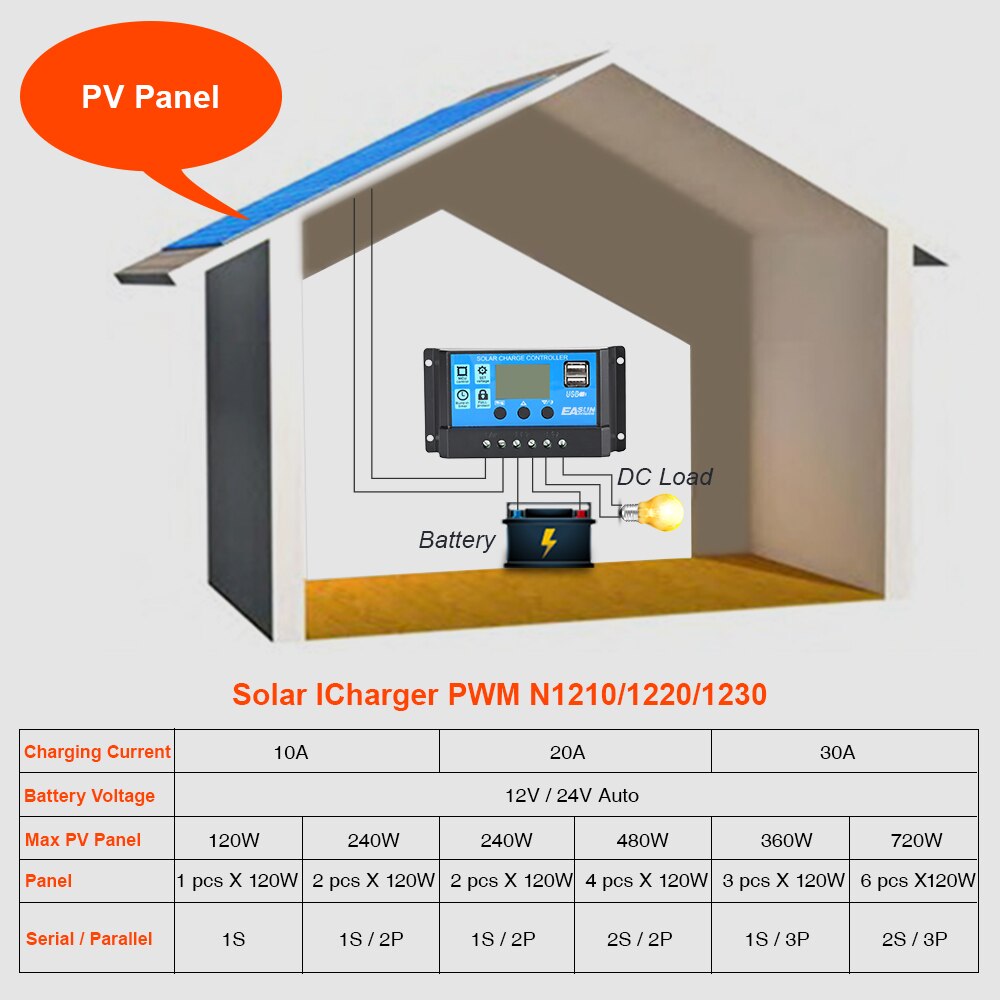

There are optional 10A 20A 30A model
10A:
if your battery is 12V ,the max solar panel input is 25V 120W
if your battery is 24V ,the max solar panel input is 50V 240W
20A:
If your battery is 12V, the max solar panel input is 25V 240W
if your battery is 24V, the max solar panel input is 50V 480W
30A:
if your battery is 12V ,the max solar panel input is 25V 360W
if your battery is 24V ,the max solar panel input is 50V 720W
1.Build-in industrial micro controller.
2.Big LCD display,all adjustable parameter.
3.Fully 4-stage PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
MODEL |
PWM 10A |
PWM 20A |
PWM 30A |
PWM 40A |
PWM 50A |
PWM 60A |
Battery Voltage |
12V 24V Auto |
|||||
Charging Current |
10A |
20A |
30A |
40A |
50A |
60A |
Discharging Current |
10A |
10A |
10A |
20A |
30A |
30A |
Max Solar input |
50V(for 24V battery) 25V(for 12V battery) |
|||||
Equalization |
14.4V(Sealed) 14.2V(Gel) 14.6V(Flood) |
|||||
Float charge |
13.7V(defaul,adjustable) |
|||||
Discharge stop |
10.7V(defaul,adjustable)10.7V(defaul,adjustable) |
|||||
Discharge reconnect |
12.6V(defaul,adjustable) |
|||||
Charge reconnect |
13V |
|||||
Voltage of open light |
Solar Panel 8V(Light lights delay) |
|||||
Voltage of close light |
Solar Panel 8V(Light off delay) |
|||||
USB output |
5V/3A |
|||||
Self-consume |
<10mA |
|||||
Operating temperature |
-35°C~+60°C |
|||||
Size |
133.5*70*35mm |
133.5*70*35mm |
||||
*all red color voltage X2 ,while using 24V system.

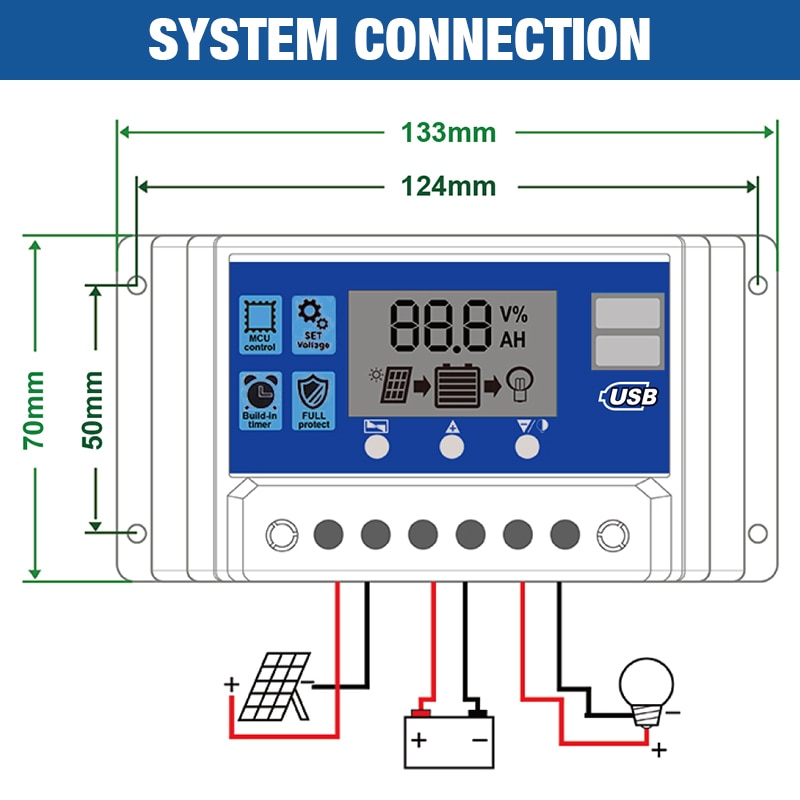

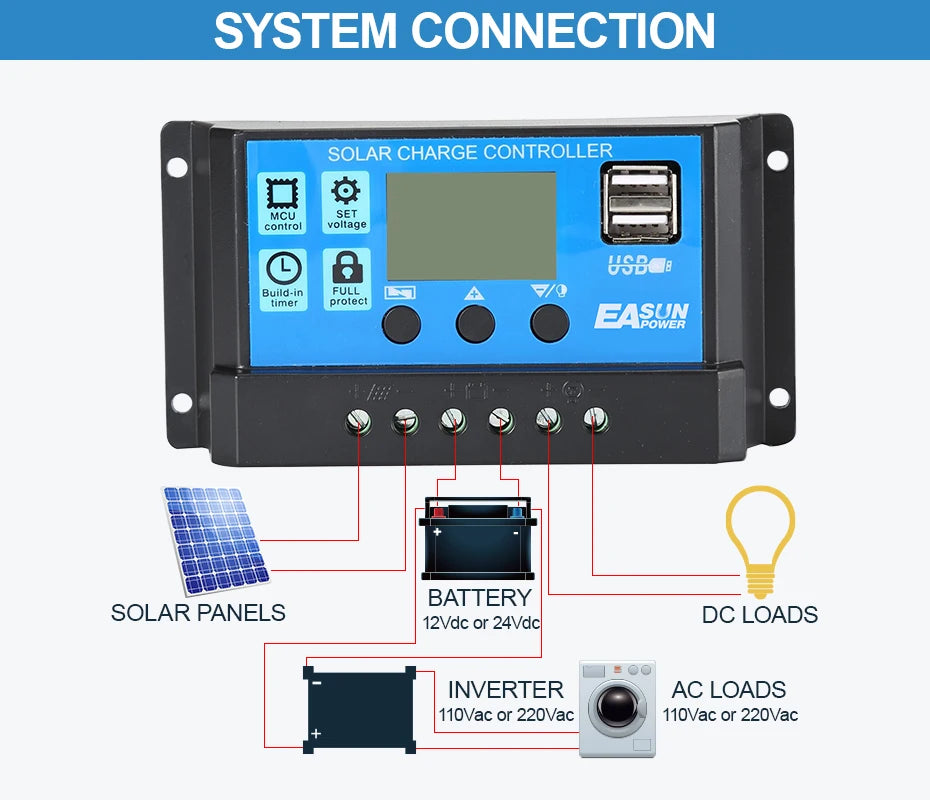

Connection:
1.Connect the battery to the charge regulator - plus and minus.
2.Connect the photovoltaic module to the regulator - plus and minus.
The reverse order applies when deinstalling!
An improper sequence order can damage the controller!

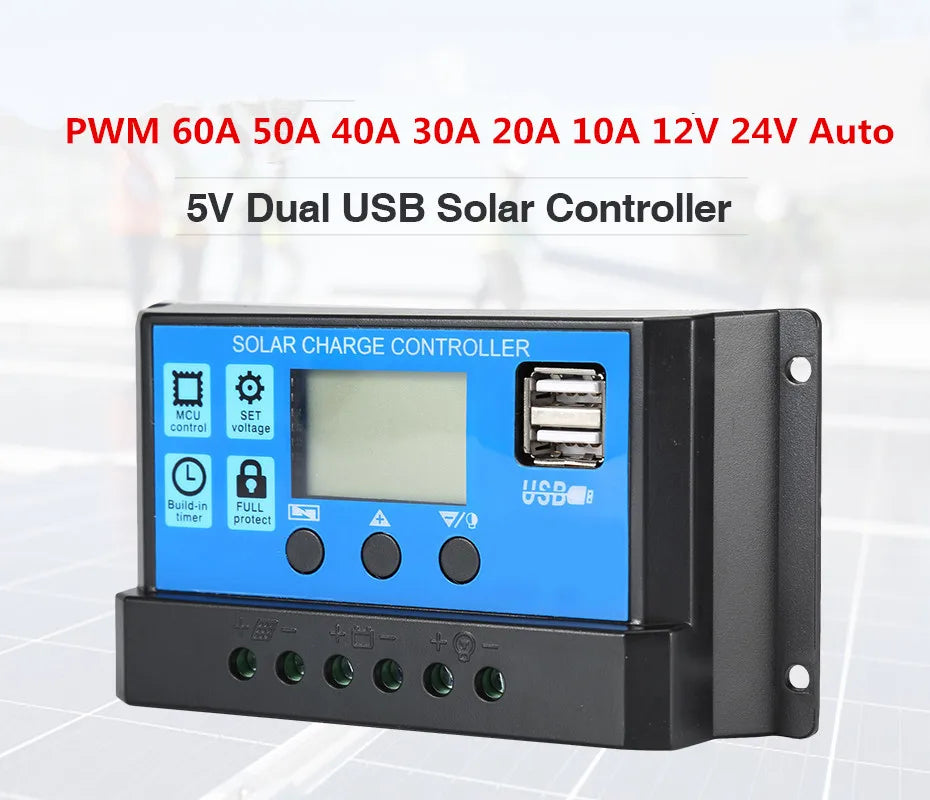

60A/50A/40A/30A/20A/10A Solar Charger Controller features 12V or 24V auto PWM controllers with LCD display, 5V dual USB output, and built-in full-featured USB protection for reliable solar charging.

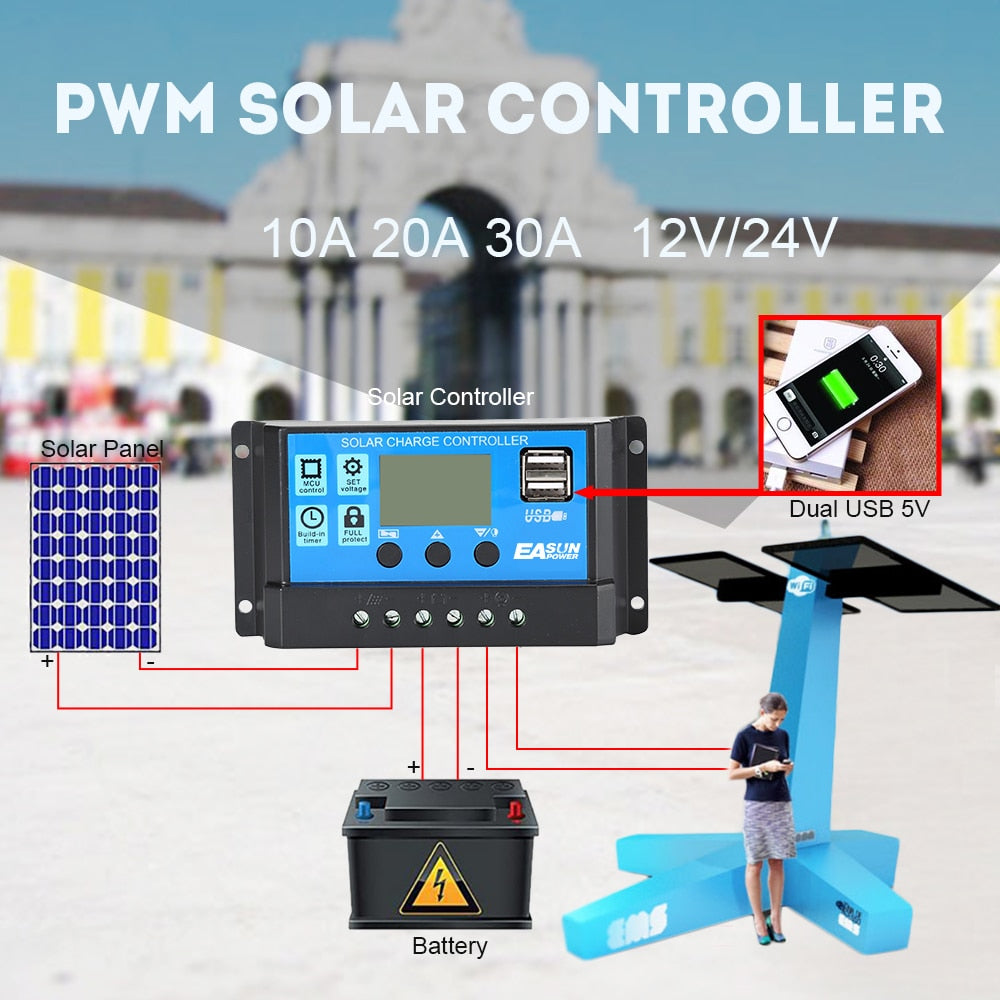

Easily connect solar panels, batteries, and loads with this controller. It features built-in full-bridge protection, MCU control, and dual USB outputs. The controller supports 12V/24V DC inputs and can handle AC loads up to 220Vac.

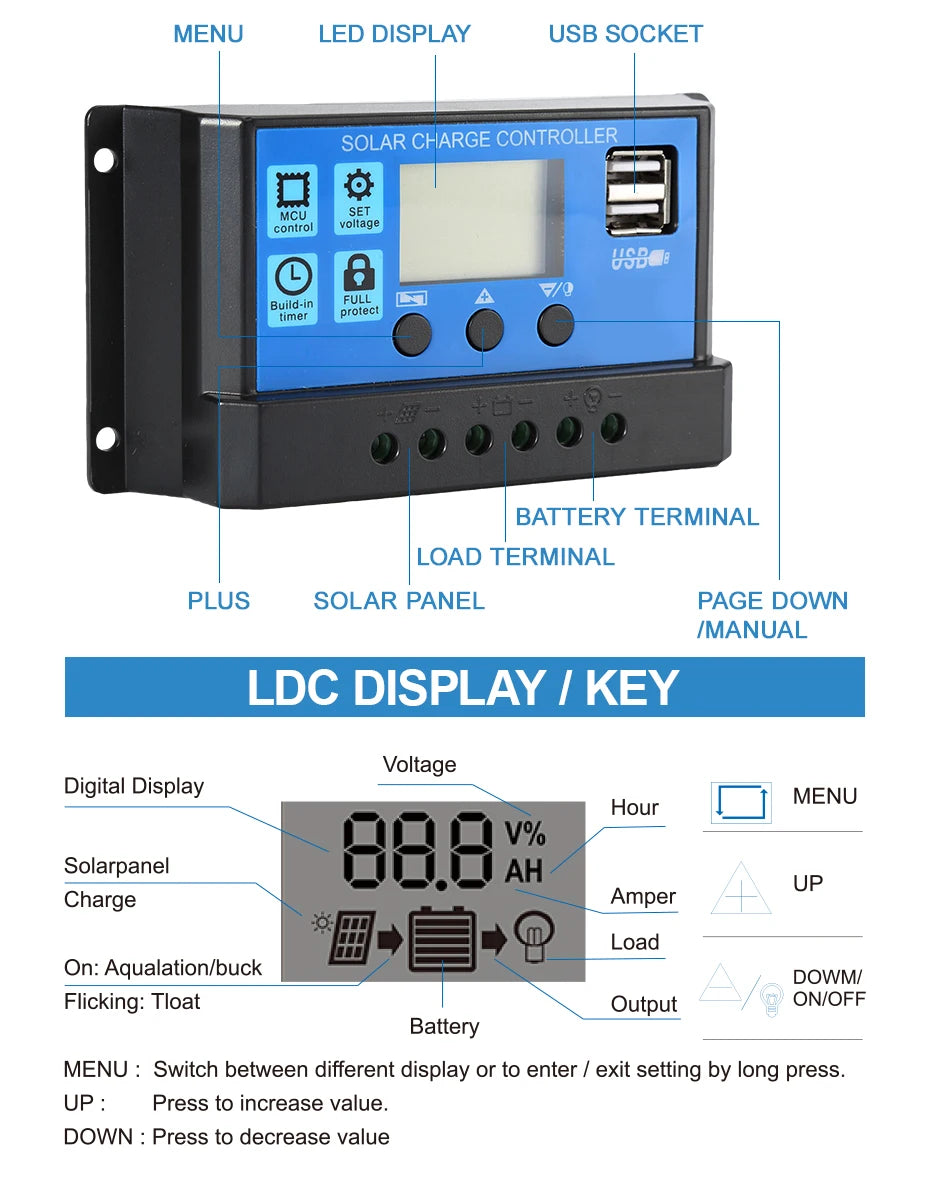

Solar Charge Controller with LCD Display and 5V Dual USB Output. Features include automatic PWM controllers for 12V/24V solar panels, menu LED display, and built-in overcharge protection. The MCU set voltage, current, and battery capacity can be displayed on the screen. Additionally, there is a manual LDC display key and a plus/minus button for adjusting settings. The device also has a battery terminal, load terminal, and solar panel input. Settings can be accessed by pressing UP or DOWN buttons to increase/decrease values.

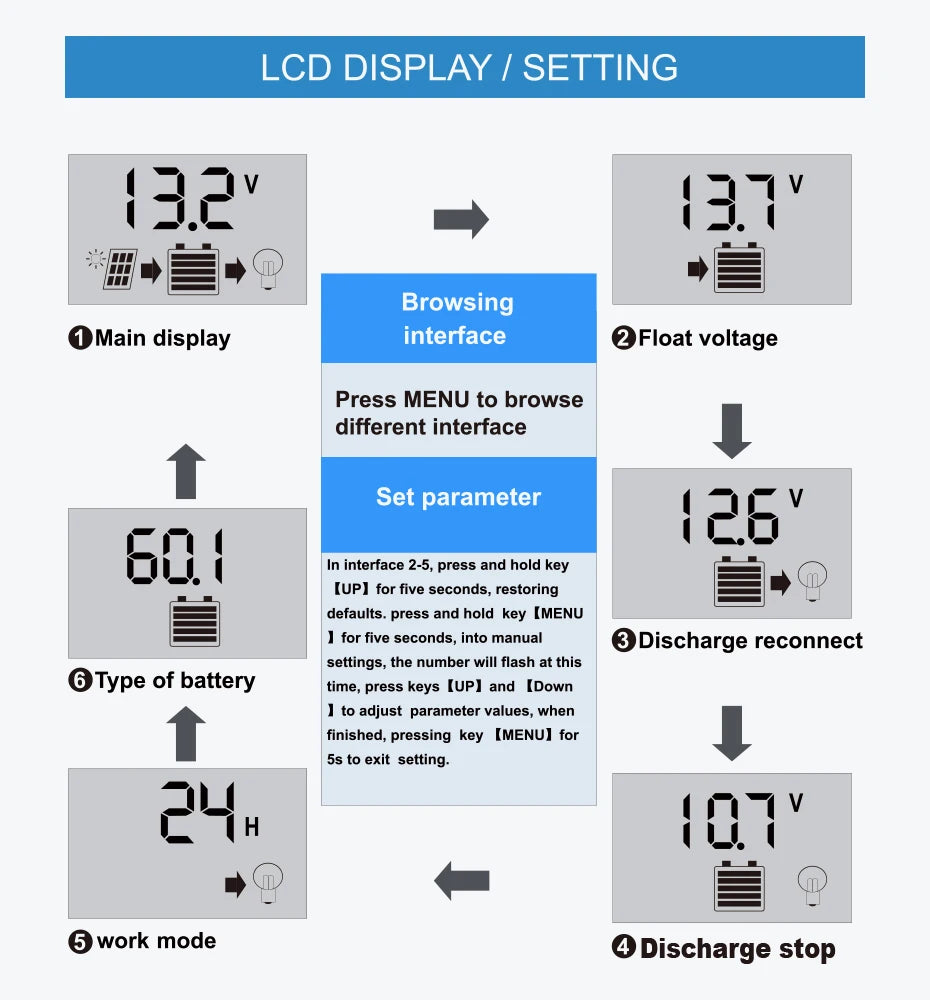

LCD Display Settings: * Access Main display interface by floating voltage. * Press MENU to browse different interfaces. * Set parameters: + In interfaces 2-5, press and hold [UP] for 5 seconds to restore defaults or [MENU] for 5 seconds to enter manual settings. + Type of battery time: adjust parameter values using [UP] and [DOWN] keys. When finished, press [MENU] for 5 seconds to exit setting. Note: The device has two work modes: 24V and 5V.
Solar Charger Controller for Solar Charge Controller (8580) with USB output, LCD display and auto PWM controllers for 12V/24V charging systems.

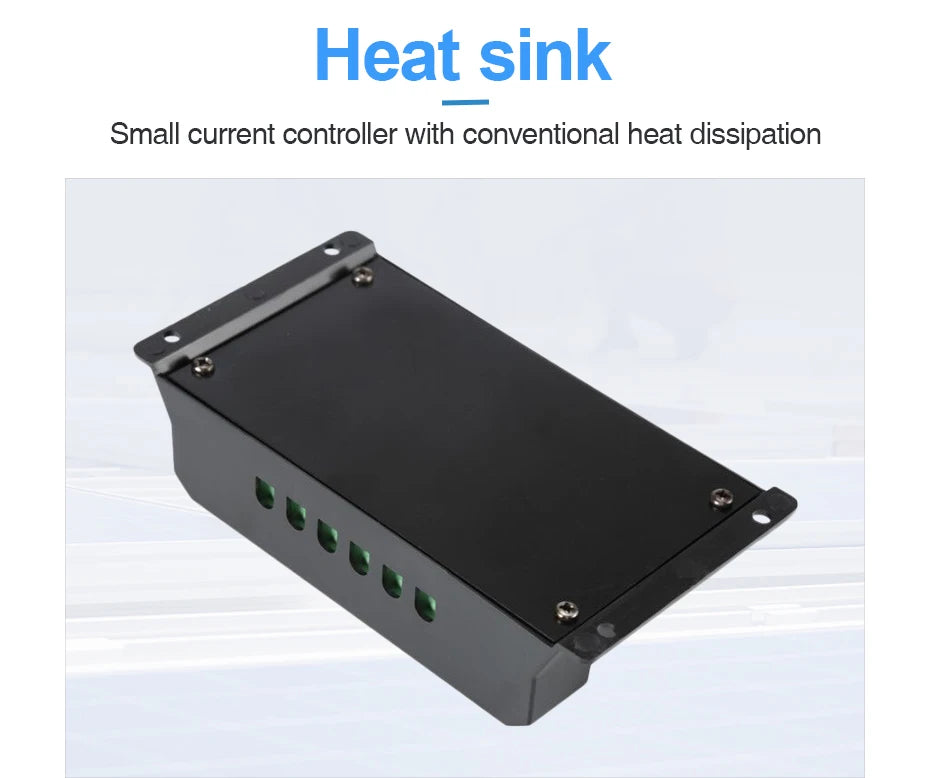

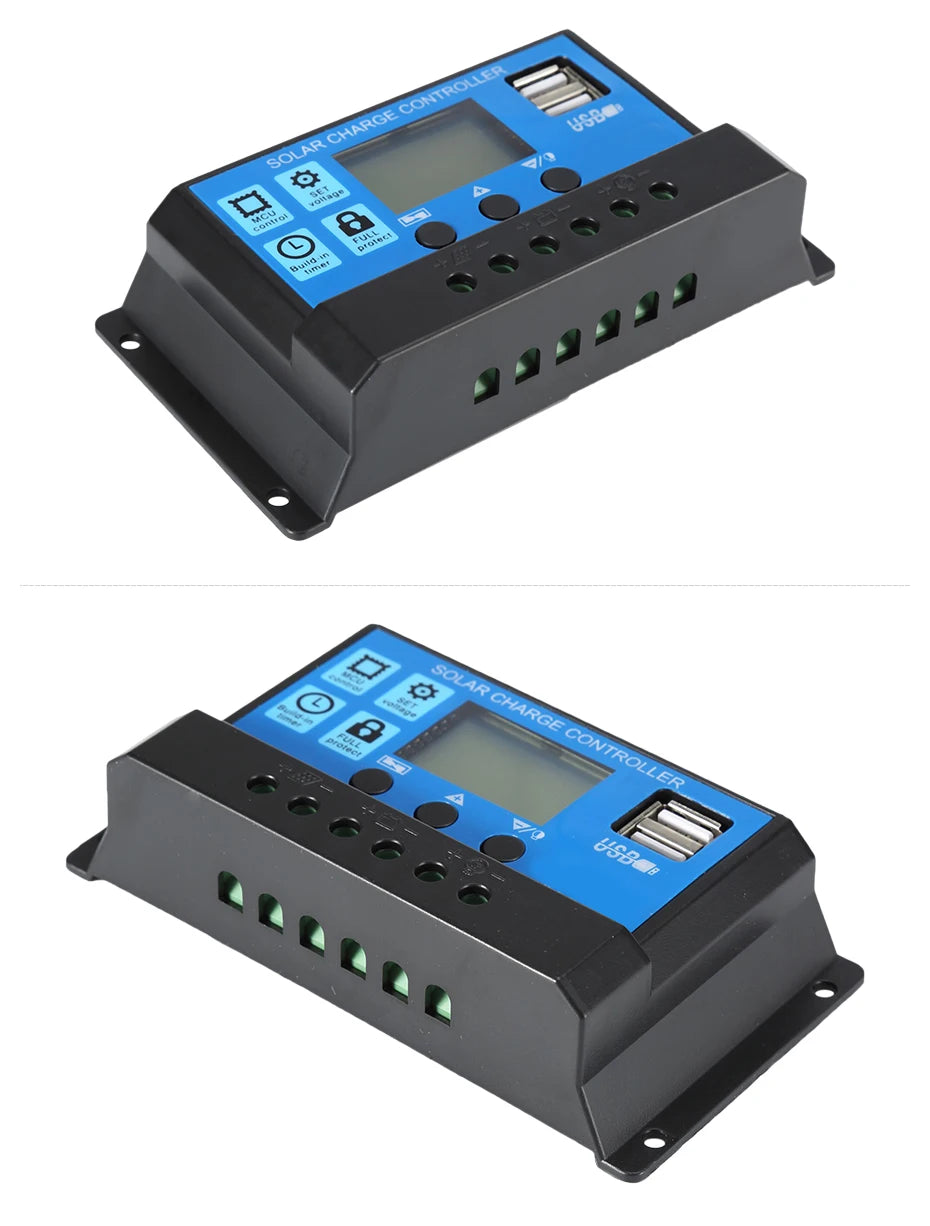

Compact small-current controller features efficient heat dissipation for reliable operation.

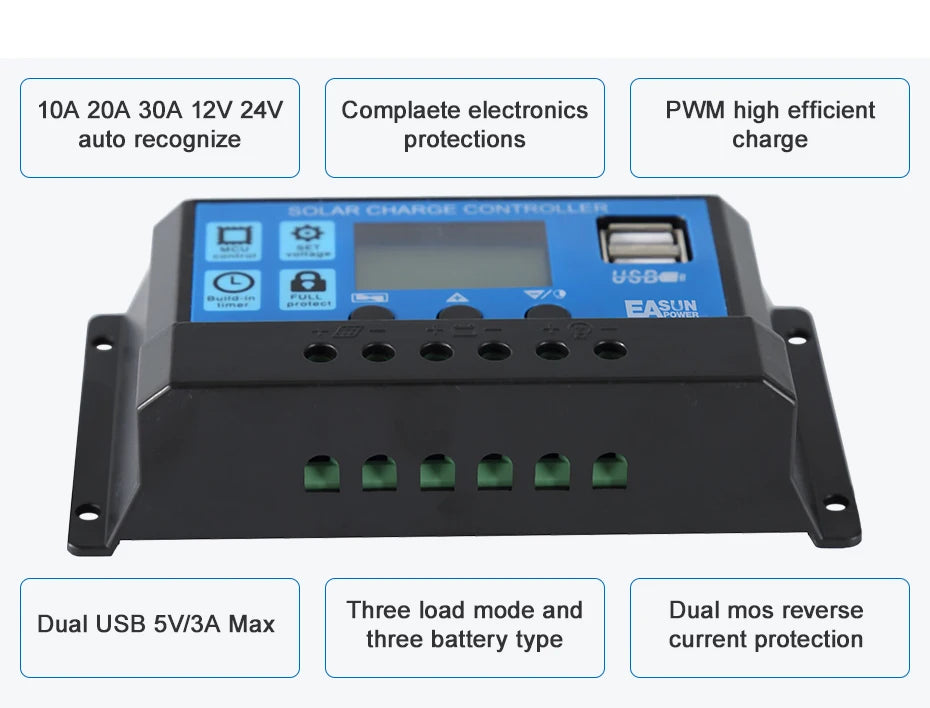

This solar charger controller features PWM technology, auto-recognizing protections, and high efficiency. It supports 5V dual USB output, with three load modes: normal, flash, and trailer. Additionally, it has max current protection for up to three battery types.
Introducing the 60A/50A/40A/30A/20A/10A Solar Charger Controller with a 12V or 24V auto PWM controller. The unit features an LCD display and 5V dual USB output controller. This solar charge controller is ideal for marine, industrial, or automotive applications. It has adjustable voltage and current settings to suit various system needs.
