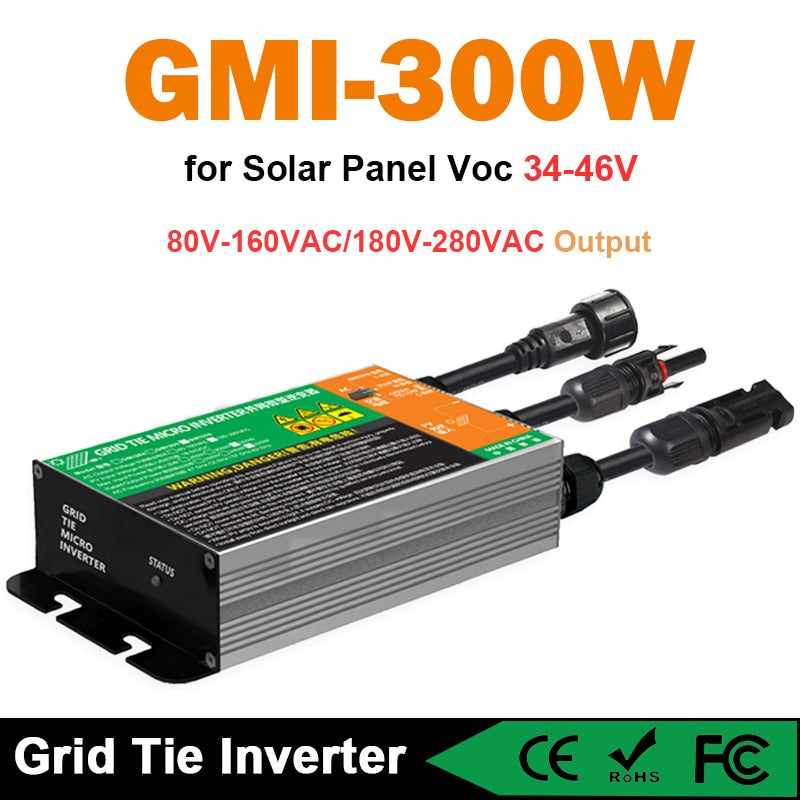

700W 600W 500W 350W 300W Solar Grid Tie Micro Inverter MPPT Input DC26V-46V PV Output AC110V-240V Home Solar On Grid System
700W 600W 500W 350W 300W Solar Grid Tie Micro Inverter MPPT Input DC26V-46V PV Output AC110V-240V Home Solar On Grid System
256 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Weight: 0.6KG
Size: 35*23.3*7.6CM
Single-Phase Grid Type: 120V & 230V
Output Type: single
Output Power: 1 - 200KW
Output Frequency: 50Hz / 60Hz
Output Frequency: 47.5-62Hz
Output Current: 120V/2.33A;230v/1.21A
Origin: Mainland China
Model Number: GMI-300W/350W/500W/600W/700W
Is Smart Device: No
Function 2: Grid Tie Inversor
Function: Solar Inverter
Certification: CE
Category: Grid Tie inverter
Brand Name: Y&H
This product is a grid-tie micro inverter with maximum input power up to 600W. It's compatible with solar panels ranging from 26V-46V DC input and outputs AC power at 110V-240V. The device features APP monitoring, real-time tracking, and alerts for potential issues. Additionally, it supports online monitoring through its 66114zh # Lato DLL software. Please note that this product is intended for grid-connected systems only and requires proper installation to ensure safe operation.
Description:

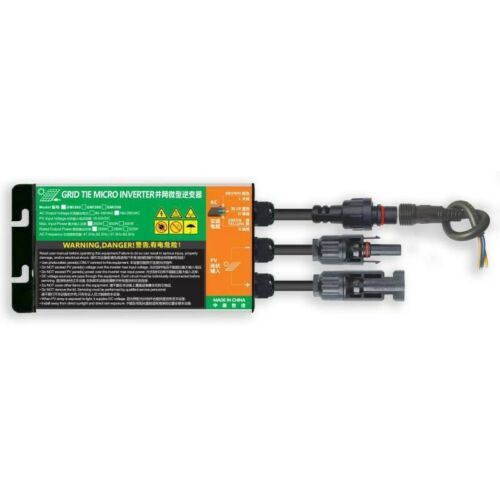

300W/350W Grid Tie inverter is a compact unit,which directly converts direct current into alternating current for powering appliances and/or office equipments and connecting to utility grid.The AC output from Smart Micro inverter is synchronized and in-phase with the utility grid.

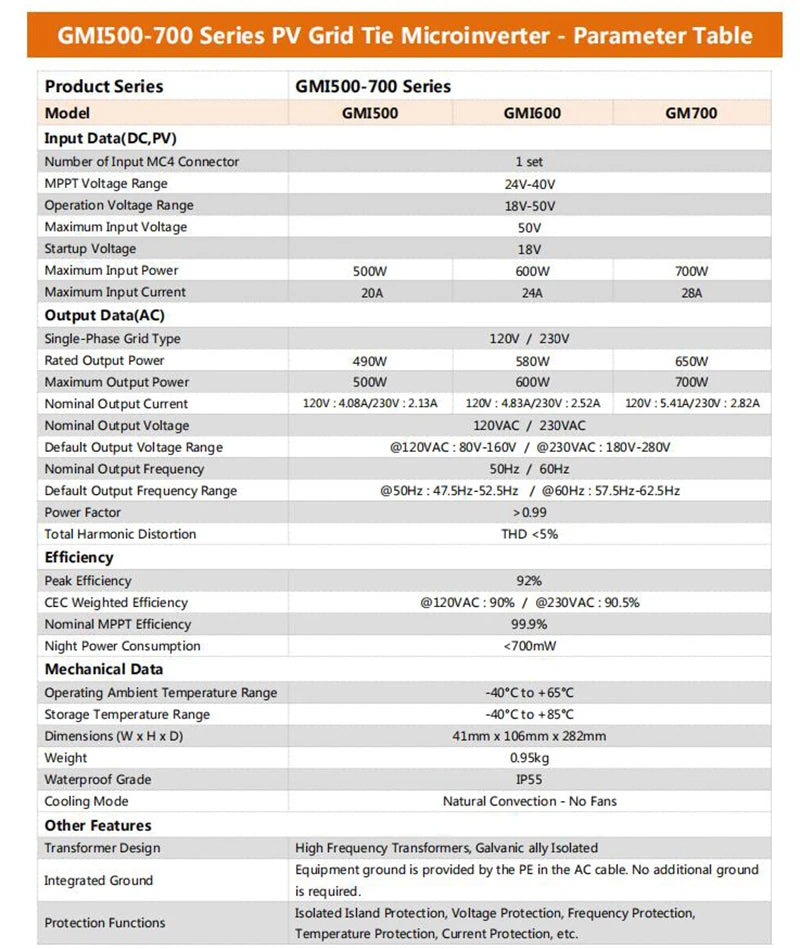

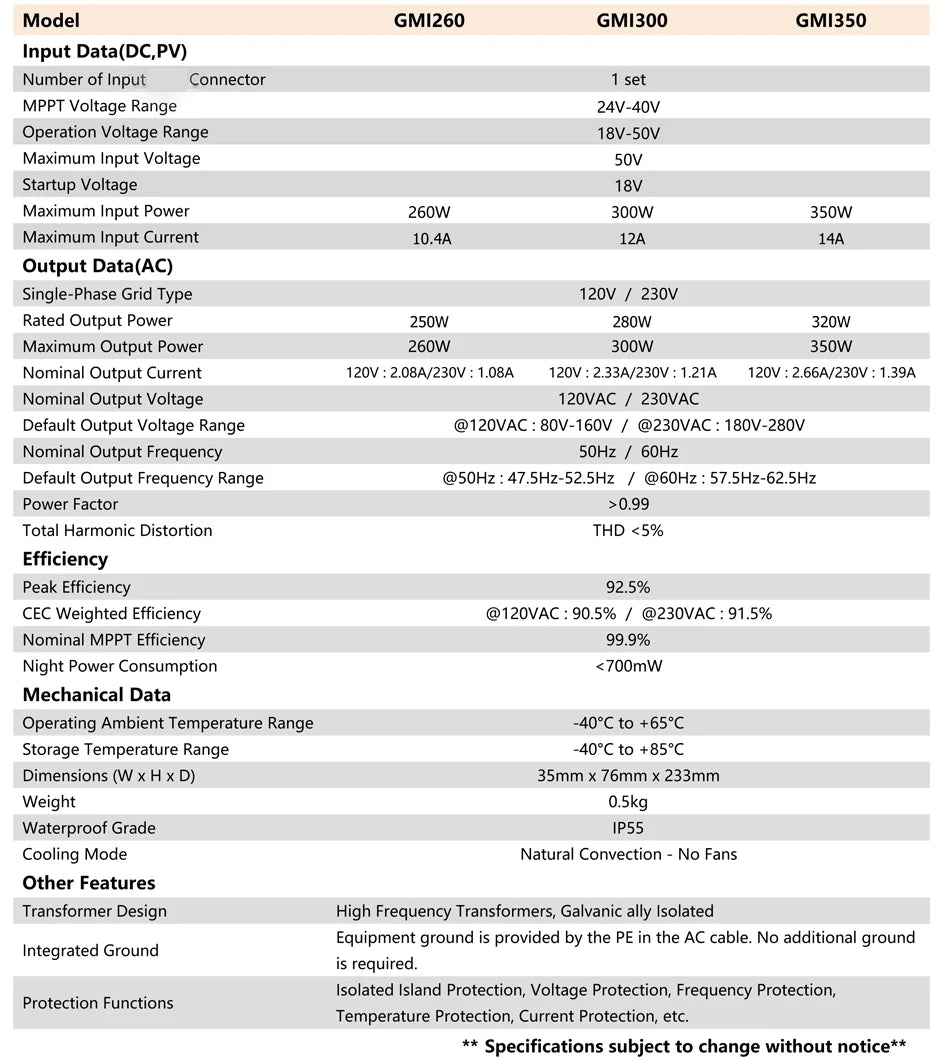

Specifications:
On Grid Tie Inversor
Rated Output Power:280W/320W/480W/580W/680W
DC Input: 18V-50V
AC Output Voltage: 120V/240V
Frequency Range: 50/60HZ Auto
MPPT range: 24V - 40V.
Solar Panel Voltage: Vmp30-39V; Voc38-46V
Solar Panel Power: maximum 300W/350W/500W/600W/700W

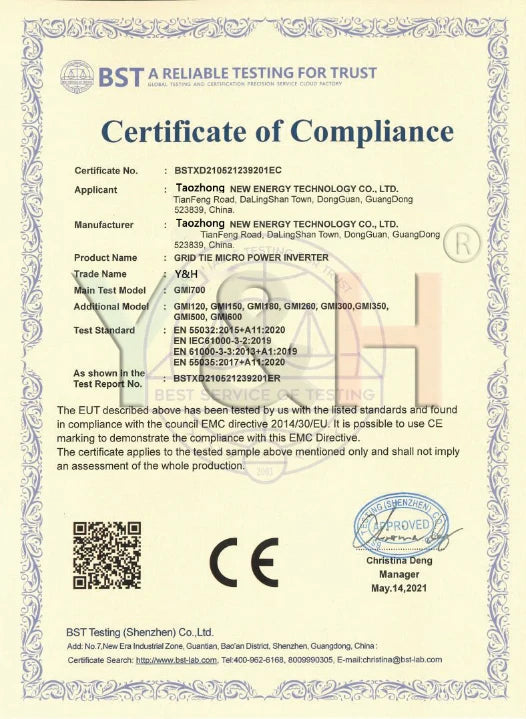

On Grid inverter Certification:CE
User notice：
• Use solar panel ONLY connect to this equipment.
• This equipment is ON-GRID Microinverter, To make it work properly, it must be connected to the power grid correctly,and the power grid is working properly, When the power grid stopped working, it will also stop generating.
• Do NOT exceed PV panel(s) voltage over the Solar Grid Tie Inverter max input voltage.（Voc＜50V）
• Do NOT exceed PV panel(s) power over the Grid Tie solar Inverter max input power.（300W/350W）

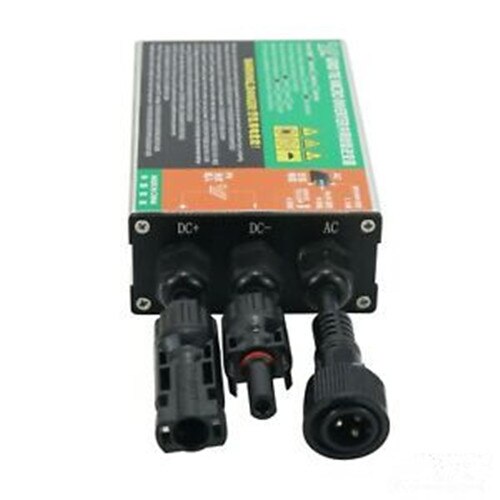

• The positive and negative poles of the solar panel cannot be reversed. If you extend the solar panel cable. You need to be careful about this problem.
• Install away from direct sunlight and direct rain exposure.(Ventilated, dry, cool)
Regarding the heating problem of the inverter:
this is normal phenomenon. All electronic devices generate heat during operation. The inverter uses aluminum alloy material. Metal can conduct heat better. The inverter also has over-temperature protection if the temperature is high. Then the inverter will automatically reduce the working output efficiency. Or stop working. After cooling down, restart. It is recommended to install the inverter in a ventilated, dry and cool place.
About the upgrade of the inverter:
In order to better protect the inverter, we have upgraded the drive of the inverter. When the inverter reaches a certain temperature, it loses half of its power. When the thermal temperature drops to normal, it outputs full power again. If still unable to output full power, disconnect and reconnect.
About inverter repair：（This is a common problem of micro-inverters）

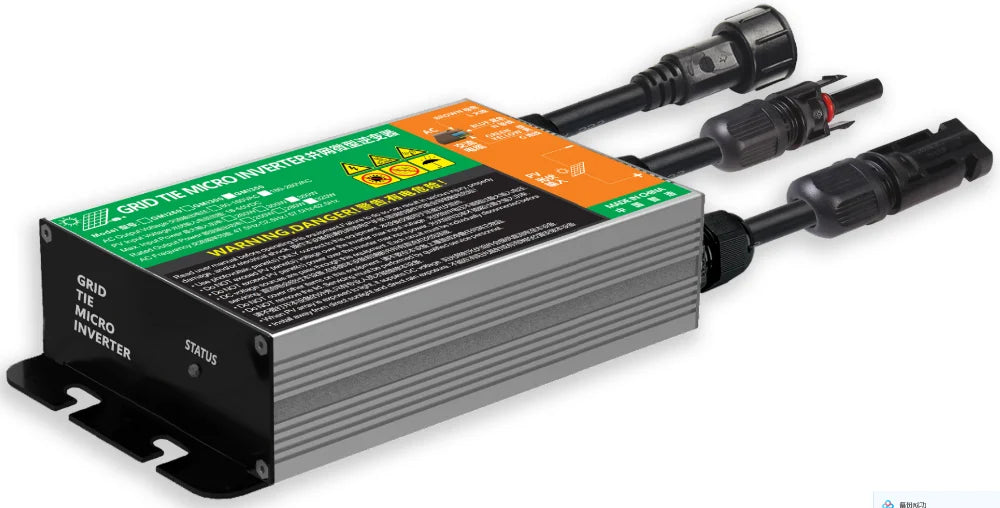

After a large amount of customer data feedback, the inverter cannot work because the DC or AC fuse is damaged. When you encounter this problem, we can send you accessories for free. And give you maintenance video instruction. You can easily replace it.（ This type of product is prone to fuse damage. After damage, you can contact us to send spare parts for replacement. This is the case for the entire market, but other businesses won't tell you.If you mind, we don't recommend buying it. )

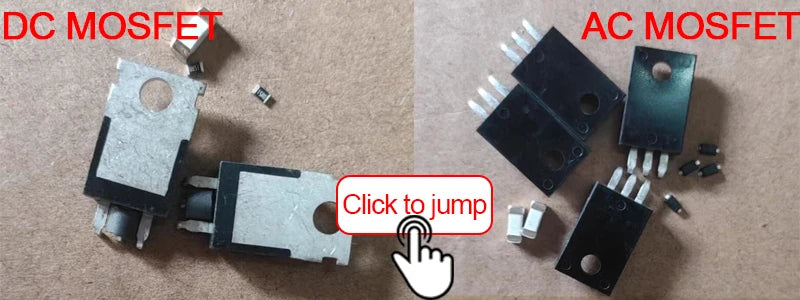

Features DC-boost and AC-inverter MOSFETs for efficient solar energy conversion.
About voltage：
The 18- 50V grid tie micro inverter will start up at 24V, after starting, the Solar Microinverters can work in 18V-39V (Vmp).Solar Panel Voc cannot be higher than 50V.
Vmp = solar panel working voltage; Voc = solar panel open circuit voltage.So don’t think that 50V is the working voltage (Vmp)
Why not use 12V solar panels? 12V panel working voltage Vmp18-20V, open circuit voltage Voc20-24V.
the 12V panel is just a starting voltage. If the sunlight is weak, the working voltage will be lower than 18V. It is easy to make the Solar micro-inverters work unstable, and the inverter will start repeatedly. It is easy to damage the Smart Microinverter.
Recommended Solar Panel Voltage: Vmp30-39V; Voc38-46V

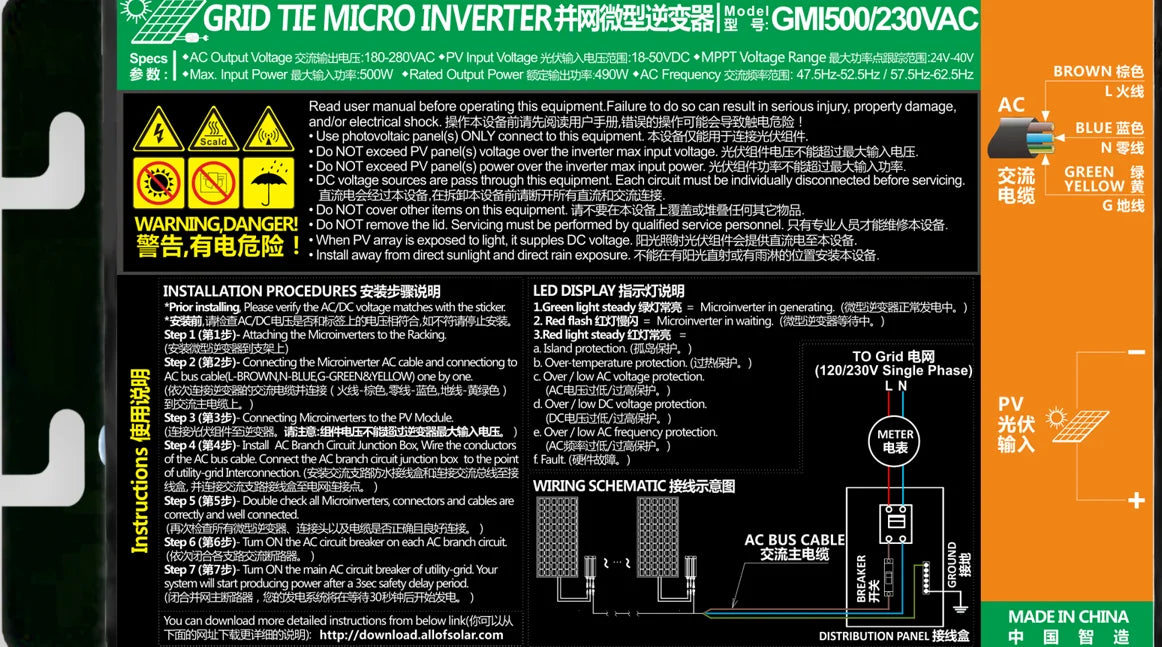

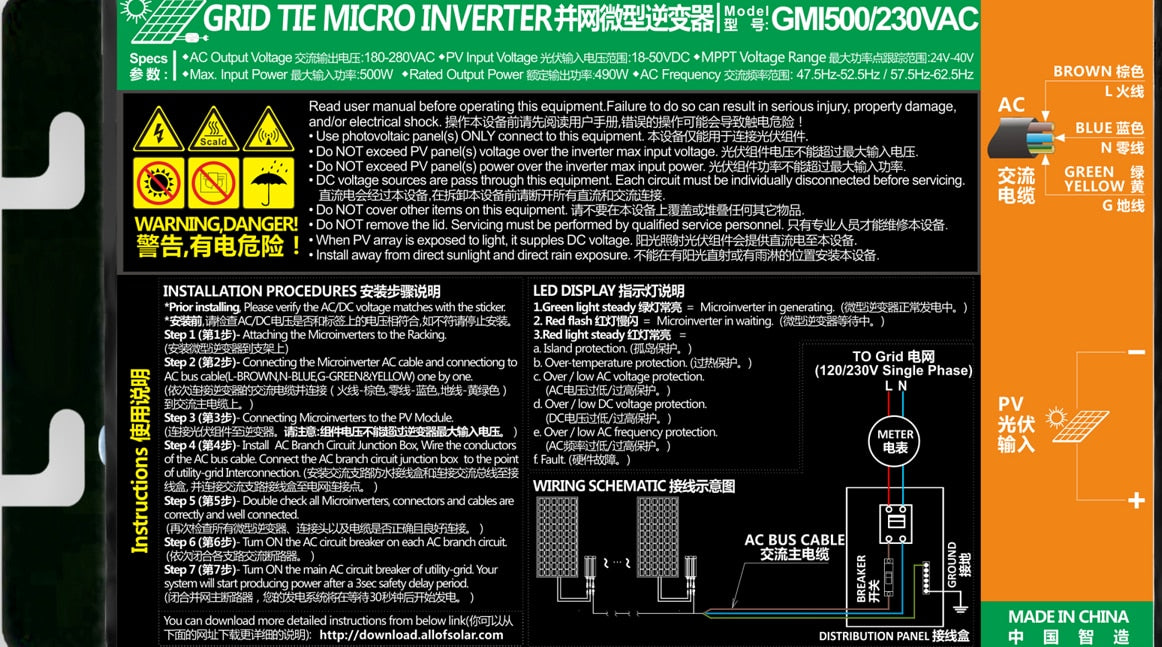

LED DISPLAY:
1.Green light steady=Microinverter in generating.
2.Red flash=Microinverter in waiting.
3.Red light steady
a.Island protection.
b.Over-temperature protection.
c.Over/low AC voltage protection.
d.Over/low DC voltage protection.
e.Over/low AC frequency protection.
f.Fault.
Package Include:
1XGrid Tie Inverter
1 x AC Cable 30CM

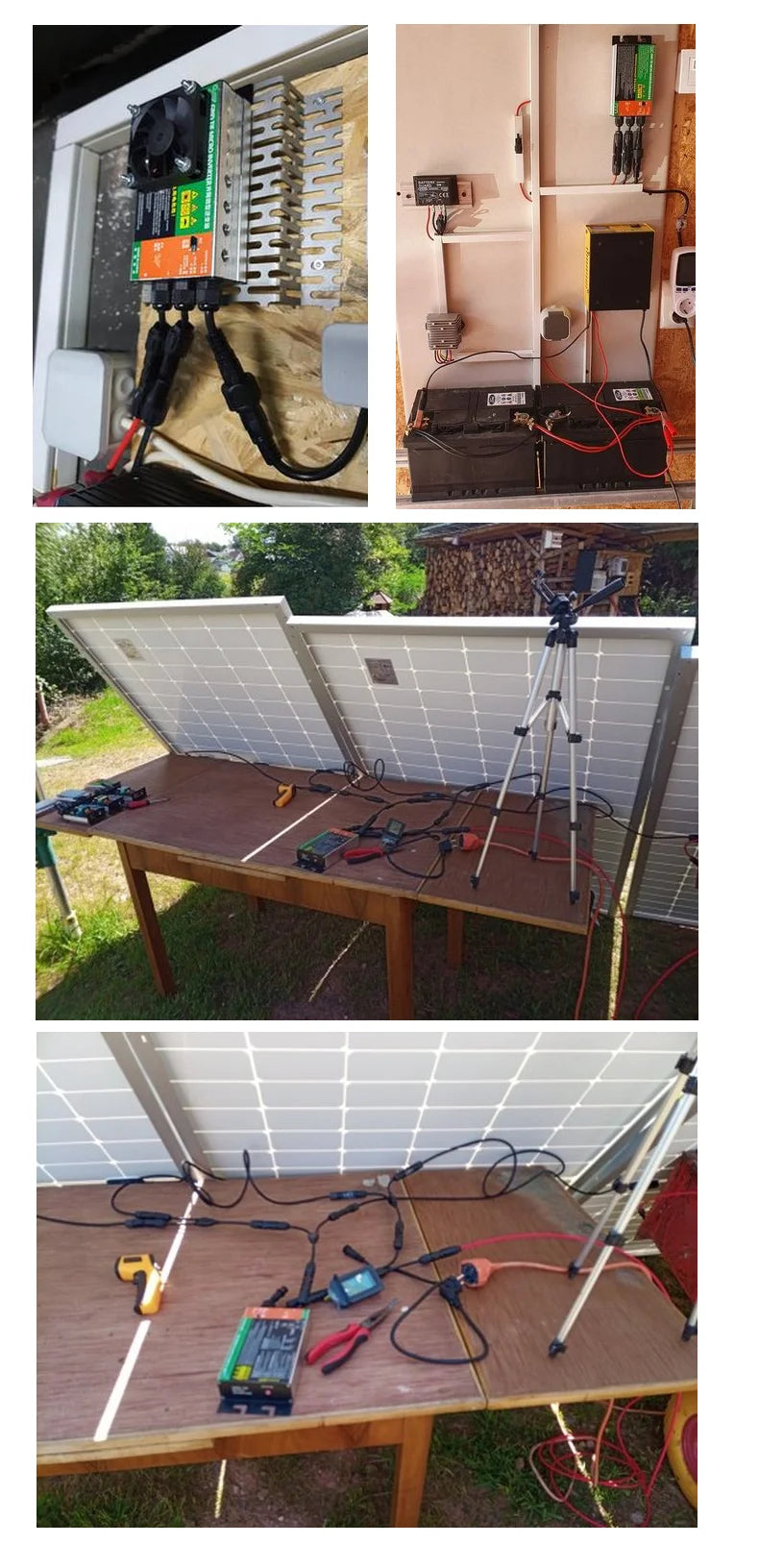

Buyers show：

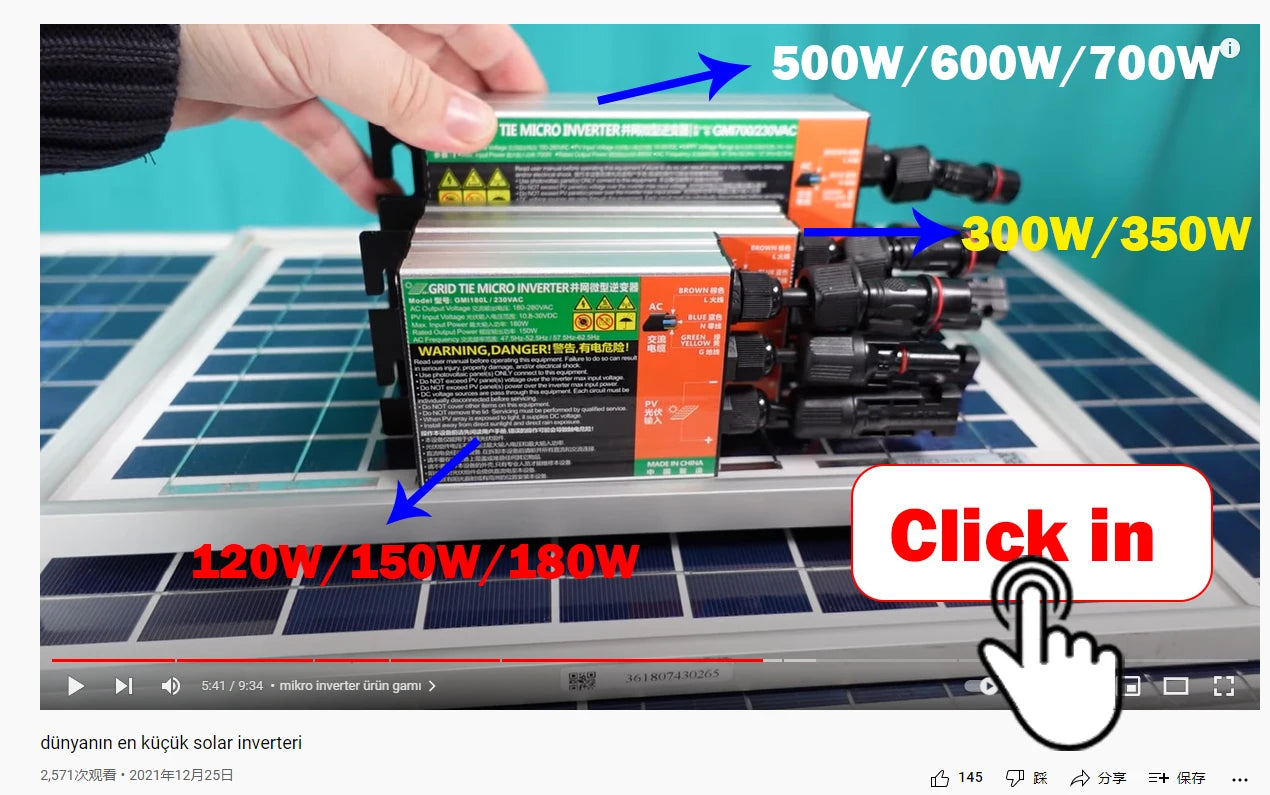

This is a video of a YouTube blogger evaluating the inverter. You can browse the blogger’s link or click on the picture to jump to the link.
https://youtu.be/kkJyWCgbfOA

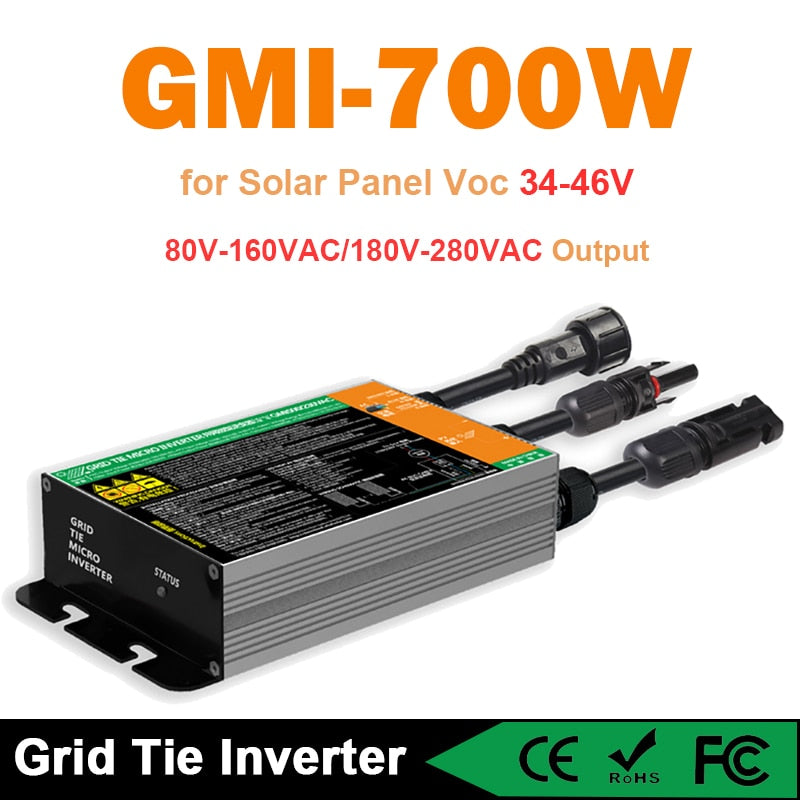

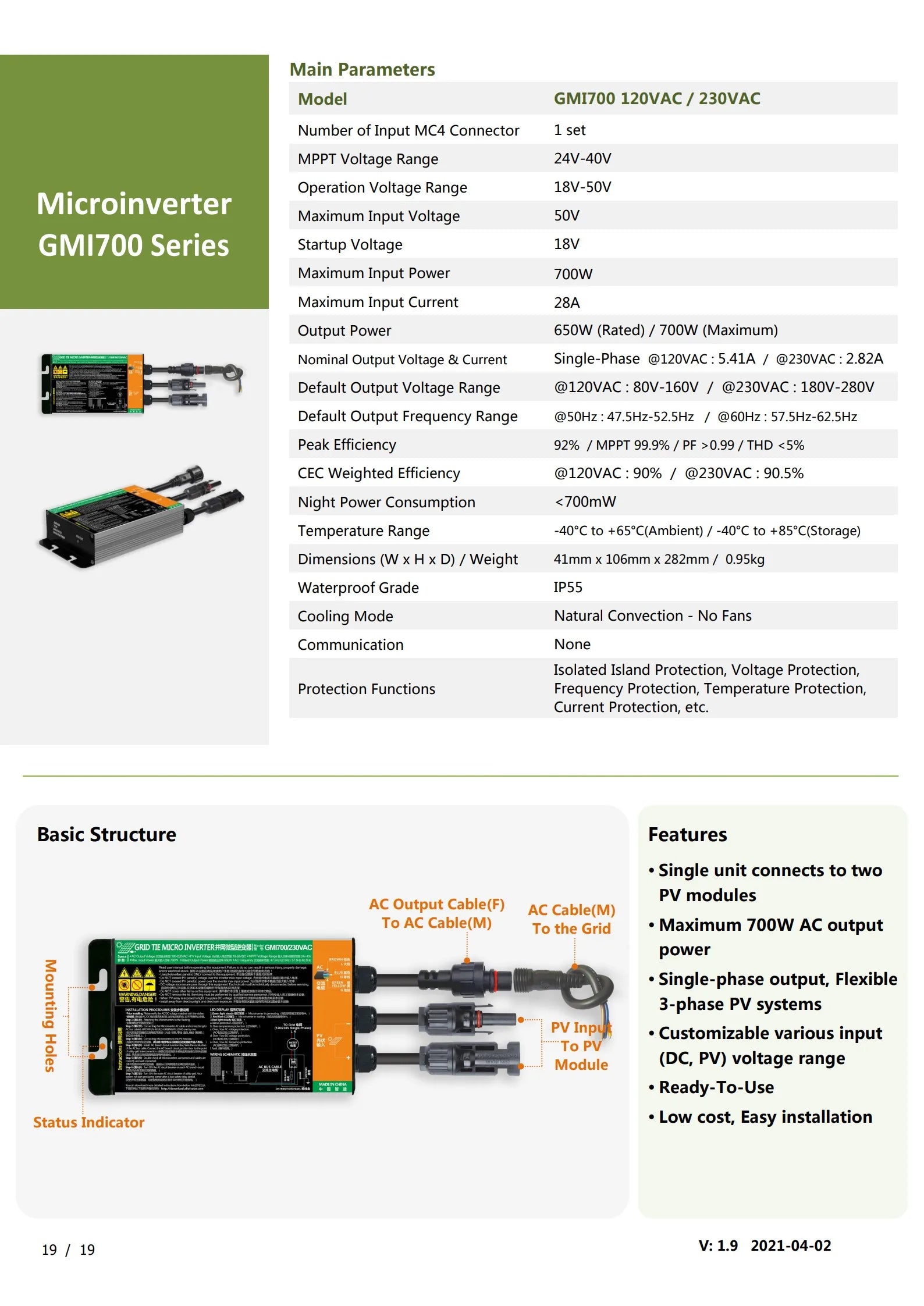

700W/600W/500W/350W/300W Grid Tie Micro Inverter (MPPT) for home solar on-grid system. Warning: high voltage warning! Output AC 110V-240V, input DC 26V-46V. Compatible with grid tie systems and ideal for residential applications.
700W-300W Grid Tie Micro Inverter for Home Solar Systems, MPPT input DC26V-46V, AC output 110V-240V.

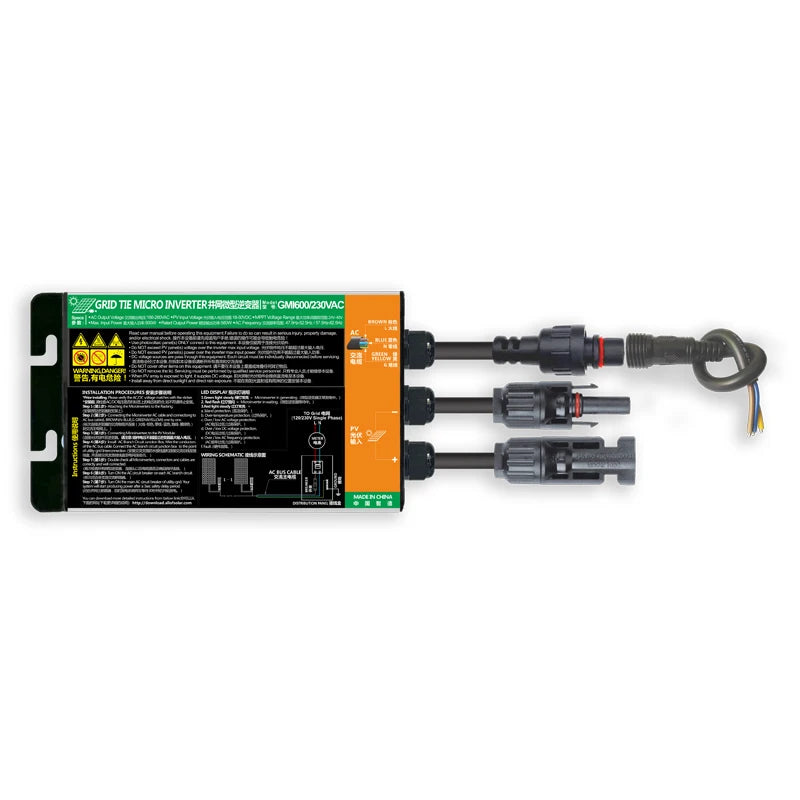

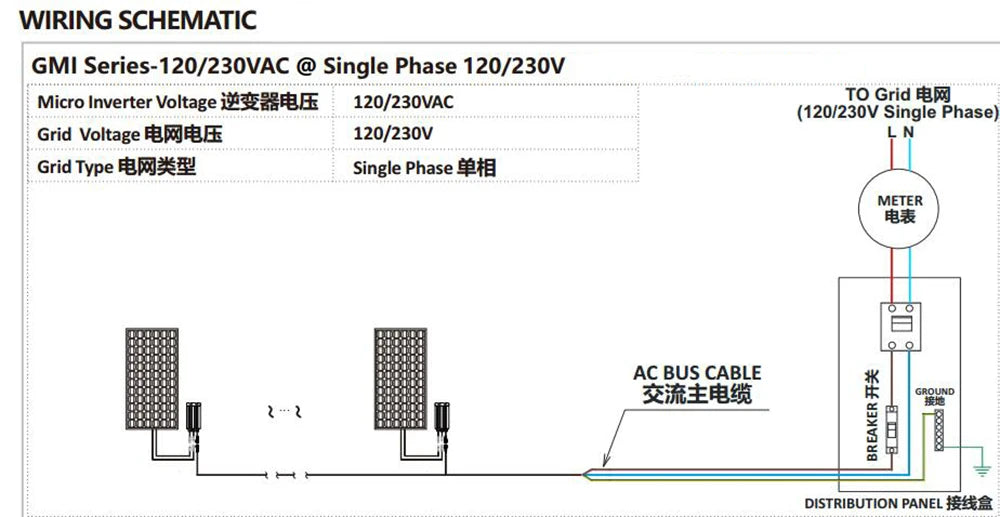

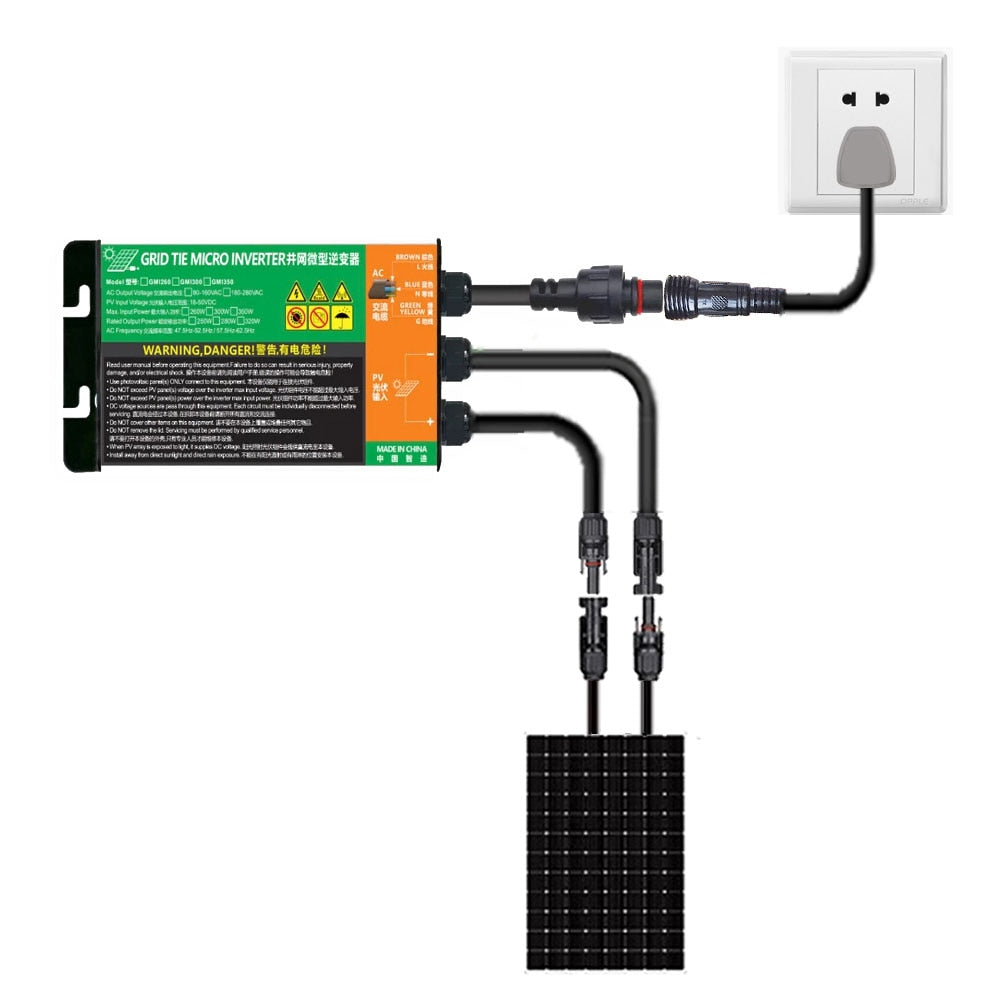

This micro inverter connects to a single-phase grid voltage of 120-230VAC, allowing for seamless integration with existing on-grid solar systems. The output AC power can be used to supply energy to homes or businesses via an 18-meter ER AC bus cable connected to the distribution panel.

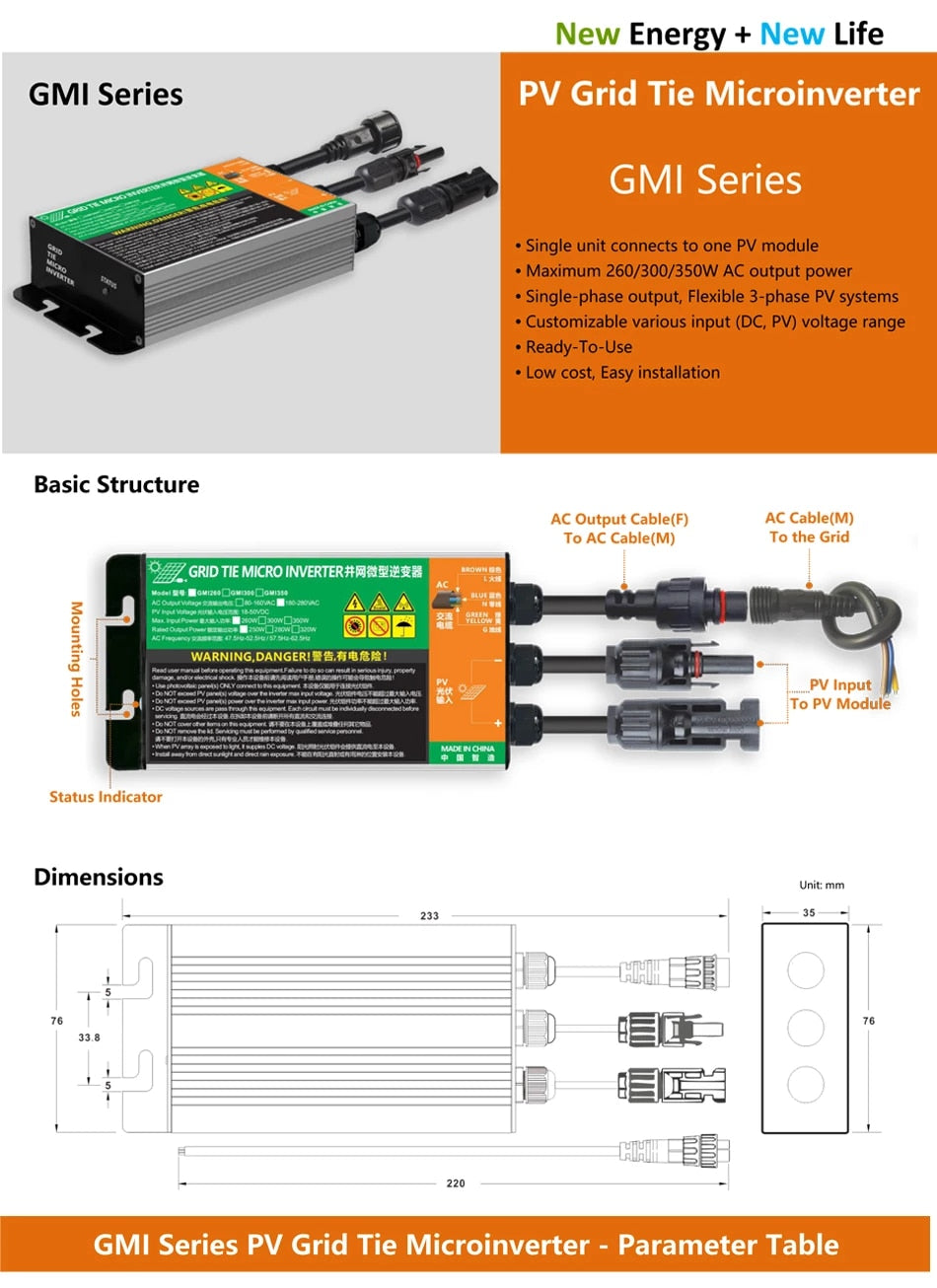

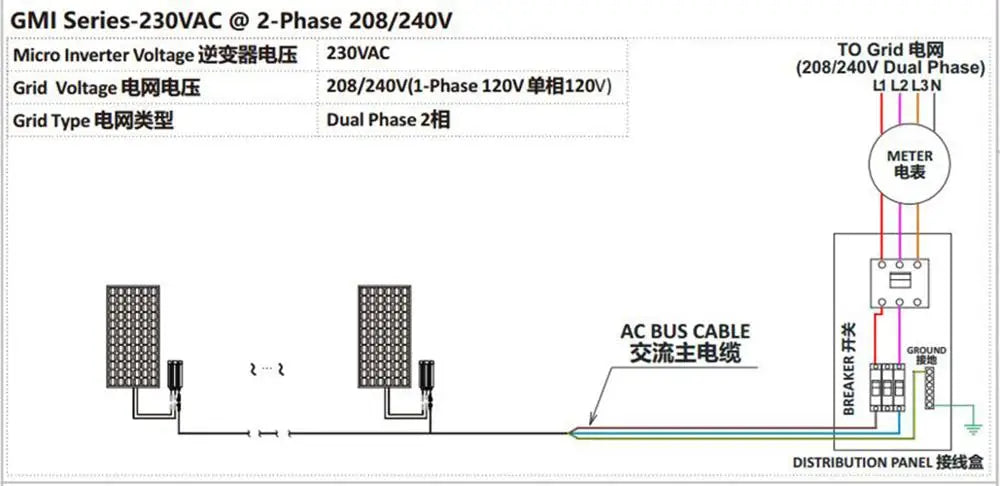

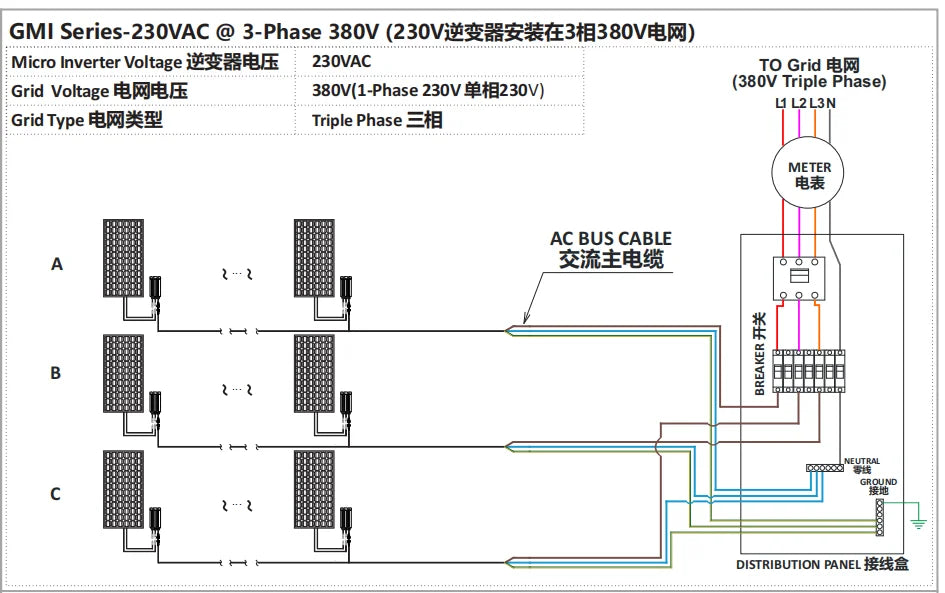

The GMI Series-23OVAC micro inverter supports grid-tie applications, offering 2-phase output (208/240V) and input DC voltage range of 26V-46V. It's designed for on-grid solar systems and can be connected to a distribution panel or AC bus cable.

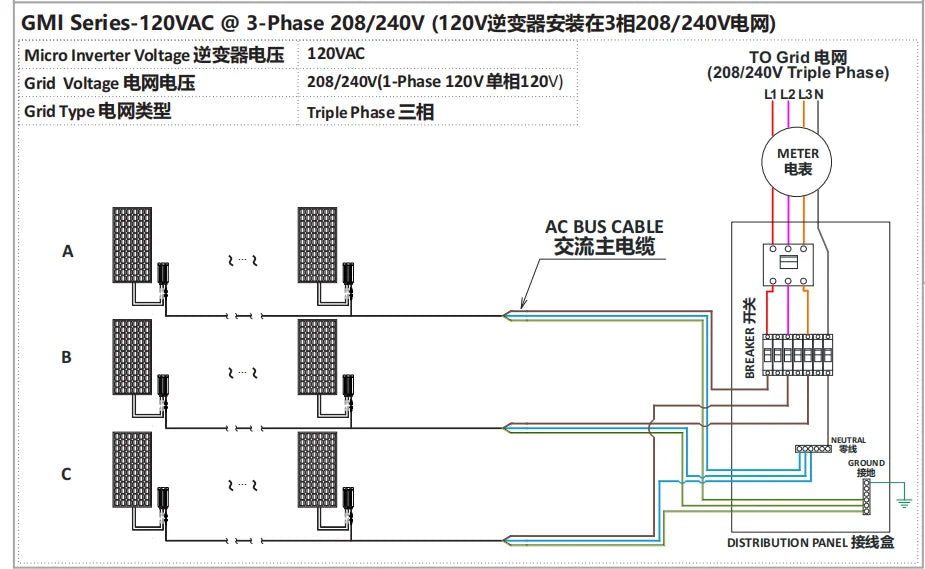

GMI Series: A micro inverter that converts DC power from solar panels to AC power for grid tie systems. It supports three-phase and single-phase output, with voltage ranges of 208-240V and 120V respectively. The product features an MPPT (Maximum Power Point Tracking) input, suitable for residential solar on-grid systems.
