Aubess PWM Solar Charge Controller 10A 20A 30A 12V 24V PV Regulator With LCD Display For 100W 200W 300W Solar Panel Controllers

Description:

Type: PWM

Work Time (h):24H

Battery type 2:Lithium iron phosphate battery /LIT2/ b03

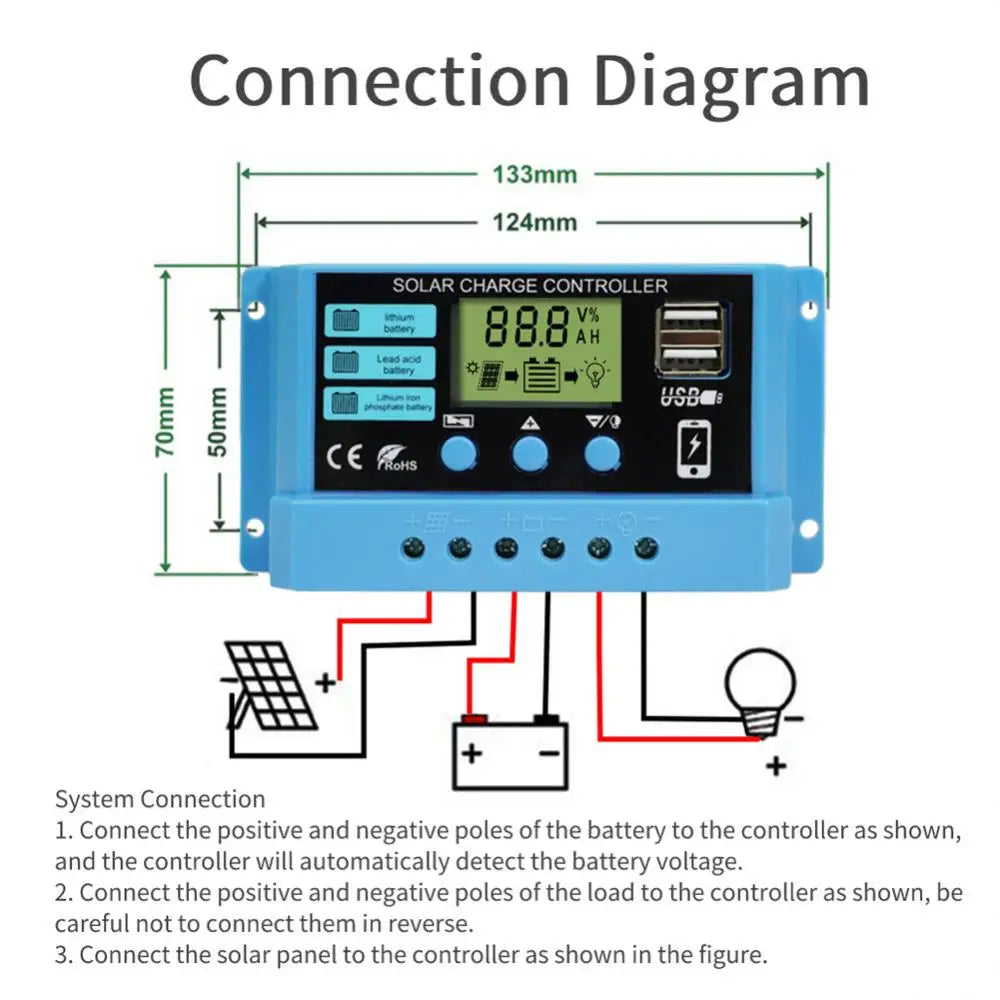

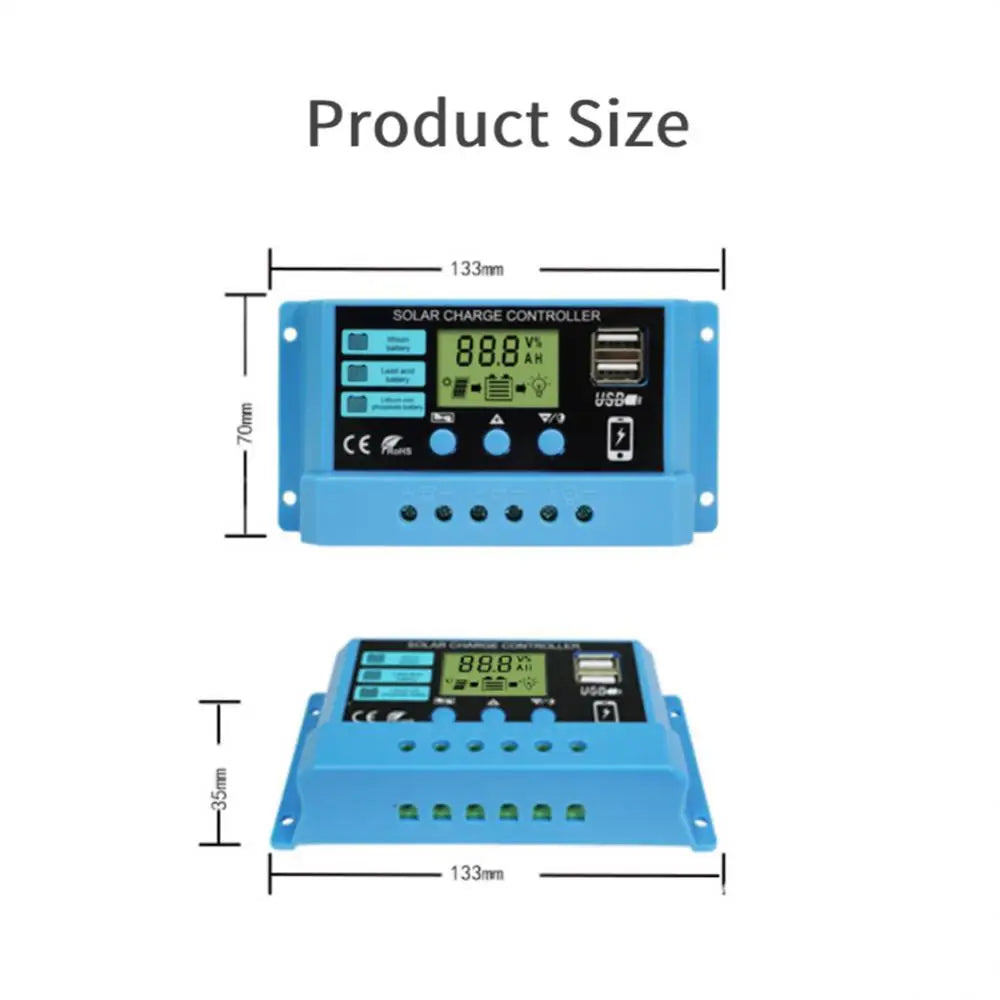

Size:133x70x35mm

Protection Function:Overcharge/ Overdischarge/ Overload/ Shortcircuit Protection

Charge way: Charge Under Sun power solar panels

USB output:2 USB-5V/2A MAX

Operating temperature:-35~ 60℃

Waterproof level: IP32

Material: Plastic

LVD:10.7V/21.4V/42.8V

LVR:12.6V/25.2V/50.4V

Rateddischarge current: 10A/20A/30A optional

USB output voltage: 5V

Battery voltage: 12V/24V automatically selectable.

Battery type: lead-acid battery, lithium iron phosphate battery, lithium battery.

Specifications:

1. The control chip has a large-screen LCD display, and the charging and discharging parameters are adjustable.

2. Wide range of applications: suitable for solar power generation systems, smart homes, solar chargers, solar ventilation systems, solar light boxes, solar billboards, solar warning lights, etc.

3. Applicable to a variety of batteries: suitable for lead-acid batteries, lithium iron phosphate batteries, ternary lithium batteries and other batteries, more convenient.

4. Multiple protections: built-in overcurrent, short-circuit protection, reverse connection protection, open-circuit protection, all of which are automatically restored without damage to the control

5. Light control time control: This controller has light control time control, which can control the discharge through sunlight and time

6. Three-stage PwM-regulated charging: adopt three-stage Pm-regulated charging methods of direct charging, boosting charging, and floating charging. Use the controller to achieve efficient and fast intelligent charging, and effectively prolong the service life of the battery

Package Included:

1 * Solar Charge Controller

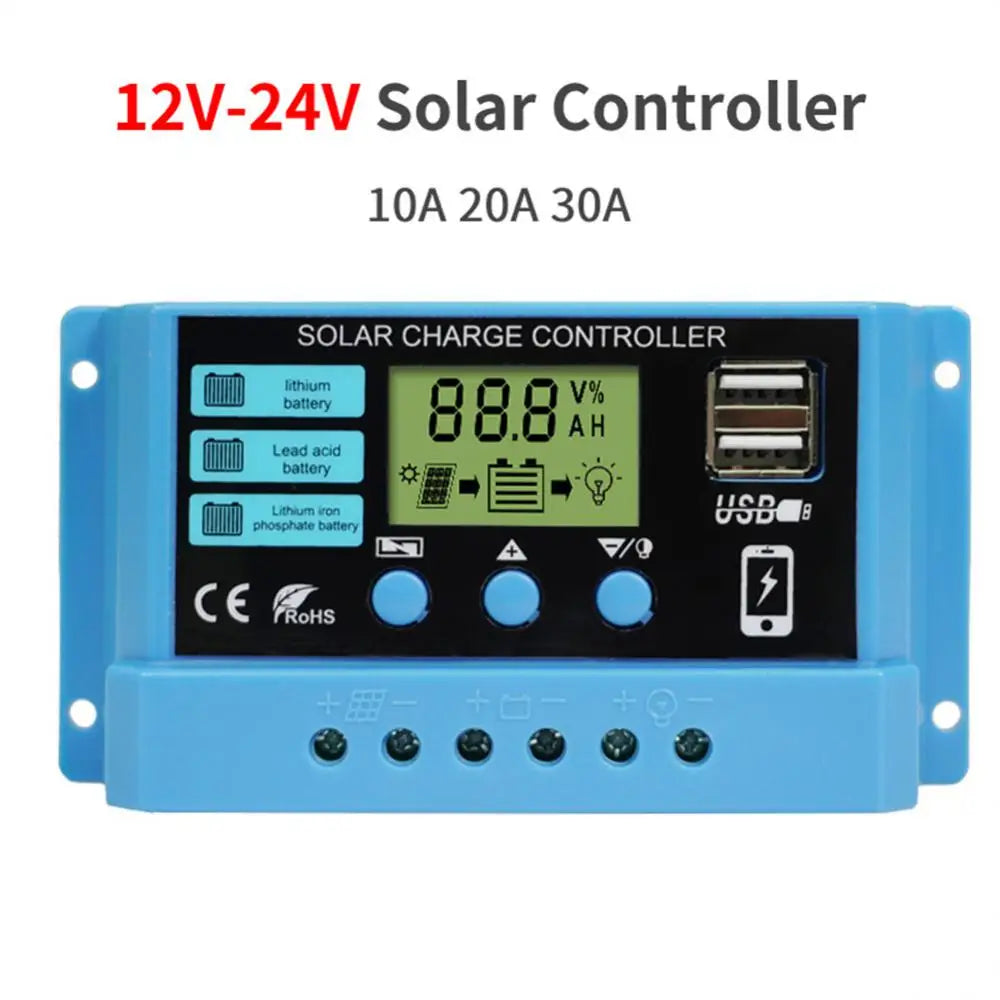

12V-24V Solar Charge Controller: Supports 10A, 20A, or 30A charging for solar panels with battery types including lithium-ion, lead-acid, and nickel-cadmium. USB-C charging port and RoHS compliant.

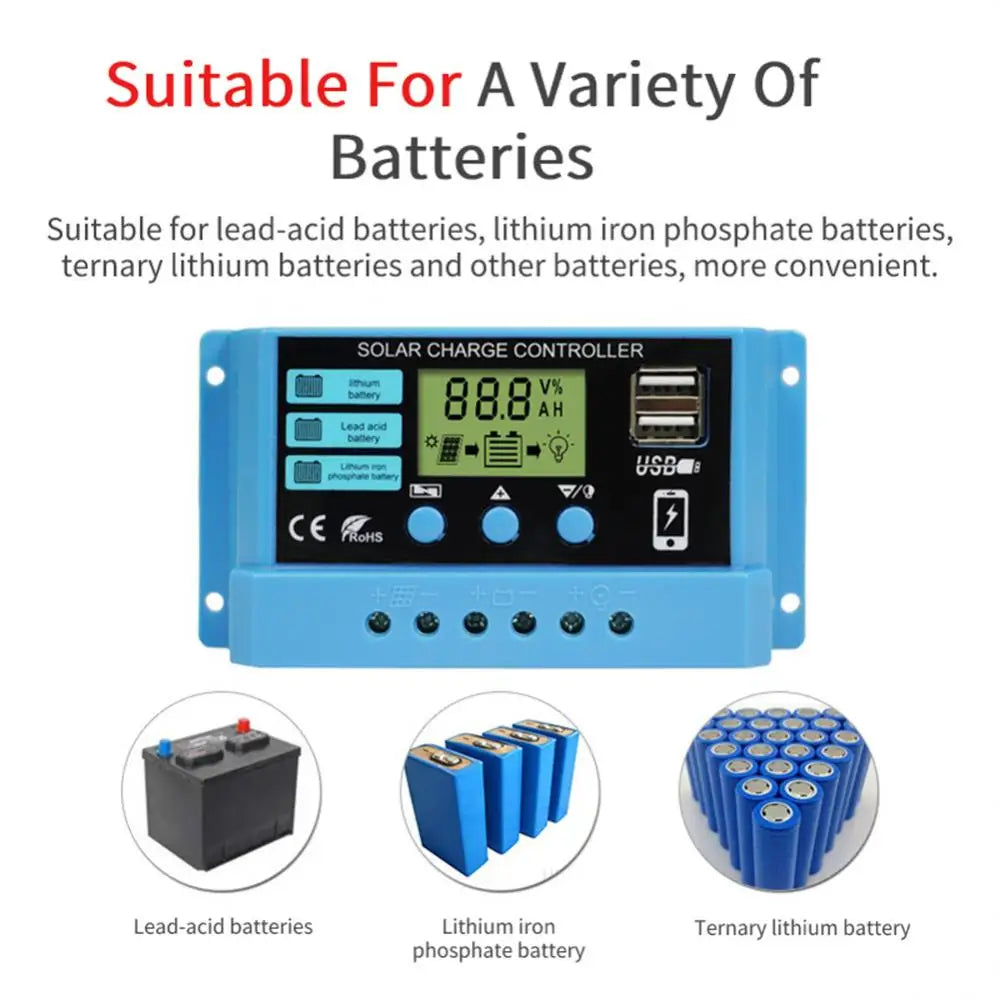

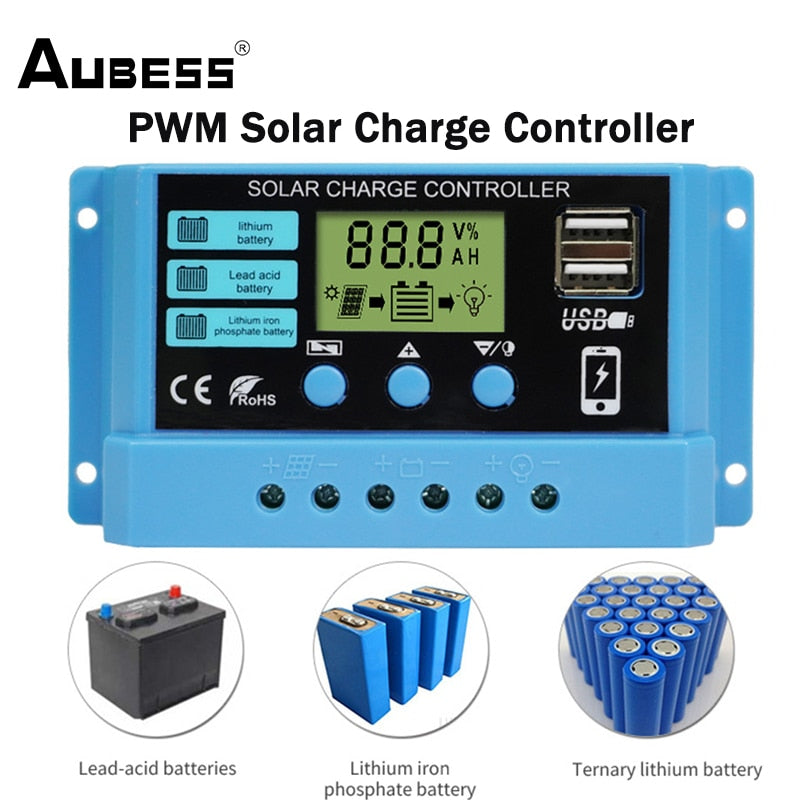

This solar charge controller is suitable for various types of batteries, including lead-acid, lithium iron phosphate, and ternary lithium batteries. It's also convenient to use with other batteries.

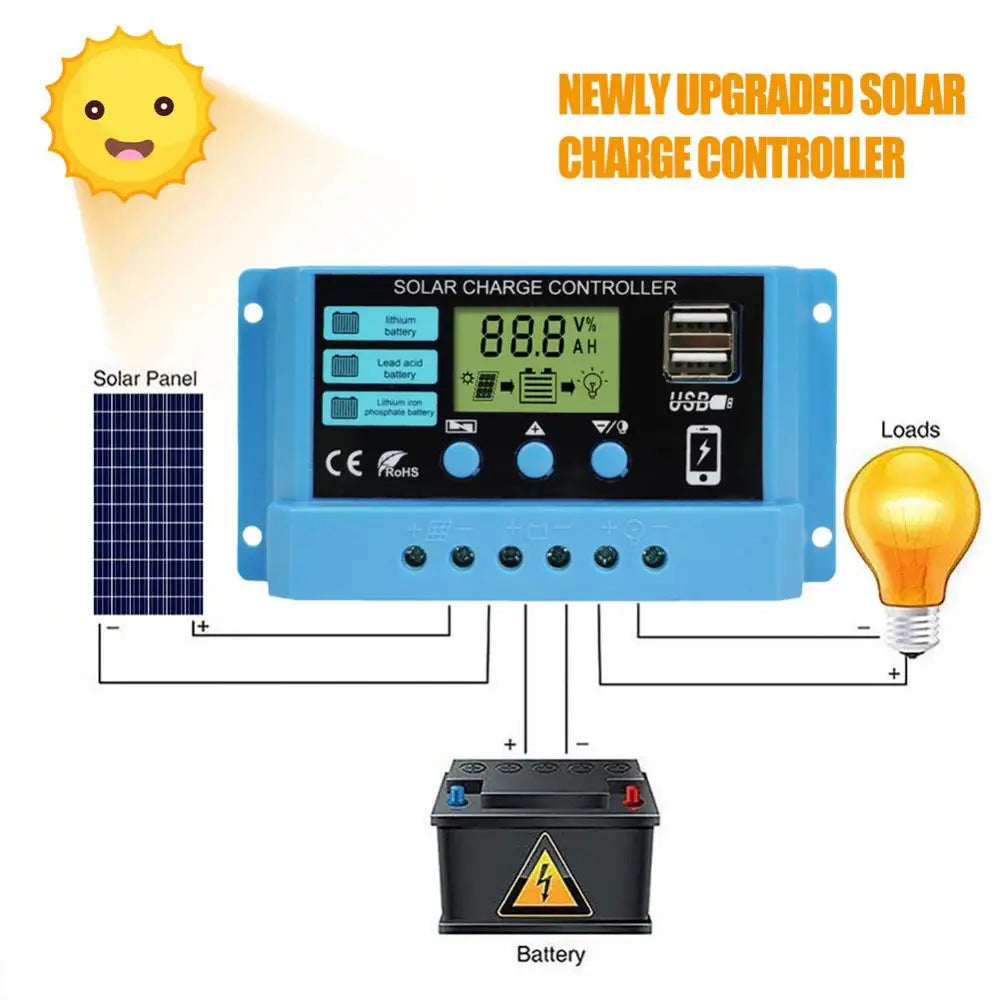

Newly Upgraded Aubess PWM Solar Charge Controller: A 10A, 20A, or 30A charge controller for solar panels with LCD display, suitable for 100W, 200W, and 300W solar panel systems. RoHS compliant.

Suitable for various applications, including rooftop solar power generation systems, home lighting, traffic/Railway signal supplies, and RV power controllers, garden automatic watering systems.

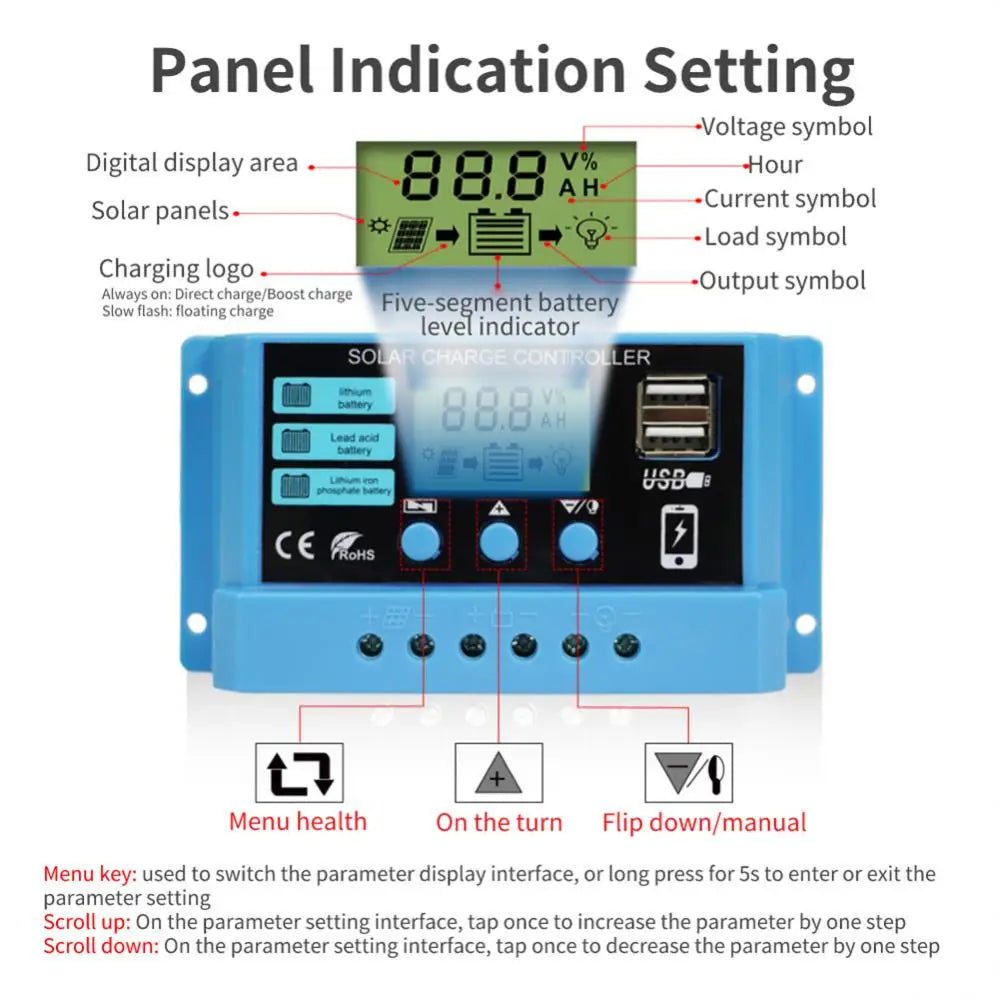

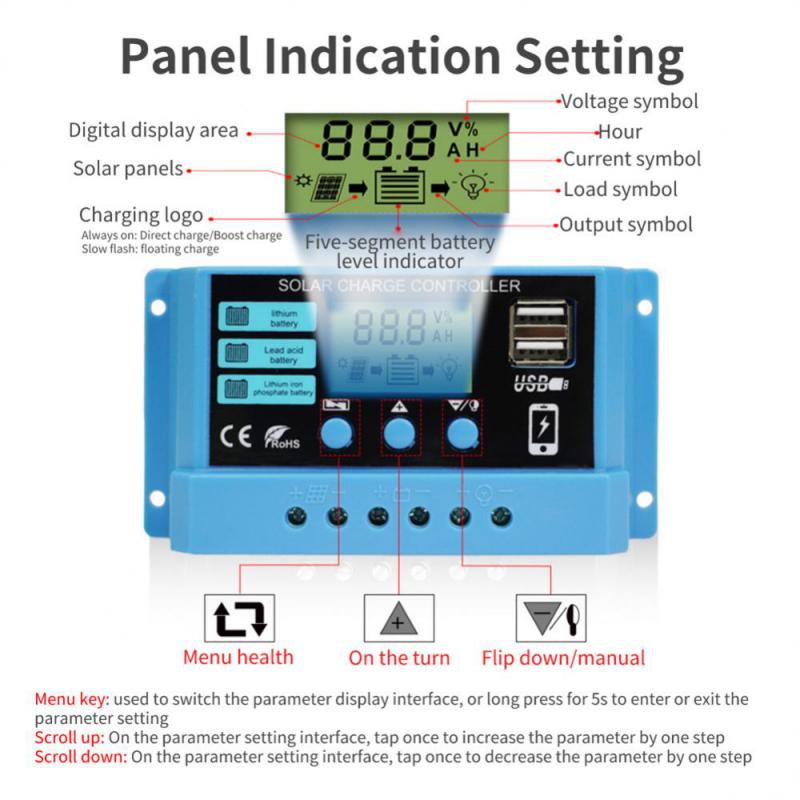

Panel Indication Setting: A digital display shows voltage, hour, and current levels. Solar panels indicate charging status with symbols: * 'Always on' for direct charge/boost charge * Slow flash for floating charge A five-segment battery level indicator displays SOLCLLER Danon 08,84#. The menu features: * 'TRohs Menu Health' with 'On' and 'Off' options * 'Menu Key': press to switch display interfaces or long-press (5s) to enter/exit parameter settings * 'Scroll Up/Down' buttons: tap once to increment/decrement parameters in the setting interface.

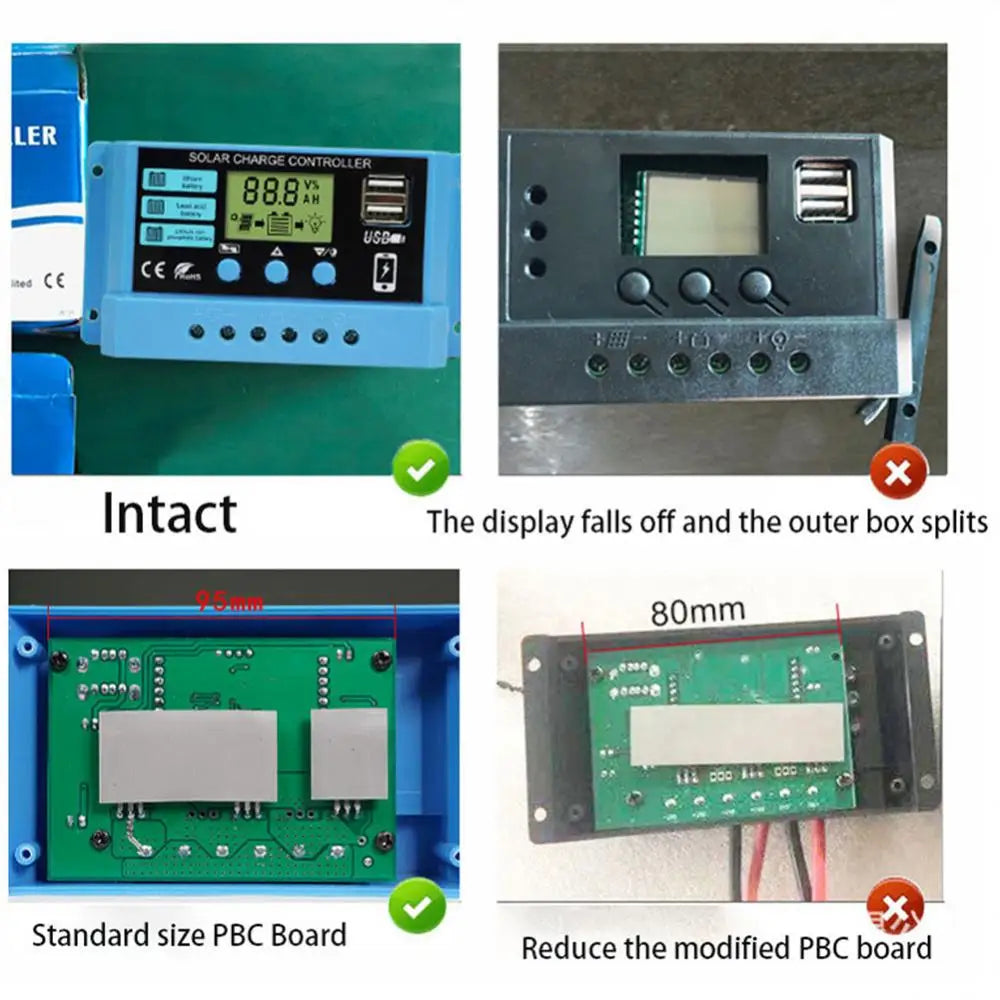

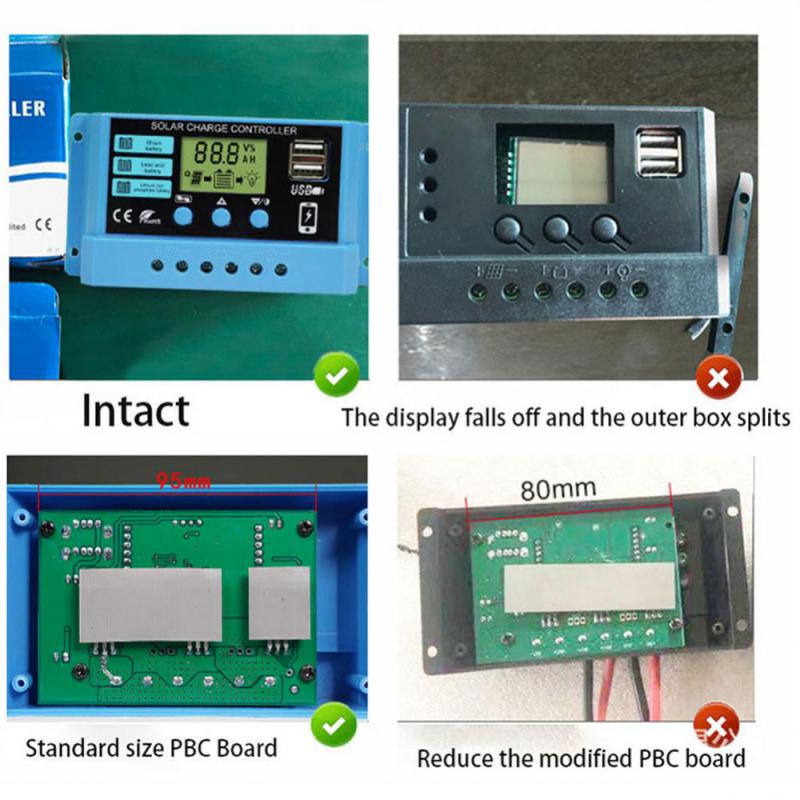

Aubess PWM Solar Charge Controller: 10A, 20A, or 30A regulator for 12V/24V solar panels. Includes LCD display and features compact design with standard size PCB board. Perfect for controlling 100W, 200W, or 300W solar panel systems.

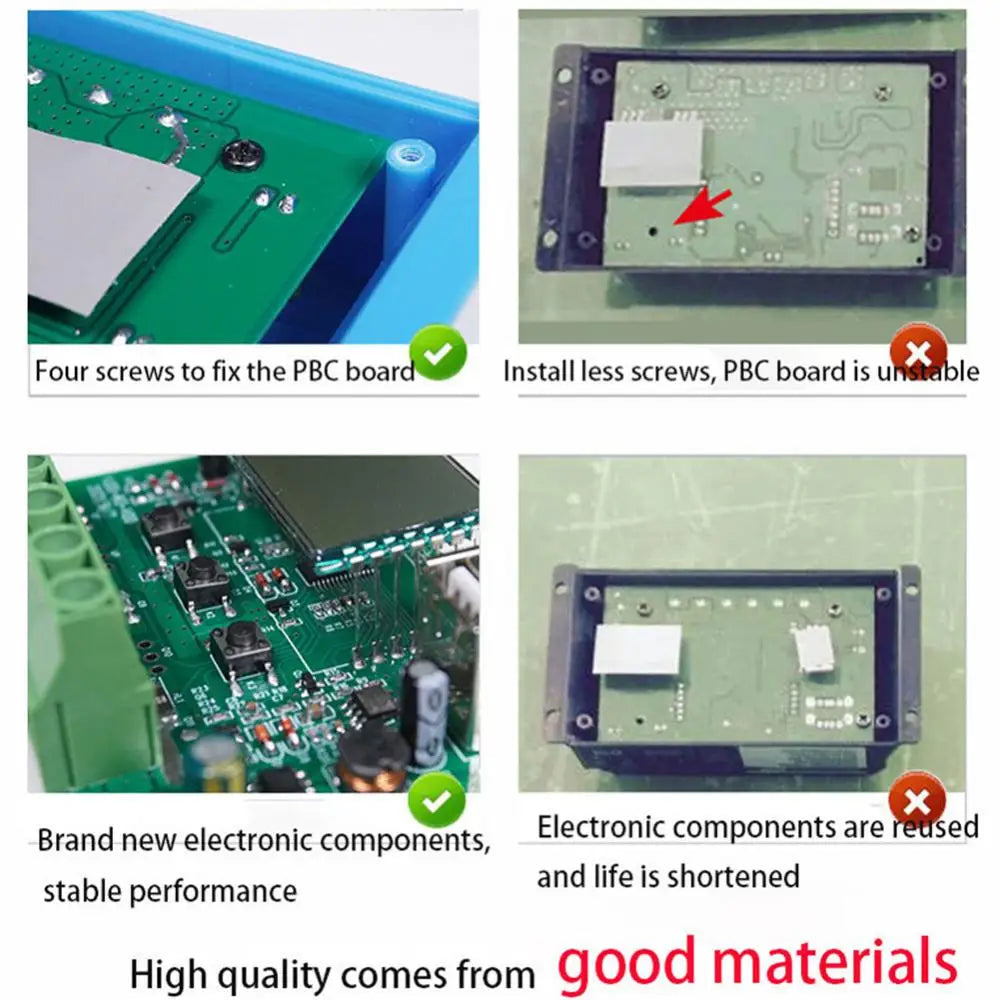

Securely install the PCB board with four screws. Reused electronics compromise stability and lifespan, while high-quality materials ensure reliable performance.

Aubess PWM Solar Charge Controller (10A/20A/30A) regulates 12V or 24V solar panels with LCD display, suitable for small to medium-sized solar panel systems.

Automatic identification for 10A, 12V/24V solar charge controllers. Suitable for 100W to 300W solar panels with minimum battery voltage 12V and maximum capacity 88Ah. USB-C port for charging. Compliant with CE and RoHS standards.

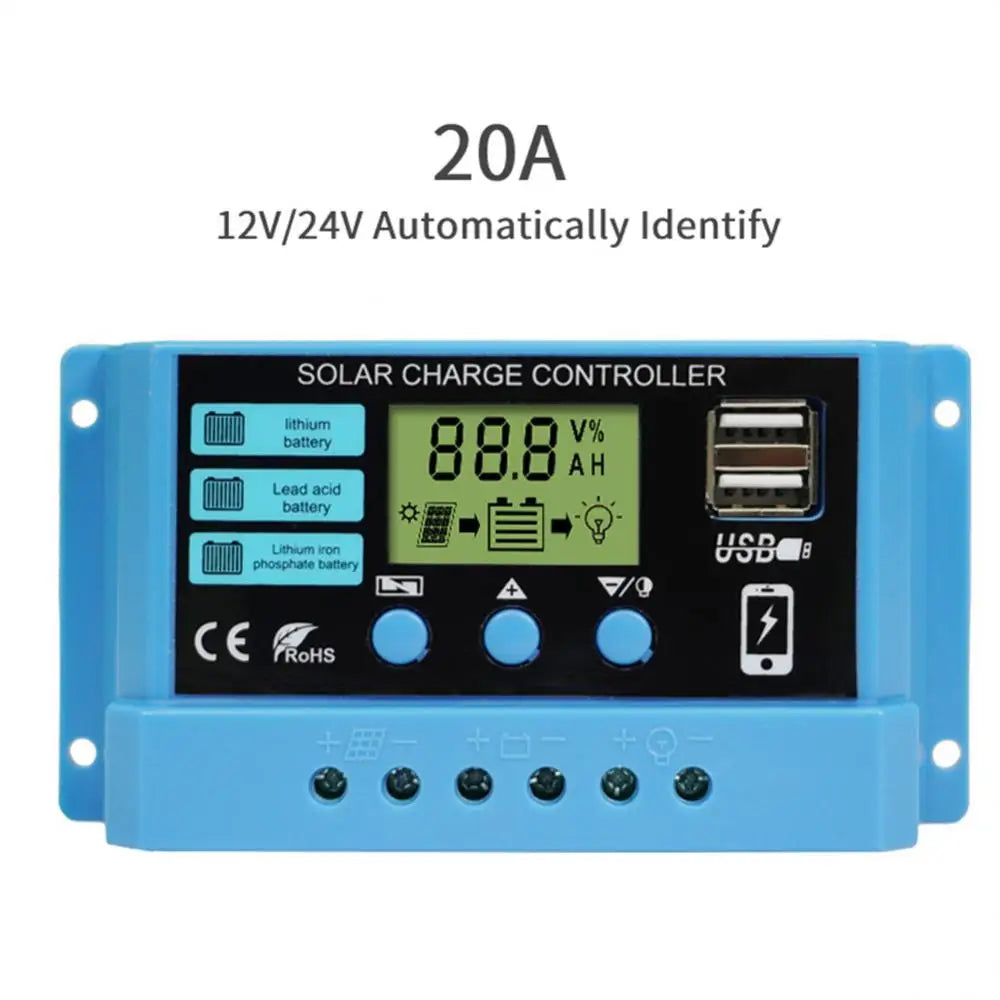

Automatically identifies 12V/24V solar charge controllers with lithium-ion, lead-acid, or AGM batteries. Supports up to 30A charging current and features USB-C photovoltaic battery testing, RoHS compliant.

This solar charge controller automatically detects 12V/24V batteries and supports charging for lead-acid, lithium-ion, and Ni-Cd batteries. It also features a built-in USB port and meets TR01 safety standards.
