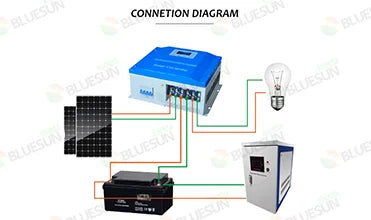

Maximum power point tracking(MPPT) is a technique used commonly with photovoltaic (PV) solar systems to maximize power extraction under all conditions.
As the amount of sunlight varies, the load characteristic that gives the highest power transfer efficiency changes, so that the efficiency of the system is optimized when the load characteristic changes to keep the power transfer at highest efficiency.
bluesun

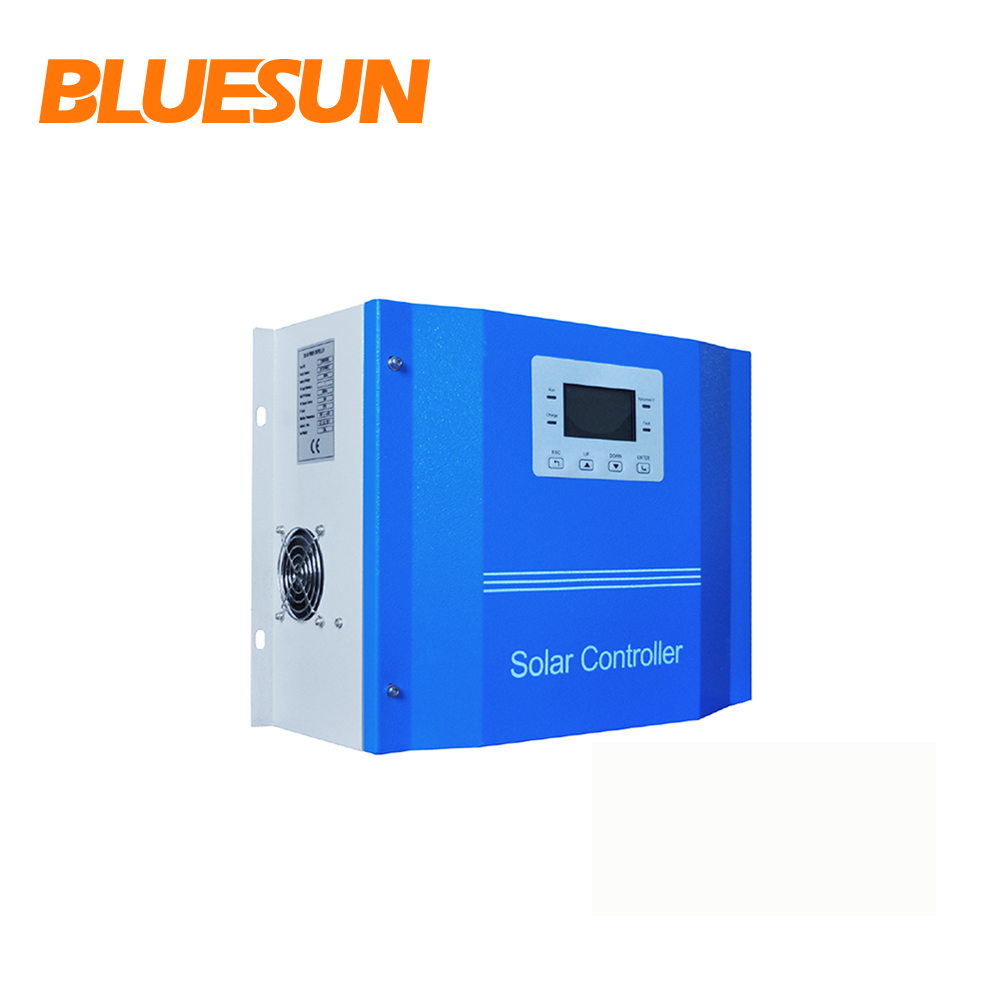

Bluesun 25KW Solar Charge Controller - 96v 192v 50ah 100ah off grid mppt controller | Best Solar
Bluesun 25KW Solar Charge Controller - 96v 192v 50ah 100ah off grid mppt controller | Best Solar
Regular price
$1,379.00 USD
Regular price
Sale price
$1,379.00 USD
Unit price
per
Shipping calculated at checkout.
3 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ

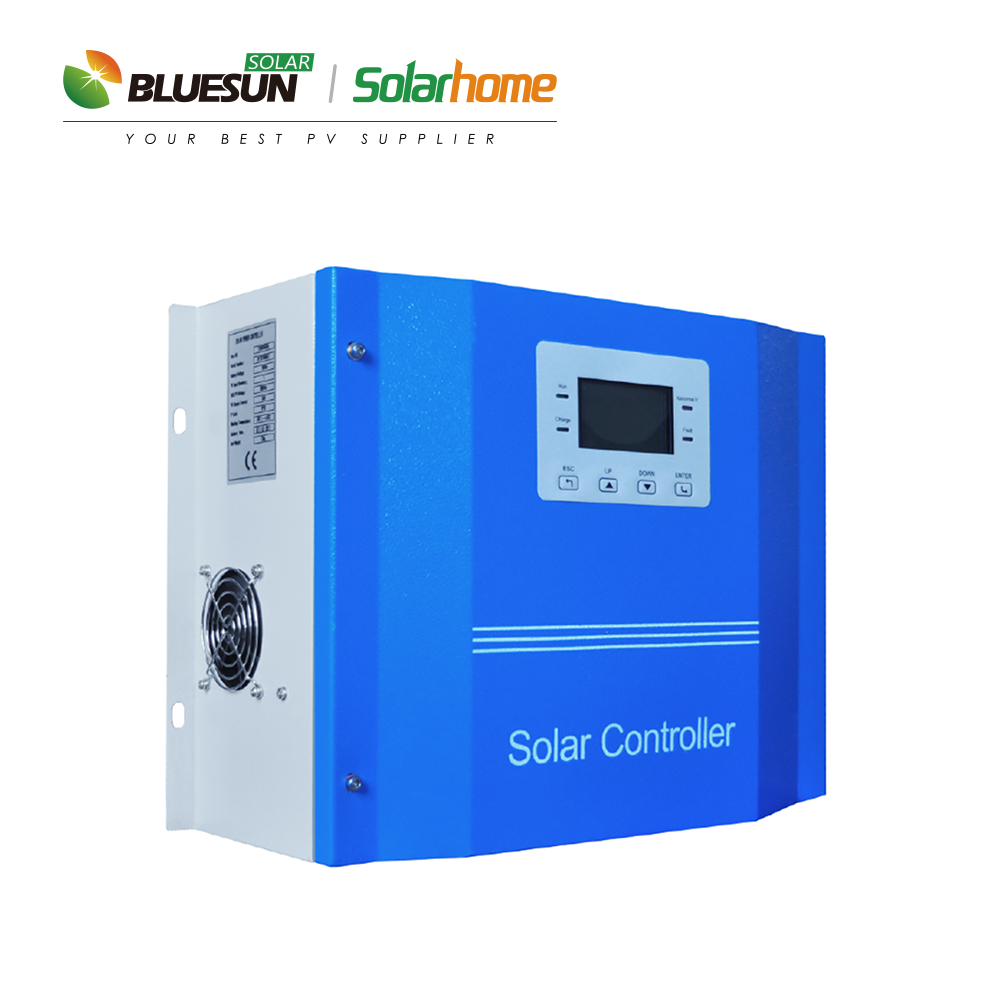

Bluesun 25KW Solar Charge Controller Parameters
- Brand Name: BLUESUN
- Model Number: MPPT50A-200A
- Type: MPPT
- Certificate: CE
- Warranty: 5 years, 3years
- Work Time (h): 24hours
- Application: MPPT solar charger controller, Charger Controller, Wind Controller, Collector Controller, Water Heater Controller, Solar Working Station, Lighting Controller, Thermal Controller, Voltage Controller, Solar System Controller
- Max PV Voltage: 650v, 150V
- Maximum current: 200A
- Conversion efficiency: Up to 99%
- Battery type: all type, three charge stage
- Display: LCD
- Protection: Battery Reverse Polarity
- Protection Function: Reverse Connection
- Color: Green
- Max PV Power: 72KW

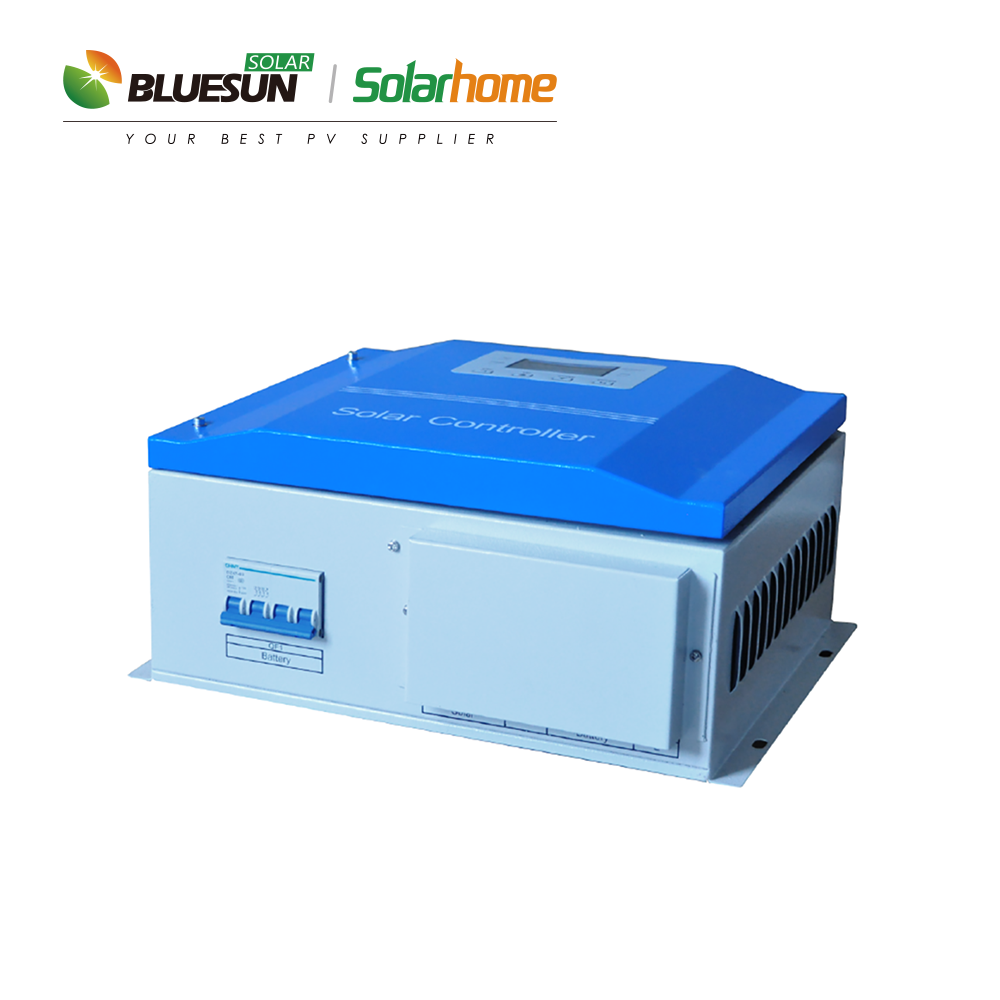

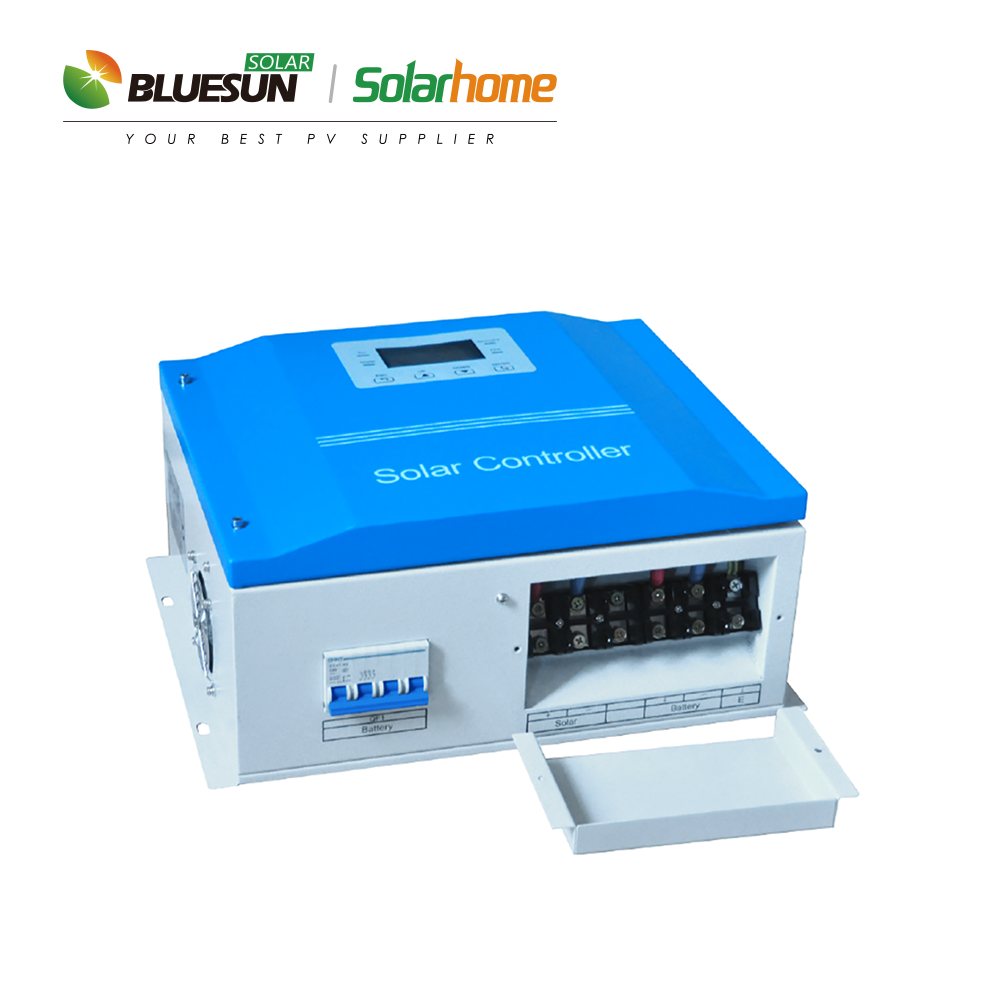

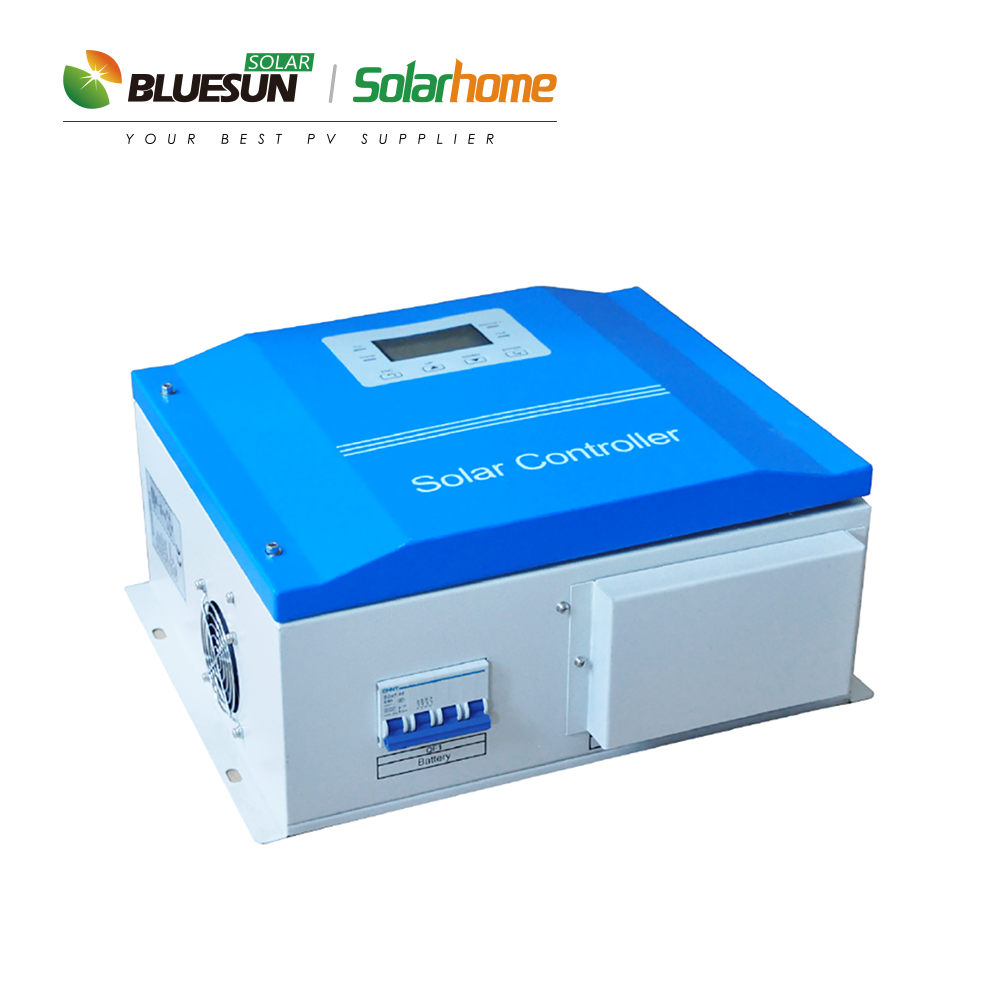

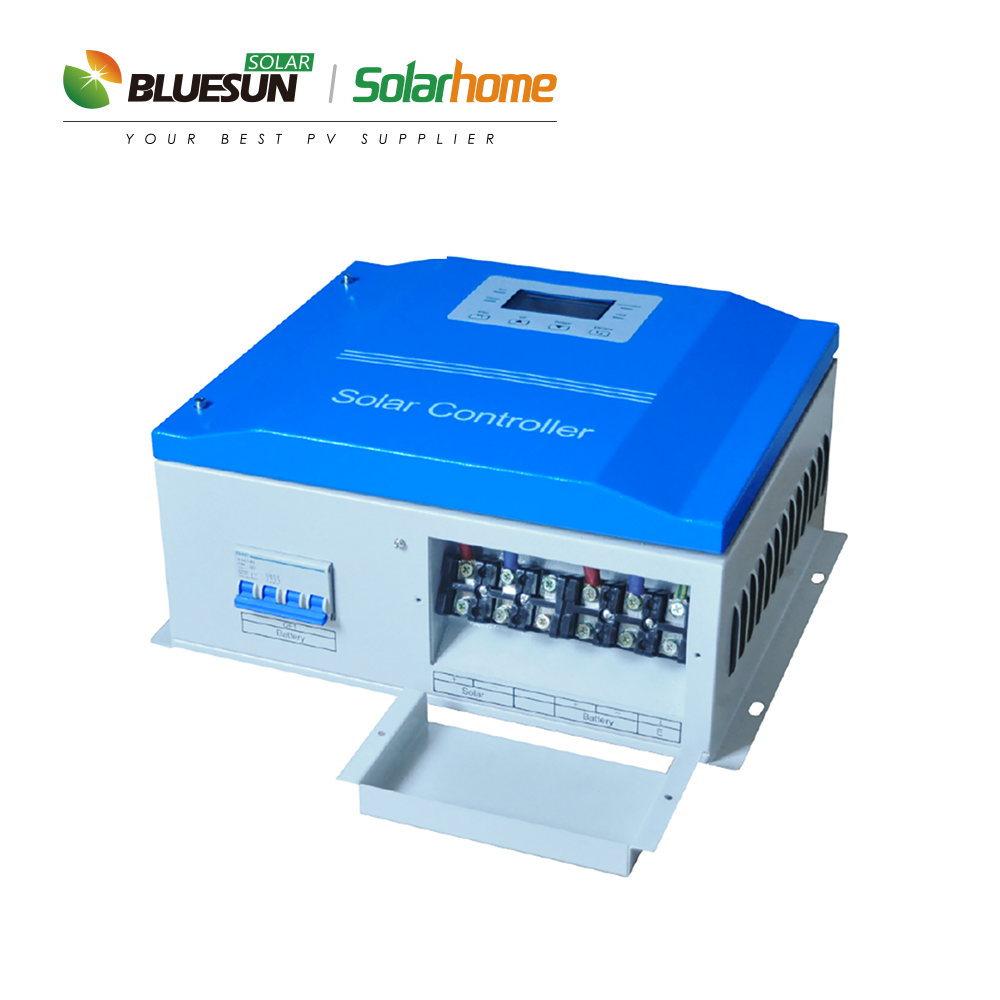

25KW Solar Charger Controller Details

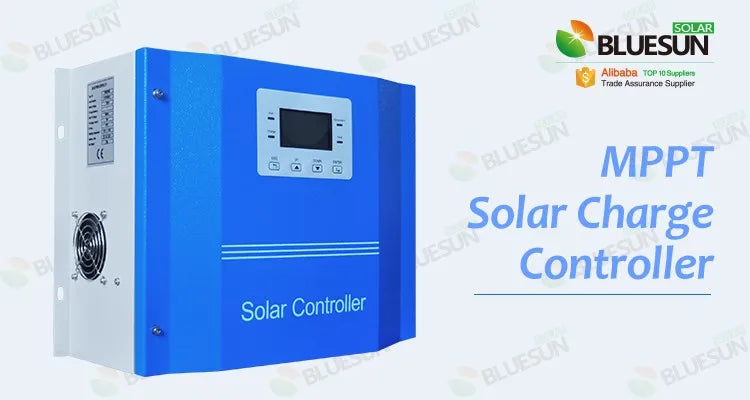

Bluesun's 25KW solar charge controller features MPPT technology, suitable for off-grid systems with battery capacities up to 100Ah and voltages of 96V or 192V.
What is MPPT Charger Controller
|
Type
|
96V
|
192V
|
||||||
|
Rated current
|
50A
|
100A
|
150A
|
200A
|
50A
|
100A
|
150A
|
200A
|
|
Battery input
|
||||||||
|
Rated voltage
|
96V
|
192V
|
||||||
|
Start voltage
|
≥80.0
|
≥160.0
|
||||||
|
Voltage range
|
80.0 - 130.0
|
160.0 - 260.0
|
||||||
|
Under-Protect recovery
|
≤86.4
|
≤173.0
|
||||||
|
Under-voltage recovery
|
≥98.4
|
≥197.0
|
||||||
|
Over voltage
|
≥128.0
|
≥256.0
|
||||||
|
Over-voltage recovery
|
≤120.0
|
≤248.0
|
||||||
|
Battery capacity
|
500Ah
|
1000Ah
|
1500Ah
|
2000Ah
|
500Ah
|
1000Ah
|
1500Ah
|
2000Ah
|
|
Solar input
|
||||||||
|
MAX open circuit voltage
|
300
|
450.0
|
||||||
|
Number of solar
|
1
|
2
|
3
|
4
|
1
|
2
|
3
|
4
|
|
MAX charge current
|
50
|
2 * 50
|
3 * 50
|
4 * 50
|
50
|
2 * 50
|
3 * 50
|
4 * 50
|
|
Mppt voltage range
|
120.0 - 260.0
|
240.0 - 400.0
|
||||||
|
Float voltage
|
110
|
225.0
|
||||||
|
Charge protection voltage
|
≥118.0
|
≥235.0
|
||||||
|
Recovery charge voltage
|
≤105.0
|
≤215.0
|
||||||
|
Protect
|
Battery over-charge,Battery reversed,Reversed charge,Solar input over current,Overheating
|
|||||||
|
Cooling
|
Forced air cooling
|
|||||||
|
Dielectric strength
|
3000VDC
|
|||||||
|
Communication
|
RS485(A,B)
|
|||||||
|
Display mode
|
LCD
|
|||||||
|
General data
|
||||||||
|
Dimensions (D x W x H)
|
350mm*440mm 190mm
|
440mm*440mm * 710mm
|
560mm * 480mm*190mm
|
440mm*440mm* 710mm
|
||||
|
Reference weight
|
15Kg
|
18Kg
|
42Kg
|
45Kg
|
15Kg
|
23Kg
|
42Kg
|
45Kg
|
|
Protection grade
|
IP20
|
|||||||
|
Noise
|
≤60dB,1m
|
|||||||
|
Altitude
|
≤3000m
|
|||||||
|
Working temperature
|
-25 - +65℃
|
|||||||
|
Storage temperature
|
-30 - +70℃
|
|||||||
|
Type
|
Bluesun 220V MPPT Charger Controller
|
|||
|
Rated current
|
50A
|
100A
|
150A
|
200A
|
|
Battery input
|
||||
|
Rated voltage
|
220VDC
|
|||
|
Start voltage
|
≥160.0VDC
|
≥170.0VDC
|
||
|
Voltage range
|
180.0 - 290.0 VDC
|
|||
|
Under-Protect recovery
|
≤195.0 VDC
|
|||
|
Under-voltage recovery
|
≥225.0VDC
|
|||
|
Over voltage
|
≥225.1VDC
|
|||
|
Over-voltage recovery
|
≥225.2VDC
|
|||
|
Rated battery capacity
|
500A·h
|
1000A·h
|
1500A·h
|
2000A·h
|
|
Solar input
|
||||
|
MAX open circuit voltage
|
450VDC
|
|||
|
Number of solar
|
1
|
2
|
3
|
4
|
|
MAX charge current
|
1*50A
|
2*50A
|
3*50A
|
4*50A
|
|
Mppt voltage range
|
260.0-400.0VDC
|
|||
|
Float voltage
|
250VDC
|
|||
|
Charge protection voltage
|
≥260VDC
|
|||
|
Recovery charge voltage
|
≤240.0VDC
|
|||
|
Protect
|
Battery over-charge,Battery reversed,Reversed charge,
Solar input over current,Overheating
|
|||
|
Cooling
|
Forced air cooling
|
|||
|
Dielectric strength
|
3000VDC
|
|||
|
Communication
|
RS485(A,B)
|
|||
|
Display mode
|
LCD
|
|||
|
General data
|
||||
|
Dimensions (D x W x H)
|
350mm*440mm*190mm
|
560mm*480mm*190mm
|
440mm*440mm*710mm
|
|
|
Reference weight
|
15Kg
|
23Kg
|
42Kg
|
45Kg
|
|
Protection grade
|
IP20
|
|||
|
Noise
|
≤60dB,1m
|
|||
|
Altitude
|
≤3000m
|
|||
|
Working temperature
|
-25 - +65℃
|
|||
|
Storage temperature
|
-30 - +70℃
|
|||
|
|
||||

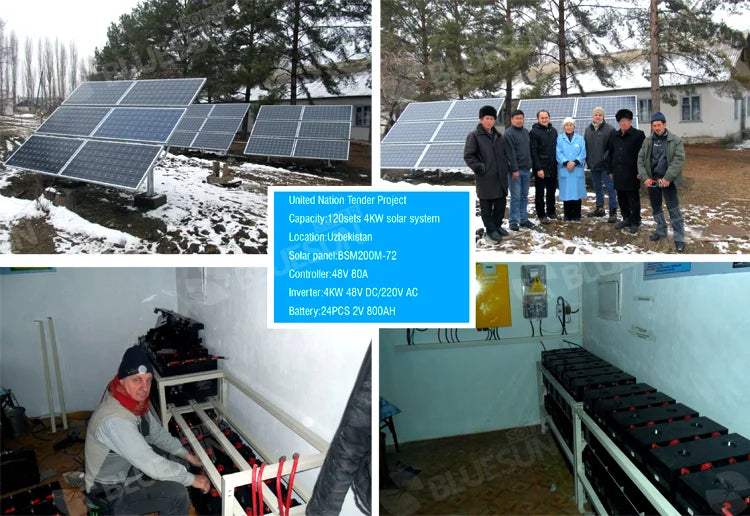

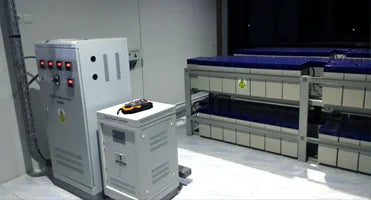

Project

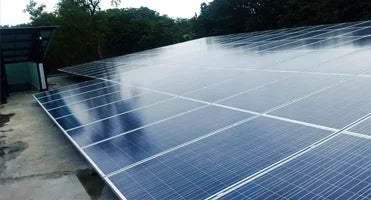

100Pcs poly 320w solar panel

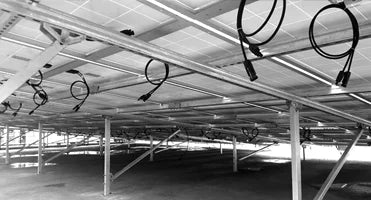

Whole set mounting structure on flat roof

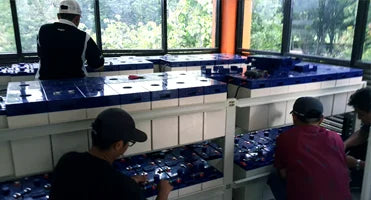

120Pcs GEL 2V 600Ah battery
240V 150A charge controller and 30Kw off grid inverter
Bluesun 25KW Solar Charge Controller: A reliable off-grid MPPT controller suitable for 96V/192V systems with capacities of 50Ah and 100Ah, ideal for tender projects.
