Bluesun 5.5KW Off Grid Solar Inverter Parameters
- Brand Name: BLUESUN
- Model Number: BSM-5500LV-48
- Input Voltage: 220VAC
- Output Voltage: 220V/230V±5%
- Output Current: 60A
- Output Frequency: 50/60HZ
- Output Type: Single
- Size: 482*290*113mm
- Type: DC/AC Inverters
- Inverter Efficiency: 96%
- Certificate: CE TUV
- Warranty: 5 years
- Weight: 10kgs
- Application: Solar Power System Home
- Product name: Off-grid Hybrid Inverter
- Inverter type: Off-grid Power Inverter
- Rated power: 5.5KW
- Color: Green
- Frequency: 50Hz/60Hz
- Efficiency: 96%(Maximum)
- Keyword: Bluesun Solar Inverter
- Output waveform: Prue Sine Wave
Products Description

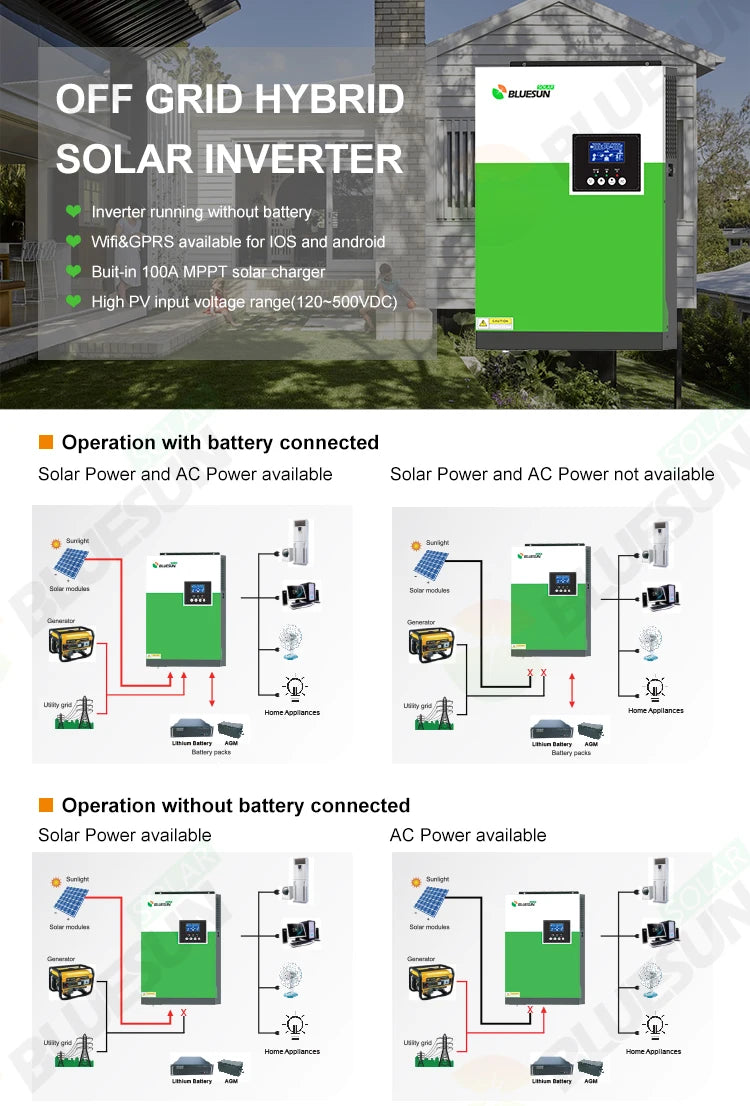

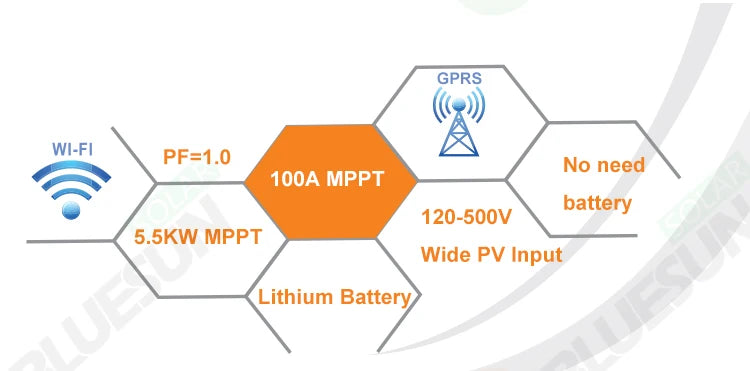

Bluesun 5.5KW Off-Grid Solar Inverter: A hybrid inverter that runs without battery connection, featuring WiFi and GPRS connectivity for iOS and Android devices. It includes a built-in 100A MPPT solar charger with a high PV input voltage range of 120-500VDC. The inverter operates with or without a connected battery, providing both solar power and AC power. Compatible with S4Al systems.
Wireless Wi-Fi enabled, this inverter features a max power point tracking (MPPT) design for wide PV input and supports lithium batteries with voltage ranges from 120-500V.
|
MODEL
|
BSM-3500LV-24
|
BSM-5500LV-48
|
|
Rated Power
|
3500VA/3500W
|
5500VA/5500W
|
|
INPUT
|
||
|
Voltage
|
230VAC
|
|
|
Selectable Voltage Range
|
170-280VAC(for personal computers) 90-280VAC(for home appliances)
|
|
|
Frequency Range
|
50Hz/60Hz (Auto sensing)
|
|
|
OUTPUT
|
||
|
AC Voltage Regulation (Batt.Mode)
|
230VAC±5%
|
|
|
Surge power
|
7000VA
|
11000VA
|
|
Efficiency(Peak) PV to INV
|
97%
|
|
|
Efficiency(Peak) BAT to INV
|
94%
|
|
|
Transfer Time
|
10ms (for personal computers) 20ms (for home appliances)
|
|
|
Wave form
|
Pure Sine Wave
|
|
|
BATTERY & AC CHARGER
|
||
|
Battery Voltage
|
24VDC
|
48VDC
|
|
Floating Charge Voltage
|
27VDC
|
54VDC
|
|
Overcharge Protection
|
33VDC
|
63VDC
|
|
Maximum charge current
|
80A
|
80A
|
|
SOLAR CHARGER
|
||
|
MAX.PV Array Power
|
5000W
|
6000W
|
|
MPPT Range@ Operating Voltage
|
120-450VDC
|
|
|
Maximum PV Array Open Circuit Voltage
|
500VDC
|
|
|
Maximum Charging Current
|
100A
|
|
|
Maximum Efficiency
|
98%
|
|
|
PHYSICAL
|
||
|
Dimension.D*W*H(mm)
|
440*300*100
|
|
|
Net Weight (kgs)
|
11kg
|
12kg
|
|
Communication Interface
|
USB/RS232(Standard) GPRS/WIFI(Optional)
|
|
|
OPERATING ENVIRONMENT
|
||
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
|
|
Operating Temperature Storage
|
0°C to 55°C
|
|
|
Temperature
|
-15°C to 60°C
|
|
|
More details please send inquiry below to us
|
||
Bluesun 5.5KW Off-Grid Solar Inverter, 48V DC input, outputs 220VAC or 230VAC at 50Hz or 60Hz single phase. Best for off-grid solar systems.
