Bluesun 48V Solar Charge Controller Parameters
- Brand Name: Bluesun
- Model Number: BSM 12/24/36/48-MPPT
- Type: MPPT
- Application: Charger Controller, Solar System Controller
- Work Time (h): 8hrs
- Max PV Power: 5680w
- Max PV Voltage: 150V
- Certificate: CE/TUV
- Warranty: 3 Years, 3 Years
- Keywords: mppt solar charge controller
- Rated Voltage: 12V/24V/36V/48V Auto Recognition
- Ambient temp. range: -30℃ to +55℃
- Protection: Over charge/discharge, reverse polarity, short circuit protection
- VOC of solar Max. [V]: ≤48V
- Cooling Method: Casing cooling
- Size: 27*18*8.5cm
- Net Weight: 2.6kg
- Recommended Battery: Seal lead acid AGM/GEL battery

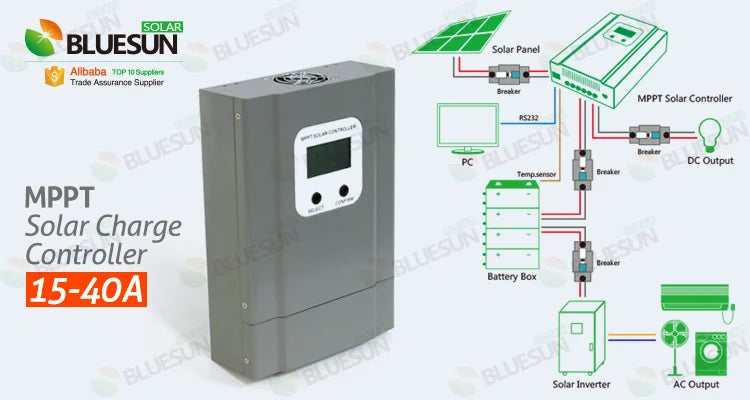

MPPT 15A-40A Details

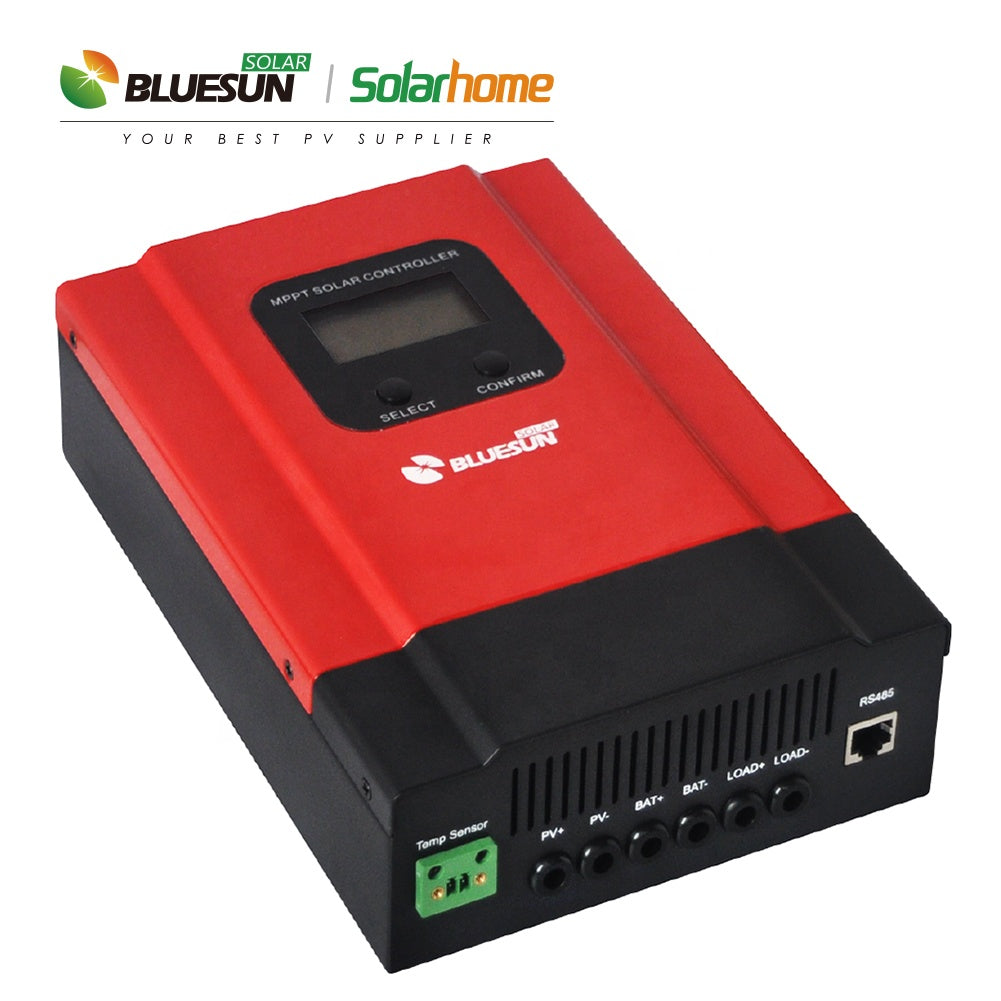

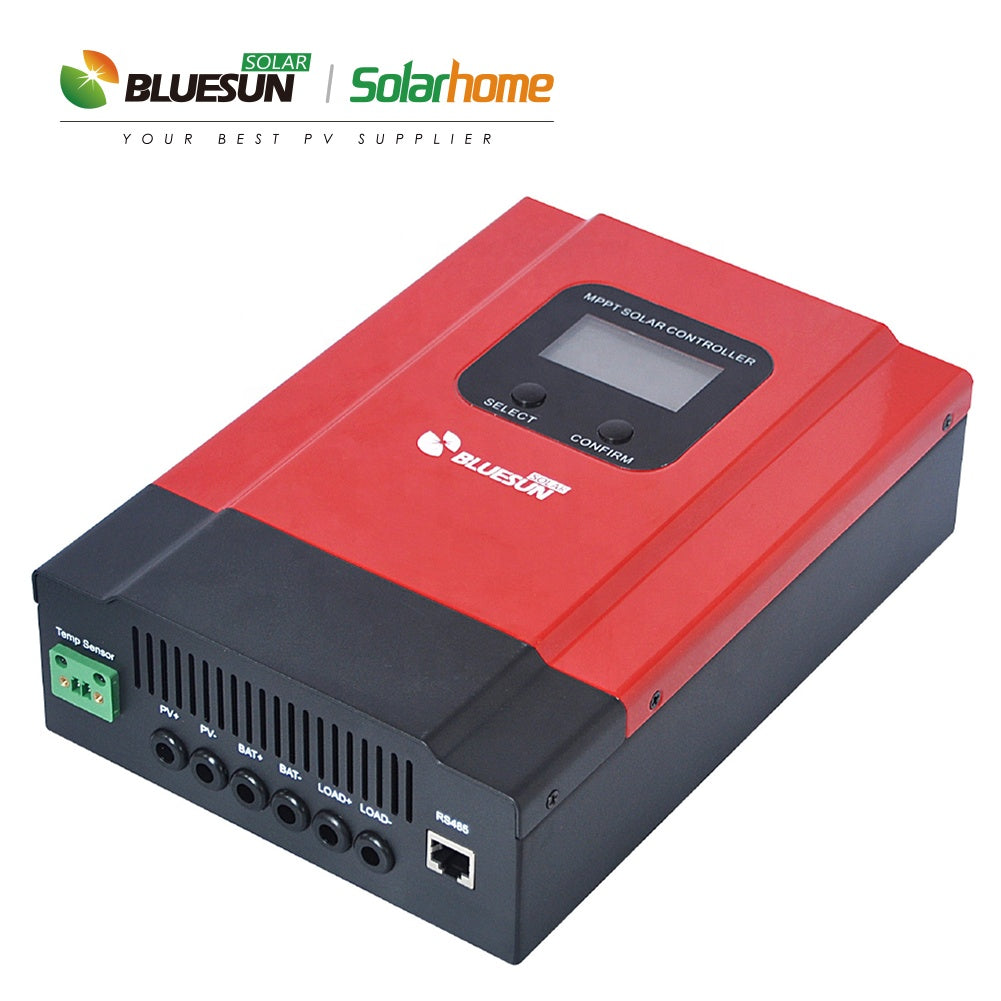

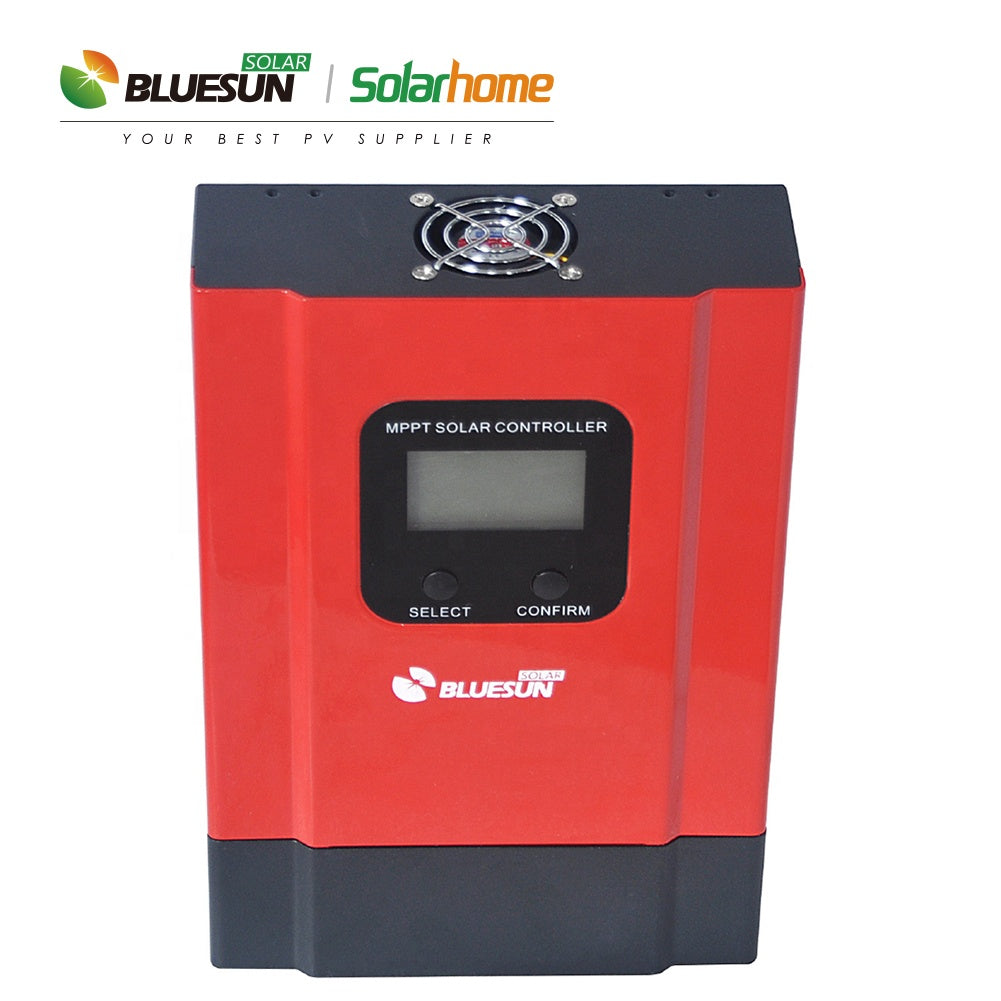

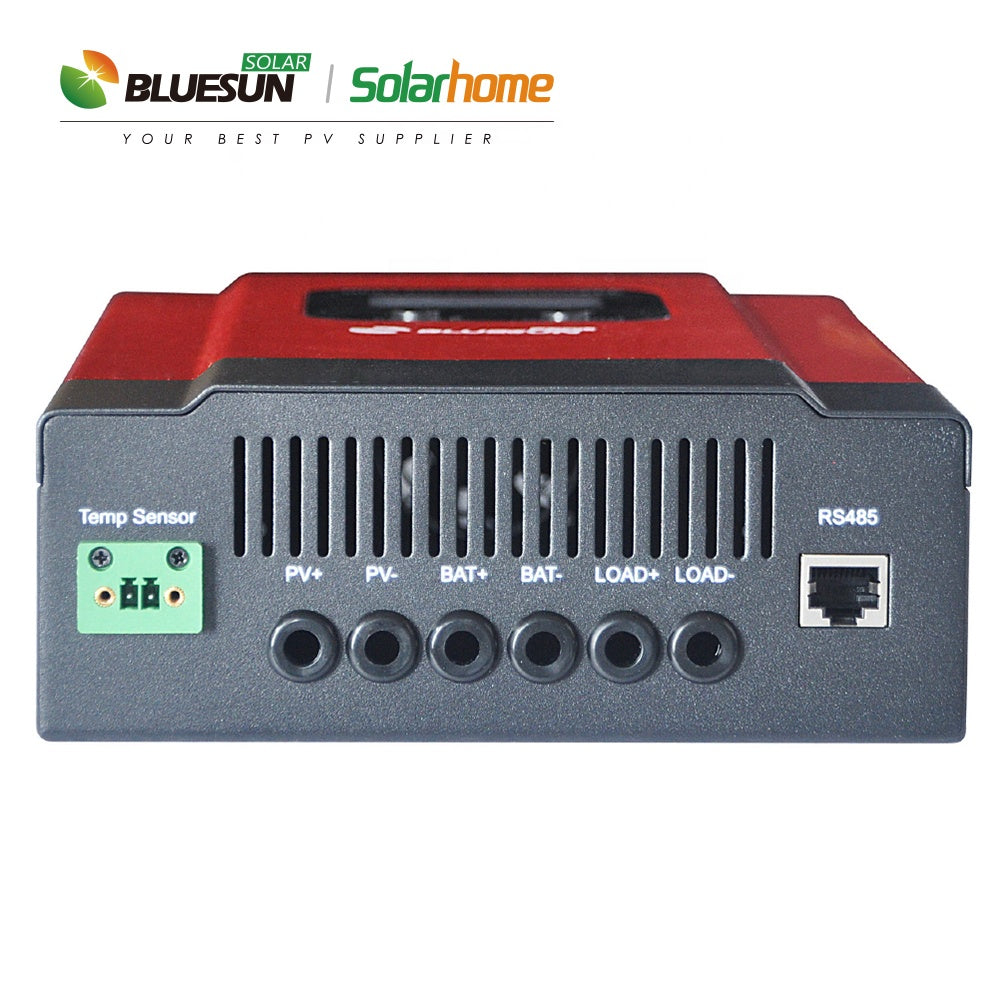

Bluesun 5.6KW Solar Charge Controller features MPPT technology for efficient solar charging. With DC output options up to 60A and adjustable MPPT sensitivity, this controller suits various solar panel systems. It also includes AC output backup and overcharge protection. Perfect for large-scale solar installations.
|
Mppt Controller 12/24/48V;15A 20A 25A 30A/40A Technical date
|
||||||
|
12v/24v/48v
|
15A
|
20A
|
25A
|
30A
|
40A
|
|
|
Charge mode
|
MPPT Max.Power point tracking
|
|||||
|
Charge method
|
Three stages: constant current(MPPT),constant voltage,floating charge
|
|||||
|
System type
|
DC12V/24V/48V
|
Automatic recognition
|
||||
|
|
12V system
|
DC9V~DC15V
|
||||
|
24V system
|
DC18V~DC30V
|
|||||
|
48V system
|
DC36V~DC60V
|
|||||
|
Soft start time
|
12V/24V/48V System
|
≤3S
|
||||
|
Dynamic response recovery range
|
12V/24V/48V system
|
500us
|
||||
|
MPPT efficiency
|
12V/24V/48V system
|
≥96.5%,≤99%
|
||||
|
INPUT CHARACTERISTICS
|
||||||
|
MPPT working
voltage and Range |
12V system
|
DC14V~DC100V
|
||||
|
24V system
|
DC30~DC100V
|
|||||
|
48V system
|
DC60~DC100V
|
|||||
|
Low voltage input
Recovery point |
12V system
|
DC18V
|
||||
|
24V system
|
DC34V
|
|||||
|
48V system
|
DC65V
|
|||||
|
Maximum PV
power |
12V system(W)
|
213
|
284
|
355
|
426
|
568
|
|
24V system(W)
|
426
|
568
|
710
|
852
|
1136
|
|
|
48V system(W)
|
852
|
1136
|
1420
|
1704
|
2272
|
|
|
CHARGE CHRECTRESTICS
|
||||||
|
Selectable Battery Types
(Default type is GEL battery) |
12V/24V/48V system
|
Sealed lead acid, vented, Gel, NiCd battery
(Other types of the batteries also can be defined) |
||||
|
Constant Voltage
|
12V/24V/48V system
|
Please check the charge voltage according to the
battery type form. |
||||
|
Temperature Compensation
|
|
14.2V-(The highest temperature-25℃ )*0.3
|
||||
|
Measurement D x W x H(mm)
|
205*168 *60
|
N.G/W.G(KG)
|
1.8/2.0KG
|
|||
|
Contact me for more detail: solar44(at)bluesunpv.com whatsapp: +86 153 9964 7868
|
||||||
|
Model
|
Voltage
|
Ampere
|
Input voltage
|
Input power
|
Package size(mm)
|
G.W
(Kg)
|
||
|

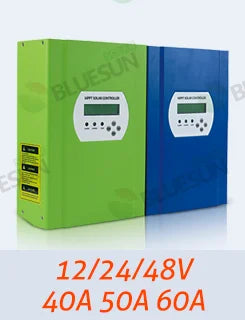

12v
|
24v
|
48v
|
||||||
|
40A
|
12/24/48
automatic
|
40A
|
DC16V~150V
DC30V~150V
DC60V~150V
|
570W
|
1130w
|
2270w
|
|
4KG
|
|
50A
|
50A
|
700W
|
1400w
|
2800w
|
||||
|
60A
|
60A
|
900W
|
1700w
|
3400w
|
||||
|

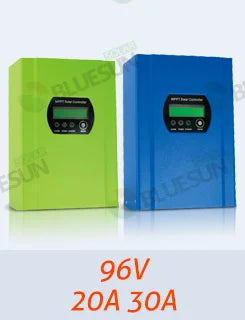

20A
|
96V
|
20A
|
|
2240W for 96V system
|
330*245*150mm
|
4KG
|
||
|
30A
|
30A
|
3400W for 96V system
|
||||||
|

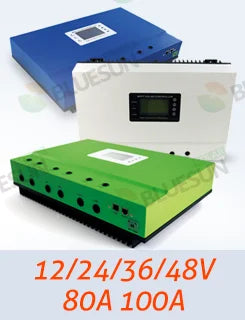

80A
|
12/24/36/48 Automatic
|
80A
|
DC16V~DC150V
DC30V~DC150VDC45V~DC150V DC60V~DC150V |
960W
|
1920W
|
3840W
|
330*245*150mm
|
8KG
|
|
100A
|
100A
|
1200W
|
2400W
|
4800W
|
||||
|
Contact me for more detail: solar44(at)bluesunpv.com whatsapp: +86 153 9964 7868
|
||||||||
Bluesun 5.6KW MPPT solar charge controller offers high-quality control with adjustable current up to 20A, 50A, or 60A for 12V systems.
|
By sea
|
Delivery from Shanghai or Ningbo seaport
|
||
|
By air
|
Departure from Shanghai Pudong Airport
|
||
|
By express
|
By TNT/DHL
|
||
Bluesun's solar charge controller supports various applications worldwide, including 5.6kW in South Africa, California (USA), Sweden, and smaller installations in Madagascar, Netherlands, and more.
