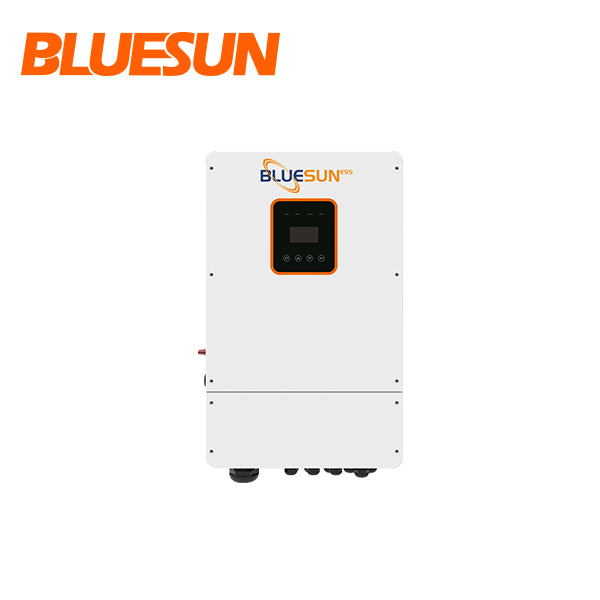

Bluesun 8kw Hybrid Solar Inverter - MPPT 8KW on Grid | Best Solar
Bluesun 8kw Hybrid Solar Inverter - MPPT 8KW on Grid | Best Solar
Regular price
$2,265.00 USD
Regular price
Sale price
$2,265.00 USD
Unit price
per
Shipping calculated at checkout.
7 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
Bluesun 8kw Hybrid Solar Inverter Parameter
- Brand Name: Bluesun
- Model Number: BSM-8K-HY
- Input Voltage: 120/240VAC
- Output Voltage: 120/240VAC
- Output Current: 38.3
- Output Frequency: 50Hz/ 60Hz
- Output Type: DUAL
- Size: 530x 660 x 200mm
- Type: DC/AC Inverters
- Inverter Efficiency: 95%
- Certificate: UL
- Warranty: 5Years, 5 Years
- Weight: 32kg
- Product name: MPPT Hybrid Solar Inverter
- Application: Solar Power System Home
- Battery type: Lead Acid \ Lithium
- Display: LCD
- Battery Voltage: 48 VDC
- Inverter type: Hybrid Grid Inverter
- Color: White
- Protection: Overload
- Communication: WIFI / RS485
Bluesun 8kw Hybrid Solar Inverter Details
Four advantages of Bluesun inverters
1.Flexible Wide input voltage range. Compatible with lead-acid or lithium-ion batteries or other battery
2.Reliable Compatible anti counter ow function. Battery reverse connect protection.
3.Grace Fashion apperance, light weight, smart operation.Natural cooling, low noise. IP65 , wall mounted design, saving space.
Touch screen LCD.
4.Advanced Intelligent energy management system for home.Power dispatching and demand side response management. Distributed virtual power station management.

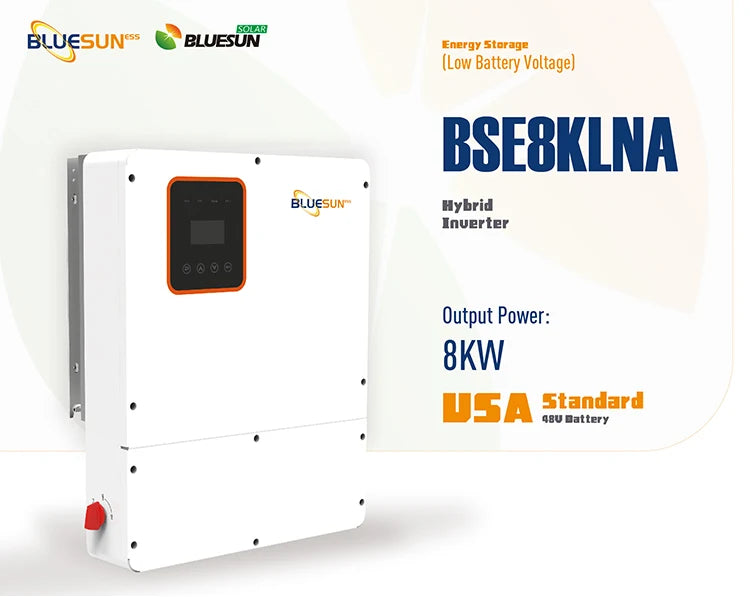

Technical Specifications
|
Model
|
BSE8KLNA
|
|
|
Efficiency
|
Max Efficiency
|
>=98.2%
|
|
CEC Efficiency
|
>=97.2%
|
|
|
On Grid
AC Output
|
Rate AC Output Power
|
8KVA
|
|
AC Output Voltage
|
120/240Vac(split phase), 208Vac(2/3 phase),230Vac(single phase)
|
|
|
AC Output Frenquecny
|
50/60HZ
|
|
|
Grid Type
|
Split phase、2/3 phase、Single Phase
|
|
|
Max Output Current
|
38.3A
|
|
|
AC Reverse Charging
|
Yes
|
|
|
PF
|
0.8leading.. .0.8lagging
|
|
|
Output TH DI
|
< 2%
|
|
|
Back-up
AC Output
|
Rated Backup Output Power
|
8KVA
|
|
Max Backup Output Power
|
10kVA 60S. 12KVA 1S
|
|
|
Backup AC Output Voltage
|
120/240Vac(split phase), 208Vac(2/3 phase),230Vac(single phase)
|
|
|
AC Frenquency
|
50/60HZ
|
|
|
Output TH DI
|
<2%
|
|
|
PV Input
|
PV input power
|
12KW
|
|
MPPT number
|
4
|
|
|
PV voltage range
|
350V/85V - 500V
|
|
|
MPPT voltage range
|
120V-500V
|
|
|
Single MPPT input current
|
12A
|
|
|
Battery
|
Max charging/discharging current
|
190A/190A
|
|
Battery Voltage range
|
48V
|
|
|
Battery Type
|
Lithium-ion,Lead-acid
|
|
|
Protection
|
Ground protection
|
Yes
|
|
AFCI protection
|
Yes
|
|
|
Islanding protection
|
Yes
|
|
|
DC disconnect detection
|
Yes
|
|
|
Battery Fteverse protection
|
Yes
|
|
|
Battery charge and discharge protection
|
Yes
|
|
|
Insulation testing
|
Yes
|
|
|
GFCI
|
Yes
|
|
|
DC anti-thunder
|
Yes
|
|
|
AC anti-thunder
|
Yes
|
|
|
Input overvoltage&under-voltage protections
|
Yes
|
|
|
Output overvoltage&under-voltage protections
|
Yes
|
|
|
AC&DC over-current protection
|
Yes
|
|
|
AC short-circuit current protection
|
Yes
|
|
|
Overheating protection
|
Yes
|
|
|
General Data
|
Operation Temperature range
|
-25~ +60°C
|
|
Environment humidity
|
0-95%
|
|
|
Altitude
|
0-4000M (over 2000M derating)
|
|
|
IP rank
|
IP65/NEMA 3R
|
|
|
Weight
|
32kg
|
|
|
Dimension(W*H*D) (mm)
|
530* 660 *200
|
|
|
Cooling
|
Fan Cooling
|
|
|
Noise(dB)
|
<29dB
|
|
|
Display
|
LCD
|
|
|
Communication
|
Modbus, RS485, WIFI,4G
|
|
|
Safty
|
EN61000-6-1, EN61000-6-3, FCC 15 class B
|
|
|
More details please send inquiry below to us
|
||

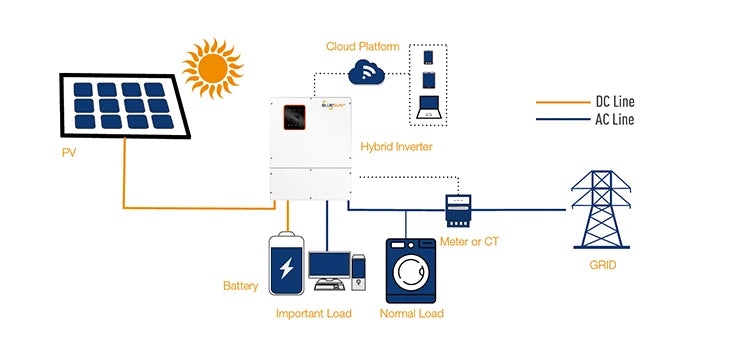

Applications

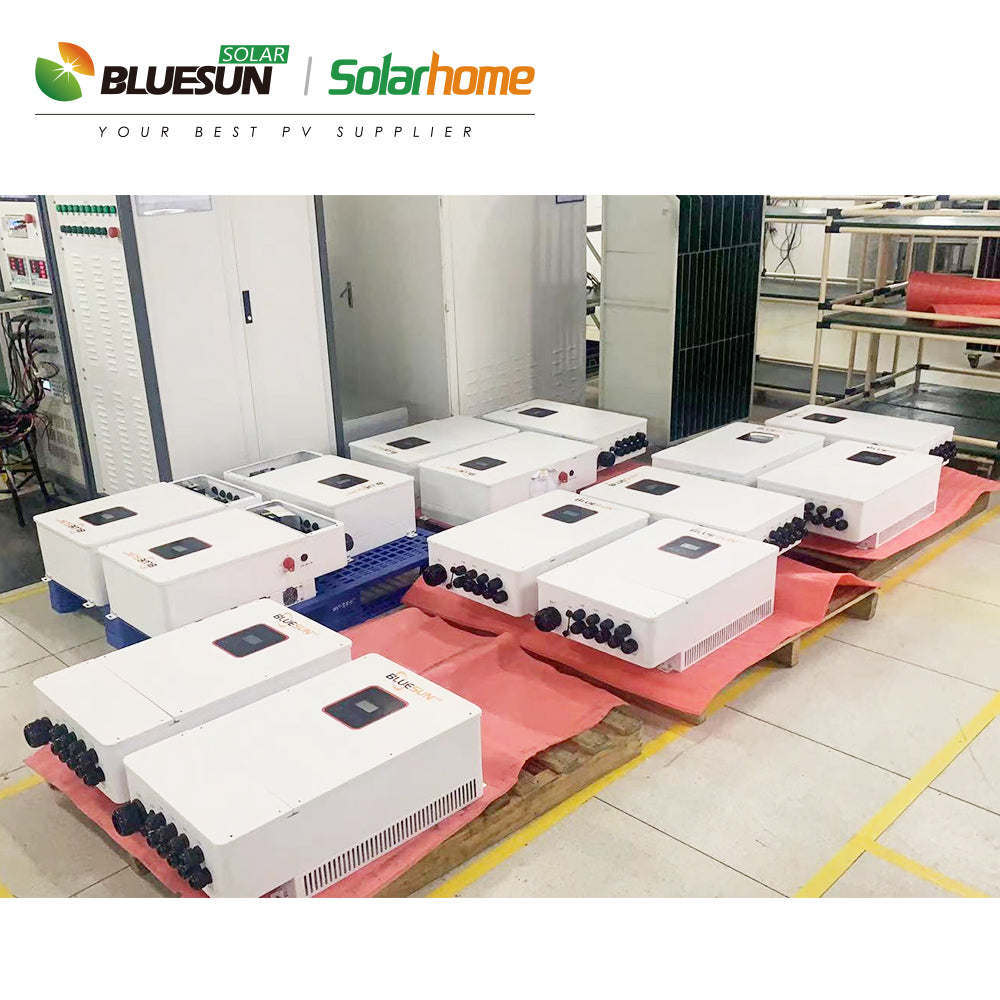

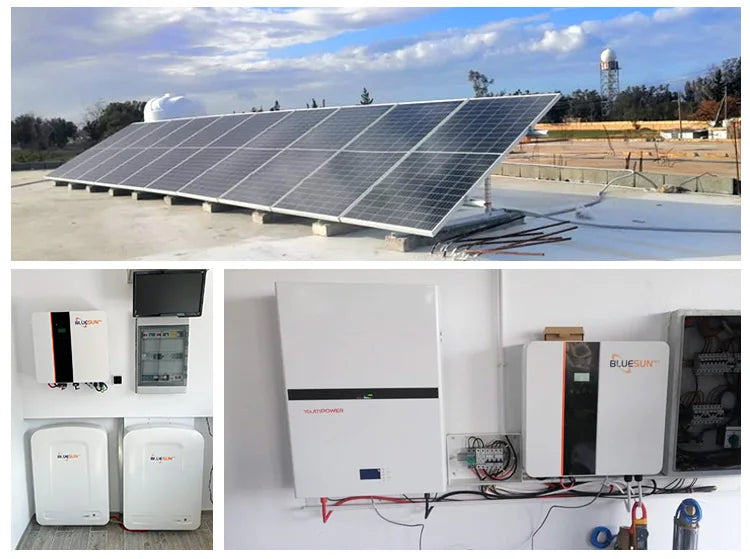

Bluesun Projects

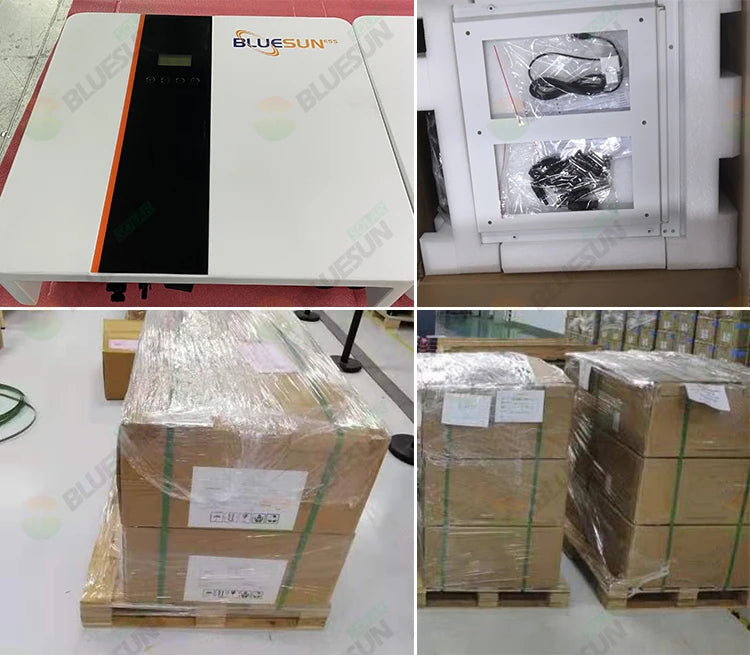

Product Packaging
Certifications
