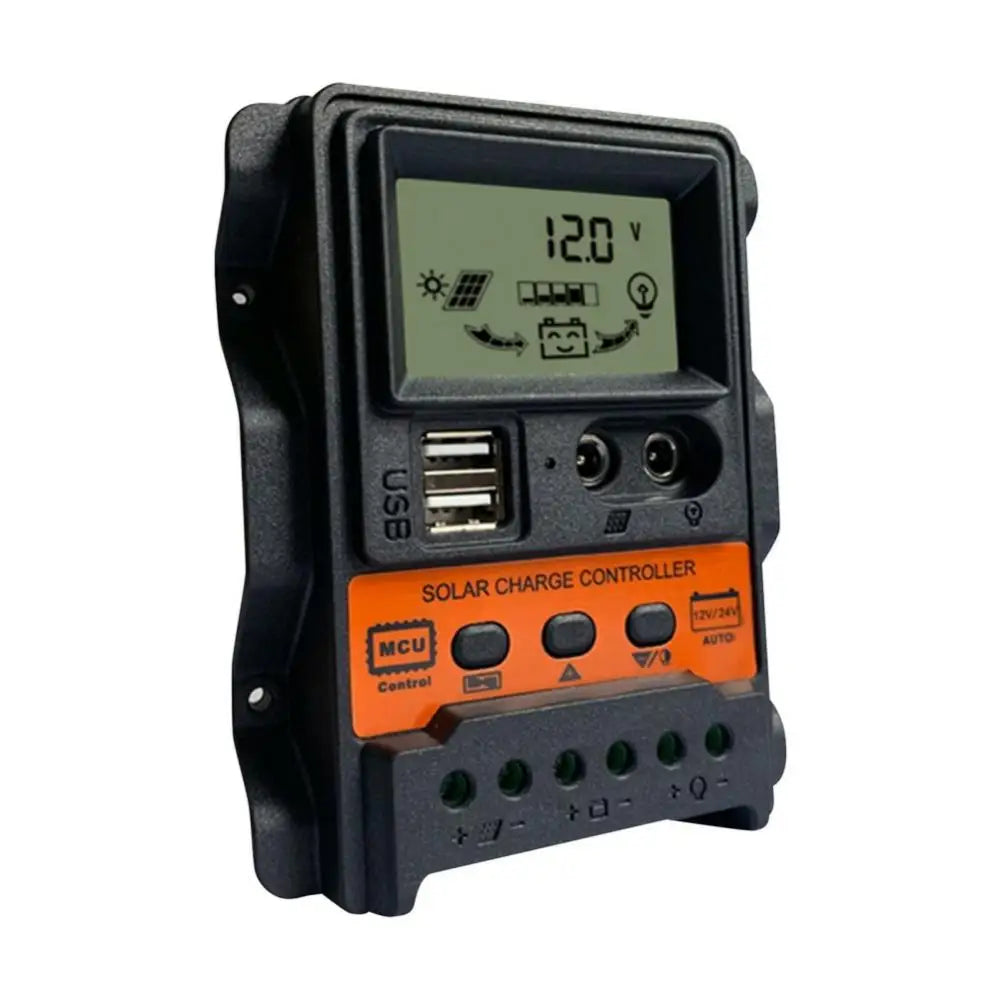

CORUI Auto Solar Charge Controller 10A 20A 30A 12V 24V PWM Controller LCD Display Dual USB 5V Output Solar Panel Charger Regulat

Description:

-Industrial-grade master chip, sampling accuracy, temperature, charging current, Discharge current accurate real-time display, power generation at a glance.

- Automatic focusing ，tracking charging, high charging efficiency, non-stop detection

During charging, bidirectional focusing tracking.

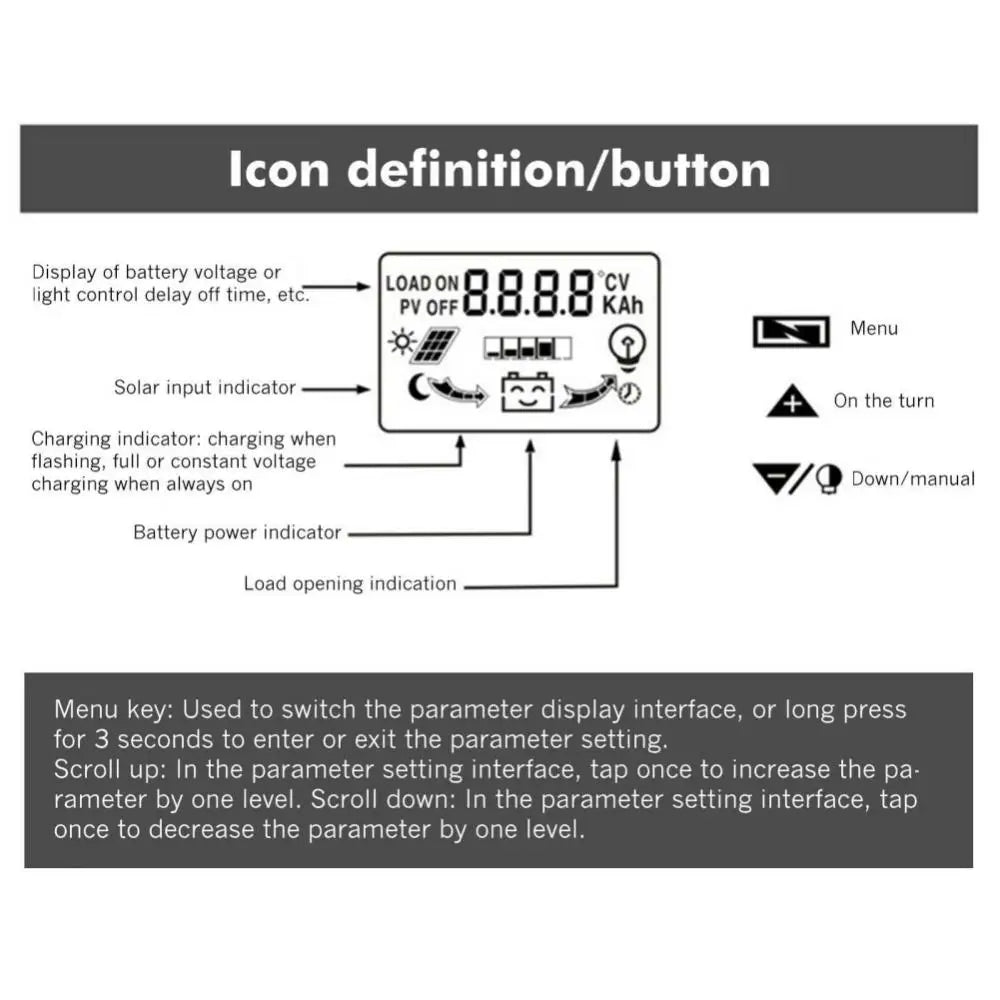

-Large-screen LCD display, adjustable charging and discharging parameters. When the output is off, the time.Can be adjusted, which is more convenient.

-Acomplete three-phase charge management, effectively protect the battery, the battery is more Durable.

-Built-in overheating, overcurrent short circuit, open circuit protection, reverse connection.Protection,when the fault is eliminated, the controller automatically recovers, does not damage.

Specifications:

Size:4.9x3.9x1.1in（12.5x10x3cm）

USB output: 5V/2.5A

Standby current: <10mA

Rated Voltage:12V/24V

Rated Current:20A

Max.PV Voltage:50V

Max.PV Input Power:260W(12V)520W(24V)

Rated charging current: 10A/20A/30A

Rated discharge current: 10A/20A/30A

Working temperature: -35 to 60 degrees

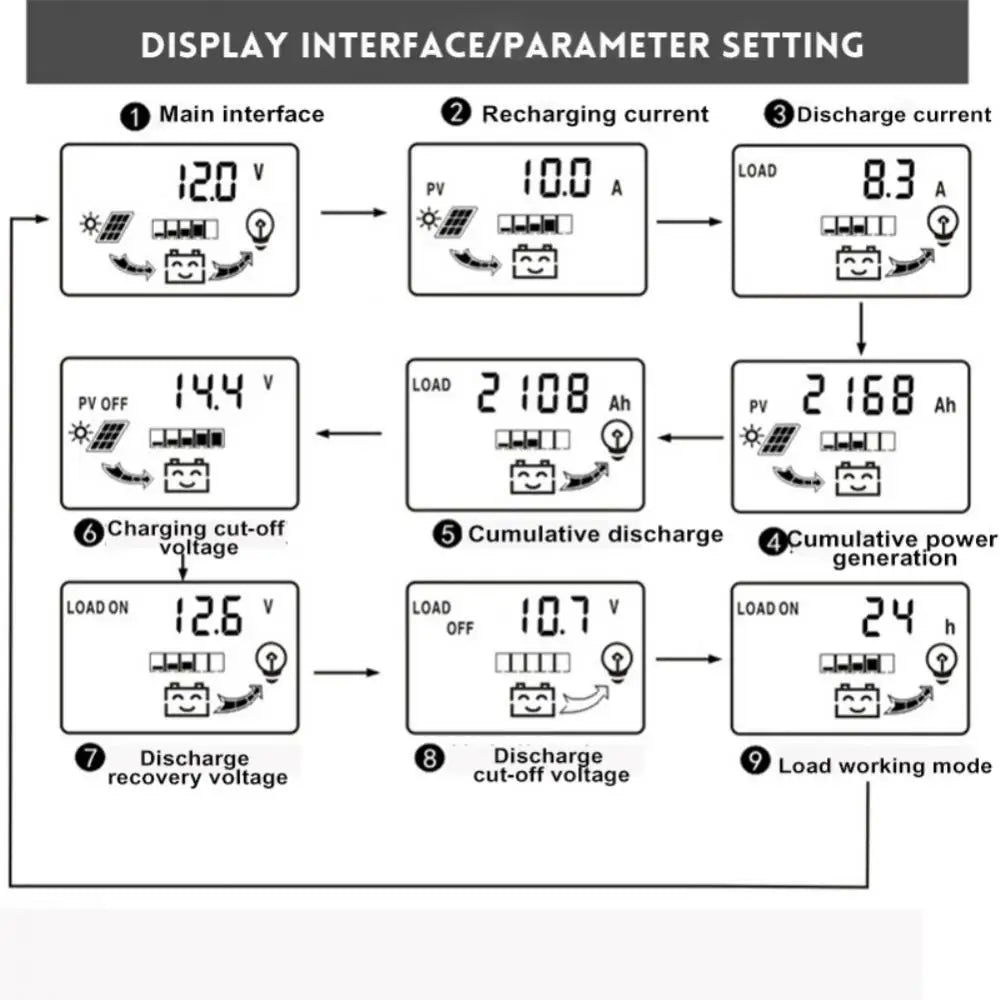

Ncrease charging voltage: 14.4V (sealed type)

Floating charge voltage: 13.7V (default, adjustable)

Discharge cut-off voltage: 10.7V (default, adjustable)

Discharge recovery voltage: 12.6V (default, adjustable)

Package Included:

1 x Solar Panel Battery Regulator Charge Controller

1 X User Manual

Notes:

Note:

1. Please allow 1-3cm error due to manual measurement. Please make sure you do not mind before you bid.

2. The colors may have different as the difference display, please understand.

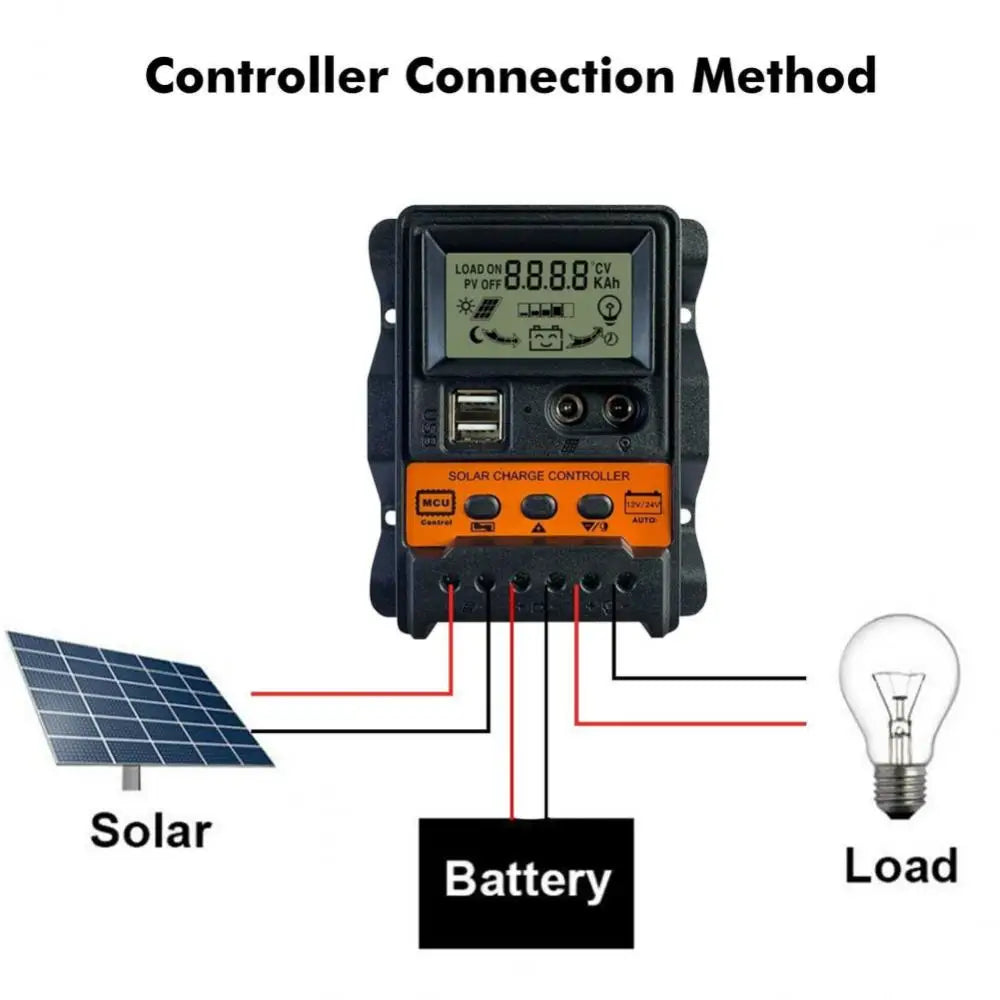

Connect to solar panels, batteries, or loads via Ohms (CV) or PV output modes using this controller's easy-to-use interface.

Auto Solar Charge Controller for 12V/24V Systems with MCU, featuring load and charge management, off-grid mode, and LCD display.

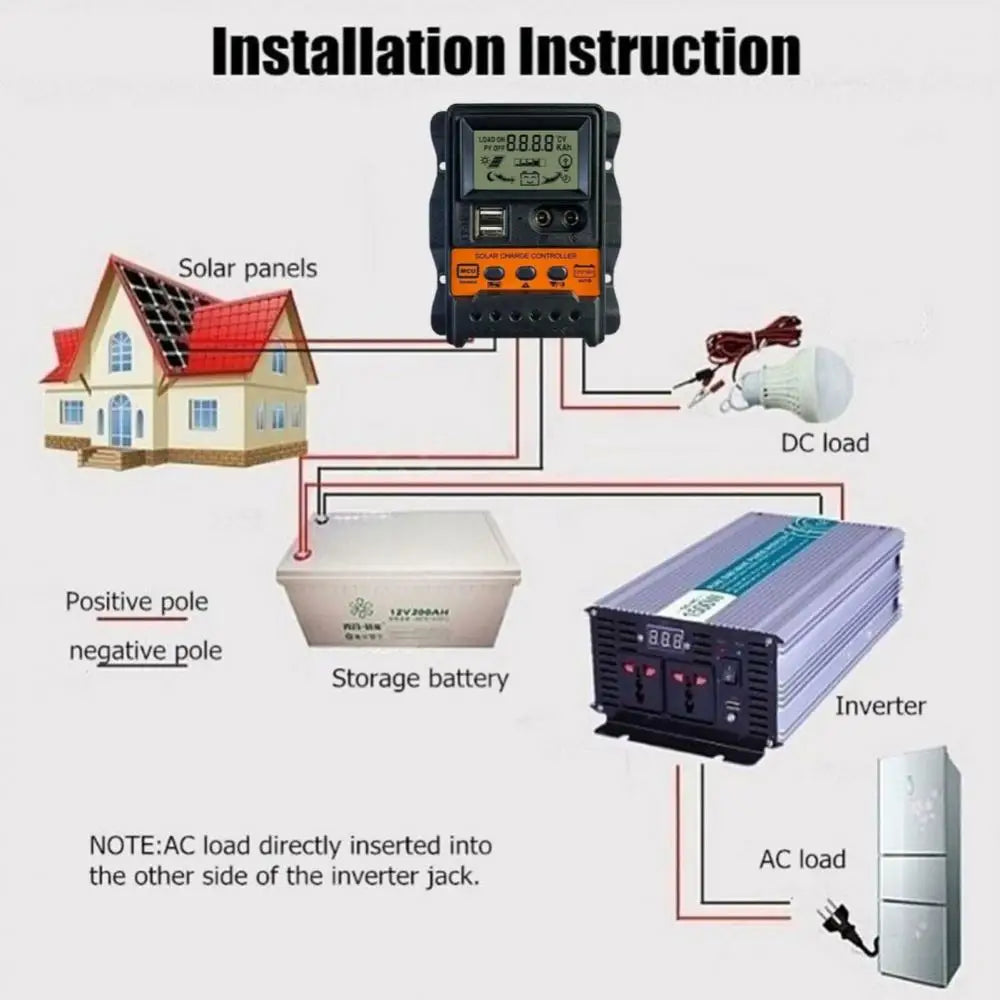

Install the CORUI charger near your solar panels. Connect the positive terminal to the load (DC) and negative terminal to the storage battery or inverter. For AC loads, connect them to the inverter's AC output.

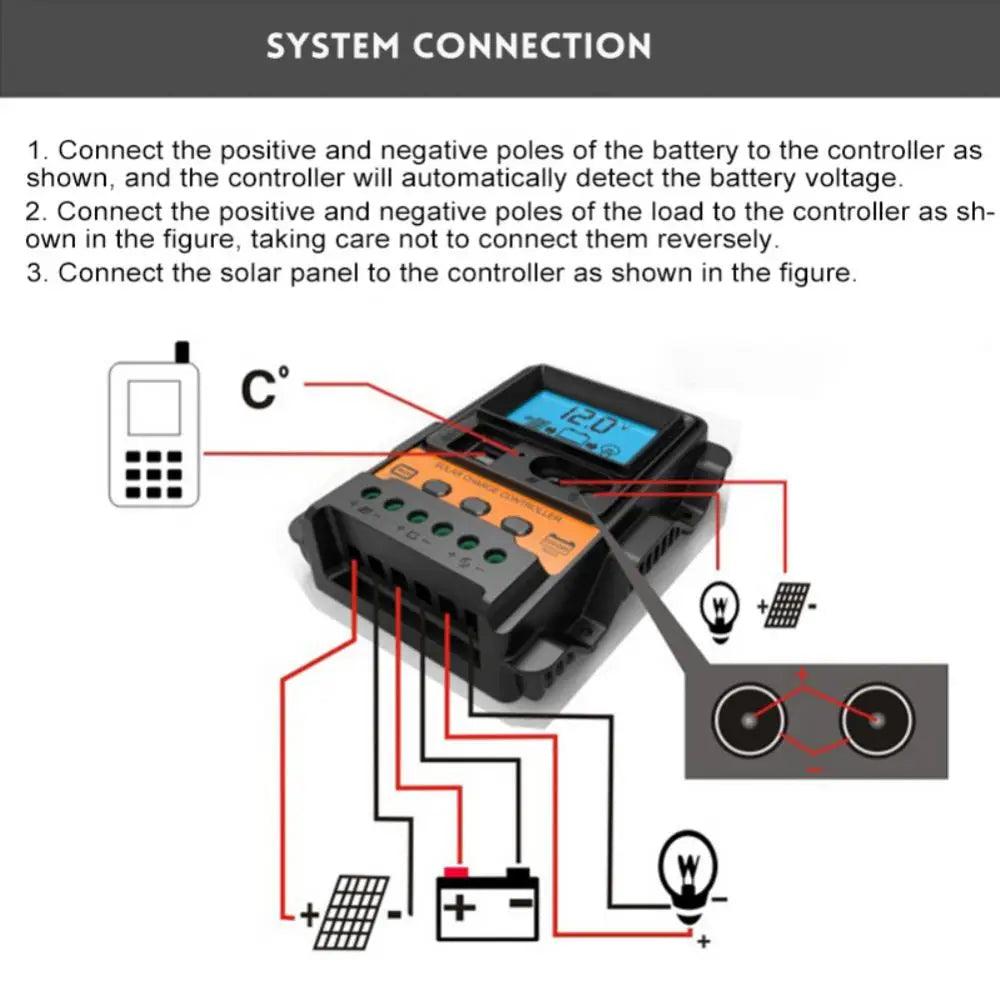

Connect the battery's positive and negative terminals to the controller. Then, link the load's terminals to the controller, ensuring correct polarity. Finally, connect the solar panel to the controller according to the diagram. The controller will automatically detect voltage and regulate power.

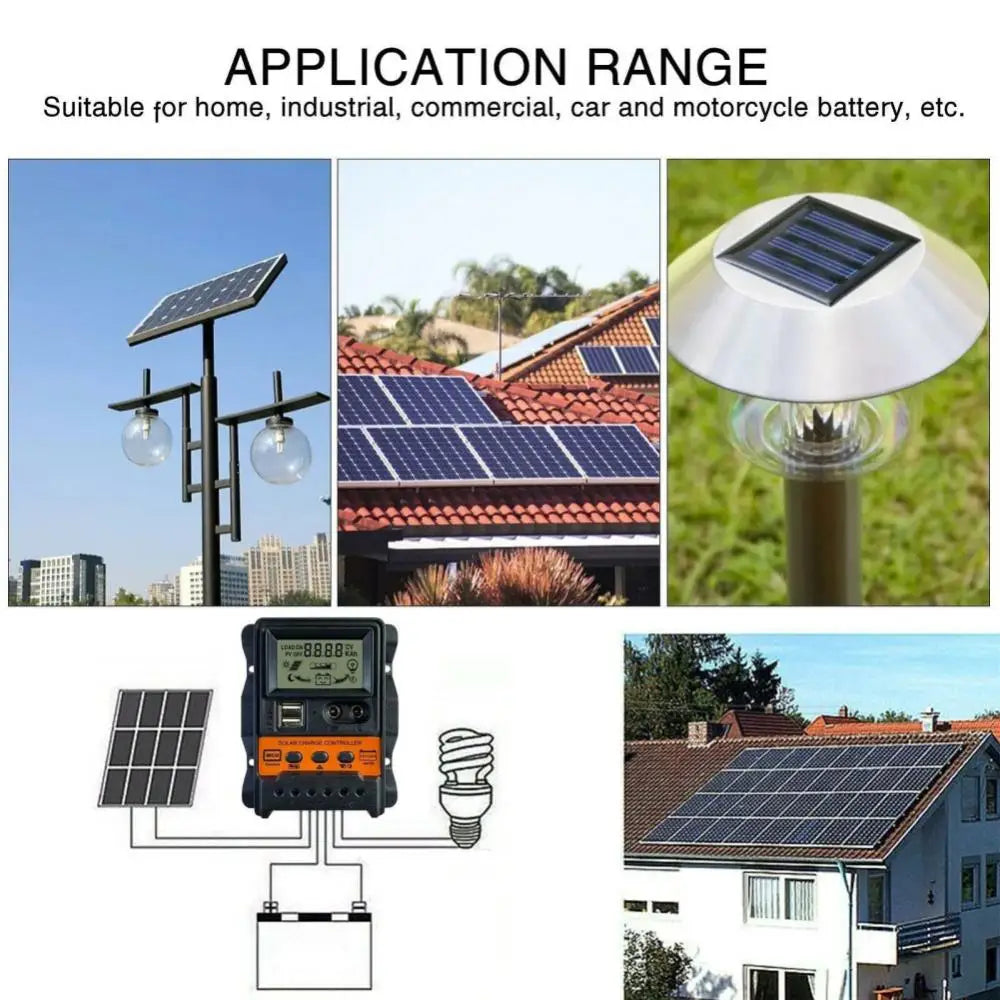

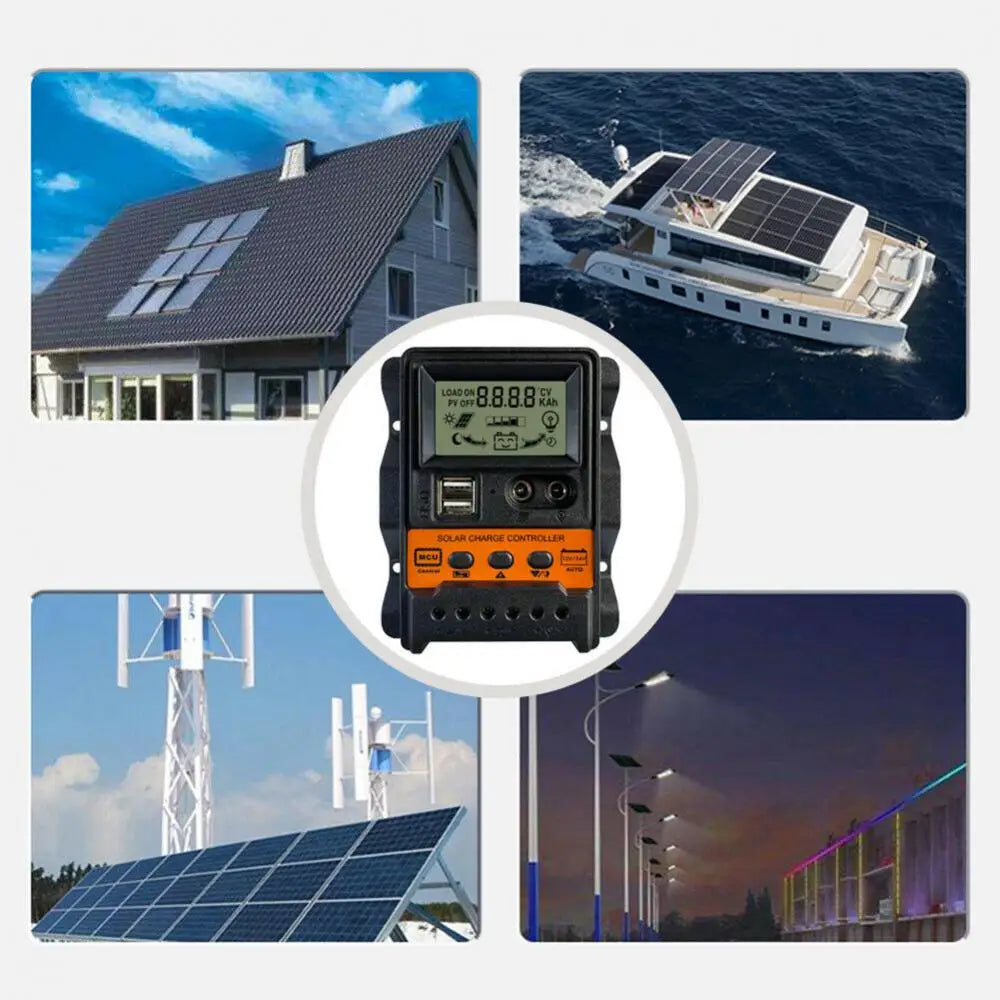

Suitable for various applications, including homes, industries, businesses, vehicles, and motorcycles, this controller regulates solar power charging for batteries.

12V/24V solar charge controller with dual USB outputs and LCD display, suitable for charging small appliances or devices.

Corui Auto Solar Charge Controller: A PWM controller with LCD display, dual USB 5V output, and solar panel charger regulation for 12V or 24V systems. Supports charge current up to 30A.

Auto Solar Charge Controller with MCU, regulating solar power input for 12V or 24V systems.
