DAXTROMN 3.6KW 6.2KW Hybrid Solar Inverter 48V 220V 80A MPPT Solar Controller 90-450V Grid Tie Inverter With Wifi Grid Feedback
DAXTROMN 3.6KW 6.2KW Hybrid Solar Inverter 48V 220V 80A MPPT Solar Controller 90-450V Grid Tie Inverter With Wifi Grid Feedback
77 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Weight: 3.6KW 11kg 6.2KW 13kg
Solar inverter Type: Hybrid Solar inverter
Size: 420*310*120mm
Output Voltage Waveform: Pure sine Wave
Output Voltage: 220VAC-240VAC
Output Type: single
Output Power: 1 - 200KW
Output Frequency: 50Hz/60Hz(Auto sensing)
Output Current: 120A
Origin: Mainland China
Model Number: AGH-3.6KW AGH-6.2KW
Maximum PV Array Power: AGH-3.6KW 3600W,AGH-6.2KW 6200W
MPPT Solar charger: 120A
Is Smart Device: YES
Communication Interface: RS232/WIFI/BMS
Certification: CE
Brand Name: daxtromn
Battery voltage: 24VDC/48VDC
3.6KW 6200W Hybrid Solar Inverter 48V 220V 80A MPPT Charge Controller 90-450V Grid Tie&Off Grid Inverter With Wifi Grid Feedback
Feature Of Hybrid Solar Inverter
1.Pure Sine Wave Solar Inverter
2.Max 120A MPPT Solar Charger
3.Max 450VDC PV Input
4.High PV input voltage range(120~450VDC)
5.Output power factor1.0
6.Real Hybrid Grid Solar inverter for 48V system
7.Wifi Module for easily connection
8.Efficiency work with or without battery
9.Bundled monitoring & setting software
10.Supports 50hz or 60hz (program adjustable)
11.Able to use ac grid or generator power
12.Built-in anti-dusk kit for harsh environment
13.Optional DC output for DC fan, LED bulb,router and so on
Specification Of 3.6KW 6200W Hybrid Solar Inverter
Model |
AGH-3.6KW |
AGH-6.2KW |
PHASE |
1-phase |
|
MAXIMUM PV INPUT POWER |
6200W |
|
RATED OUTPUT POWER |
3600W |
6200W |
MAXIMUM CHARGING POWER |
6200W |
|
GRID-TIE OPERATION | ||
PV INPUT(DC) | ||
Nominal DC Voltage/Maximum DC Voltage |
360VDC/500VDC |
|
Start-up Voltage/Initial Feeding Voltage |
120VDC |
|
MPPT Voltage Range |
90VDC~450VDC |
|
Number of MPPT Trackers/Maximum Input Current |
1/27A |
|
GRID OUTPUT(AC) | ||
Nominal Output Voltage |
220/230/240VAC |
|
Output Voltage Range |
195.5~253VAC |
|
Nominal Output Current |
15.7A |
26.1A |
Power Factor |
>0.9 |
|
EFFICIENCY | ||
Maximum Conversion Efficiency(DC/AC) |
97% |
|
OFF-GRID OPERATION | ||
AC INPUT | ||
AC Start-up Voltage/Auto Restart Voltage |
120-140VAC/180VAC |
|
Acceptable Input Voltage Range |
90-280VAC or 170-280VAC |
|
Maximum AC Input Current |
30A |
40A |
PV INPUT(DC) | ||
Maximum DC Voltage |
500VDC |
|
MPPT Voltage Range |
90VDC~450VDC |
|
Number of MPPT Trackers/Maximum Input Current |
1/27A |
|
BATTERY MODE OUTPUT(AC) | ||
Nominal Output Voltage |
24VDC |
48VDC |
Output Waveform |
Pure sine wave |
|
Efficiency(DC to AC) |
94% |
|
HYBRID OPERATION | ||
PV INPUT(DC) | ||
Maximum DC Voltage |
360VDC/500VDC |
|
Start-up Voltage/Initial Feeding Voltage |
120VDC |
|
MPPT Voltage Range |
90VDC~450VDC |
|
Number of MPPT Trackers/Maximum Input Current |
1/27A |
|
GRID OUTPUT(AC) | ||
Nominal Output Voltage |
220/230/240VAC |
|
Output Voltage Range |
195.5~253VAC |
|
Nominal Output Current |
15.7A |
26.1A |
AC INPUT | ||
AC Start-up Voltage/Auto Restart Voltage |
120~140VAC/180VAC |
|
Acceptable Input Voltage Range |
90~280VAC or 170~280VAC |
|
Maximum AC Input Current |
30A |
40A |
BATTERY MODE OUTPUT(AC) | ||
Nominal Output Voltage |
220/230/240VAC |
|
Efficiency(DC to AC) |
94% |
|
BATTERY & CHARGER | ||
Nominal DC Voltage |
24VDC |
48VDC |
Maximum Solar Charging Current |
120A |
|
Maximum AC Charging Current |
80A |
|
Maximum Charging Current |
120A |
|
GENERAL | ||
PHYSICAL | ||
Dimension, D*W*H(mm) |
420*310*120 |
|
Net Weight(KGS) |
11 |
13 |
INTERFACE | ||
Communication Port |
WIFI |
|
ENVIRONMENT | ||
Operating Temperature |
0℃~90℃ |
|
Storage Temperature |
-10℃~50℃ |
|

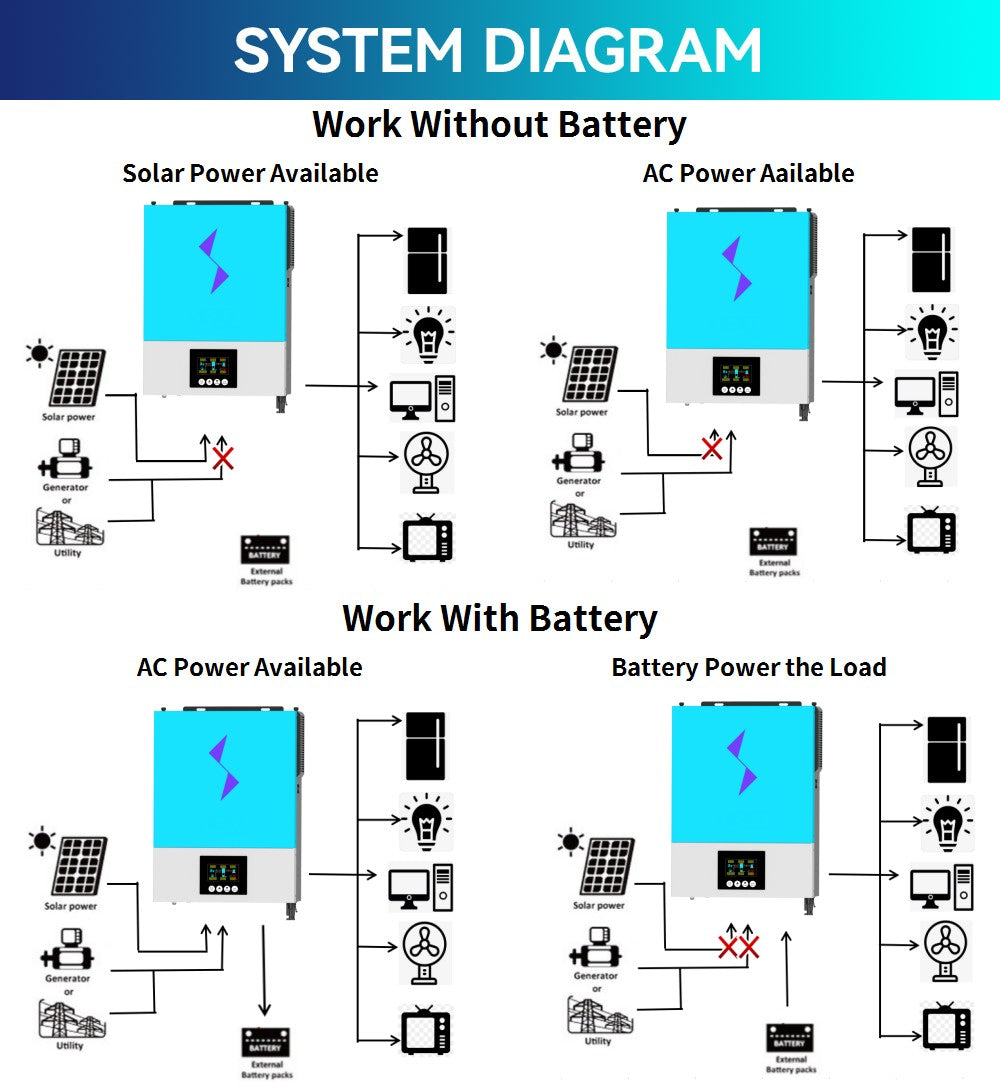

The system diagram shows two operating modes: (1) standalone solar power with AC power available when sunlight is present; and (2) battery-assisted mode where the inverter works with a stored battery to provide power when solar input is unavailable.

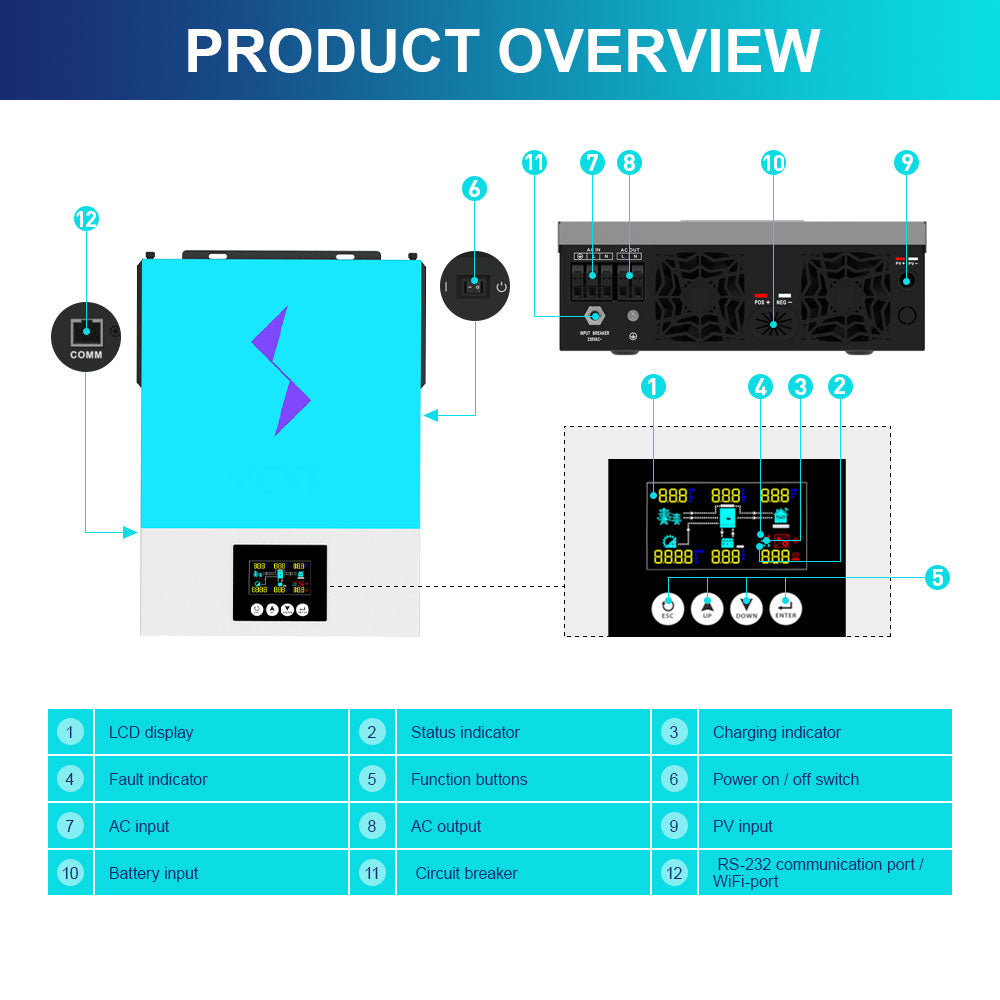

Product Overview: The DAXTROMN hybrid solar inverter features an LCD display with status indicators for charging, faults, and power on/off. Function buttons control various settings, while a power switch, circuit breaker, and communication ports (RS-232 and WiFi) facilitate connectivity and monitoring.
Indicators on this hybrid solar inverter display various statuses: * Solid green: Grid power is present and output is powered. * Flashing green: Battery or PV power is powering the output, indicating battery charging. * Red flashing: Fault occurs with the inverter. * Green flashing: Warning condition exists. To navigate settings, use the following keys: * ESC to exit setting mode * UP to move to previous selection * DOWN to move to next selection * ENTER to confirm selections or enter setting mode

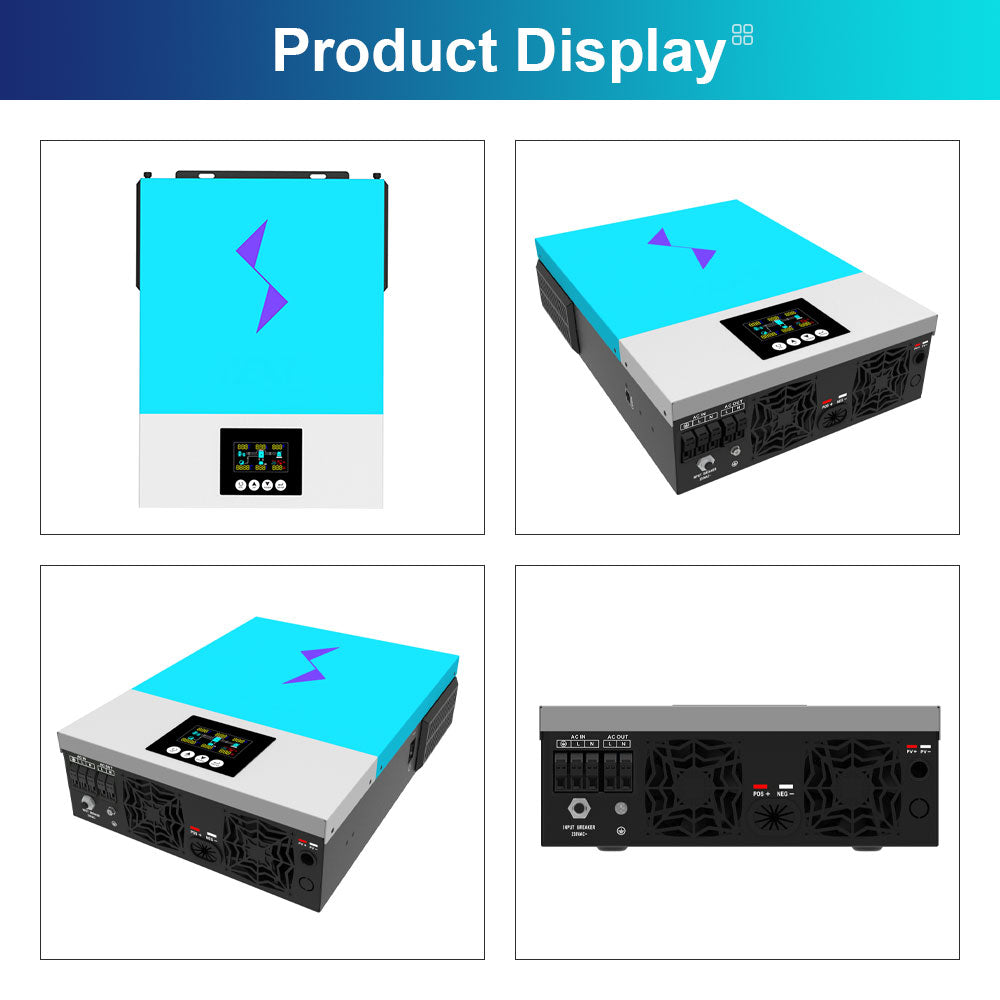

Product display shows LED indicator lights on/off and charge status (0-100%) at a glance.

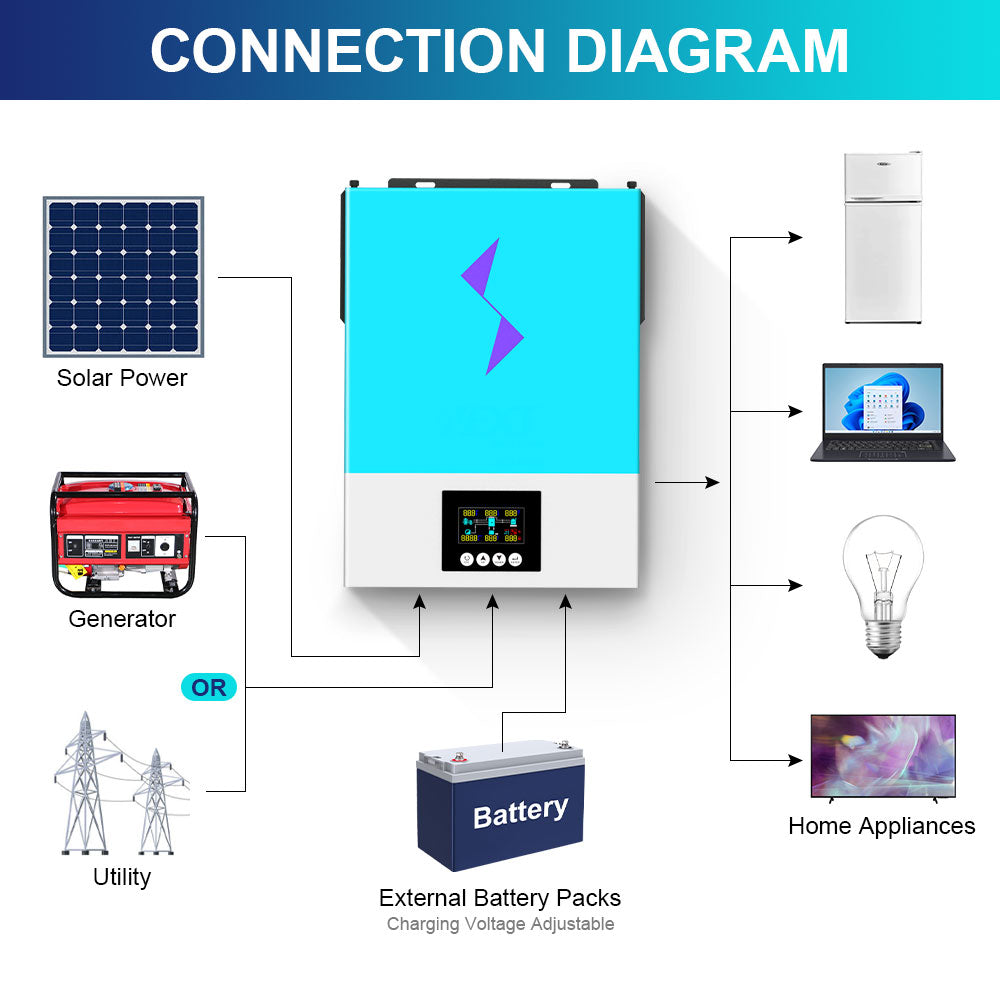

Connect solar power systems to generators, home appliances, or external battery packs and charge at adjustable voltages.
This solar inverter follows an output source priority sequence: 1. When utility power is available, it provides power to connected loads first. 2. If utility power is unavailable or insufficient, solar energy takes over as primary power source. 3. If solar energy is also insufficient, battery power is used for connected loads, except for sub-loads that require higher priority. 4. Utility power only kicks in when battery voltage drops below a certain level. To configure this sequence, you can adjust settings to prioritize solar or utility power.
