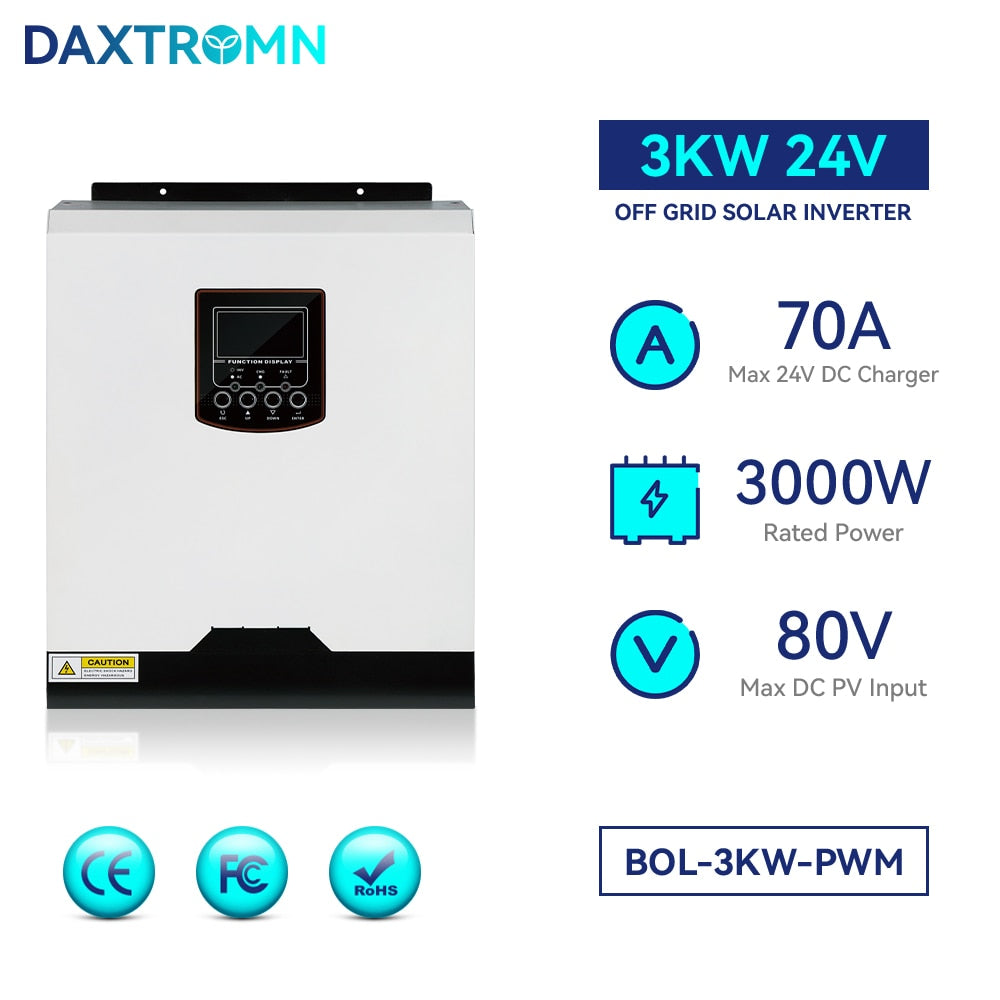

Daxtromn 3000W Solar Inverter 24V 220V PV 80VDC Pure Sine Inverter 70A Solar Charge Controller PWM 3KW Off Grid Hybrid Inverter
Daxtromn 3000W Solar Inverter 24V 220V PV 80VDC Pure Sine Inverter 70A Solar Charge Controller PWM 3KW Off Grid Hybrid Inverter
14 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Weight: 7kg
Solar inverter Type: Off Grid Solar inverter
Size: 100*272*385mm
RATED POWER: 3000VA/3000W
Parallel Capacity: No
Output Voltage Waveform: Pure sine Wave
Output Voltage: 220VAC-240VAC
Output Type: single
Output Power: 1 - 200KW
Output Frequency: 50Hz/60Hz(Auto sensing)
Output Current: 70A
Origin: Mainland China
Model Number: BOL-3KW-PWM
Max PV Input: 80VDC
Is Smart Device: YES
Certification: CE
Brand Name: daxtromn
Battery voltage: 24VDC
Feature Of 3000W Off Grid Solar Inverter
1.Pure Sine Wave Max 3000W Output
2.Max 70A PWM Solar Charger
3.Max 80VDC PV Input
4.Off Grid Solar inverter for 24V system
5.Efficiency work with battery
6.Bundled monitoring & setting software
7.Supports 50hz or 60hz (program adjustable)
8.Able to use ac grid or generator power
9.Timer setting for AC charging & output now available
10.Built-in anti-dusk kit for harsh environment
11.Optional DC output for DC fan, LED bulb,router and so on
Note: This 3KW Off Grid Solar Inverter must work with external battery
Question & Answer
Q:Whats the Rated output power ?
A:It is 3000W
Q:Whats the max charge currency for battery ?
A:It is 70A for 24V
Q:Whats the MAX DC PV Input?
A:Its 80VDC
Q:Do it can work without External Battery ?
A:No
Q:How many volts of external battery use ?
A:24V
Q:Do it feed the power to grid?
A:No,it is off grid solar inverter
Specification Of Off Grid Solar inverter 3KW
Model No. |
BOL-3KW-PWM |
|
Rated power |
3000VA/3000W |
|
Parallel Capacity |
No |
|
Input |
voltage 230VAC |
|
selectable voltage range |
170-280VAC (for personal computers) 90-280VAC (for home appliances) |
|
Frequency range |
50Hz/60Hz (auto sensing) |
|
Output |
AC voltage regulation (Batt.mode) |
230VAC±5% |
Surge power (5 seconds） |
6000VA |
|
efficiency (peak) |
93% |
|
transfer time |
10ms(for personal computers); 20ms (for home appliances) |
|
waveform |
pure sine wave |
|
Battery& AC |
battery voltage |
24VDC |
floating charge voltage |
27VDC |
|
overcharge protection |
31VDC/ 33VDC |
|
Max. AC charge curren |
25A |
|
MAX PV array power |
1200W |
|
Maximum PV array open circuit voltage |
80VDC |
|
Max.Solar charge current |
50A |
|
Max. Total charge current |
70A |
|
maximum efficiency |
98% |
|
standby power consumpsion |
2W |
|
Physical |
Dimension, D*W*H(mm) |
100*272*385 |
Net weight (kgs) |
7KG |
|
operating Environment |
humidity |
5%-95% relative humidity ( non-condensing) |
operating temperature |
0℃ -55℃ |
|
storage temperature |
-15℃ -60℃ |
|

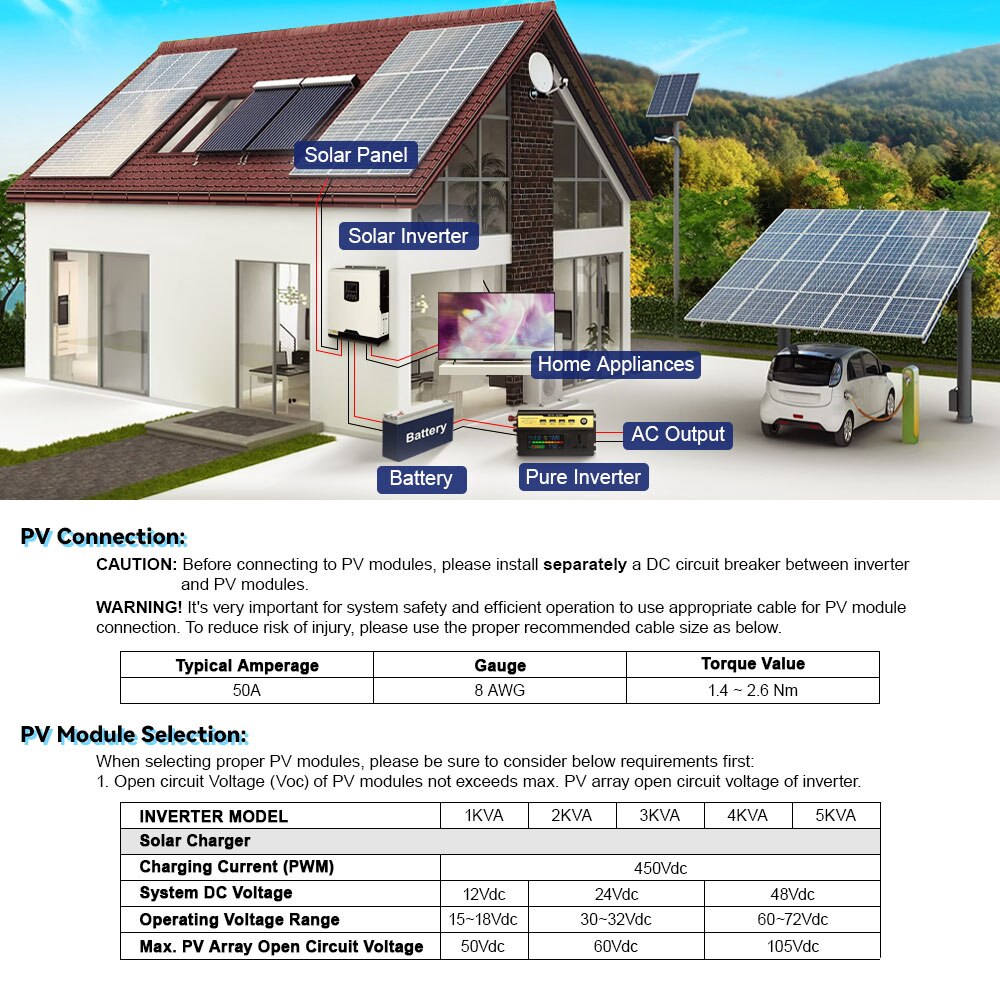

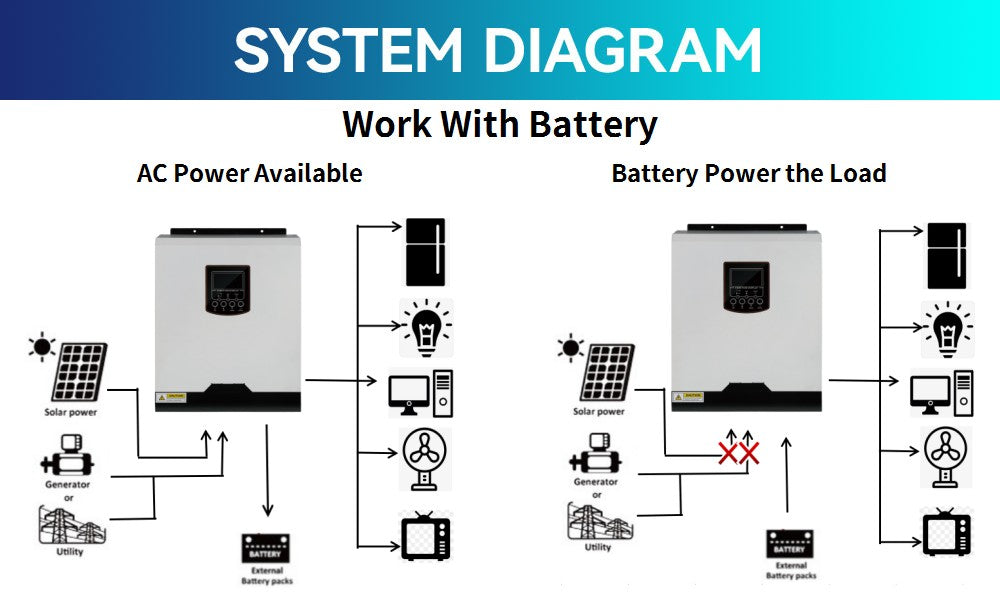

System Diagram: Works with battery and AC power available. Charges load using solar power or generator.

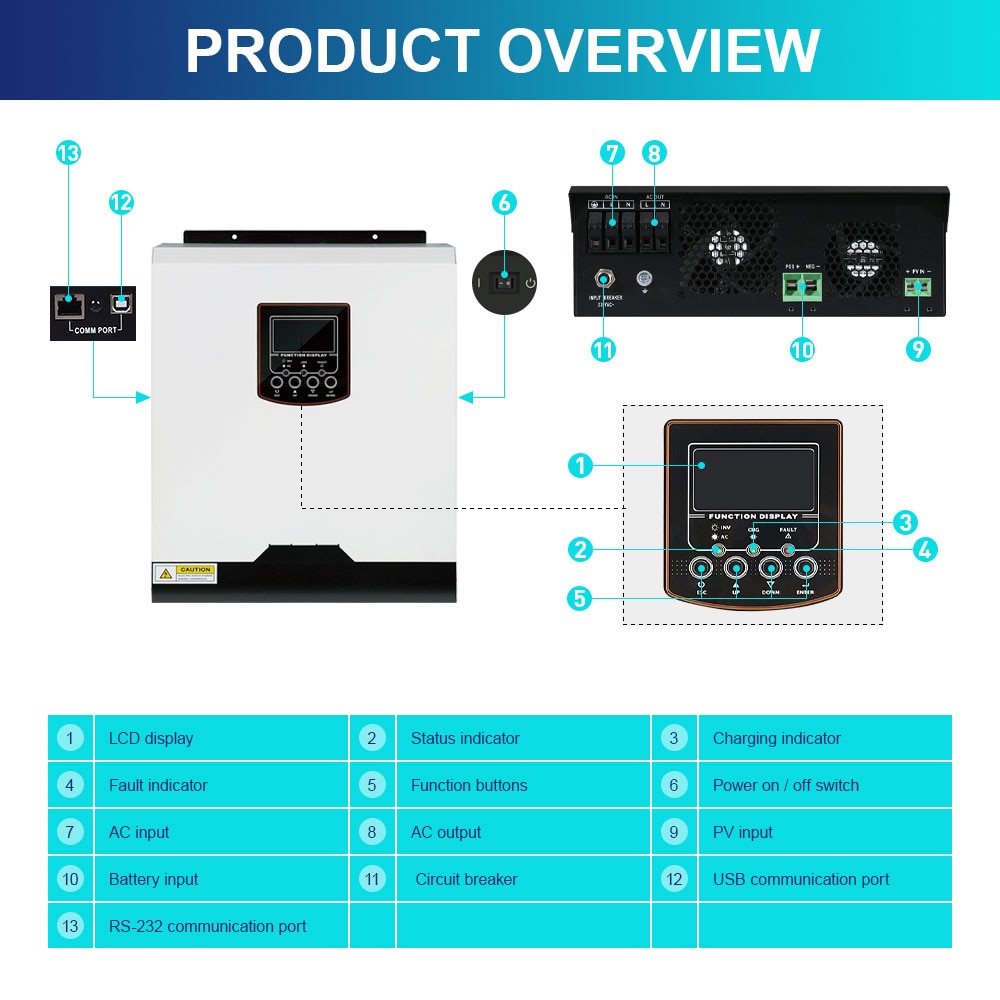

Product Overview: The Daxtromn 3000W Solar Inverter features an LCD display with status indicators for charging, faults, and functions. It also includes power on/off, AC input/output, PV input, battery input, circuit breaker, USB, and RS-232 communication ports.
Simplify your off-grid hybrid inverter experience with LED indicators that provide real-time status updates. The indicator flashes green when the output is powered by solar energy or battery, and turns solid red for fault or warning conditions. Use the function keys to navigate settings: press ESC to exit, UP to go back, DOWN to move forward, and ENTER to confirm or enter setting mode.

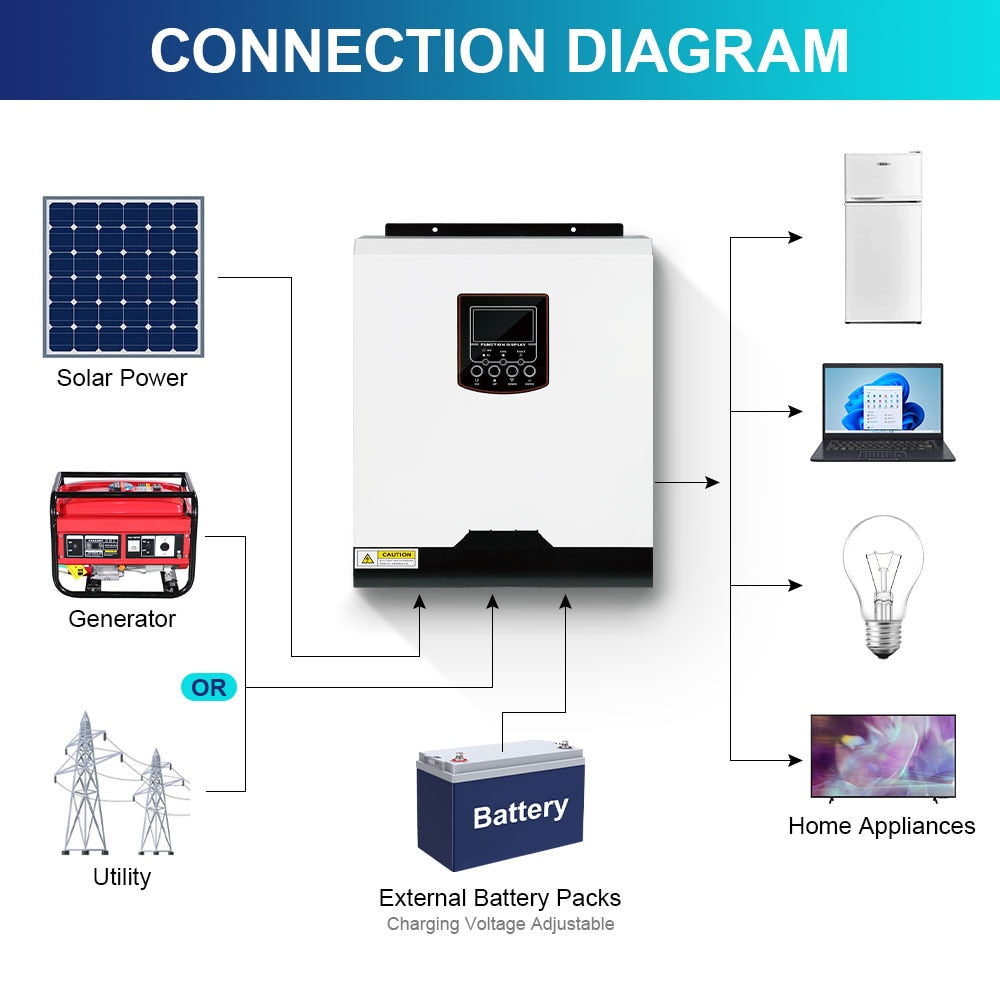

Connect solar power systems to generators, home appliances, or utility grids. Adjustable charging voltage for external battery packs.

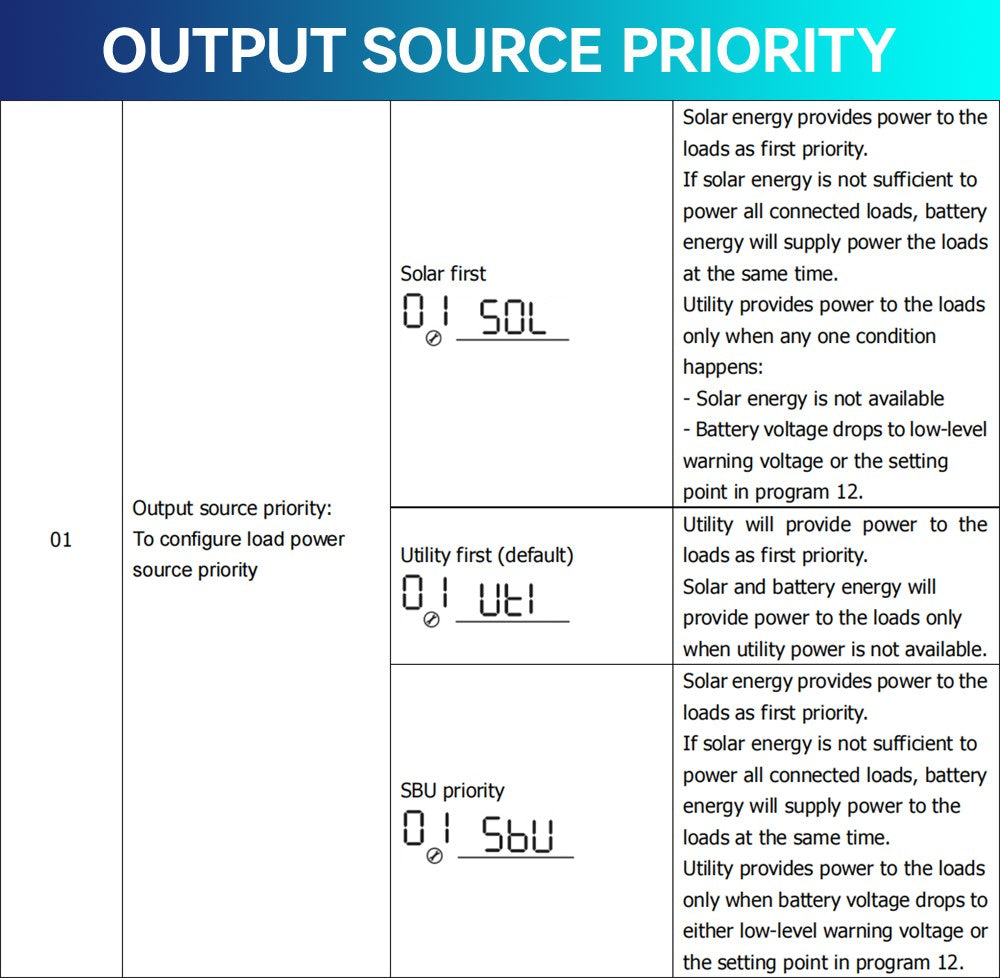

This solar inverter prioritizes solar energy as the primary power source. If solar energy is not sufficient, it will draw power from the battery. However, if both solar and battery energy are depleted, utility power will be utilized only when the battery voltage drops to a low level or reaches a predetermined setting point. By default, the output priority is set to 'Utility First', allowing you to configure the load power accordingly.
