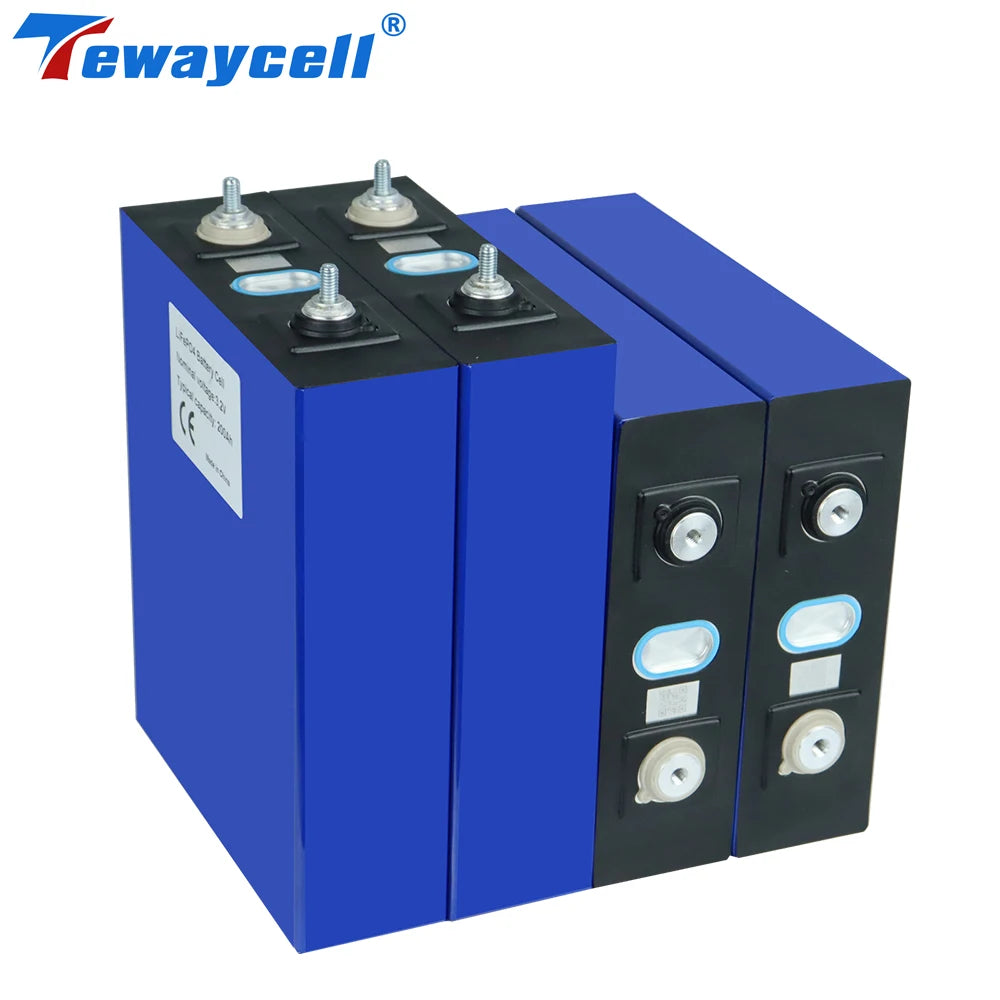

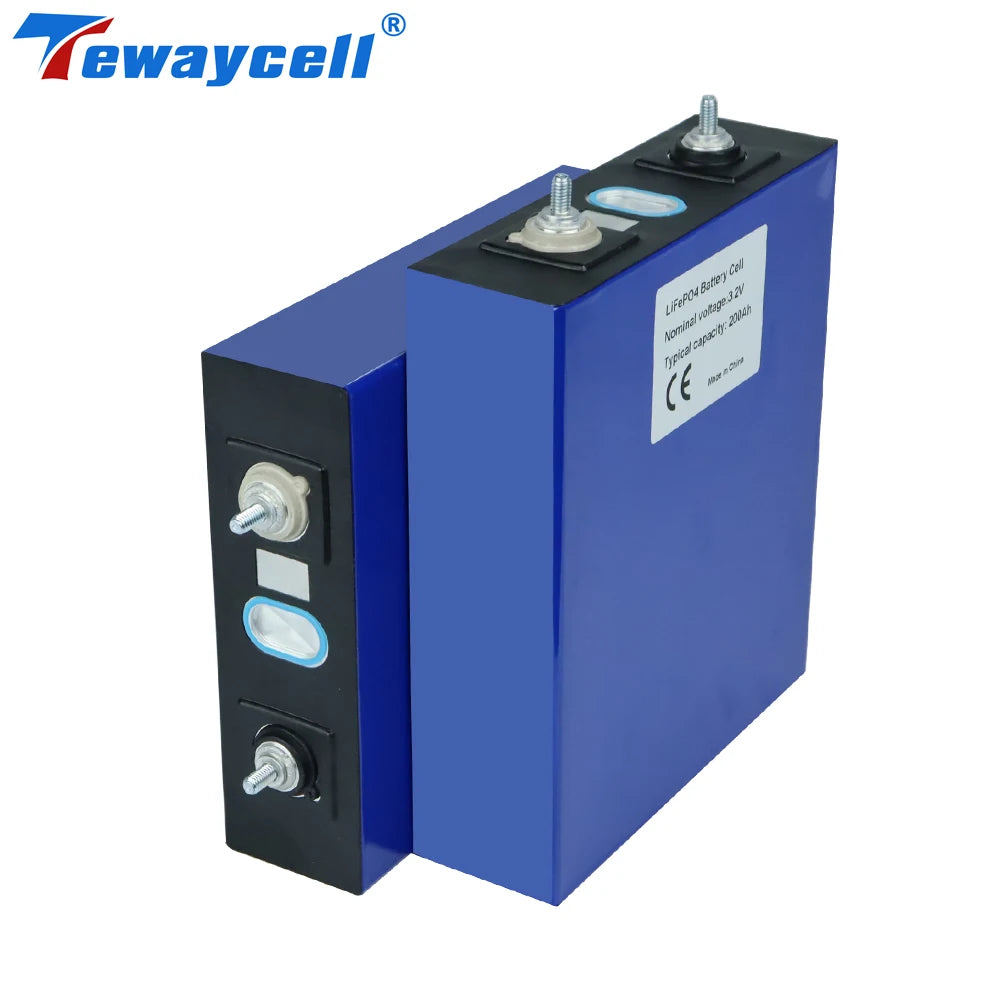

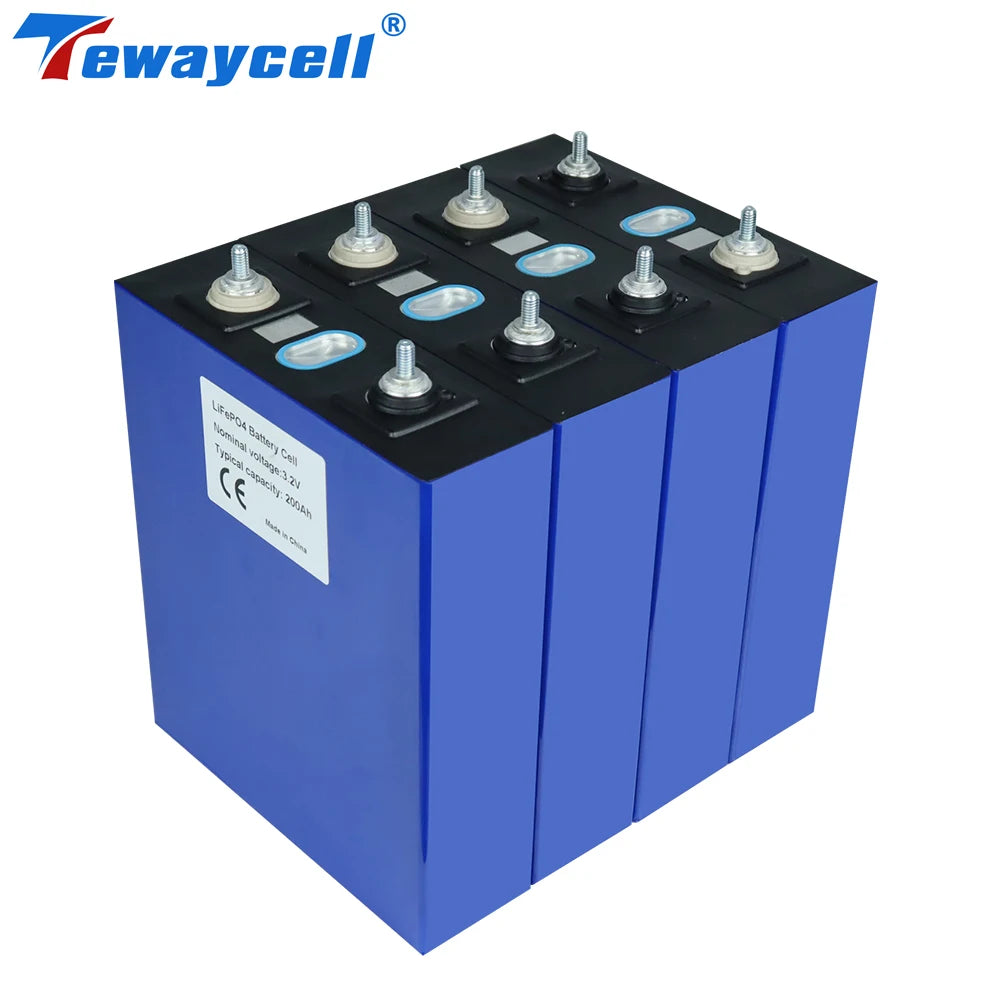

DE Stock 3.2V 200Ah Lifepo4 Rechargable Battery Grade A Lithium Iron Phosphate RV PV Solar Power 3-7 Days Delivery EU Tax Free
DE Stock 3.2V 200Ah Lifepo4 Rechargable Battery Grade A Lithium Iron Phosphate RV PV Solar Power 3-7 Days Delivery EU Tax Free
9 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
Type: Lifepo4
Size: 173*55*200mm
Set Type: Batteries Only
Origin: Mainland China
Operating: -20~60℃
Nominal Capacity: 200AH
Model Number: LFP-3.2V-200AH
Internal impedance: 0.1 ~ 0.3mΩ
Delivery time: Within 7 days of payment
Charging voltage: 3.65V
Certification: CE
Brand Name: Tewaycell
Battery Number: 32
Note:
This product is sold exclusively to EU US, including all freight and customs duties. You do not need to pay VAT, and this VAT will not appear in your bill after you receive the package.
1.This item is 3.2V lifepo4 200Ah item,the QR code is intact,Grade A,Brand new.
2.We will conduct safety tests, cycle life tests and balance voltage and internal resistance on all batteries.
Voltage:The deviation less than 0.01V
Resistance:The deviation less than 0.1mΩ
3.The price come with Bus bars and Bolts，One Battery will come with one set bus bar and M6 bolt（e.g.,If buy 4pcs battery,we will send 4pcs cells with 4 sets busbars and bolts）If need more please contact us online.Thank you!
The interface of galvanic battery is M6, but we will connect the screw head for the customer.
Product Parameter
Product name: lithium iron phosphate cell（3.2V 176AH LIFEPO4)
Typical capacity: 200Ah（25±2℃,fresh cell, 0.5C discharge）
Minimum capacity: 200Ah（25±2℃,fresh cell, 0.5C discharge）
Internal impedance: 0.1 ~ 0.35mΩ
Nominal voltage: 3.2V
Dimensions(L*W*H): 173*55*200mm (with column: 208mm)
Shell Material: Aluminum
Weight: 3.82 kg
Recommend constant current: 201A (1c)
Discharge end voltage: 2.5 v
Recommend constant current: 88a (0.5c)
Charging voltage: 3.65 v
Maximum continuous discharge current: 200A (1c)
Life cycle (80% dod): 25℃0.5C/0.5C 80% ≥6000Cycle &
Standard charge temperature: 25±2℃
Absolute charging temperature：0~55℃
Absolute discharge temperature: -20~55℃
Operating：-20~60℃
The battery interface：M6
Positive terminal length: 171mm (+1mm tolerance). Negative terminal length: 55mm (+1mm tolerance). QR code: 200AH. Weight: 4.0kg. Shell material: Aluminum. Cell type: LiFePO4. Voltage: 3.2V. Nominal capacity: 200Ah.
DE Stock 3.2V 200Ah Lifepo4 Rechargeable Battery, Grade A Lithium Iron Phosphate for RV and PV Solar Power Systems, with 3-7 days delivery, EU tax-free.
LFP battery with 3.2V, 200Ah capacity, suitable for RV, PV, and solar power applications. Grade A lithium iron phosphate technology ensures high performance and reliability.
Advantages: Lightweight, high-capacity, and long-lasting with 6,000 cycles. It also has low self-discharge, strong cranking power, and is environmentally friendly, making it suitable for various DIY applications.

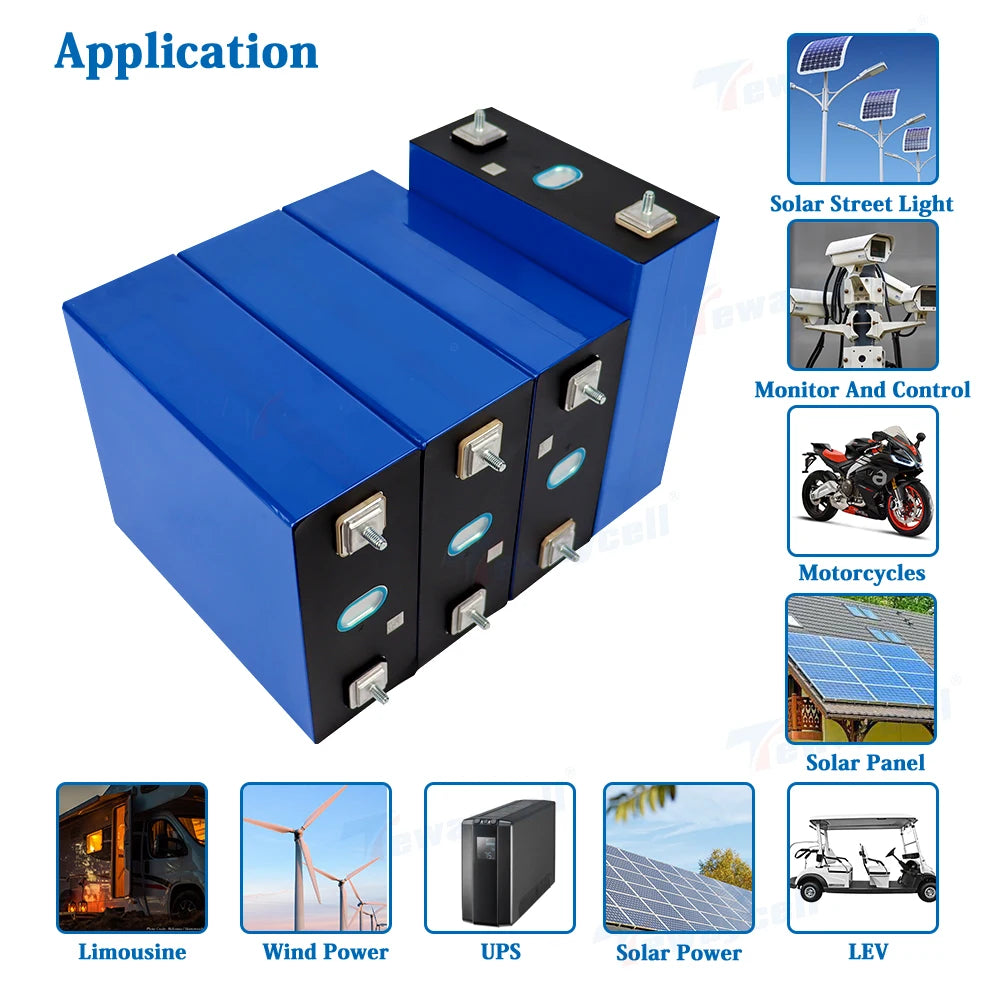

Suitable for solar street lights, monitoring systems, motorcycles, limousines, wind power, and backup UPS systems.
NOTICE
• Please check the orientation of the positive and negative terminals before packaging.
•Connect the terminal or wire to the battery module, and pay attention to insulation to prevent short circuit.
• When not in use for a long time, the battery should be stored in a cool and dry place (<35°C, 30%~50% SOC, charge and discharge once every 3 months).
• Do not place the battery in direct sunlight or a heat source.
• Do not wear metal jewelry (such as rings, watches, accessories, etc.) when handling the battery unit.
• Do not place the battery outside the operating temperature range specified in this document.
Prohibited matters
Do not charge beyond the maximum charging rate.
Do not disassemble or modify the battery.
Do not throw or hit the battery.
Do not pierce the battery with sharp objects (such as nails, knives, pens, electric drills).
Do not mix with other types of batteries or modular units.
Do not excessively squeeze the battery during use.
Do not use new and old batteries in PACK at the same time.
Do not place the battery in a high temperature greater than 60°C.
Do not put the battery in a microwave oven or high-pressure container.
Do not use conductive materials to connect the positive and negative terminals (such as metals, wires).
