SPECIFICATIONS

is_customized: Yes

Weight: 1.05kg

Type: Solar Panel

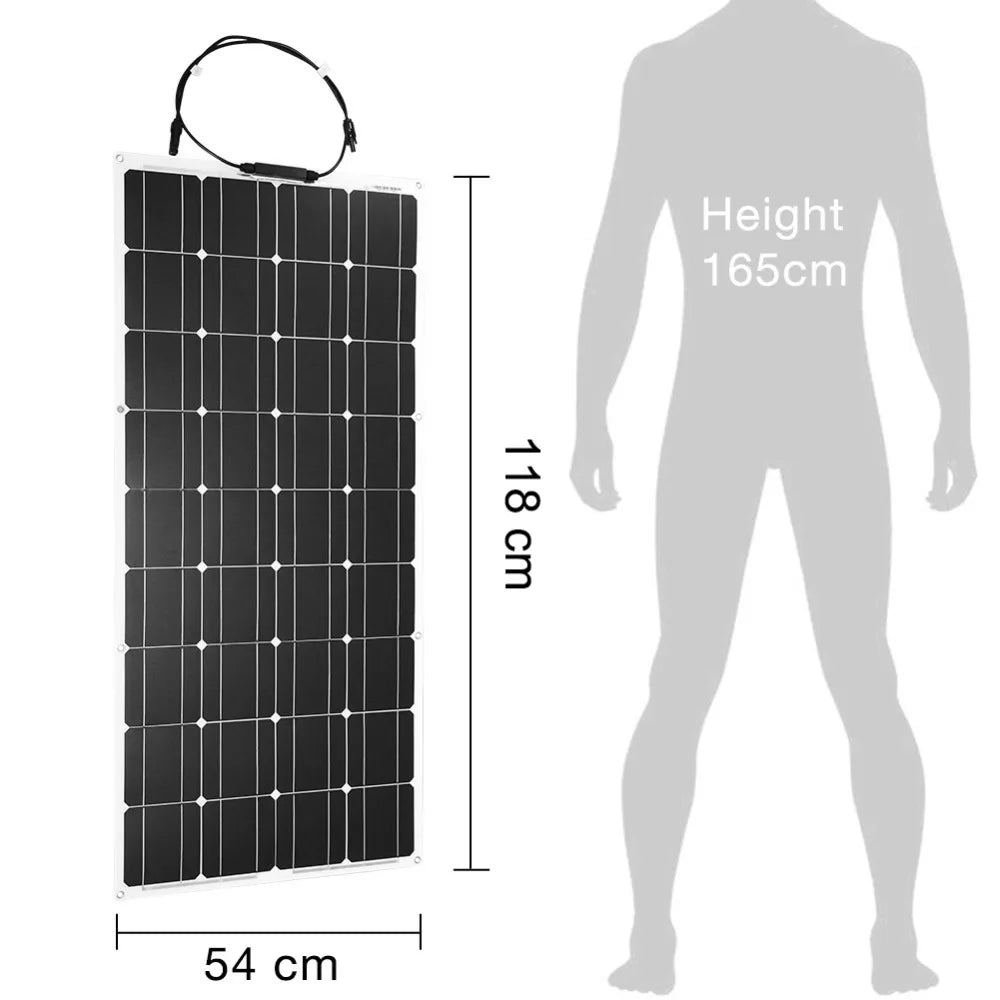

Size: 97.5*56.5.cm/1190x540x25MM

Short-Circuit Current (Isc): 5.81A

Origin: Mainland China

Optimum Operating Voltage (Vmp): 18.00V

Optimum Operating Current (Imp): 5.56A

Open-Circuit Voltage (Voc): 22.50V

Number of Panels: 1

Model Number: DFSP-100M

Maximum System Voltage: 1000V DC (UL)

Maximum Power: 100W

Max. Power: 100W

Material: Monocrystalline Silicon

Foldable Solar Panel: No

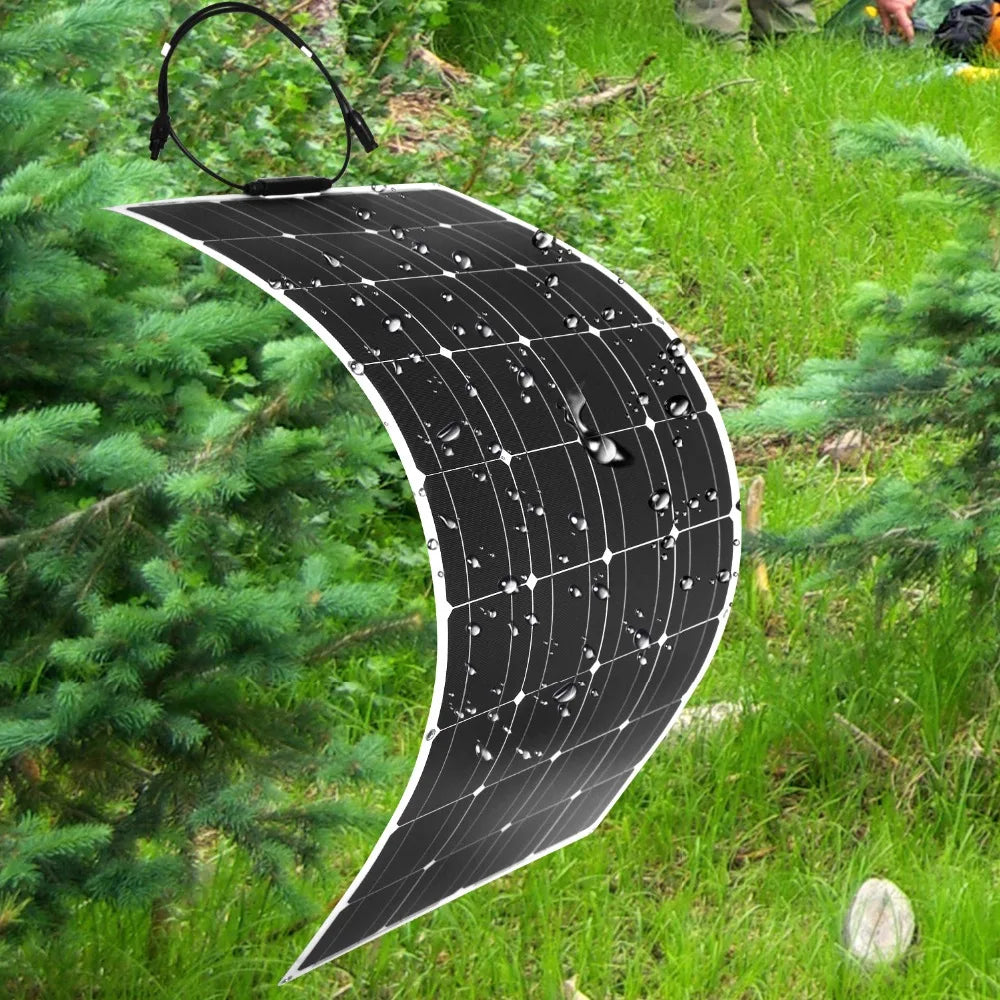

Flexible Solar Panel: Yes

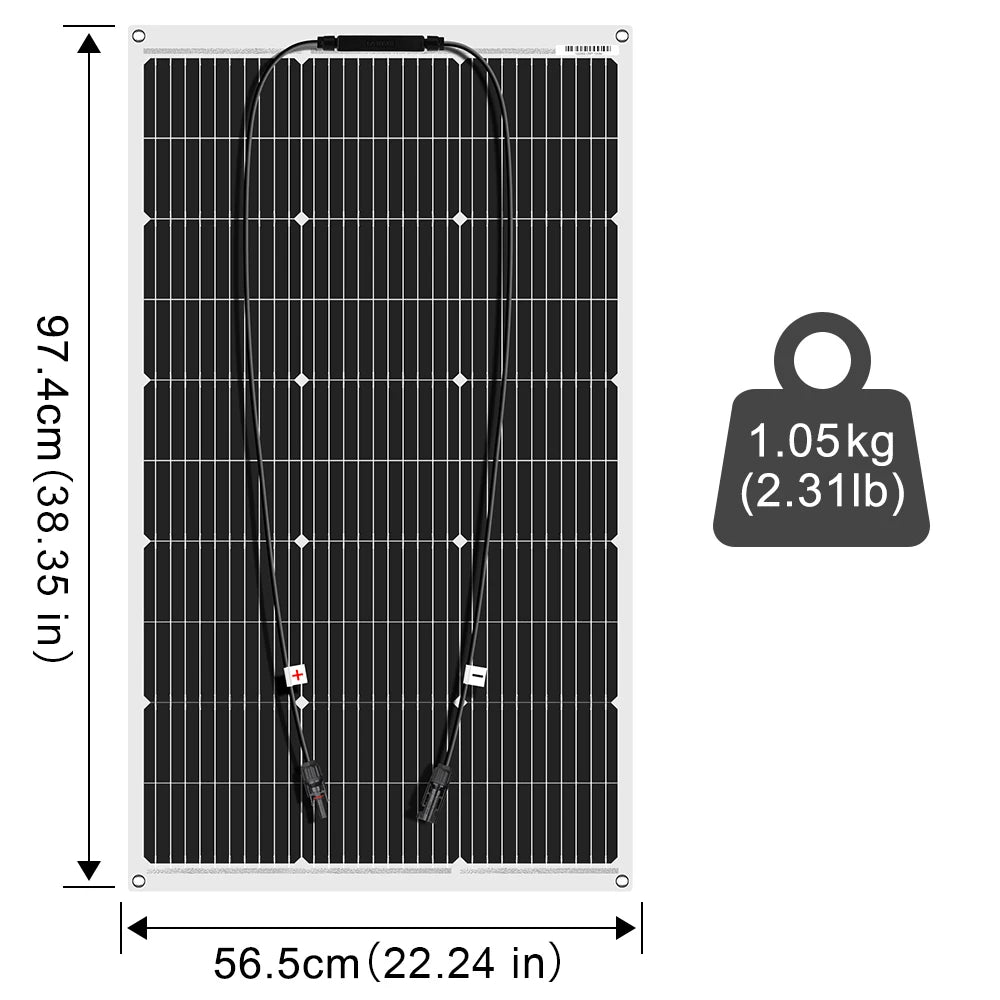

Dimensions: 975*565mm

Certification: CE

Brand Name: DOKIO

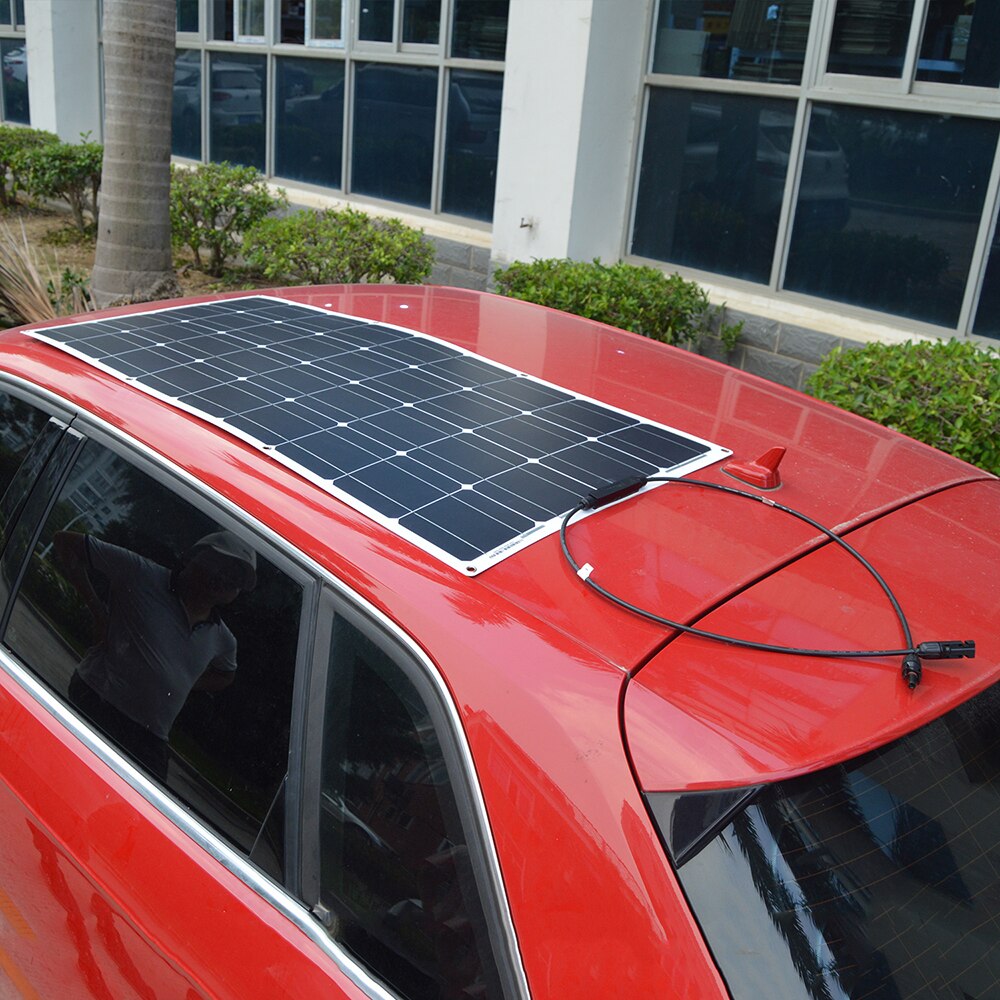

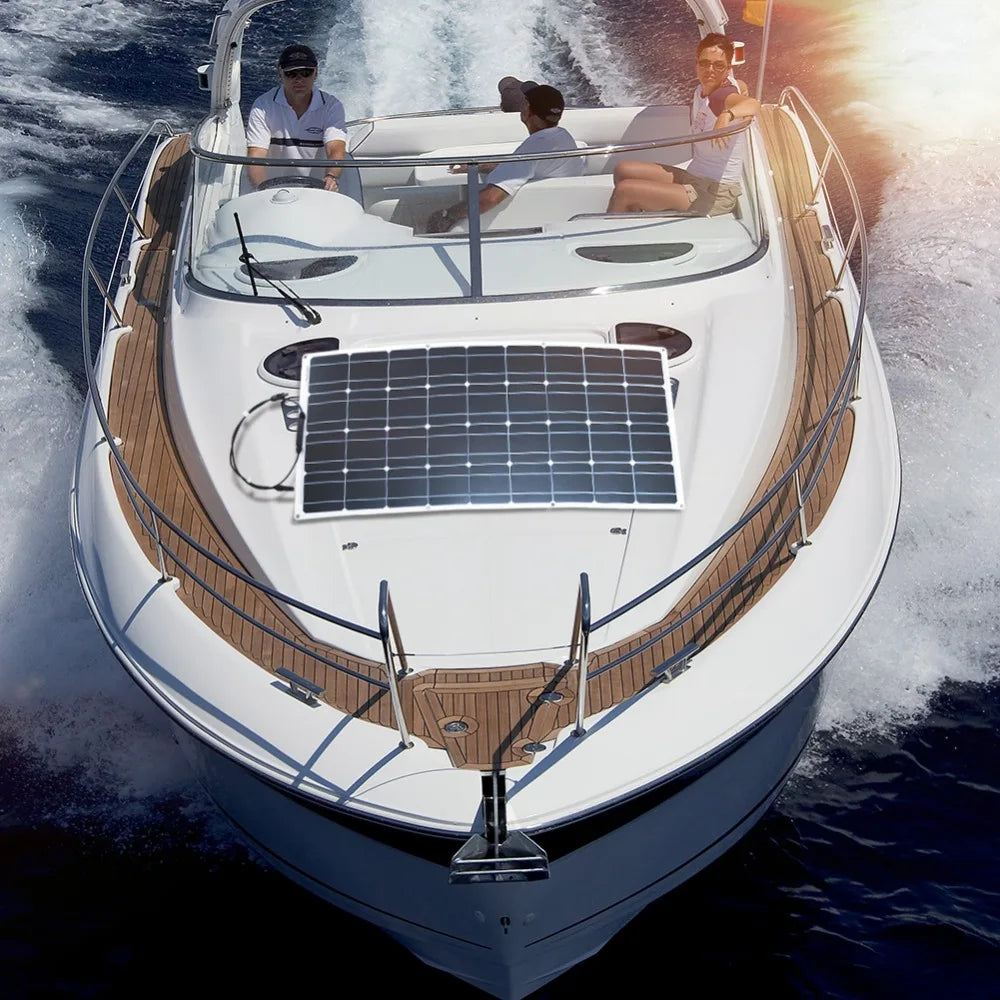

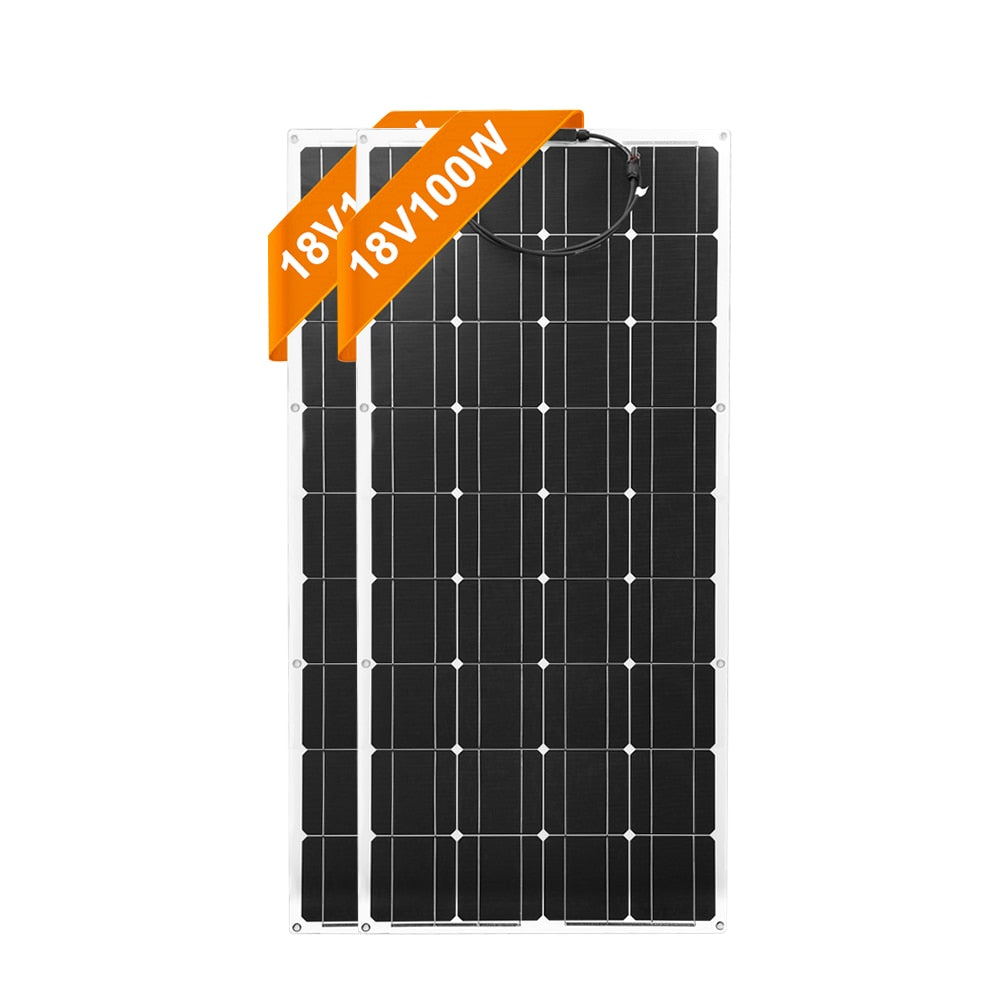

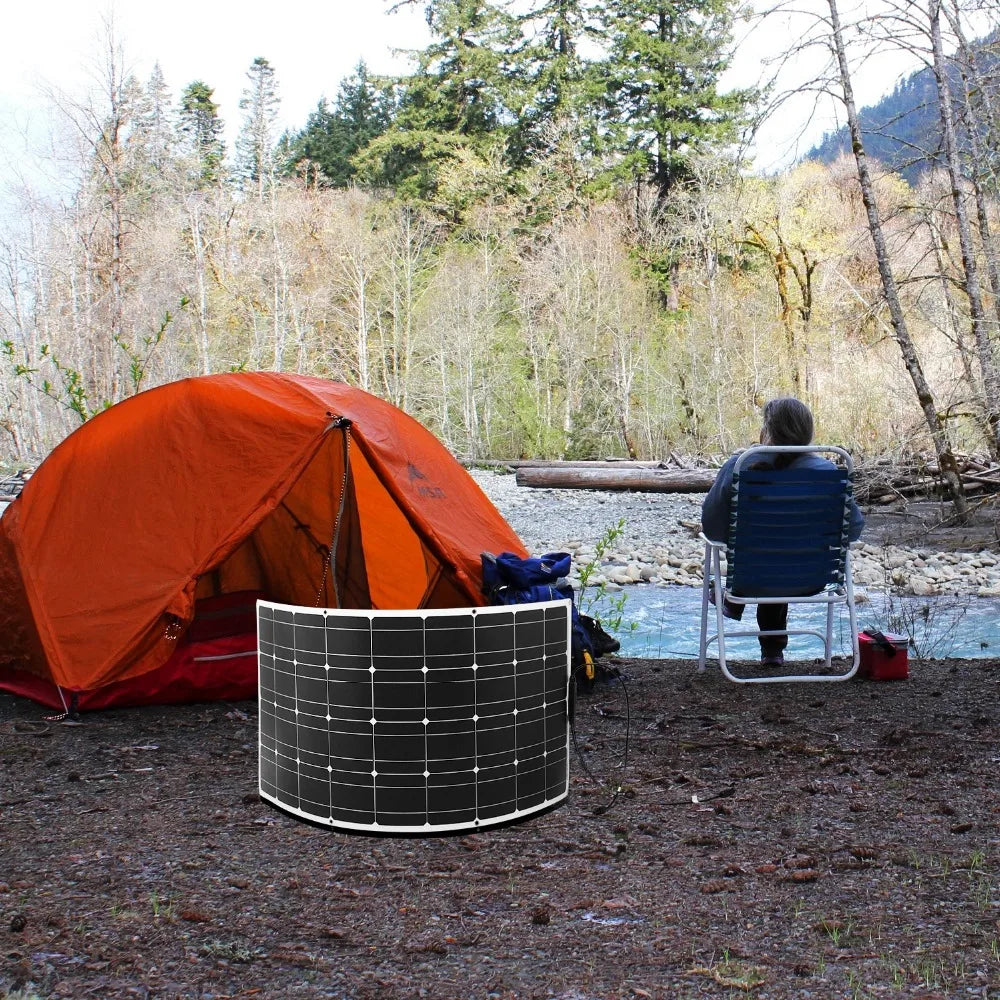

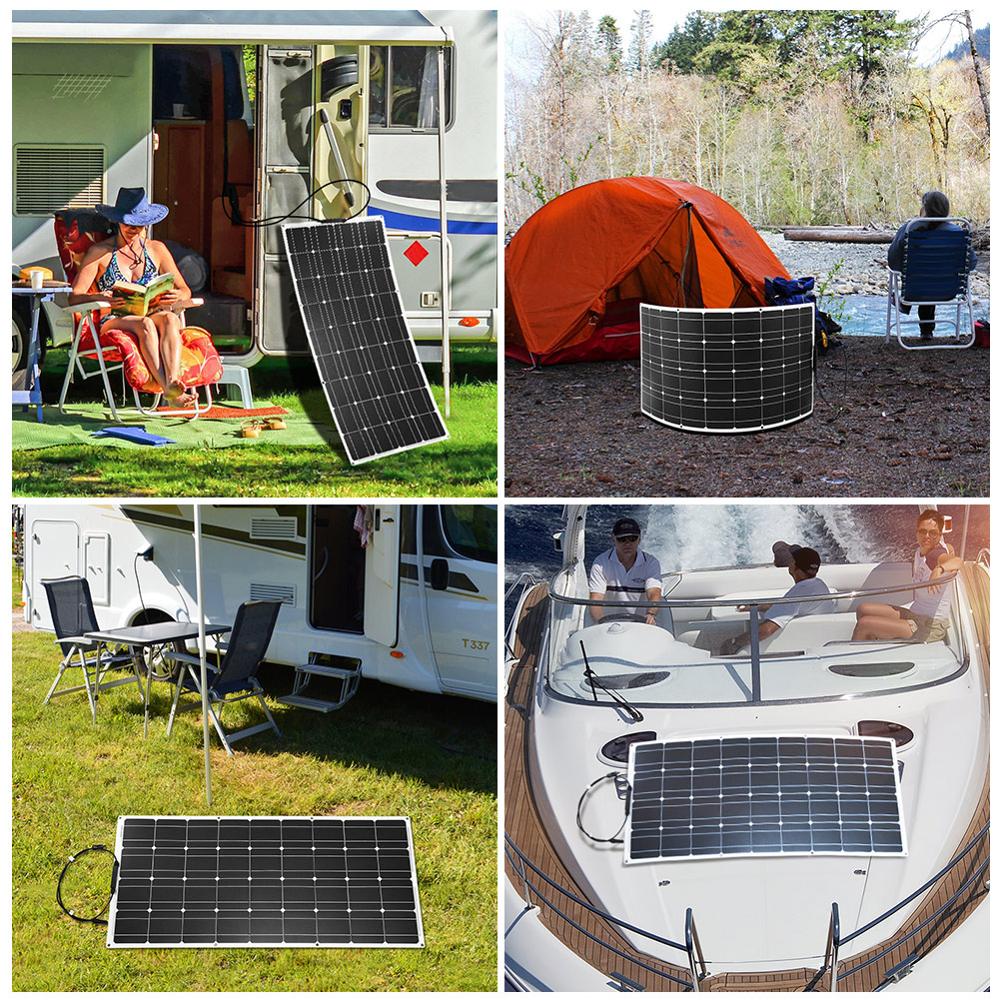

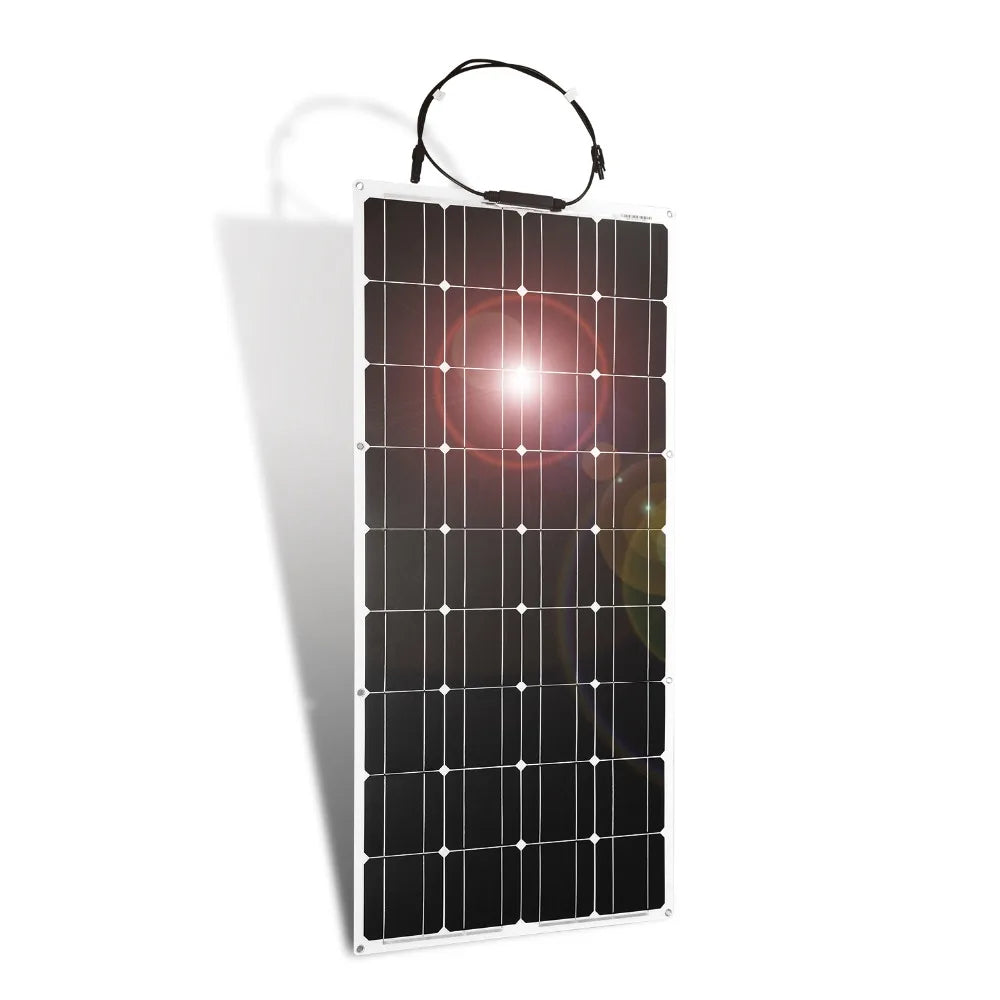

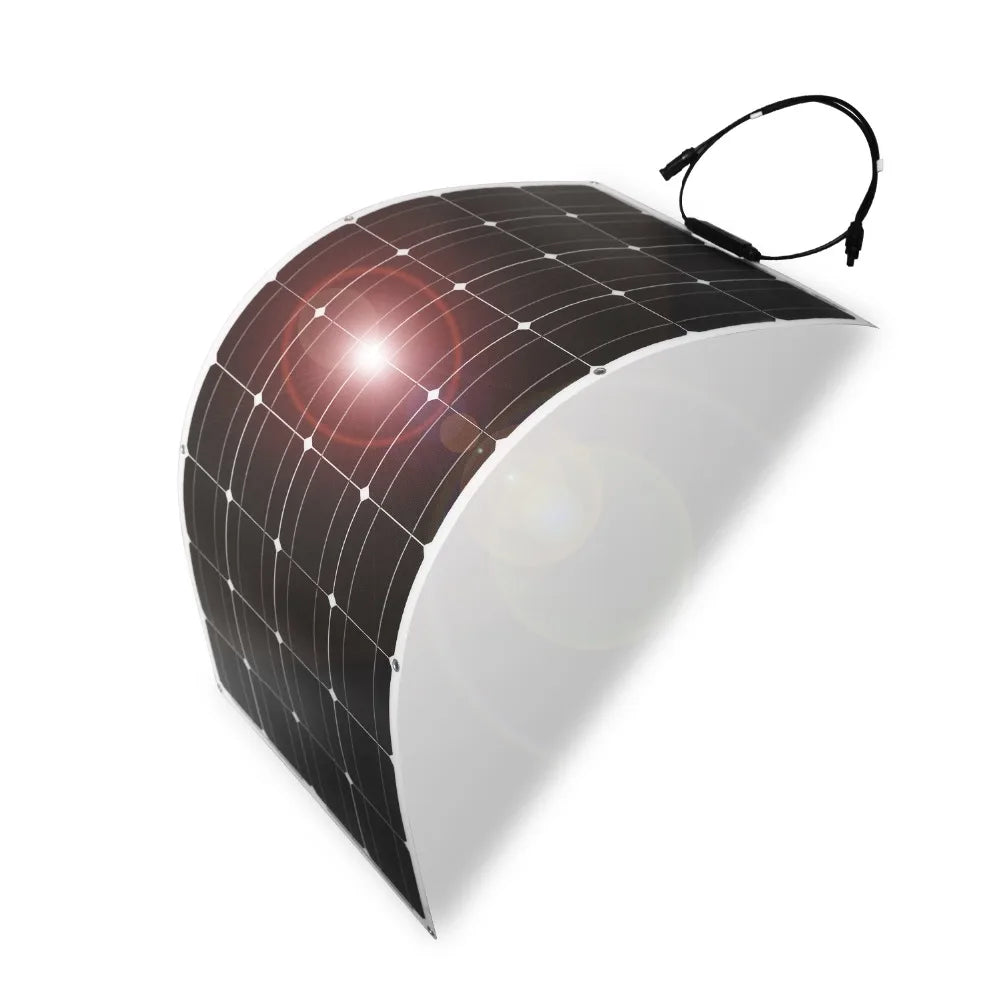

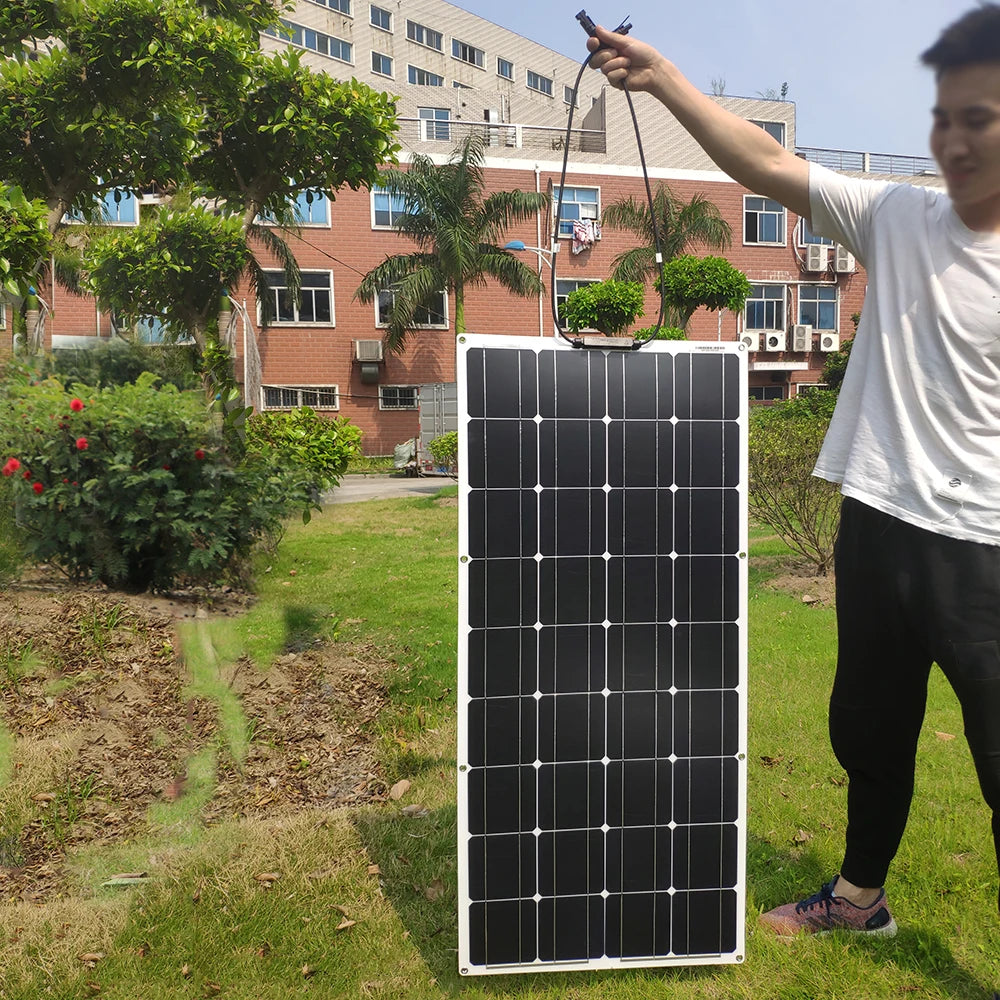

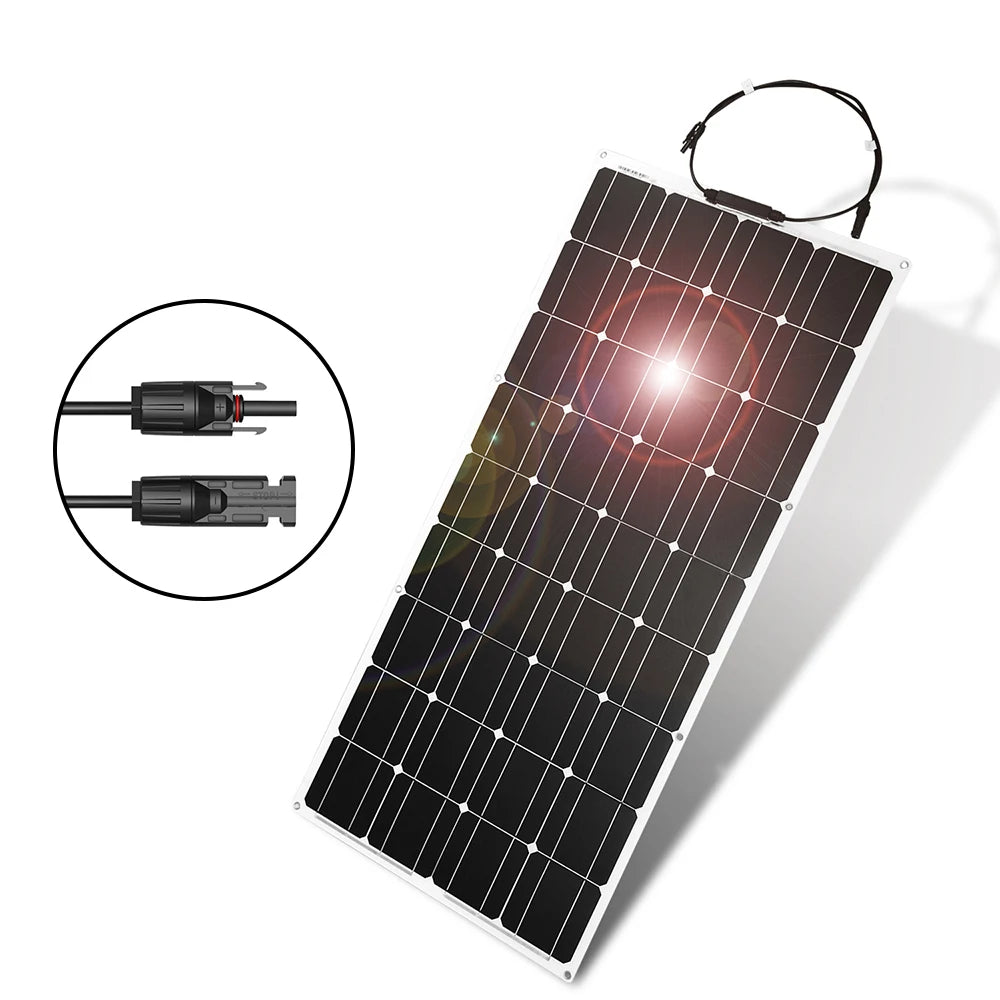

Dokio 18V Flexible Solar Panels 100W China Waterproof Solar Panels 12V Charger Solar Cell Sets For Home/Car/Camping/Boat panel

Model:DFSP-100M

Material:Monocrystalline Silicon

Maximum Power(Pmax):100W±3%

Maximum Power Voltage (Vmp):18V

Maximum Power Current (Imp):5.56A

Open-Circuit Voltage (Voc):22.50V

Short-Circuit Current (Isc):5.81A

Nominal Operating Cell Temp.(NOCT):-45to 80℃

Maximum System Voltage:DC1000V

Maximum Series Fuse:15A

Net Weight:1.05kg

Dimension:975*565mm

Package Weight:3kg

Package Dimension:980*580*35mm

(The above data is based on the laboratory standard test environment)



For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃



Standard Test Conditions:



AM=1.5         IRRADIANCE=1000W/m2        Temp.=25℃

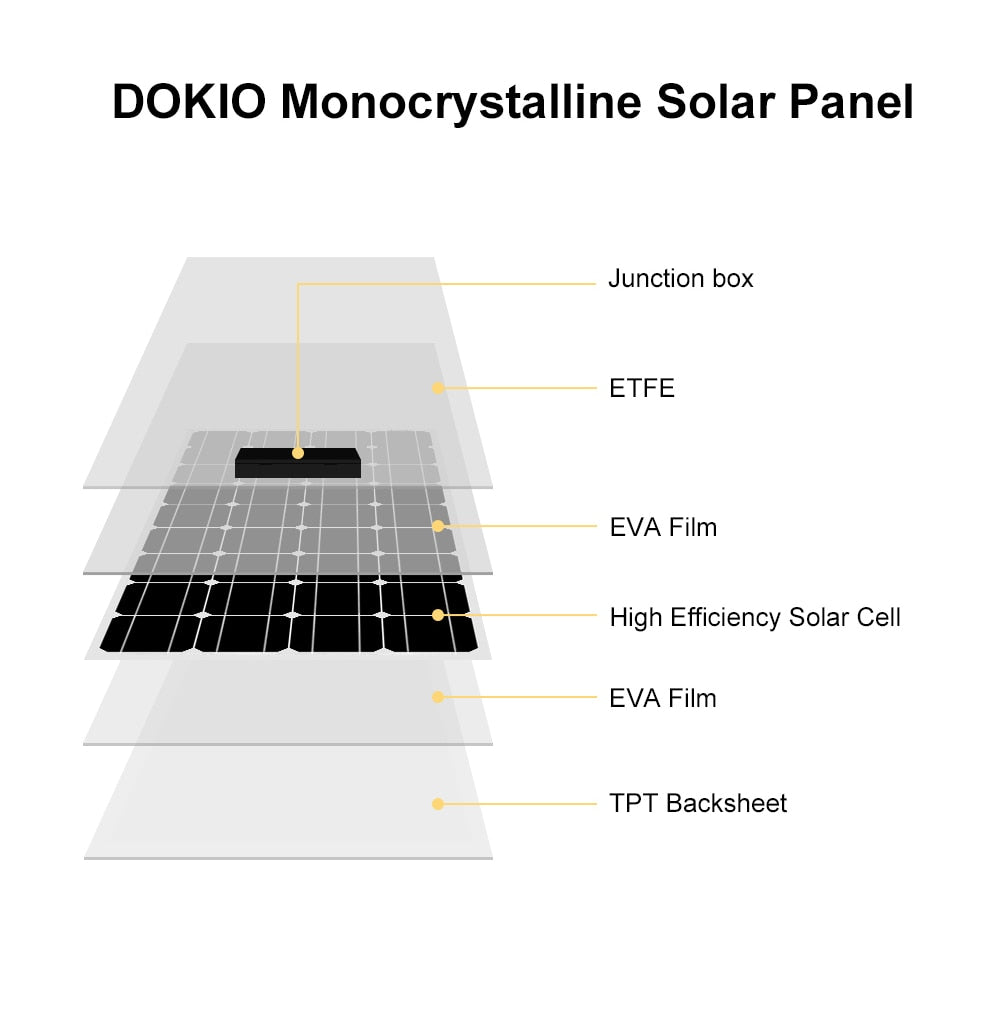

Material structure：

1 floor: ETFE

2 floor: EVA Film

3 floor: High Efficiency Solar Cell

4 floor: EVA Film

5 floor: TPT Backsheet

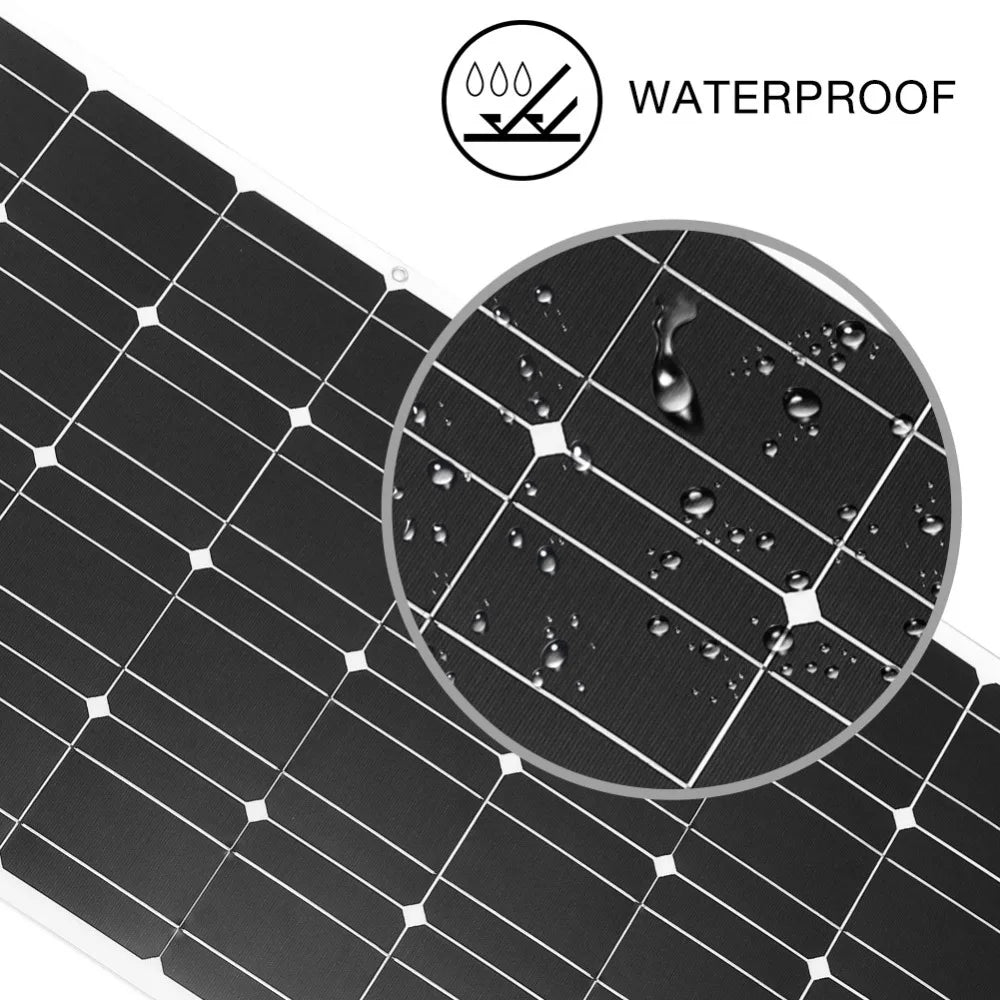

waterproof level：IP67（Junction Box）



(The size is manually measured and there is a certain error. Customers who want accurate size please don't buy，thank you）

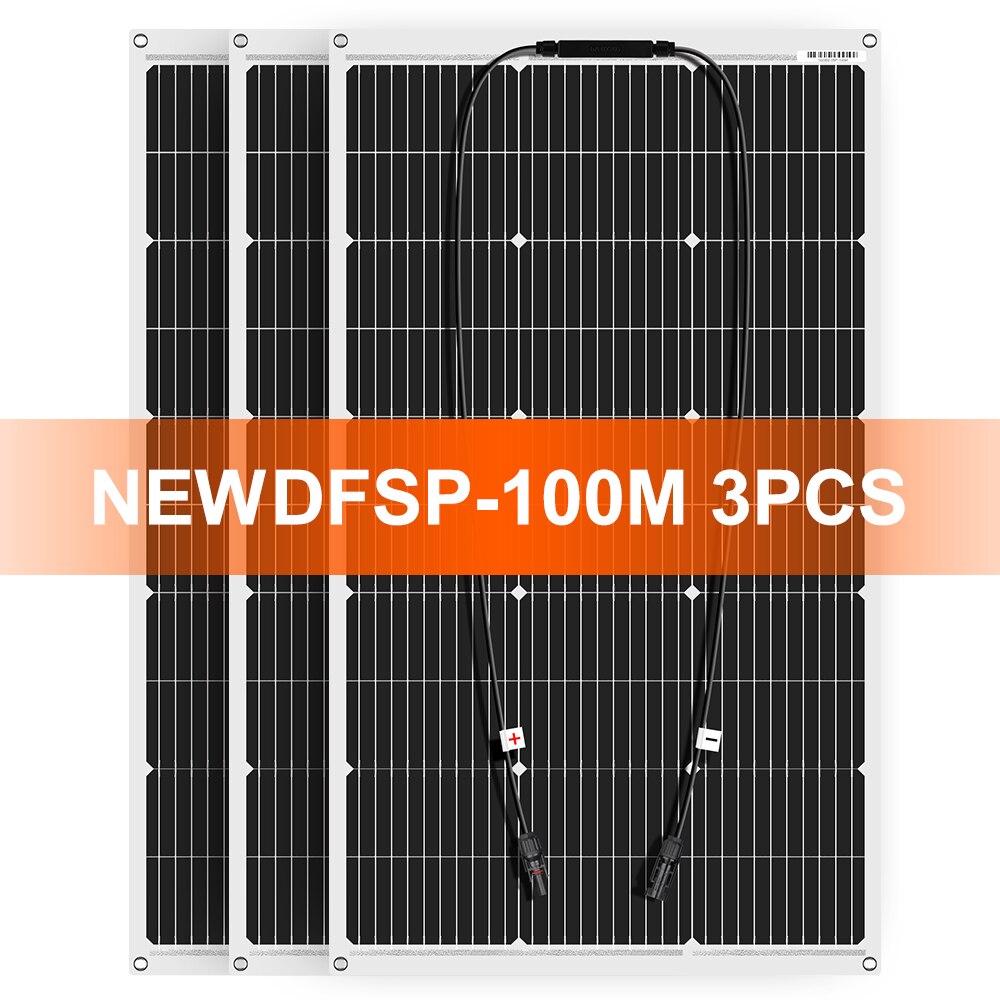

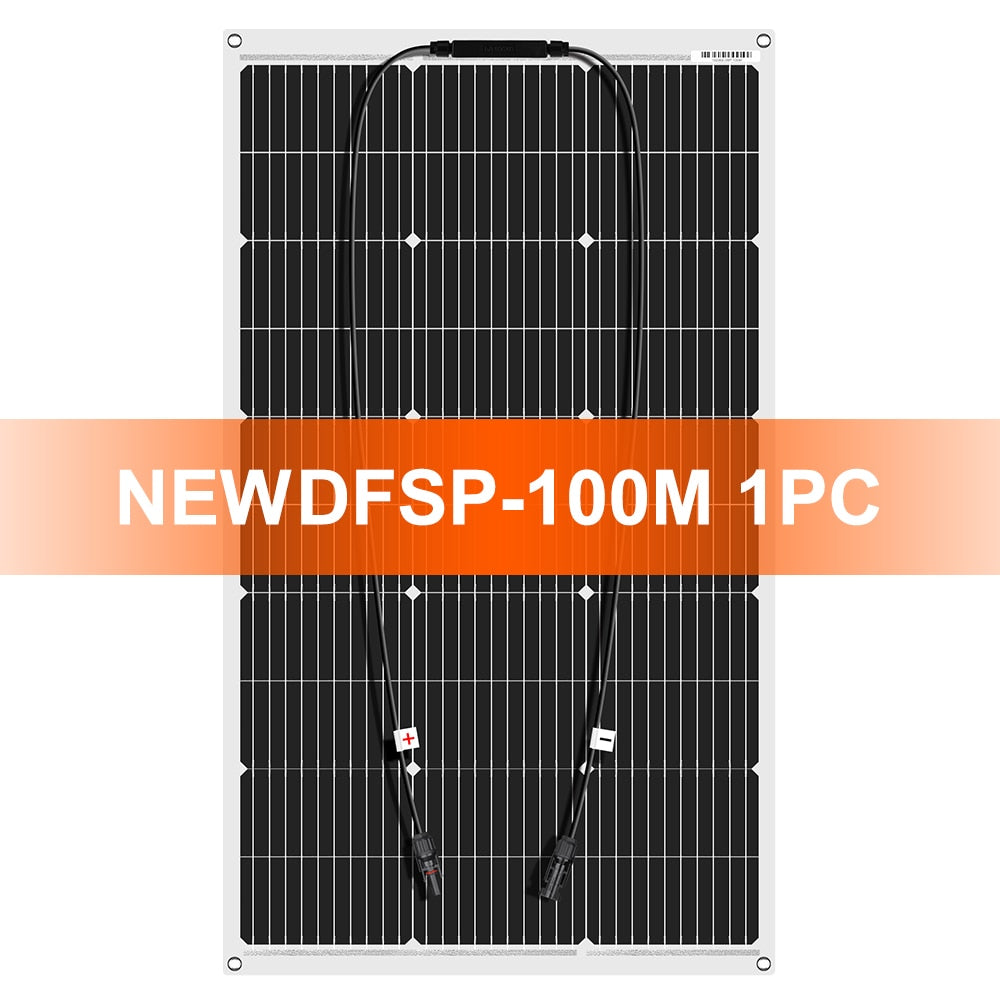

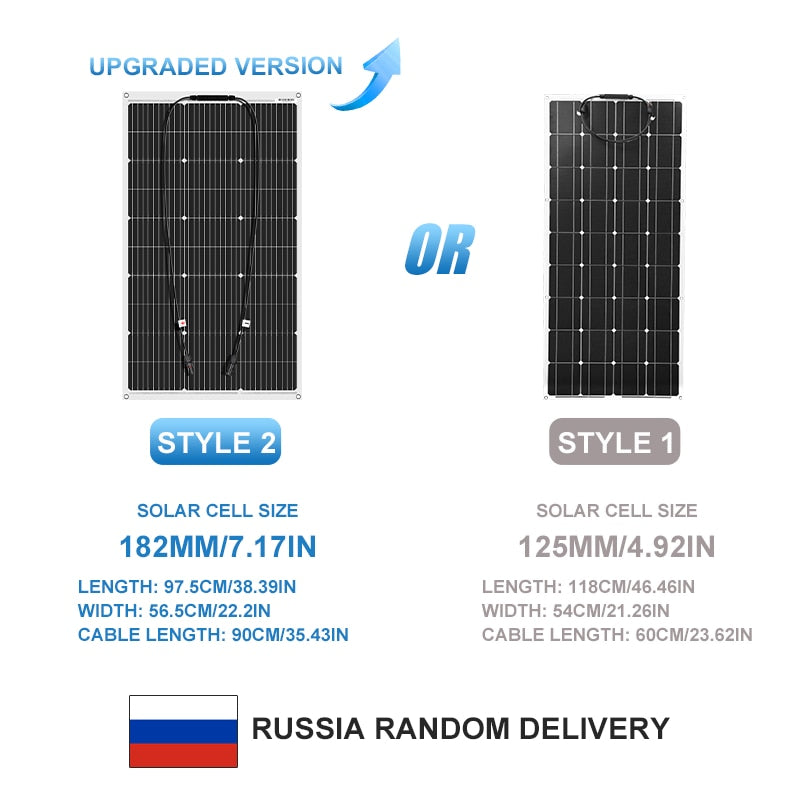

Dear customer. All of our products have been upgraded.

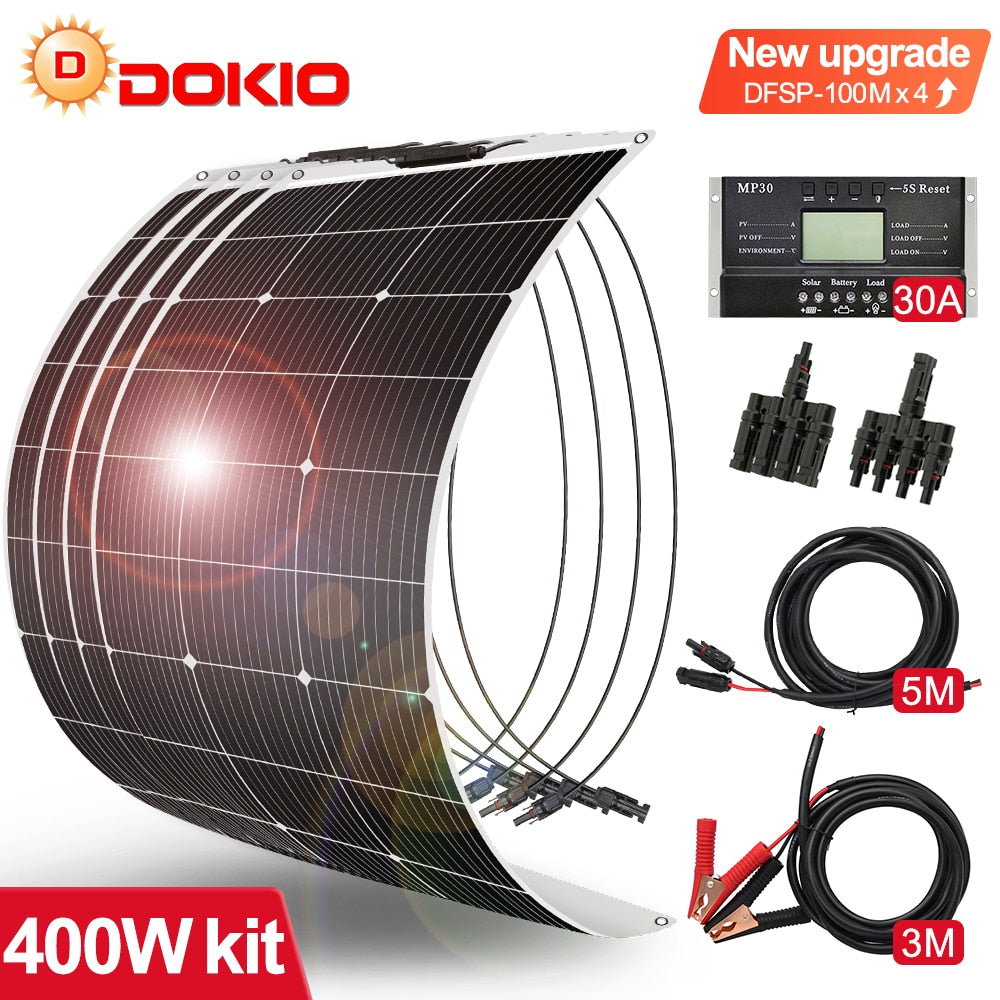

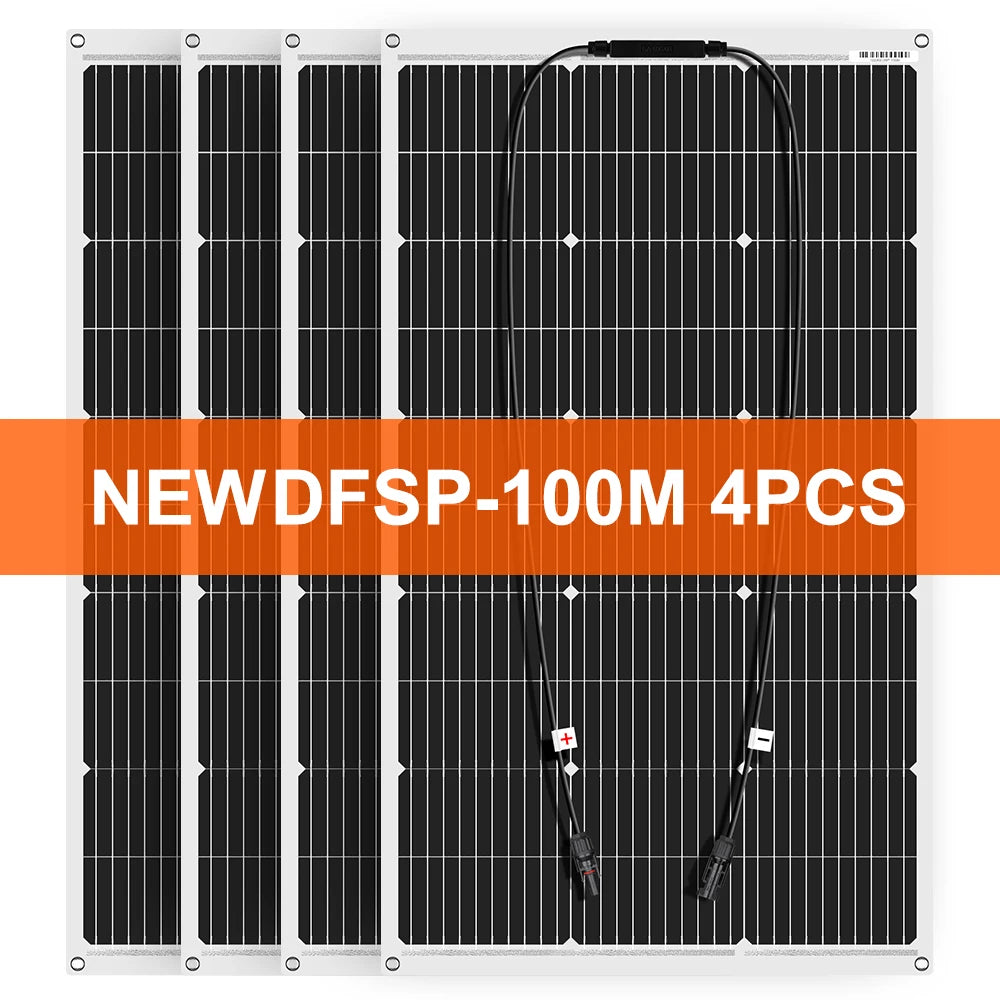

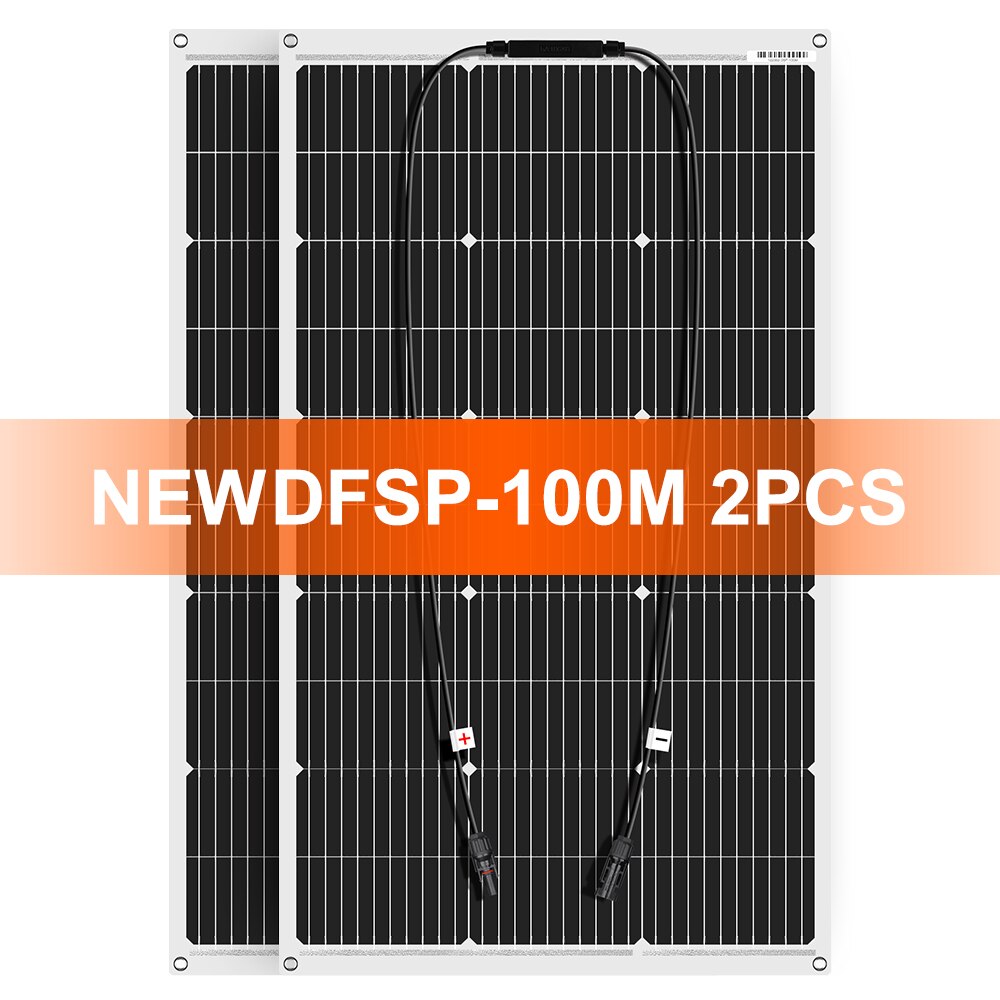

The DFSP-100MX4 model in the German warehouse has been replaced with the latest version of solar panels.

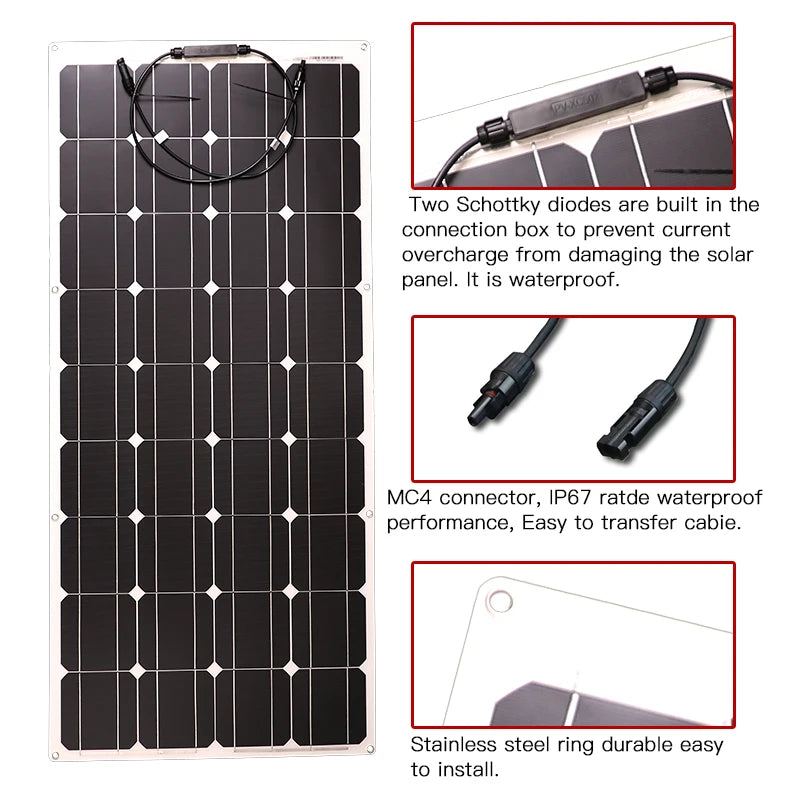

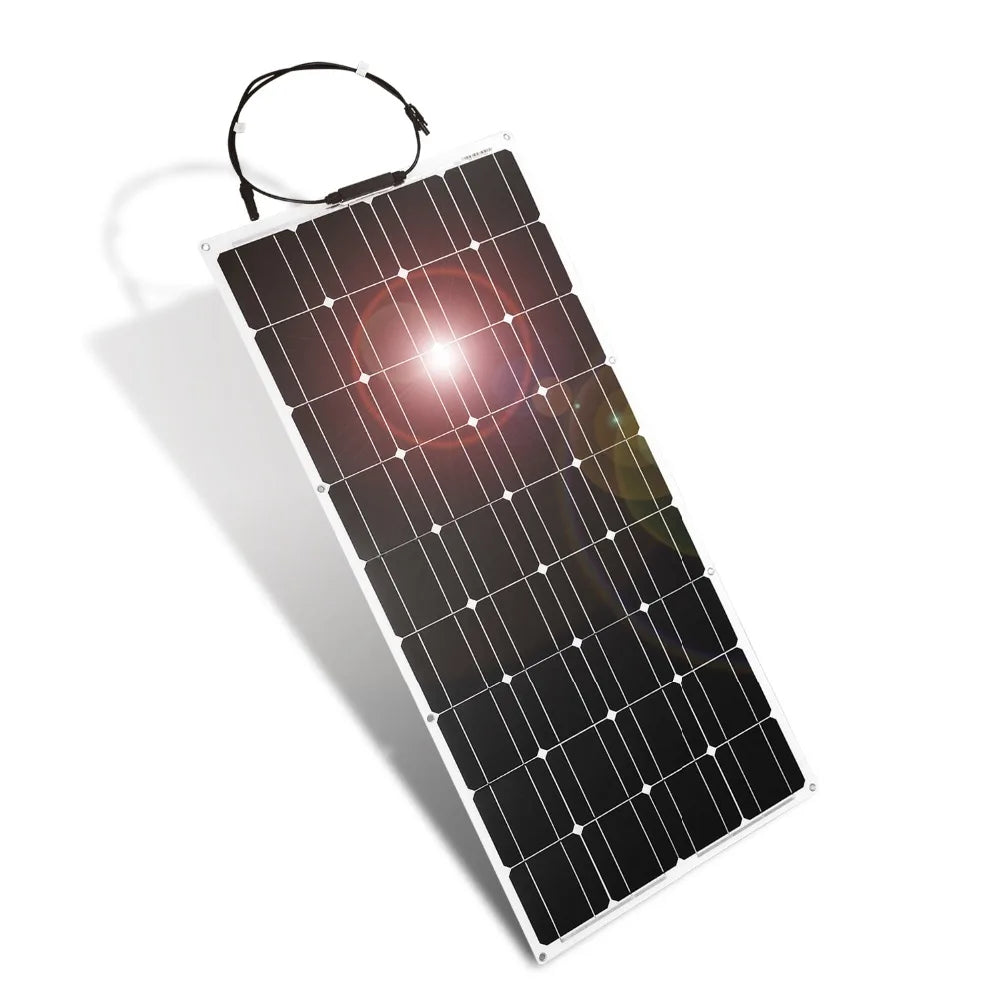

The size and packaging have been changed, and the MC4 cable has been extended to 90cm

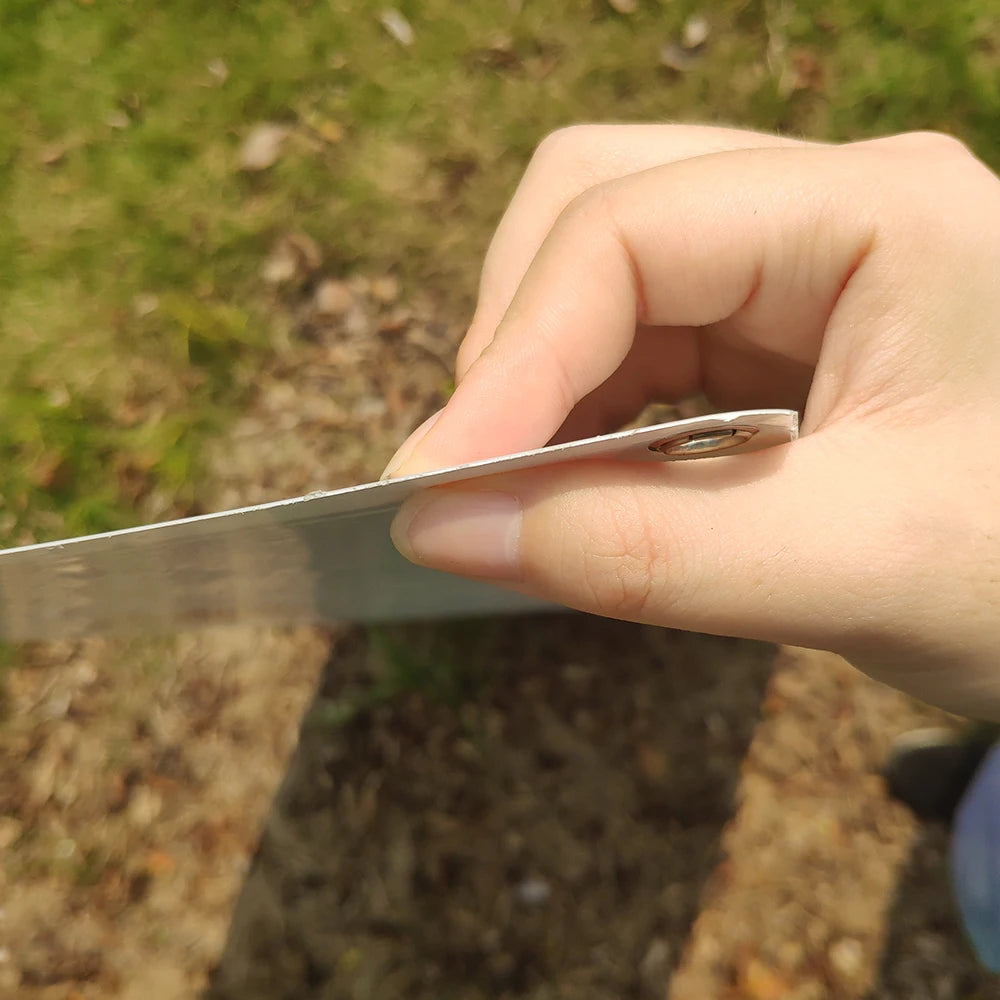

The specific pictures are as follows:



PS: Other models are still old versions.
