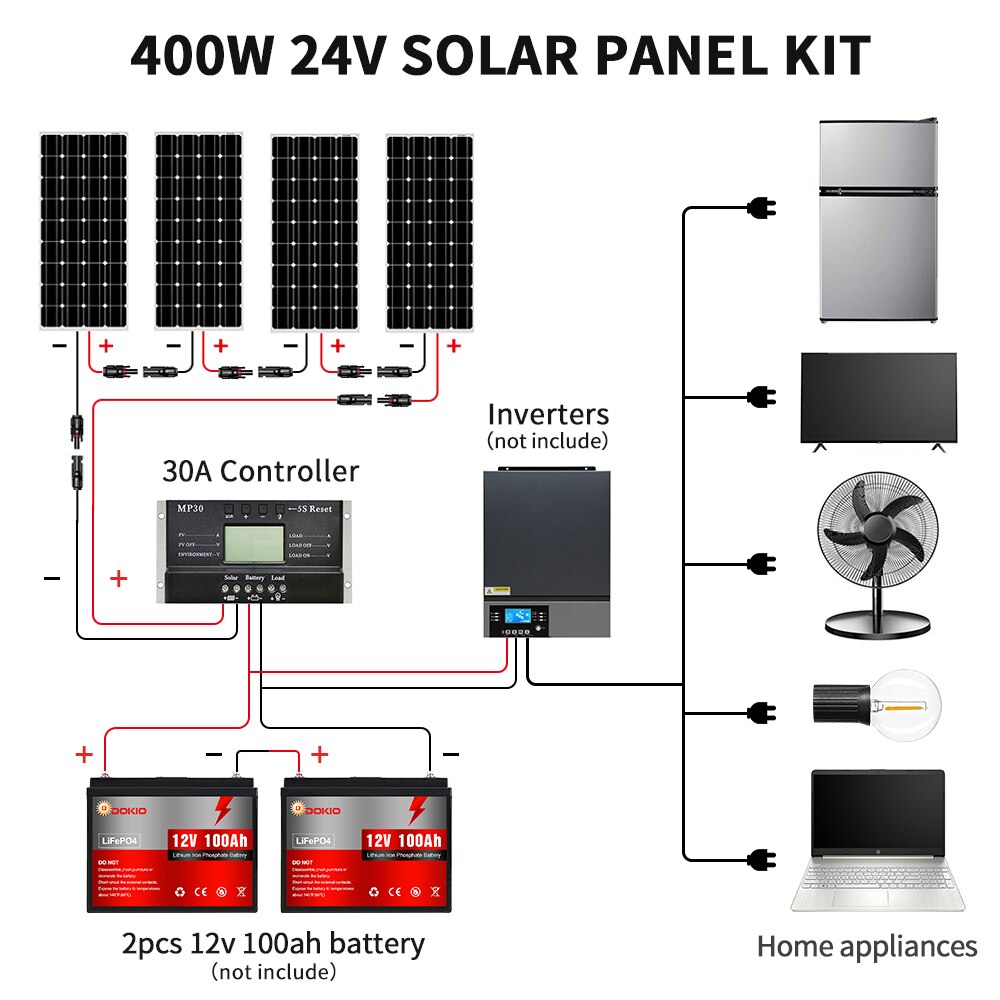

  • 400w 24V SOLAR PANEL KIT Inverters
  • Dokio 18V/16V 100W 200W 400W Flexible Solar Panel Sets For Car/Home Waterproof Monocrystalline Solar China Charge 12V Battery
  • Dokio 18V/16V 100W 200W 400W Flexible Solar Panel Sets For Car/Home Waterproof Monocrystalline Solar China Charge 12V Battery
  • Dokio 18V/16V 100W 200W 400W Flexible Solar Panel Sets For Car/Home Waterproof Monocrystalline Solar China Charge 12V Battery
  • Dokio 18V/16V 100W 200W 400W Flexible Solar Panel Sets For Car/Home Waterproof Monocrystalline Solar China Charge 12V Battery
1 7

BestSolarPanel

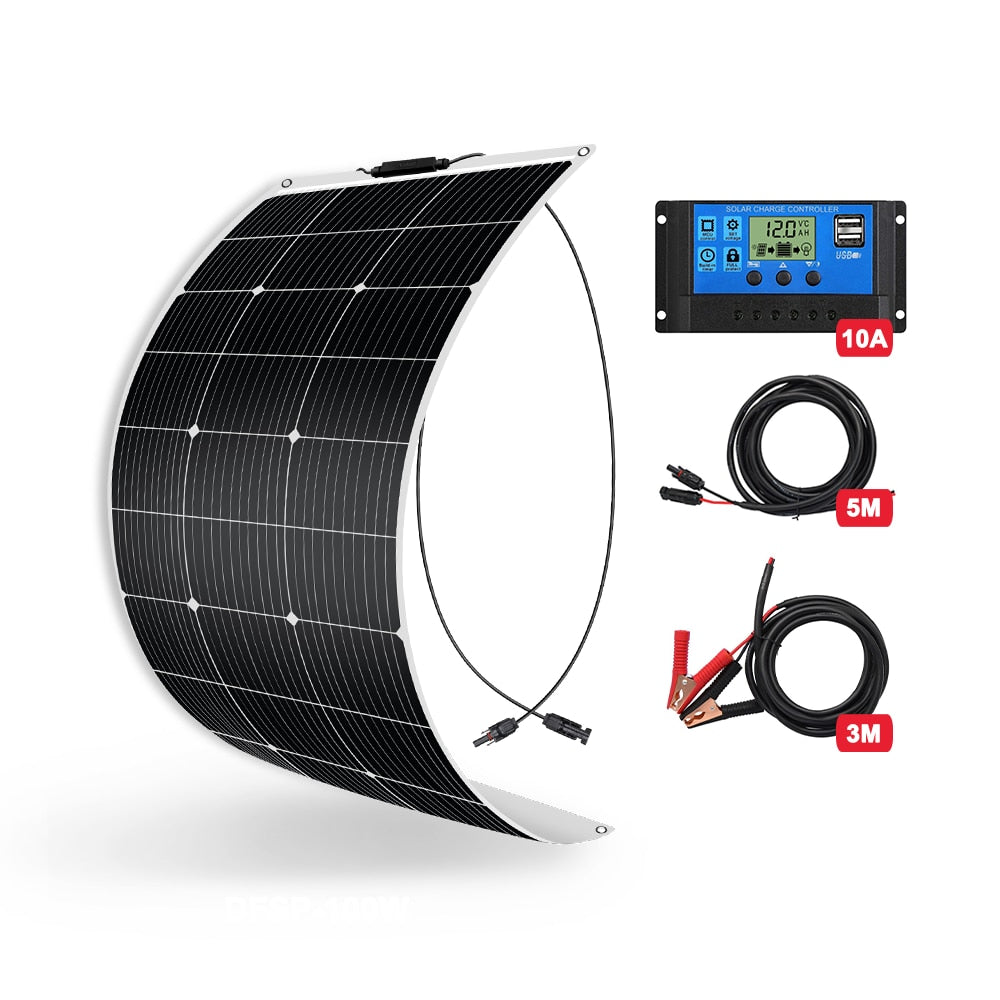

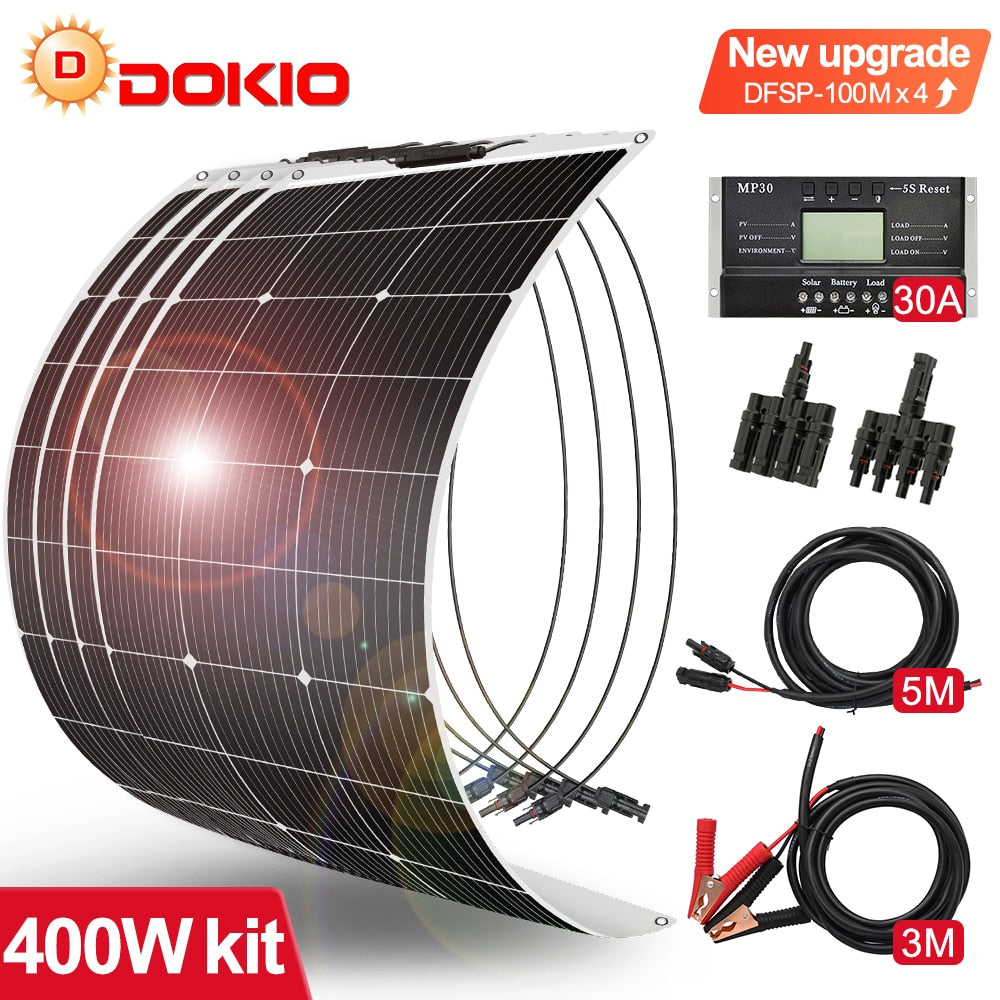

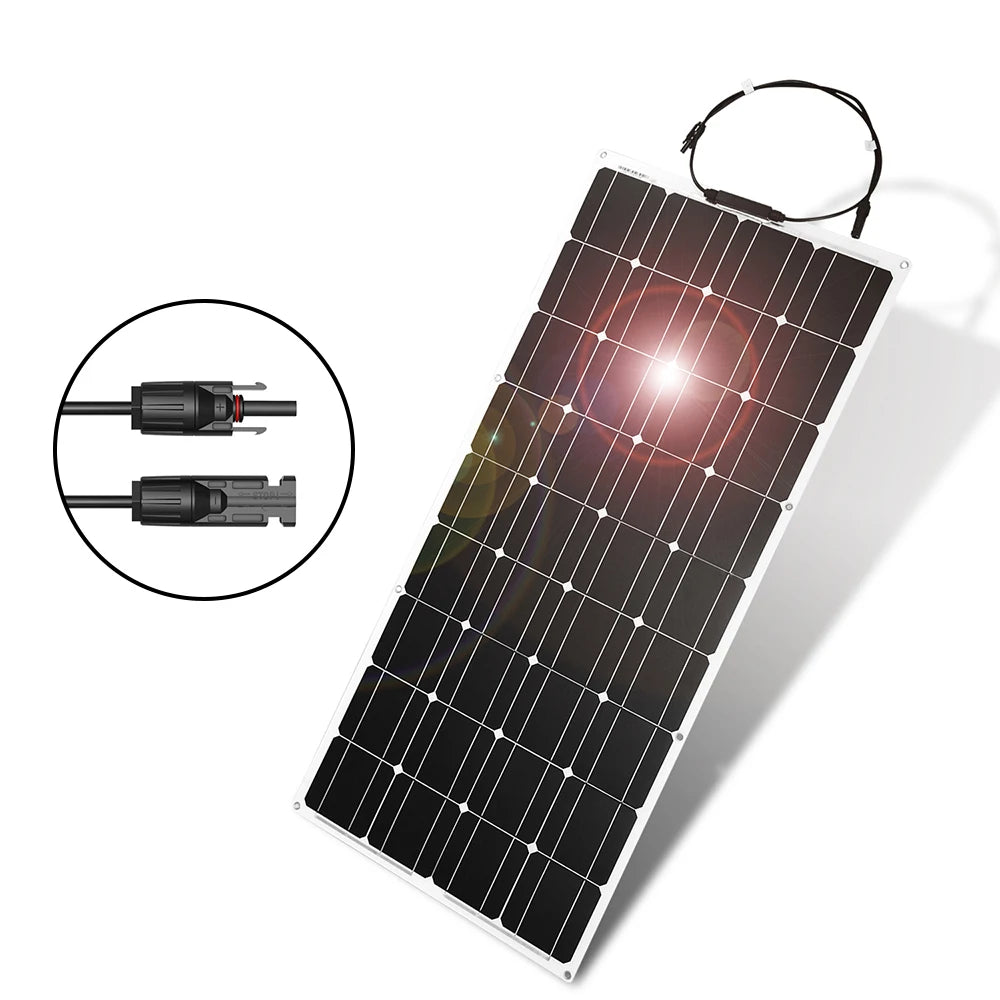

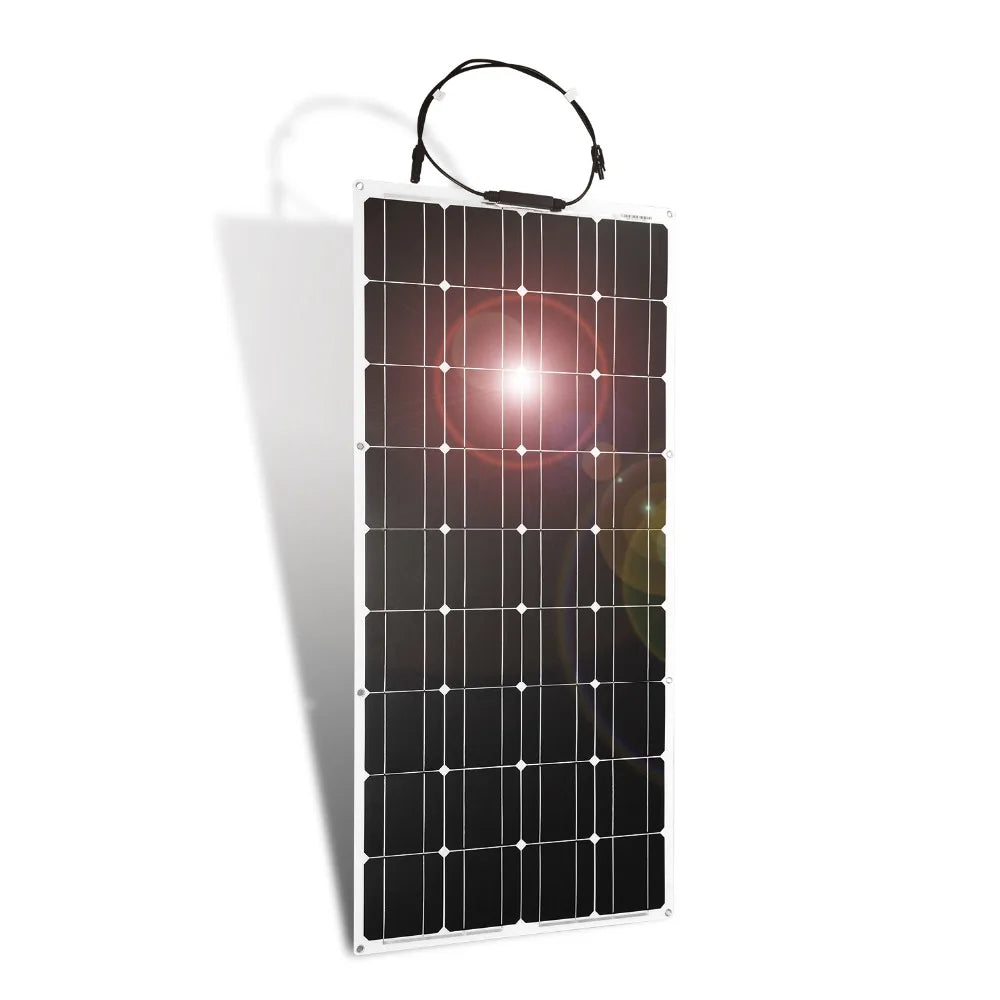

Dokio 18V/16V 100W 200W 400W Flexible Solar Panel Sets For Car/Home Waterproof Monocrystalline Solar China Charge 12V Battery

Dokio 18V/16V 100W 200W 400W Flexible Solar Panel Sets For Car/Home Waterproof Monocrystalline Solar China Charge 12V Battery

$146.69 USD
$146.69 USD
Sale Sold out
Shipping calculated at checkout.

41 orders in last 30 days

Ships From
Color

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping：Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

Voc: 22.50V

Vmpp: 18.00V

Type: Solar Panel

Size: 974*565MM

Quality: World-class quality

Origin: Mainland China

Number of Panels: 1

Model Number: DFSP-100M

Max. Power: 100W

Material: Top grade raw materials

Material: Monocrystalline Silicon

I sc: 5.81A

I mpp: 5.56A

Foldable Solar Panel: No

Flexible Solar Panel: Yes

Factory Outlet: Yes

Chinese famous: Yes

Certification: CE

Brand Name: DOKIO

Since the solar panels are beyond the dimensions of DHL.
So the set will be divided into two packages,
All accessories are dispatched by DHL logistics company.
Solar panels may use DPD or GLS logistics companies.
Please note that customers ordering the set will have two packages.

Descriotion

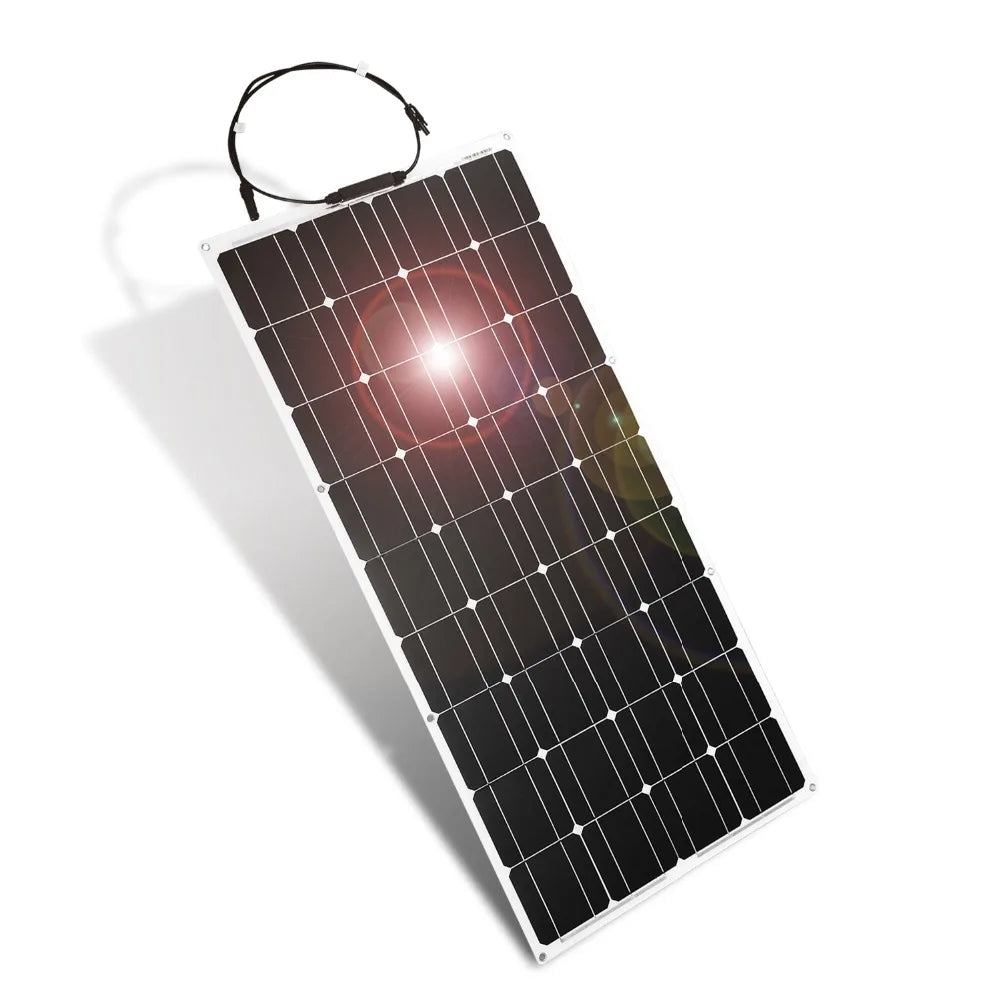

Model:DFSP-100M

Material:Monocrystalline Silicon
Maximum Power(Pmax):100W±3%
Maximum Power Voltage (Vmp):18V
Maximum Power Current (Imp):5.56A
Open-Circuit Voltage (Voc):22.50V
Short-Circuit Current (Isc):5.81A
Nominal Operating Cell Temp.(NOCT):-45to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:15A
Net Weight:1.05kg

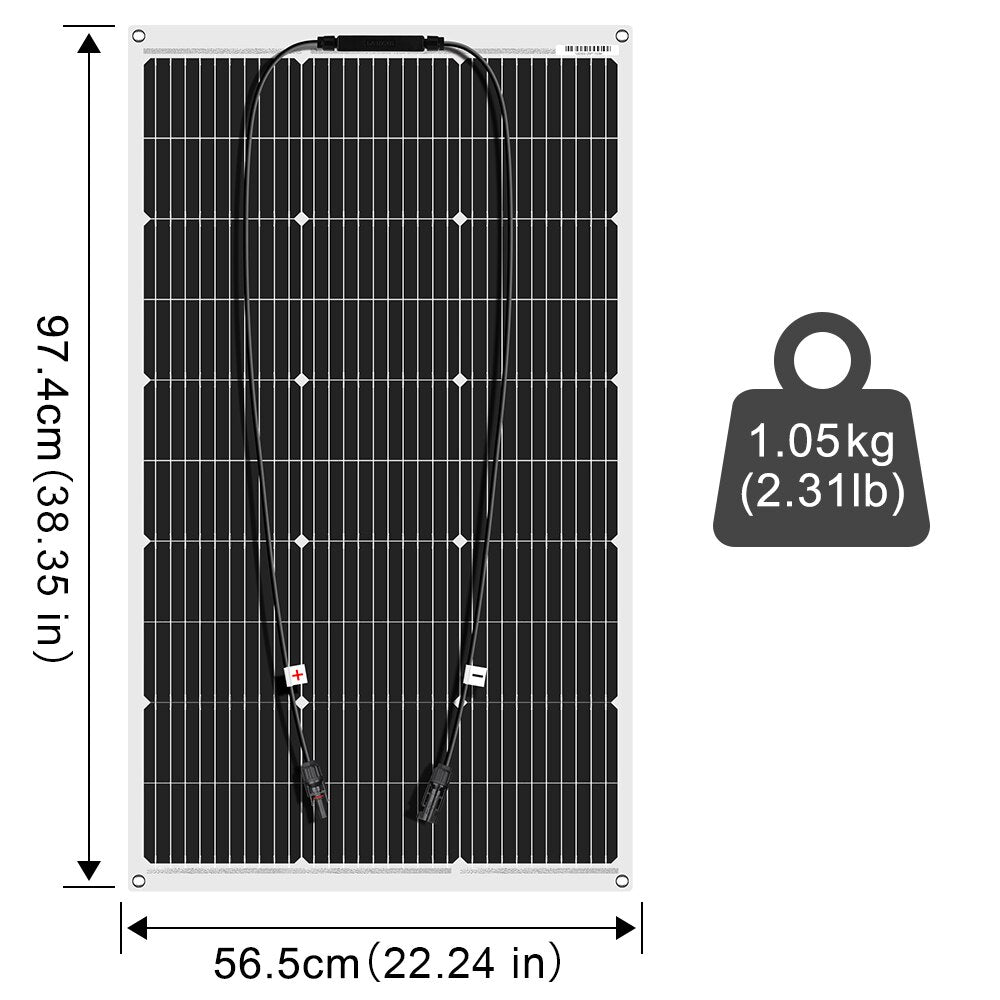

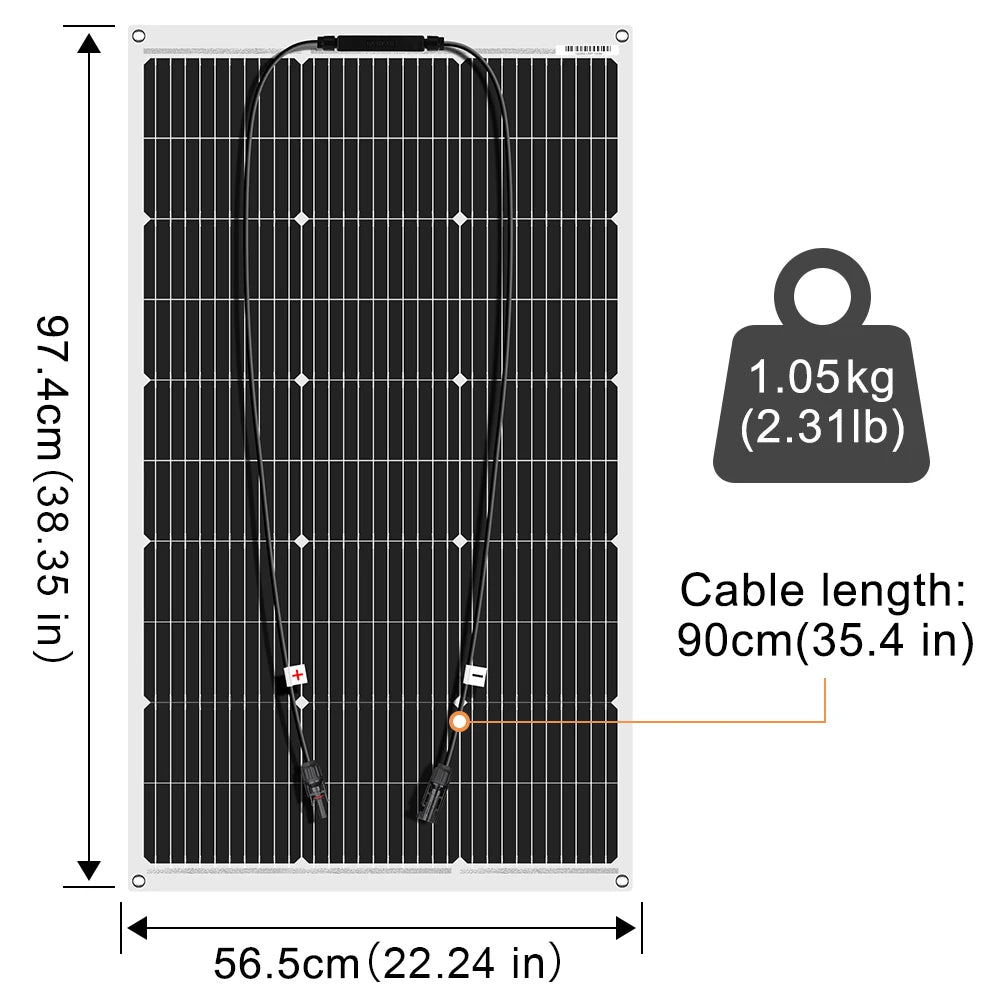

Dimension:974*565mm
Package Weight:3.5kg
Package Dimension:98*58*3.5cm
Material structure：
1 floor: ETFE
2 floor: EVA Film
3 floor: High Efficiency Solar Cell
4 floor: EVA Film
5 floor: TPT Backsheet

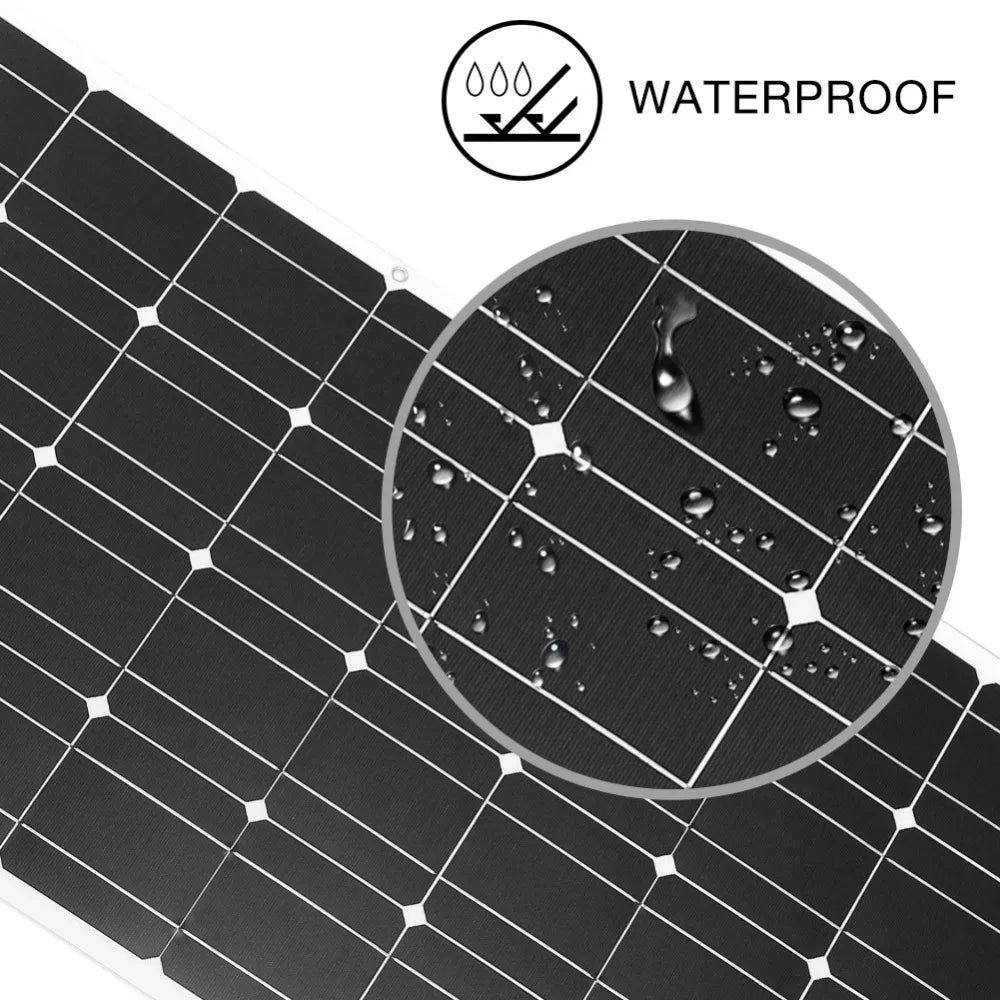

waterproof level：IP67（Junction Box）
(The above data is based on the laboratory standard test environment)

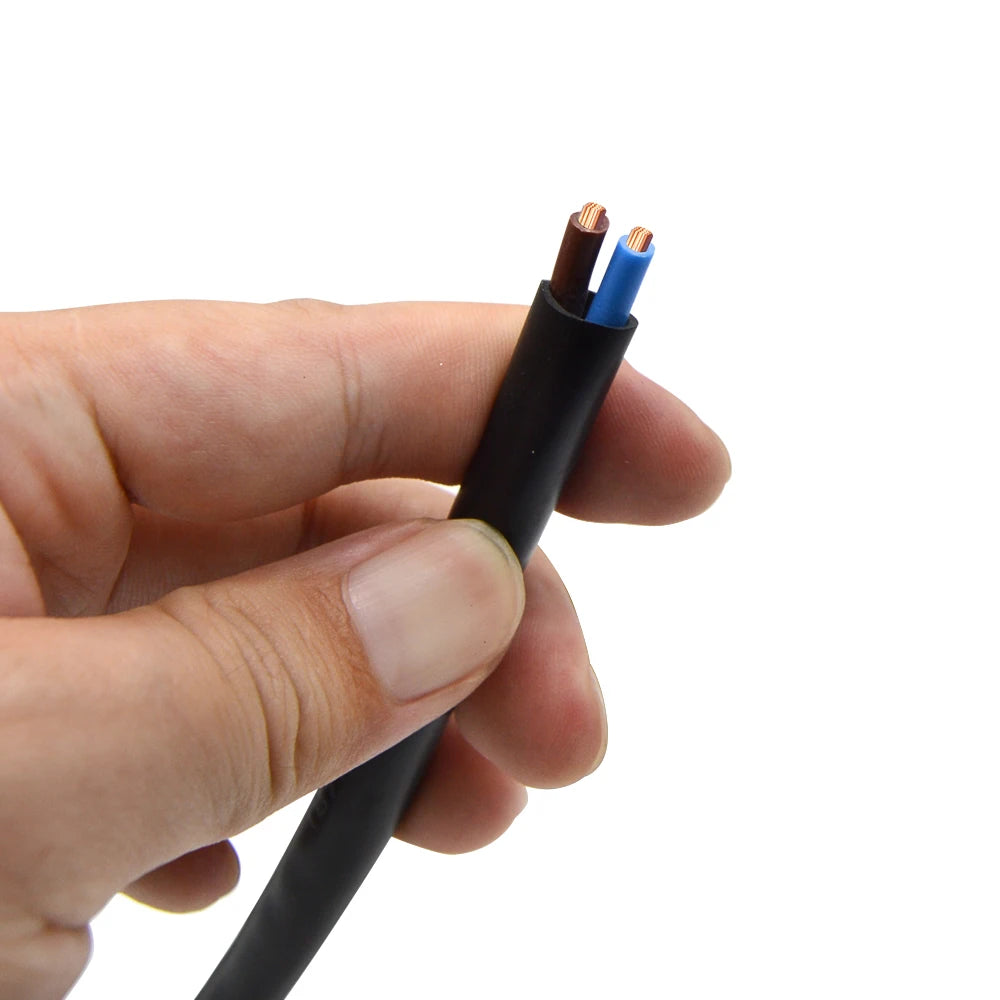

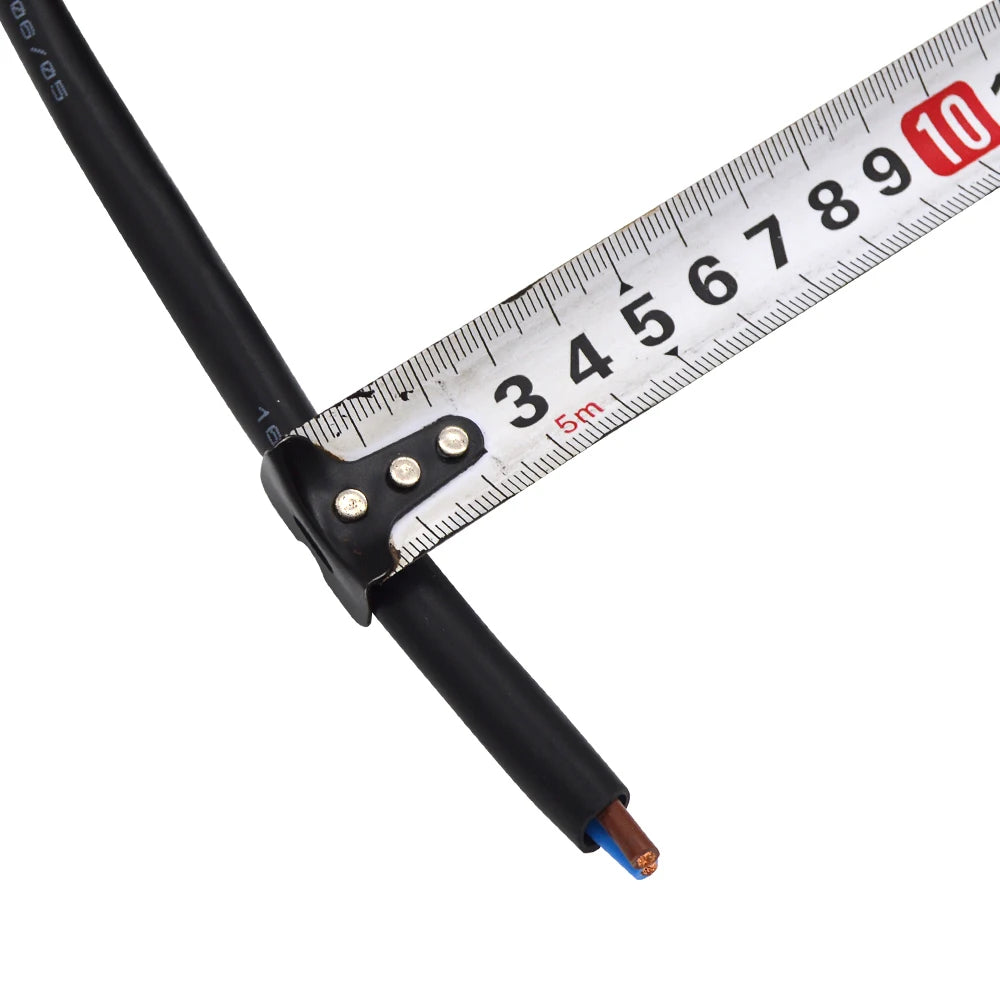

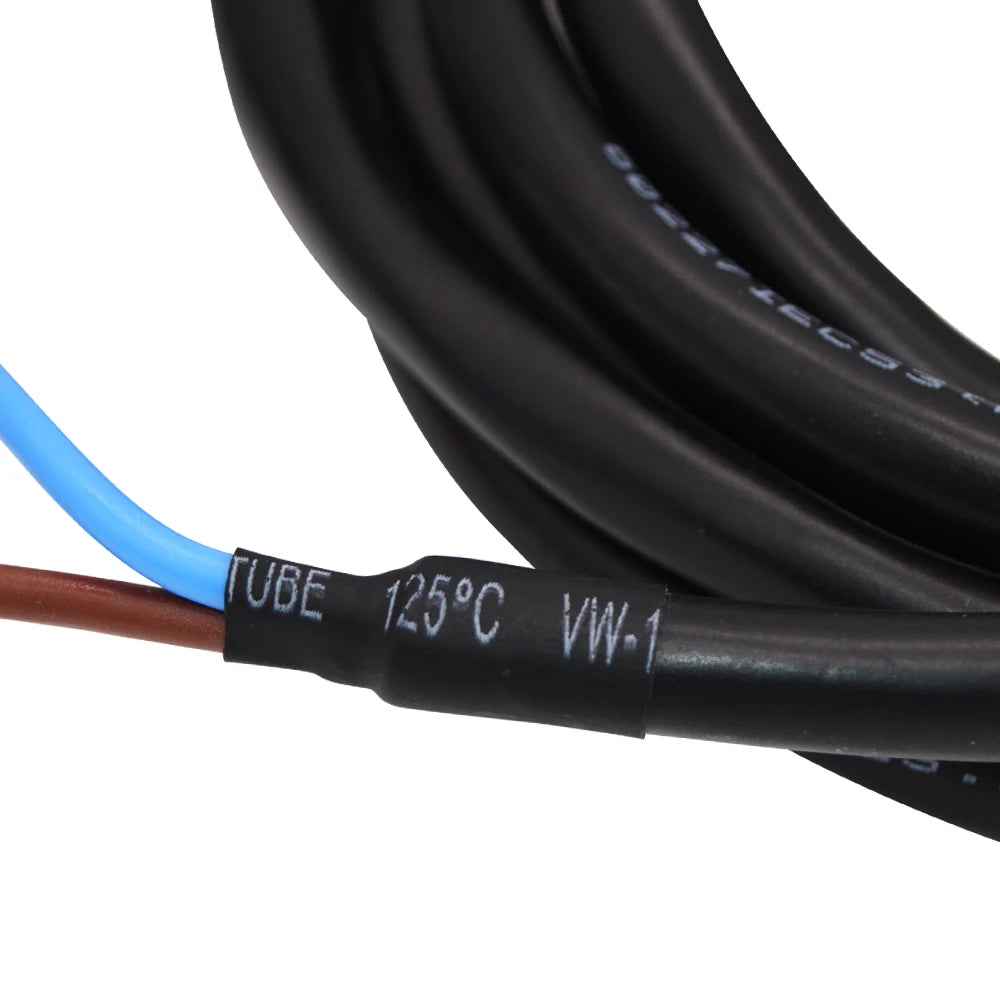

For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃
Standard Test Conditions:
AM=1.5         IRRADIANCE=1000W/m2        Temp.=25℃
(The size is manually measured and there is a certain error. Customers who want accurate size please don't buy，thank you）

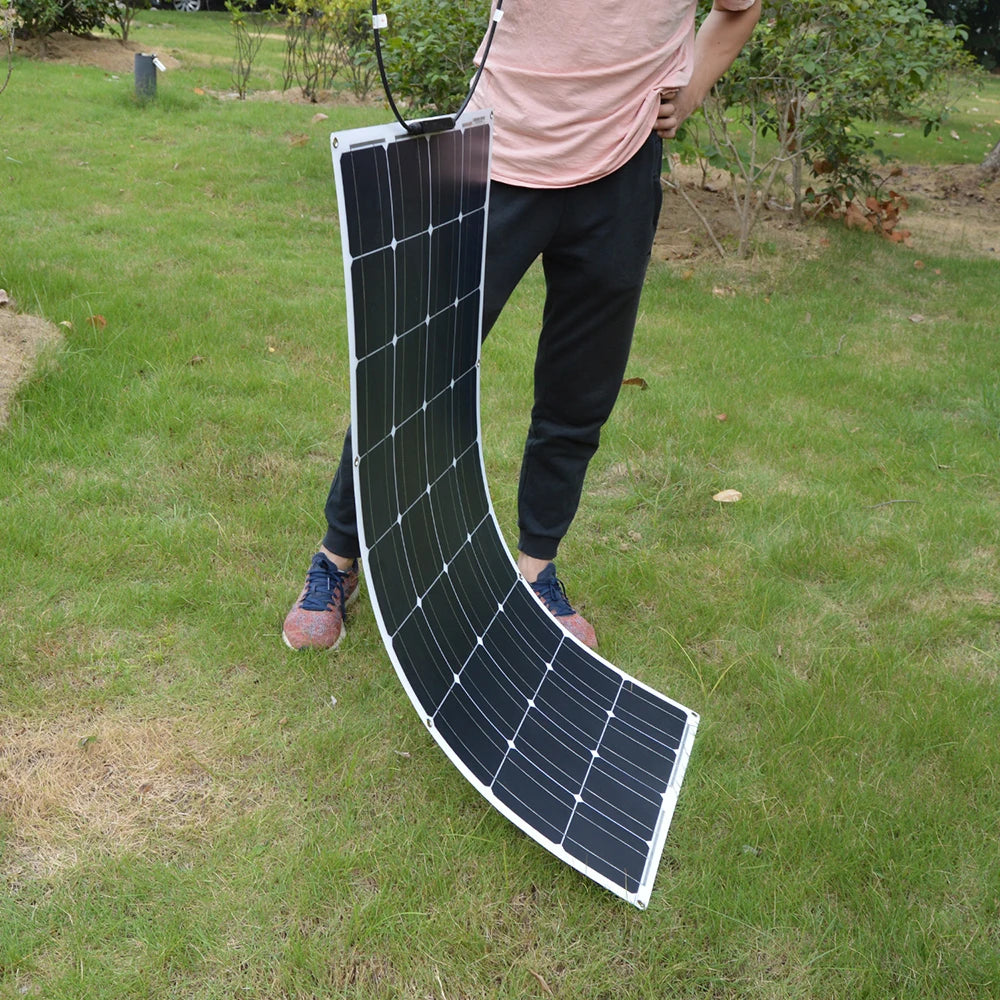

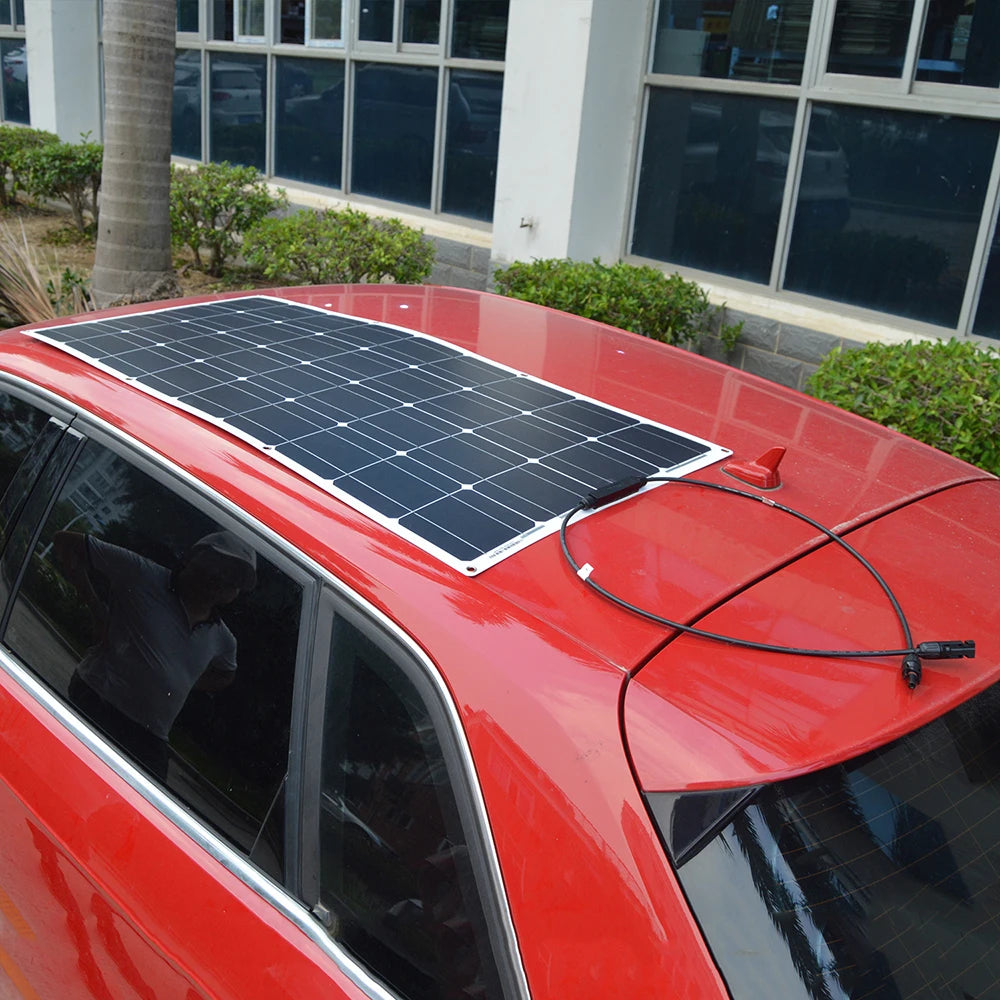

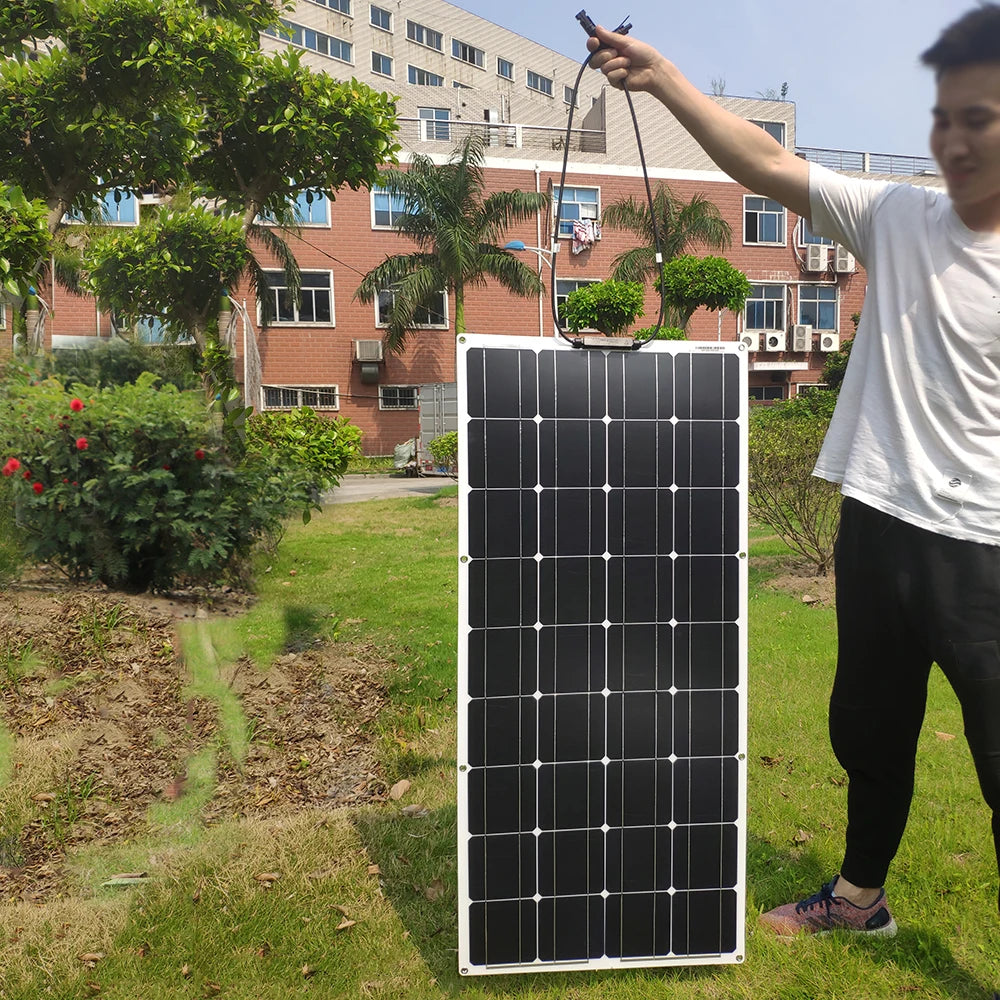

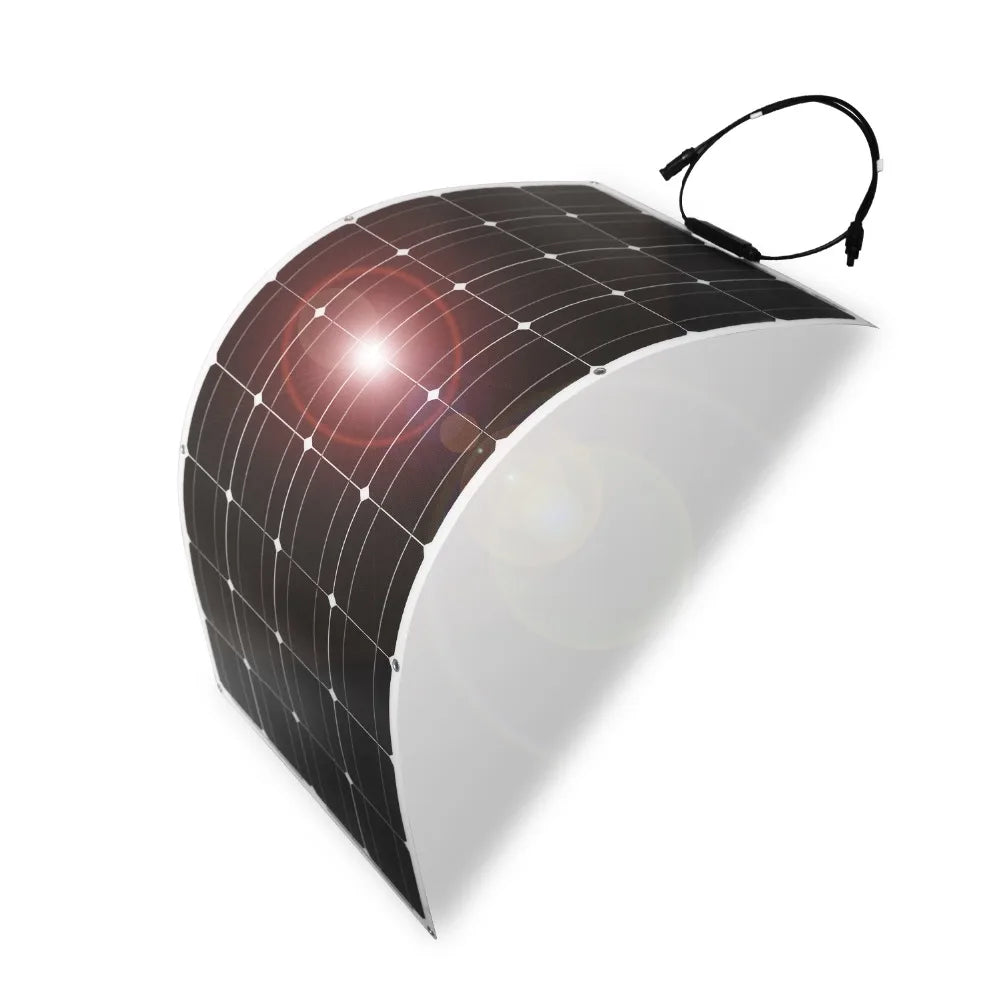

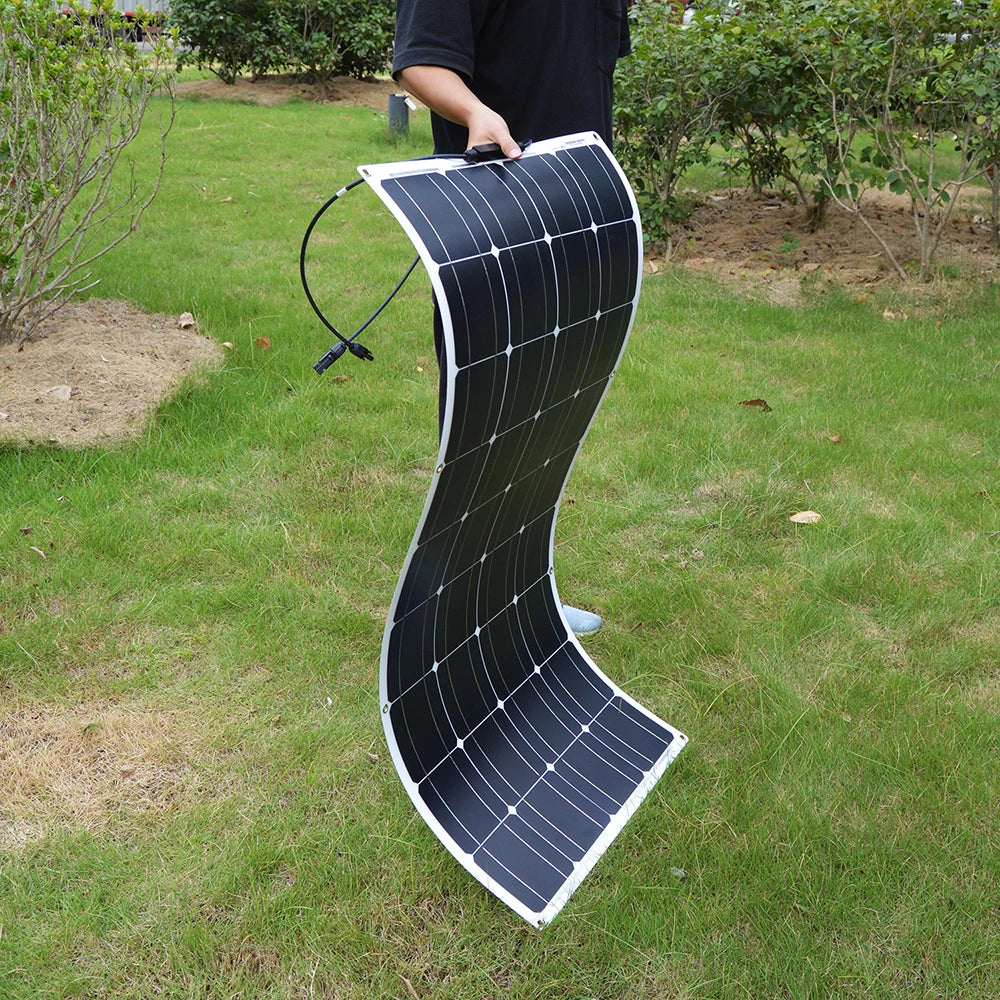

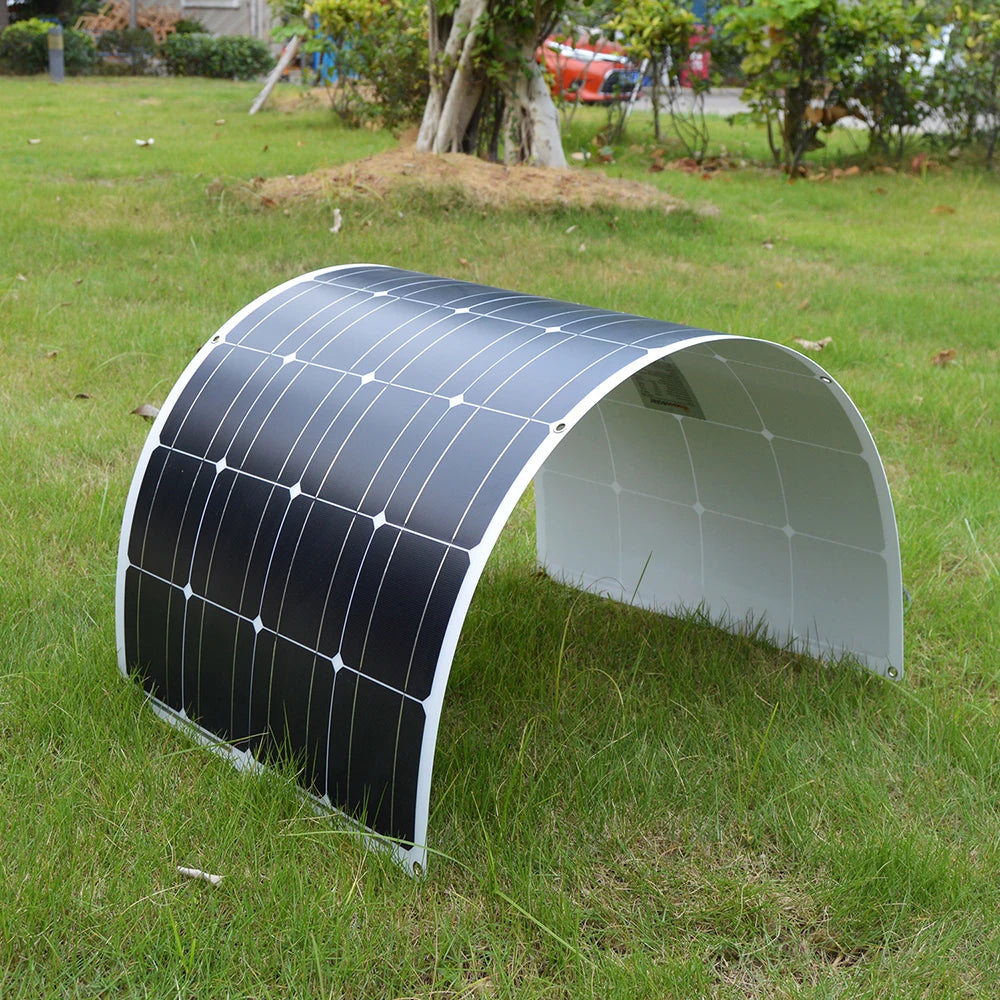

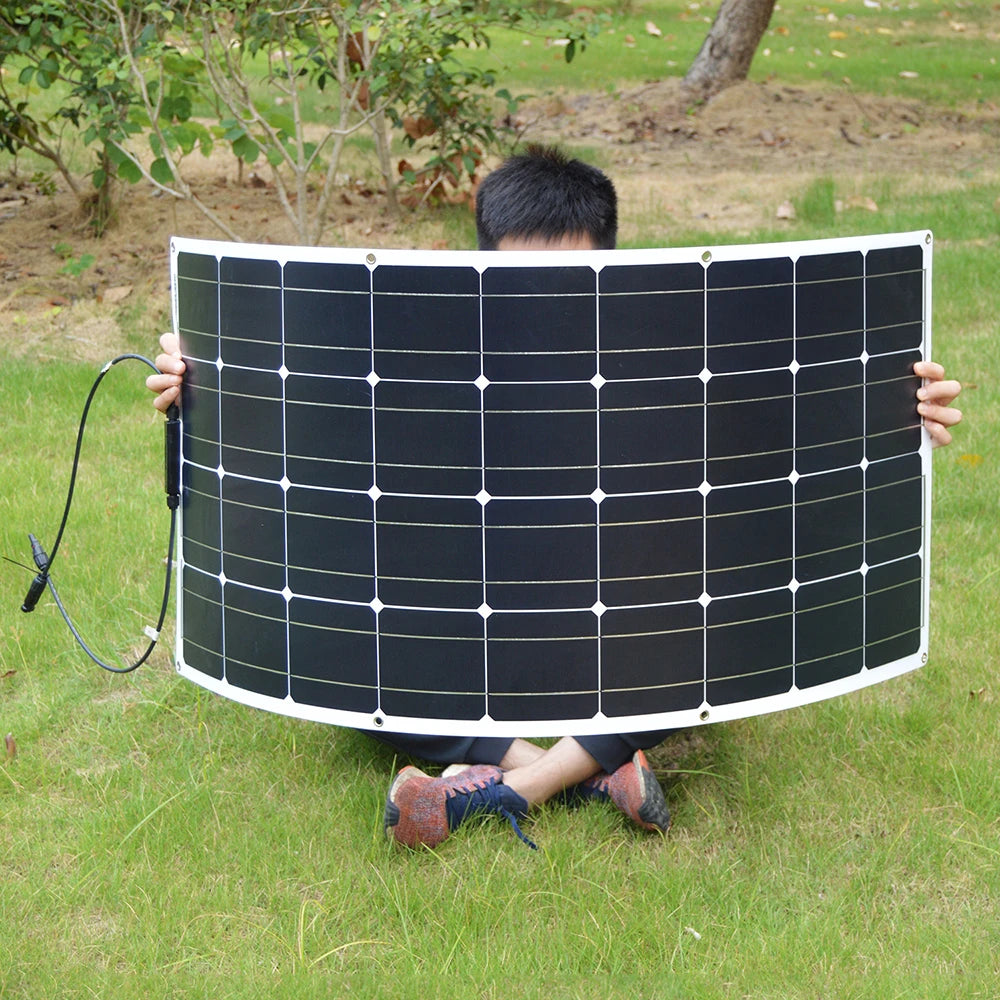

Easy to use:Semi-flexible panels can be mounted on irregular surfaces such as RV roofs, boats, tents, vaulted roofs, etc. Up to 30 degrees.

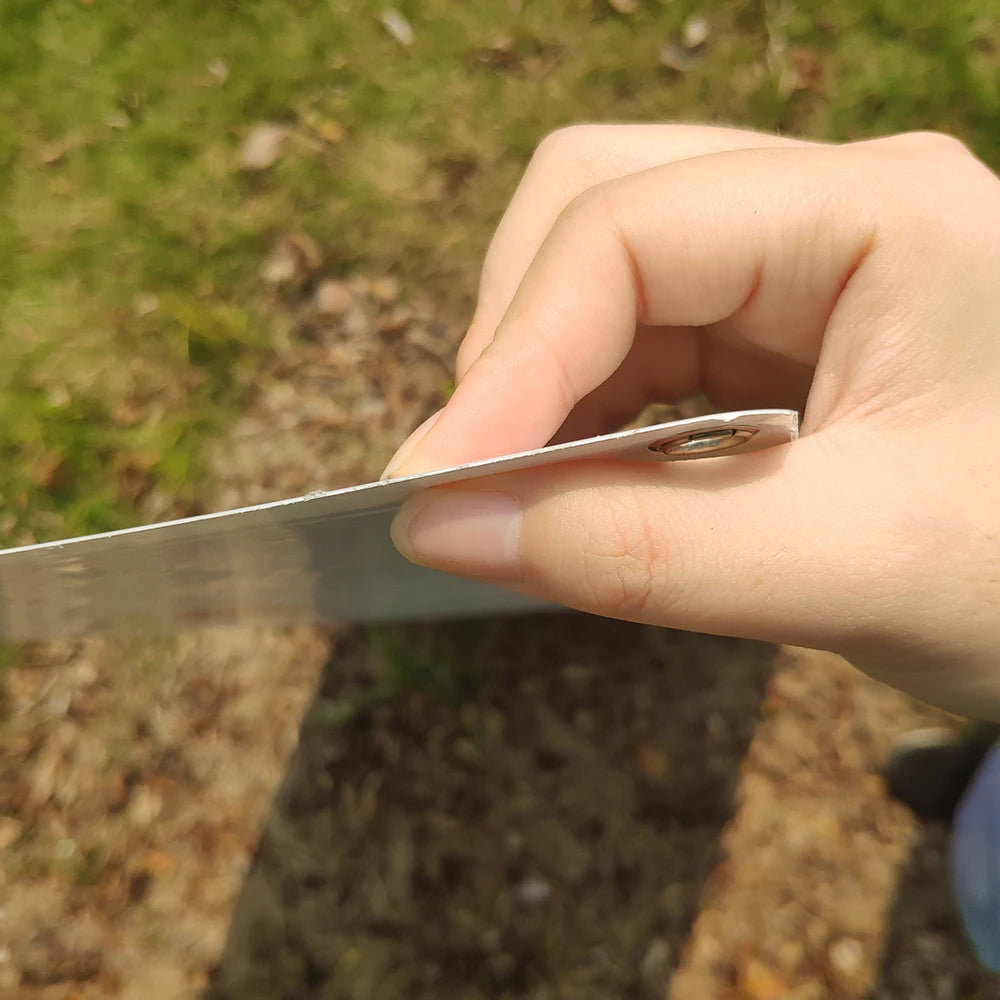

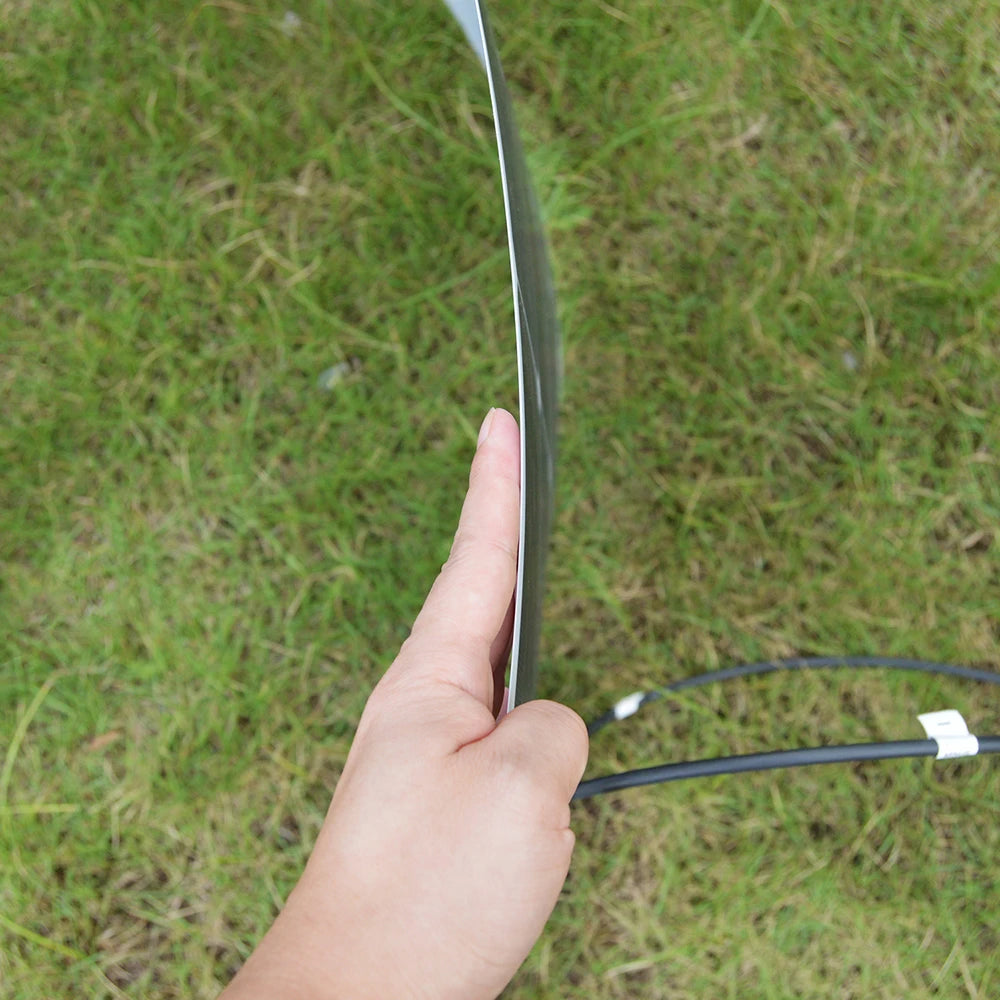

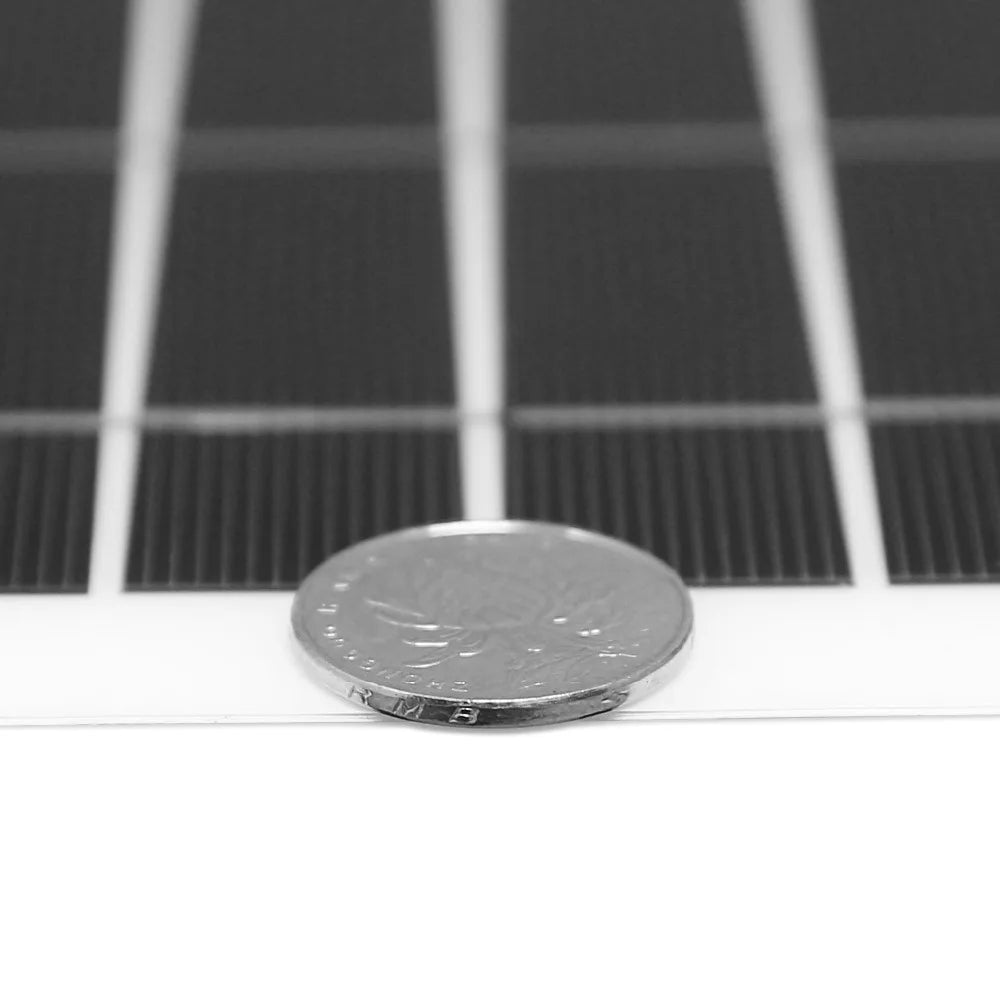

High efficiency, Light weight:only 1.5mm thick, weight 1.1kg, easy to hang, disassemble and carry.
Easy to install:Metal holes in the four corners of the product for fixing screws and mounting. Each solar panel has been tested several times.
As a professional solar panel manufacturer with more than ten years of production experience. Choose us, your interests will be the best protection.

Our Advantages

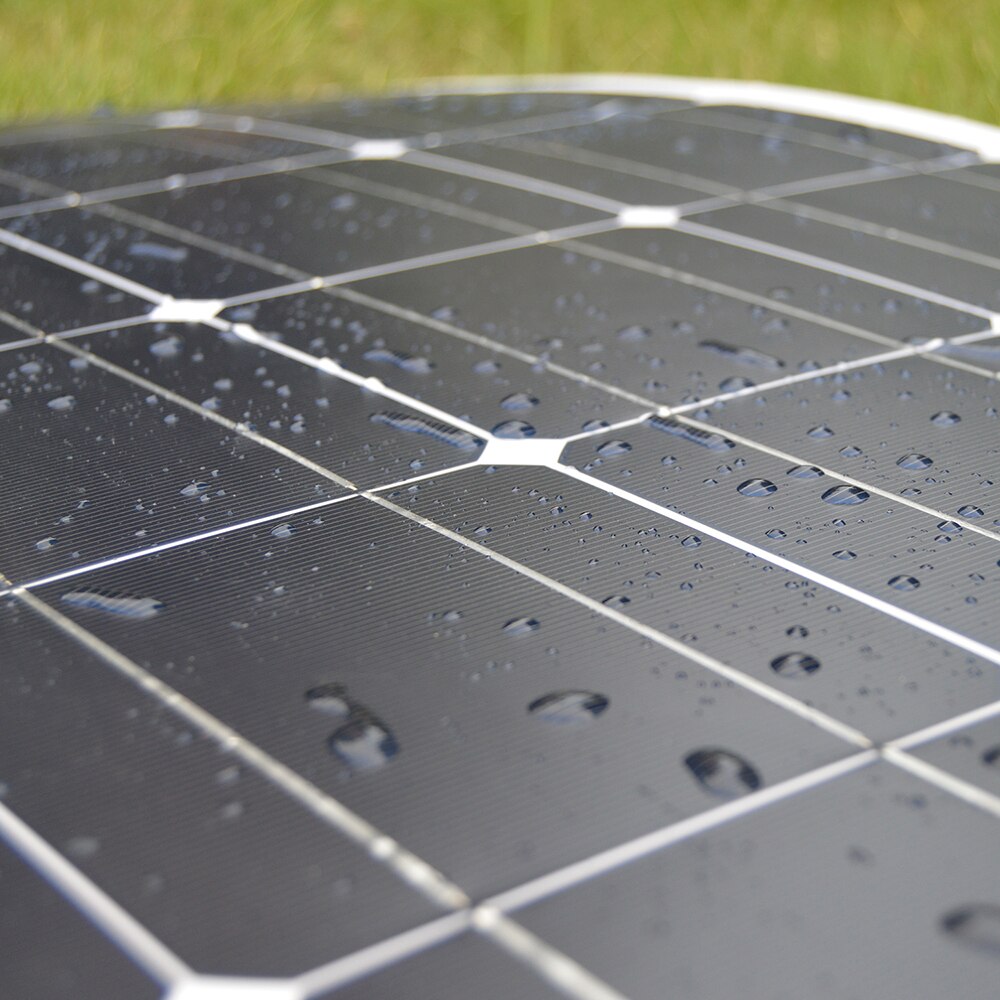

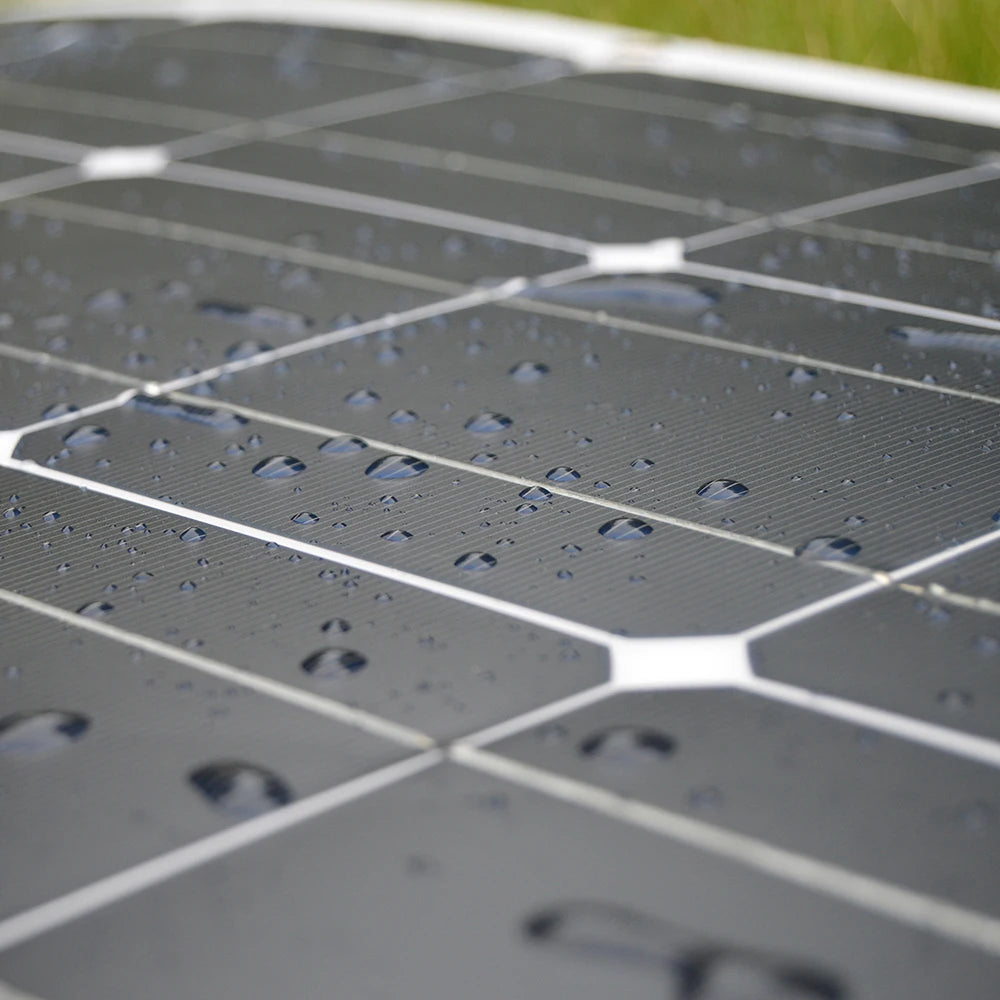

The surface is made of ETFE advanced materials. It is more durable than the PET materials used by other sellers on the Aliexpress.

The junction box on the back of the solar panel is IP67 rated, and the waterproof rating is the same as IPHONE X and IPHONE 8 PLUS.

The junction box on the back of the solar panel has a Schottky diode built in to prevent reverse current.

About transparation:

For Brazilian customer:Since the size of this product exceeds the size limit of Brazil Post, we need to use other logistics delivery. Other logistics companies will charge an additional fee.
If you are willing to pay additional fees, please send us the address information and CPF before placing the order. We will ask the logistics provider for the amount.

The transportation method of the product is for reference only. Aliexpress standard shipping has listed solar panels as prohibited products.

We will choose EMS, DHL, UPS, FEDEX, DPEX and other commercial express according to the specific situation.


FAQ


What is the difference between a 32 cells solar panel and a 36 cells solar panel?



The solar panel voltage of 32 cells is 16v, and the solar panel voltage of 36 cells is 18v.Compared to 18v solar panels, 16v solar panels do not perform as well as 18v solar panels in the morning and evening.


If your country has plenty of sunshine, then 16v solar panels can also achieve 18v performance.



Why did the title write 12V solar panels, and the product page wrote 18v solar panels?


Many customers will have a misunderstanding when choosing solar panels. They want to buy 12v solar panels to charge 12v batteries.


In fact, the voltage of the solar panel is affected by the light intensity.If the light is weak, the voltage of the solar panel will drop.


We set the solar panel voltage to 16v-18v to ensure that the solar panel still maintains enough voltage to charge the battery when the light is weak.


Why did I not get 100w in the actual test of the 100w solar panel I purchased?
The maximum power of this solar panel is 100w, the maximum is obtained in the laboratory.
Due to geographical constraints, most areas cannot get the maximum power of 100w.
So how do you test the maximum power of a solar panel in your-self area?

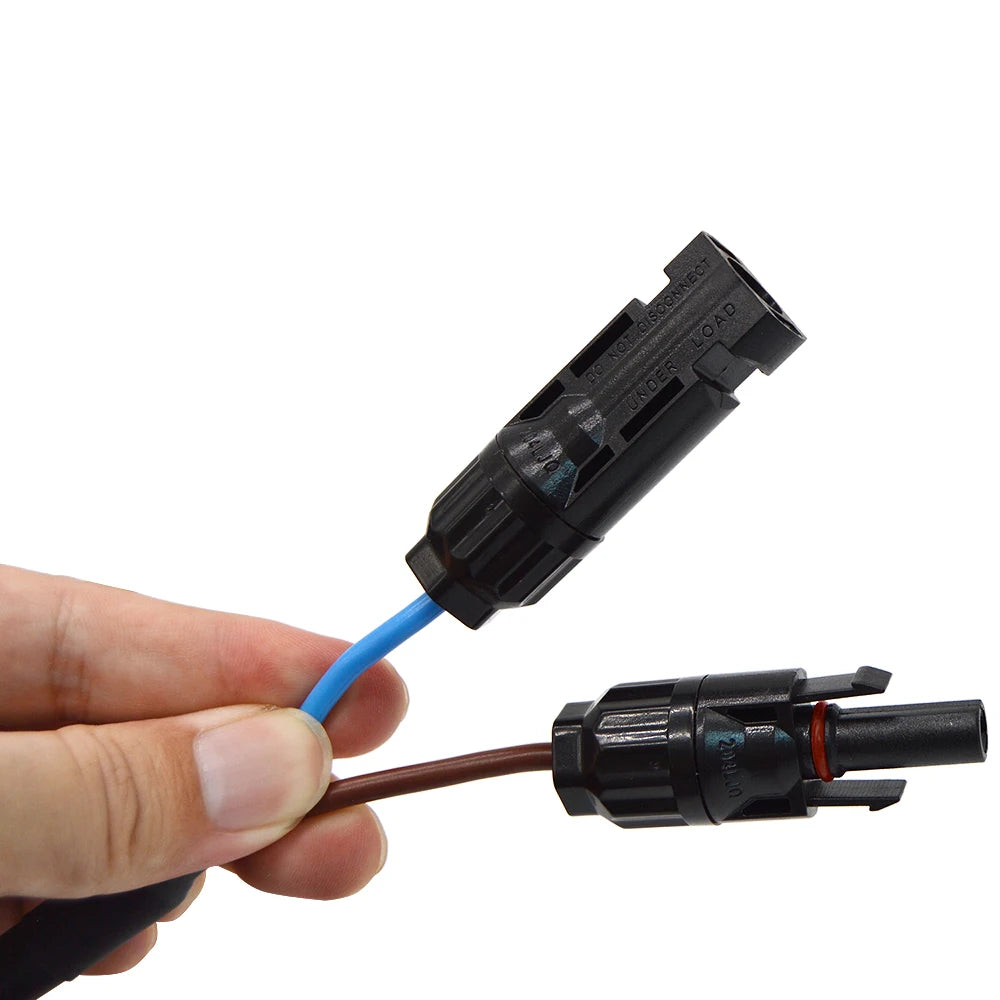

Wait for a sunny day, flatten the solar panels on the ground at 12 noon. Use a multimeter to test the metal sheets in the solar panel junction box, or directly test the MC4 connector.
