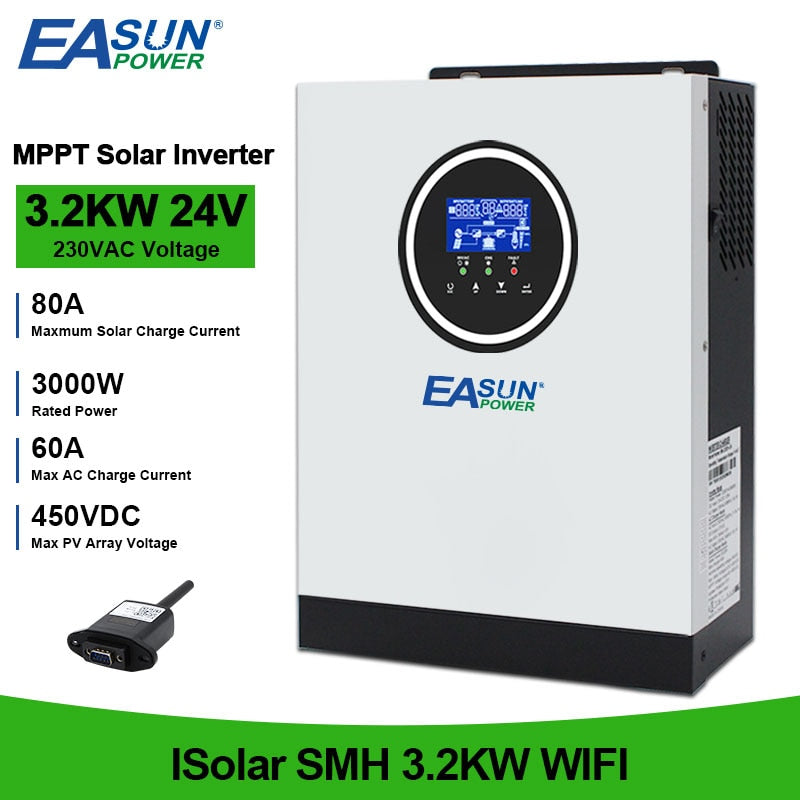

Easun Power 3200VA 3000W Solar Inverter 24V Built in MPPT 80A Solar Controller 230VAC Out-put Voltage Max PV 450VDC Support WIFI
Easun Power 3200VA 3000W Solar Inverter 24V Built in MPPT 80A Solar Controller 230VAC Out-put Voltage Max PV 450VDC Support WIFI
76 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
type 4: inversor hibrido
type 3: inverter solare fotovoltaico
type 2: inverter ibrido fotovoltaico
type 1: hybrid wechselrichter
is_customized: Yes
Weight: 6.5
Wave form: Pure sine wave
WIFI: Support
Voltage Waveform: Pure Sine Wave
Type: DC/AC Inverters
Solar Type: MPPT Solar Charge Controller
Size: 305*272*100mm
Rated Power: 3200VA/3000W
Power factor: PF0.8
Overcharge Protection: 31VDC
Output Type: single
Output Power: 1 - 200KW
Output Frequency: 50Hz
Origin: Mainland China
Model Number: ISOLAR-SPH-3K
Model: ISOLAR-SMH-3.2KW-WIFI
Maxmum Charge Current: 80A
Maximum PV Array Power: 3000W
Maximum PV Array Open Circuit Voltage: 450Vdc
Hybrid Solar Inverter: Solar Inverter Hybrid
Floating Charging Voltage: 27VDC
Certification: CE
Brand Name: EASUN POWER
Battery voltage: 24VDC
AC Voltage: 220VAC 230VAC
Easun Power 3200VA 3000W Solar Inverter 24V Built in MPPT 80A Solar Controller 230VAC Out-put Voltage Max PV 450VDC Support WIFI
Features:
1)Pune sine wave inverter
2)Configurable input voltage range for home appliances and personal computers via LCD setting
3)Configurable battery charging current based on applications via LCD setting
4)Configurable AC/Solar Charger priority via LCD setting
5)Compatible to mains voltage or generator power
6)Auto restart while AC is recovering
7)Overload/ Over temperature/ short circuit protection
8)Smart battery charger design for optimized battery performance
9)Cold start function
10)WIFI/GPRS(Option)
MODEL |
Isolar SMH 2.2KW |
Isolar SMH 3.2KW |
RatedPower |
2200VA/1800W |
3200VA/3000W |
INPUT | ||
Voltage |
230VAC |
|
SelectableVoltageRange |
170-280VAC(forpersonalcomputers)90-280VAC(forhomeappliances) |
|
FrequencyRange |
50Hz/60Hz(Autosensing) |
|
OUTPUT | ||
ACVoltageRegulation(Batt.Mode) |
230VAC±5% |
|
Surgepower |
4400VA |
6400VA |
TransferTime |
10ms(forpersonalcomputers)20ms(forhomeappliances) |
|
Waveform |
PureSineWave |
|
BATTERY&ACCHARGER | ||
BatteryVoltage |
12VDC |
24VDC |
FloatingChargeVoltage |
13.5VDC |
27VDC |
OverchargeProtection |
15.5VDC |
31VDC |
Maximumchargecurrent |
60A |
|
SOLARCHARGER | ||
MAX.PVArrayPower |
2000W |
3000W |
MPPTRange@OperatingVoltage |
90-450VDC |
|
|
MaximumPVArrayOpen CircuitVoltage |
450VDC |
|
MaximumChargingCurrent |
80A |
|
MaximumEfficiency |
98% |
|
PHYSICAL | ||
Dimension.D*W*H(mm) |
348*282*105mm |
|
NetWeight(kgs) |
5.0kg |
5.5kg |
CommunicationInterface |
RS232(Standard)GPRS/WIFI(Optional) |
|
OPERATINGENVIRONMENT | ||
Humidity |
5%to95%RelativeHumidity(Non-condensing) |
|
OperatingTemperature |
-10°Cto55°C |
|
StorageTemperature |
-15°Cto60°C |
|

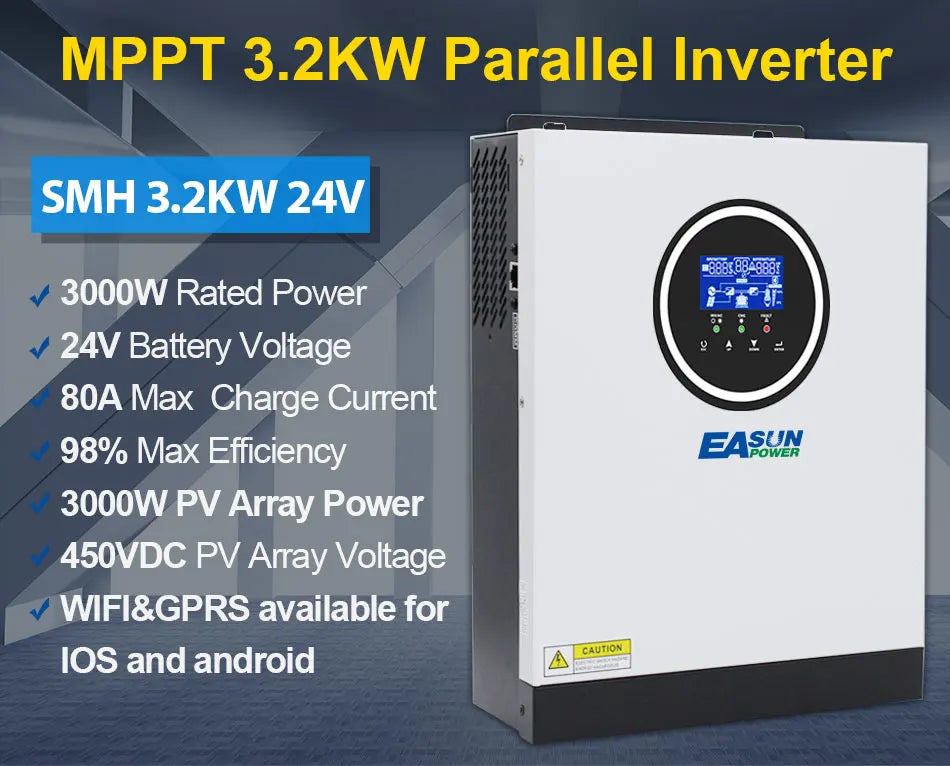

Easun Power's 3200VA solar inverter features a built-in MPPT controller, supporting up to 450VDC input voltage. With Wi-Fi/GPRS connectivity for iOS and Android devices, this device offers 98% maximum efficiency and 3000W power output at 230VAC.
Easun Power solar inverter features a high PV input battery voltage max output power of 450VDC, compatible with 24V DC and 3000W. It produces pure sine wave outputs up to 230VAC, supports parallel operation, and has an MPPT controller with 80A charge current.

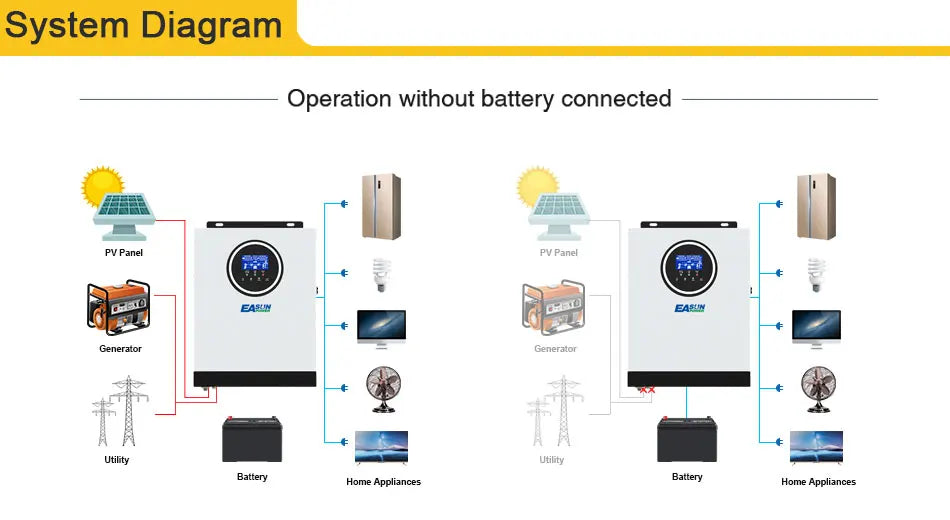

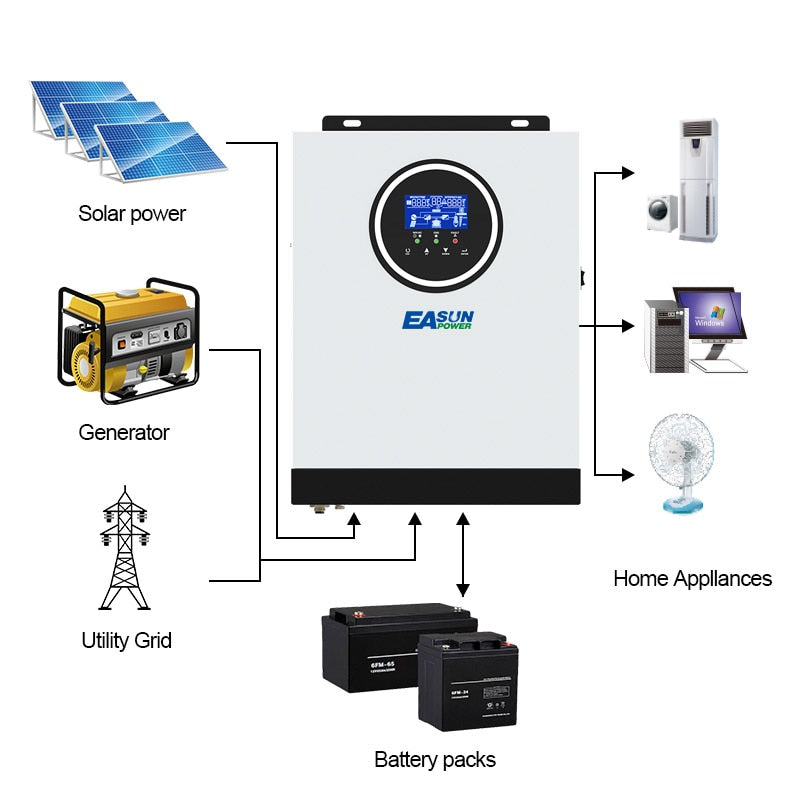

Operational diagram for solar power system: no battery connected, panel charges generator, which supplies 230VAC output and supports WiFi connectivity.

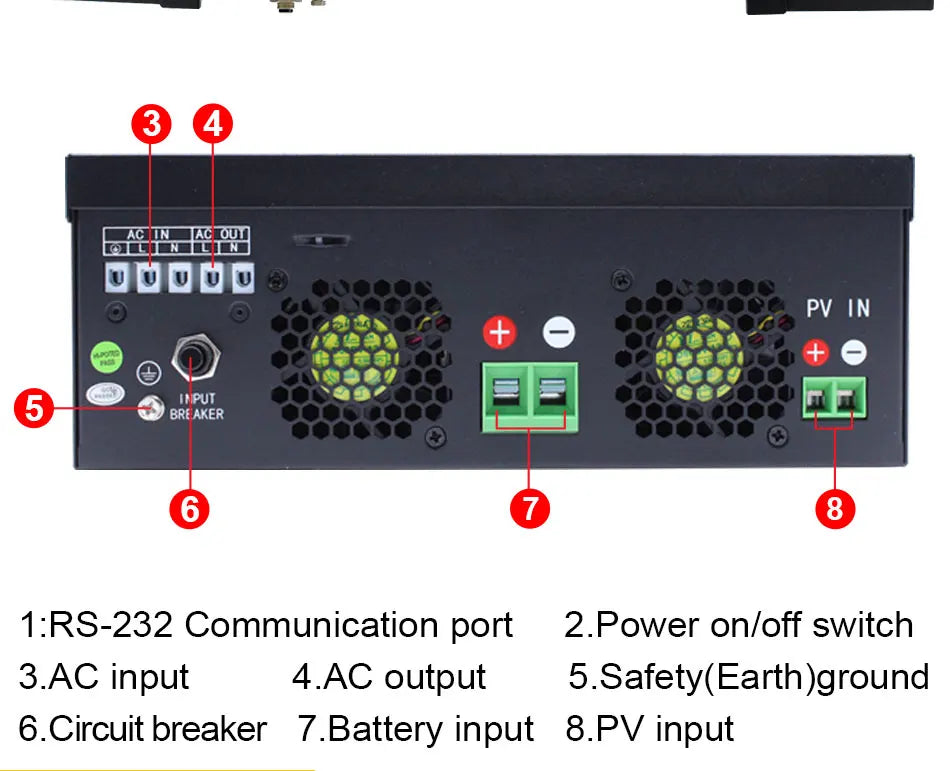

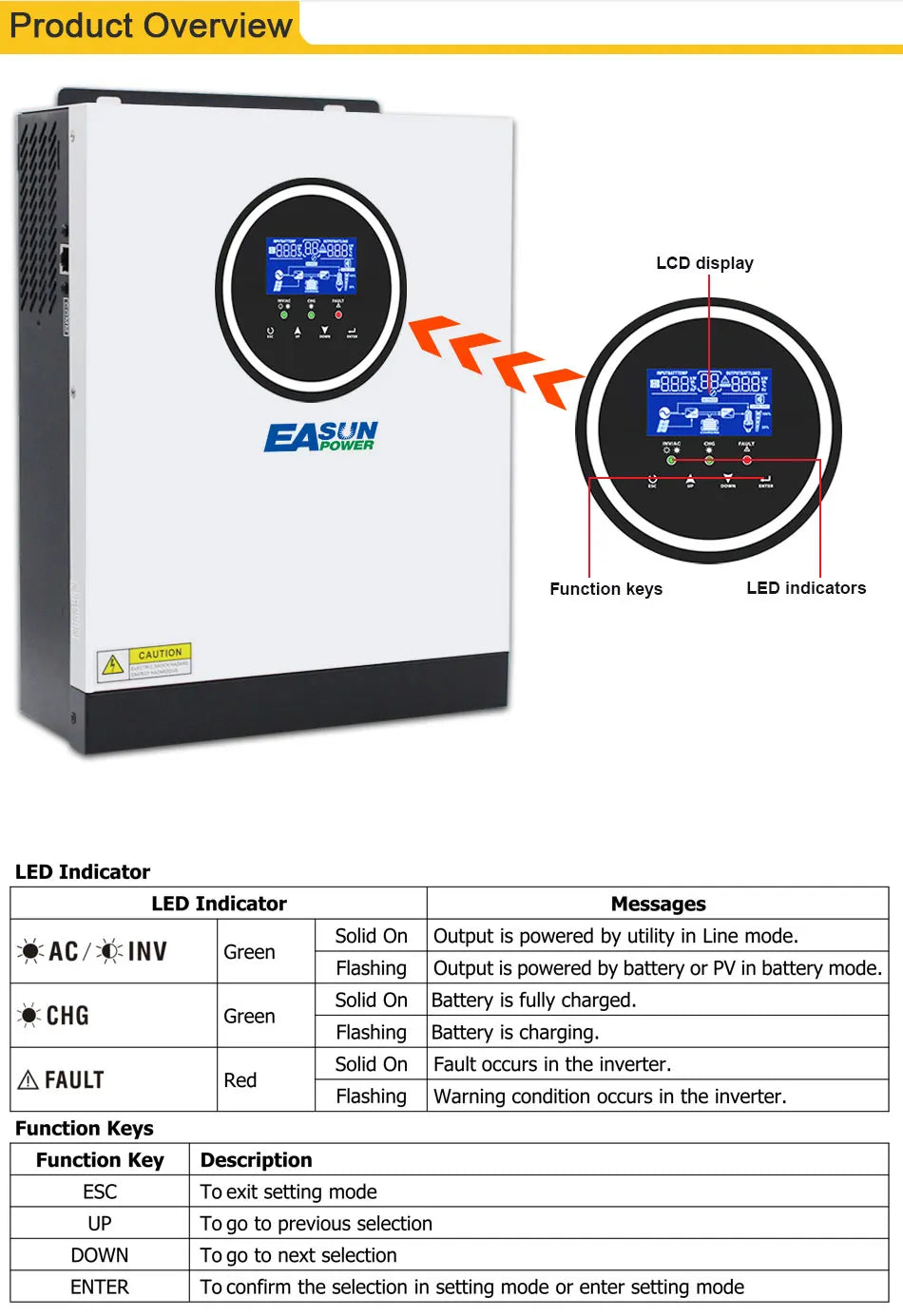

The Easun Power inverter features a compact design with eight key components: RS-232 communication port, power on/off switch, AC input/output, safety ground, circuit breaker, battery input, and PV input. These features ensure seamless solar energy conversion.

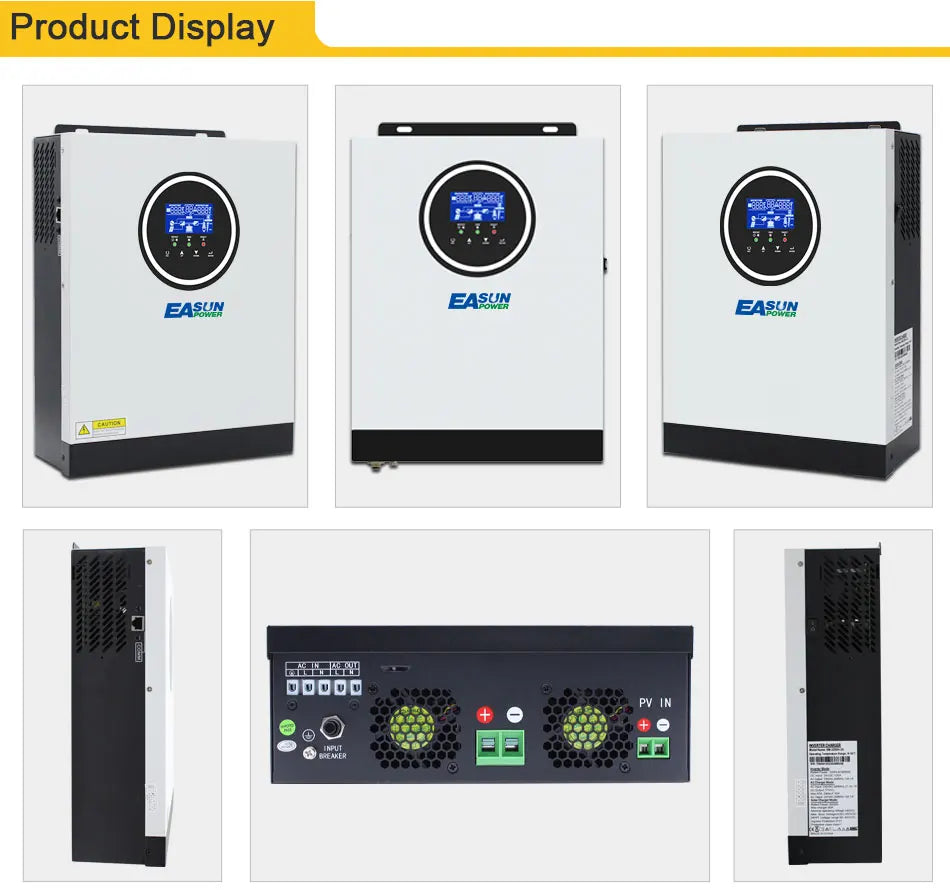

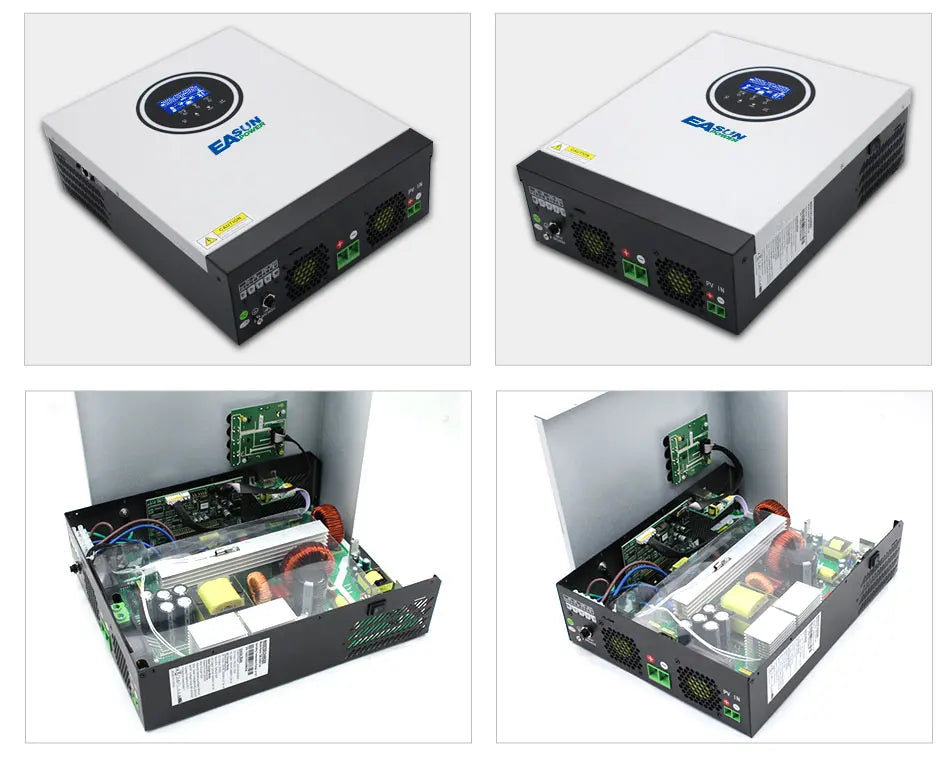

Easun Power Solar Inverter with 3200VA capacity, 3000W power, and built-in MPPT controller, supports WiFi connectivity.
