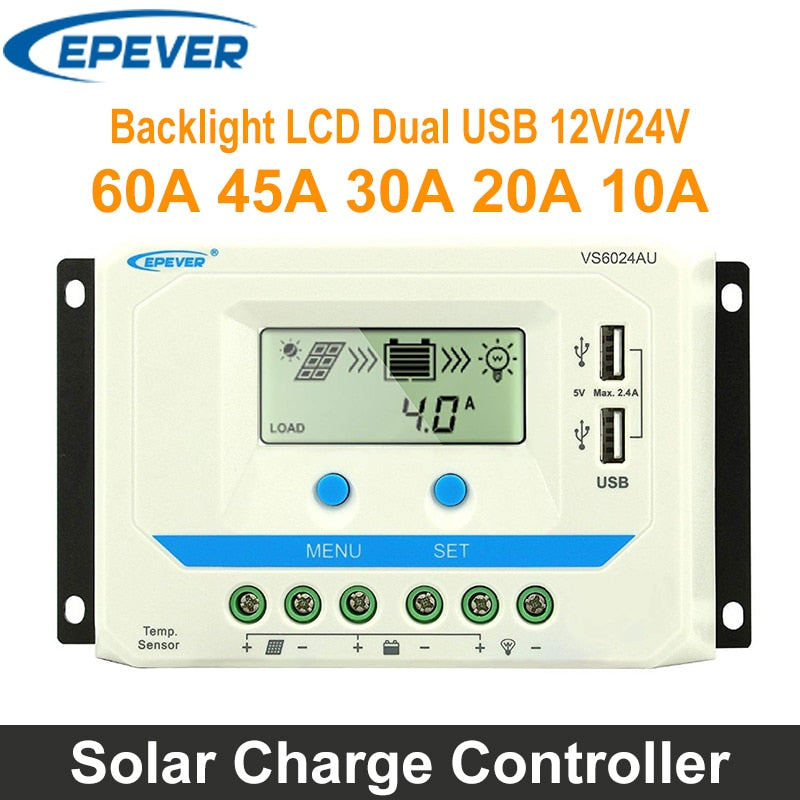

EPEVER 60A 45A 30A 20A 10A Solar Charge Controller 12V/24V Auto Solar Charge Regulator with Load Timer LCD Display Dual USB 5V
EPEVER 60A 45A 30A 20A 10A Solar Charge Controller 12V/24V Auto Solar Charge Regulator with Load Timer LCD Display Dual USB 5V
245 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Origin: Mainland China
Model Number: EPever VS AU
Maximum Current: 60A 45A 30A 20A 10A Solar Charger Controller
Max. PV open circuit voltage: 50V(24V System);25V(12V System)
LCD Control: Backlight
Item: EPever Solar Panel Regulator
Is Smart Device: YES
Grounding: Common Positive
Dual USB output Charger: 5VDC/2.4A(Total),5VDC/2.4A(Total)
Certification: CE
Brand Name: PowMr
Battery type: Sealed/ Gel / Flooded/AGM
Battery input voltage range: 9V~32V
Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station
EPEVER 60A 45A 30A 20A 10A Solar Charge Controller 12V/24V Auto Solar Charge Regulator with Load Timer LCD Display Dual USB 5V Inputs, Suitable for Lead Acid Batteries
Overview:
The VS-AU charge controller is a PWM charge controller with built in LCD display that adopts the most advanced digital technique. The multiple load control modes enable it can be widely used on solar home system, traffic signal, solar street light, solar garden lamp, etc.

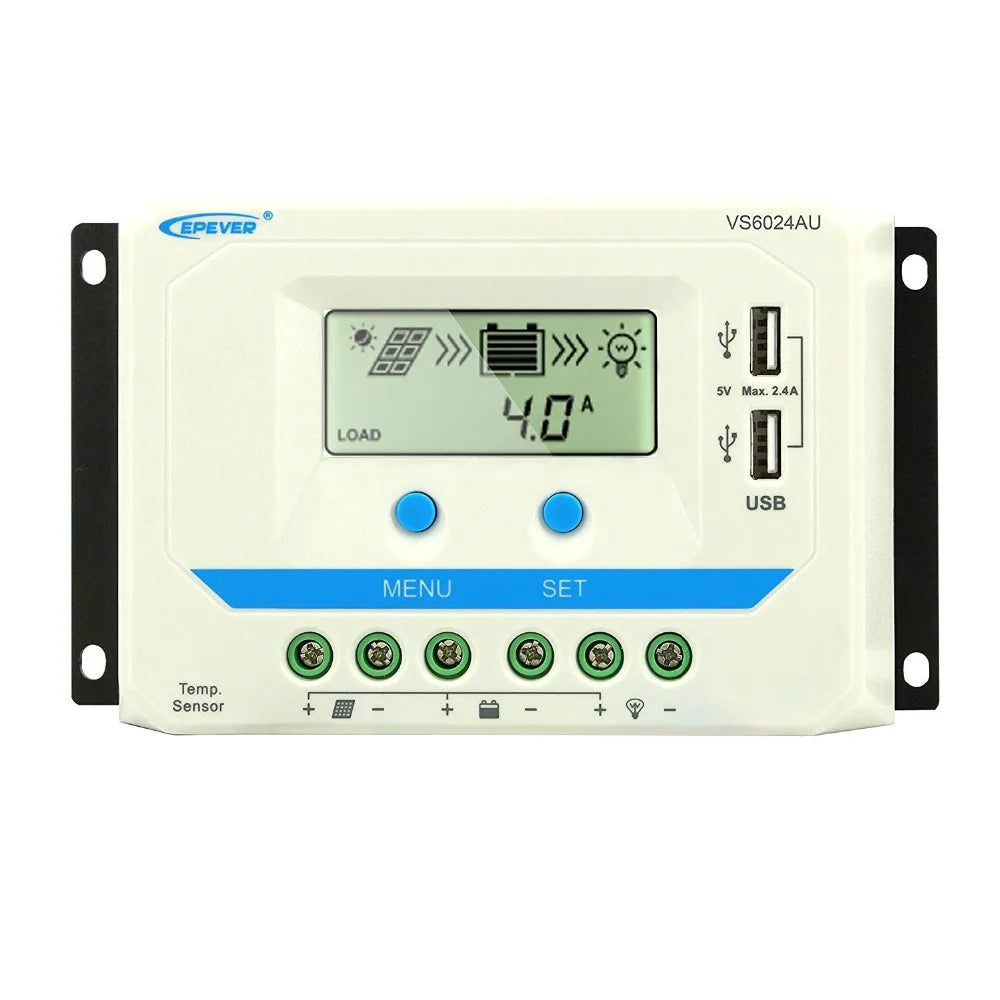

EPEVER's VS60A/24A supports up to 2.4A charging and features load, USB, menu settings, and a temperature sensor for efficient solar power regulation.
Feature:
Adopt high quality components of ST,IR and Infineon, make sure product using lifespan - 3-Stage intelligent PWM charging：Bulk, Boost/Equalize, Float
LCD display design, dynamically displaying device’s operating data and working condition
Multiple load control modes: Manual mode, Light control
Battery temperature compensation function(NOTE: Unplug the RTS, the temperature of battery will be set to a fixed
value 25ºC.)
Extensive Electronic protection
Energy statistics function
Parameter:
Model |
VS1024AU |
VS2024AU |
VS3024AU |
VS4524AU |
VS6024AU |
Nominal system voltage |
12/24VDC Auto |
||||
Battery input voltage range |
9V~32V |
||||
Rated charge current |
10A |
20A |
30A |
45A |
60A |
Rated discharge current |
10A |
20A |
30A |
45A |
60A |
Max. PV open circuit voltage |
50V(24V System) 25V(12V System) |
||||
Max. PV open circuit power |
240W(24V System) 120W(12V System) |
||||
Battery type |
Sealed(Default) / Gel / Flooded |
||||
Equalize Charging Voltage |
Sealed:14.6V/ Gel: No/ Flooded:14.8V |
||||
Boost Charging Voltage |
Sealed:14.4V/ Gel:14.2V/ Flooded:14.6V |
||||
Float Charging Voltage |
Sealed/Gel/Flooded:13.8V |
||||
Low Voltage Reconnect Voltage |
Sealed/Gel/Flooded:12.6V |
||||
Low Voltage Disconnect Voltage |
Sealed/Gel/Flooded:11.1V |
||||
Self-consumption |
≤9.2mA/12V;≤11.7mA/24V |
||||
Temperature compensation |
-3mV/°C/2V（25°C） |
||||
Charge circuit voltage drop |
≤0.29V |
||||
Discharge circuit voltage drop |
≤0.16V |
||||
Working environment temperature |
-25°C~+55°C |
||||
Relative humidity |
≤95%, N.C. |
||||
Enclosure |
IP30 |
||||
Grounding |
Common Positive |
||||
USB output |
5VDC/2.4A(Total) |
||||
Overall dimension(mm) |
142x85x41.5 |
160x94.9x49.3 |
181x100.9x59.8 |
194x118.4x63.8 |
214x128.7x72.2 |
Mounting dimension |
130x60mm |
148x70mm |
172x80mm |
185x90mm |
205x100mm |
Mounting hole size |
Φ4.5mm |
Φ5mm |
|||
Terminals |
4mm /12AWG |
10mm /8AWG |
16mm /6AWG |
25mm2/4AWG |
|
Note |
Please contact the seller if you want to buy many |
||||

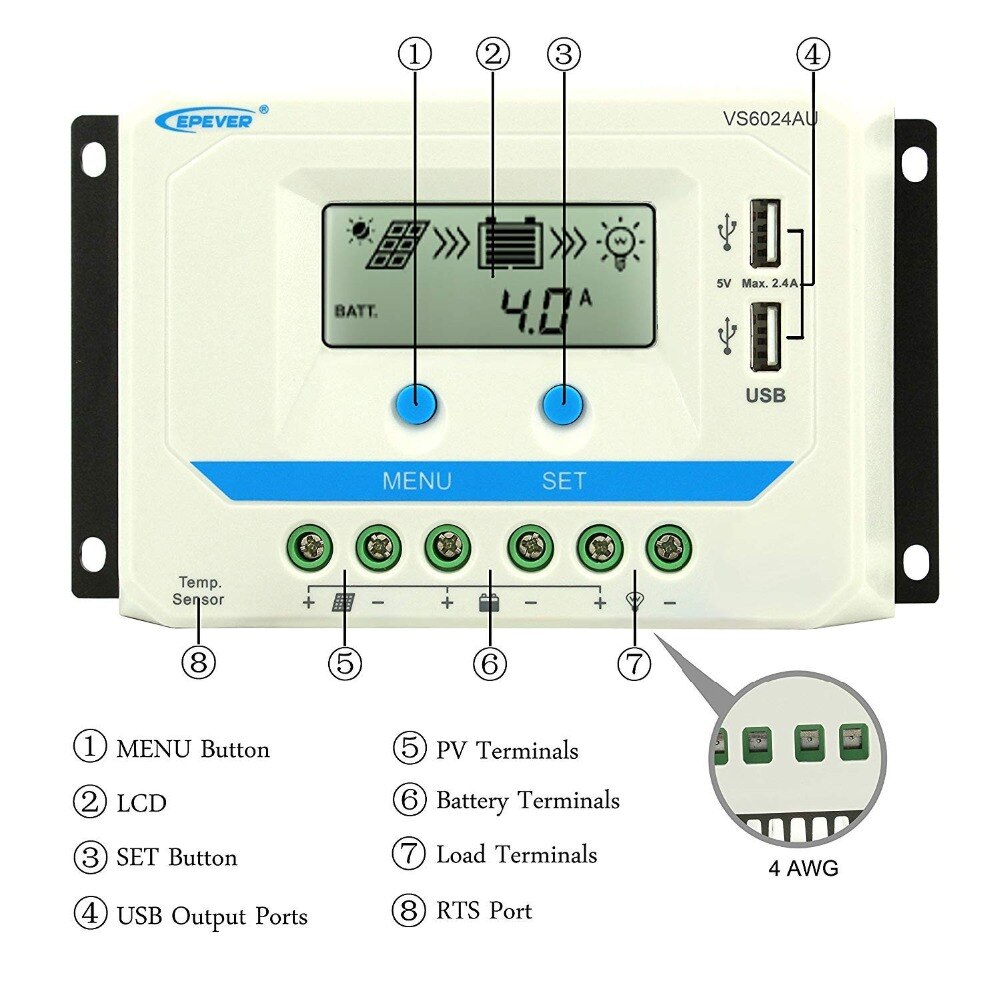

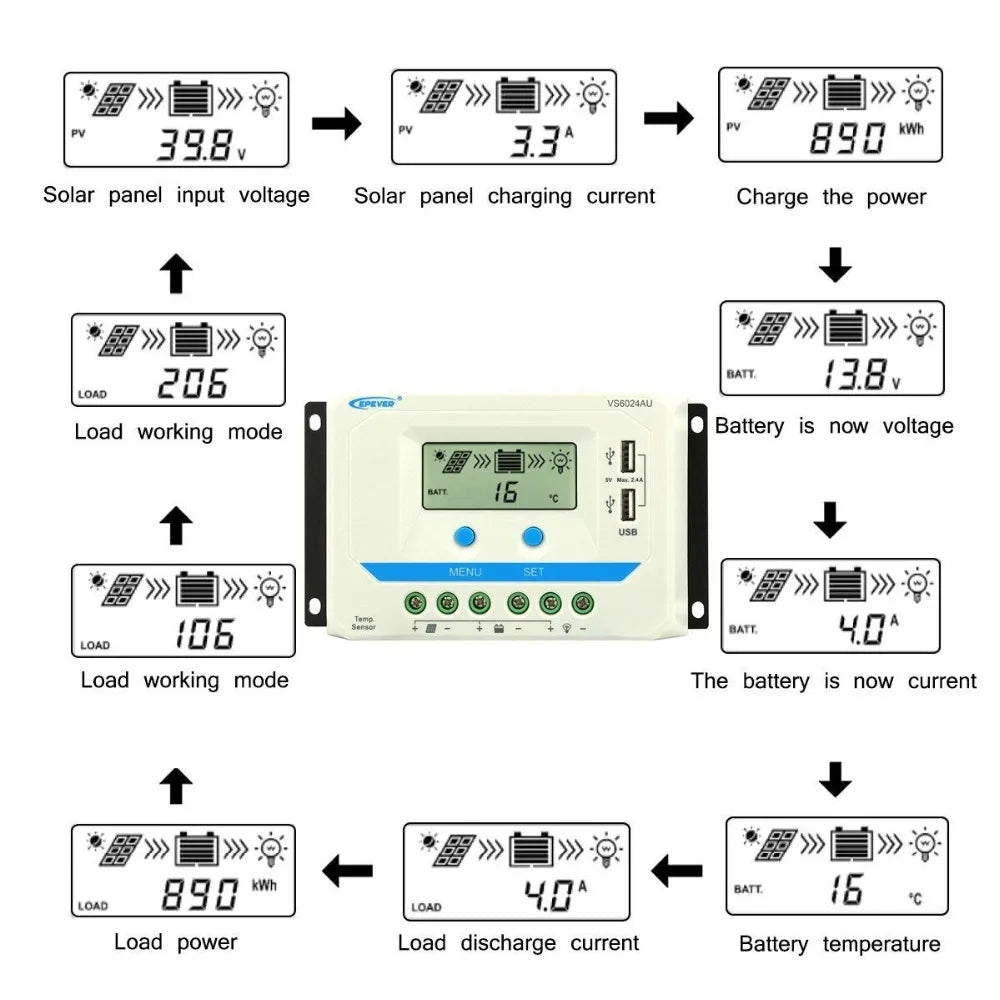

Display:

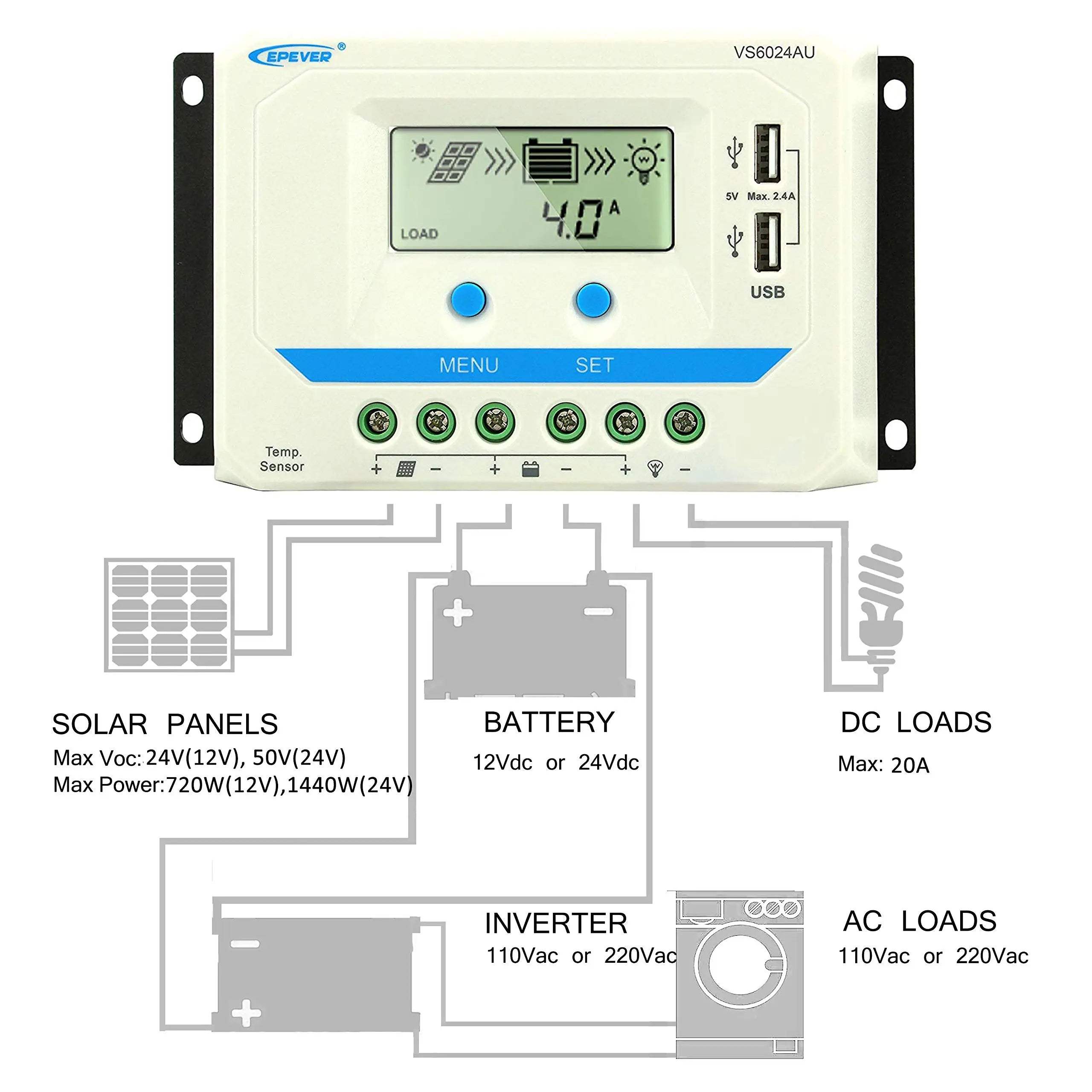

EPEVER VS6O24AU Solar Charge Controller. Key Features: Maximum input voltage: 12V/24V, maximum current: 20A. Supports up to 9 solar panels and has a DC load capacity of 72W (12V) or 1440W (24V). Also features an inverter for AC loads, compatible with 110Vac or 220Vac. Includes LCD display and dual USB ports.

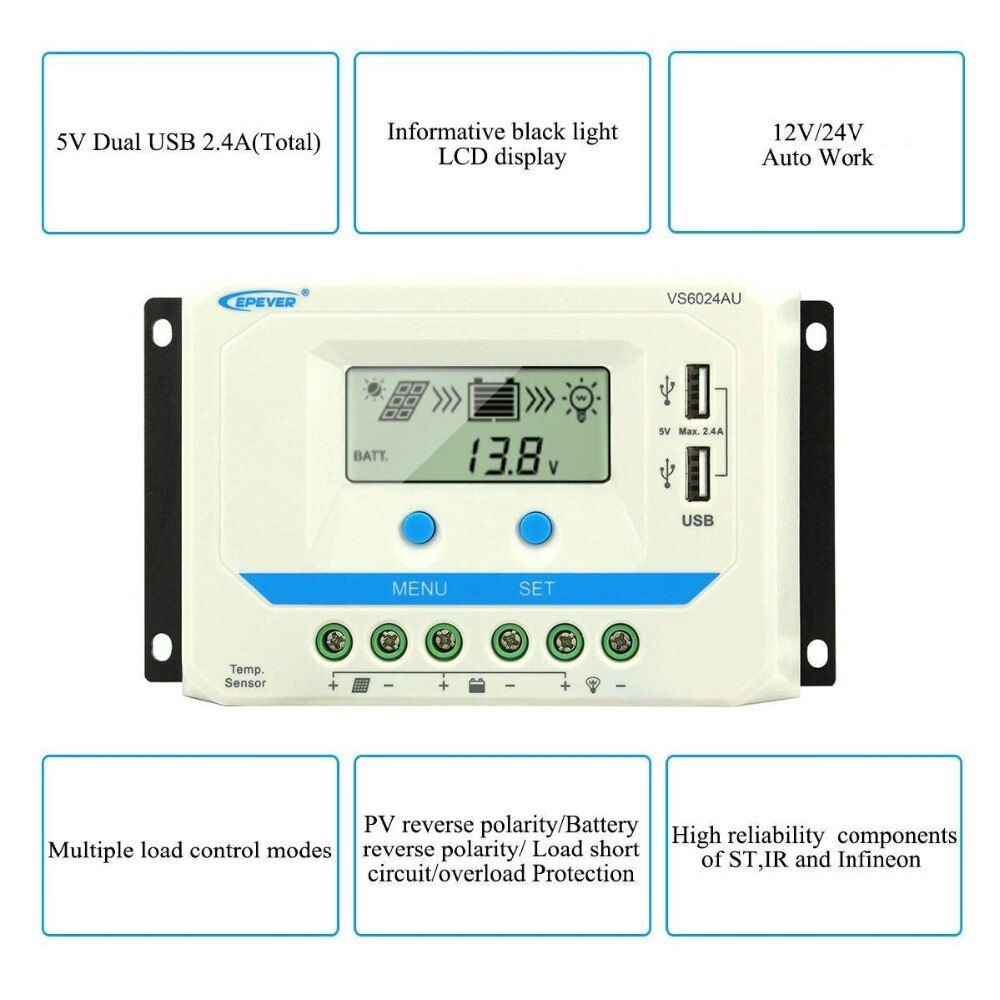

EPEVER's VS60A features a dual-USB port with 2.4A total output, a 12V/24V LCD display, and auto work function. It also includes multiple load control modes, overcharge protection, reverse polarity protection, and short-circuit protection. The device uses high-reliability components from ST, IR, and Infineon.
Photo:

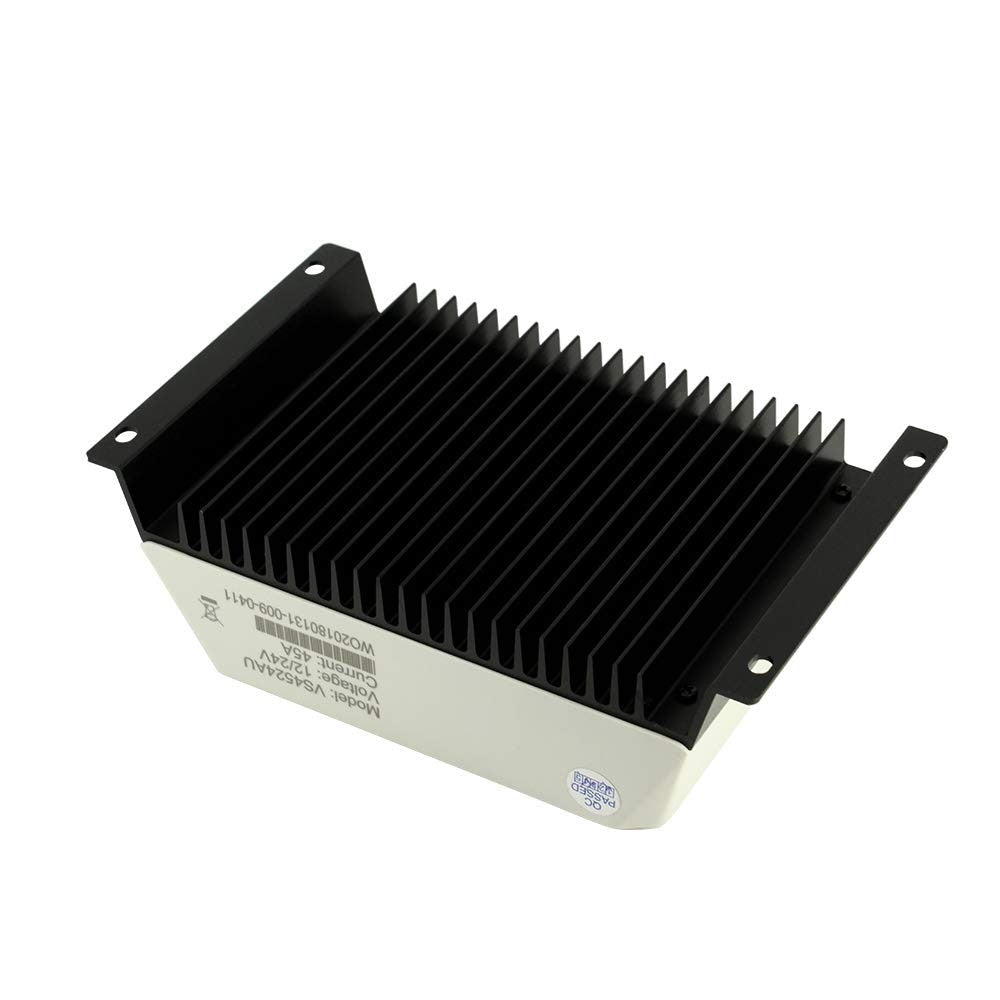

EPEVER 60A-10A Solar Charge Controller regulates 12V/24V solar power. It features an LCD display, load timer, and dual USB ports (5V).

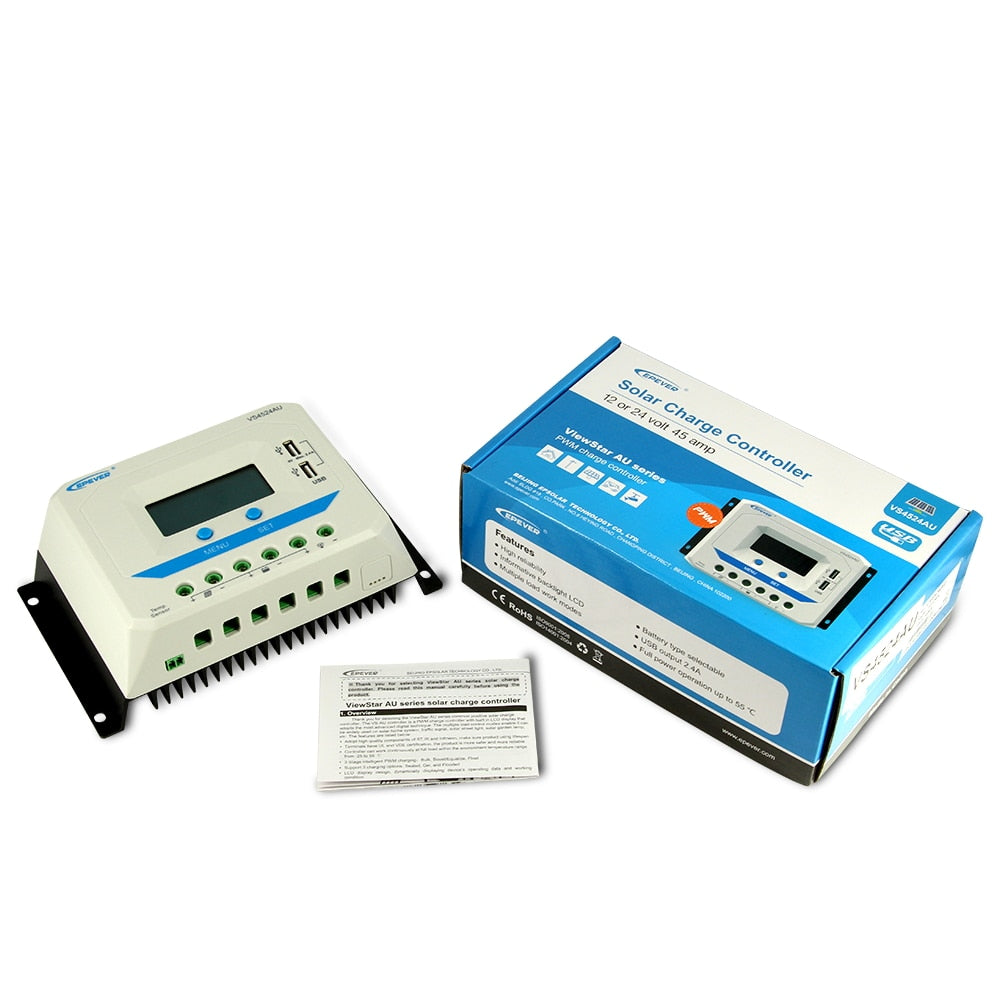

Introducing EPEVER's solar charge controller, featuring adjustable settings (10A to 60A) and a load timer. Includes LCD display and dual USB ports for charging devices.
