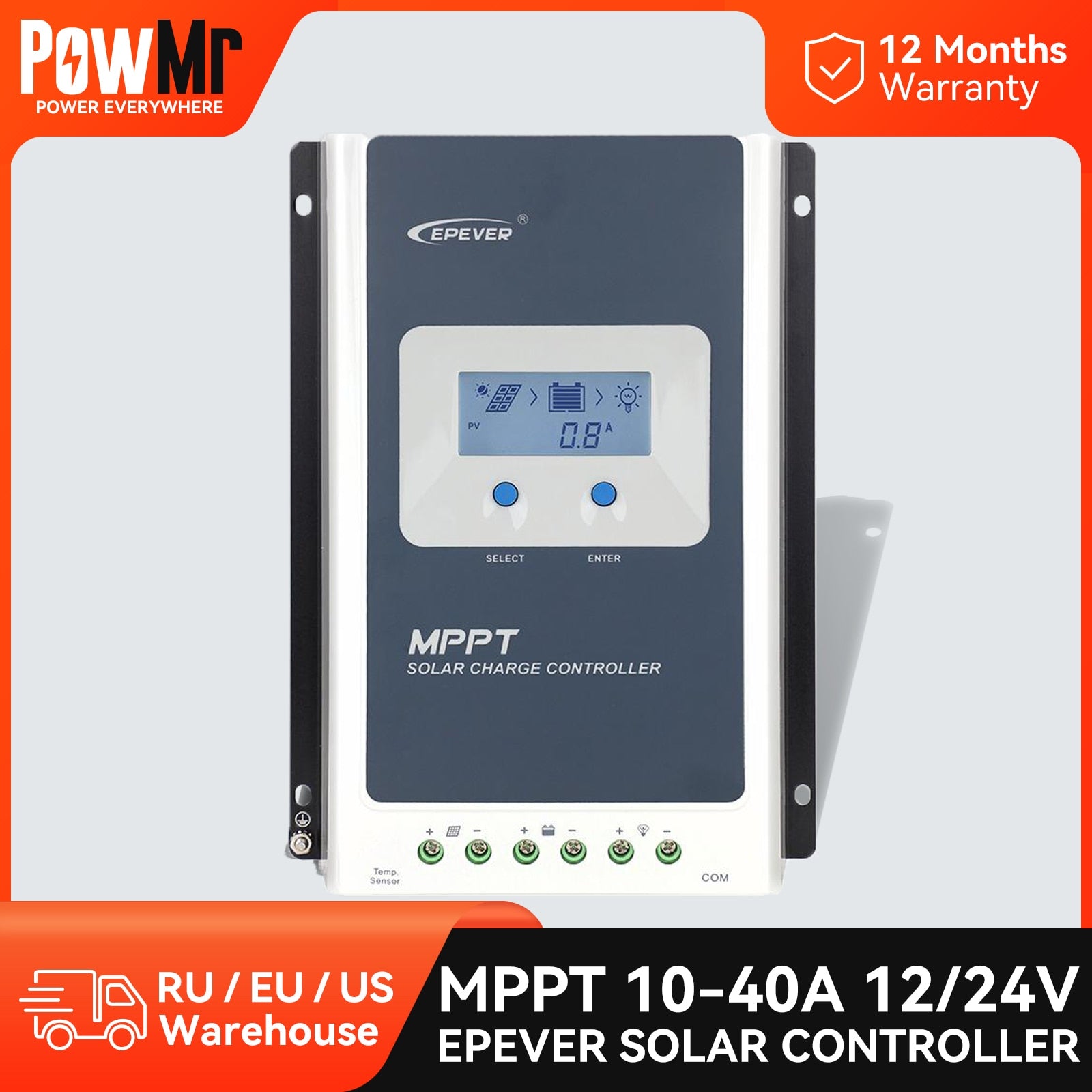

EPever MPPT Solar Regulador MPPT 40A 30A 20A 10A 12V 24V Auto Solar Charger Controller for Lead Acid Lithium Battery
EPever MPPT Solar Regulador MPPT 40A 30A 20A 10A 12V 24V Auto Solar Charger Controller for Lead Acid Lithium Battery
162 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Origin: AE(Origin)
Maximum Current: MPPT 40A 30A 20A 10A
Is Smart Device: YES
Certification: CE,FCC,RoHS
Brand Name: EPever
Application: Thermal Controller,Charger Controller,Voltage Controller,Collector Controller,Lighting Controller,Solar System Controller
EPever MPPT Solar Regulator: A reliable solar charge controller with MCU control, PWM technology, and overcharge protection. It supports 10A, 20A, or 30A charging current and features dual USB ports with 5V output, compatible with lead-acid and lithium batteries.
Maximize your solar power with this MPPT charge controller. Supports lead-acid and lithium batteries, handles up to 40A charging current, and features 0-8V max PV voltage. Ideal for backup systems or remote applications - buy now!
Introducing EPever's MPPT Solar Regulator: A self-cooling, fanless device with a max charge current of 60A and PV voltage support up to 190V. Suitable for lead-acid and lithium batteries, this MPPT solar charger controller ensures efficient energy harvesting.

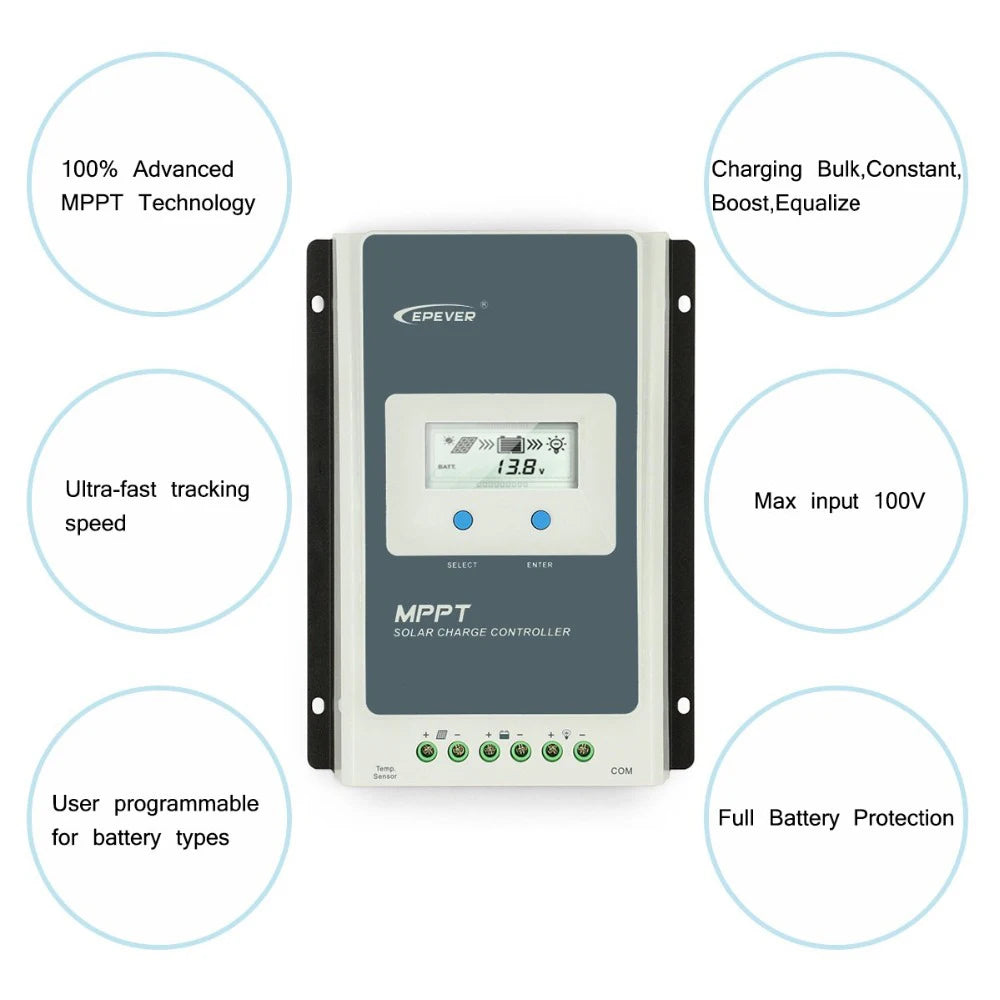

EPEVER's MPPT Solar Regulator efficiently tracks solar input with 99% efficiency. It features a max solar input voltage of 120V, and can handle up to 1040W at 24V or 520W at 12V. The controller supports charging options for various battery types, including sealed, gel, flooded, lithium, and user-defined settings. Maximum charging current is 40A (10-40A) for 12/24VDC or 50-100A for 12/24/36/48VDC.

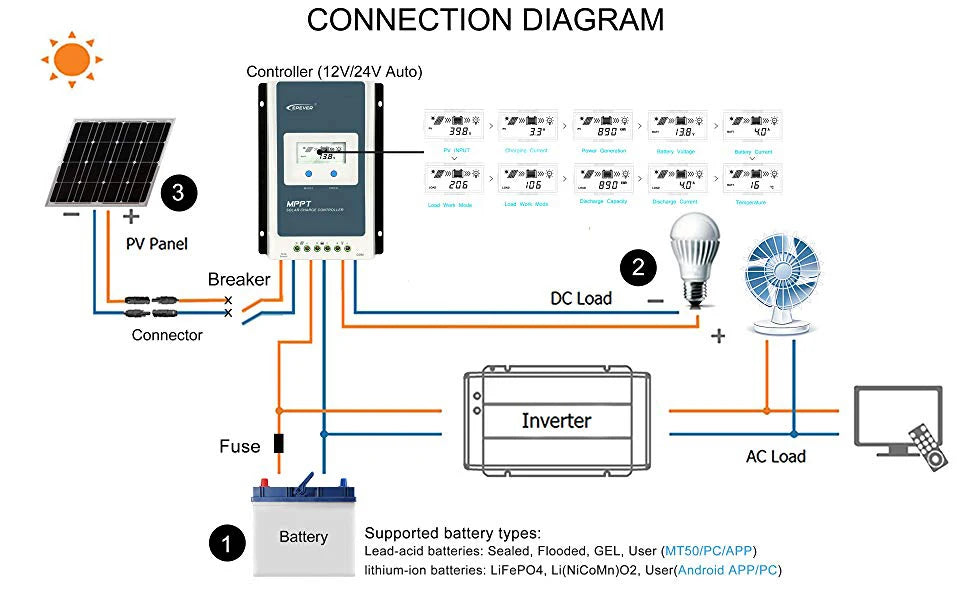

Connect your solar panel to this MPPT controller (12V/24V auto) for efficient charging. It supports lead-acid batteries (sealed, flooded, GEL) and lithium-ion batteries (LiFePO4, Li(NiCoMnJO2). The device features a PV panel connector, breaker, DC load connector, inverter, fuse, and AC load. Use with supported battery types for optimal charging performance.
Specification
Model |
1206AN/1210AN |
2206AN/2210AN |
3210AN |
4210AN |
|
System nominal voltage |
12/24VDC Auto |
|||
Rated charge current |
10A |
20A |
30A |
40A |
Rated discharge current |
10A |
20A |
30A |
40A |
Battery voltage range |
8~32V |
|||
Battery Type |
Lead-acid(Seal,Flood,Gel)and Lithium-ion batteries |
|||
|
Max. PV open circuit voltage |
100V(1210AN;2210AN;3210AN;4210AN) 60V(1206AN;2206AN) |
|||
MPP voltage range |
(Battery voltage +2V)~72V |
|||
Max. PV input power |
130W/12V |
260W/12V |
390W/12V |
520W/12V |
260W/24V |
520W/24V |
780W/24V |
1040W/24V |
|
Self-consumption |
≤12mA |
|||
|
Discharge circuit voltage drop |
≤0.23V |
|||
|
Temperature compensate |
-3mV/°C/2V (Default) |
|||
Grounding |
Common negative |
|||
RS485 interface |
5VDC/100mA |
|||
LCD backlight time |
60S (Default) |
|||
Electrical Parameters | ||||
|
Working environment temperature |
-25°C~+50°C |
|||
|
Storage temperature range |
-20°C~+70°C |
|||
Relative humidity |
≤95%, N.C |
|||
Mechanical Parameters | ||||
Dimension |
172x139 x 44mm |
220x154x 52mm |
228x164x55mm |
252x180x63mm |
Mounting dimension |
130x130mm |
170x145mm |
170x164mm |
210x171mm |

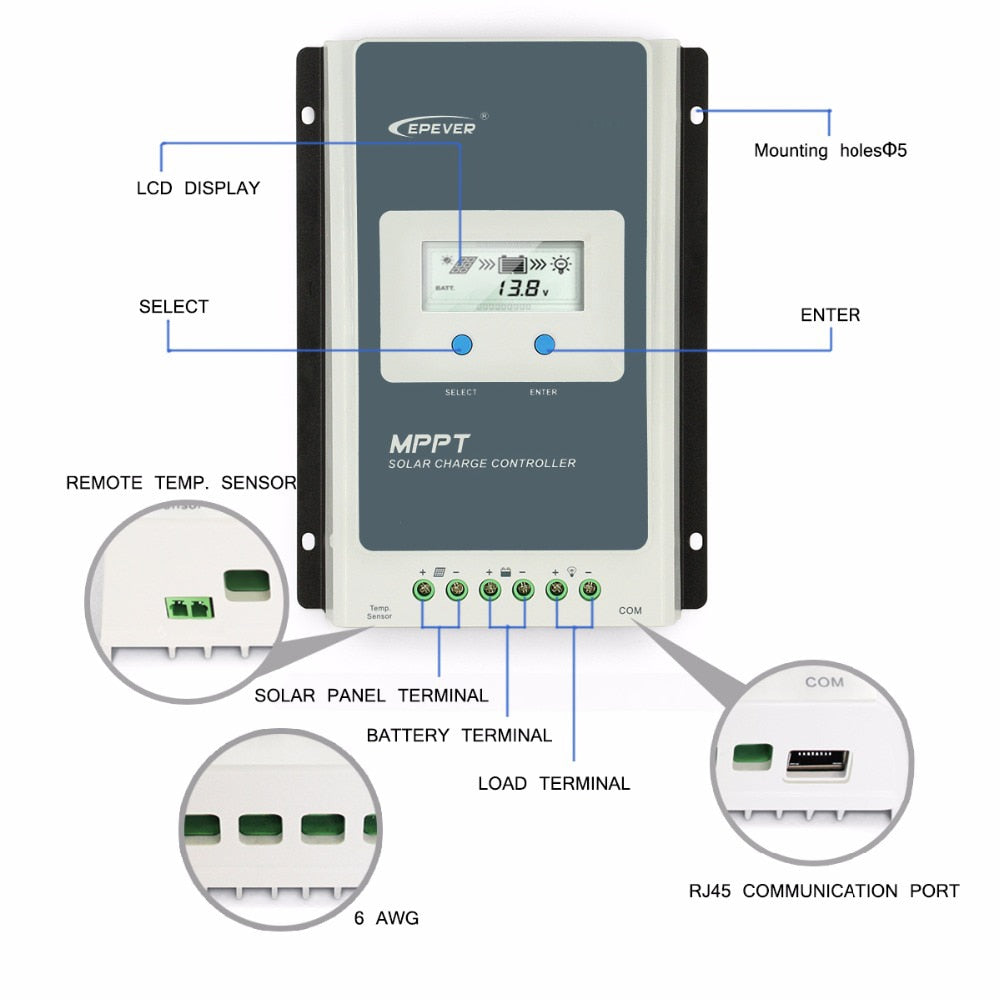

Mounting hole size |
Φ5mm |
|||
Terminal |
12AWG(4mm2) |
6AWG(16mm2 ) |
6AWG(16mm2) |
6AWG(16mm2) |
Recommended cable |
12AWG(4mm2) |
10AWG(6mm2) |
8AWG(10mm2) |
6AWG(16mm2) |
Features
1.Advanced MPPT technology, with efficiency no less than 99.5%
2.Ultra-fast tracking speed and guaranteed tracking efficiency
3.Advanced MPPT control algorithm to minimize the maximum power point loss rate and loss time
4.Wide MPP operating voltage range
5.High quality components, perfecting system performance, with maximum conversion efficiency of 98%
6.Accurate recognition and tracking of multiple-peaks maximum power point
7.International famous brands of ST and IR's components of high quality and low failure rate are used, which can ensure the product’s service life
8.Charging power and current limitation function
9.Compatible with lead-acid and lithium-ion batteries
10.Battery temperature compensation function

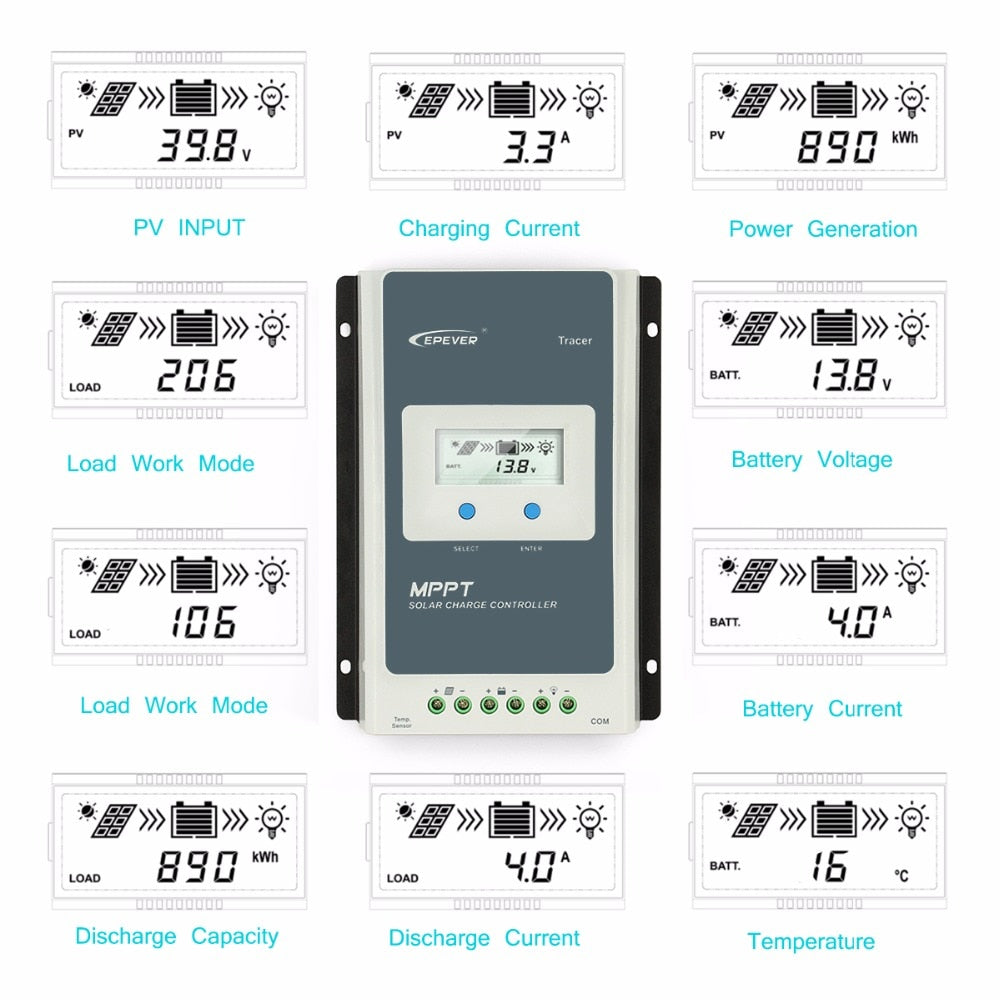

11.Real-time energy statistics function
12.Overheating power reduction function
13.Multiple load work modes
14.The communication port adopts professional protection chip, which can provide 5VDC power supply, and has over-current and short-circuit protection.
15.With RS-485 communication bus interface and Modbus communication protocol, it is available to meet various communication requirements in different situations.
16.Monitor and set the parameters via mobile phone APP or PC software
17.Full-load operation without any drop in capacity within the range of working environment temperature
18.Extensive electronic protection
19.We support Drop Shipping
Item Picture

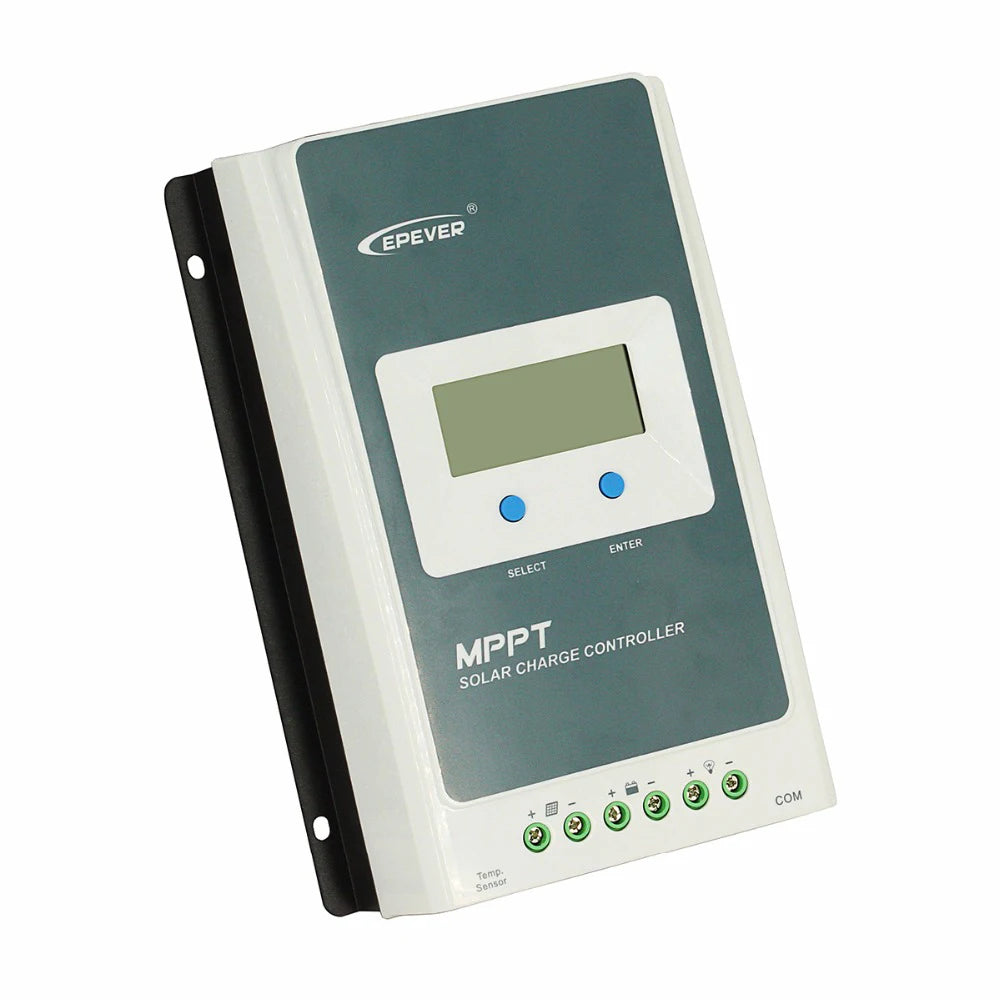

MPPT Solar Regulator charges lead-acid or lithium batteries up to 40A at 12V or 24V, with auto-start and shutdown features.
EPever MPPT Solar Regulator charges lead-acid and lithium batteries with MPPT technology, monitoring temperature and sensor-based control.

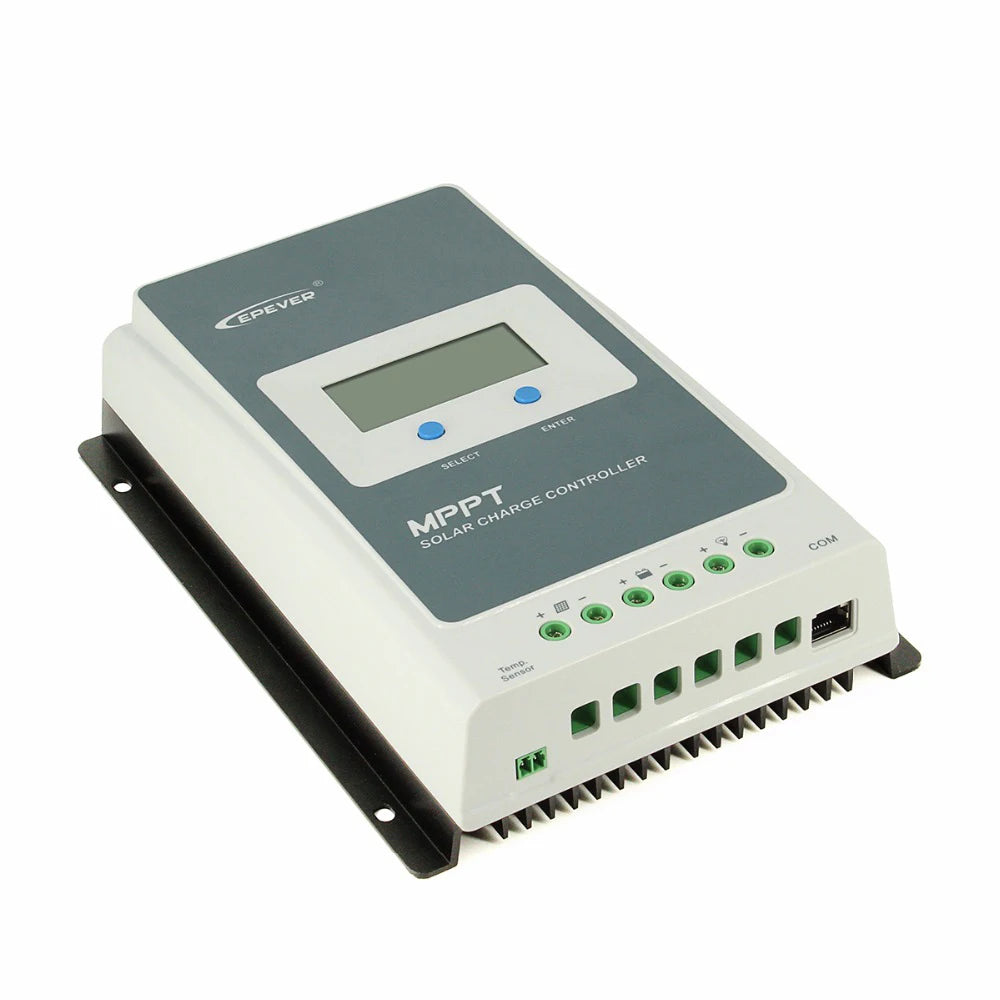

MPPT Solar Charge Controller for Lead-Acid or Lithium Batteries.

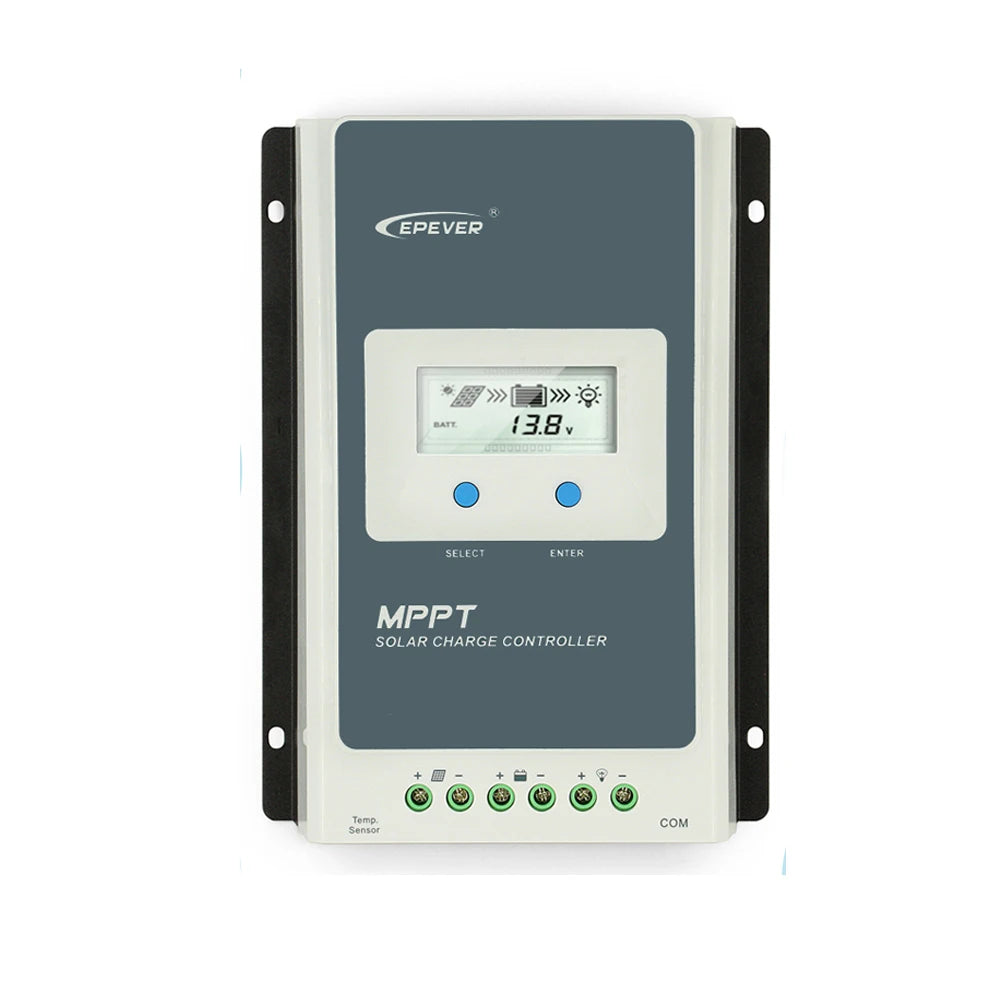

EPEver MPPT Solar Charger Controller with temperature sensing and remote monitoring for efficient charging and protection of lead-acid or lithium batteries.
