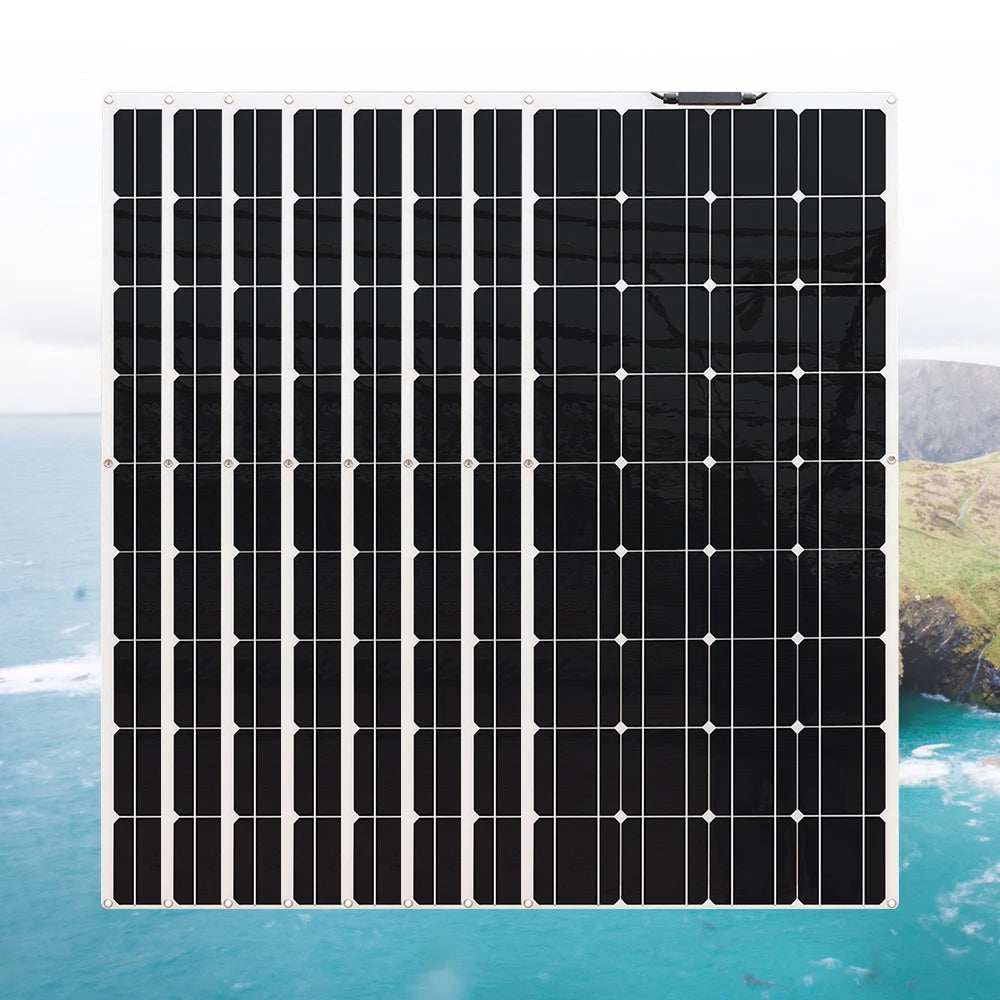

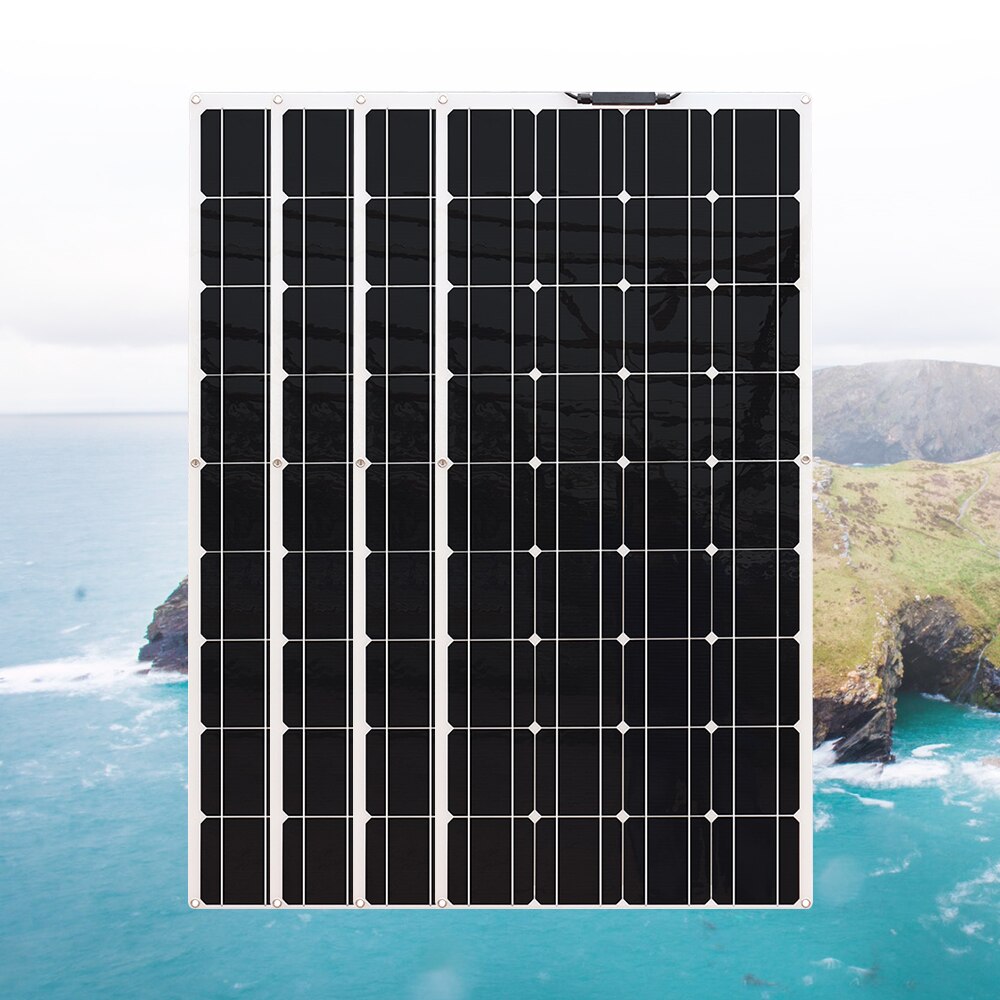

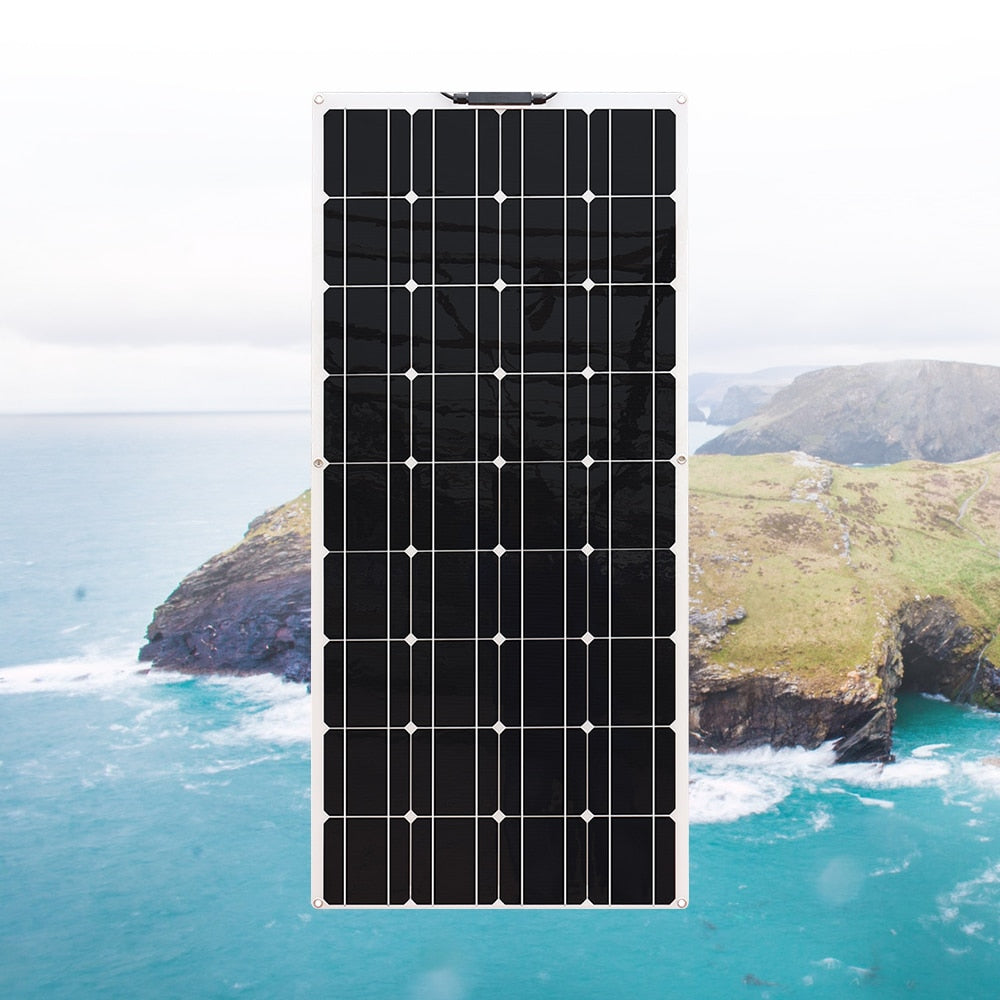

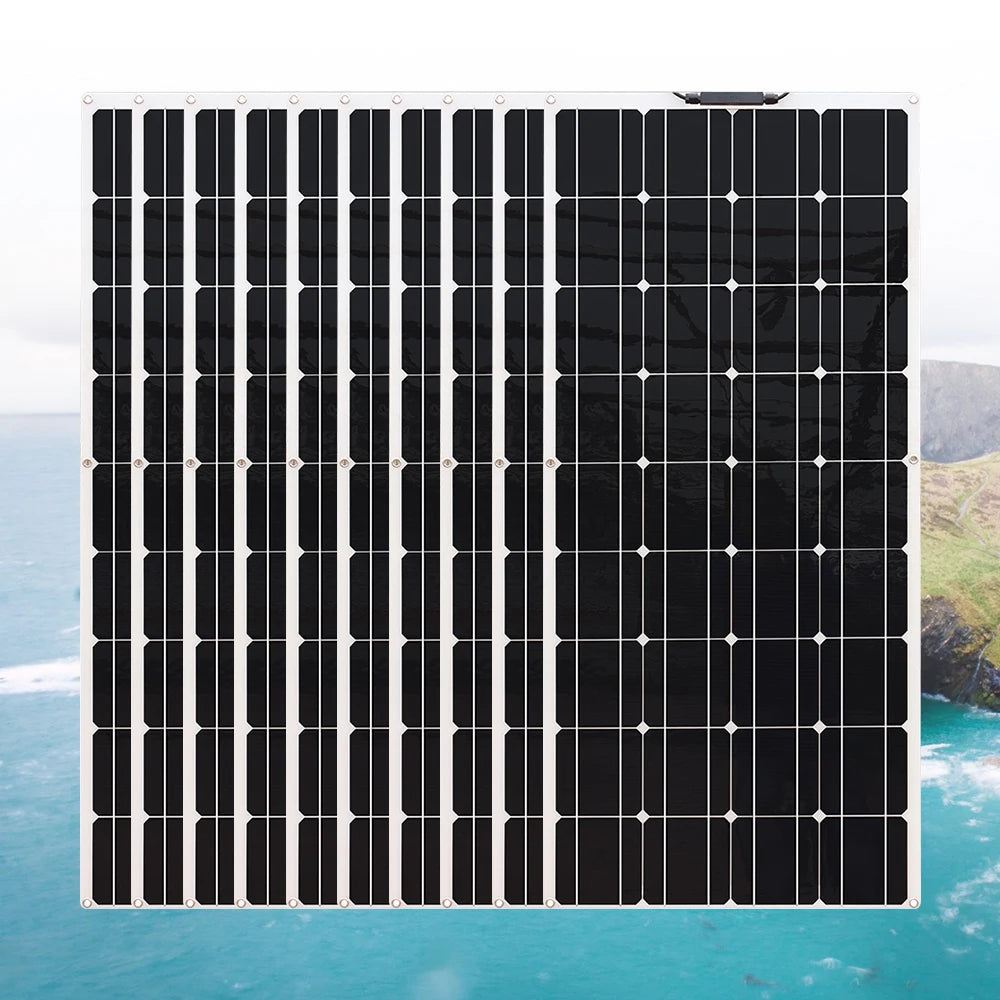

Flexible solar panel 18v 120w solarpanel 240w 360W  480W 600W 960W 1200W power 12v 24V charging for balcony light car Motorhome Boat yacht

Flexible solar panel specifications

Maximum power(Pmax)                           120W
Output tolerance                                      ± 3%

Maximum system voltage                       700V DC

Open circuit voltage(Voc)                         21.6V

Short circuit current(Isc)                          6.8 A

Maximum power voltage(Vmp)               18V

Maximum power current(Imp)                 6.5A

Cell efficiency                                           19.5%

Operating temperature(NOCT)          45±2℃

Temperature range                                 -40℃～+80℃

Number of cells                                       36pcs

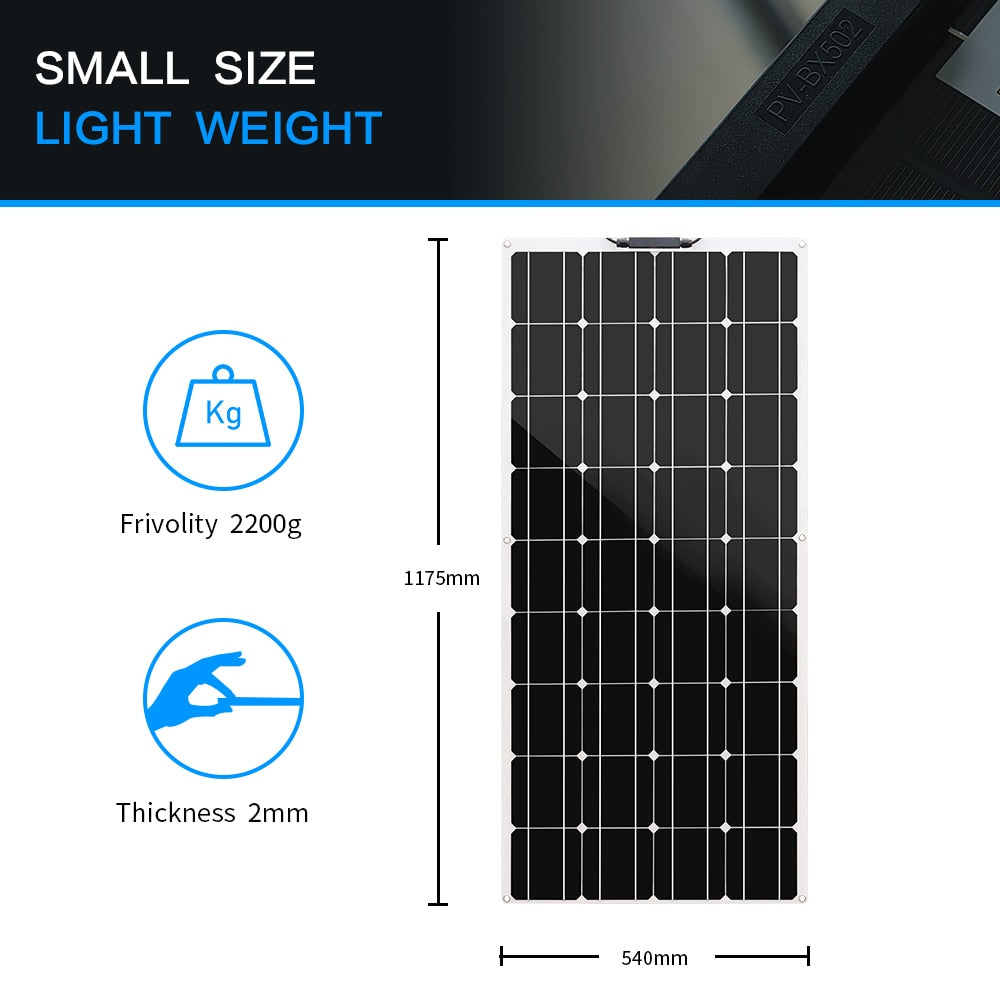

Weight                                                     2200g

Size                                                          1170*540*2.5 mm

Standard Test Conditions : lrradiance 1000w/m^2,Temperature 25℃, AM=1.5

Features:

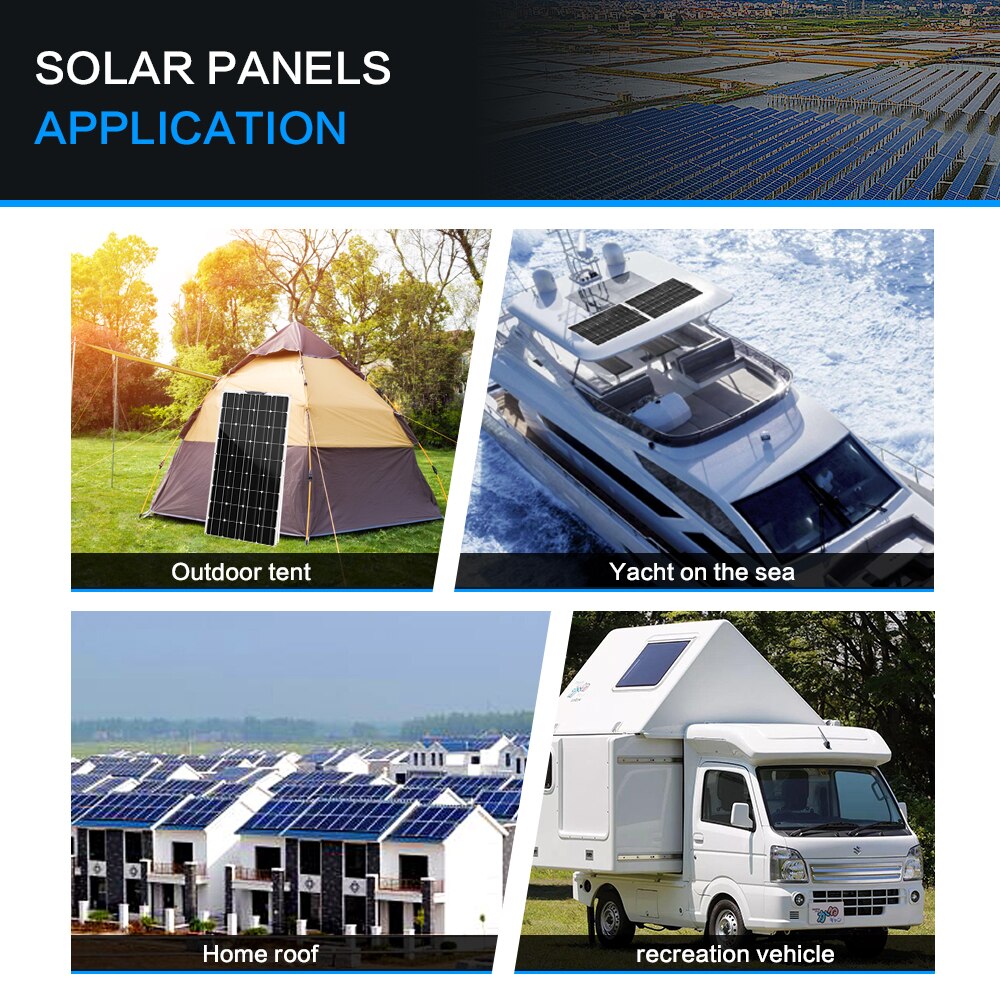

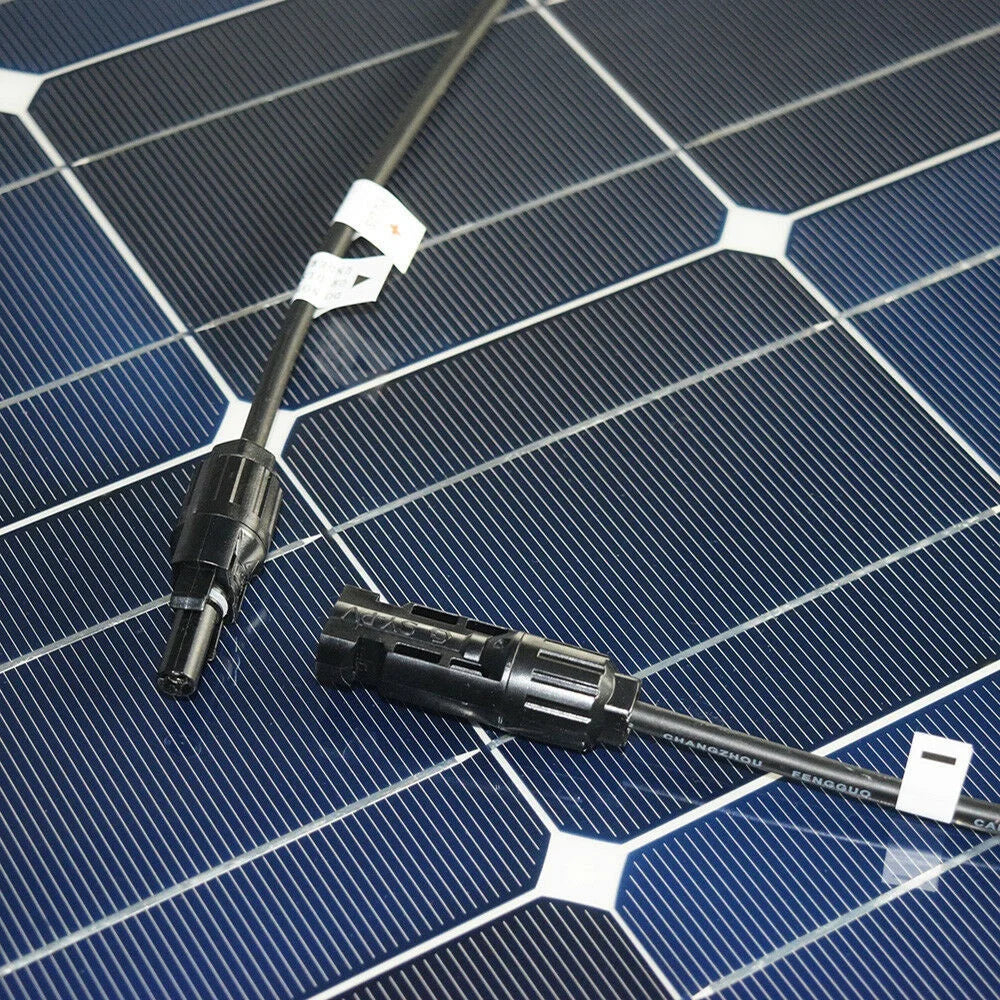

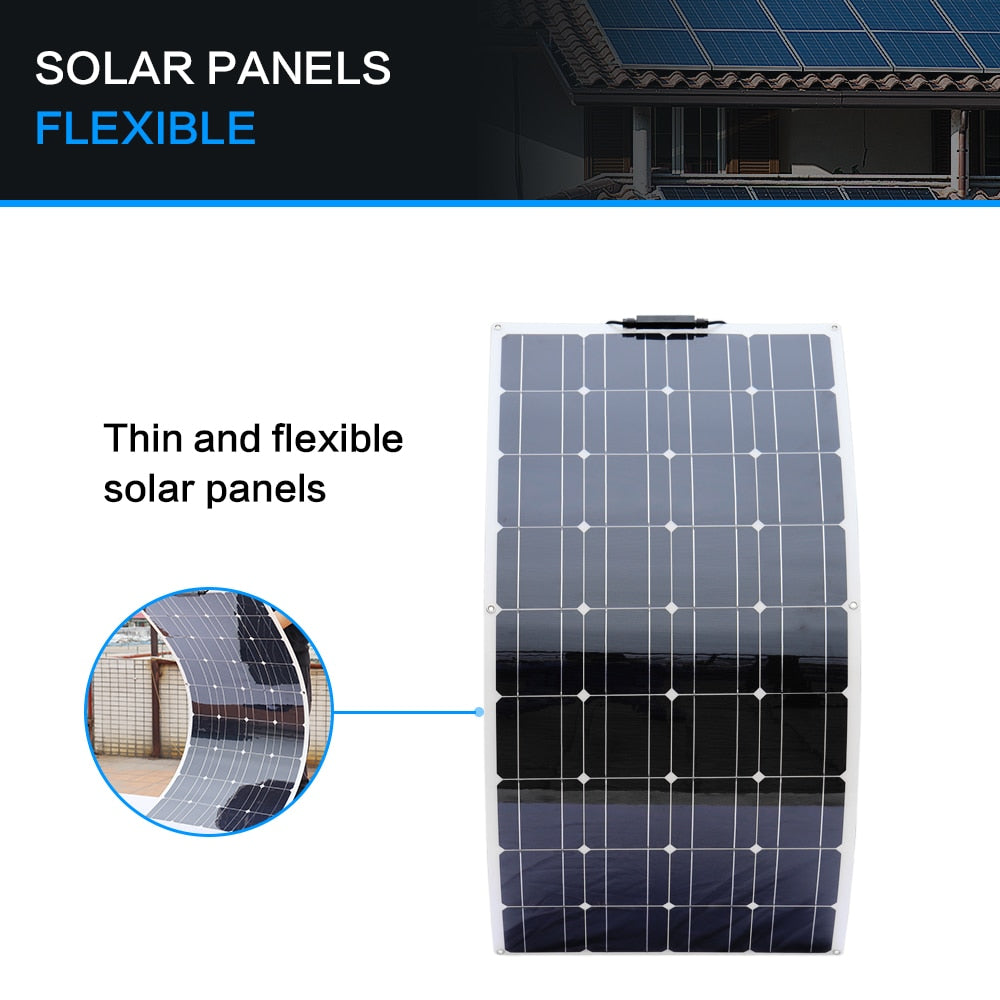

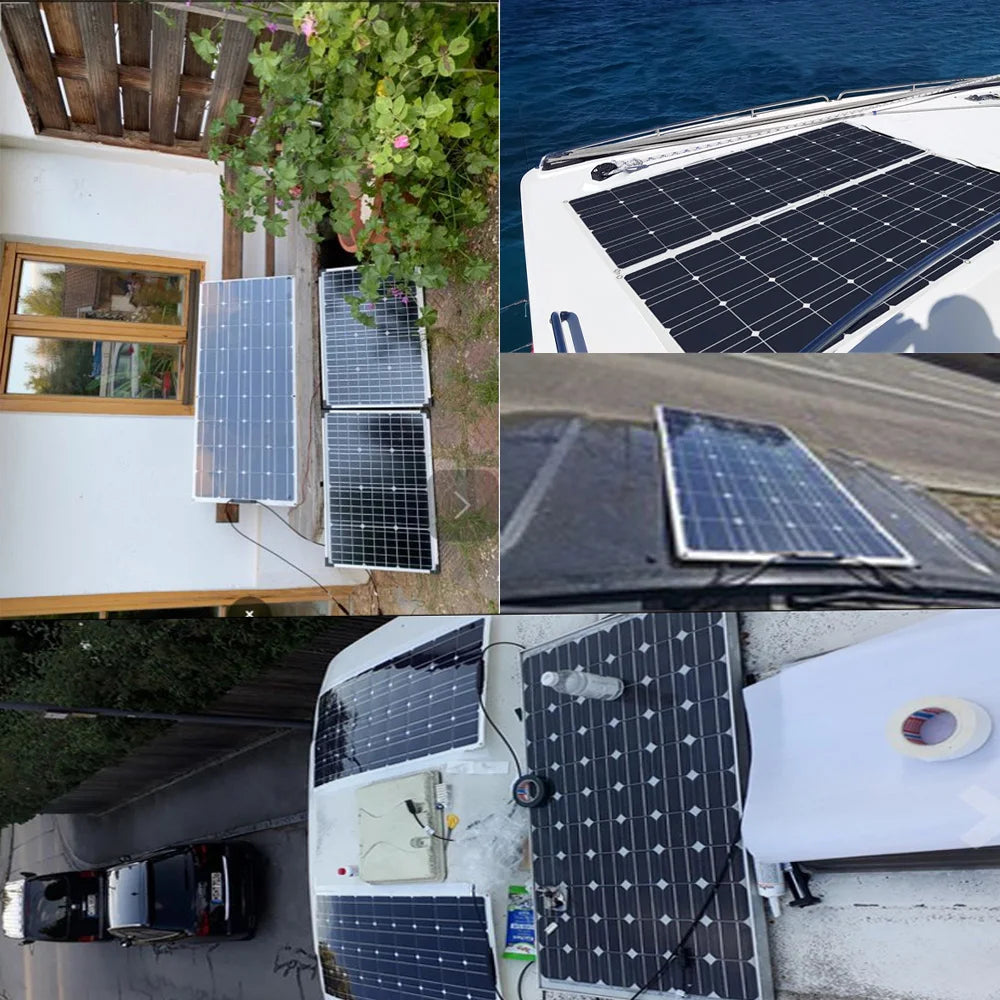

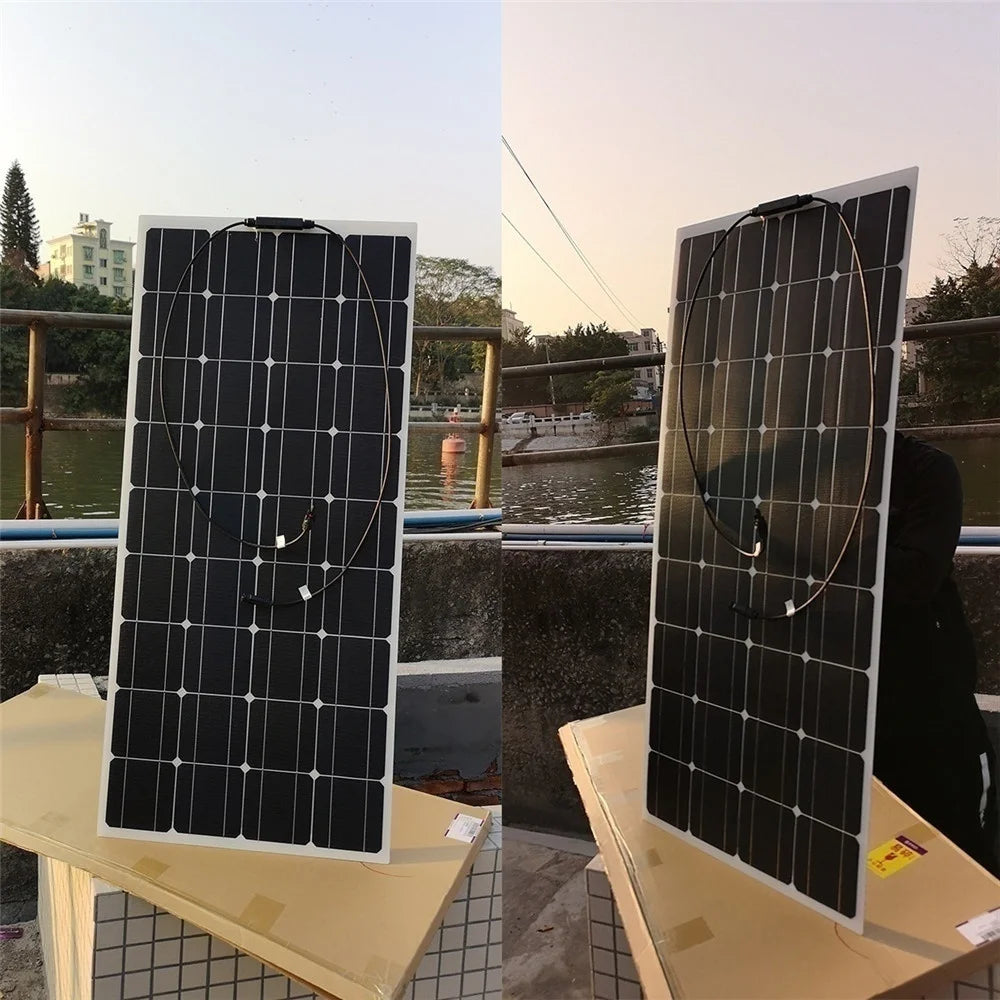

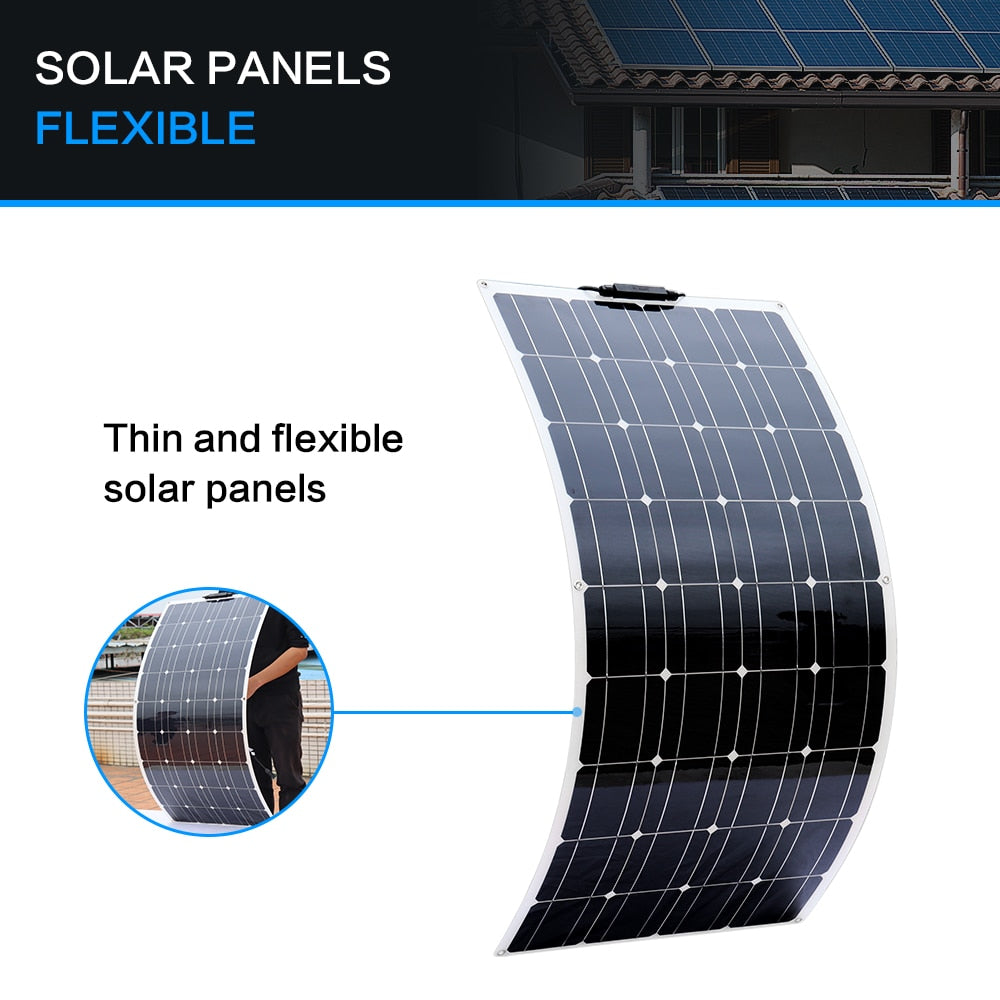

a. Select high-efficiency monocrystalline silicon solar cells, the power generation efficiency is about 1.2 times that of conventional polysilicon, and the overall area is smaller at the same power. b. Using the latest component packaging technology, thinner, lighter, softer and longer life. c. The surface is made of PET and treated with a special process, which is more wear-resistant and improves the absorption efficiency of sunlight. d. With high light transmittance, safe and reliable, not afraid of high temperature, no danger of burning or explosion. e. The junction box adopts IP67 waterproof design, contains bypass diode, and the circuit adopts overcharge and reverse current protection design. f. Use photovoltaic special cable and PV connector, outdoor use is safe, waterproof, high temperature resistance and weather resistance. PV connector is easy to use, plug and play. g. This product is a solar module. It is recommended to be used with controllers and batteries. It can be used in various scenarios such as households, camping, RVs, yachts, street lights and solar power stations.

1pcs solar panel Package include:

1 x 120W solar panel

2pcs solar panel Package include:

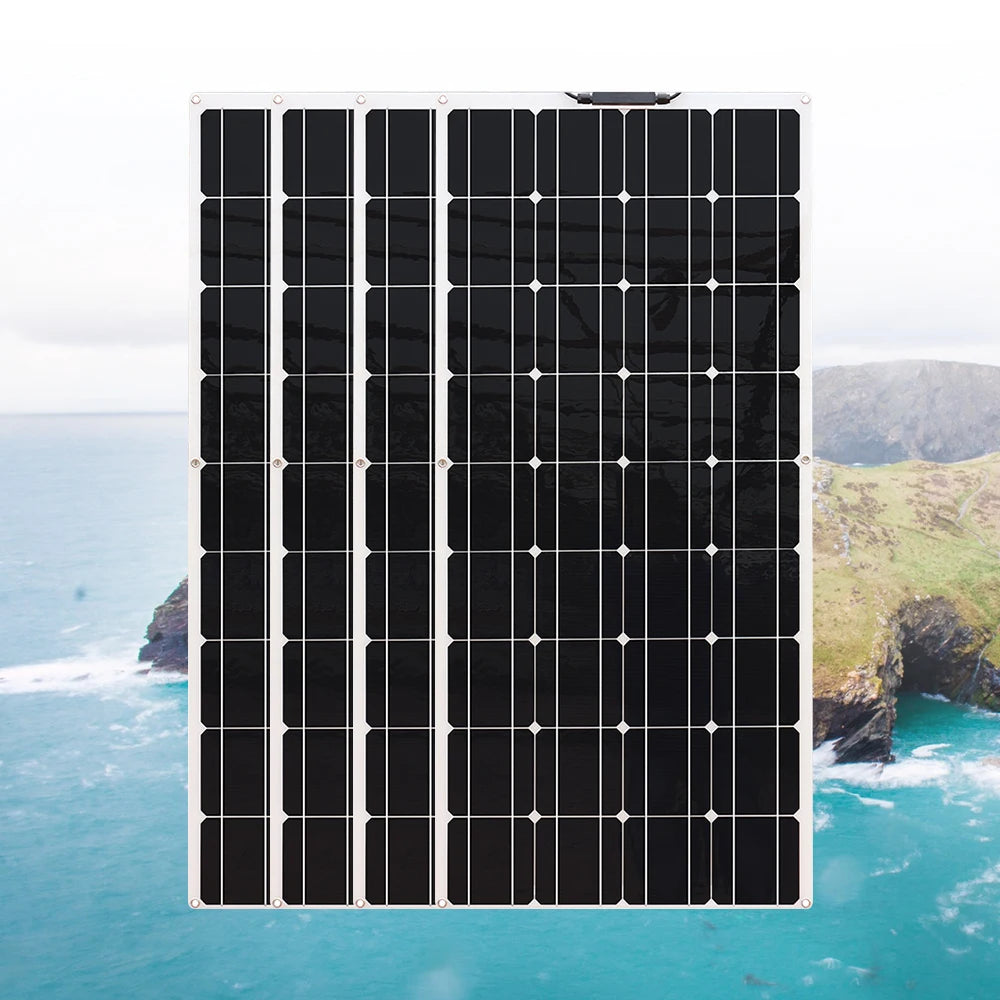

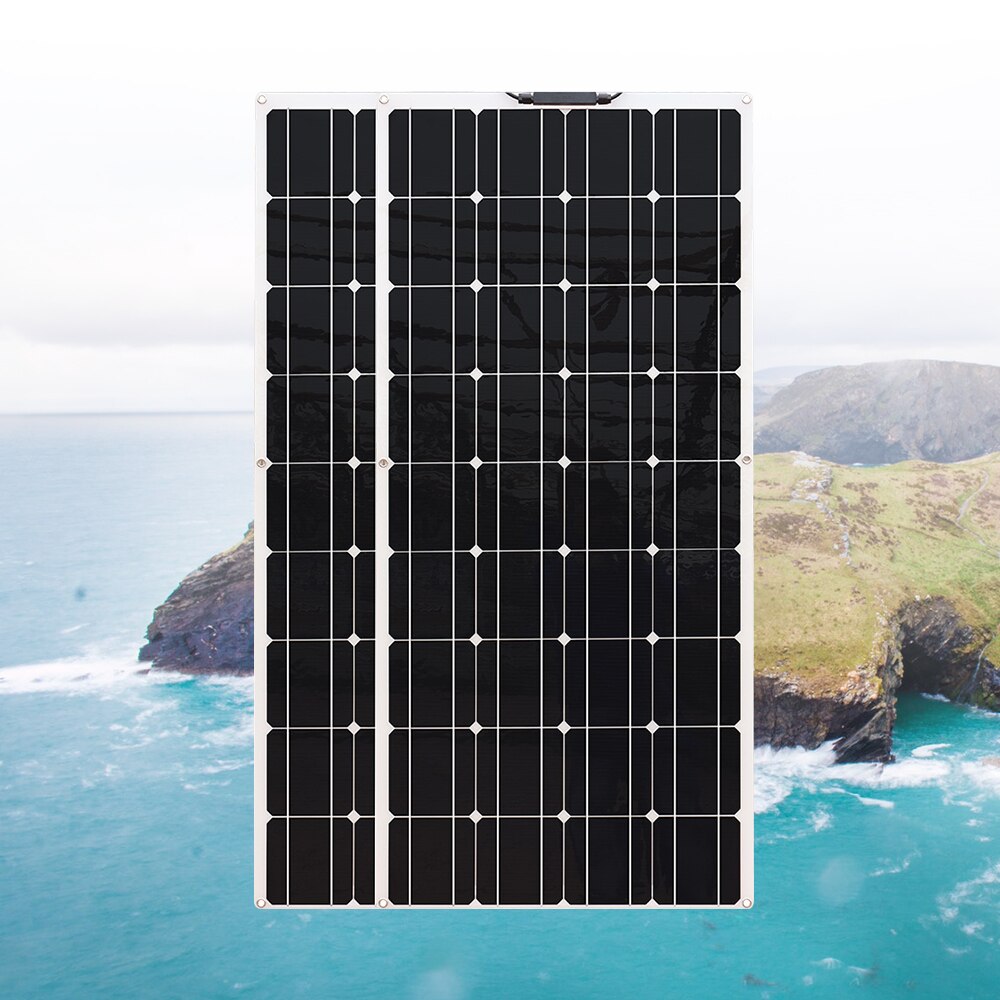

2 x 120W solar panel

3pcs solar panel Package include:

3 x 120W solar panel

4pcs solar panel Package include:

4 x 120W solar panel

5pcs solar panel Package include:

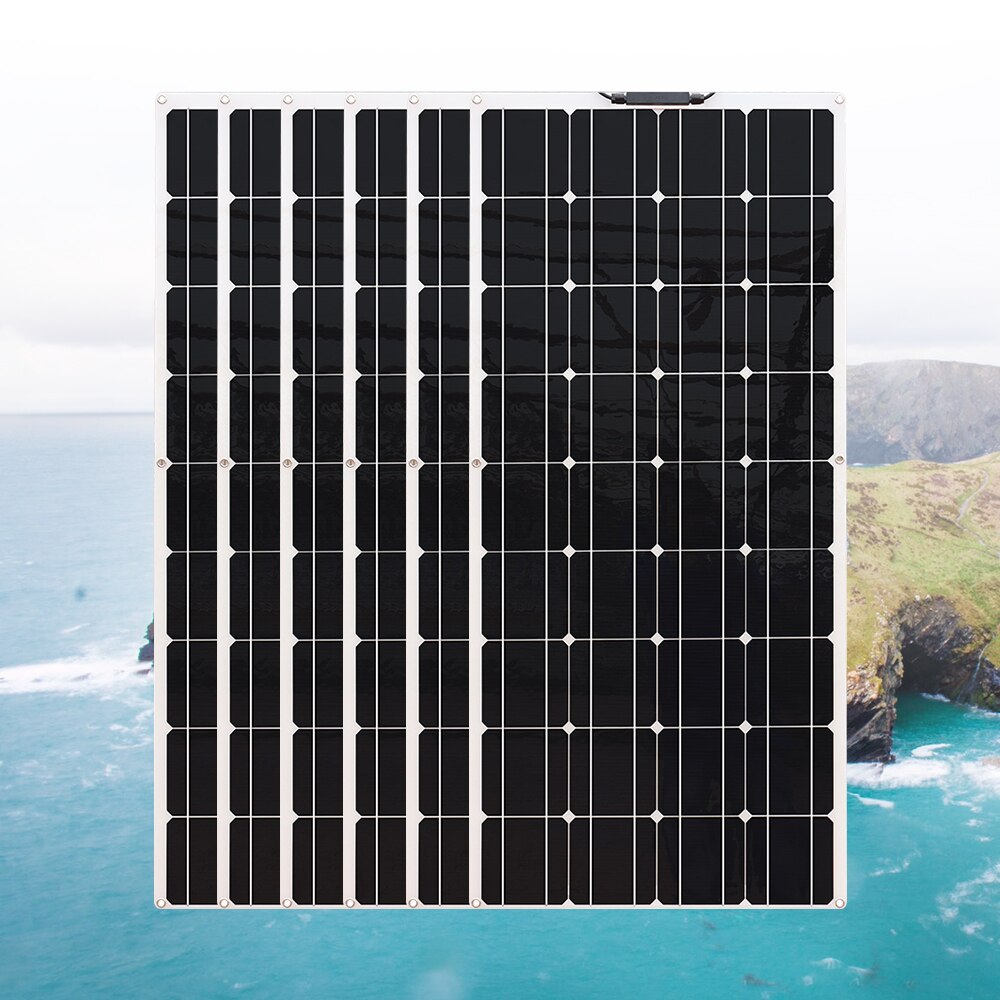

5 x 120W solar panel

Notes for use:

a. This product must not come into contact with highly corrosive substances. b. It is strictly forbidden to modify, disassemble, drop, and hit the junction box and products by yourself, avoid stepping on the surface and scratching the surface with hard objects during use. c. A large number of scratches or dirt on the surface of the solar panel may cause the solar cell module to be inefficient, and in severe cases may cause burnout. d. The suitable ambient temperature range of this product: -20 ° C-80 ° C, please do not exceed this range. e. The solar panel must be installed in an area with good sunlight and no shadow. The long-term work of the solar cell module in the sun with shadow may have the risk of burning. f. It is forbidden to connect the positive and negative poles of the product together, and it is forbidden to put the product into water or fire, otherwise it will damage the product. g. The overall power of the photovoltaic module must be less than the rated power of the controller (rated voltage × rated current). It is strictly prohibited to overload the controller. h. The total voltage of the photovoltaic module connected to the controller must be within the photovoltaic input voltage range of the controller. i. The inverter can only be connected to the battery, not directly to the controller.
