GMI Series 120W 150W180W MPPT Solar Grid Tie Micro Inverter DC26V-46V to AC110V-230V 50HZ/60HZ Solar PV Inverter 65
GMI Series 120W 150W180W MPPT Solar Grid Tie Micro Inverter DC26V-46V to AC110V-230V 50HZ/60HZ Solar PV Inverter 65
164 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Weight: 0.6KG
Type: Micro Inverter
Size: 35*23.3*7.6CM
Single-Phase Grid Type: 120V & 230V
Output Type: single
Output Power: 1 - 200KW
Output Power: 590-600W
Output Frequency: 50Hz / 60Hz
Output Frequency: 47.5-62Hz
Output Current: 120V/2.33A;230v/1.21A
Origin: Mainland China
Model Number: GMI-120W/150W/180W
Is Smart Device: No
Function 2: Grid Tie Inversor
Function: Solar Inverter
Certification: CE
Category: Grid Tie inverter
Brand Name: Y&H
GMI Series 120W 150W180W MPPT Solar Grid Tie Micro Inverter DC26V-46V to AC110V-230V 50HZ/60HZ Solar PV Inverter 65
Description:
120W/150W/180W Grid Tie inverter is a compact unit,which directly converts direct current into alternating current for powering appliances and/or office equipments and connecting to utility grid.The AC output from Smart Micro inverter is synchronized and in-phase with the utility grid.

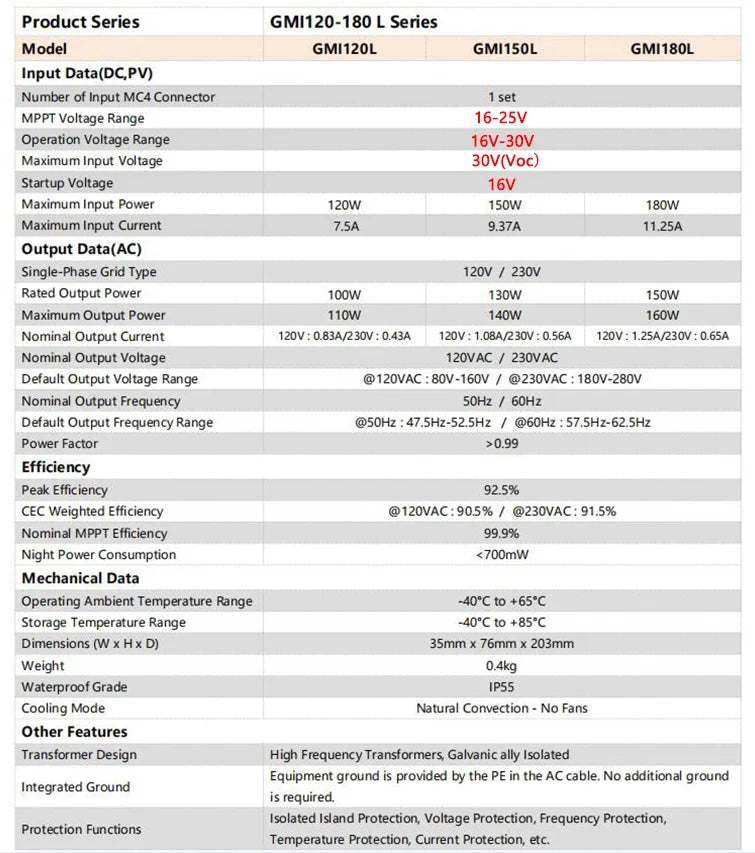

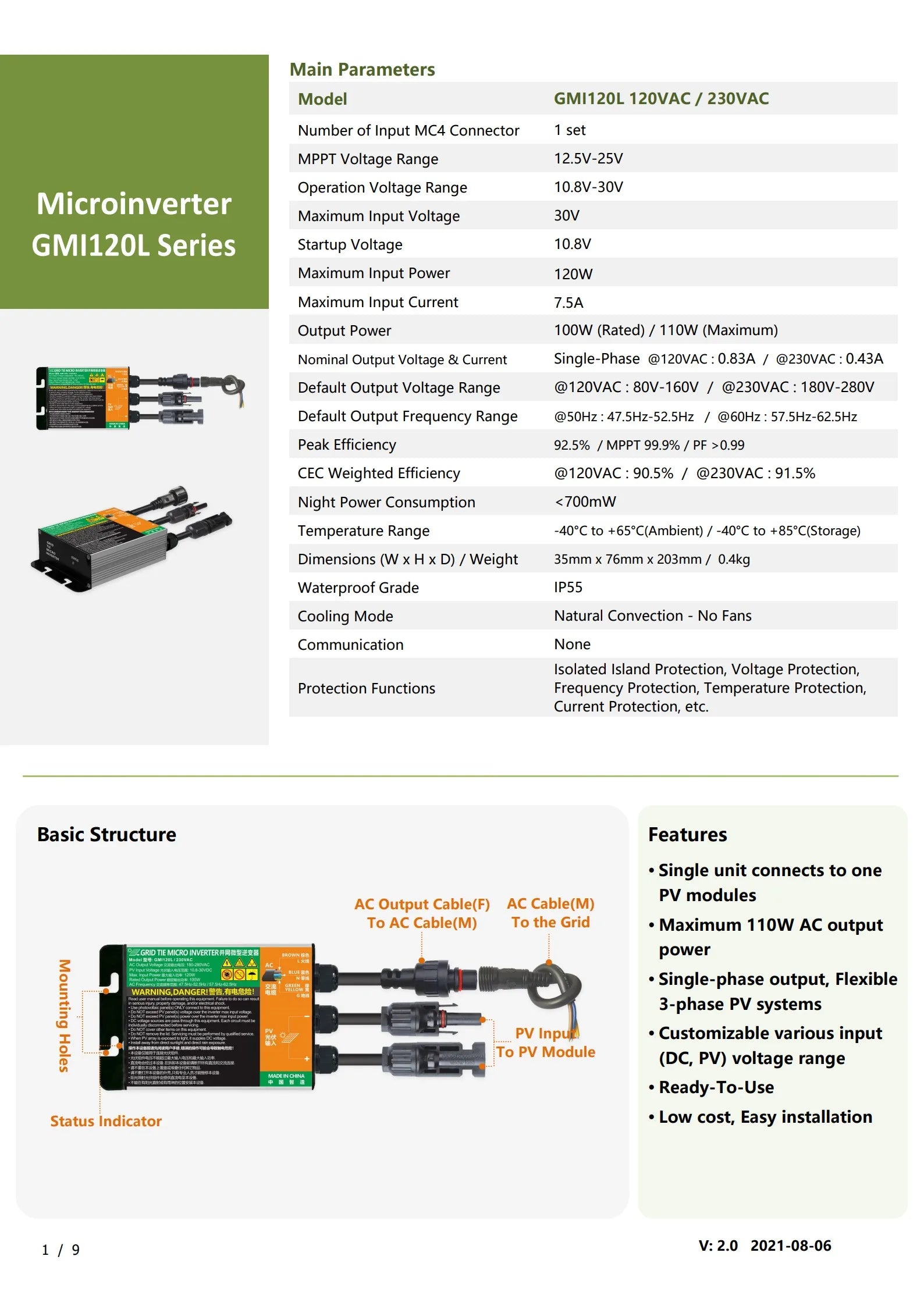

Specifications:
Grid Tie Inversor Maximum Output Power:120W/150W/180W
Rated Output Power:100W/130W/160W
DC Input: 10.8V-30V(120W/150W/180W)
AC Output Voltage: 120V/240V
Frequency Range: 50/60HZ Auto
MPPT Voltage Range:16V - 25V.（Working voltage Vmp(of a solar panel) must be in the MPPT range to ensure the good output efficiency）.
Solar Panel Voltage: Vmp16-21V; Voc20-24V
Solar Panel Power: maximum 120W/150W/180W
Certification:CE
User notice：
• Use solar panel ONLY connect to this equipment.
• This equipment is ON-GRID Microinverter, To make it work properly, it must be connected to the power grid correctly,and the power grid is working properly, When the power grid stopped working, it will also stop generating.
• Do NOT exceed PV panel(s) voltage over the On Grid Tie Inversor max input voltage.(Voc<30)
• Do NOT exceed PV panel(s) power over the On Grid inverter max input power.（120W/150W/180W）
• The positive and negative poles of the solar panel cannot be reversed. If you extend the solar panel cable. You need to be careful about this problem.
• Install away from direct sunlight and direct rain exposure.(Ventilated, dry, cool)
Regarding the heating problem of the inverter:

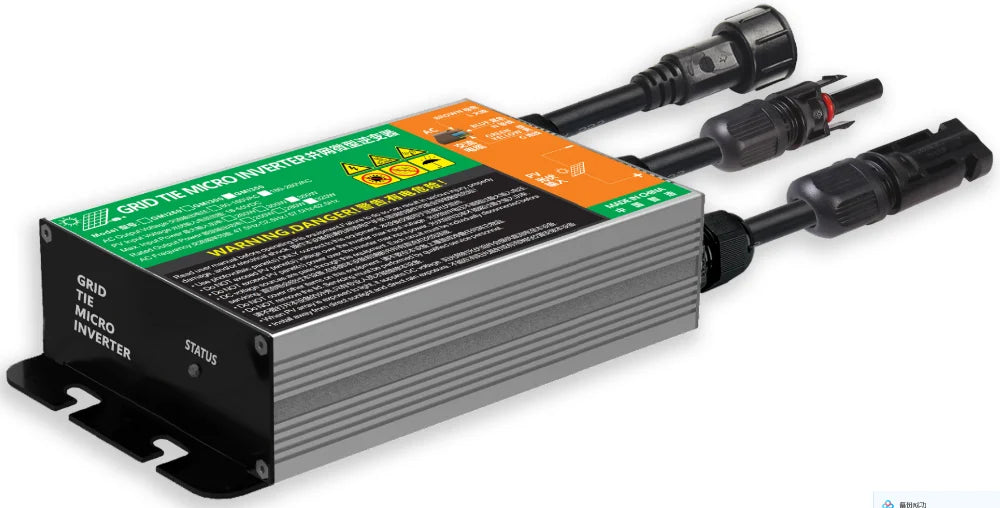

this is normal phenomenon. All electronic devices generate heat during operation. The inverter uses aluminum alloy material. Metal can conduct heat better. The inverter also has over-temperature protection if the temperature is high. Then the inverter will automatically reduce the working output efficiency. Or stop working. After cooling down, restart. It is recommended to install the inverter in a ventilated, dry and cool place.
In order to better protect the inverter, we have upgraded the drive of the inverter. When the inverter reaches a certain temperature, it loses half of its power. When the thermal temperature drops to normal, it outputs full power again. If still unable to output full power, disconnect and reconnect.
About inverter repair：（This is a common problem of micro-inverters）
After a large amount of customer data feedback, the inverter cannot work because the DC or AC fuse is damaged. When you encounter this problem, we can send you accessories for free. And give you maintenance video instruction. You can easily replace it.（ This type of product is prone to fuse damage. After damage, you can contact us to send spare parts for replacement. This is the case for the entire market, but other businesses won't tell you.If you mind, we don't recommend buying it. )

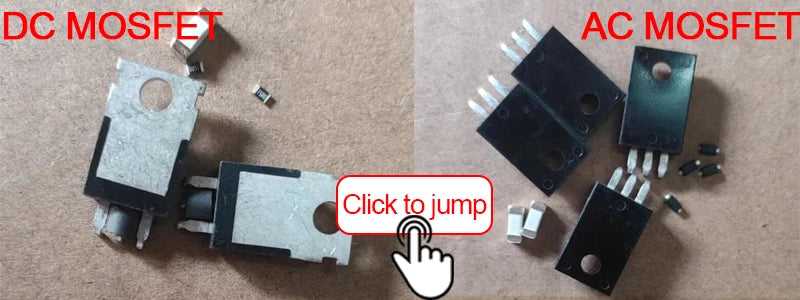

Features DC MOSFET and AC MOSFET designs for efficient power conversion.
If you have any questions after receiving the product, please contact us in time, we will give you good after-sales service, so you don't have to open disputes at will.
About voltage：
Recommended Solar Panel Voltage: Vmp16-21V; Voc20-24V(120W/150W/180W)
LED DISPLAY:
1.Green light steady=Microinverter in generating.
2.Red flash=Microinverter in waiting.
3.Red light steady
a.Island protection.
b.Over-temperature protection.
c.Over/low AC voltage protection.
d.Over/low DC voltage protection.
e.Over/low AC frequency protection.
f.Fault.
Package Include:
1XGrid Tie Inverter
1 x AC Cable 30CM

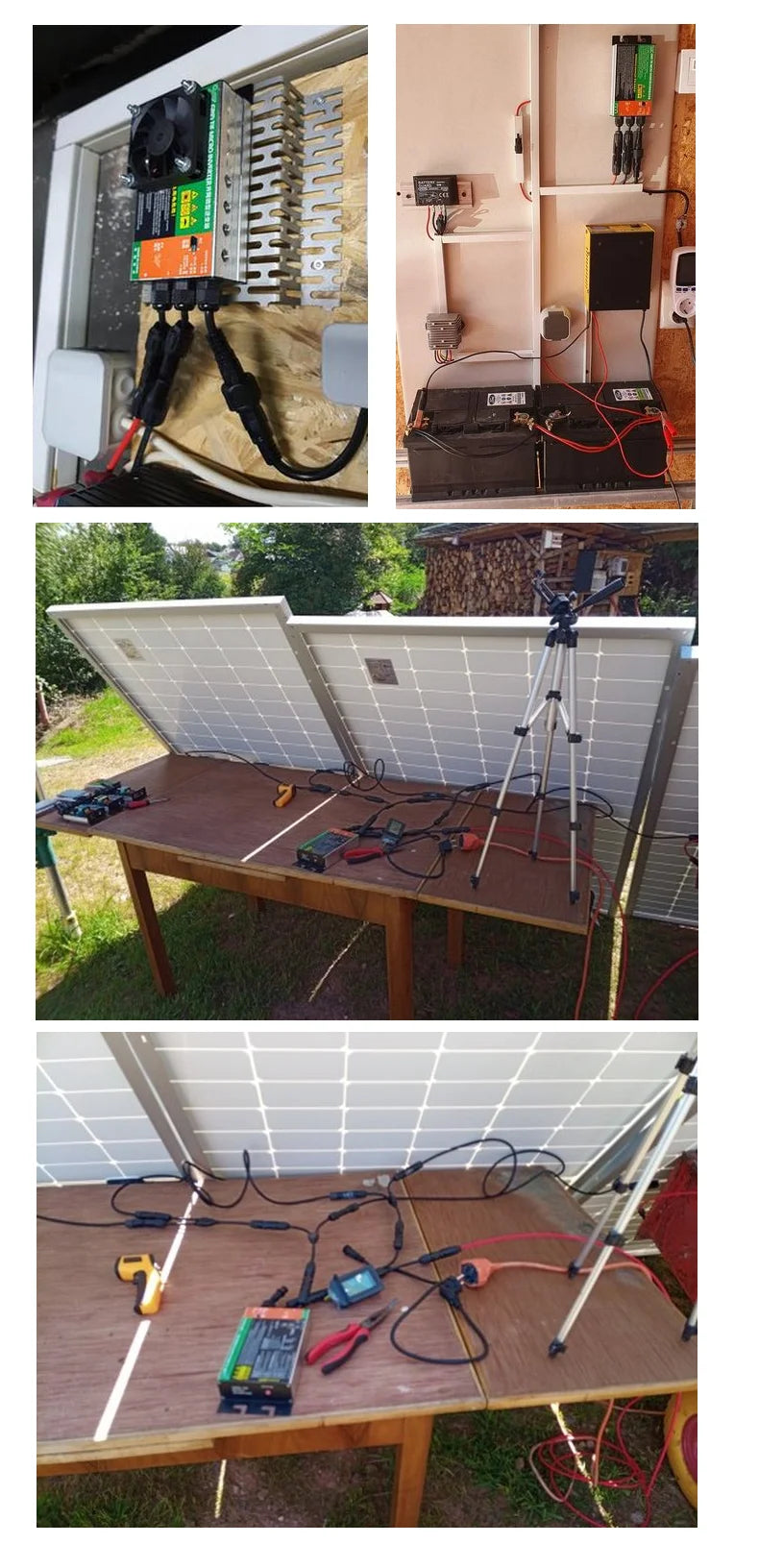

Buyers show：

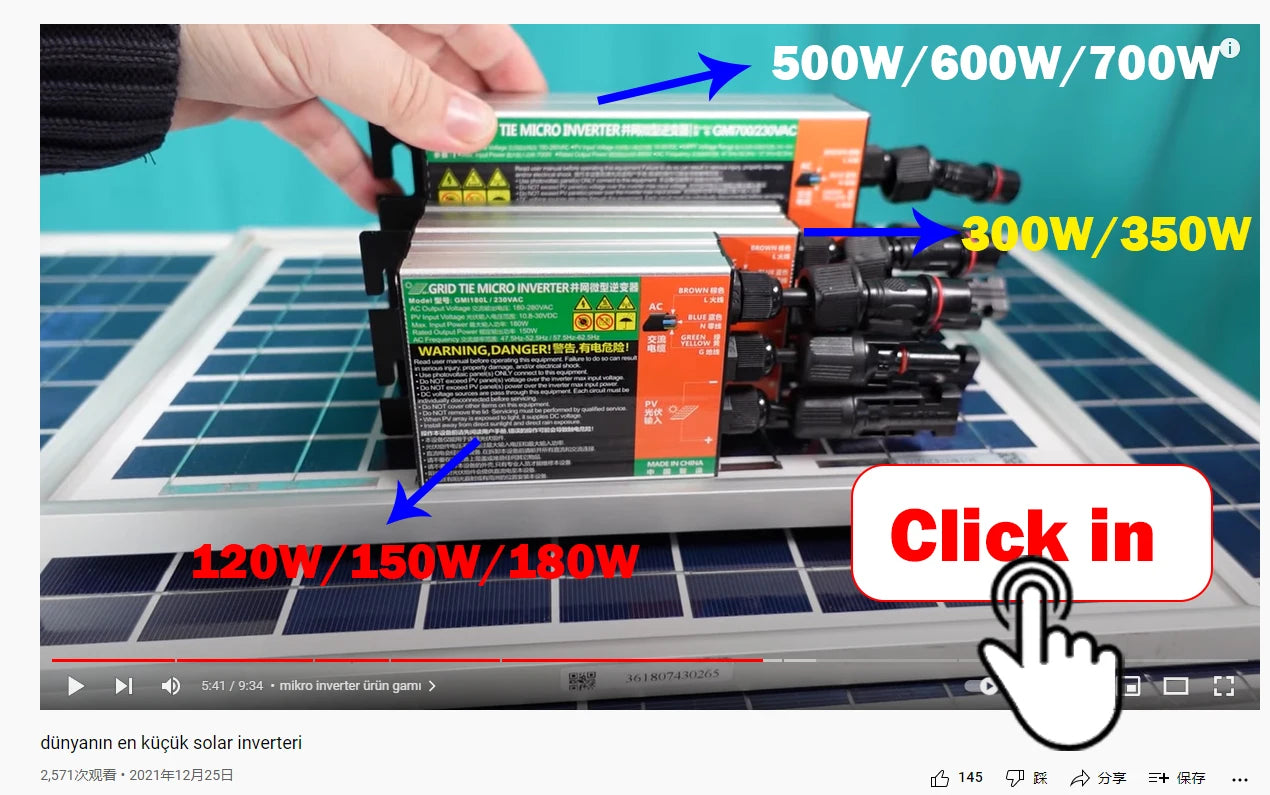

This is a video of a YouTube blogger evaluating the inverter. You can browse the blogger’s link or click on the picture to jump to the link.
https://youtu.be/kkJyWCgbfOA
GMI Series 120W/150W MPPT Solar Grid Tie Micro Inverter. WARNING: High Voltage Inside! 300W/350W Grid Tie Micro Inverter. DC Input: 26V-46V, AC Output: 110V-230V, 50Hz/60Hz. Suitable for solar PV systems. Note: Product may be subject to change without notice.

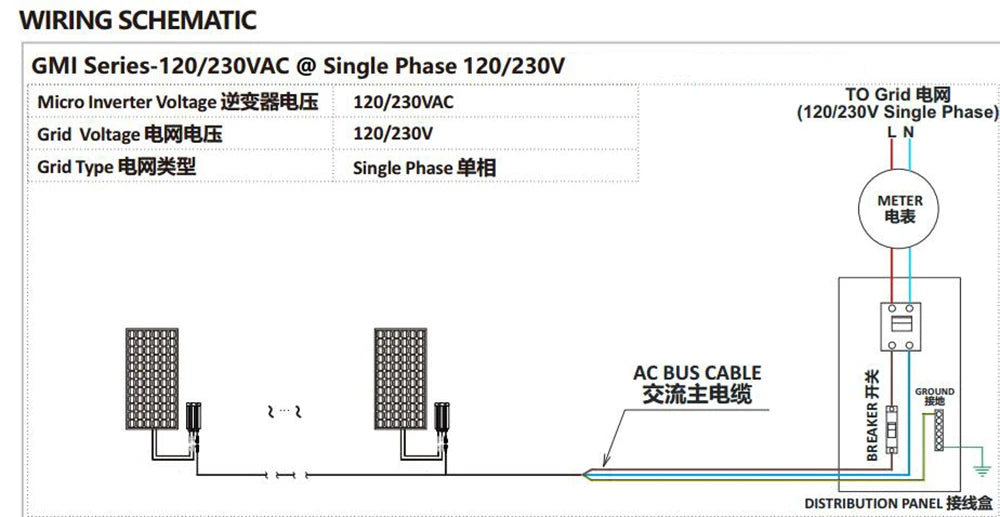

GMI Series 120W/150W/180W Micro Inverter: A single-phase device that converts DC voltage (26V-46V) to AC voltage (110V-230V) at 50Hz or 60Hz. It features a grid-tie design, suitable for connecting to a distribution panel via an 18-meter AC bus cable.

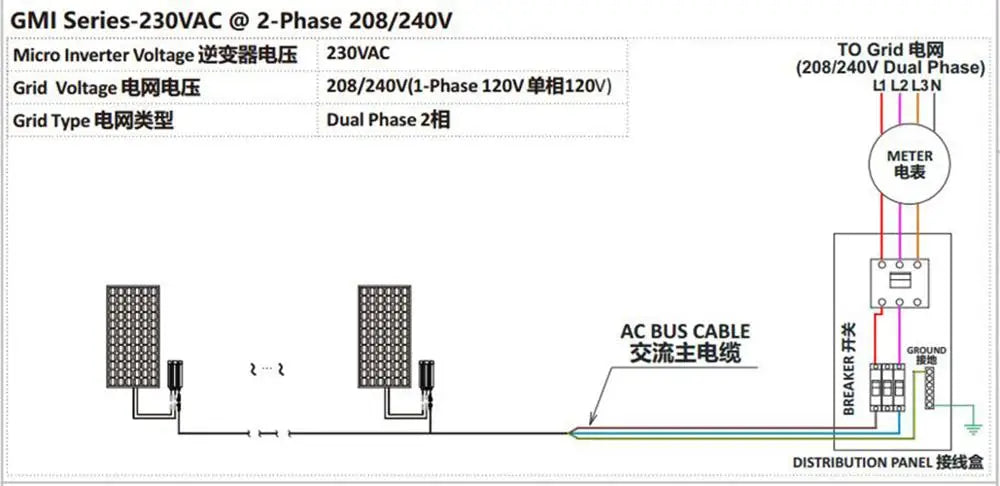

GMI Series 120W-180W MPPT Solar Micro Inverter converts DC voltage (26V-46V) to AC output (110V-230V, 50Hz/60Hz). It's designed for grid-tied solar PV systems and features a dual-phase 208/240V output. The inverter is suitable for residential and commercial applications.

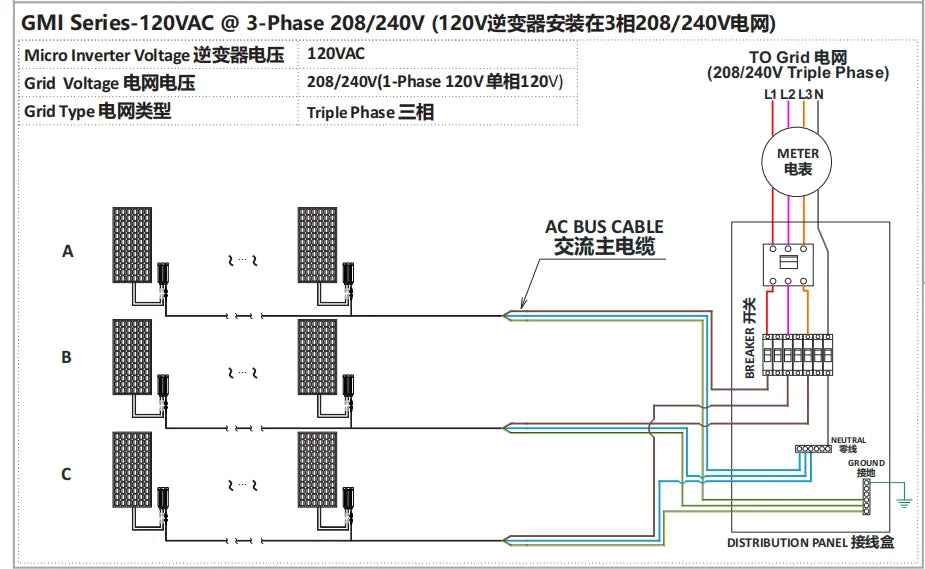

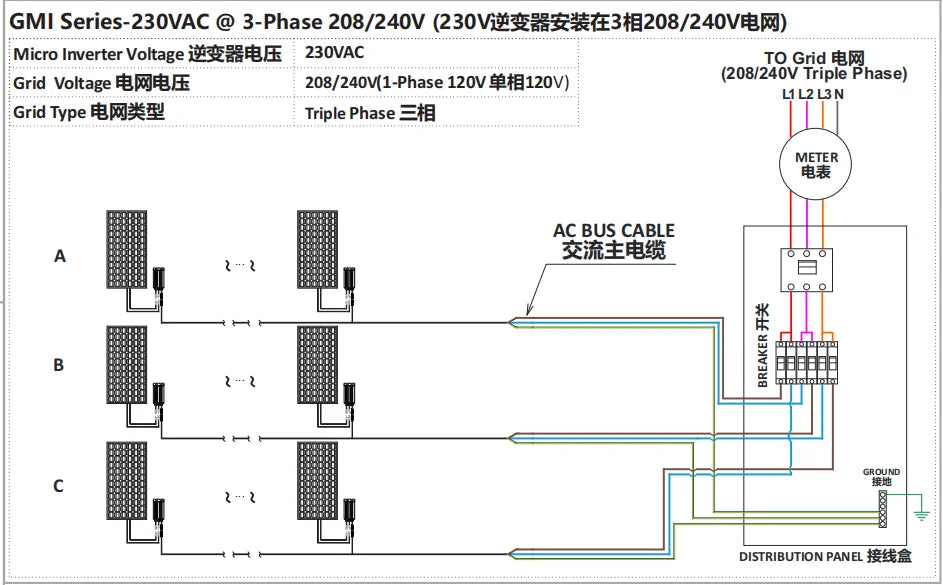

GMI Series Micro Inverter: 120W/150W/180W, MPPT solar grid tie inverter, converts DC voltage (26V-46V) to AC output (110V-230V, 50Hz/60Hz). Suitable for residential applications with a 3-phase, 208/240V grid connection. Includes triple phase L1-L2-L3 grid type and neutral ground distribution panel.

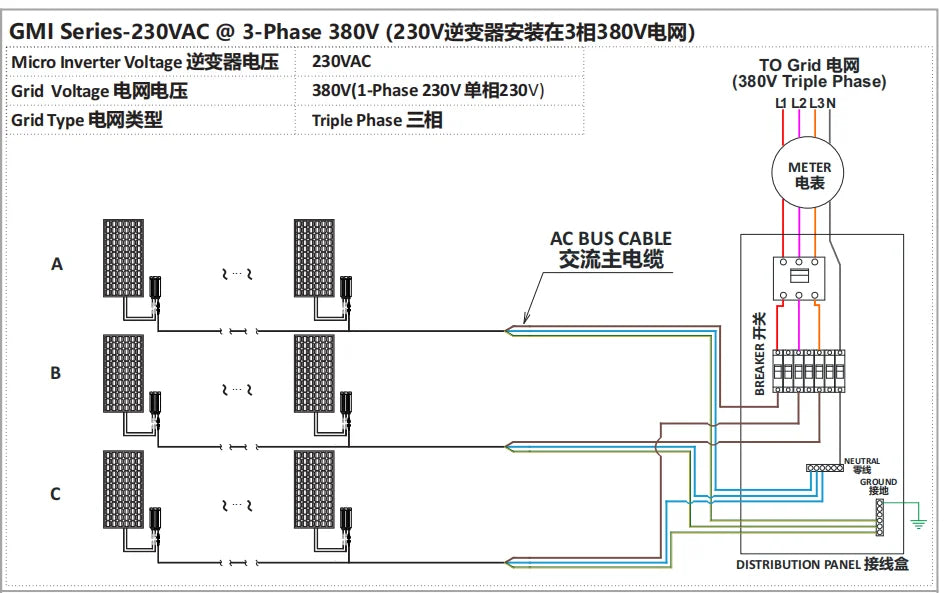

Introducing the GMI Series 120W/150W/180W MPPT Solar Grid Tie Micro Inverter, suitable for DC voltages of 26V-46V and AC output of 110V-230V at 50Hz or 60Hz. This compact inverter is designed for grid-tied applications, triple-phase compatible, and features a robust build with EMI shielding.
GMI Series Micro Inverter converts DC voltage (26V-46V) to AC power (110V-230V, 50Hz/60Hz) and is designed for grid-tied solar PV systems. It supports single-phase or three-phase input and can output up to 230VAC at a triple phase (208/240V). This product features EMI filtering, an AC bus cable, and ground distribution panel compatibility.
