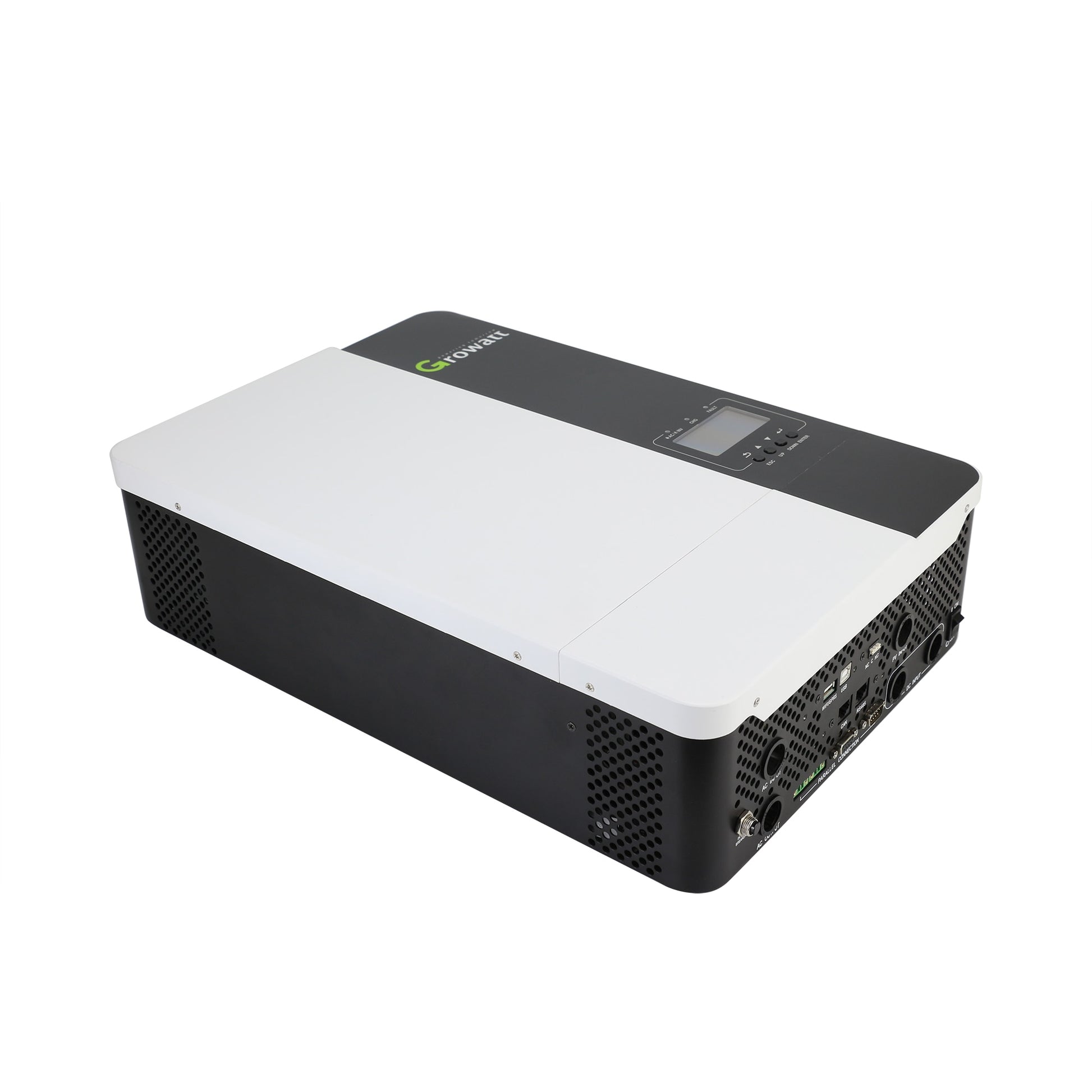

Growatt 100A Solar Charger MPPT 3.5KW 5KW 48V Off Grid Solar Panel Inverter Pure Sine Wave can Work Without Batteries Inverter

Growatt SPF 3500-5000 ES is an off-grid inverter for backup power and consumption, featuring a maximum PV input voltage of 450VDC. It can operate without batteries, reducing system investment costs. This inverter produces a pure sine wave output at 23VAC.

NOTE : The battery capacity of the correct matching system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation. For details, please refer to the manual recommendation or consult online customer service.

NOTE:

This Hybrid Solar Inverter can use the WIFI Module, if you need it, please click this link:

https://www.aliexpress.com/item/1005002666836079.html?spm

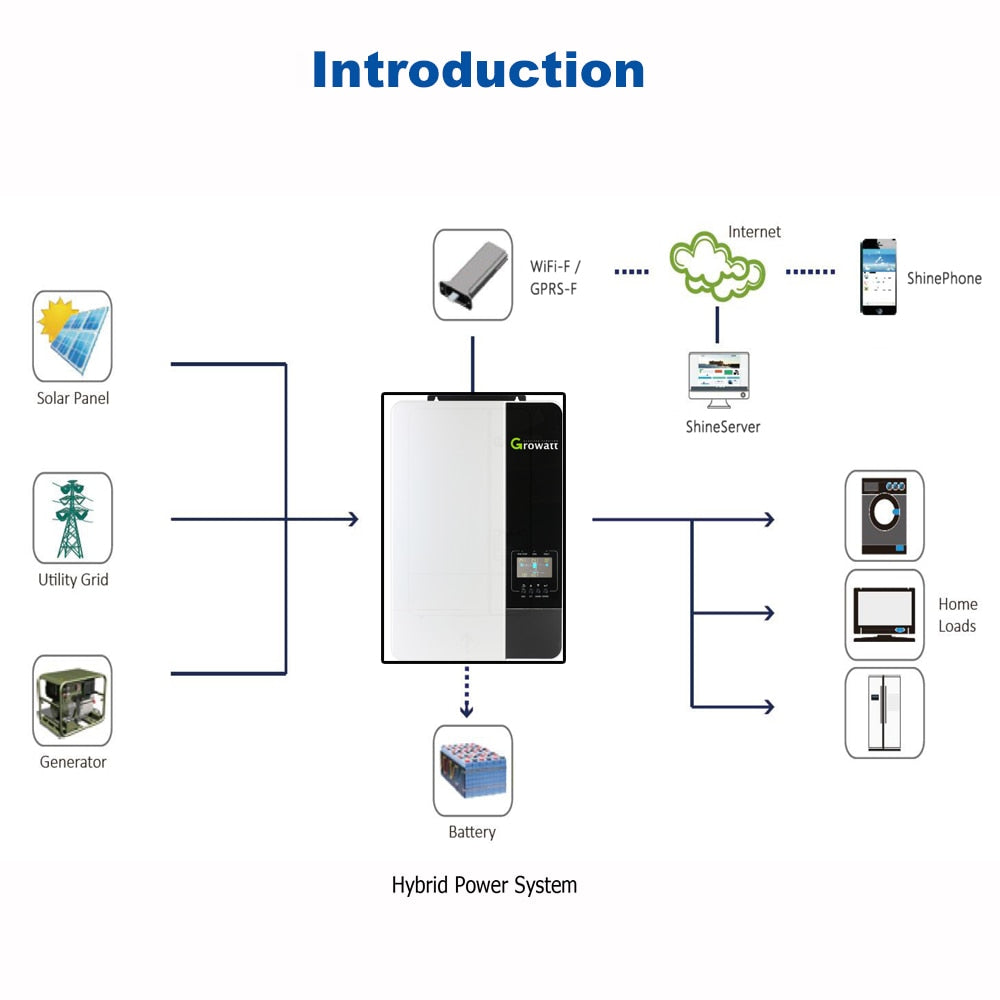

This is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high
frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid
backup power and self-consumption applications. This inverter can work with or without batteries.

The whole system also need other devices to achieve complete running such as PV modules, generator, or
utility grid. Please consult with your system integrator for other possible system architectures depending on
your requirements. The WiFi / GPRS module is a plug-and-play monitoring device to be installed on the
inverter. With this device, users can monitor the status of the PV system from the mobile phone or from the
website anytime anywhere.

1.Rated power 3.5KW to 5KW, power factor 1

2.MPPT ranges 120V~430V,450Voc

3.High frequency inverter with small size and light weight

4.Pure sine wave AC output

5.Solar and utility grid can power loads at the same time

6.With CAN/RS485 for BMS communication

7.With the ability to work without battery

8.Parallel operation up to 6 unit(only with battery connected)

9.WIFI/GPRS remote monitoring (optional)

10.PV and Grid power the load jointly if PV energy unsufficient

11.Flexibly schedule the Inverter charging and discharging time.

Growatt's 100A Solar Charger features an integrated MPPT charge controller, equalization charging function, and remote monitoring capabilities via WIFI/GPRS. It can work with or without batteries, with a maximum PV input voltage of 450VDC. The inverter supports parallel operation for capacity expansion up to 30kW and allows for flexible scheduling of charging and discharging times.

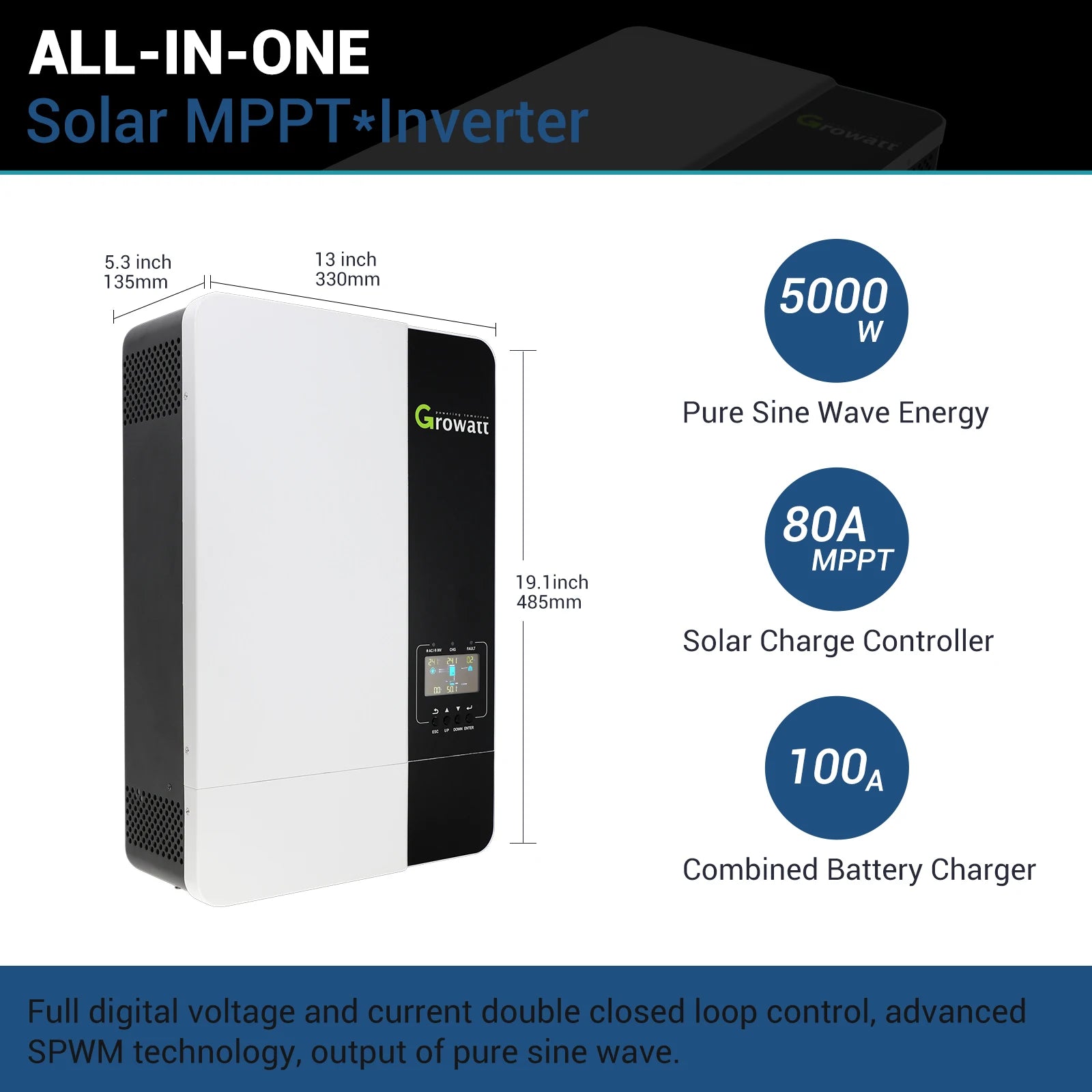

Growatt's all-in-one solar MPPT inverter features a 5.3-inch display, pure sine wave energy, and advanced control technology. It combines battery charging and grid-tied functionality with a maximum power point tracker (MPPT) and full digital voltage/current double closed loop control. Suitable for off-grid systems up to 5000W.

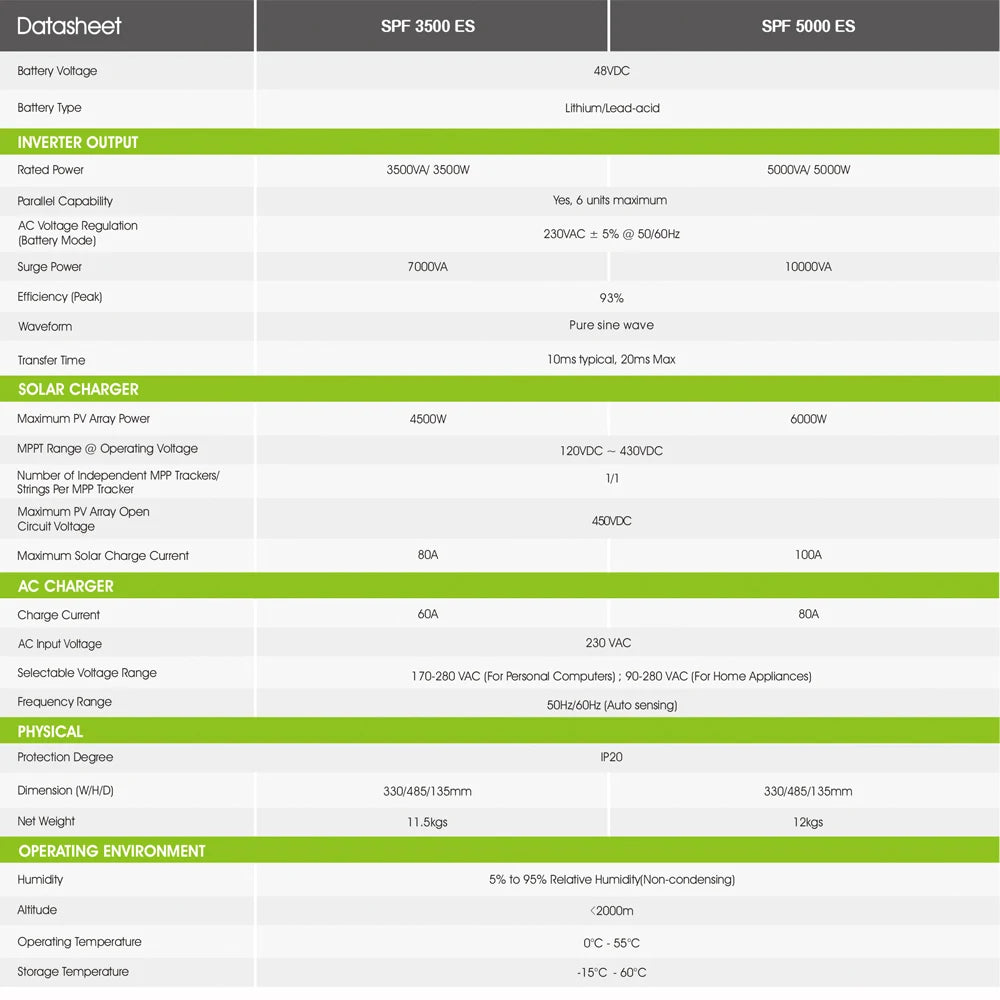

Growatt 100A Solar Charger MPPT: A pure sine wave inverter with maximum output power of 3.5kW/5kW (48V). Features include parallel capability, surge power up to 7kVA, and high efficiency (93.90%). The solar charger has a maximum PV array power of 4.5kW and can operate within a range of 12-43VDC. It also features automatic frequency sensing, physical protection up to IP20, and dimensions of 330/485/135mm with a net weight of T.SKgs. Operating environment: humidity (0-95%), non-condensing; altitude <20kft; temperature -15°C to 60°C.

Connection

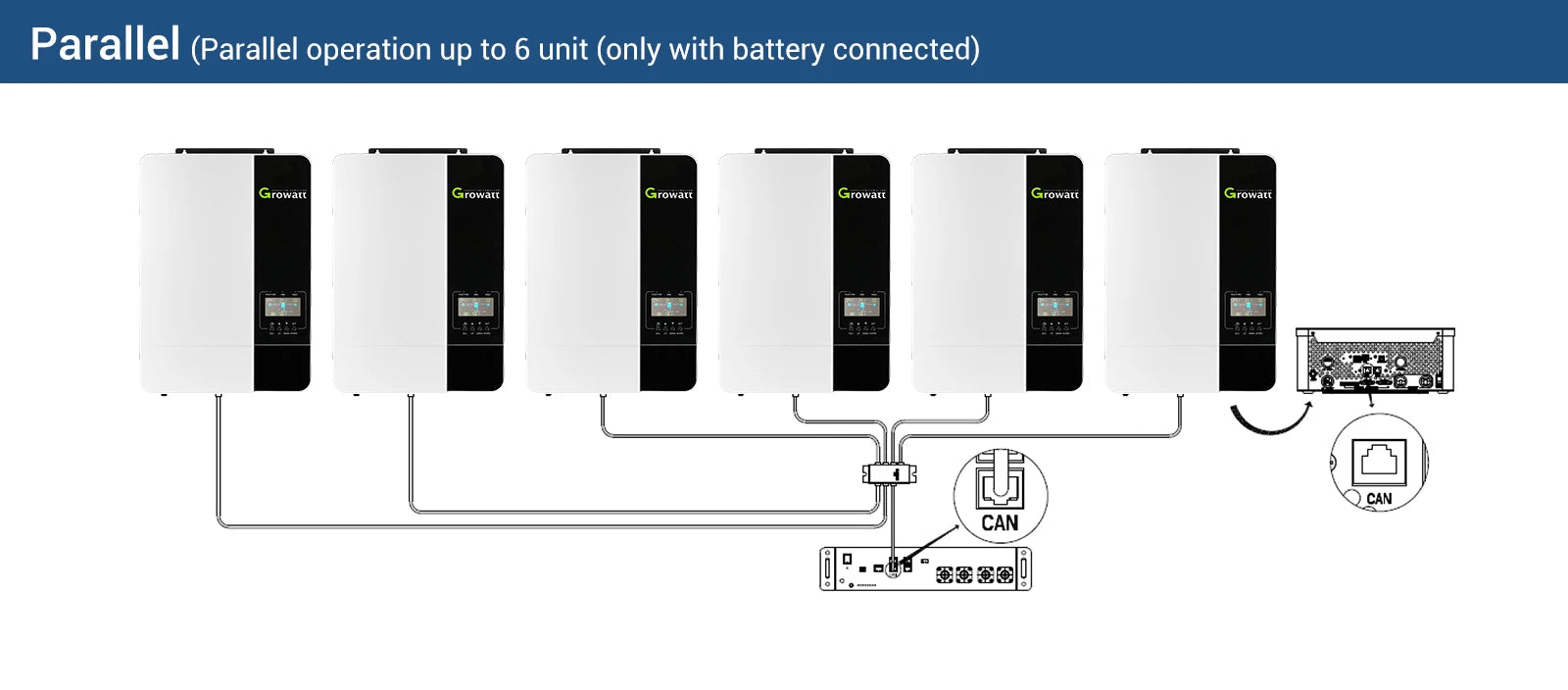

Growatt's solar charger can operate in parallel up to 6 units when connected to batteries, allowing for increased power output and flexibility.

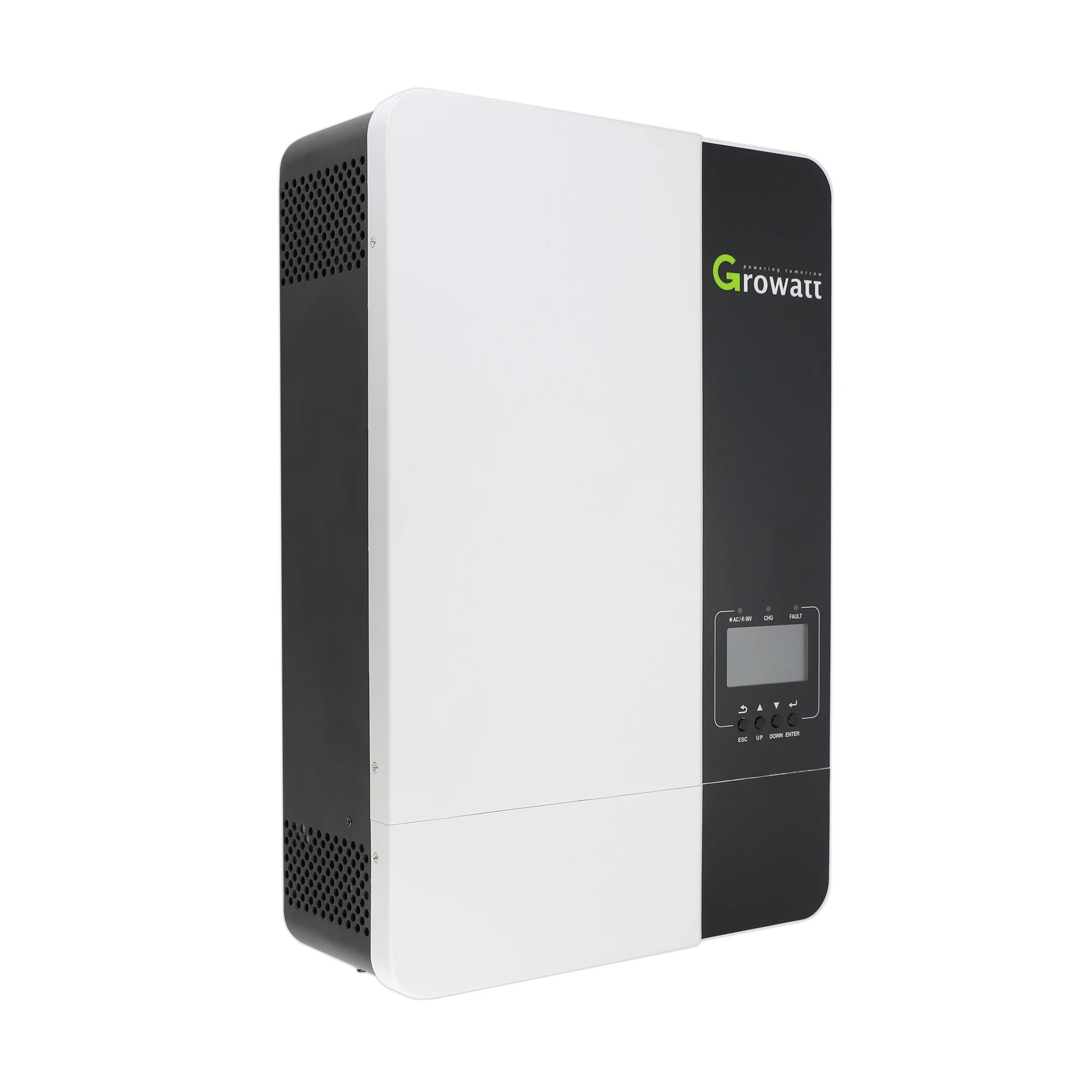

Growatt's solar charger features fault detection and energy escape for safe operation without batteries, ensuring reliable power supply.

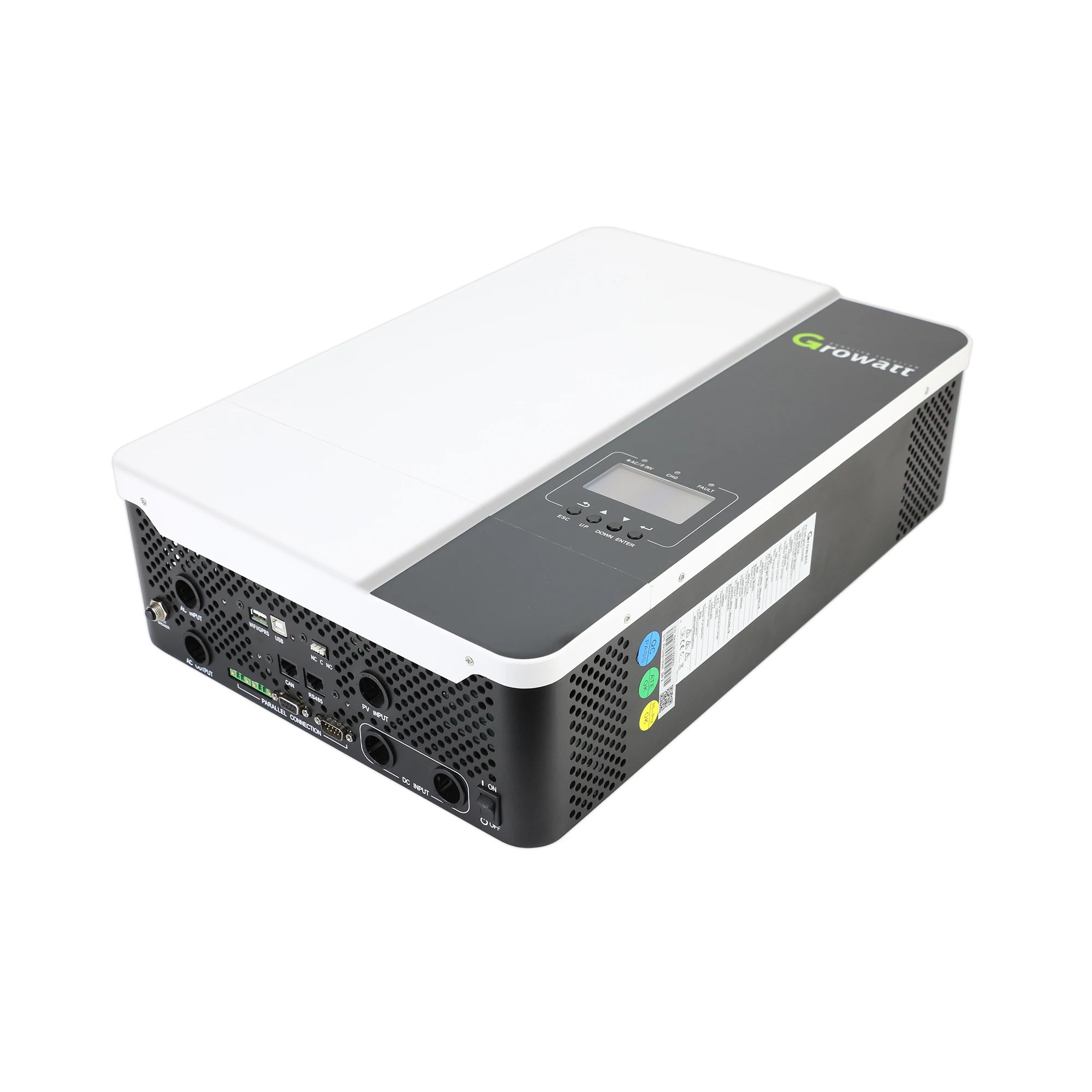

Growatt 100A Solar Charger MPPT inverter for off-grid use, capable of charging without batteries, with pure sine wave output.

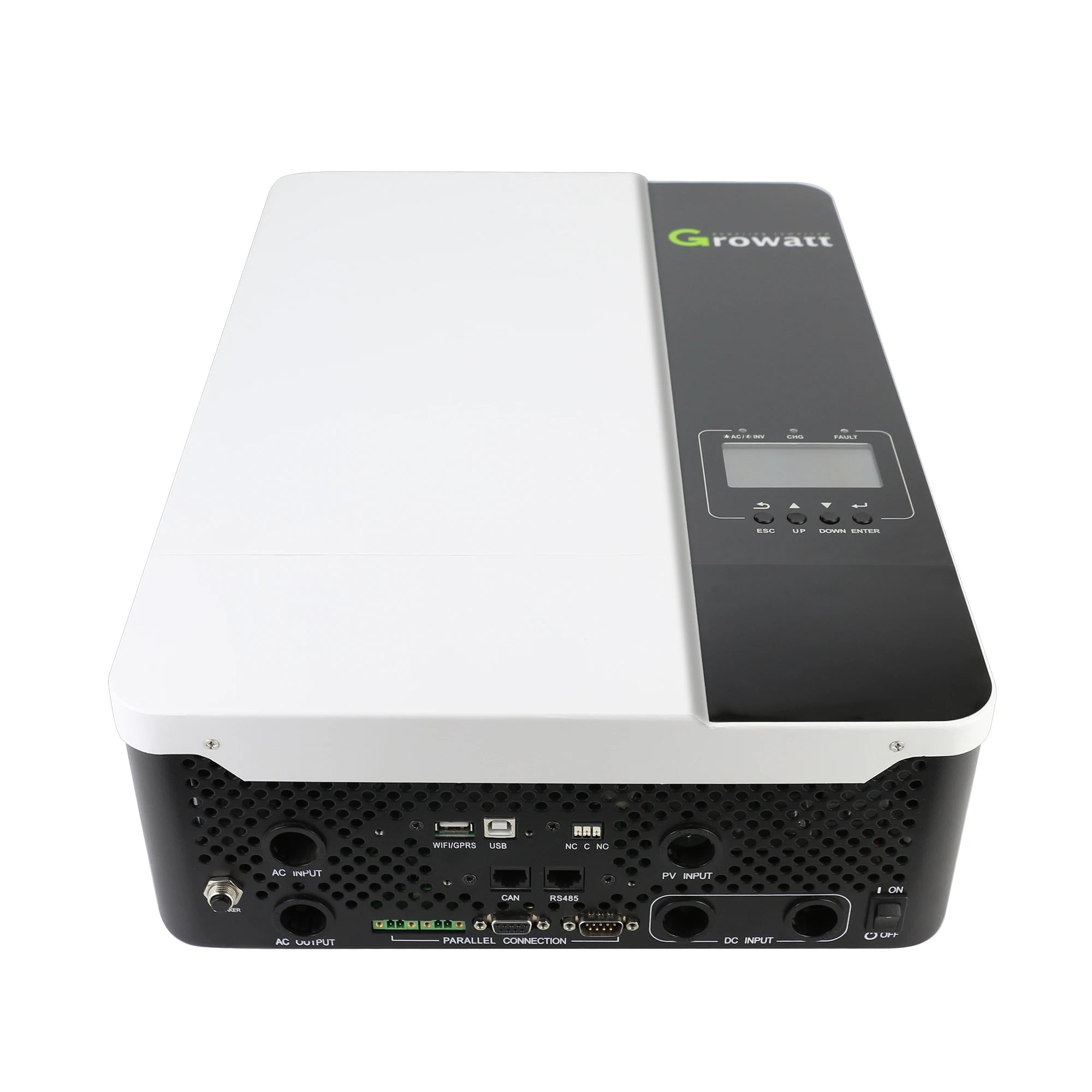

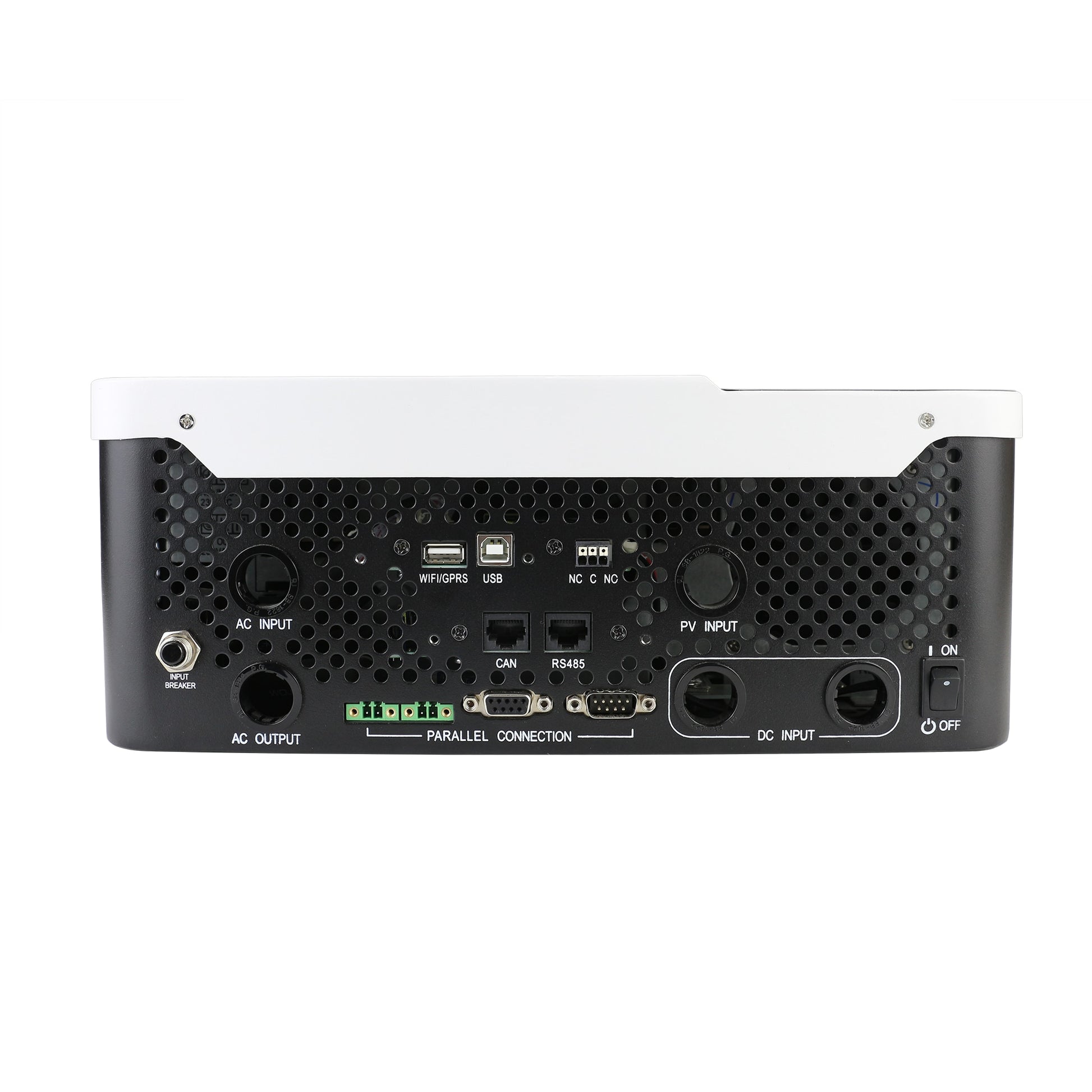

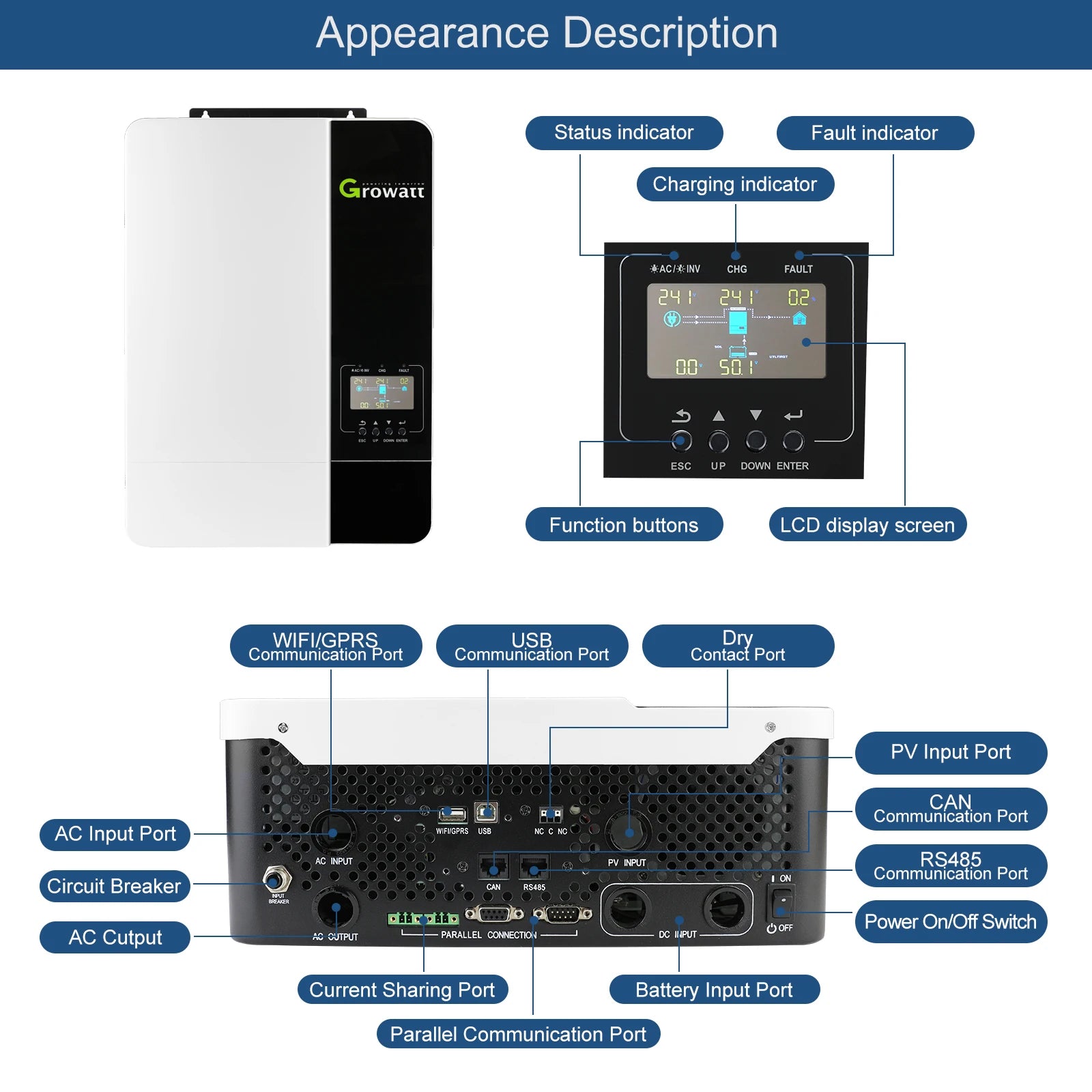

Growatt 100A Solar Charger: A pure sine wave inverter that can work without batteries, featuring MPPT technology, Wi-Fi connectivity, USB ports, AC input, PV input, and parallel connection capabilities.

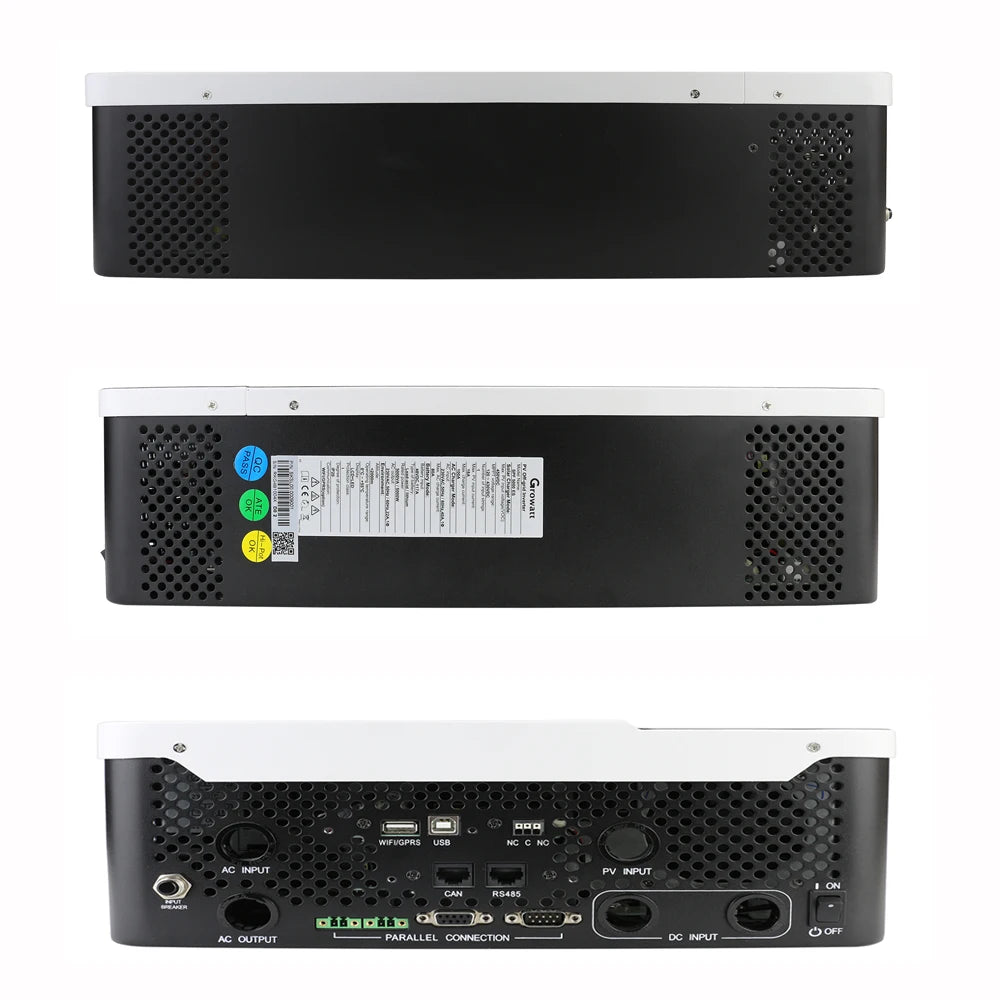

Maximum Power Point Tracking (MPPT) technology allows for efficient solar charging with parallel connections and DC input up to 48V.

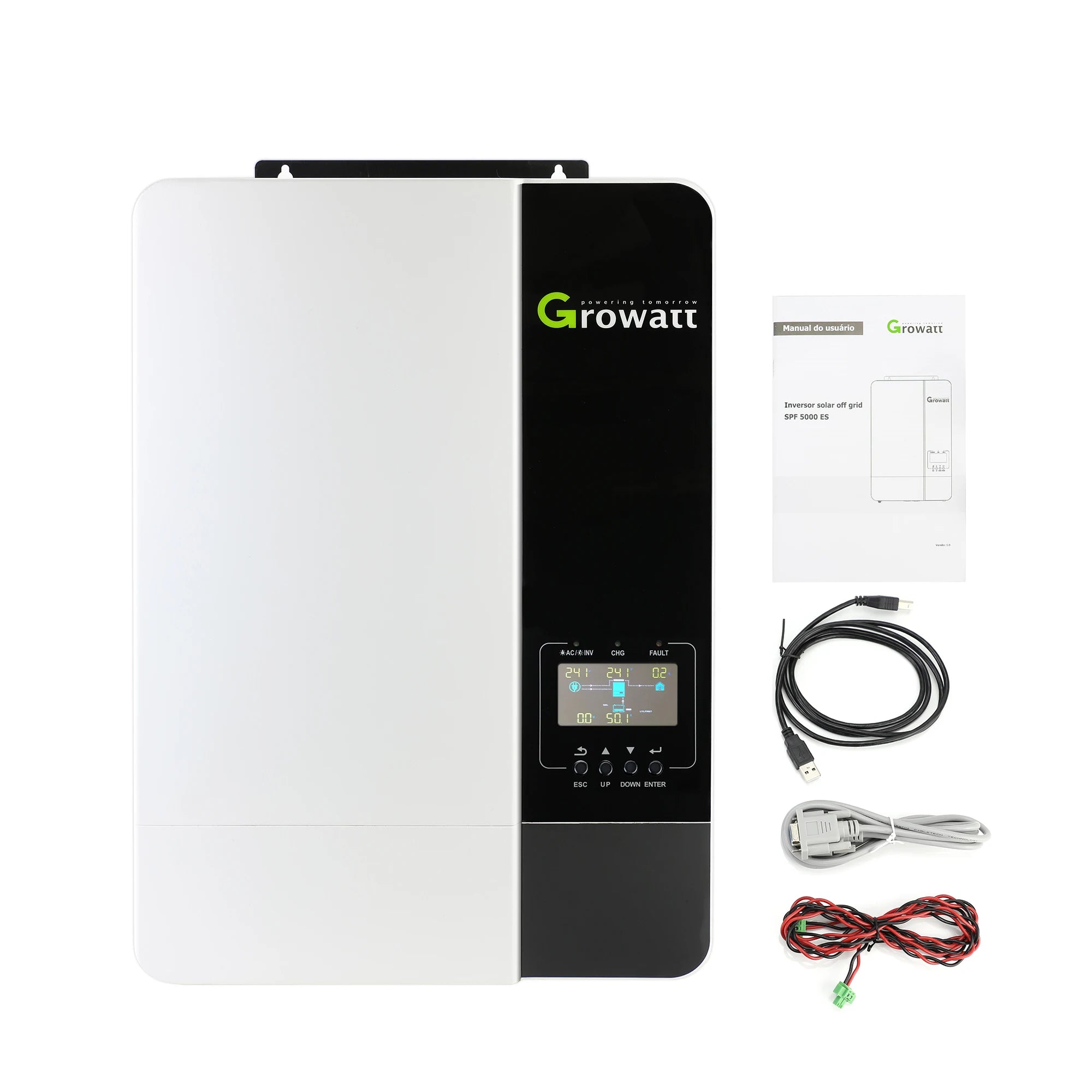

Growatt User Manual for Off-Grid Solar Inverter SPF 5000, with error codes and troubleshooting instructions.
