Jesudom 1.5KW12V/3KW24V To 230VAC Charge Current 80A MPPT Hybrid Solar Inverter Pure Sine Wave Output
Jesudom 1.5KW12V/3KW24V To 230VAC Charge Current 80A MPPT Hybrid Solar Inverter Pure Sine Wave Output
69 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Weight: 7KG
Type: DC/AC Inverters
Size: 450mm*320mm*120mm
Output Type: single
Output Power: 1 - 200KW
Output Frequency: 50hz60hz
Origin: Mainland China
Model Number: VMI-1500/VMI-3000
Certification: CE,RoHS
Brand Name: Jesudom
Jesudom 1.5KW12V/3KW24V To 230VAC Charge Current 80A MPPT Hybrid Solar Inverter Pure Sine Wave Output
Pure sine wave inverter
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
Comopatible to mains voltage or generator power
Auto restart while AC is recovering
Overload/Over temperature/Short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
WIFI/GPRS(Option)
Can connect to Lead Acid Battery / GEL Battery / Lithium Battery
MODEL |
1.5KW 12V |
3KW 24V |
Rated Output Power |
1.5KW |
3KW |
Output Voltage Waveform |
Pure Sine Wave |
|
Output Voltage Regulation |
230Vac±5% |
|
Output Frequency |
50Hz/ 60Hz (Auto-detection) |
|
Peak Efficiency |
91% |
|
Overload Protection |
5s@ >150% Io ad; 10s@ 110% ~ 150% Io ad |
|
Surge Capacity |
2* rated power for 5 seconds |
|
Nominal DC Input Voltage |
12VDC |
24VDC |
Cold Start Voltage |
11.5VDC |
23VDC |
Low DC Warning Voltage | ||
@ Io ad < 50>% |
11VDC |
22VDC |
@ load >50% |
10.5VDC |
21VDC |
Low DC Warning Return Voltage | ||
@ load < 50% |
11.5VDC |
22.5VDC |
@ load >50% |
11VDC |
22VDC |
Low DC Cut off Voltage | ||
@ load < 50% |
10.2VDC |
20.5VDC |
@ load >50% |
9.6VDC |
20VDC |
High DC Recovery Voltage |
14VDC |
32VDC |
High DC Cut-off Voltage |
16VDC |
33VDC |
Max. PV Array Power |
2000W |
3000W |
Nominal PV Voltage |
240VDC |
|
PV Array MPPT Voltage Range |
90~430VDC |
|
Max. PV Array Open Circuit Voltage |
450VDC |
|
|
Max Charging Current (AC charger+solar charger) |
80Amp |
|
Safety Certification |
CE |
|

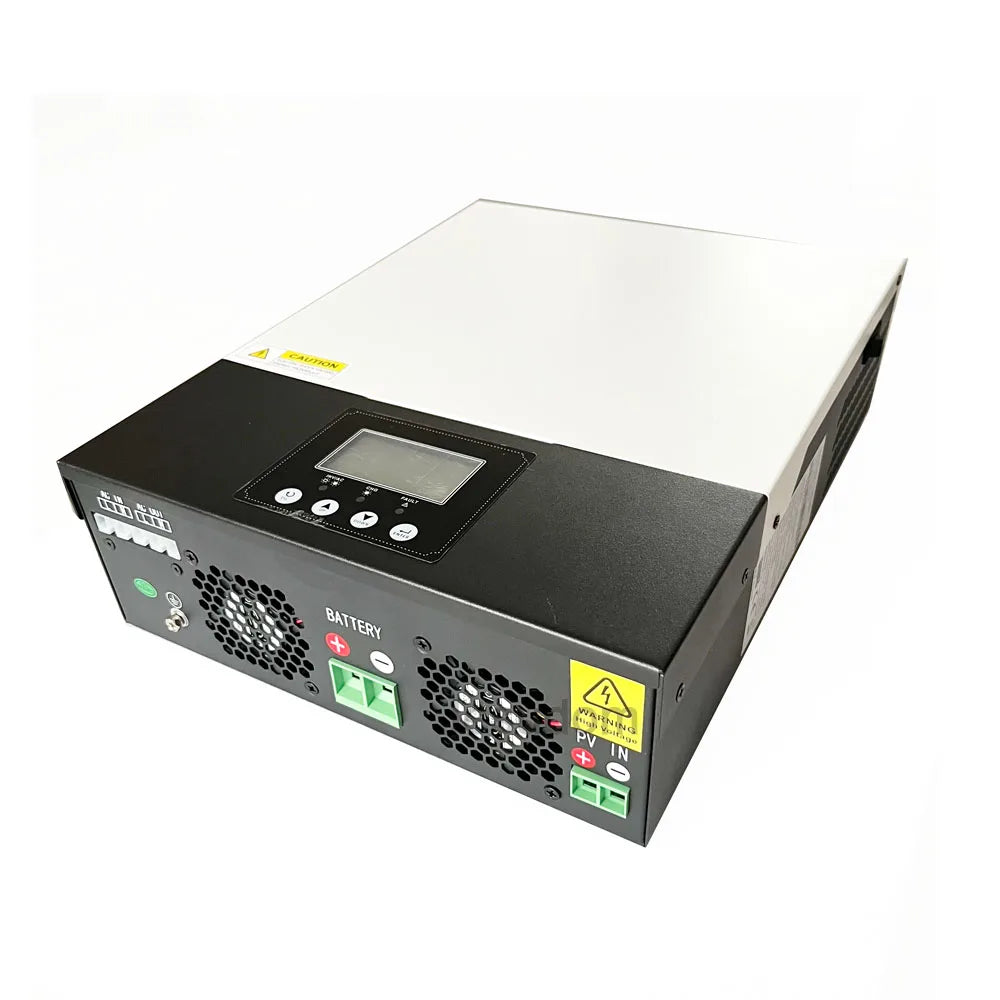

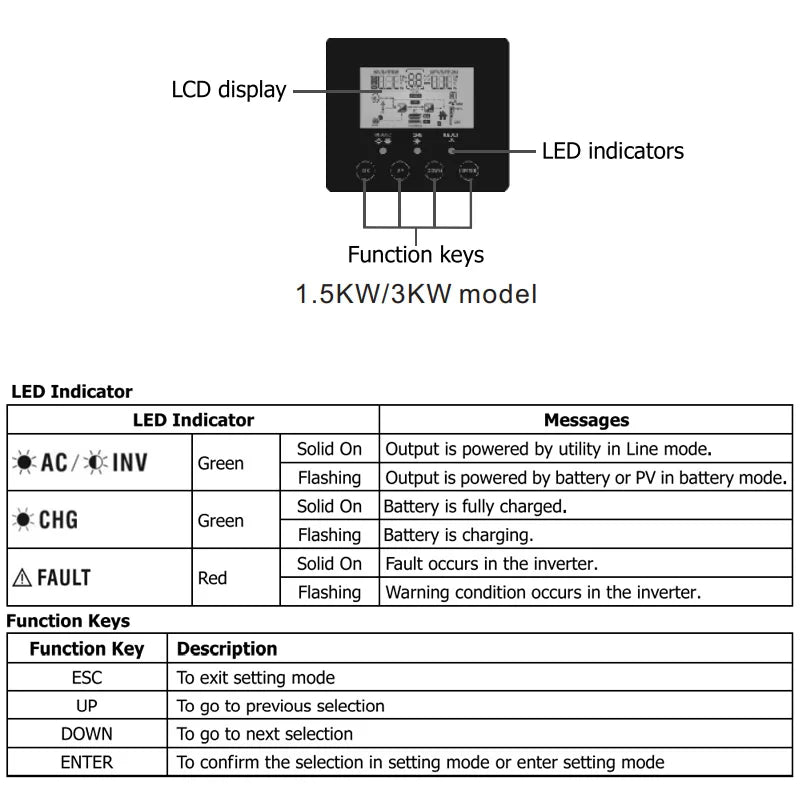

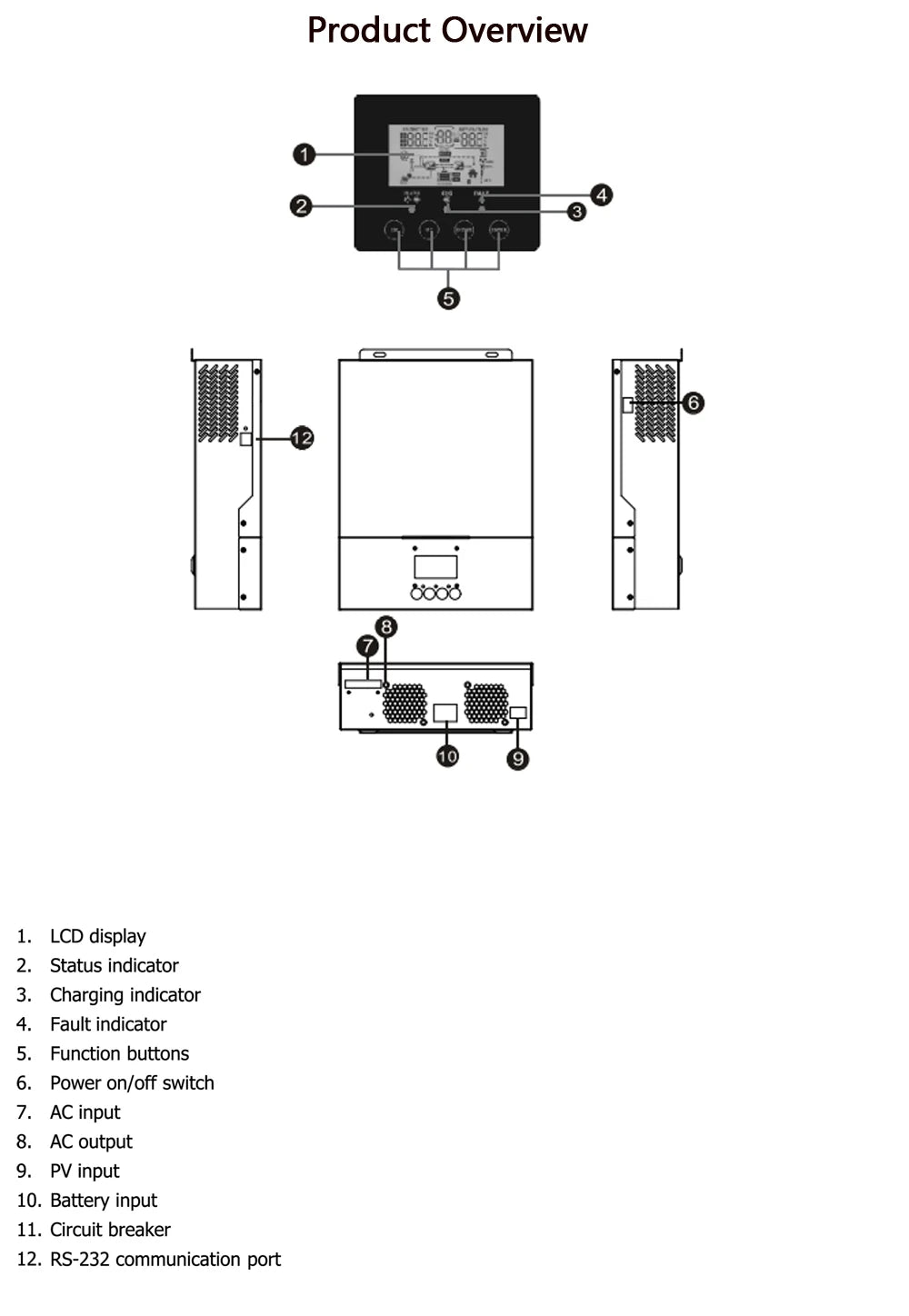

This hybrid solar inverter features a 38-inch LCD display and 2 status indicators. It has 5 function buttons, a power on/off switch, AC input/output ports, PV and battery inputs, and an RS-232 communication port.
Features: • Output: Pure sine wave, 1500W @ 230V • Maximum PV power: 2000W • MPPT tracking range: 90-430VDC • Compatibility: Lead-acid AGM GEL and lithium batteries • Charge current: 80A (max) • Input voltage: 230V AC • Recommended cable: 8AWG

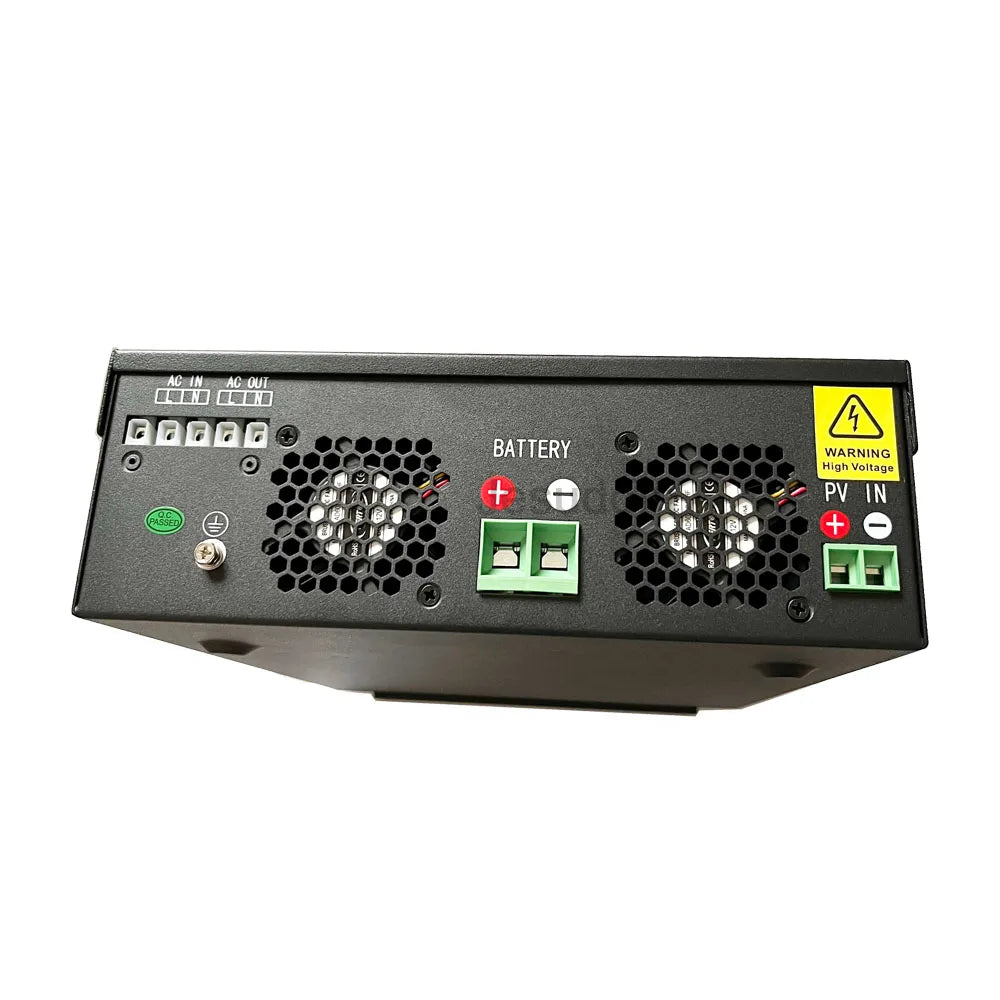

Warning: High-voltage solar panel input. Battery charging recommended only when voltage level is suitable.
