JUNTEK MPT-7210A mppt controller solar battery charger panel digital control boost voltage module charge 24V/36V/48V/60V/72V
JUNTEK MPT-7210A mppt controller solar battery charger panel digital control boost voltage module charge 24V/36V/48V/60V/72V
290 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Origin: Mainland China
Model Number: MPT-7210A
Maximum Current: 10A
Application: Charger Controller,Solar System Controller
Product information download link | |
User Manual |
http://68.168.132.244/MPT-7210A_EN_manual.pdf |
WhatsAPP Technology Group |
https://chat.whatsapp.com/CBXHIjh1CdpE5OBwUfchLi |
|
|
|
|
MPPT refers to Maximum Power Point Tracking (MPPT).The MPPT Solar Charge Controller is an upgrade of traditional products.The MPPT voltage generator detects the highest voltage and current of the solar panel in real time.Adjusting the electrical module by extending the operating state so that the system can charge the battery with maximum power output.An MPPT controller for a solar photo-voltaic system, which coordinates the solar panels to charge the batteries,is the brain of the solar photo-voltaic system. The controller adopts an advanced software active algorithm to quickly and accurately track the maximum power point of the voltage of the photo-voltaic panel module and actively track the maximum power point of the solar cell module to obtain more solar energy,increase charge current and power generation. |
<!--
table.MsoTableGrid {
text-align:justify;
text-justify:inter-ideograph;
font-family:'Times New Roman';
font-size:10.0000pt;
}
p.MsoNormal {
margin:0pt;
margin-bottom:.0001pt;
text-align:justify;
text-justify:inter-ideograph;
font-family:Calibri;
font-size:10.5000pt;
}
-->
►Suitable for 24V / 36V / 48V / 60V / 72V battery system, users can set the output voltage and current according to actual needs.
►Innovative MPPT technology,high tracking efficiency,can increase the energy generated.
►High speed and high performance design, ideal for solar charging use.
►With quick discharge function, the voltage response speed is adjusted very fast.
►Excellent heat dissipation,has advanced fan temperature control technology to quickly control heat dissipation.
►Very durable,because it has aluminum alloy case and portable size.
►Suitable for lithium batteries and batteries charging.
►Built-in 20 sets of data for user settings and storage, support for multi-purpose.
►The output power is 600W, which is most suitable for solar panels of 100W-600W; the greater the power, the more obvious the MPPT effect.
►With reverse charging protection,avoiding charging the battery solar battery reversely.
►With overload protection,ifoverloaded,the controller will automatically cut off the circuit.
►A wide range of applications,such as battery packs and lithium battery packs, home photo-voltaic power systems, solar street lights and so on.
<!--
table.MsoTableGrid {
text-align:justify;
text-justify:inter-ideograph;
font-family:'Times New Roman';
font-size:10.0000pt;
}
p.MsoNormal {
margin:0pt;
margin-bottom:.0001pt;
text-align:justify;
text-justify:inter-ideograph;
font-family:Calibri;
font-size:10.5000pt;
}
-->
Item |
Parameters |
||
Input voltage |
12-60V |
||
Output voltage |
15-90V |
||
Output current |
0-10A |
||
Output power |
0-600W |
||
Output voltage setting resolution |
10mV |
||
Output current setting resolution |
10mA |
||
Working mode |
MPPT and DC-DC |
||
Operating temperature |
-10℃~60℃ |
||
Conversion efficiency |
85% |
||
Net weight |
400g |
||

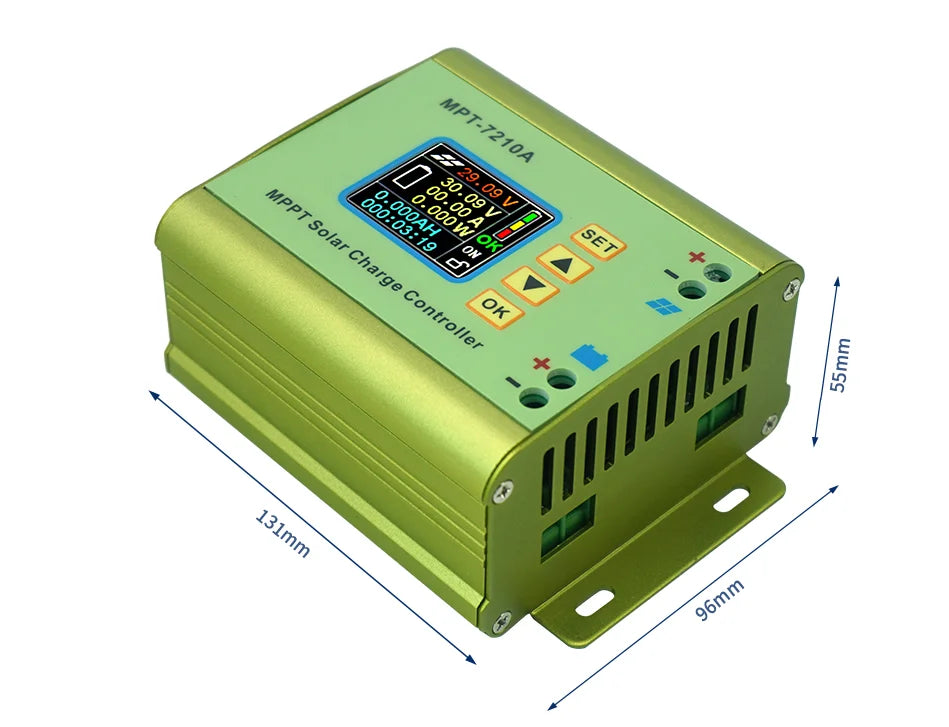

Product dimension |
131*96*55mm |
||
Gross weight |
480g |
||
Package dimension |
140*110*80mm |
<!--
table.MsoTableGrid {
text-align:justify;
text-justify:inter-ideograph;
font-family:'Times New Roman';
font-size:10.0000pt;
}
p.MsoNormal {
margin:0pt;
margin-bottom:.0001pt;
text-align:justify;
text-justify:inter-ideograph;
font-family:Calibri;
font-size:10.5000pt;
}
-->
|
http://68.168.132.244/MPT-7210A_EN_manual.pdf |

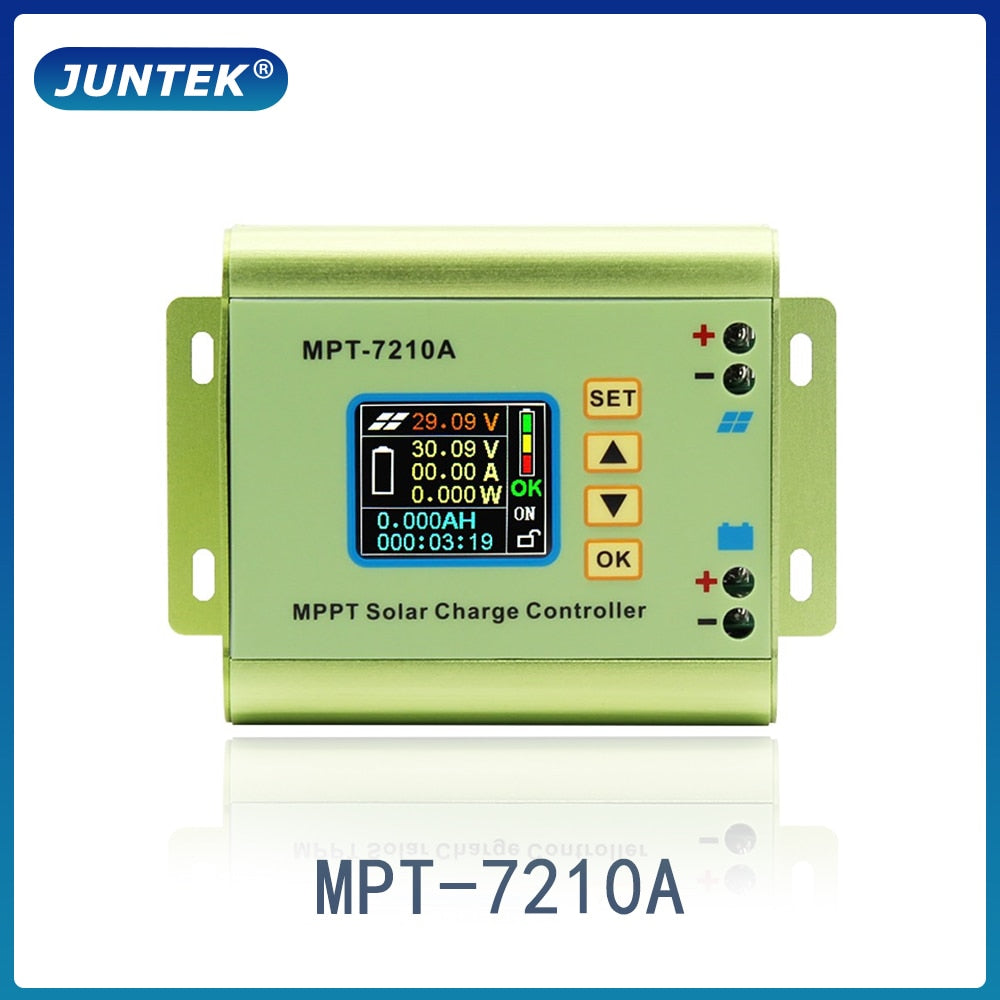

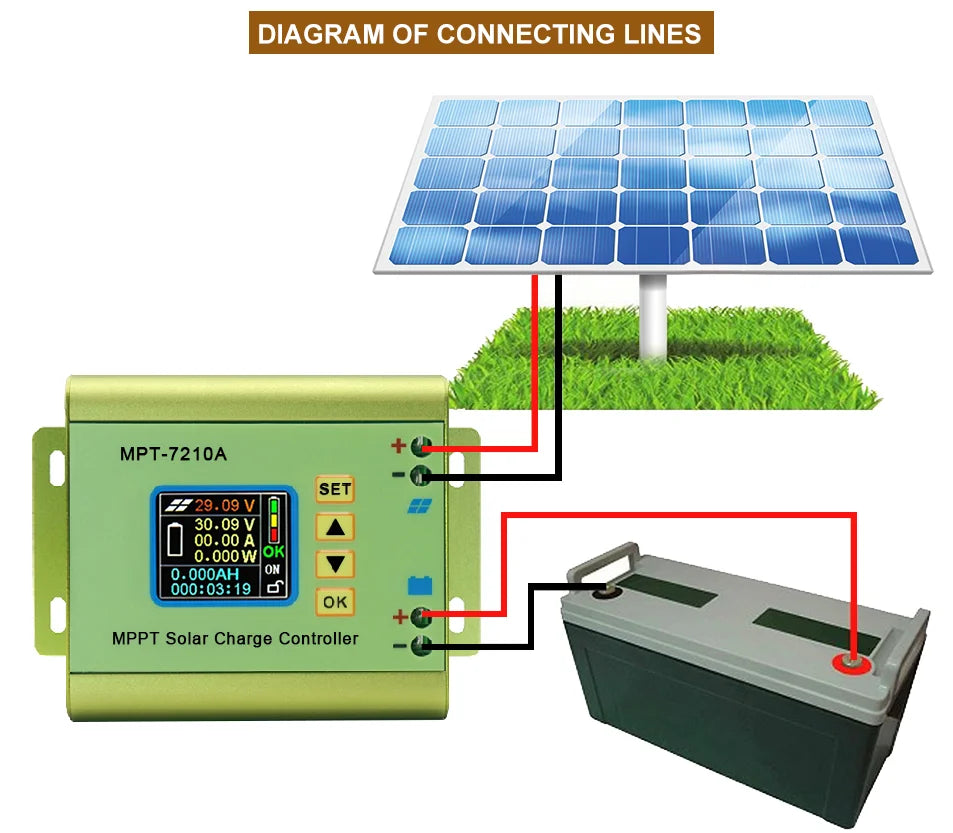

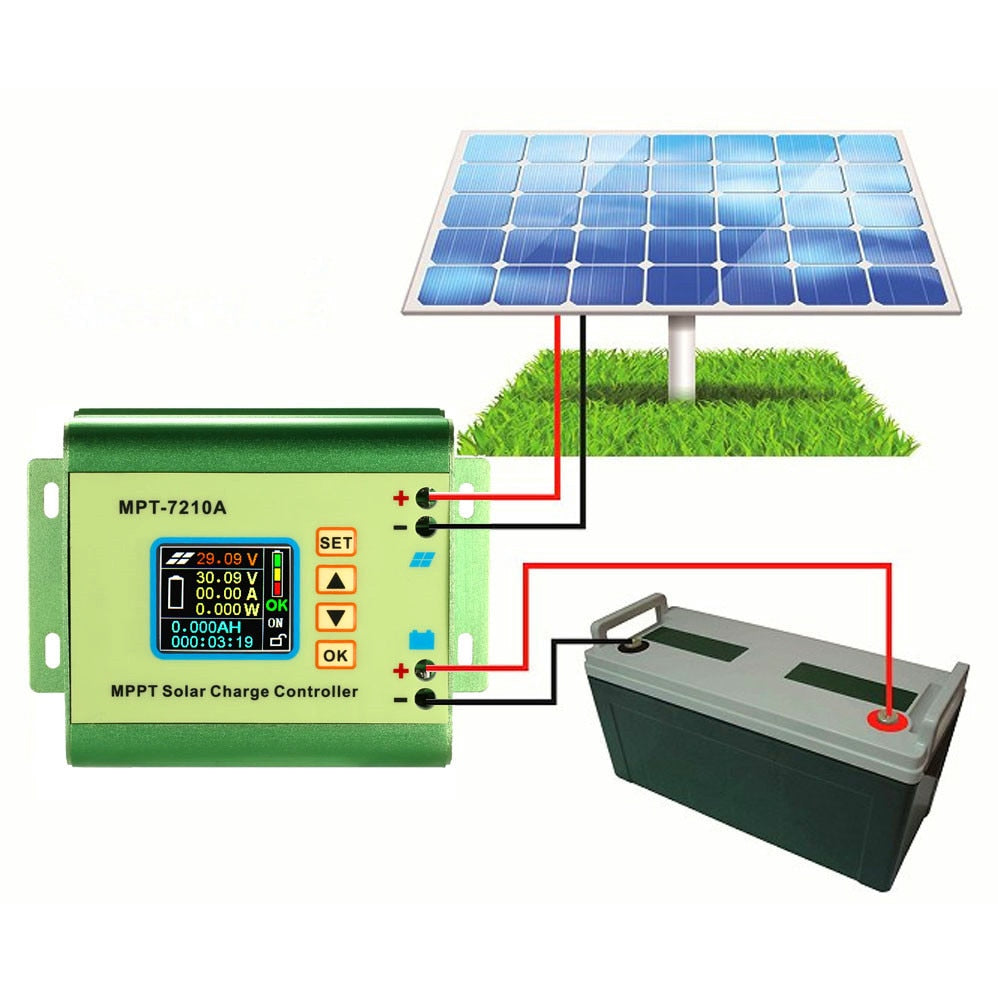

The MPT-7210A mppt controller diagram shows the connections, displaying voltage (29.09V) and current data (30.09V, 00.00A), along with date and time stamps, indicating successful operation.

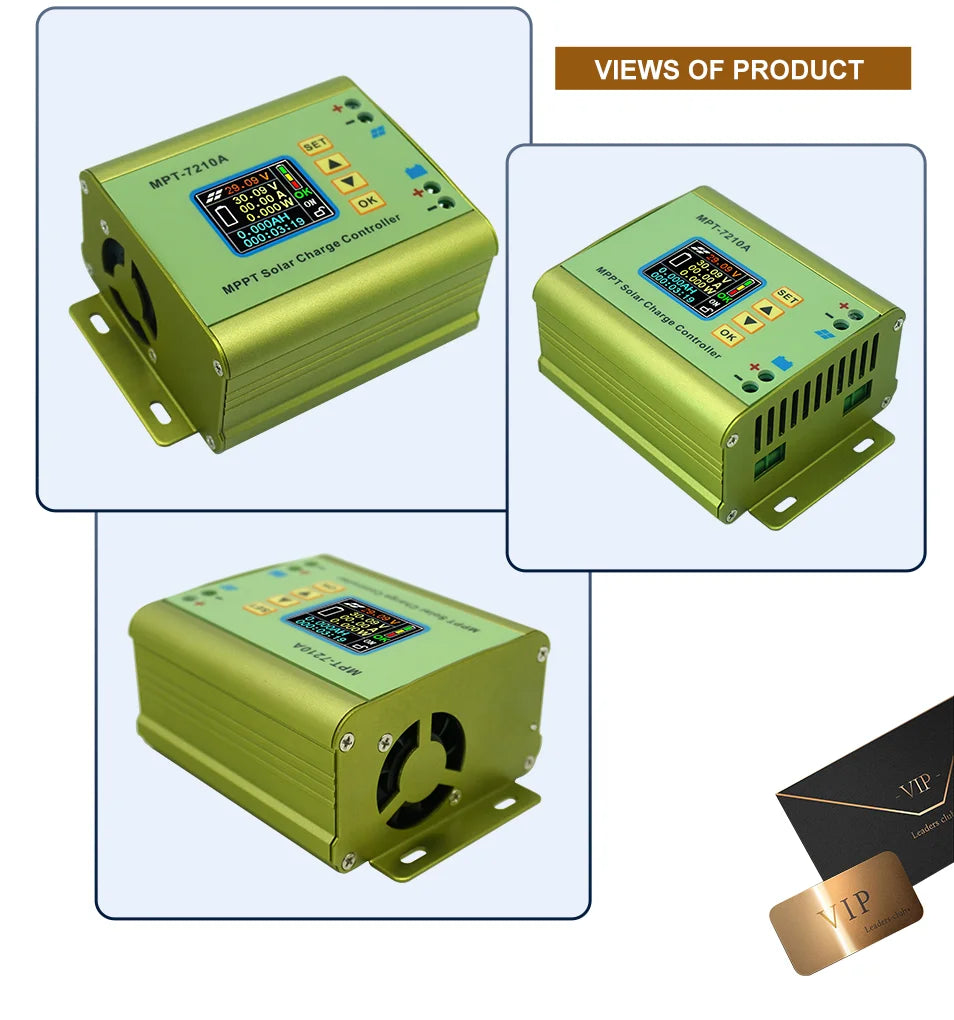

Introducing JUNTEK MPT-7210A, a high-performance MPPT (Maximum Power Point Tracking) controller for solar battery charging. This module boosts voltage to 24V, 36V, 48V, 60V, or 72V, making it ideal for various solar panel applications.

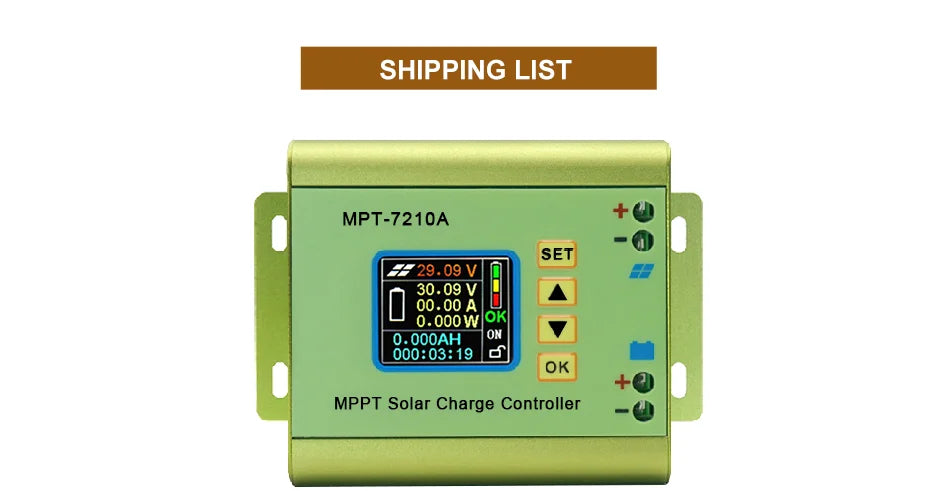

Shipping list MPT-7210A set, date: September 30th, time: 3:19 AM, from manufacturer JunTek. This includes an MPPT solar charge controller.
<!--
table.MsoTableGrid {
text-align:justify;
text-justify:inter-ideograph;
font-family:'Times New Roman';
font-size:10.0000pt;
}
p.MsoNormal {
margin:0pt;
margin-bottom:.0001pt;
text-align:justify;
text-justify:inter-ideograph;
font-family:Calibri;
font-size:10.5000pt;
}
-->
|
1.MPT-7210A solar controller 2.Product Manual |
<!--
