LiFePO4 48V 200AH 10KW Battery Pack - Lithium Solar Battery 6000+ Cycles RS485 CAN Bus Max 32 Parallel For Inverter LiFePO4 200AH
LiFePO4 48V 200AH 10KW Battery Pack - Lithium Solar Battery 6000+ Cycles RS485 CAN Bus Max 32 Parallel For Inverter LiFePO4 200AH
6 orders in last 30 days
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
LiFePO4 48V 200AH 10KW Battery Pack SPECIFICATIONS
Weight: 85kg
Voltage: 48V
Type: Lifepo4
Size: 480*440*255mm
Origin: Mainland China
Nominal Capacity: 200AH
Model Number: 48V 200AH 10KW
Certification: CE
Brand Name: CERRNSS
Application: solar

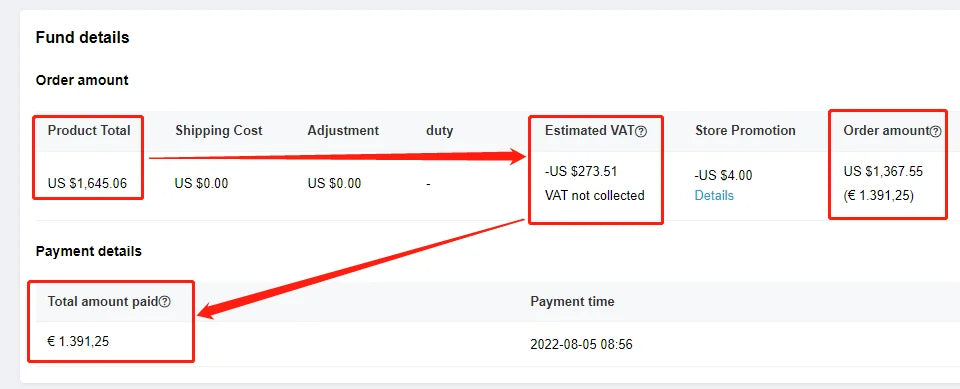

TIPS: Spain/Germany/Netherlands/Italy/Poland/Belgium, the product price has been deducted VAT tax, the displayed price is the actual paid price, the displayed price of other EU countries includes VAT tax, the actual paid price will be deducted VAT tax

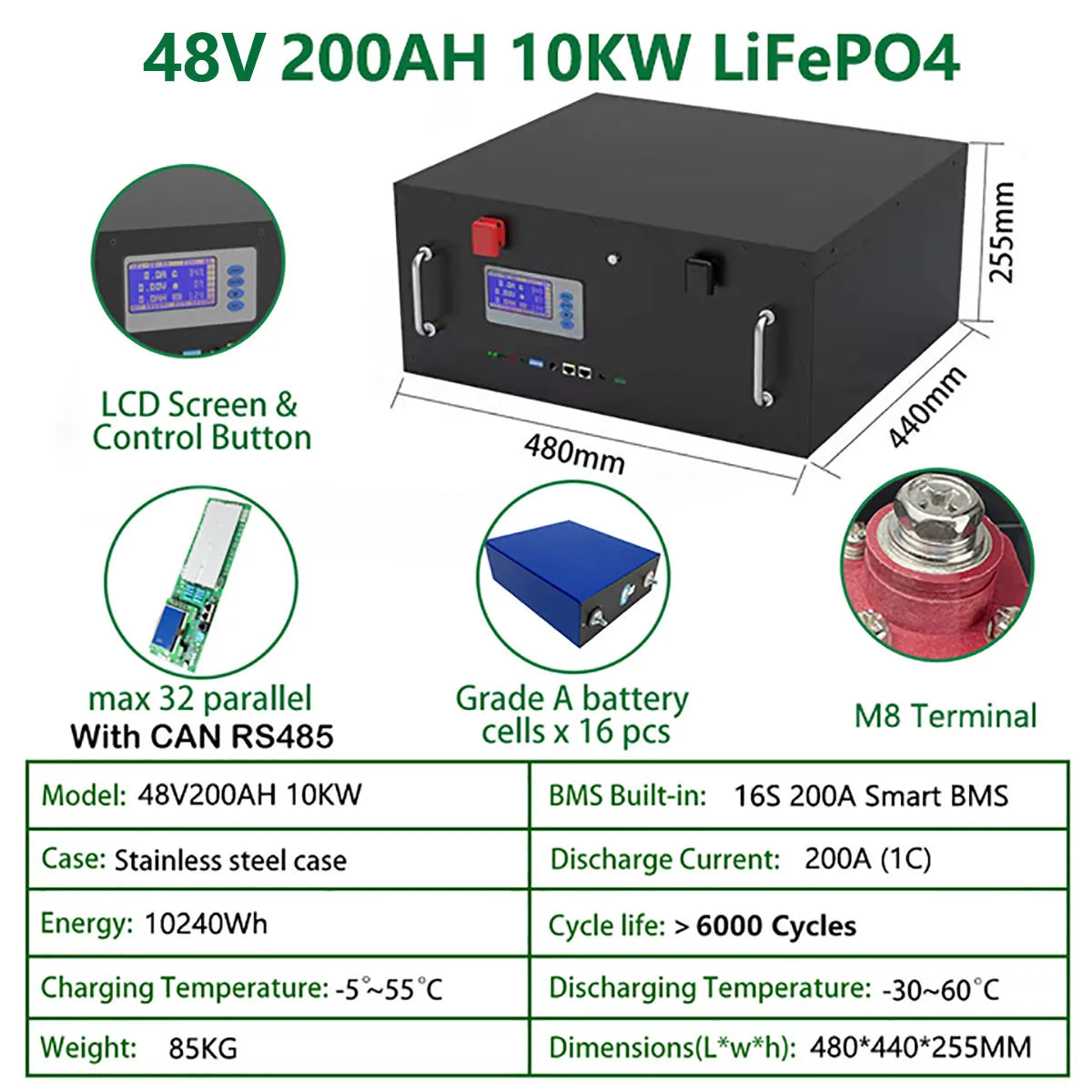

48V 200AH 10KW LiFePO4 Battery Pack
Detail：
Parallel : Max 32 Parallel
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity.
Communication Protocol: CAN RS485
Nominal Voltage : 51.2V
Charge Voltage: 58.4±0.4V
Rate Capacity : 200Ah
Energy Power : 10240Wh
Max Charging Current: 200A
Max Discharging Current: 200A
Charging Temperature : -5~55°C
Discharging Temperature : -20~60°C
Dimensions(L*W*H) : 480*440*255mm
Terminal Type: Dual M8
Weight : 85KG

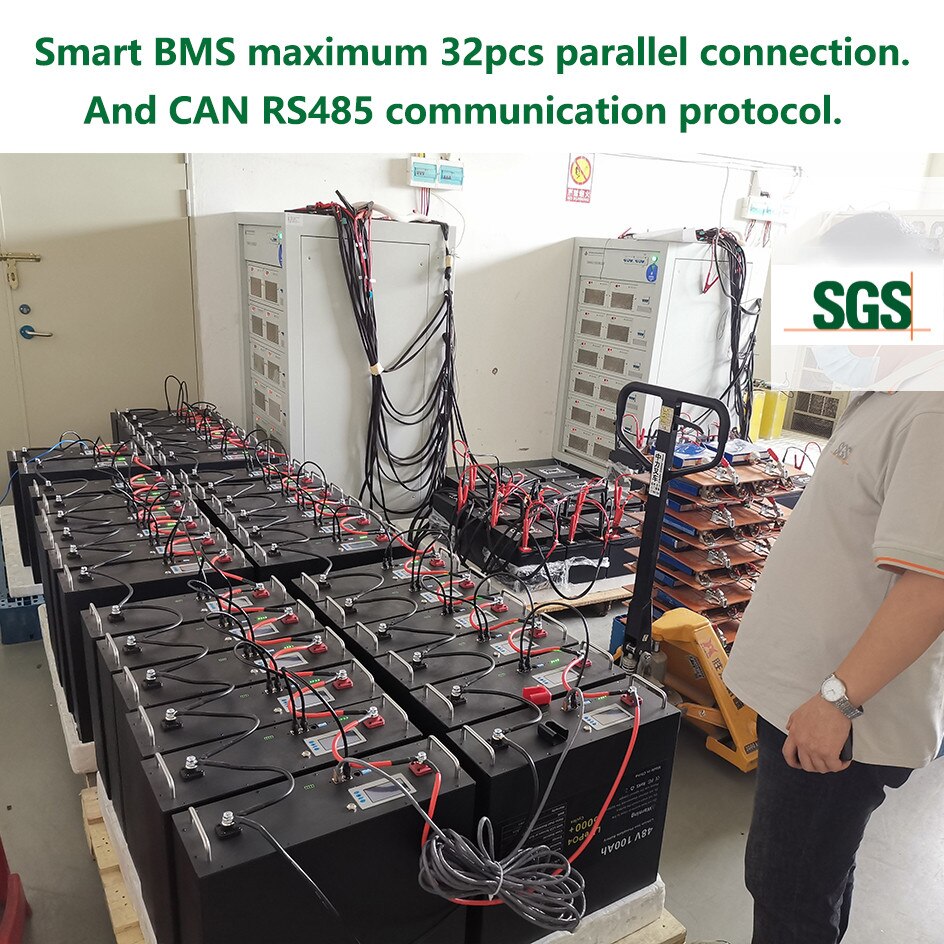

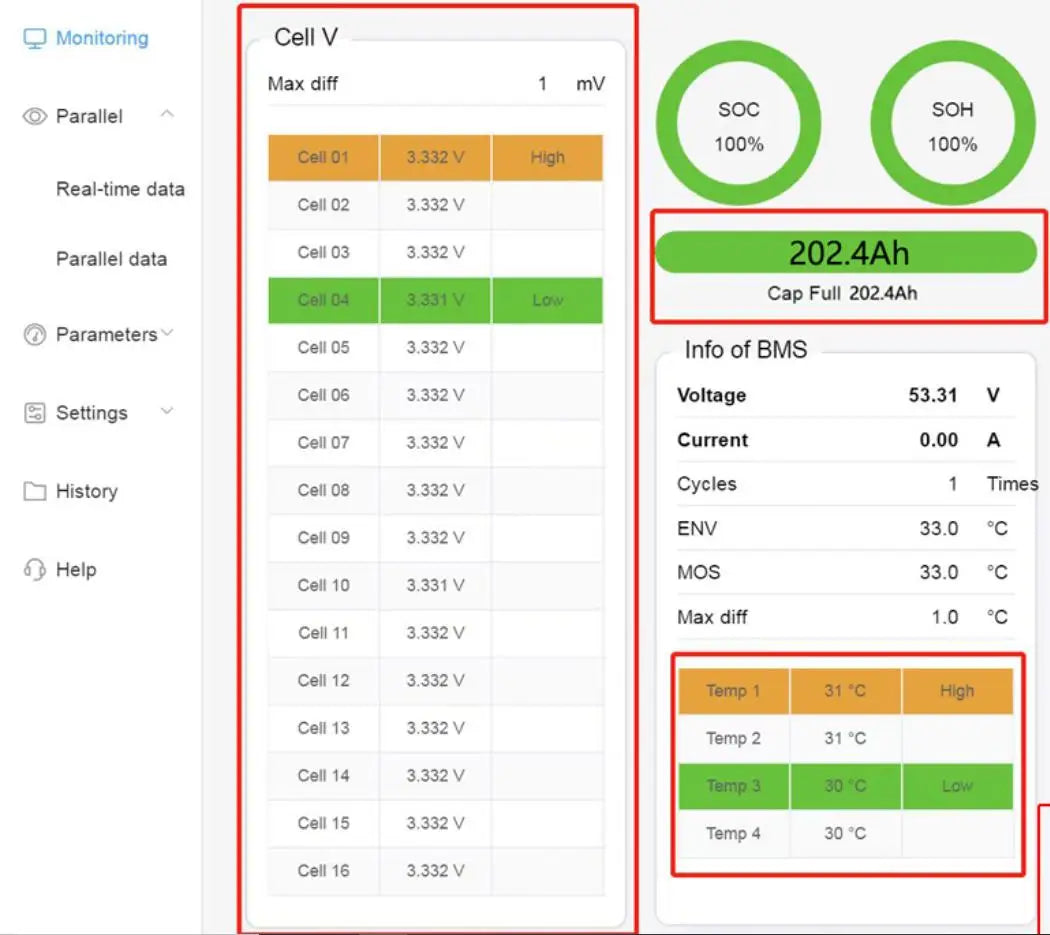

The battery can be connected to a computer to view the specific data of the battery and each cell inside. The internal cells are A-level cells, the pressure difference is very small, and the battery capacity is greater than 200AH

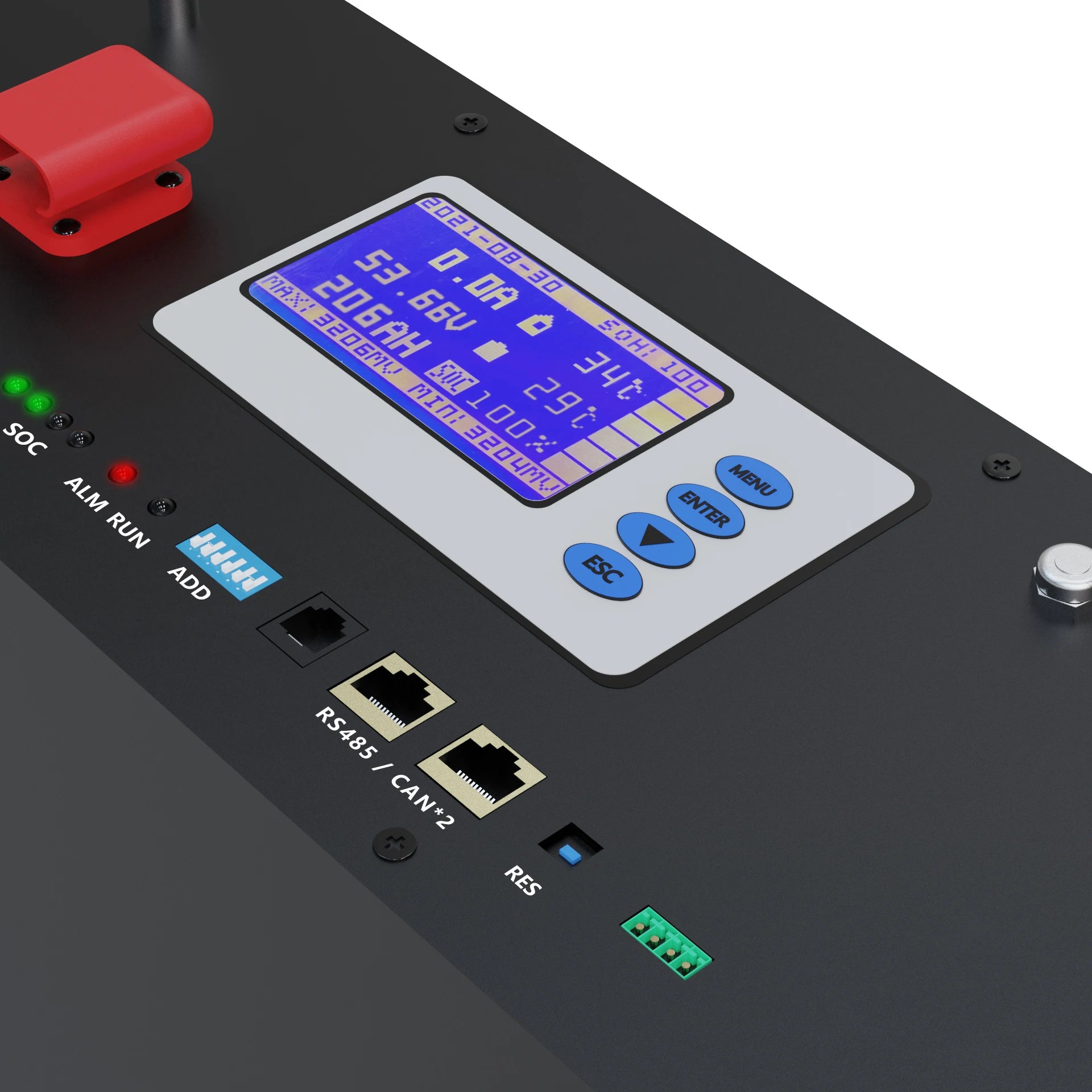

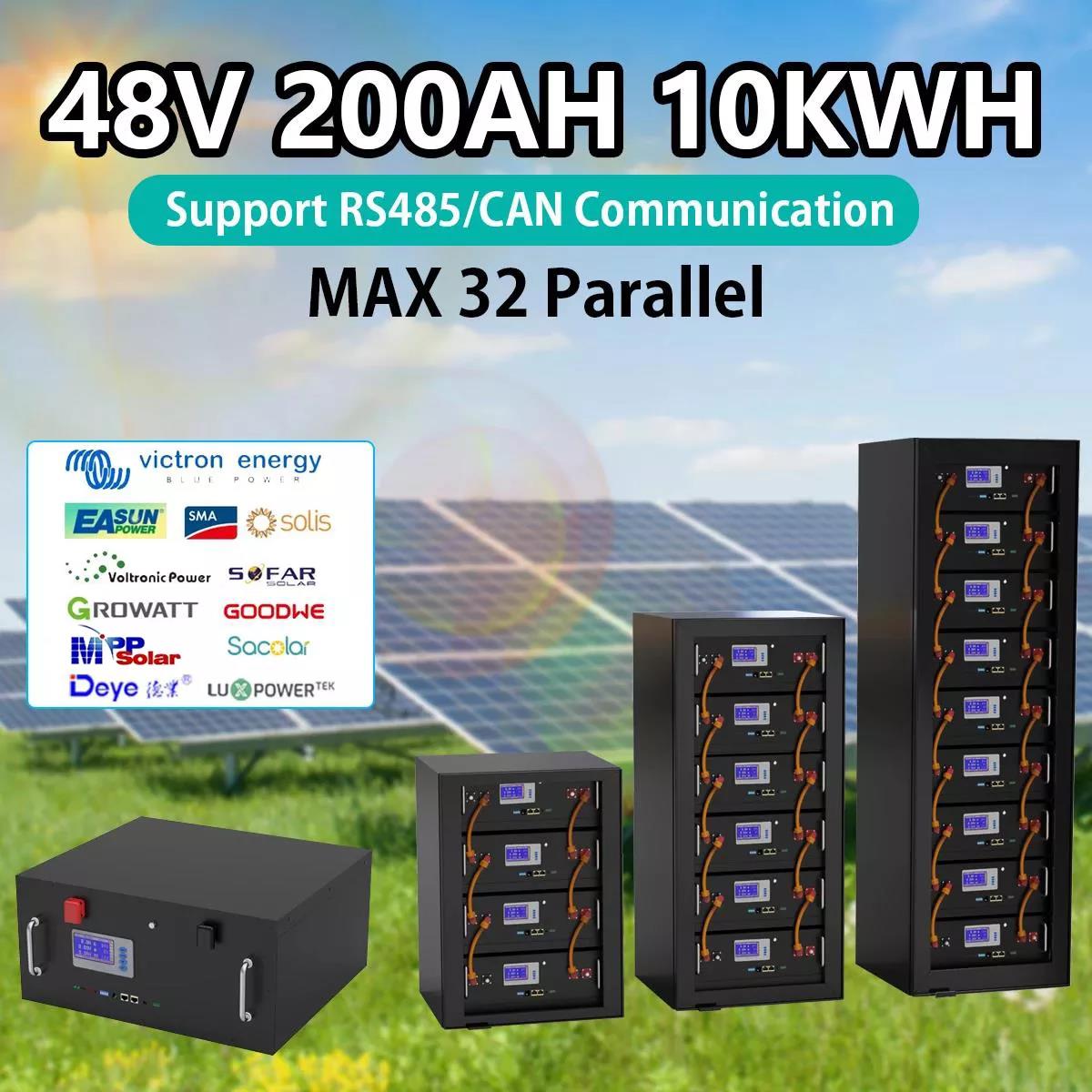

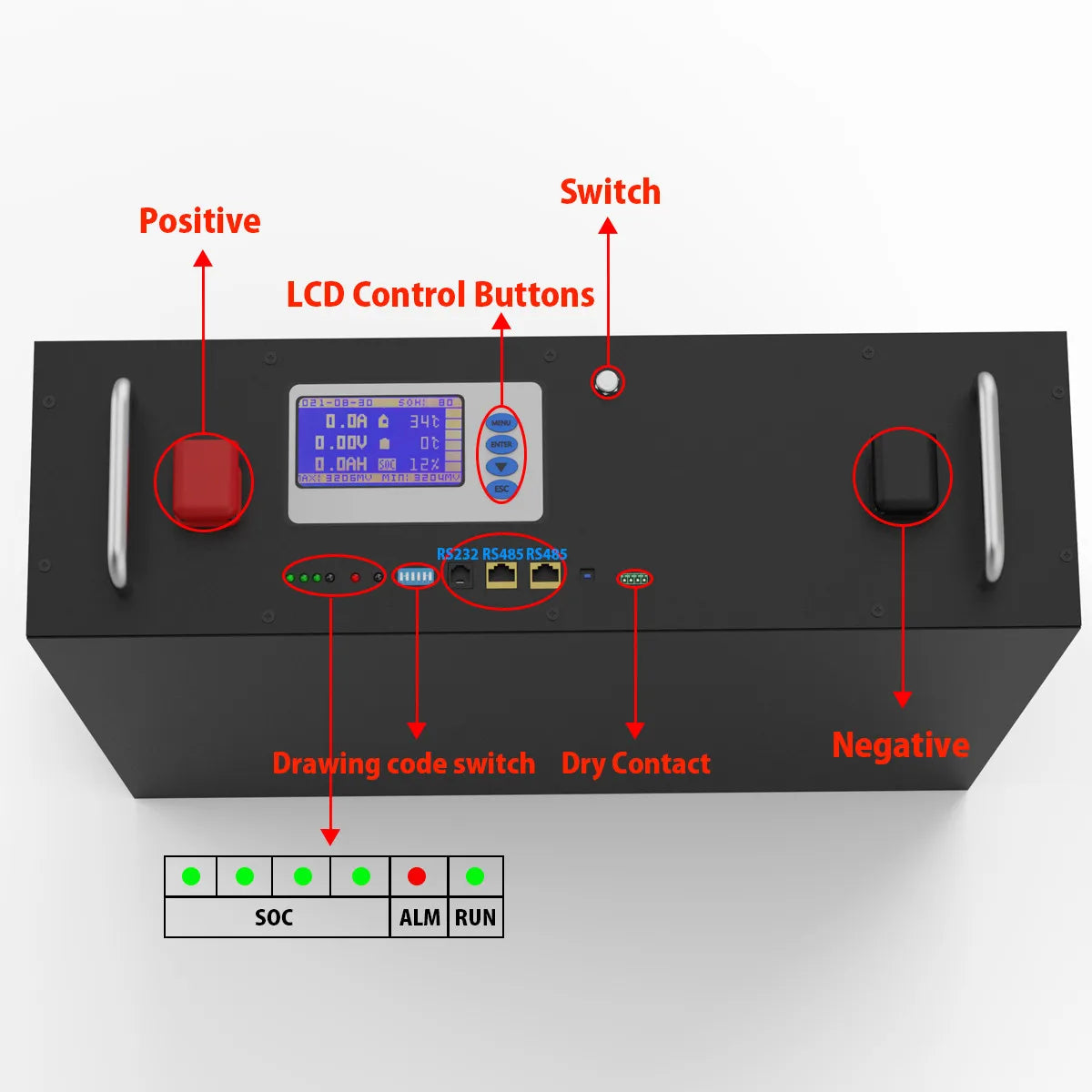

This product features a LiFePO4 battery pack with 48V, 200AH capacity, and 10KW power. It has an LCD display, control buttons, and supports RS232, RS485, and CAN bus communication protocols. The maximum parallel connection is up to 32 units.

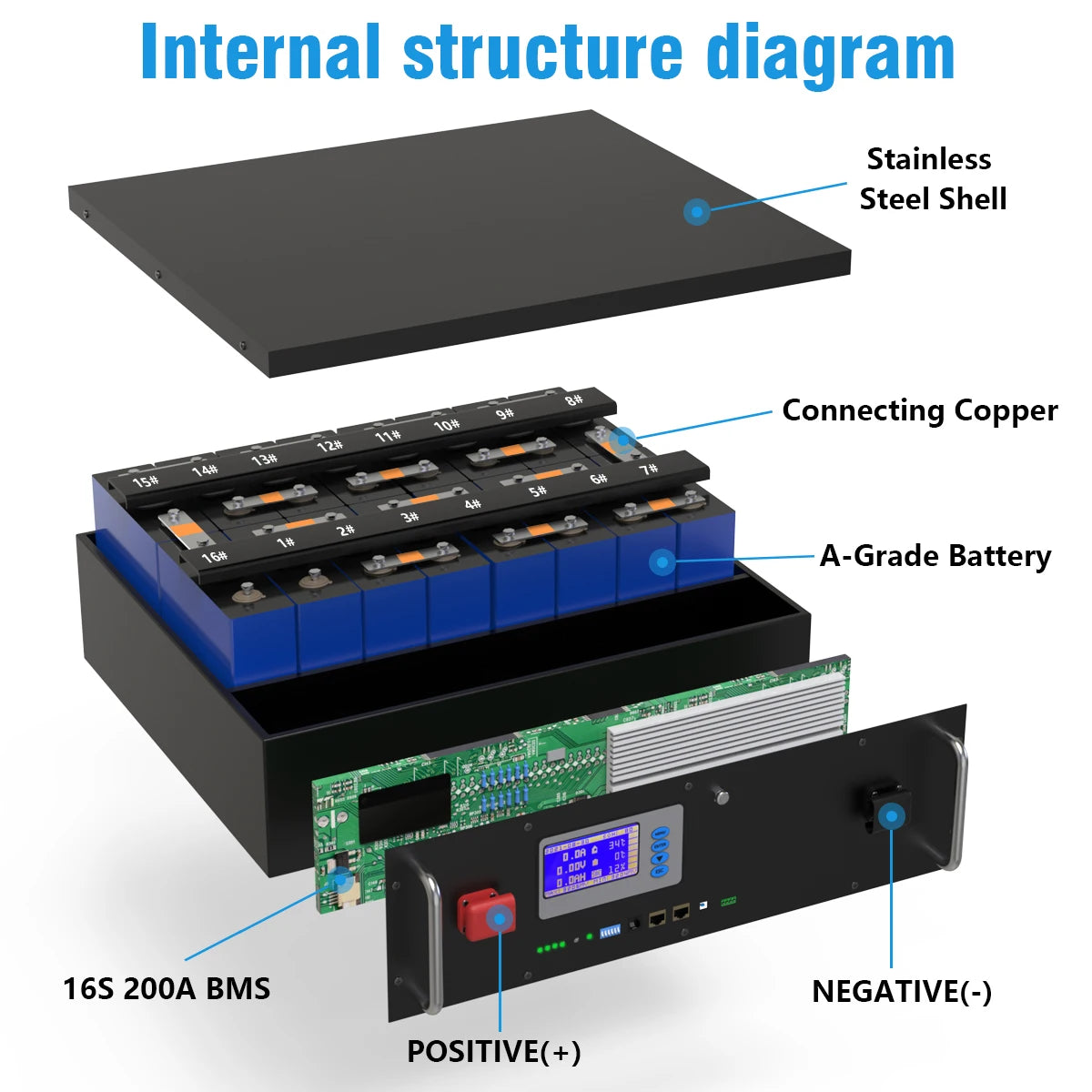

This high-quality battery pack features a stainless steel shell, internal structure with copper connecting wires, and A-grade LiFePO4 cells. It has a maximum capacity of 200Ah and supports up to 32 parallel connections for inverter applications.

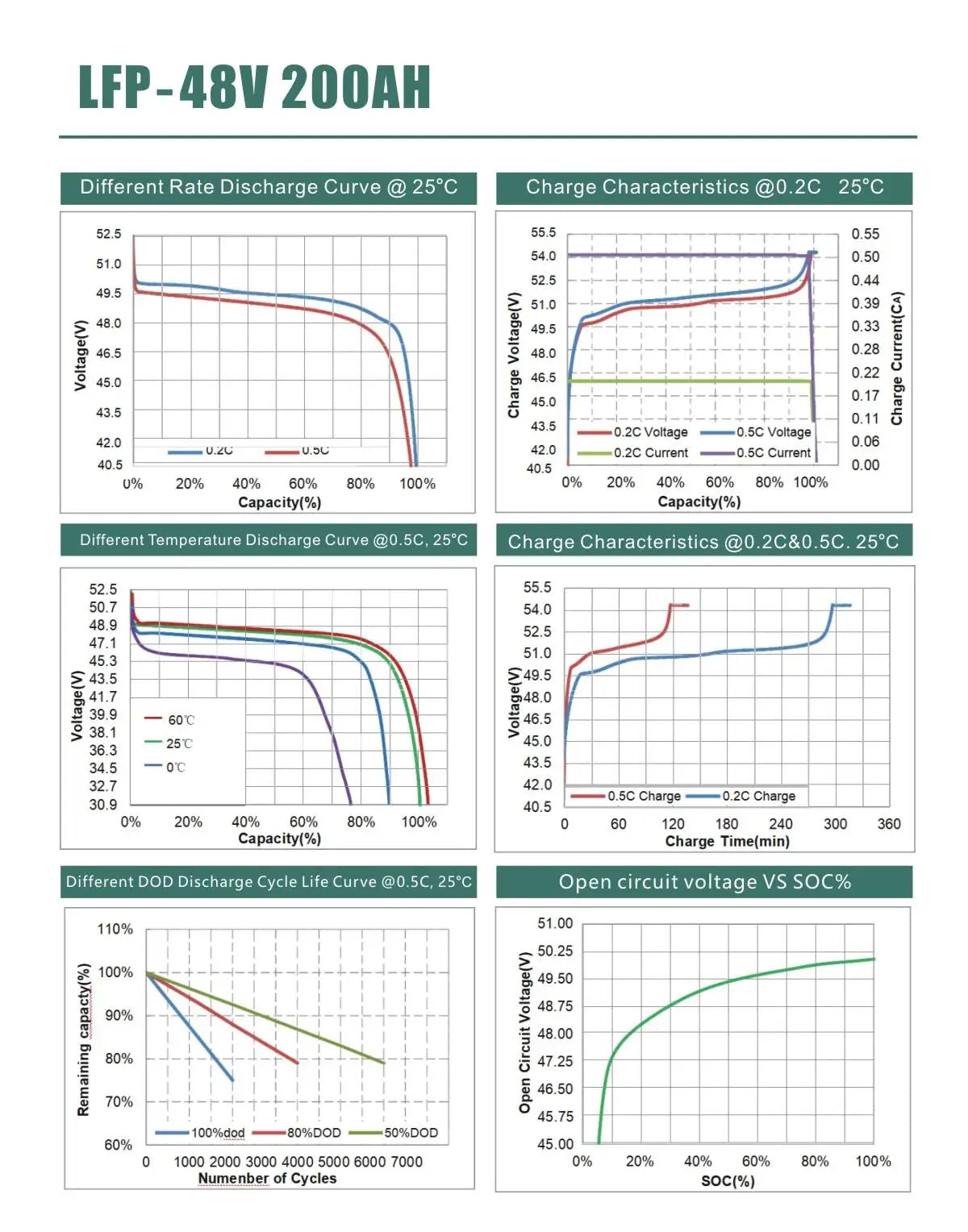

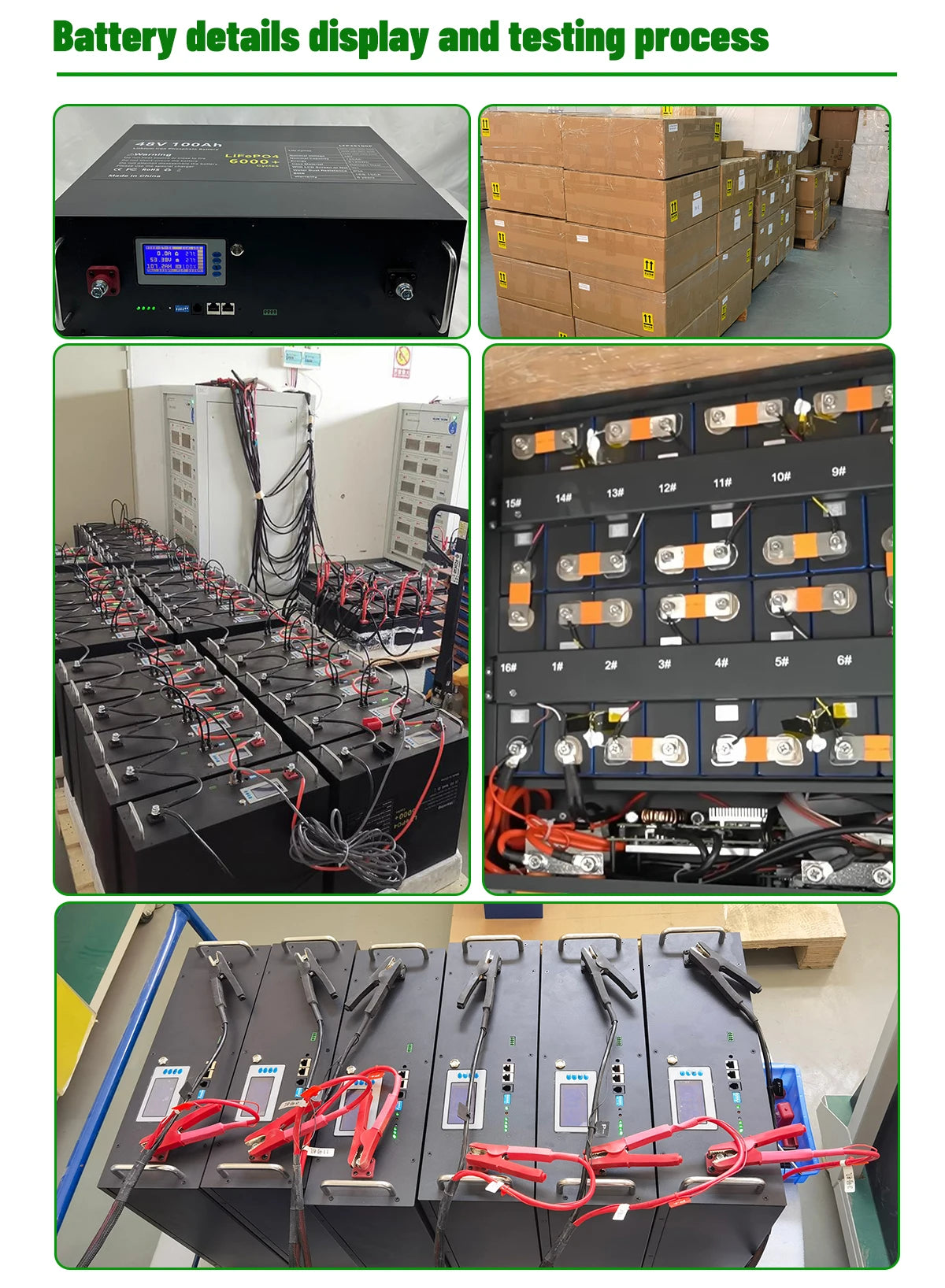

Display and test results: FM = 232.089V, SLON 10% at 91T10/136421V, ICOR = 61%.

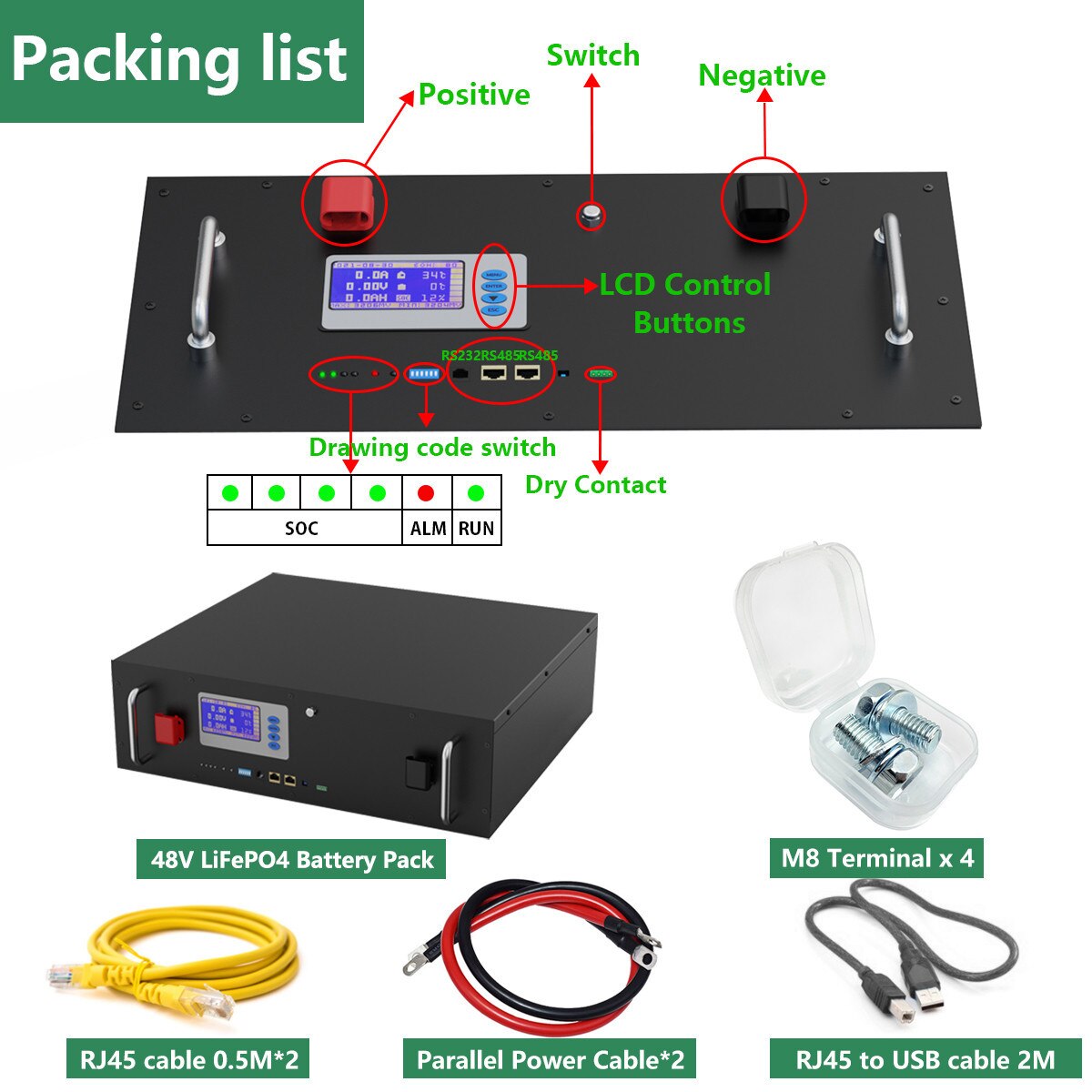

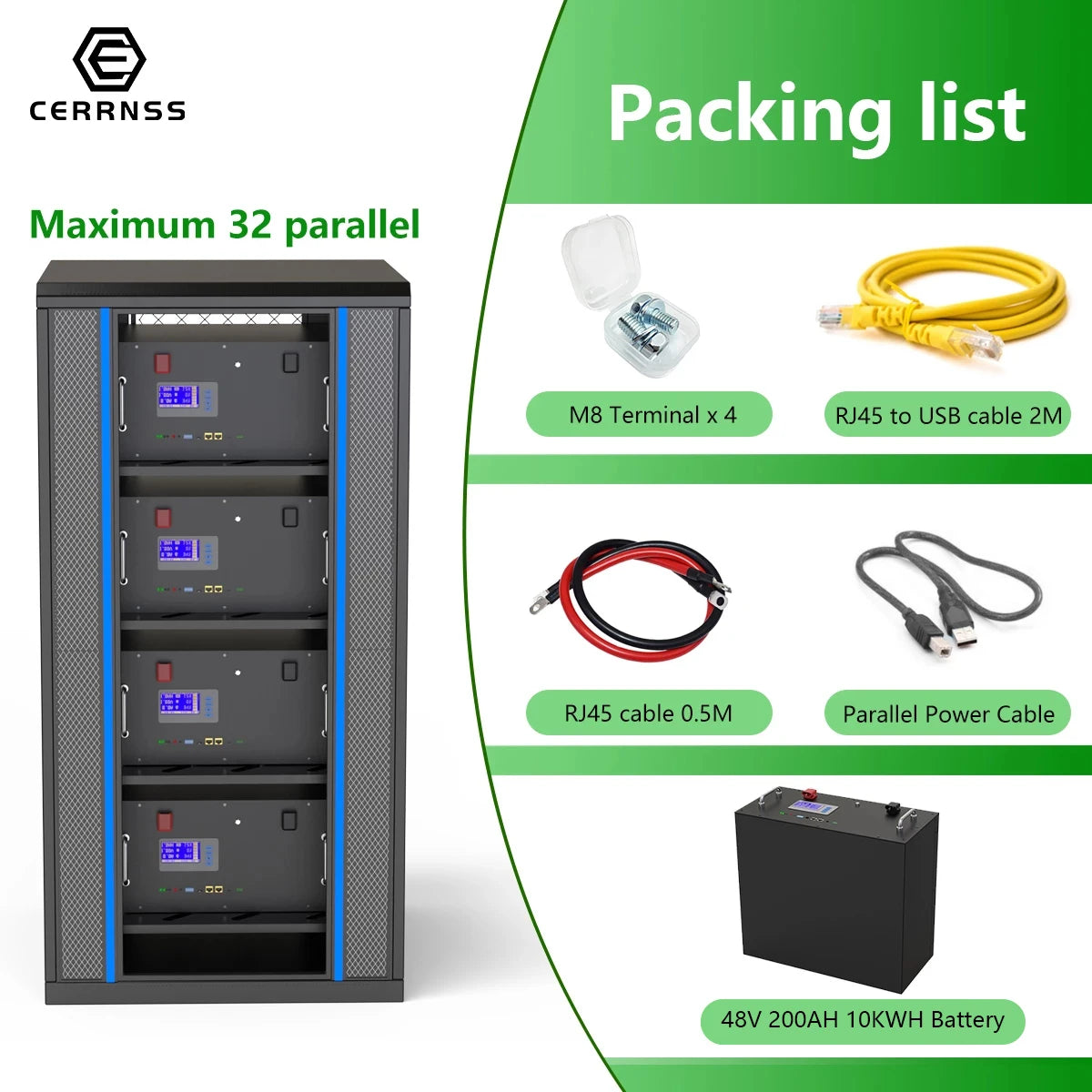

Packaging includes: maximum 32-parallel terminals, 0.5m parallel power cables, and accessories (RJ45 to USB cable, M8 terminal). The pack contains one 48V 200Ah 10kW LiFePO4 battery.

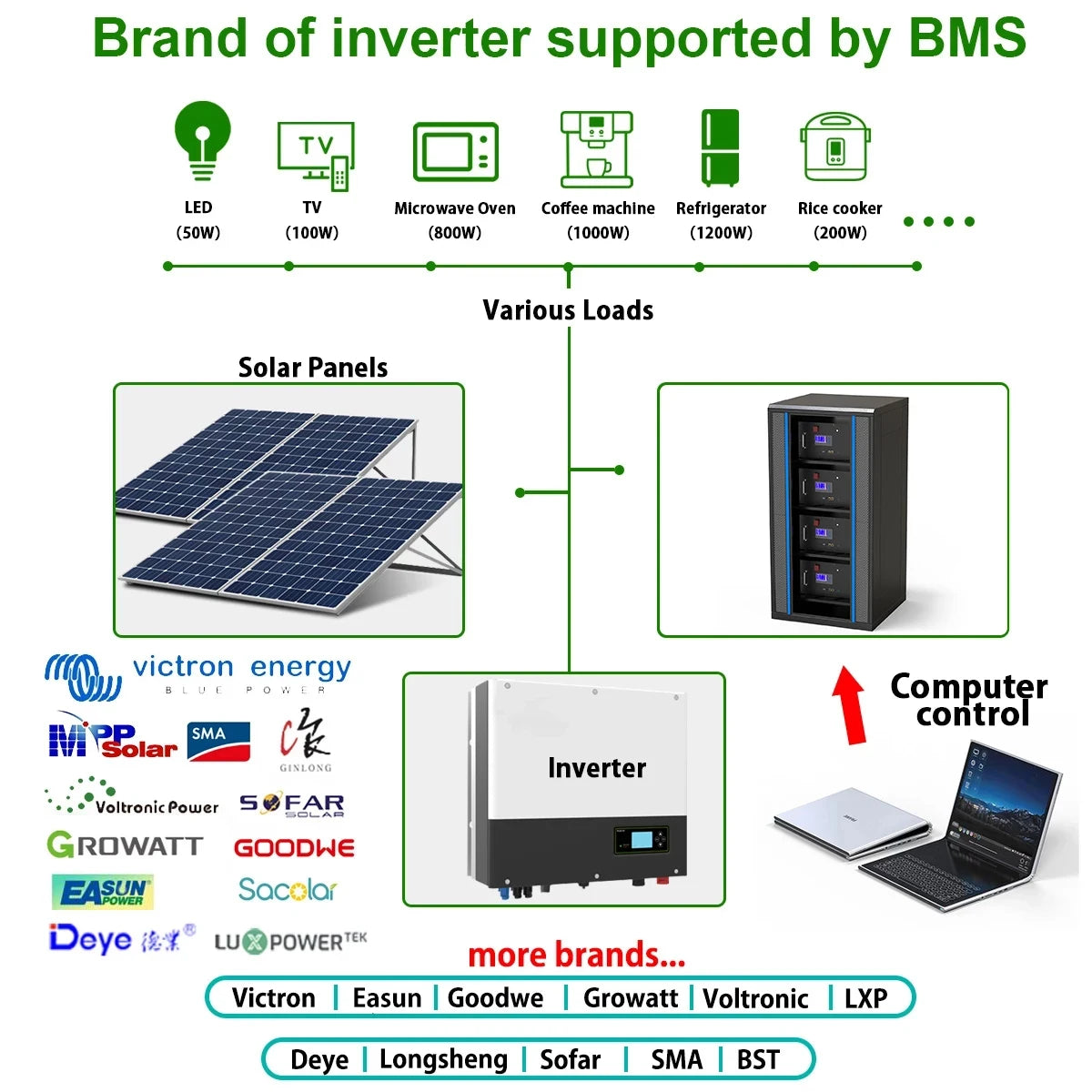

Suitable for base stations, UPS systems, commercial/industrial applications, grid-scale energy storage, and residential use in RVs, golf carts, or household energy storage systems.
