Mono solar cell 100w 200w flexible solar panel kit with 10A/20A solar charge controller 12v solar panels for RV/boat/car/camping
Mono solar cell 100w 200w flexible solar panel kit with 10A/20A solar charge controller 12v solar panels for RV/boat/car/camping
206 orders in last 30 days
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping:Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Type: Solar Panel
Size: 1050mm*540mm*2.5mm
Origin: Mainland China
Number of Panels: 1
Number of Cells: 32
Nominal Capacity: 100w
Model Number: bps 32-100
Max. Power: 105
Material: Monocrystalline Silicon
Foldable Solar Panel: No
Flexible Solar Panel: Yes
Certification: CE
Brand Name: JINGYANGPV
10A 12V/24V solar controller: 5M extension solar cable; red and black
100w Solar panel DIY Solar System Kits 100W flexible solar panel 1*10A solar controller 1 set 3M cable 12v solar charger
Dear Buyer, pls kindly notice:
We have four types of packages:

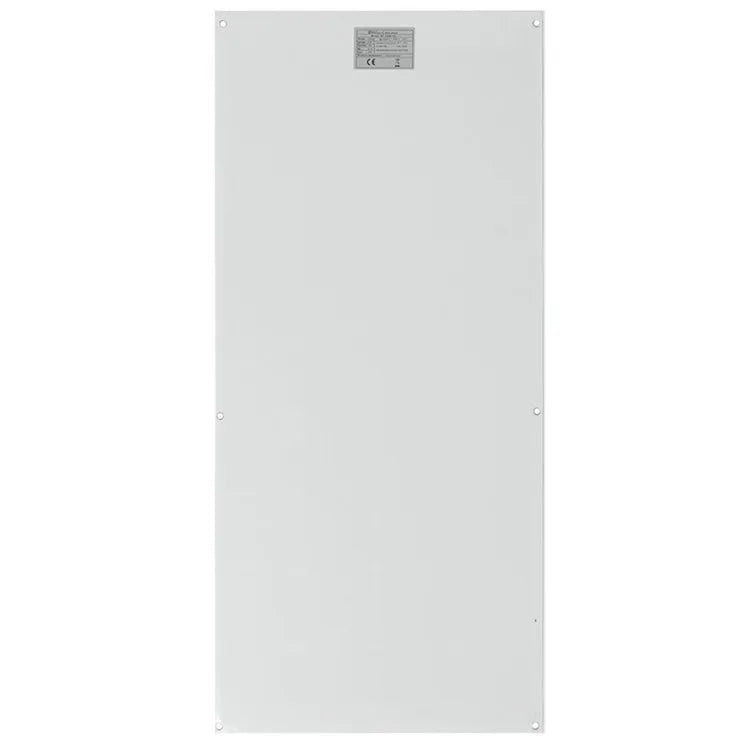

Type 1: 100W PET Flexible Solar Panel
1, Flexible solar panel 100w, 1pcs; size: 1050MM*540MM*2.5MM
Type 2: 200W PET Flexible Solar Panel
1, Flexible solar panel 100w, 2pcs; size: 1050MM*540MM*2.5MM
Type 3: 100W system DC
1, Flexible solar panel 100w, 1pcs; size: 1050MM*540MM*2.5MM.
2, 10A, 12V/24V Auto lcd pwm solar charge controller; 1pcs

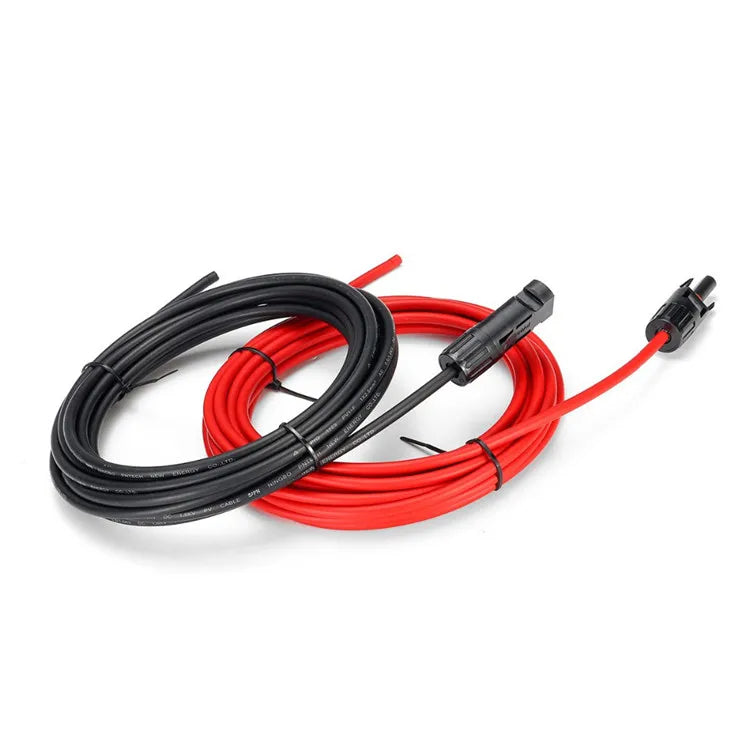

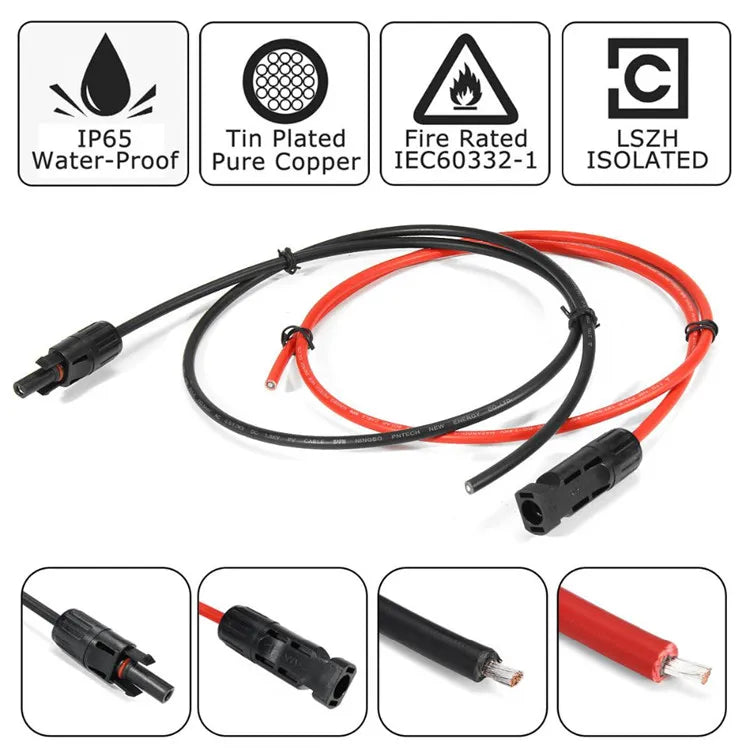

3, 1 Set 3M Extension Solar Cable for rechargeable battery

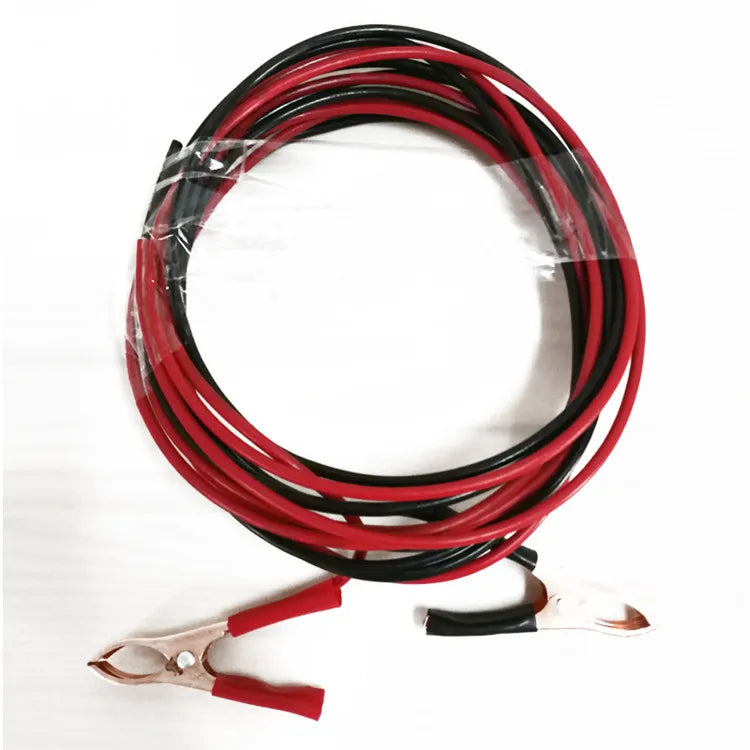

4, 1 Set 3m solar battery cable with alligator

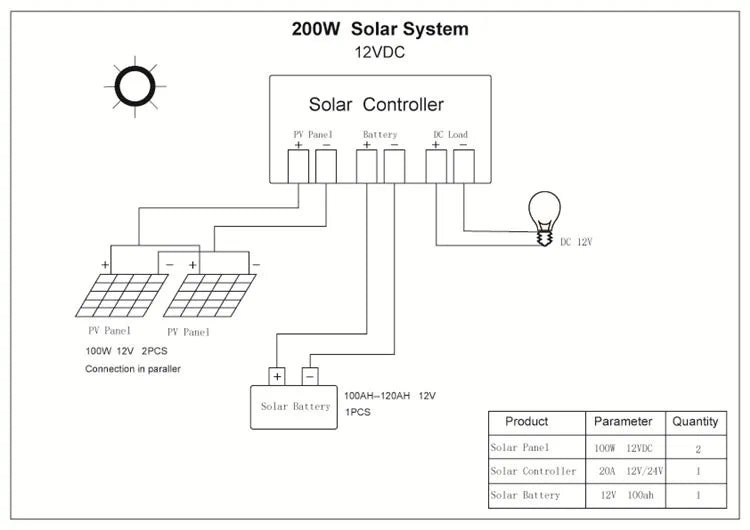

Type 4: 200W system DC
1, Flexible solar panel 100w, 2pcs; size: 1050MM*540MM*2.5MM.
2, 20A, 12V/24V Auto lcd pwm solar charge controller; 1pcs
3, 1 Set 3M Extension Solar Cable for rechargeable battery
4, 1 Set 3m solar battery cable with alligator
5, 1 set Y type connector: male and female
100W Solar Panel and 200W Solar Panel don't include accessories,please kindly notice!

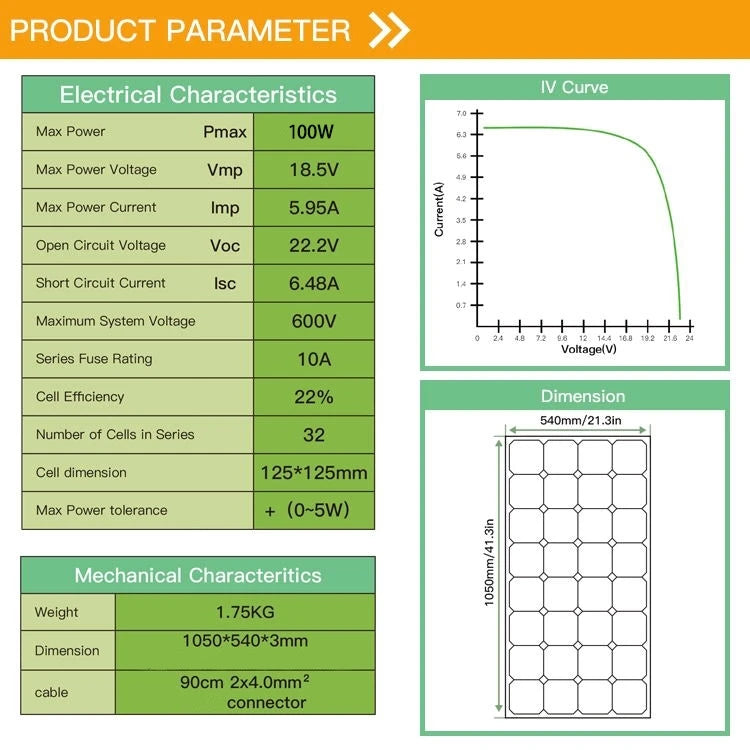

Parameter:

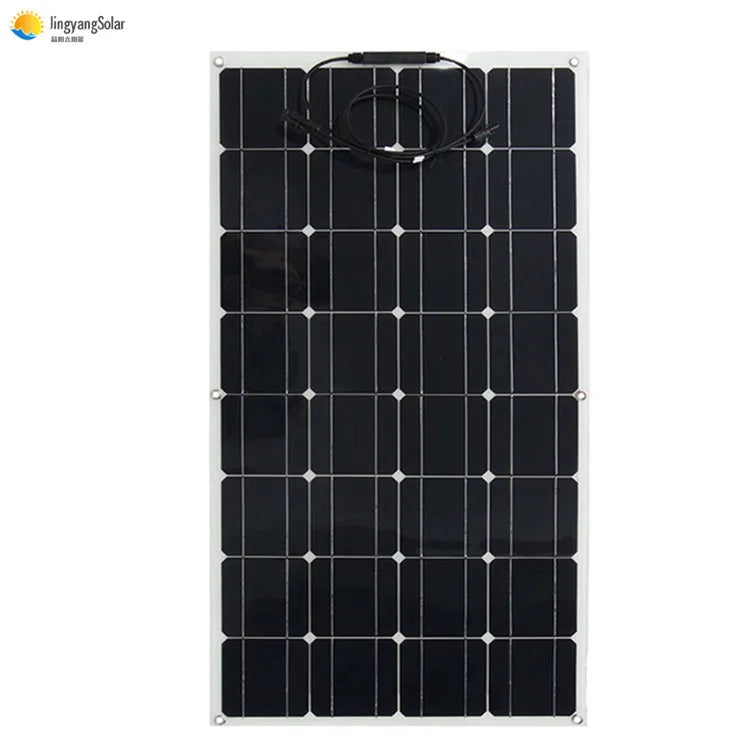

100W FLEXIBLE Solar Panel | ||||
Product |
semi flexible Solar Panel |
Model |
BPS32-100 |
|
|
Peak-power (W) |
100W |
||
VPM (V) |
18V |
|||
Maximum current (A) |
5.5A |
|||
Voc (V) |
20V |
|||
Isc (A) |
6.1A |
|||
Maximum system voltage (V) |
1000V |
|||
Cells conversion (%) |
23.5% |
|||
moduleConversion (%) |
23.5% |
|||
Cells type |
high efficiency solar cell |
|||
Cells String number(PCS) |
Not limited |
|||
Cells specification (mm) |
125*125 |
|||
peak-power temperature coefficient Pm (%/℃) |
-0.45%/℃ |
|||
Voc temperature coefficient(%/℃) |
-0.35%/℃ |
|||
tolerance(%) |
±5% |
Isc temperature coefficient(%/℃) |
+0.05%/℃ |
|
Working temperature |
-20℃~65℃ |
Test standard |
Am1.5 25℃ 1000W/m2 |
|
NET Weight |
1.8KG/4.86Ibs/77.95oz |
Specification: Extending Size |
105*54*0.3CM |
|
The structure of Solar cells |
PET+ EVA +MONO solar cell+ EVA+TPT |
|||
accessories |
Cable with crocodile clips(optional) |
|||
Output connector:male and female connector | ||||
Lead cable requirements: Resistance to high and low temperature, anti-sunshine exposure |

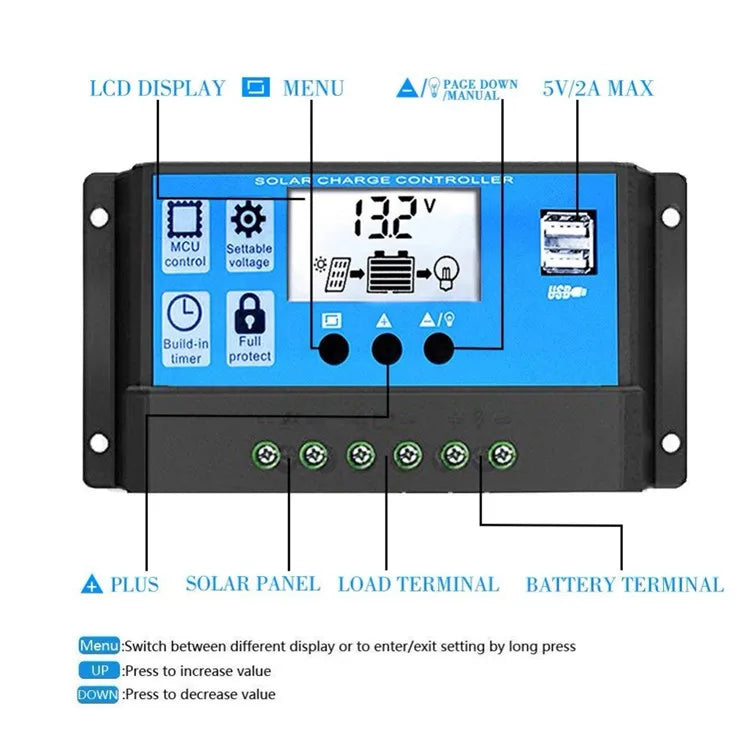

PWM Solar Controller 20A 12V/24V Auto
--------Parameter
MODEL |
10A |
20A |
30A |
40A |
50A |
60A |
Battery Voltage |
12V 24V Auto |
|||||
Charging Current |
10A |
20A |
30A |
40A |
50A |
60A |
Discharging Current |
10A |
10A |
10A |
20A |
30A |
30A |
Max Solar input |
48V(for 24V battery) 24V(for 12V battery) |
|||||
Equalization |
14.4V(Sealed) 14.2V(Gel) 14.6V(Flood) |
|||||
Float charge |
13.7V(defaul,adjustable) |
|||||
Discharge stop |
10.7V(defaul,adjustable) |
|||||
Discharge reconnect |
12.6V(defaul,adjustable) |
|||||
Charge reconnect |
13V |
|||||
Voltage of open light |
Solar Panel 8V(Light lights delay) |
|||||
Voltage of close light |
Solar Panel 8V(Light off delay) |
|||||

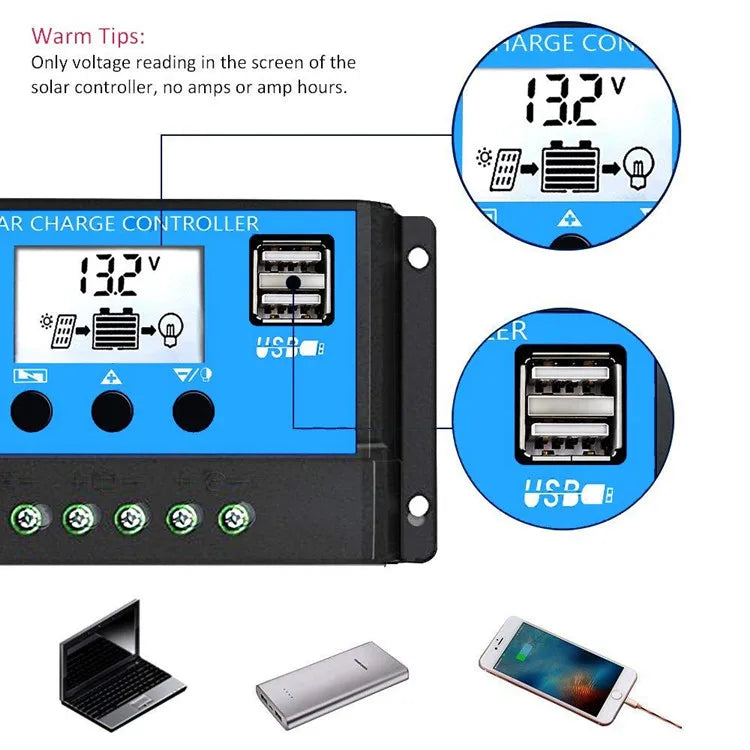

USB output |
5V/3A |
|||||
Self-consume |
<10mA |
|||||
Operating temperature |
-35°C~+60°C |
|||||
Size |
133.5*70*35mm |
188*90*47mm |
*all red color voltage X2 ,while using 24V system.

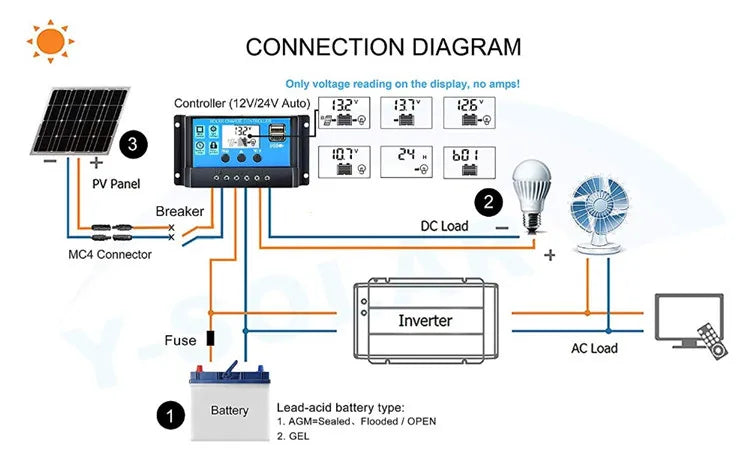

Connection
1.Connect the battery to the charge regulator - plus and minus.
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
The reverse order applies when deinstalling!
An improper sequence order can damage the controller!

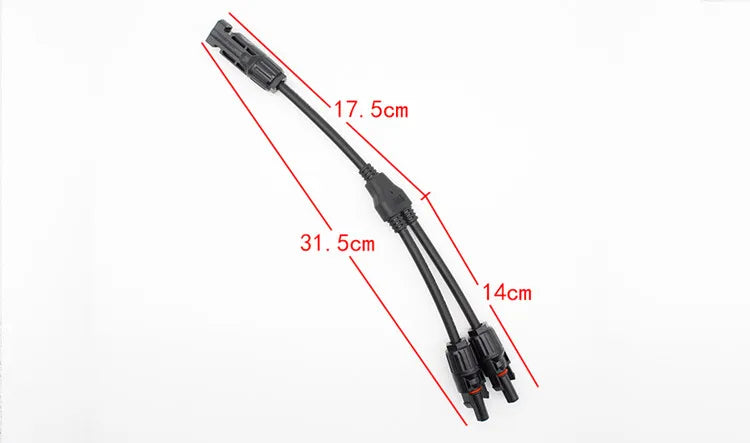

Y Type Solar Cable For 2pcs solar panel connection
Product No. |
SY-BY21-A/B-1 |
Rated Voltage |
TUV1000V DC/ UL 600V DC |
Rated current |
20A~30A |
Suitable cable corss sections |
14 AWG~10AWG (2.5MM2,4.0MM2,6.0MM2) |
Pin dimension |
4.0MM |
Contact material |
Copper,tin plated |
Housing material |
PPO |
Degree of protection |
IP 67 |
Flame class |
UL94V-0 |

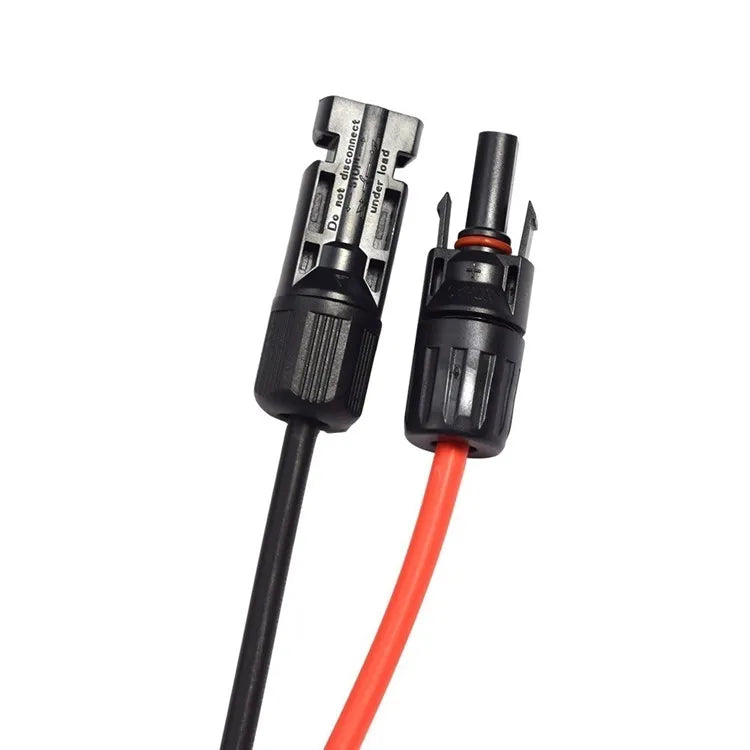

Compatible Branch Connector:
1. Cable Standard:2.5/4.0/6.0mm sq(14/12/10AWG)
2. TUV UL Standard.
3. 1 pair = 2 pcs =1 pcs female+1 pcs male
4. Delivery time: 48 hours after receiving payment.
